Rocker MultiVac 310-MS User manual

MultiVac 310 / 610 - MS
Aluminum Multi-Branch Manifold
MultiVac 300 / 600 - MS
MultiVac 300 / 600 - MB
MultiVac 301 / 601 - MB
Stainless Steel Multi-Branch Manifold
MultiVac 310 / 610 - MS - T
MultiVac 310 / 610 - MS - A
MultiVac 301 / 601 - MB - T
MultiVac 301 / 601 - MB - A
Vacuum Filtration System
Please read this instruction manual before using this product.
DOMINIQUE DUTSCHER SAS

1
Please read this manual carefully before installing and operating. Failure to follow
or any modification may result in potential hazard. We are not responsible for any
injury or damage caused by any non-intended purposes and modifying without
authorization.
1. Check the voltage specified on the name plate and ensure it matches the line
voltage in your location.
2. Install the manifold and system in a clean, dust-less and ventilated area.
3. Never use this instrument with any corrosive, chemical or flammable liquid.
4. Do not pump any solution without filtration to avoid clogging.
5. Please discard packing material according to local related regulations.
6. Operating condition
(a) Ambient temperature: 5~ 40 °C
(b) Relative humidity: 80% RH Max.
(c) Power supply of Alligator 200: 100~240V, 50/60Hz
Power supply of Rocker 400: 100~120V, 50/60Hz or 200~240V, 50/60Hz
(d) Altitude: up to 2000 m
(e) Pollution degree: II (f) IP20
(g) Overvoltage category: I (h) Indoor use
Please check if the package is complete without any damage before unpacking.
When unpacking the instrument, please make sure you have all accessories that
indicated on the list. If there is any problem, please keep the serial number along
with packing case and contact your local distributor immediately for assistance.
Unpacking
Important Notice
DOMINIQUE DUTSCHER SAS

2

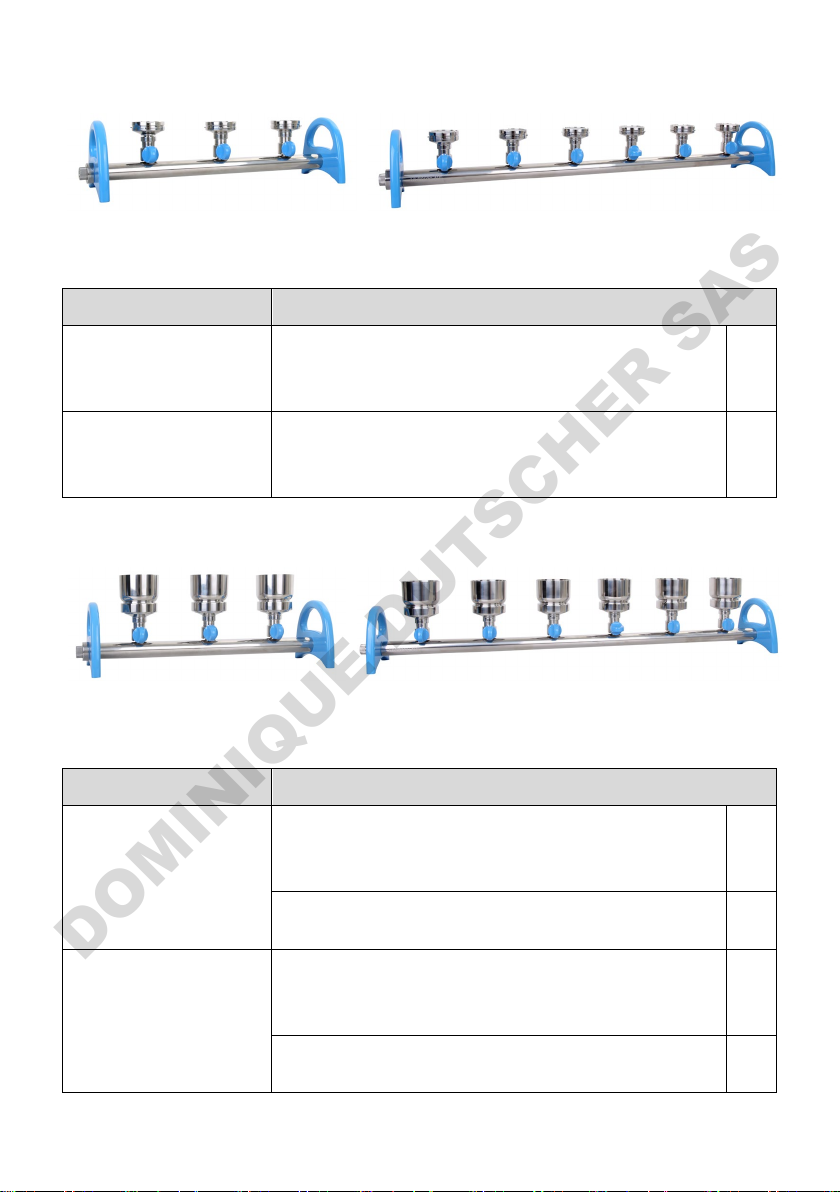

I. Aluminum Multi-Branch Manifold
MultiVac 310 - MS MultiVac 610 - MS
Model Standard Package Includes:
MultiVac 310 - MS 3 Places Aluminum Manifold
with No. 8 Stopper Funnel Adaptor x 1
MultiVac 610 - MS 6 Places Aluminum Manifold
with No. 8 Stopper Funnel Adaptor x 1
II. Stainless Steel Multi-Branch Manifold
MultiVac 300 - MS MultiVac 600 - MS
Model Standard Package Includes:
MultiVac 300 - MS 3 Places Stainless Steel Manifold
with No. 8 Stopper Funnel Adaptor x 1
MultiVac 600 - MS 6 Places Stainless Steel Manifold
with No. 8 Stopper Funnel Adaptor x 1
DOMINIQUE DUTSCHER SAS

3
MultiVac 300 - MB MultiVac 600 - MB
Model Standard Package Includes:
MultiVac 300 - MB 3 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
MultiVac 600 - MB 6 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
MultiVac 301 - MB MultiVac 601 - MB
Model Standard Package Includes:
MultiVac 301 - MB
3 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
Rocker, 100 ml SF Stainless Steel Funnel x 3
MultiVac 601 - MB
6 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
Rocker, 100 ml SF Stainless Steel Funnel x 6
DOMINIQUE DUTSCHER SAS

4
III. Vacuum Filtration System (with Rocker 400 Vacuum Pump)
MultiVac 310 - MS - T MultiVac 610 - MS - T
Model Standard Package Includes:
MultiVac 310 - MS - T
Aluminum
Vacuum Filtration System
3 Places Aluminum Manifold
with No. 8 Stopper Funnel Adaptor x 1
MF 3, 300 ml Magnetic Filter Holder with Lid Kit x 3
Rocker 400, Oil Free Vacuum Pump x 1
4000 ml PP Vacuum Bottle with drain x 1
Silicone Tube x 2
MultiVac 610 - MS - T
Aluminum
Vacuum Filtration System
6 Places Aluminum Manifold
with No. 8 Stopper Funnel Adaptor x 1
MF 3, 300 ml Magnetic Filter Holder with Lid Kit x 6
Rocker 400, Oil Free Vacuum Pump x 1
4000 ml PP Vacuum Bottle with drain x 1
Silicone Tube x 2
DOMINIQUE DUTSCHER SAS

5

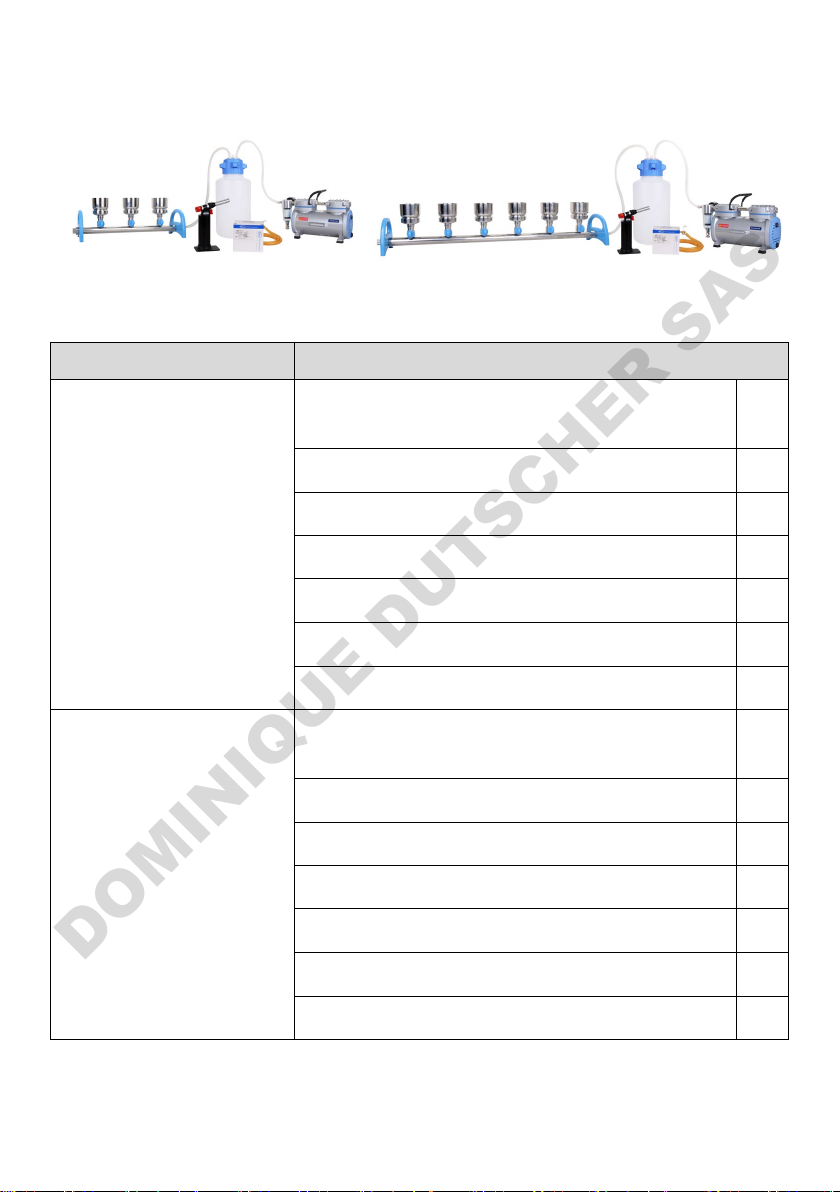

MultiVac 301 - MB - T MultiVac 601 - MB - T
Model Standard Package Includes:
MultiVac 301 - MB - T
Stainless Steel
Vacuum Filtration System
3 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
Rocker, 100 ml SF Stainless Steel Funnel x 3
Rocker 400, Oil Free Vacuum Pump x 1
Dragon 100, Torch Burner x 1
4000 ml PP Vacuum Bottle with drain x 1
Pall, MCE Membrane, 47 mm, 0.45 μm, 200/PK x 1
Silicone Tube x 2
MultiVac 601 - MB - T
Stainless Steel
Vacuum Filtration System
6 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
Rocker, 100 ml SF Stainless Steel Funnel x 6
Rocker 400, Oil Free Vacuum Pump x 1
Dragon 100, Torch Burner x 1
4000 ml PP Vacuum Bottle with drain x 1
Pall, MCE Membrane, 47 mm, 0.45 μm, 200/PK x 1
Silicone Tube x 2
DOMINIQUE DUTSCHER SAS

6

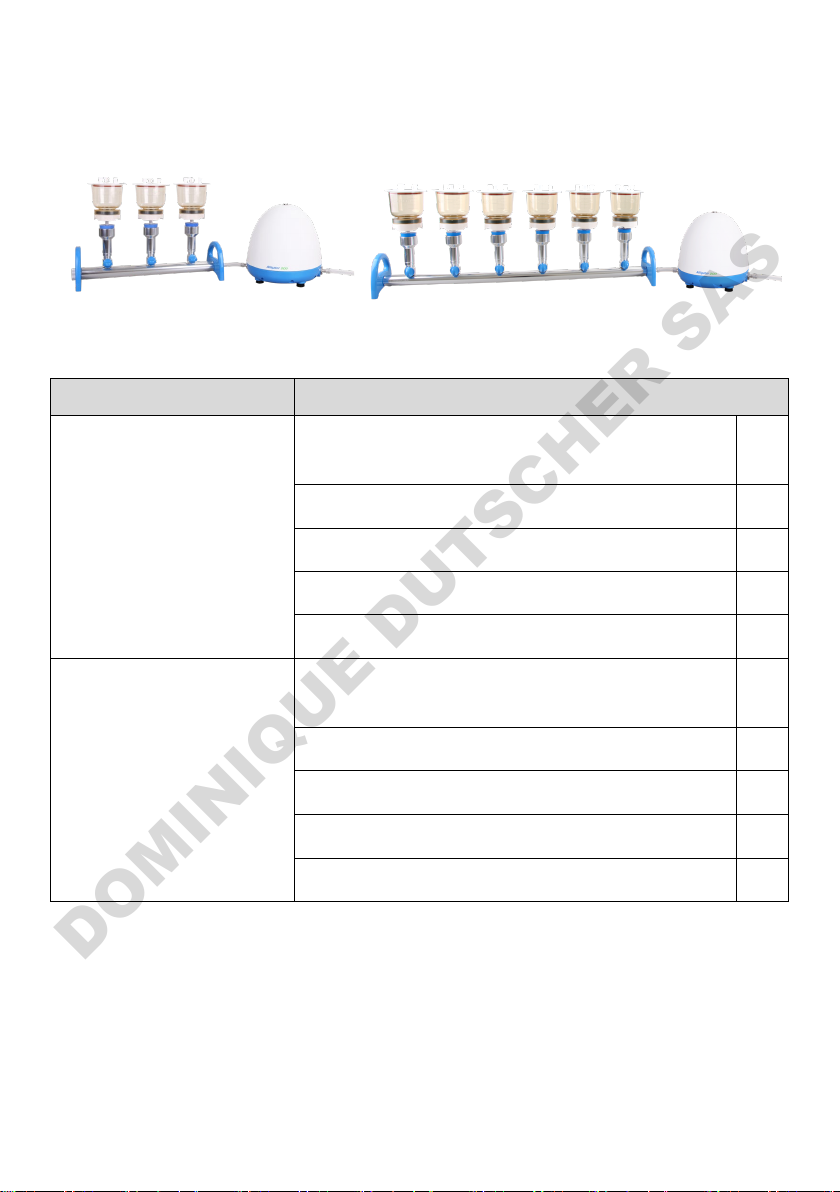

IV. Vacuum Filtration System (with Alligator 200 Liquid Pump)
MultiVac 310 - MS - A MultiVac 610 - MS - A
Model Standard Package Includes:
MultiVac 310 - MS - A
Aluminum
Vacuum Filtration System
3 Places Aluminum Manifold
with No. 8 Stopper Funnel Adaptor x 1
MF 3, 300 ml Magnetic Filter Holder with Lid Kit x 3
Alligator 200, Diaphragm Liquid Pump x 1
Silicone Tube x 1
Silicone Tube x 1
MultiVac 610 - MS - A
Aluminum
Vacuum Filtration System
6 Places Aluminum Manifold
with No. 8 Stopper Funnel Adaptor x 1
MF 3, 300 ml Magnetic Filter Holder with Lid Kit x 6
Alligator 200, Diaphragm Liquid Pump x 1
Silicone Tube x 1
Silicone Tube x 1
DOMINIQUE DUTSCHER SAS

7

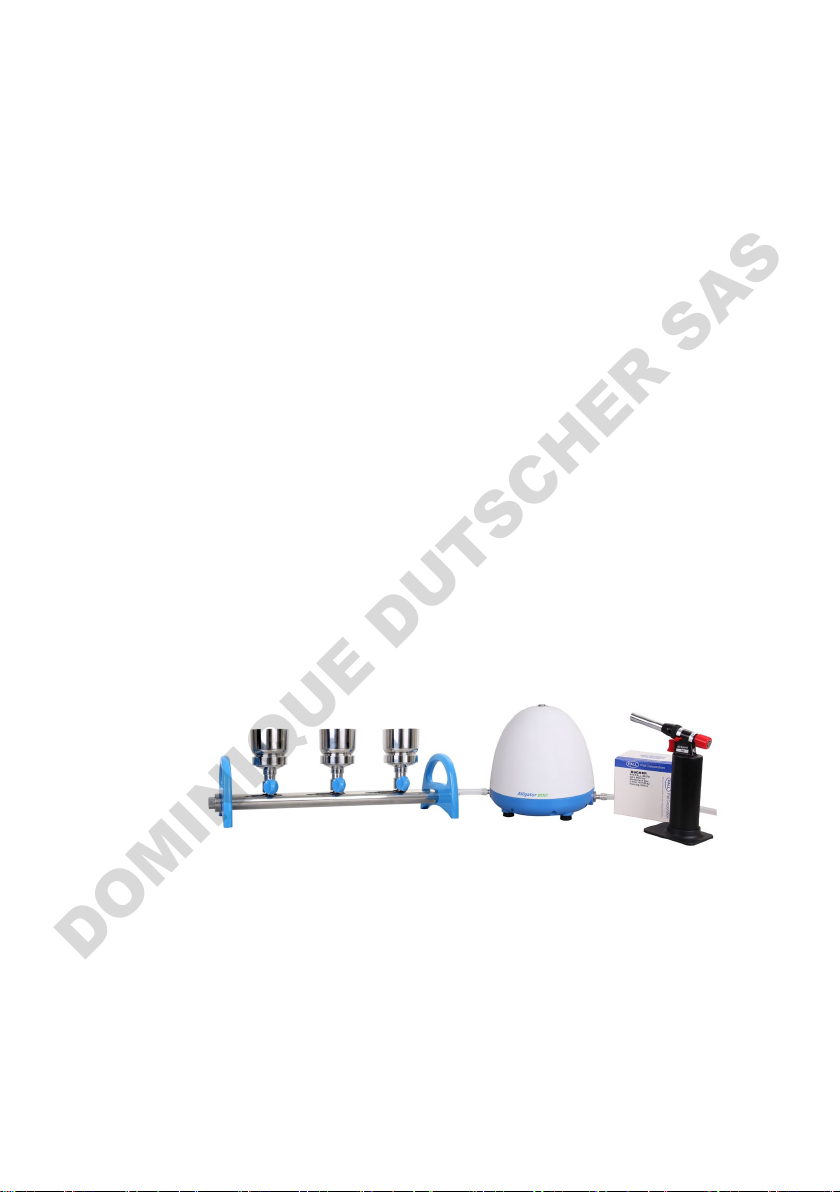

MultiVac 301 - MB - A MultiVac 601 - MB - A
Model Standard Package Includes:
MultiVac 301 - MB - A
Stainless Steel
Vacuum Filtration System
3 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
Rocker, 100 ml SF Stainless Steel Funnel x 3
Alligator 200, Diaphragm Liquid Pump x 1
Dragon 100, Torch Burner x 1
Pall, MCE Membrane, 47 mm, 0.45 μm, 200/PK x 1
Silicone Tube x 1
Silicone Tube x 1
MultiVac 601 - MB - A
Stainless Steel
Vacuum Filtration System
6 Places Stainless Steel Manifold
with Rocker SF Funnel Adaptor x 1
Rocker, 100 ml SF Stainless Steel Funnel x 6
Alligator 200, Diaphragm Liquid Pump x 1
Dragon 100, Torch Burner x 1
Pall, MCE Membrane, 47 mm, 0.45 μm, 200/PK x 1
Silicone Tube x 1
Silicone Tube x 2
DOMINIQUE DUTSCHER SAS

8
A. Attention
Both Aluminum and Stainless Steel Multi-Branch Manifold
1. MultiVac manifold can be connected with vacuum pump or liquid pump.
2. When connect with a vacuum pump, it is always recommended to install a
vacuum bottle between the manifold and vacuum pump to prevent liquid
from flowing into the vacuum pump.
3. The outlet direction of the of MultiVac manifold is interchangeable. The outlet
can be disassembled by hand or tool to change into desired direction.
Stainless Steel Multi-Branch Manifold ONLY
4. The adjustable vent valve can avoid “Water Hammer” and help drain
residual liquid in the tube.
5. Adjust the vent valve until smooth if water hammer effect happens. Turn the
vent valve counterclockwise to draw out the remaining liquid after filtration if
necessary.
Installation and Operation
On
Off
DOMINIQUE DUTSCHER SAS

9

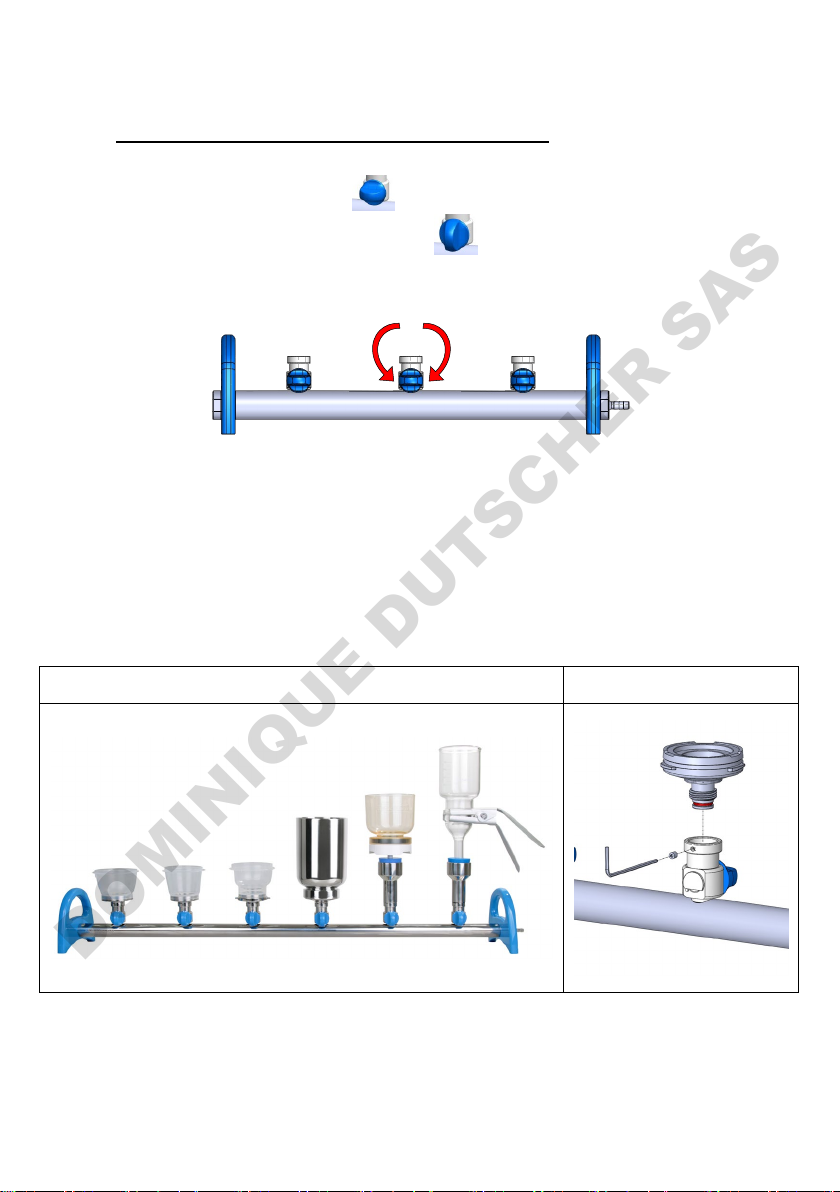

B. Manifold Preparation and Installation
1. Make sure all valves are off before use, rotate the valves
counterclockwise to vertical position for filtration.
2. Stainless Steel Multi-Branch Manifold can easily change the funnel adaptor
to fit desired funnel.
2.1 Loosen the fixing screw with L-Type hex key (2 mm) to change the funnel
adaptor and tighten the screw to prevent new funnel adaptor from rotation.
Compatible with various kinds of funnel and filter holder Replace funnel adaptor
On
Off
DOMINIQUE DUTSCHER SAS

10
3. Installation of Filter Holder and Disposable Funnel
Filter Holder and
Funnel Installation
1 2 3 4 5
• Both Aluminum and Stainless Steel Multi-Branch Manifold
(1) No. 8 Stopper Funnel Adaptor
Compatible with various kinds of filter holders with No. 8 silicone stopper
• Stainless Steel Multi-Branch Manifold only
(2) Rocker SF Funnel Adaptor
Fitting to Rocker SF 100 / 300 / 500 ml funnel, available for fast flame sterilization,
and Pall , Sentino®4870 (100 ml), 4871 (250 ml) plastic funnel.
(3) SS316 Adaptor for Pall Disposable Funnel
Fitting to Pall, Sentino®disposable plastic funnel 4870 (100 ml), 4871 (250 ml)
(4) SS316 Adaptor for Millipore Disposable Funnel
Fitting to Millipore, Microfil®disposable plastic funnel 100 / 250 ml
(5) SS316 Adaptor for Sartorius Disposable Funnel
Fitting to Sartorius, Microsart®disposable plastic funnel 16A07
DOMINIQUE DUTSCHER SAS

11
C. Vacuum Filtration System Installation and Operation
I. Vacuum Filtration System (with Rocker 400 Vacuum Pump)
A. Connect the installed manifold, vacuum bottle and Rocker 400 vacuum
pump with 2 silicone tubes as shown below.
B. Install the membrane in filter holder or funnel as B-3 step.
C. Turn on the pump and pour the sample liquid into the funnel and turn
the valve to “vertical” position to start filtration.
D. After finishing filtration, turn the valve to “off” position and retrieval
the membrane.
E. SF funnel can be fast flame-sterilized by Dragon 100 torch burner or
autoclaved before proceeding next filtration.
Vacuum Filtration System Assembly Diagram
DOMINIQUE DUTSCHER SAS

12
II. Vacuum Filtration System (with Alligator 200 Diaphragm Liquid Pump)
A. Connect the installed manifold and inlet (IN) of Alligator 200 liquid
pump together with silicone tube as shown below.
B. Connect the long silicone tube to outlet (OUT) of Alligator 200 liquid
pump and put another side of silicone tube into sink or container to
drain or collect the waste liquid.
C. Install the membrane in filter holder or funnel as B-3 step.
D. Turn on the pump and pour the sample liquid into the funnel and turn
the valve to “vertical” position to start filtration.
E. After finishing filtration, turn the valve to “off” position and retrieval
the membrane.
F. SF funnel can be fast flame-sterilized by Dragon 100 torch burner or
autoclaved before proceeding next filtration.
The length of silicone tube can be cut as your needed.
Vacuum Filtration System Assembly Diagram
DOMINIQUE DUTSCHER SAS

13
1. Please suck in pure water to clean the tubing after every use and keep
pumping air for at least 3 min to drain out the residual liquid.
2. Pump is not autoclavable, please clean the surface with pure water or 75%
ethanol.
3. MultiVac manifold, filter holder and vacuum bottle are autoclavable (121°C, 1
bar, 20 min). Please keep all control valves, knobs and vent valve at “OPEN”
position to make a complete sterilization. You can also clean the surface of
manifold with pure water or 75% ethanol.
4. Funnels, adaptors, and membrane supports which are made of SS316 can be
fast sterilized by flame or autoclaved (121°C, 1 bar, 20 min).
5. O-ring(s) and silicone tube(s) are consumables, it is recommended to replace
it on a yearly basis or as needed to ensure good operation.
O-ring of Control Valve O-ring of Plug
O-ring of Outlet O-ring of Adaptor
Maintenance
DOMINIQUE DUTSCHER SAS

14
Problem Reason and Solution
Instrument
fails to start
Loose plug Reconnect plug to power supply.
Switch is broken Contact distributor for assistance.
Poor vacuum
Outlet is blocked Clean or stretch the outlet tube.
Funnel adaptor O-ring is broken Replace the O-ring
Inner tube leakage Contact distributor for assistance.
Internal wiring loose Contact distributor for assistance.
Low filtration speed
Connection between funnel and funnel adaptor is not
sealed Reconnect to ensure they’re tightly sealed.
Wrong membrane Change a proper one.
Membrane is blocked Replace a new membrane.
Funnel adaptor O-ring is broken Replace the O-ring
Silicone tube is bent too much Replace silicone tube
Internal wiring loose Contact distributor for assistance.
Troubleshooting
DOMINIQUE DUTSCHER SAS

190200-20 Rocker's SF Funnel Adaptor
190100-71 Silicone Stopper Funnel Adaptor (Long Type)
190100-73 SS316 Adaptor for Millipore
MIACFD101 and MIACFD201 Disposable Plastic Funnel
190100-74 SS316 Adaptor for Sartorius 16A07 Disposable Plastic Funnel
190100-75 SS316 Adaptor for Pall 4870, 4871 Disposable Plastic Funnel
180100-01/03/05 Rocker SF Stainless Steel Funnel 100 ml / 300 ml / 500ml
200300-01 MF 3, 300 ml Magnetic Filter Holder
200500-01 MF 5, 500 ml Magnetic Filter Holder
167400-11(22) Rocker 400, Vacuum Pump, AC110V/60Hz (AC 220V/50Hz)
181200-01(02) Alligator 200, Diaphragm Liquid Pump, AC100~240V Adaptor, US Plug
(EU Plug)
167200-48 4000 ml Heavy Duty PP Vacuum Bottle with drain
167100-20 PALL, A/E Glass Fiber Filter, 47mm, 1 um, 100/PK
167100-52 PALL, GN-6 Membrane, Grid, Sterilized, 47mm, 0.45 um, 200/PK
177100-00 Dragon 100 Torch Burner
167110-16 Silicone Stopper (No.8)
167200-38 Silicone Tube, Ø 6 x 12 mm, 1 m
180300-68 Silicone Tube, Ø 8 x 14 mm, 2 m
Ordering Information
Rocker Scientific Co., Ltd. / www.rocker.com.tw / [phone] / RO-OPE180-EN202002-A01
DOMINIQUE DUTSCHER SAS
