Rockford Fosgate Punch PMX-HD9813 User manual

Installation assistance available at:

2
PRACTICE SAFE SOUND
Continuous exposure to sound pressure levels over 100dB may
cause permanent hearing loss. High powered auto sound systems
may produce sound pressure levels well over 130dB. Use common
sense and practice safe sound.
2Introduction
3Specifications
4Design Features
5Installation/Mounting
6-10 Operation
Settings
Tuner (AM/FM)
USB-iPod
AUX (Auxiliary Input)
Bluetooth®
Pandora®
SiriusXM®
11 PMX-BTUR Function Table
12-13 Troubleshooting

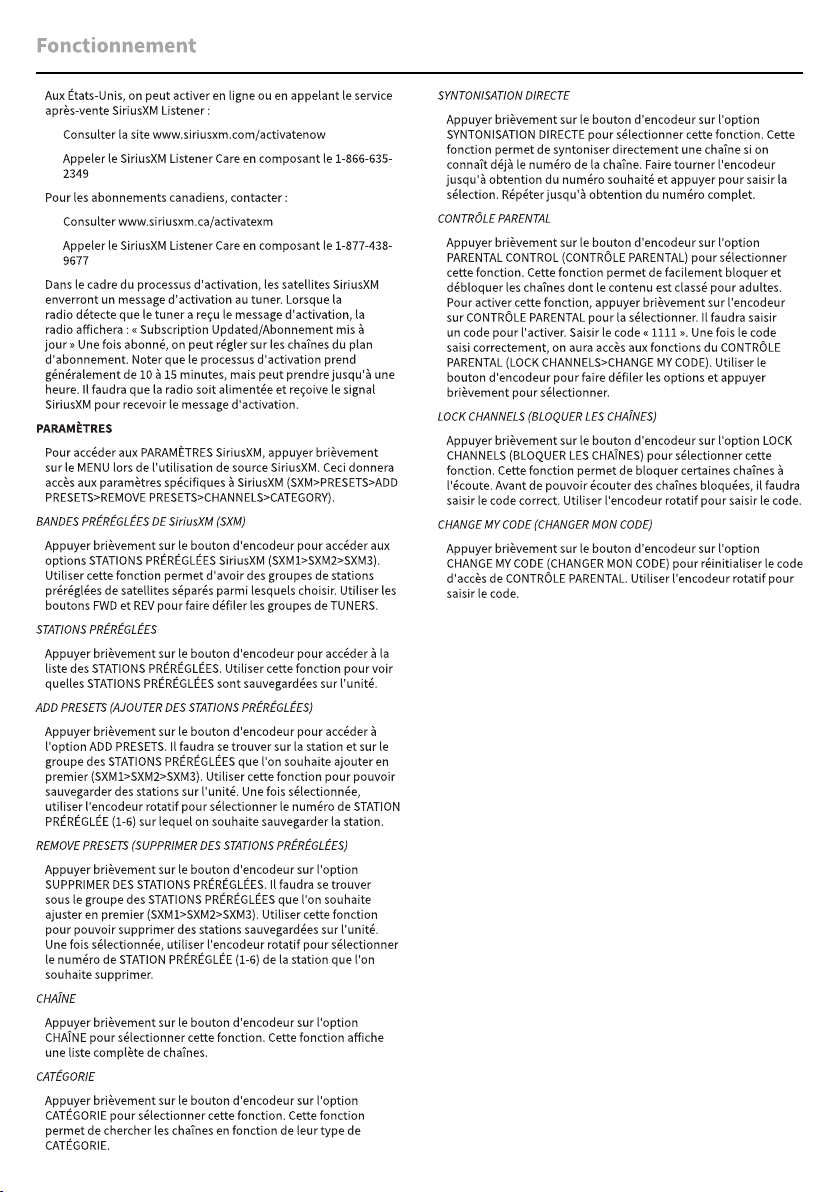

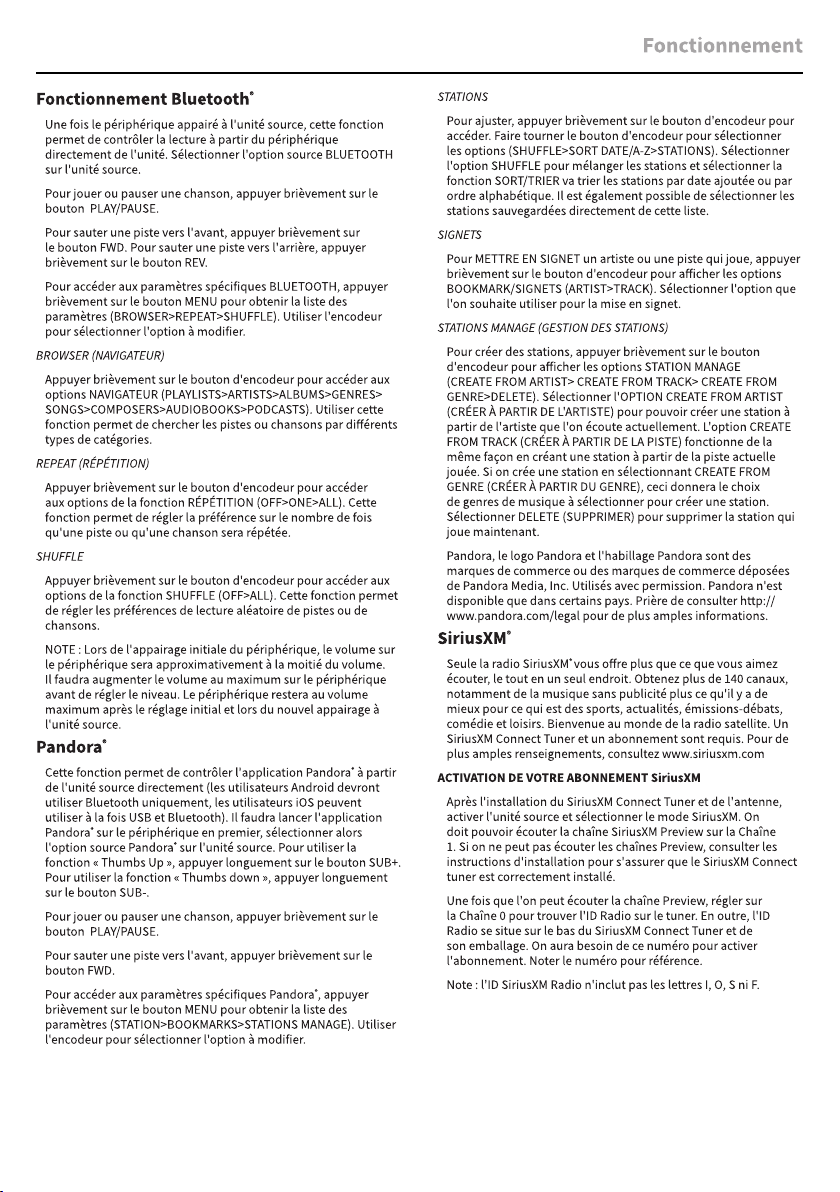

14-53 French, Spanish, German & Italian
54 Limited Warranty Information

3
CEA 2006
Power ratings on Rockford Fosgate source units conform to CEA-2006 industry standards.
These guidelines mean your source unit’s output power ratings are REAL POWER
numbers, not inflated marketing ratings.
Model PMX-HD9813
Operating Voltage 10.5V - 16V
Fuse Rating 20A
Power Output 25 W X 4 @ 4 Ohms RMS
50 W x 4 @ 2 Ohms Peak
Max. RCA Output Voltage 4V
Output Impedance 500Ω
Frequency Response 20 - 20kHz
FM Frequency Range 87.5MHz - 107.9MHz
AM Frequency Range 530kHz - 1710kHz
Tuner Presets 18 FM / 12 AM
Clock 12:00/24Hour
Display 3” Color TFT
Bluetooth 3.0+EDR, A2DP 1.3
USB Compatibility 2.0 (FAT file Systems)
USB Capacity 32 GB max, 255 Folders max,
999 Songs max
USB Output 1.5A
Made for iPhone Model Names-
iPhone XS Max
iPhone XS
iPhoneXR
iPhone X
iPhone 8 Plus
iPhone 8
iPhone 7 Plus
iPhone 7
iPhone 6s Plus
iPhone 6s
iPhone 6 Plus
iPhone 6
iPhone 5S
iPhone 5C
iPhone 5
Made for iPod Model Names- iPod touch (5th & 6th generations)
Android Compatibility Bluetooth®Only
Audio File Compatibility MP3 & WMA
Certifications
ASTM D4329
IPX6 (Front Face)
IPX4 (Rear Chassis)
CISPR25 Class 3 EMI
FCC, CE RED, IC RCM
Compatibility
2006-2013 Street Glide
1998-2013 Road Glide
1998-2013 Electra Glide
Not compatible with factory
equipped CB, Headset, Satellite radio
systems or Rear Volume Controls

4

5
Remote Trigger (Blue/White)
Aux Input (Red)
Front Output (Grey)
Rear Output (Black)
Red
White
Sub Output (Purple)
Red
White
Red
White
(Aux In Right) Red
(Aux In Le) White
SiriusXM
USB
SiriusXMSiriusXM

6

7

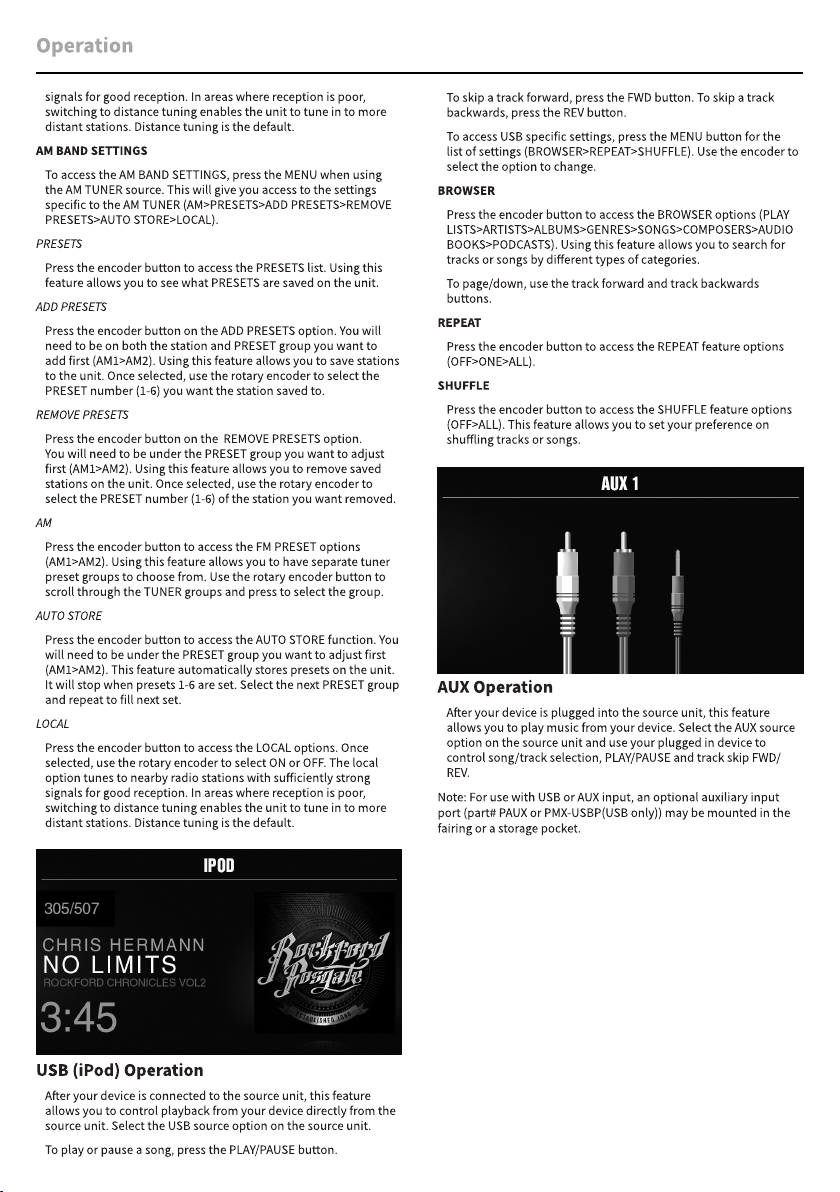

8

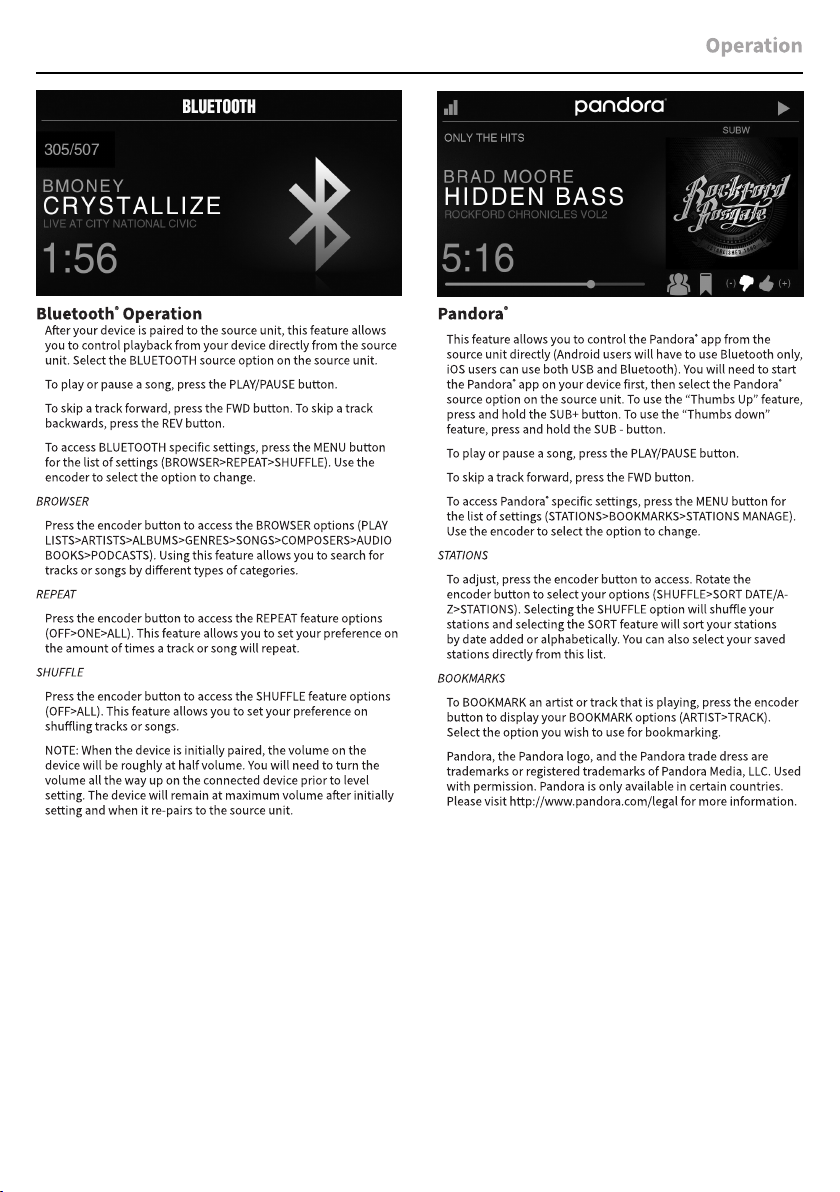

9

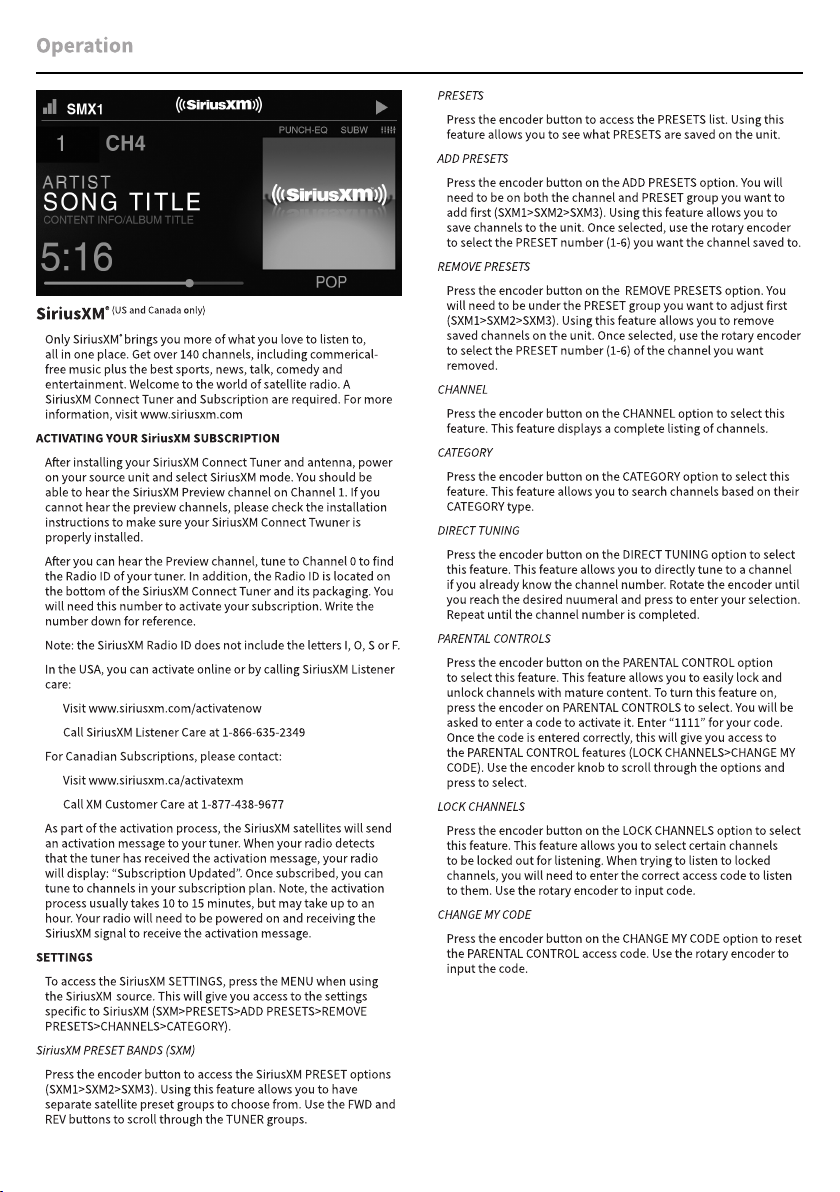

10

11
Phone Control
PMX-HD9813 Control
USB/MP3/WMA AUX-IN iPhone/iPod BT Audio SiriusXM
Short Press Long Press Short Press Long Press Short Press Long Press Short Press Long Press Short Press Long Press Short Press Long Press
Volume + Ramp Volume + Volume + Ramp Volume + Volume + Ramp Volume + Volume + Ramp Volume + Volume + Ramp Volume + Volume + Ramp Volume +
Volume - Ramp Volume - Volume - Ramp Volume - Volume - Ramp Volume - Volume - Ramp Volume - Volume - Ramp Volume - Volume - Ramp Volume -
Play / Pause Hands Free * Play / Pause
(Enter) MUTE (Enter) Play / Pause (Enter) MUTE (Enter) MUTE (Enter)
Previous Rewind Previous Rewind Previous Rewind Previous Rewind Previous Rewind Previous Rewind
Next Fast Forward Next Fast Forward Next Fast Forward Next Fast Forward Next Fast Forward Next Fast Forward
Call Answer */
Call Hang Up *
Call Reject *
Siri *
SRC /
Power On Power O SRC / Power On Power O SRC / Power On Power O SRC / Power On Power O SRC / Power On Power O
* iOS Only
23 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
10
11
12
16
17
18
19
20
FR- SPEAKER
12V+
GROUND
ACCESSORY
FL+ SPEAKER
FL- SPEAKER
FR+ SPEAKER
GROUND
12V+
35 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
2
24
25
RR + SPEAKER
RL + SPEAKER
RR - SPEAKER
RL - SPEAKER
23 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
10
11
12
16
17
18
19
20
FR- SPEAKER
12V+
GROUND
ACCESSORY
FL+ SPEAKER
FL- SPEAKER
FR+ SPEAKER
GROUND
12V+
35 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
2
24
25
RR + SPEAKER
RL + SPEAKER
RR - SPEAKER
RL - SPEAKER
23 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
10
11
12
16
17
18
19
20
FR- SPEAKER
12V+
GROUND
ACCESSORY
FL+ SPEAKER
FL- SPEAKER
FR+ SPEAKER
GROUND
12V+
35 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
2
24
25
RR + SPEAKER
RL + SPEAKER
RR - SPEAKER
RL - SPEAKER
23 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
10
11
12
16
17
18
19
20
FR- SPEAKER
12V+
GROUND
ACCESSORY
FL+ SPEAKER
FL- SPEAKER
FR+ SPEAKER
GROUND
12V+
35 Pin Pigtail (PIN SIDE)
PIN # WIRE DEFINITION
1
2
24
25
RR + SPEAKER
RL + SPEAKER
RR - SPEAKER
RL - SPEAKER

12

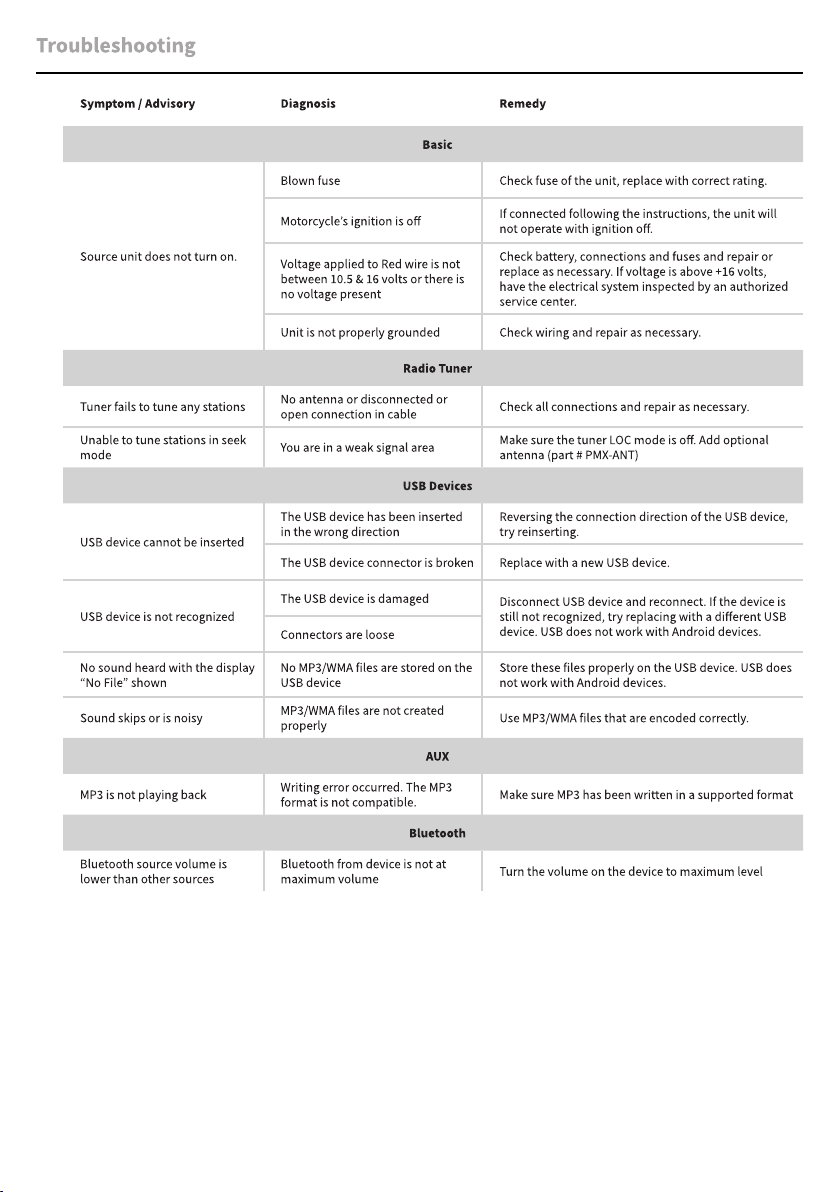

Symptom / Advisory Diagnosis Remedy
Basic
Source unit does not turn on.
Blown fuse Check fuse of the unit, replace with correct rating.
Motorcycle’s ignition is o If connected following the instructions, the unit will
not operate with ignition o.
Voltage applied to Red wire is not
between 10.5 & 16 volts or there is
no voltage present
Check battery, connections and fuses and repair or
replace as necessary. If voltage is above +16 volts,
have the electrical system inspected by an authorized
service center.
Unit is not properly grounded Check wiring and repair as necessary.
Radio Tuner
Tuner fails to tune any stations No antenna or disconnected or
open connection in cable Check all connections and repair as necessary.
Unable to tune stations in seek
mode You are in a weak signal area Make sure the tuner LOC mode is o. Add optional antenna (part # PMX-ANT)
USB Devices
USB device cannot be inserted
The USB device has been inserted
in the wrong direction
Reversing the connection direction of the USB device,
try reinserting.
The USB device connector is broken Replace with a new USB device.
USB device is not recognized
The USB device is damaged Disconnect USB device and reconnect. If the device is
still not recognized, try replacing with a dierent USB
device. USB does not work with Android devices.
Connectors are loose
No sound heard with the display
“No File” shown
No MP3/WMA files are stored on the
USB device
Store these files properly on the USB device. USB does
not work with Android devices.
Sound skips or is noisy MP3/WMA files are not created
properly Use MP3/WMA files that are encoded correctly.
AUX
MP3 is not playing back Writing error occurred. The MP3
format is not compatible. Make sure MP3 has been written in a supported format
Bluetooth
Bluetooth source volume is
lower than other sources
Bluetooth from device is not at
maximum volume Turn the volume on the device to maximum level

13

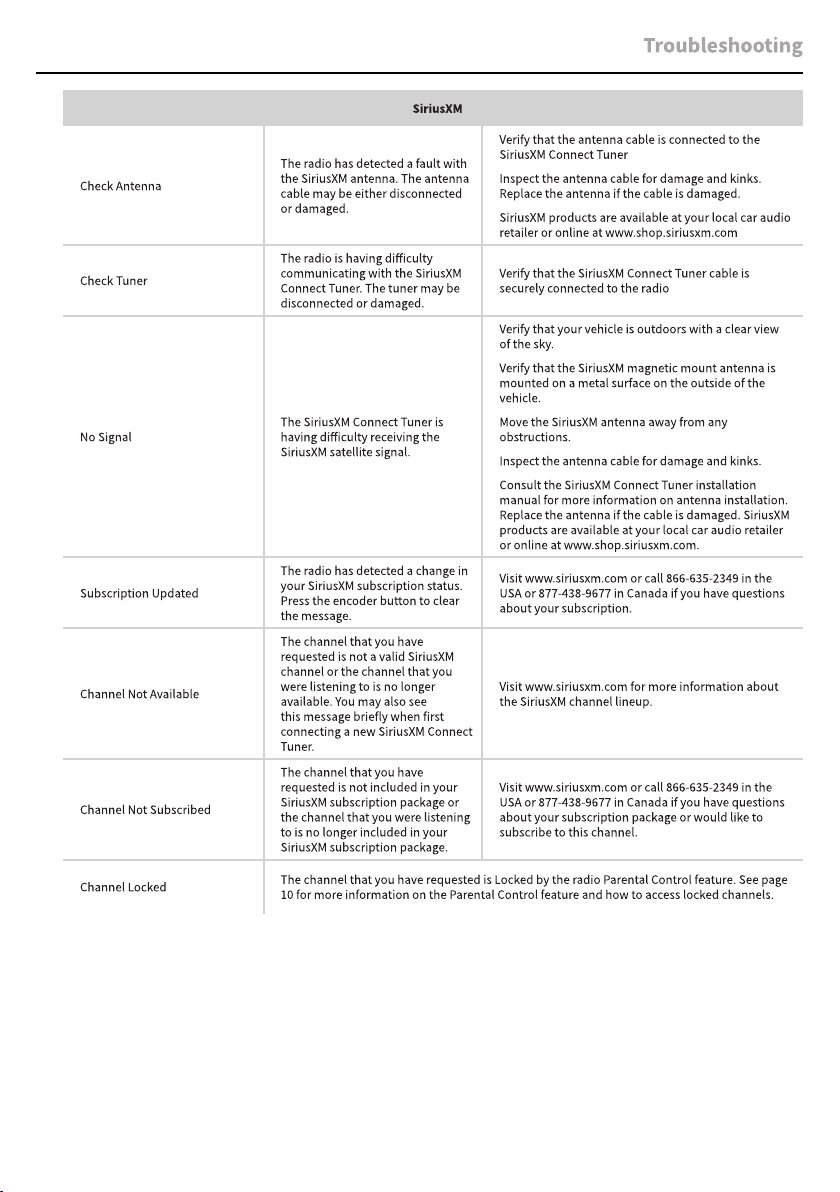

SiriusXM
Check Antenna
The radio has detected a fault with
the SiriusXM antenna. The antenna
cable may be either disconnected
or damaged.
Verify that the antenna cable is connected to the
SiriusXM Connect Tuner
Inspect the antenna cable for damage and kinks.
Replace the antenna if the cable is damaged.
SiriusXM products are available at your local car audio
retailer or online at www.shop.siriusxm.com
Check Tuner
The radio is having diiculty
communicating with the SiriusXM
Connect Tuner. The tuner may be
disconnected or damaged.
Verify that the SiriusXM Connect Tuner cable is
securely connected to the radio
No Signal
The SiriusXM Connect Tuner is
having diiculty receiving the
SiriusXM satellite signal.
Verify that your vehicle is outdoors with a clear view
of the sky.
Verify that the SiriusXM magnetic mount antenna is
mounted on a metal surface on the outside of the
vehicle.
Move the SiriusXM antenna away from any
obstructions.
Inspect the antenna cable for damage and kinks.
Consult the SiriusXM Connect Tuner installation
manual for more information on antenna installation.
Replace the antenna if the cable is damaged. SiriusXM
products are available at your local car audio retailer
or online at www.shop.siriusxm.com.
Subscription Updated
The radio has detected a change in
your SiriusXM subscription status.
Press the encoder button to clear
the message.
Visit www.siriusxm.com or call 866-635-2349 in the
USA or 877-438-9677 in Canada if you have questions
about your subscription.
Channel Not Available
The channel that you have
requested is not a valid SiriusXM
channel or the channel that you
were listening to is no longer
available. You may also see
this message briefly when first
connecting a new SiriusXM Connect
Tuner.
Visit www.siriusxm.com for more information about
the SiriusXM channel lineup.
Channel Not Subscribed
The channel that you have
requested is not included in your
SiriusXM subscription package or
the channel that you were listening
to is no longer included in your
SiriusXM subscription package.
Visit www.siriusxm.com or call 866-635-2349 in the
USA or 877-438-9677 in Canada if you have questions
about your subscription package or would like to
subscribe to this channel.
Channel Locked The channel that you have requested is Locked by the radio Parental Control feature. See page
10 for more information on the Parental Control feature and how to access locked channels.
