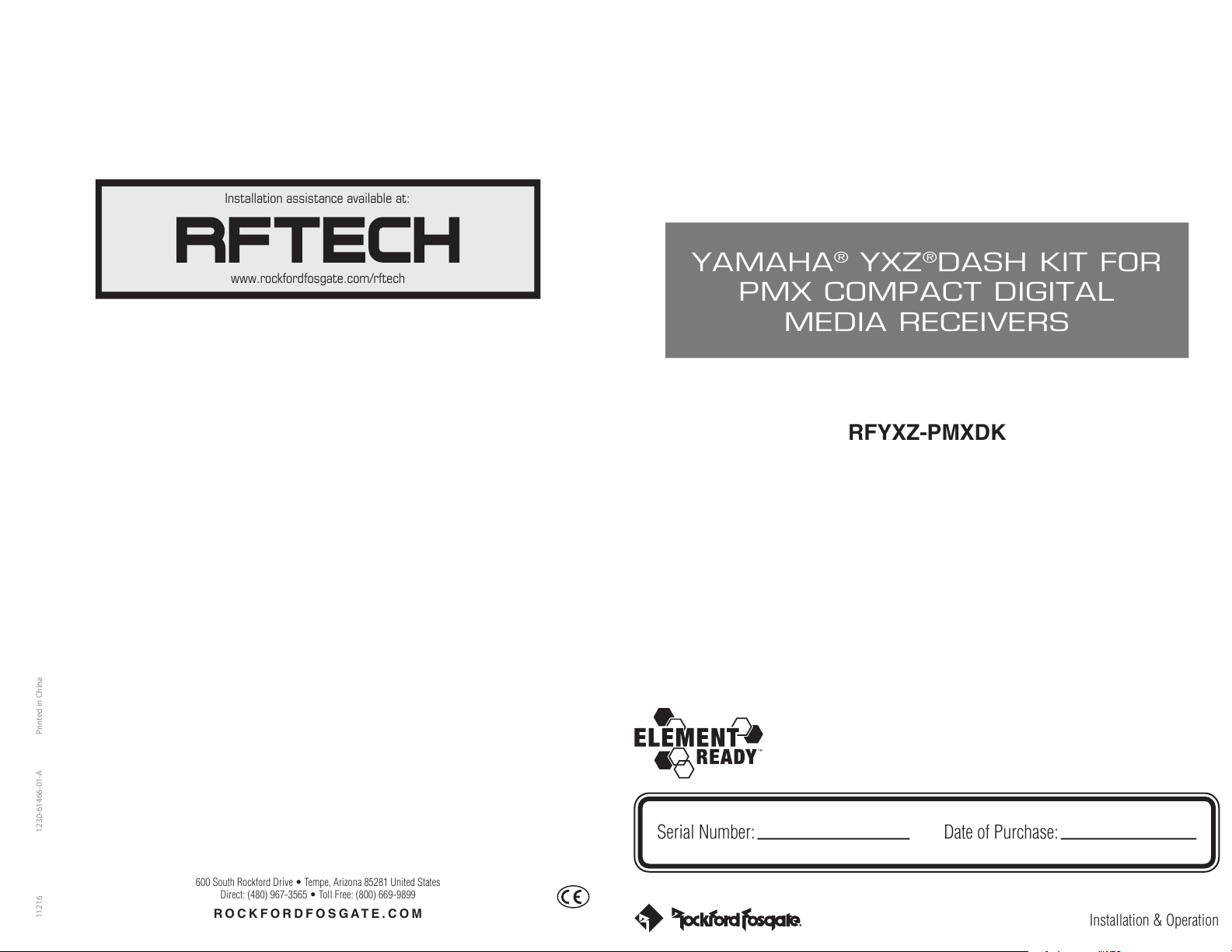

Rockford Fosgate RFYXZ-PMXDK User manual

Installation & Operation
RFYXZ-PMXDK
YAMAHA
®
YXZ
®
DASH KIT FOR
PMX COMPACT DIGITAL
MEDIA RECEIVERS
Serial Number: Date of Purchase:
Installation assistance available at:
www.rockfordfosgate.com/rftech
ROCKFORDFOSGATE.COM
600 South Rockford Drive • Tempe, Arizona 85281 United States
Direct: [phone] • Toll Free: [phone]
Printed in China
11216
1230-61466-01-A
https://appliancetechmanuals.com

2
Dear Customer,
Congratulations on your purchase of the world’s finest brand of audio
products. At Rockford Fosgate we are fanatics about musical reproduc-
tion at its best, and we are pleased you chose our product. Through
years of engineering expertise, hand craftsmanship and critical testing
procedures, we have created a wide range of products that reproduce
music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford
Fosgate product installed by an Authorized Rockford Fosgate Dealer,
as we provide specialized training through Rockford Technical Training
Institute (RTTI). Please read your warranty and retain your receipt and
original carton for possible future use.
Great product and competent installations are only a piece of the puzzle
when it comes to your system. Make sure that your installer is using
100% authentic installation accessories from Rockford Fosgate in your
installation. Rockford Fosgate has everything from RCA cables and
speaker wire to power wire and battery connectors. Insist on it! After all,
your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order
your Rockford accessories, which include everything from T-shirts to
hats.
Visit our web site for the latest information on all Rockford products;
www.rockfordfosgate.com
or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other
countries, call +001-480-967-3565 or FAX [phone].
Table of Contents
If, after reading your manual, you still have questions regarding this prod-
uct, we recommend that you see your Rockford Fosgate dealer. If you need
further assistance, you can call us direct at 1-800-669-9899. Be sure to
have your serial number, model number and date of purchase available
when you call.
Safety
This symbol with “WARNING” is intended
to alert the user to the presence of important
instructions. Failure to heed the instructions
will result in severe injury or death.
This symbol with “CAUTION” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
can result in injury or unit damage.
• To prevent injury and damage to the unit,
please read and follow the instructions in this manual. We want you to
enjoy this system, not get a headache.
• If you feel unsure about installing this system yourself, have it installed
by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-) terminal to
prevent damage to the unit, fire and/or possible injury.
Introduction
©2016 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered trademarks of Rockford Corporation
in the United States and/or other countries. All other trademarks are the property of their respective owners. Specifications subject to change without notice.
PRACTICE SAFE SOUND
Continuous exposure to sound pressure levels over 100dB may cause
permanent hearing loss. High powered auto sound systems may
produce sound pressure levels well over 130dB. Use common sense
and practice safe sound.
2 Introduction
3 Specifications
4 Mounting
5-11 Installation
12 Warranty
https://appliancetechmanuals.com

3
Specifications
Fig. 1
PMX-2 Carrier PMX-0 Carrier
Main Dash Bezel
10.5”
(267mm)
5.3”
(135mm)
5.6”
(142mm)
4.8”
(123mm)
5.6”
(142mm)
4.8”
(123mm)
https://appliancetechmanuals.com

4
Mounting
Fig. 2
PMX-2 Mounting Option
PMX-0 Mounting Option
Main Dash Bezel
Main Dash Bezel
Main Dash Bezel Nut
Main Dash Bezel Nut
PMX-2 Carrier
PMX-0 Carrier
Mounting Screw
Mounting Screw
Mounting Screw
Mounting Screw
Metal Bracket
Foam Gasket (included with PMX-0)
PMX-2 Source Unit (not included)
PMX-0 Source Unit (not included)
https://appliancetechmanuals.com

5

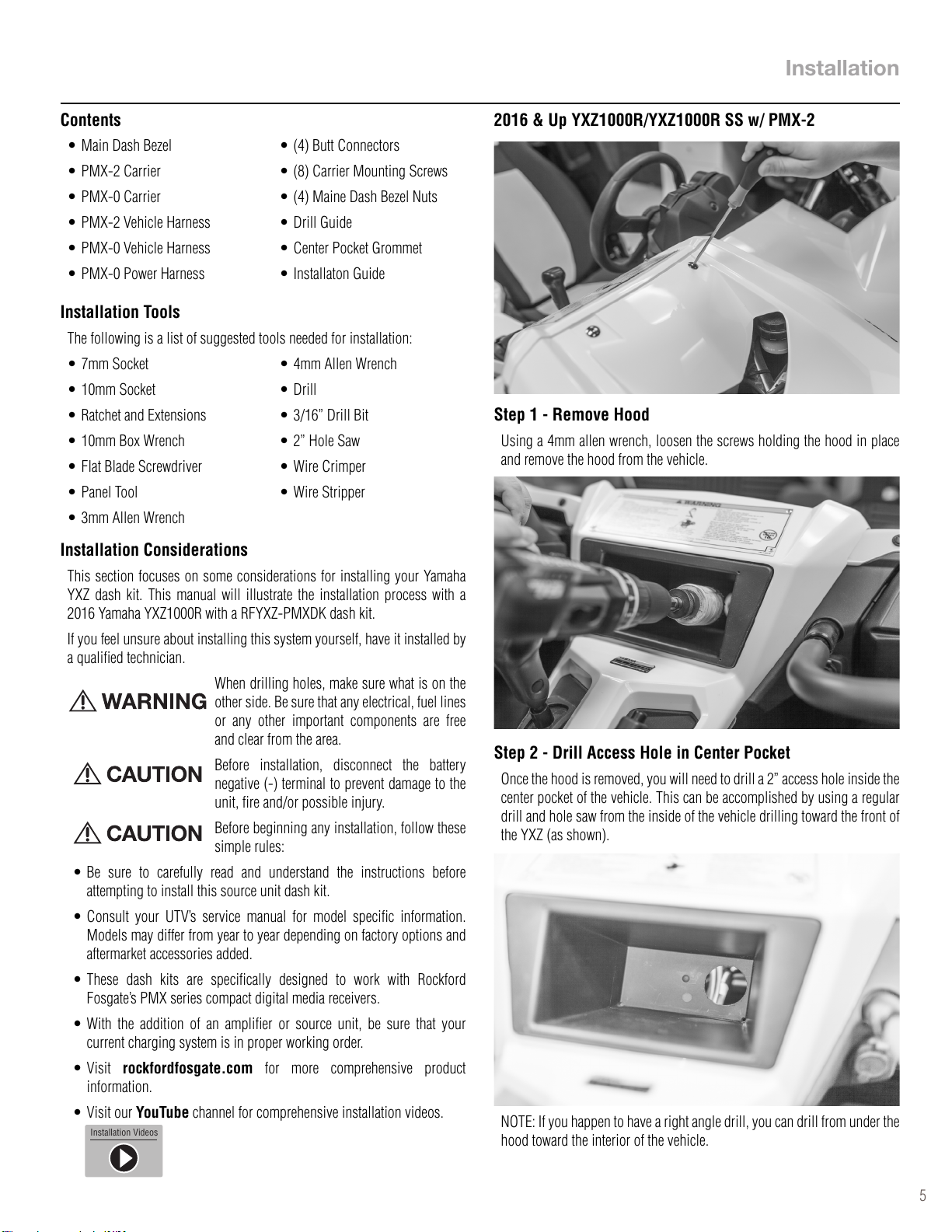

Contents
Installation Tools
The following is a list of suggested tools needed for installation:
Installation Considerations
This section focuses on some considerations for installing your Yamaha
YXZ dash kit. This manual will illustrate the installation process with a
2016 Yamaha YXZ1000R with a RFYXZ-PMXDK dash kit.
If you feel unsure about installing this system yourself, have it installed by
a qualified technician.
When drilling holes, make sure what is on the
other side. Be sure that any electrical, fuel lines
or any other important components are free
and clear from the area.
Before installation, disconnect the battery
negative (-) terminal to prevent damage to the
unit, fire and/or possible injury.
Before beginning any installation, follow these
simple rules:
• Be sure to carefully read and understand the instructions before
attempting to install this source unit dash kit.
• Consult your UTV’s service manual for model specific information.
Models may differ from year to year depending on factory options and
aftermarket accessories added.
• These dash kits are specifically designed to work with Rockford
Fosgate’s PMX series compact digital media receivers.
• With the addition of an amplifier or source unit, be sure that your
current charging system is in proper working order.
• Visit rockfordfosgate.com for more comprehensive product
information.
• Visit our YouTube channel for comprehensive installation videos.
• 7mm Socket
• 10mm Socket
• Ratchet and Extensions
• 10mm Box Wrench
• Flat Blade Screwdriver
• Panel Tool
• 3mm Allen Wrench
• 4mm Allen Wrench
• Drill
• 3/16” Drill Bit
• 2” Hole Saw
• Wire Crimper
• Wire Stripper
• Main Dash Bezel
• PMX-2 Carrier
• PMX-0 Carrier
• PMX-2 Vehicle Harness
• PMX-0 Vehicle Harness
• PMX-0 Power Harness
• (4) Butt Connectors
• (8) Carrier Mounting Screws
• (4) Maine Dash Bezel Nuts
• Drill Guide
• Center Pocket Grommet
• Installaton Guide
Installation
2016 & Up YXZ1000R/YXZ1000R SS w/ PMX-2
Step 1 - Remove Hood
Using a 4mm allen wrench, loosen the screws holding the hood in place
and remove the hood from the vehicle.
Step 2 - Drill Access Hole in Center Pocket
Once the hood is removed, you will need to drill a 2” access hole inside the
center pocket of the vehicle. This can be accomplished by using a regular
drill and hole saw from the inside of the vehicle drilling toward the front of
the YXZ (as shown).
NOTE: If you happen to have a right angle drill, you can drill from under the
hood toward the interior of the vehicle.
Installation Videos
https://appliancetechmanuals.com

6
Step 3 - Use Drill Guide
Next, take the drill guide template and overlay it on top of the center pocket.
Mark the (4) hole locations that will need to be drilled for the main dash
bezel.
Step 4 - Drill Main Dash Bezel Mounting Holes
Once the holes are clearly marked, drill the (4) holes using a 3/16” bit.
Step 5 - Insert Grommet Into Pocket Access Hole
Now insert the supplied rubber grommet onto the center pocket from
underneath the hood.
Step 6 - Insert Vehicle Harness
Using the supplied PMX-2 vehicle harness, insert the 12-pin plug end
through the grommet. This end plugs into the PMX-2 source unit.
Step 7 - Locate Cigarette Lighter Power Connector
Locate the cigarette lighter power connector wire under the hood and
unplug the harness. This will be your power and ground source for the
PMX-2 vehicle harness.
NOTE: Refer to your vehicle’s owner’s guide for exact location.
Step 8 - Connect Harness to Cigarette Lighter Power
Connector
Simply plug in the PMX-2 harness into the plugs.
Installation
https://appliancetechmanuals.com

7
Installation
Step 9 - Mount Carrier to Main Dash Bezel
Take the PMX-2 carrier and mount it to the main dash bezel. Use the
supplied screws to attach the carrier to the bezel. The screws are a 3mm
allen socket.
Step 10 - Mount PMX-2 to Carrier
Insert the PMX-2 face into the backside of the carrier.
NOTE: Do NOT install the PMX-2 trim bezel that comes with the source
unit. If it is, the PMX-2 will not mount correctly into the carrier.
Step 11 - Secure Source Unit to Main Dash Bezel
Secure the source unit with the supplied screws with a 3mm allen driver.
Step 12 - Plug PMX-2 Into Vehicle Harness
Take the PMX-2 bezel assembly and plug it into the harness in the center
pocket.
Step 13 - Place Main Dash Bezel Assembly
Place the bezel and radio assembly over the center pocket. Insert the studs
into the (4) holes that were previously drilled.
Step 14 - Secure Bezel
Secure the bezel from the hood side with supplied nuts using a 7mm
socket or nut driver.
The unit is now powered and ready for additional speaker connections.
This wire harness is designed to work specifically with Rockford Fosgate
Yamaha YXZ wire harnesses.
https://appliancetechmanuals.com

8

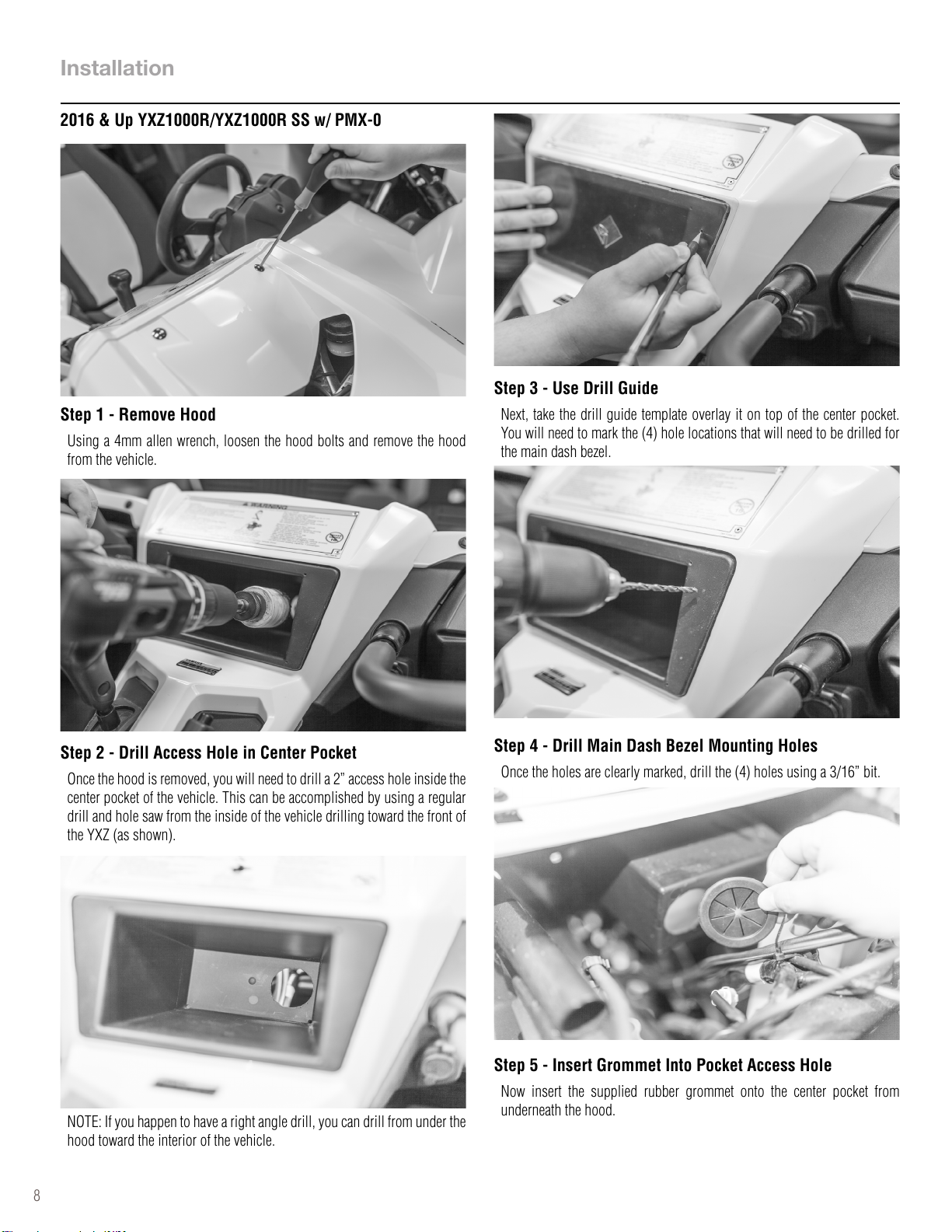

2016 & Up YXZ1000R/YXZ1000R SS w/ PMX-0
Step 1 - Remove Hood
Using a 4mm allen wrench, loosen the hood bolts and remove the hood
from the vehicle.
Step 2 - Drill Access Hole in Center Pocket
Once the hood is removed, you will need to drill a 2” access hole inside the
center pocket of the vehicle. This can be accomplished by using a regular
drill and hole saw from the inside of the vehicle drilling toward the front of
the YXZ (as shown).
NOTE: If you happen to have a right angle drill, you can drill from under the
hood toward the interior of the vehicle.
Step 3 - Use Drill Guide
Next, take the drill guide template overlay it on top of the center pocket.
You will need to mark the (4) hole locations that will need to be drilled for
the main dash bezel.
Step 4 - Drill Main Dash Bezel Mounting Holes
Once the holes are clearly marked, drill the (4) holes using a 3/16” bit.
Step 5 - Insert Grommet Into Pocket Access Hole
Now insert the supplied rubber grommet onto the center pocket from
underneath the hood.
Installation
https://appliancetechmanuals.com

9
Installation
Step 6 - Insert Vehicle Harness
Using the supplied PMX-0 vehicle harness, insert the 4-pin plug end
through the grommet. This end plugs into the PMX-0 source unit.
Step 7 - Locate Cigarette Lighter Power Connector
Locate the cigarette lighter power connector wire under the hood and
unplug the harness. This will be your accessory power source and ground
for the PMX-0 vehicle harness.
NOTE: Refer to your vehicle’s owner’s guide for exact location.
Step 8 - Connect Harness to Cigarette Lighter Power
Connector
Simply plug in the PMX-0 harness into the plugs.
Step 9 - Mount Carrier to Main Dash Bezel
Take the PMX-0 carrier and mount it to the main dash bezel. Use the
supplied screws to attach the carrier to the bezel. The screws are a 3mm
allen socket.
Step 10 - Apply Foam Gasket
Apply the supplied foam gasket that came with the PMX-0 the back of the
unit.
Step 11 - Mount PMX-0 to Carrier
Place the PMX-0 into the carrier and place the supplied metal bracket over
the PMX-0 with the Rockford logo facing outward as shown above.
https://appliancetechmanuals.com

10

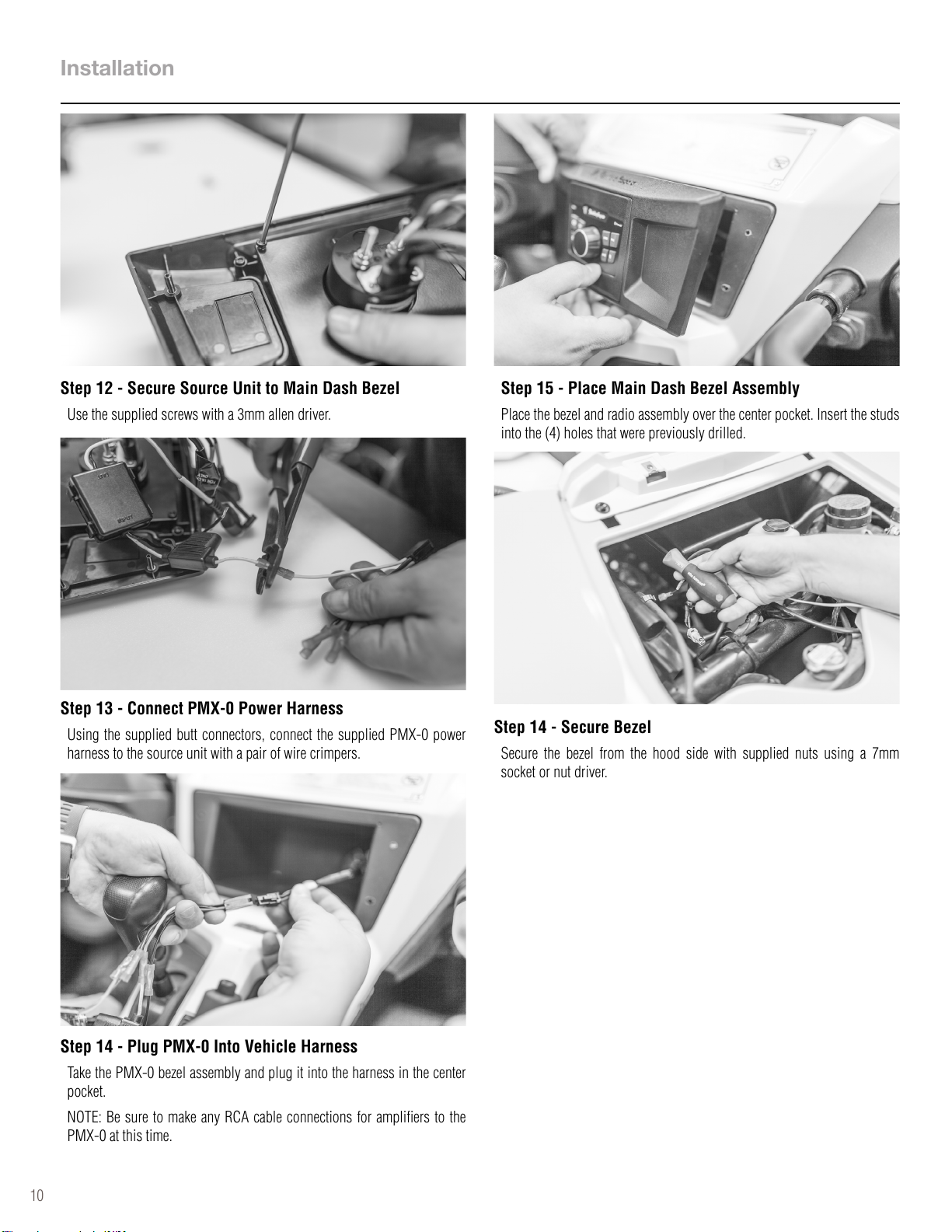

Step 12 - Secure Source Unit to Main Dash Bezel
Use the supplied screws with a 3mm allen driver.
Step 13 - Connect PMX-0 Power Harness
Using the supplied butt connectors, connect the supplied PMX-0 power
harness to the source unit with a pair of wire crimpers.
Step 14 - Plug PMX-0 Into Vehicle Harness
Take the PMX-0 bezel assembly and plug it into the harness in the center
pocket.
NOTE: Be sure to make any RCA cable connections for amplifiers to the
PMX-0 at this time.
Step 15 - Place Main Dash Bezel Assembly
Place the bezel and radio assembly over the center pocket. Insert the studs
into the (4) holes that were previously drilled.
Step 14 - Secure Bezel
Secure the bezel from the hood side with supplied nuts using a 7mm
socket or nut driver.
Installation
https://appliancetechmanuals.com

11
Step 15 - Battery Connection
The last wire connection that needs to be run is the Yellow power wire to the
battery. The easiest way to run this wire is to remove the center console and
passenger transmission tunnel panel. To do this, the passenger seat will
need to be removed first, then the center console. The panel that surrounds
the shifter needs to have one plastic rivet removed to make it easier to
remove the transmisson tunnel.
Once connected, the unit is now powered and ready for amplifier
connections. Refer to the PMX-0 manual for wiring schematics.
Installation
https://appliancetechmanuals.com

12

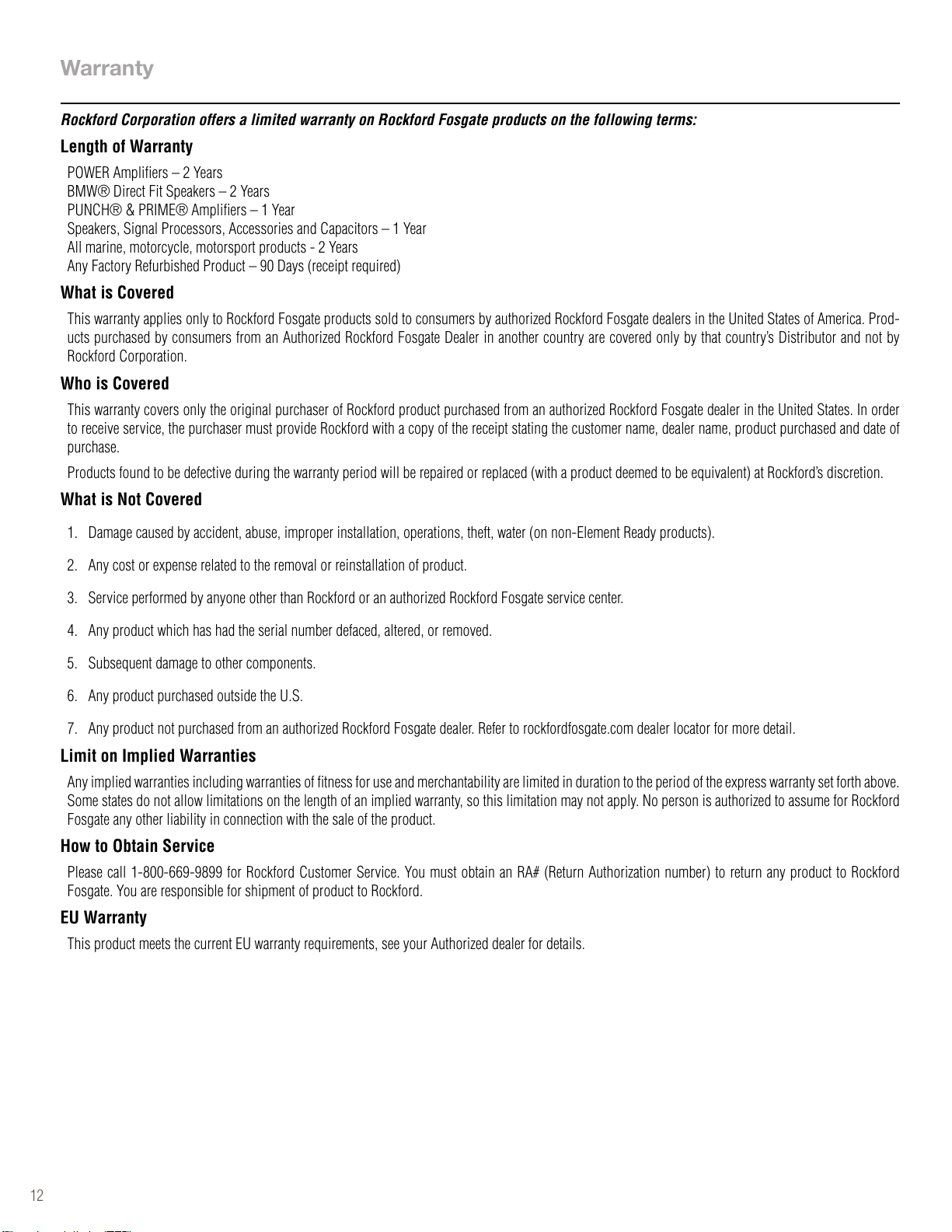

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:
Length of Warranty
POWER Amplifiers – 2 Years
BMW® Direct Fit Speakers – 2 Years
PUNCH® & PRIME® Amplifiers – 1 Year
Speakers, Signal Processors, Accessories and Capacitors – 1 Year
All marine, motorcycle, motorsport products - 2 Years
Any Factory Refurbished Product – 90 Days (receipt required)
What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by authorized Rockford Fosgate dealers in the United States of America. Prod-
ucts purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country’s Distributor and not by
Rockford Corporation.
Who is Covered
This warranty covers only the original purchaser of Rockford product purchased from an authorized Rockford Fosgate dealer in the United States. In order
to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of
purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford’s discretion.
What is Not Covered
1. Damage caused by accident, abuse, improper installation, operations, theft, water (on non-Element Ready products).
2. Any cost or expense related to the removal or reinstallation of product.
3. Service performed by anyone other than Rockford or an authorized Rockford Fosgate service center.
4. Any product which has had the serial number defaced, altered, or removed.
5. Subsequent damage to other components.
6. Any product purchased outside the U.S.
7. Any product not purchased from an authorized Rockford Fosgate dealer. Refer to rockfordfosgate.com dealer locator for more detail.
Limit on Implied Warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above.
Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford
Fosgate any other liability in connection with the sale of the product.
How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford
Fosgate. You are responsible for shipment of product to Rockford.
EU Warranty
This product meets the current EU warranty requirements, see your Authorized dealer for details.
Warranty
https://appliancetechmanuals.com
