Rockler Gold Warrior User manual

Review full instructions prior to use for important safety information.
Always check Rockler.com to conrm that you are using the most recent version of instructions for your product.
Gold Warrior Click Pen Kit Instructions
Effective January 2020

2
GENERAL SAFETY WARNINGS
This product is designed only for specific applications as defined in the instructions and should not be modified or used for any
manner not described in these instructions. Use only recommended accessories. Before using the Gold Warrior Click Pen Kit:
READ, UNDERSTAND and FOLLOW ALL INSTRUCTIONS AND SAFETY WARNINGS. KEEP THESE INSTRUCTIONS
READILY AVAILABLE FOR FUTURE REFERENCE.
> Always confirm that you are using the most recent version of
the Instructions and safety warnings for your product (see the
Instructions link on the product page at Rockler.com).
> Before using another tool with this product, always read,
understand and follow the instructions and safety warnings
in the owner’s manual for that tool. If you do not have the
owner’s manual, obtain one from the tool’s manufacturer
before using it with this product.
> Before using any chemical with this product, always read,
understand and follow all safety warnings and guidelines in
the manufacturer’s Safety Data Sheet (SDS; formerly called
“MSDS”), especially regarding:
• How to safely use the chemical, including potential hazards
and recommended first aid measures;
• Personal safety equipment required to safely use the
chemical (e.g. gloves, eye protection, mask/respirator, etc.);
• Proper and safe handling, storage and disposal of
the chemical.
> Before using this product, review and verify that all tools to be
used with it have safety equipment installed and are in proper
working order as defined by the tool’s owner’s manual.
> Do not use this product until you have read and are
confident you understand:
• Blank Preparation (p. 3);
• Turning the Blank (p. 3);
• Assembly (p. 4).
> The user assumes all risk and responsibility for the proper and
safe use of this product and for ensuring product suitability for
the intended application.
> It is the sole responsibility of the purchaser of this product to
ensure that any anyone you allow to use this product reads
and complies with all instructions and safety precautions
outlined in this manual prior to use.
> Follow all standard shop safety practices, including:
• Keep children and bystanders away from the tool
operating area;
• Do NOT use power tools in explosive environments, or in
the presence of flammable liquids, fumes or dust;
• TURN OFF AND UNPLUG all power tools BEFORE
making any adjustments or changing accessories;
• Remain alert and use good judgment. Do not use this
product if you are in any way impaired by medications,
alcohol, drugs or fatigue;
• Keep your work area well lit and clean;
• Dress appropriately. Secure loose clothing, remove all
jewelry and tie up long hair before using this product;
• ALWAYS wear safety glasses, hearing protection
and respiratory protection that complies with
NIOSH/OSHA/ANSI safety standards;
• Use dust collection tools and dust face masks to
reduce exposure to dust;
• Use safety equipment such as featherboards, push
sticks and push blocks, etc., when appropriate;
• Maintain proper footing at all times and do not overreach;
• Do NOT force woodworking tools.
> These warnings and instructions do NOT represent the total
of all information available regarding tool safety, use and
technique. Always seek out opportunities to learn more
and improve your skills and knowledge.
Drilling, sawing, sanding or machining wood
products can expose you to wood dust, a substance known
to the State of California to cause cancer. Avoid inhaling
wood dust or use a dust mask or other safeguards for
personal protection. For more information go to
www.P65Warnings.ca.gov/wood.
Danger indicates a hazardous situation that, if not avoided, will result in death or serious injury.
Warning indicates a hazardous situation that, if not avoided, could result in death or serious injury.
Caution indicates a hazardous situation that, if not avoided, may result in minor or moderate injury
or property damage.
Notice indicates important or helpful information and/or user tips.
BP1219

3
Blank Preparation
1. Cut the blank about 1/8" longer than the Brass Tube to
allow for blowout or hole elongation.
2. Drill the blank with a 3/8" drill bit at a speed of about
750 RPM.
3. Scuff the Brass Tube with 220 grit sandpaper to remove
oxidation and roughen the Tube for better adhesion.
4. Prepare to glue with medium cyanoacrylate (CA) glue or
two-part fast-drying epoxy.
5. Apply the glue to the outside of the Brass Tube, with a liberal
amount around the end that will be inserted first. Do not apply
glue to the inside of the blank, as this will cause the glue to get
inside the Brass Tube and ruin the tube.
6. Insert the Brass Tube with a twisting motion into the blank
until the tube is equidistant between both ends of the blank.
Wipe off any excess glue on the ends of the blank. Allow the
glue to cure.
7. Using a barrel trimmer or a disk or belt sander, trim the ends
of the blank until you can just see the bright brass ends of the
tube. The faces of the ends must be perpendicular to the Brass
Tube and parallel with each other. It is imperative that the
length of the trimmed blank matches the original length of
the Brass Tube and that the inside of the Brass Tube is
clean and free of any glue.
Turning the Blank
1. Assemble the blank on the mandrel with the bushings.
Mandrel Setup. Each bushing has a step that is designed to
be inserted into the Brass Tube for stability while turning, as
the inner diameter of the tube is larger than the mandrel.
2. Tighten the tailstock and then tighten the mandrel nut that
holds the blank. Do not over-tighten the tailstock or mandrel
nut as this may cause the mandrel to flex, causing the blank
to go out of round.
3. Turn the blank to the desired shape, making sure that the
surfaces next to the bushings are turned to the same diameter
as the bushings.
4. After turning, sand the surfaces in progressive steps of
240, 320, 400 and 600 grit. If a higher finish is desired,
Micro-Mesh abrasives may be used.
5. Apply the finish of choice and polish.
6. Remove the blank from the mandrel.

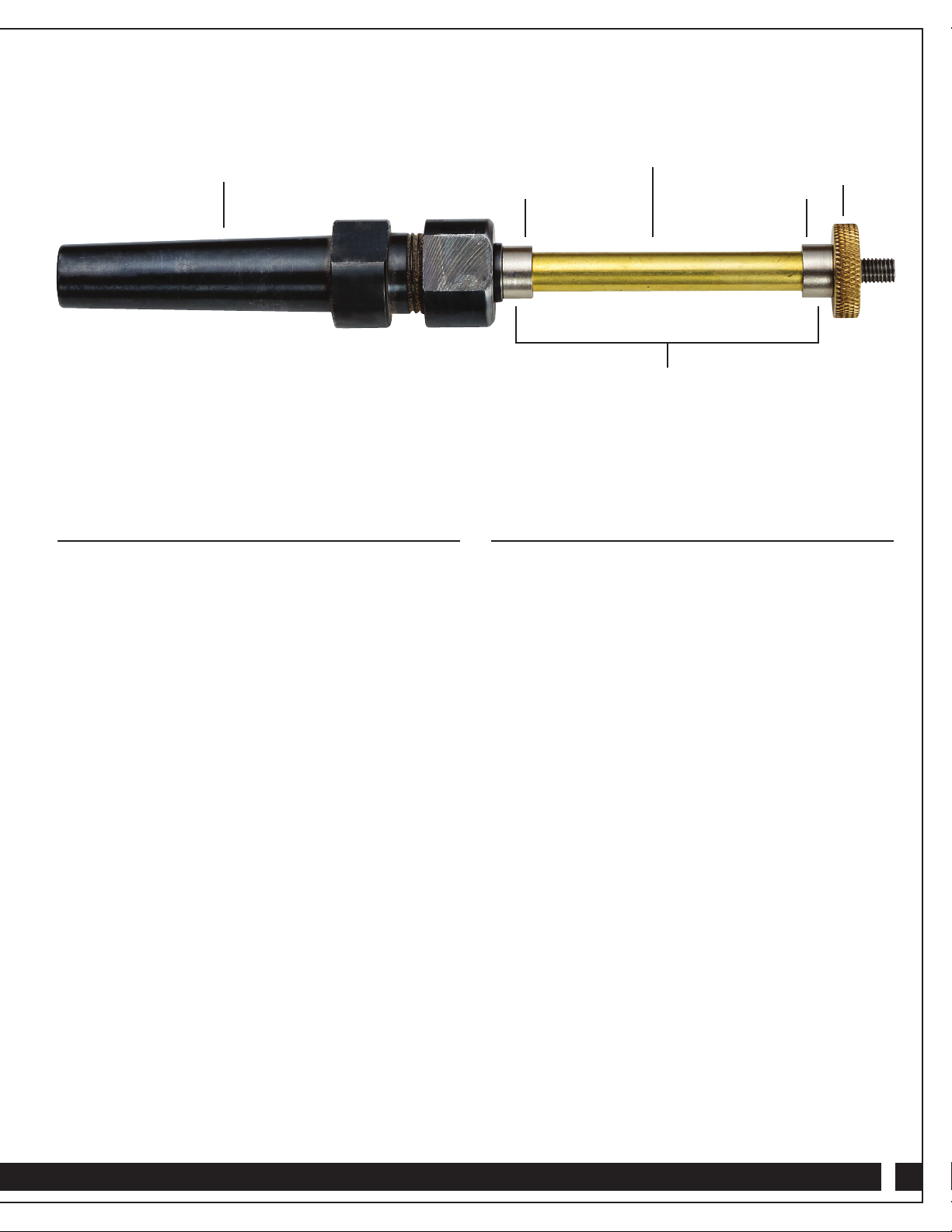

Mandrel Setup
Tube
Nut
12.5mm12.5mm
Mandrel
Warrior Click Pen Bushings

4
Check Rockler.com for updates. If you have further questions, please
contact our Technical Support Department at 1-800-260-9663
or [e-mail]
Assembly
1. Use a pen press or a clamp to press the Cap/Clip (3) into one
end of the Brass Tube (6).
2. Press the non-threaded end of the Tip Coupler (7) into the
other end of the Brass Tube (6).
3. Fit the Inner Click Mechanism (5) into the Outer
Click Mechanism (4).
4. Slide the assembled Click Mechanisms, threaded end first,
through the Tip Coupler (7) and into the Brass Tube (6). Tip
the pen upside down and tap or shake the barrel so
the Click Mechanisms seat all the way.
5. Slide the Ink Cartridge (9) through the Tip Coupler (7) and
into the Brass Tube (6). Again, you might need to tap or
shake the barrel so that the Ink Cartridge (9) is
fully seated.
6. Slide the Ink Cartridge Spring (10) onto the Ink Cartridge (9)
and then fit the Tip (8) over the Ink Cartridge (9) and thread
it into the Tip Coupler (7).
7. Turn the pen upright and slide the Click Button Spring (2) into
the opening in the Cap/Clip (3), making sure it fits around the
threaded end of the Outer Click Mechanism (4).
8. Thread the Click Button (1) onto the Outer Click
Mechanism (4).
Stock #
Pro Pen Turning Mandrel, #2 Morse Taper 49514
Pro Pen Turning Mandrel, #1 Morse Taper 44309
Adjustable Pen Turning Mandrel, #2 Morse Taper 48377
Adjustable Pen Turning Mandrel, #1 Morse Taper 44341
Fisch 3/8" HSS M2 Pen Drill Bit 32776
Warrior Click Pen Bushings 56815
Barrel Cleaner/Pen Mill Kit 47526
OPTIONAL ACCESSORIES
1 Click Button
2 Click Button Spring
3 Cap/Clip
4 Outer Click Mechanism
5 Inner Click Mechanism
6 Tube
7 Tip Coupler
8 Tip
9 Ink Cartridge
10 Ink Cartridge Spring

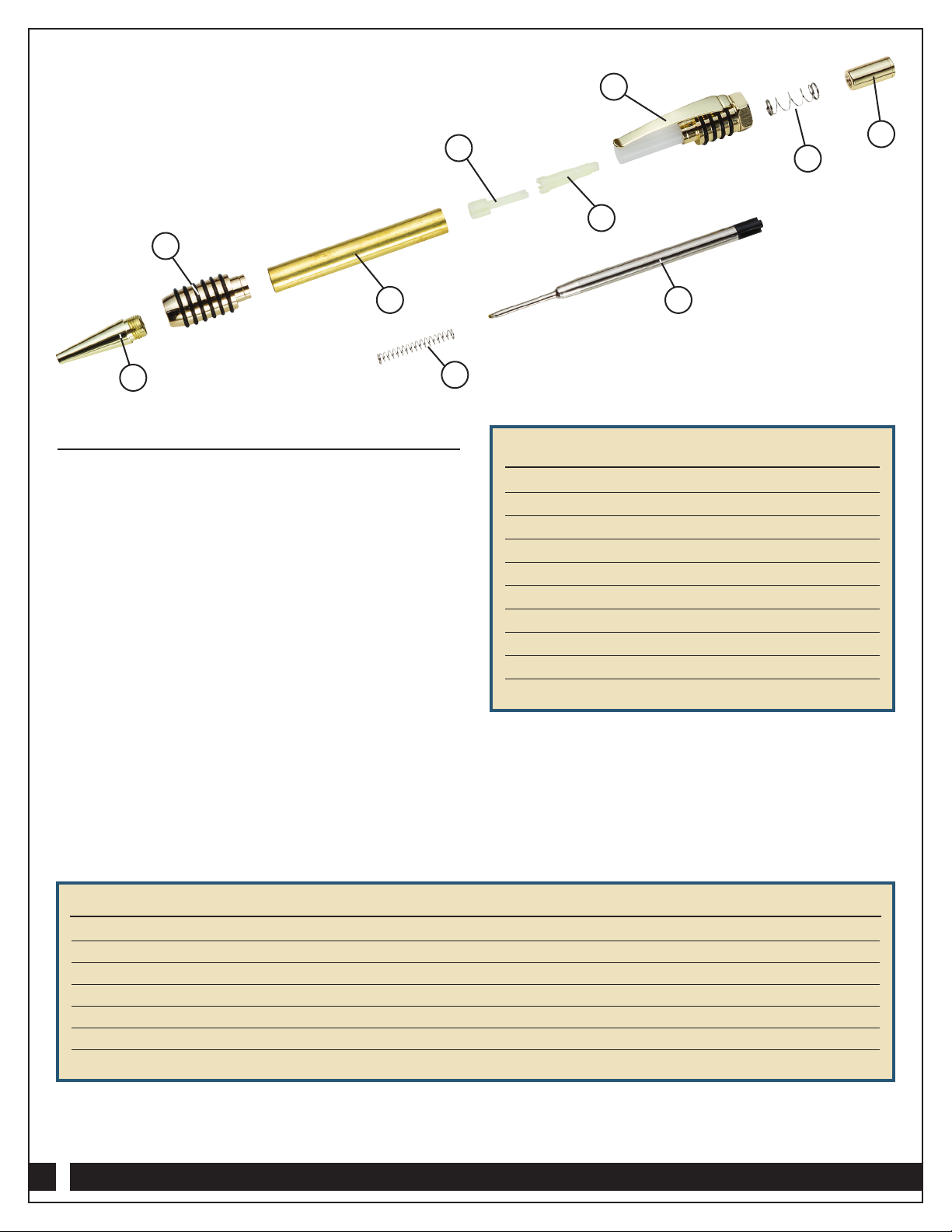

PARTS LIST
1
2
3
4
5
6
7
810
9
Distributed by Rockler Companies, Inc.
4365 Willow Dr. Medina, MN 55340
1-800-279-4441
www.rockler.com
52666
Rev 01/20
