Rockwell Automation Allen-Bradley IntelliVAC 1503VC-BMC5 User manual

IntelliVAC Contactor Control Module
Catalog Number Bulletin 1503VC (Series E)
User Manual

Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to
familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws,
and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required
to be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the
use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
Allen-Bradley, Rockwell Software, Rockwell Automation, and TechConnect are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT
Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 3
Table of Contents
Chapter 1
Product Description
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
IntelliVAC Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
IntelliVAC Versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mounting and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Chapter 2
Receiving and Storage
Receiving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Chapter 3
Installation and Wiring
General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety and Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Arrangements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Integral to an Allen-Bradley MV Controller . . . . . . . . . . . . . . . . . . . . 15
OEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Control Power Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Grounding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Control Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Status Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Interface Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Wiring Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Electrically Held Contactors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Control with Solid-State Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Two-Wire Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Three-Wire Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Wiring Guidelines Mechanical Latch Contactors . . . . . . . . . . . . . . . . . . . 26
Mechanical Latch Contactors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Capacitor Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Motor Jogging Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Undervoltage Protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Time Delay Undervoltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Chapter 4
Setup and Commissioning
IntelliVAC Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Table of Contents
Chapter 5
Monitoring and Troubleshooting
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Module Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Contactor Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Chapter 6
Spare Parts
Spare Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Appendix A
Contactor Drop-out Time Settings
Typical Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 5
Summary of Changes
This manual contains new and updated information.
New and Updated
Information
This table contains the changes made to this revision.
Topic Page
Attention Table added for TDUV feature limitations 30
Added notations to table for DIP Switch explanation Table 32

6Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Summary of Changes
Notes:

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 7
Chapter 1
Product Description
Introduction This document contains information for the Allen-Bradley Bulletin 1503VC
IntelliVAC™ control module. The Bulletin 1503VC is used to control the Allen-
Bradley Bulletin 1502 vacuum contactors that are a significant component of the
Bulletin 1500/1900 CENTERLINE Medium Voltage Motor Controllers
offered by Rockwell Automation. IntelliVAC is an efficient and flexible solution
for controlling medium voltage vacuum contactors used in motor starter and
feeder applications.
An IntelliVAC control module may also be provided as a loose OEM component,
for use with a Bulletin 1502 contactor by a third party (OEM).
Scope This document applies to the Series E version of IntelliVAC. See publication
1503-UM051C-EN-P for information related to the Series A and B designs, and
1503-UM052C-EN-P for information related to Series C and D designs.
Description An IntelliVAC module may be used to control Bulletin 1502 400 and 800 Amp
vacuum contactors. Both electrically held and mechanically latched contactor
types can be controlled with IntelliVAC.
Figure 1 - IntelliVAC Contactor Control Module

8Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Chapter 1 Product Description
Figure 2 - IntelliVAC Block Diagram
IntelliVAC Features
•A range of supply voltage (110 – 240V AC 50/60 Hz, 110 - 250V DC)
allows implementation in multiple applications.
•Consistent vacuum contactor pick-up time (at a given supply voltage)
ensures repeatable performance.
•Selectable vacuum contactor drop-out time improves coordination with
upstream power fuses.
•Electronic altitude compensation (Bulletin 1502 400 A only) eliminates
mechanical compensation required for altitudes above 1000 meters
(Bulletin 1502 800 A contactors include a user-friendly mechanical
altitude adjustment).
External
Capacitor
(optional)
Supply
voltage
Close
Signal
Open
Signal
Altitude
Select
Dropout Time
Select
Contactor Type
Select
TDUV Select
Power Up
Safety Enable
Unused
Input
Power
Conditioning
Command
Inputs
Call
Power
Supply
Control
Power
Supply
Micro Controller
Flash EEPROM
Interface
Status
Outputs
Aux
Feedback
Current
Regulator
IGBT Coil
Switching
Vacuum
Contactor
Trip Coil
Vacuum
Contactor
Close Coil
Vacuum
Contactor
Auxiliary
Module
Status
Contactor
Status
110 - 240V AC
or
110 - 250V DC
DIP Sw.1
DIP Sw.2

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 9
Product Description Chapter 1
•Power loss ride-through (TDUV) allows the vacuum contactor to remain
closed during short power loss (may require an optional external capacitor,
dependent on ride-through time).
•Anti-kiss and anti-pumping protection ensure that the vacuum contactor
close – open sequence occurs as expected, avoiding rapid reclosure due to
faulty control devices.
•Delayed restart protects the vacuum contactor by ensuring that the rated
duty cycle is not exceeded.
•Temporary jog function (electrically held contactors only) allows the
motor to be positioned for process set-up.
IntelliVAC Versions
See Chapter 6 for part numbers of the various series of modules. The Series Letter
is printed on the large label on the right-hand side of the enclosure, beside the
part number.
Series A There are two versions of IntelliVAC control. The first type is used to
control vacuum contactors that are electrically held, with one electrical coil that is
economized electronically. The second is used to control mechanically latched
vacuum contactors (no longer available).
Series B There is one version of IntelliVAC, to control electrically held and
mechanically latched vacuum contactors (no longer available).
Series C Updated version of the Series B module (no longer available).
Series D Minor functionality (firmware) enhancements, primarily related to
definition and handling of Faults and Warnings (no longer available).
Series E Revised hardware to allow connection to the IntelliVAC Plus or
IntelliVAC MC. The removal of the mini Din connector for updating firmware
(firmware is now updated using the IntelliVAC Plus or IntelliVAC MC boards).
New input circuits to reduce thermal output, and decrease sensitivity to leakage
current.
See Chapter 6 for catalog numbers for each version of IntelliVAC.
IMPORTANT
A Series C, D or E IntelliVAC module can be used to replace a Series A or Series B
module. When replacing an older series of IntelliVAC with a newer one, note
that the Module and Contactor Status outputs may function differently. See
publication 1503-UM051C-EN-P and/or Chapter 5 of this document, and make
any necessary changes to the control circuit.

10 Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Chapter 1 Product Description

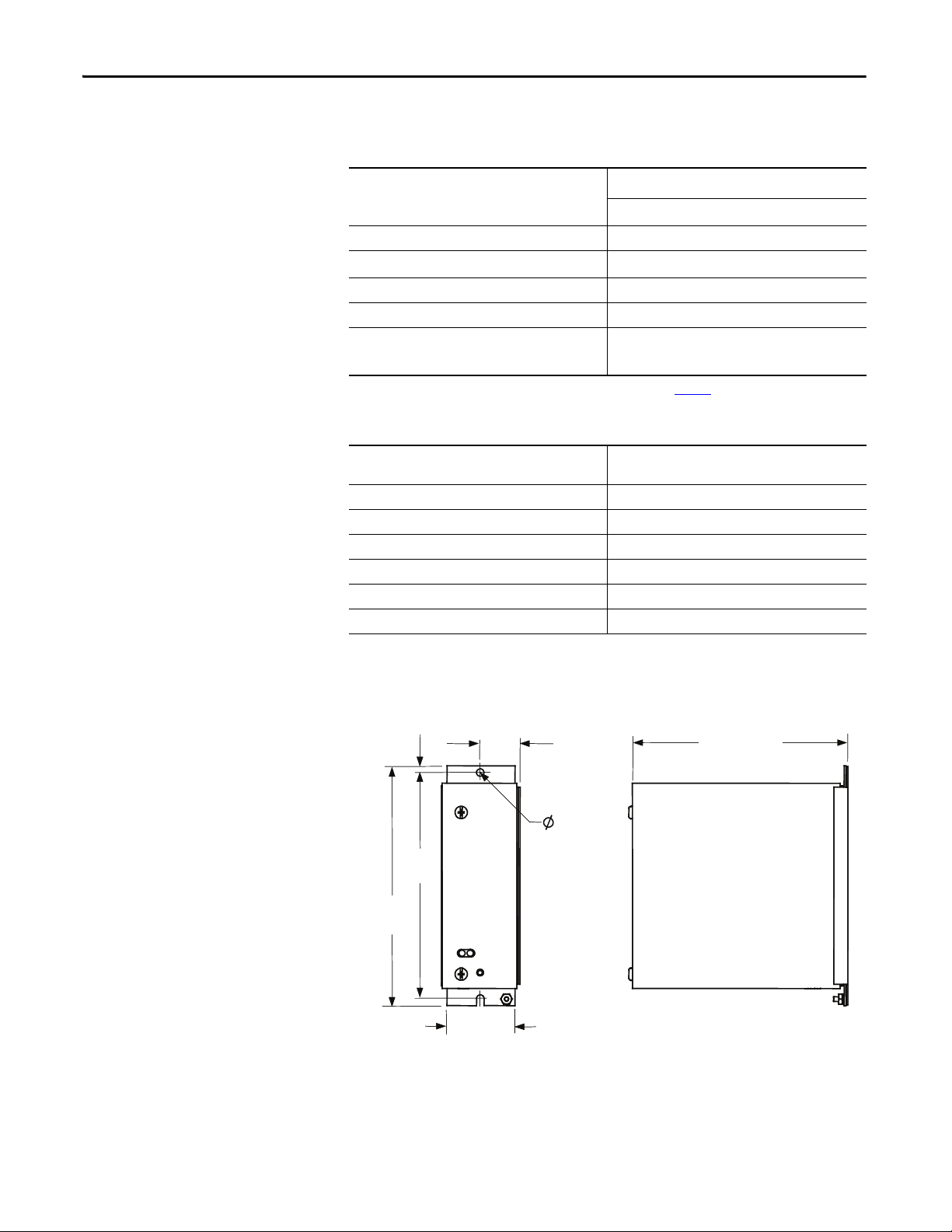

Specifications Mounting and Connections
The IntelliVACcontrol modules are mounted using two screws, see Figure 3 on
page 12. They are typically located in the low voltage control panel of the
medium voltage controller (Bulletin 1500/1900 controllers, in the case of
Rockwell Automation).
IntelliVAC is interfaced to the Bulletin 1502 vacuum contactors using a “quick”
connector, located at the module, a wire harness and “quick” connector at the
contactor. Control power and other control circuit connections are similarly
achieved with “quick” connectors.
Configuration
IntelliVACis easily configured for a wide variety of medium voltage motor and
feeder control applications. It is configured using DIP switches, located within
the enclosure (front side). See Chapter 3 for information.
Bulletin 1500/1900 controllers are shipped with IntelliVAC preconfigured for
the required application. Please see the documents provided with the order.
Firmware
IntelliVAChas firmware stored in flash EEPROM. This may be updated in the
field (if necessary). The IntelliVACboard firmware is updated using either the
IntelliVAC Plus, or IntelliVAC MC supplementary boards.
The firmware version supplied with the module is displayed on top of the DIP
switches, see Figure 17 on page 31
Series C modules use only version 2.003 application firmware. This firmware is
also compatible with the Series A and B modules. Series D modules use only
version 3.001 or 3.002 application firmware.This firmware is not compatible
with any other Series Letter modules. Series E modules use on 4.004 or newer
firmware. This firmware is not compatible with any other Series Letter modules.

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 11
Product Description Chapter 1
Table 1 - Electrical Ratings
Main Input Voltage
(L1 … L2/N)
AC – 110 … 240V rms, +10/-15%, 47 … 63 Hz
DC – 110 … 250V, +10/-15%
Description Contactor
Ratings (Amps)
Control Voltage
(AC or DC)
AC Rating DC Rating Minimum Voltage
(V AC, 47…63 Hz)
Inrush Current 400/800 120/240 25 A peak
(1/2 cycle)
25 A peak
Idle Current
(Maximum without contactor coil energized)
400/800 120/240 125 mA 35 mA
Hold Current (3)(maximum) 400/800 120/240 300 mA 100 mA
Close Current (3)
(0.2 sec)
400 120 4.6 A 3.6 A
Main Input Current
(L1 … L2/N)
240 3.4 A 3.3 A
800 120 11.3 A 4.8 A
240 8.9 A 4.5 A
Trip Current (latch) (3)
(0.2 sec)
400 120 7.0 A 3.7 A
240 3.6 A 2.0 A
800 120 7.0 A 3.3 A
240 4.3 A 1.9 A
Minimum IntelliVAC
Operational Supply
Voltages
Pick-Up 400/800 95
Drop-Out 400/800 75
Trip (Mechanical Latch) 400 70
Command Inputs
(1) (2) AC – 70 … 240V rms
DC – 70 … 250V
Maximum on state current for open or close command:
11mAAC @ 276V AC, 60 Hz, TA = 60 °C
2.4mADC @ 276V DC, TA = 60 °C
Minimum on state current for open or close command:
2.5mAAC @ 70V AC, 60 Hz, TA = 60 °C
1.2 mA @ 68V DC, TA = 60 °C
Maximum off state current for open or close command:
1.9 µA @ 60V AC, 60 Hz, TA = 60 °C
900 µA @ 60V DC, TA = 60 °C
Status Output Contacts AC – 250V rms, 5 A, R load; 2 A (reactive), PF = 0.4
DC – 30V, 5 A, R load; 2 A (reactive), L/R = 7 ms
Standards and
Approvals
CE, cULus, CSA, IEC pending
(1) TA = Ambient Temperature
(2) Ensure compatibility of IntelliVAC input ratings with those of circuit components activating these inputs.
Consider means of isolating/loading these signals, as required (using interposing relays or load resistors).
Consult factory for assistance, if required. The Series C and D IntelliVACs are compatible with most PLC outputs, and have been verified with Rockwell Automation OA type 120V triac outputs.
See Wiring Guidelines on page 22.
(3) Includes idle current.

12 Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Chapter 1 Product Description
Table 2 -
Table 3 - Mechanical Ratings
Table 4 - Altitude Derating
Figure 3 - Mechanical Dimensions
Temperature Operating: 0 … 60 °C ambient at the control module (1)
(1) Ambient temperature is derated at altitudes above 1000 meters (3300 feet). See Chapter 1.
Non-Operating: -40… 85 °C
Altitude -1000 … 5000 meters
Pollution Pollution level II (as defined by UL 840 and IEC 60664-1)
Humidity 95% non-condensing
Shock (Operational) 15 g peak, 11 ms
Vibration (operational) 10 … 57 Hz, 0.015 inch displacement peak to peak
57 … 150 Hz, 2.5 g acceleration
Altitude Maximum Operation Ambient at the control
module (°C)(1)
(1) Derate by 2°C / 1000 m for high altitude operation.
-1000 … 0 60
1 … 1000 60
1001 … 2000 58
2001 … 3000 56
3001 … 4000 54
4001 … 5000 52
5.1 (0.20)
29.7
(1.17)
174.8
(6.88)
1
85.3
(
7.29)
59.4
(2.34)
165.9 (6.53)
5.8 (0.228)
5.1 (0.20)
29.7
(1.17)
174.8
(6.88)
1
85.3
(
7.29)
59.4
(2.34)
165.9 (6.53)
5.8 (0.228)
Dimensions in mm (in.)
Two Places

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 13
Chapter 2
Receiving and Storage
Receiving Upon receiving the controller, remove the packing and check for damage that
may have occurred during shipping. Report any damage immediately to the
claims office of the carrier.
Storage Consider theses important storage requirements if you are not installing your
controller immediately after receiving it.
•Store the controller in a clean, dry, dust-free environment.
•Storage temperature should be maintained between -40… 85°C
(-40… 185°F).
•Relative humidity must not exceed 95%, non-condensing.
IMPORTANT
If the IntelliVAC module is an integral component of a complete MV controller
(Bulletin 1500/1900), special receiving and handling instructions will apply.
For details, see the service manual provided with the equipment.

14 Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Chapter 2 Receiving and Storage
Notes:

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 15
Chapter 3
Installation and Wiring
General Precautions In addition to the precautions listed throughout this manual, the following
statements, which are general to the system, must be read and understood.
Safety and Codes
Arrangements The IntelliVAC is offered in two arrangements, Integral (part of an Allen-Bradley
Bulletin 1500/1900 MV controller) or as an OEM component.
Integral to an Allen-Bradley MV Controller
The IntelliVAC is available as a primary component of an Allen-Bradley Bulletin
1500/1900 MV controller, see Figure 4 on page 16.
ATTENTION: The controller contains ESD (electrostatic discharge) sensitive
parts and assemblies. Static control precautions are required when installing
testing, servicing, or repairing the assembly. Component damage may result if
ESD control procedures are not followed. If you are not familiar with static
control procedures, see applicable ESD protection handbooks.
ATTENTION: An incorrectly applied or installed controller can damage
components or reduce product life. Wiring or application errors, such as
incorrect or inadequate AC supply, or excessive ambient temperatures, may
result in malfunction of the system.
ATTENTION: Only personnel familiar with the controller and associated
machinery should plan or implement the installation, start-up, and subsequent
maintenance of the system. Failure to do this may result in personal injury and/
or equipment damage.
ATTENTION: The Canadian Electrical Code (CEC), National Electrical Code (NEC),
or other local codes outline provisions for safely installing electrical equipment.
Installation MUST comply with specifications regarding wire type, conductor
sizes, branch circuit protection, interlocking and disconnect devices. Failure to
do so may result in personal injury and/or equipment damage.

16 Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Chapter 3 Installation and Wiring
Figure 4 - Typical IntelliVAC Installation within a Bulletin 1500/1900 MV Controller
(Shown with optional external capacitor)
OEM
The IntelliVAC can be ordered as an OEM component. This allows the OEM to
mount the components in a configuration most suitable to the control
equipment layout. Care must be exercised to ensure the IntelliVAC has adequate
ventilation provided around it. See Figure 5 on page 17 for mounting the
IntelliVAC. It is recommended that a minimum of 38.1 mm (1.5 in.) of free air
space be provided between the IntelliVAC and any solid barrier above or below.
As well, 6.4mm (0.25 in) should be left between adjacent modules.
The OEM is responsible for controller fusing, motor overload protection, control
devices (for example Start/Stop push buttons), and wiring between the
IntelliVAC and 1502 vacuum contactor (using optional wire harness). Wiring and
mounting for optional items, such as TDUV Capacitor, are also the OEM’s
responsibility. See Figure 6 on page 18 for basic connections.

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 17
Installation and Wiring Chapter 3
Figure 5 - Typical Mounting Configurations
38.1
(1.50)
38.1
(1.50) 6.4 (0.25)
38.1
(1.50)
38.1
(1.50) 6.4 (0.25)
Dimensions in mm (in.)
Minimum top clearance
Minimum bottom clearance
Additional Modules
(as required)
IMPORTANT
Adjacent IntelliVAC modules may be mounted with a minimum separation of
6.4 mm (0.25 in.).

18 Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Chapter 3 Installation and Wiring

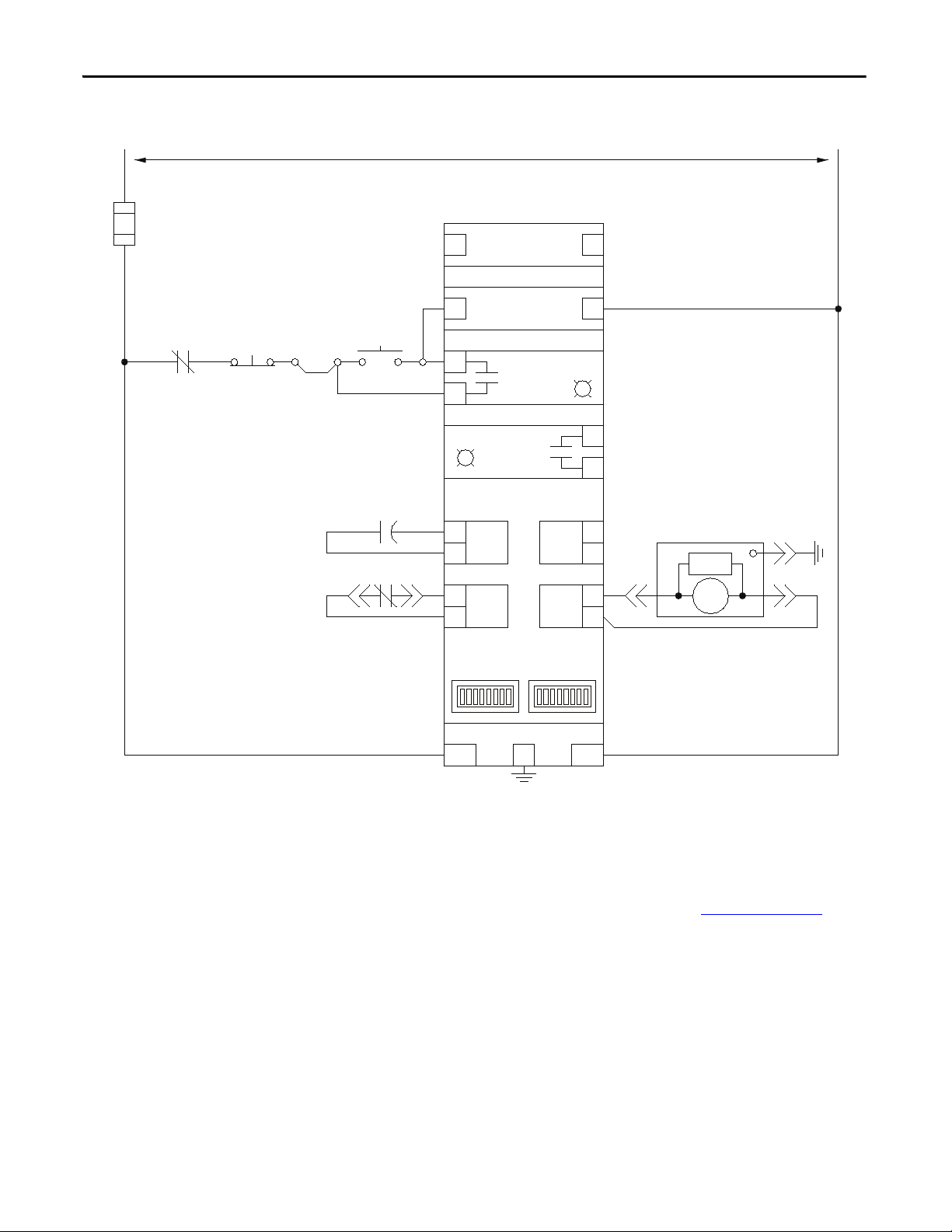

Figure 6 - IntelliVAC Typical Schematic (Electrically Held Vacuum Contactor)
Control Power Fuse
The IntelliVAC module requires external fuse protection to coordinate with the
power supply and contactor. The fuse ratings shown in Tabl e 5 on pa g e 1 9 allow
the passage of inrush currents expected when the contactor is closed, or from
recommended external capacitors for the TDUV option. They will also protect
the contactor coils in the event of a module malfunction.
The recommended fuses have been tested to ensure reliable protection of the
module. If the supply voltage is DC, the module must be used with an external
fuse that is approved for and rated to interrupt the DC voltage supply. The types
listed are Ferraz-Shawmut Midget Fuses (1-1/2 in.X 13/32 in.). The TRM is a
time-delay type, rated 250V AC. The ATM is a fast-acting type, rated 500V DC.
MOV
32
1EC
-
+
4
TCO
12
11 AUX CCO 5 6
L1 L2/NG
+-
78
16
15
M
M
+-
910
14
13
Control
Power
Fuse
Overload Stop Start
Capacitor
(Optional)
Configuration
DIP Switches
Input Power
Module
Status
Contactor
Status
Open
Close
Control Power
M - IntelliVAC

Rockwell Automation Publication 1503-UM053C-EN-P - March 2015 19
Installation and Wiring Chapter 3
Table 5 - IntelliVAC Fuse Protection
Grounding
The IntelliVAC module must be connected to a common ground terminal (PE)
on the controller panel. The ground terminal is located on the bottom of module
enclosure, see Figure 7 on page 20.
Connections
There are three green connectors on the IntelliVAC module for connections to
the control circuitry. Connector plugs are provided with the module. If
replacement plugs are required, see Chapter 6, Spare Parts.
Rated Supply Voltage Contactor Type (1)
(1) Electrically Held vacuum contactor (EH), Mechanical Latch vacuum contactor (ML).
Recommended Fuse
(minimum) (maximum)
110/120V AC
400A EH TRM 2 TRM 3.2
800A EH TRM 2 TRM 6.25
400/800A ML TRM 2 TRM 3.2
220/240V AC
400A EH TRM 2 TRM 6.25
800A EH TRM 2 TRM 6.25
400/800A ML TRM 2 TRM 6.25
125V DC 400A EH/ML ATM 3 ATM 3
800A EH/ML ATM 5 ATM 6
250V DC 400A EH/ML ATM 3 ATM 5
800A EH/ML ATM 5 ATM 6
IMPORTANT
If external capacitors are connected, or more than one IntelliVAC module is
protected by a common control fuse, the maximum recommended fuse should
be used to prevent fuse opening due to increased inrush current when control
power is applied.
ATTENTION: It is important that IntelliVAC is properly grounded using the
ground connection provided. Failure to do so may result in damage to
equipment or personal injury.

20 Rockwell Automation Publication 1503-UM053C-EN-P - March 2015
Chapter 3 Installation and Wiring
Control Power
The IntelliVAC can accept either AC or DC control power. See Ta ble 1 o n
page 11 for acceptable input power and control signal ratings.
Control power is applied to the module with a two-pole connector located at the
bottom rear portion of the module. See Figure 7 for connections. The ‘L1’
connection is intended to be the ‘Hot’ or ‘+’ side of the control power, and the
‘L2/N’ connection is intended to be the ‘Neutral’, ‘Return’, or ‘-’ side of the
control power.
Status Relays
Status relay connections are accessed with a four-pole connector located at the
bottom front portion of the module. See Figure 7 for connections. There are two
status relays, each with one normally-open contact:
•Module Status: Terminals 13 and 14
•Contactor Status: Terminals 15 and 16
See Monitoring and Troubleshooting on page 33 for a description of operation
for the relays.
See Ta b le 1 o n pa g e 1 1 for electrical ratings of the status relays.
Figure 7 - Bottom side connections
L2/NL1
CONTACTOR STATUS OUTPUT (N.O.) MODULE STATUS OUTPUT (N.O.) POWER INPUT
13 14 15 16
Ground Connection
