Rockwell Automation Allen-Bradley PanelView Plus 400 User manual

User Manual
Catalog Numbers 2711PC-K4M20D,
2711PC-B4C20D, 2711PC-T6M20D,
2711PC- T6C20D, 2711PC-T10C4D1
PanelView Plus Compact Terminals

Important User Information
Solid state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines
for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 available from your local
Rockwell Automation sales office or online at http://literature.rockwellautomation.com) describes some important differences
between solid state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the
wide variety of uses for solid state equipment, all persons responsible for applying this equipment must satisfy themselves
that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the
use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability
for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Allen-Bradley, PanelView Plus, PanelView Plus Compact, FactoryTalk View, FactoryTalk View ME, FactoryTalk View Studio, FactoryTalk ViewPoint, RSLinx Enterprise, Rockwell Automation, and TechConnect
are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
WARNING Identifies information about practices or circumstances that can cause an explosion in a
hazardous environment, which may lead to personal injury or death, property damage, or
economic loss.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
ATTENTION Identifies information about practices or circumstances that can lead to personal injury or death,
property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and
recognize the consequence
SHOCK HAZARD Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
dangerous voltage may be present.
BURN HAZARD Labels may be on or inside the equipment, for example, a drive or motor, to alert people that
surfaces may reach dangerous temperatures.

3Publication 2711PC-UM001A-EN-P - March 2009 3
Table of Contents
Preface Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Additional Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chapter 1
Overview
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Catalog Number Explanation . . . . . . . . . . . . . . . . . . . . . . . . . 9
Software Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Hardware Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Chapter 2
Installing the Terminal
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Hazardous Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Environment and Enclosure. . . . . . . . . . . . . . . . . . . . . . . . . 16
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cutout Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mount the 400 or 600 Terminal in a Panel . . . . . . . . . . . . . . 18
Mount the 1000 Terminal in a Panel. . . . . . . . . . . . . . . . . . . 20
Product Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Chapter 3
Connecting Power
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Wiring and Safety Guidelines. . . . . . . . . . . . . . . . . . . . . . . . 23
Removing and Installing the Power Terminal Block . . . . . . . 24
Connecting Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Resetting the Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Chapter 4
Configuring the Terminal
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Accessing Configuration Mode. . . . . . . . . . . . . . . . . . . . . . . 31
Loading an Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Running an Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Application Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Terminal Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Configuring Communication . . . . . . . . . . . . . . . . . . . . . . . . 37
Configuring Network Information . . . . . . . . . . . . . . . . . . . . 41
Configuring Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Managing Files on the Terminal. . . . . . . . . . . . . . . . . . . . . . 47
Modifying Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . 50
Font Linking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Configuring the Keypad, Keyboard, or Mouse . . . . . . . . . . . 54

4Publication 2711PC-UM001A-EN-P - March 2009
Table of Contents
Configuring the Touch Screen . . . . . . . . . . . . . . . . . . . . . . . 56
Configuring Print Options . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Configuring Startup Options . . . . . . . . . . . . . . . . . . . . . . . . 60
Configuring Startup Tests. . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Clearing the System Event Log. . . . . . . . . . . . . . . . . . . . . . . 65
Displaying Terminal Information . . . . . . . . . . . . . . . . . . . . . 66
Displaying
FactoryTalk View ME Station Information. . . . . . . . . . . . . . . 68
Modifying the Date, Time, or Time Zone . . . . . . . . . . . . . . . 69
Modifying Regional Settings. . . . . . . . . . . . . . . . . . . . . . . . . 71
Chapter 5
Installing and Replacing
Components
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Replacing the Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Using an External CompactFlash Card . . . . . . . . . . . . . . . . . 81
Removing the Product ID Label . . . . . . . . . . . . . . . . . . . . . . 82
Replacing the Bezel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Cleaning the
Display Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Chapter 6
Terminal Connections
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Cables for Runtime Communication . . . . . . . . . . . . . . . . . . . 87
Communication Port Isolation . . . . . . . . . . . . . . . . . . . . . . . 88
USB Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Serial Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Ethernet Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Chapter 7
Upgrading Firmware
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Transferring Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Firmware Upgrade Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . 95
Preparing Terminal
for Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Upgrading Firmware with a CompactFlash Card . . . . . . . . . . 96
Upgrading Firmware over a Network Connection . . . . . . . . 100

Publication 2711PC-UM001A-EN-P - March 2009 5
Table of Contents
Chapter 8
Troubleshooting
Chapter Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Isolating the Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Startup Information Messages . . . . . . . . . . . . . . . . . . . . . . 108
Startup Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Startup Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Checking Terminal Components . . . . . . . . . . . . . . . . . . . . 111
Ethernet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Hardware Compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Application Does Not Load . . . . . . . . . . . . . . . . . . . . . . . . 115
Application Does Not Run . . . . . . . . . . . . . . . . . . . . . . . . . 116
Configuration Mode Access . . . . . . . . . . . . . . . . . . . . . . . . 116
Appendix A
Specifications
Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Agency Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Appendix B
USB Devices
Compatible USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Appendix C
Available Fonts
Download Fonts to Terminal . . . . . . . . . . . . . . . . . . . . . . . 123
Machine Edition Fonts CD . . . . . . . . . . . . . . . . . . . . . . . . . 124
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

6Publication 2711PC-UM001A-EN-P - March 2009
Table of Contents

7Publication 2711PC-UM001A-EN-P - March 2009 7
Preface
Intended Audience
Use this manual if you are responsible for installing, configuring, and
operating the PanelView Plus Compact terminals.
No special knowledge is required to understand this manual or
operate the terminal. However, you must understand the functions
and operations of the FactoryTalk View ME applications that will run
on the terminal. Consult the application designer for this information.
Equipment installers must be familiar with standard panel installation
techniques.
Parts List
Your terminal is shipped with these items:
•Power terminal block
•FactoryTalk View ME runtime software preloaded
•Mounting levers or mounting clips (model dependent)
•Panel cutout template
•Installation instructions
Additional Resources
The table lists resources available for the PanelView Plus terminals.
You can view or download publications at
http://literature.rockwellautomation.com. To order paper copies of
technical documentation, contact your local Rockwell Automation
distributor or sales representative.
Resource Description
PanelView Plus 400 and 600 Terminals
Installation Instructions, publication
2711P-IN002
Provides details on how to install the
terminals in a panel, and wire power.
PanelView Plus 700 to 1500 Terminals and
Display Modules, and PanelView Plus
Compact 1000 Terminals, Installation
Instructions, publication 2711P-IN001
Provides details on how to install the
terminals in a panel, and wire power.
Wiring and Grounding Guidelines for
PanelView Plus Devices Technical Data,
publication 2711P-TD001
Provides grounding and wiring guidelines
for PanelView Plus terminals.

8Publication 2711PC-UM001A-EN-P - March 2009
Preface

9Publication 2711PC-UM001A-EN-P - March 2009 9
Chapter 1
Overview
Chapter Objectives
This chapter covers these topics:
•Product description
•Catalog number explanation
•Software support
•Terminal configurations
•Display modules
•Accessories
Product Overview
The PanelView Plus Compact terminals are similar to some PanelView
Plus terminal configurations but with limited hardware and software
functions. Major differences of the compact terminals include:
•Fixed hardware configuration, without the addition or
replacement of modular components.
•Serial and Ethernet communication only.
•Connection to a single logic controller using either RSLinx
Enterprise or KEPServer Enterprise software, not both.
•Limited number of displays and alarms in the FactoryTalk View
Machine Edition (ME) application and runtime software.
•FactoryTalk ViewPoint software is not supported.
•Primary HMI for CompactLogix controllers.
Catalog Number
Explanation
The table provides catalog number configurations for the PanelView
Plus Compact terminals.
TIP Applications created for PanelView Plus Compact terminals are
referred to as Compact Machine Edition applications. You can
run compact applications on PanelView Plus and PanelView
Plus Compact terminals. You cannot run a regular Machine
Edition application created for a PanelView Plus terminal on a
PanelView Plus Compact terminal.
Cat. No. Display Size Operator Input Display Type Input Power
2711PC-K4M20D 4 inch Keypad Monochrome
DC
2711PC-B4C20D Keypad and Touch Color
2711PC-T6M20D 6 inch Touch Monochrome
2711PC-T6C20D Color
2711PC-T10C4D1 10 inch Touch Color

10 Publication 2711PC-UM001A-EN-P - March 2009
Chapter 1 Overview
Software Support
Each terminal is preloaded with FactoryTalk View Machine Edition
runtime and configuration software that does not require activation.
Applications for the compact terminals are created using FactoryTalk
View Studio software.
Compact Machine Edition applications are restricted to a subset of the
functions allowed on the PanelView Plus terminals.
•Maximum of 25 displays
•Maximum of 200 alarm messages
•Maximum screen resolution of 640 x 480 (VGA)
•one connection or shortcut to a single controller using either
RSLinx Enterprise 5.20 or KEPServer Enterprise.
•Serial and Ethernet communication only.
If using RSLinx Enterprise, only serial-DF1, serial-DH485 and
Ethernet drivers are supported.

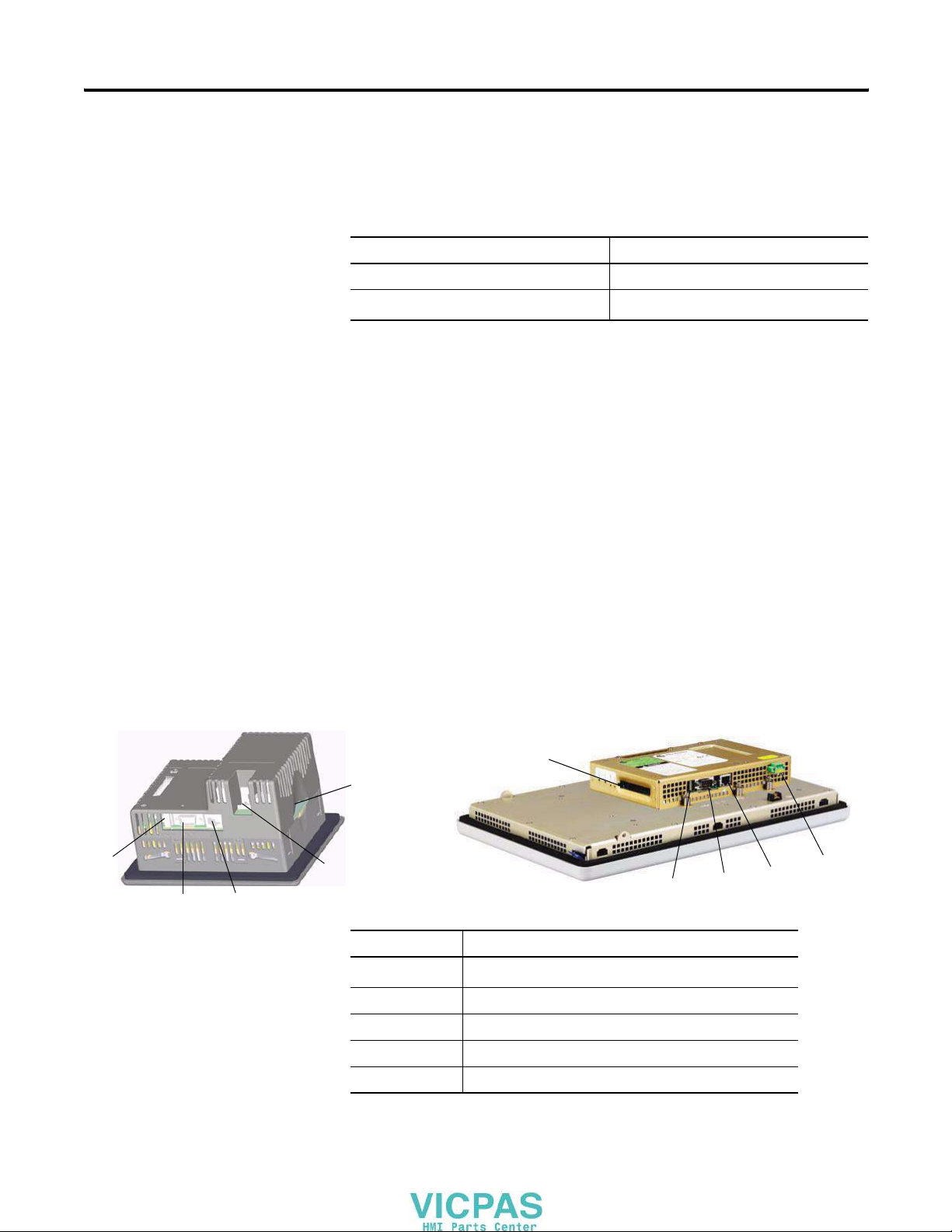

Hardware Configurations
The terminal configurations are fixed and do not support
communication modules. The 1000 touch terminal has a fixed display
module and logic module that cannot be replaced.
Software Requirements Version
FactoryTalk View Studio 5.1 or later
RSLinx Enterprise(1)
(1) RSLinx Enterprise software is provided with FactoryTalk View Studio. During software installation, you are
prompted to install RSLinx Enterprise software.
5.20 or later
400 and 600 Configurations 1000 Configuration
1234
5
1
23
4
5
Item Description
1USB port(1)
(1) The 400 and 600 models have one USB port; the 1000 model have two USB ports.
2 RS-232 serial port
3 10/100BaseT Ethernet port
4 Power input, 24V DC
5 CompactFlash Type 1 card slot

Publication 2711PC-UM001A-EN-P - March 2009 11
Overview Chapter 1
Displays
The terminal configurations provide monochrome or color displays
with keypad, touch, or keypad/touch input.
Accessories
The compact terminals use many of the same accessories as the
PanelView Plus terminals with the exception of the display modules,
communication modules, logic modules, and memory.
Keypad Description of 400 Terminals
Keys Description
F1 through F8 Programmable keys that initiate functions on terminal display.
Numeric Keypad 0…9, ., -, Backspace, Enter, Left and Right Tab keys, Shift keys
Navigation Keys Use the arrow keys for navigation.
Use the Alt+arrow keys to activate home, end, page up, and page
down functions.
ATTENTION Use a finger or gloved finger to operate the keypad. To operate
the touch screen, use your finger, gloved finger, or plastic stylus
with a minimum tip radius of 1.3 mm (0.051 in.). Using other
object or tool may damage the touch screen or keypad.
IMPORTANT The PanelView Plus Compact terminals do not support the
addition or replacement of modular components.
Compact Flash Cards
Cat. No. Description
2711P-RC2 128 MB blank CompactFlash card
2711P-RC3 256 MB blank CompactFlash card
2711P-RC4 512 MB blank CompactFlash card
2711P-RCH CompactFlash to PCMCIA adapter
Backlight
Cat. No. Description
2711P-RL10C2 Replacement color backlight for 1000 series B and C displays

12 Publication 2711PC-UM001A-EN-P - March 2009
Chapter 1 Overview
Replacement Bezels
Cat. No. Description
2711P-RBT10 Replacement bezel for 1000 touch terminal
Protective Antiglare Overlays
Cat. No. Description
2711P-RGK4 Antiglare overlay (3) for PanelView Plus 400 keypad terminal
2711P-RGB4 Antiglare overlay (3) for PanelView Plus 400 color keypad/touch terminal
2711P-RGT6 Antiglare overlay (3) for PanelView Plus 600 touch terminal
2711P-RGT6 Antiglare overlay (3) for PanelView Plus 600 touch terminal
2711P-RGT10 Antiglare overlay (3) for PanelView Plus 1000 touch terminal
Adapter Plates
Cat. No. Description
2711P-RAK4 Adapts a PanelView Plus 400 keypad terminal to a PanelView
Standard 550 keypad cutout
2711P-RAT10 Adapts a PanelView Plus 1000 touch terminal to a PanelView
1000/1000E touch cutout
Cables
Cat. No. Description
2711-NC13 RS-232 operating/programming cable (9-pin D-shell to 9-pin D-shell), 5
m (16.4 ft)
2711-NC14 RS-232 operating/programming cable (9-pin D-shell to 9-pin D-shell),
10 m (32.7 ft)
2711-NC17 Remote RS-232 serial cable (9-pin D-shell to 9-pin D-shell)
2711-NC21 RS-232 operating cable (9-pin D-shell to 8-pin mini DIN), 5 m (16.4 ft)
2711-NC22 RS-232 operating cable (9-pin D-shell to 8-pin mini DIN), 10 m (32.7 ft)
2711P-CBL-EX04 Ethernet CAT5 crossover cable, industrial grade, 4.3 m (14 ft)
Communication Adapters
Cat. No. Description
1761-NET-AIC AIC+ advanced interface converter
Miscellaneous
Cat. No. Description
2711P-RY2032 Replacement battery for 1000 terminal
2711P-RTMC Replacement mounting clips for 1000 terminals, quantity of 8
2711P-RTFC Replacement mounting levers for 400 and 600 terminals, quantity of 8
2711-TBDC Replacement DC power terminal block for 400 and 600 terminals
2711P-RTBDC2 Replacement two-position DC power terminal block for 1000 terminal

13Publication 2711PC-UM001A-EN-P - March 2009 13
Chapter 2
Installing the Terminal
Chapter Objectives
This chapter provides pre-installation information and procedures on
how to install the terminals.
•Hazardous locations
•Environment and enclosure
•Required tools
•Clearances
•Panel cutout dimensions
•Mount the 400 or 600 terminal in a panel
•Mount the 1000 terminal in a panel
•Product dimensions
Hazardous Locations
This equipment is suitable for these locations:
•Class I, Division 2, Groups A, B, C, D
•Class II, Division 2, Groups F, G
•Class III
•ordinary, nonhazardous locations
The following statement applies to use in hazardous locations.
The terminals have a temperature code of T4 when operating in a
55 °C (131 °F) maximum ambient temperature. Do not install the
terminals in environments where atmospheric gases have ignition
temperatures less than 135 °C (275 °F).
WARNING Explosion Hazard
•Substitution of components may impair suitability for hazardous
locations.
•Do not disconnect equipment unless power has been switched off
and area is known to be nonhazardous.
•Do not connect or disconnect components unless power has been
switched off.
•All wiring must comply with N.E.C. articles 501, 502, 503, and/or
C.E.C. section 18-1J2 as appropriate.
•Peripheral equipment must be suitable for the location in which it is
used.

14 Publication 2711PC-UM001A-EN-P - March 2009
Chapter 2 Installing the Terminal

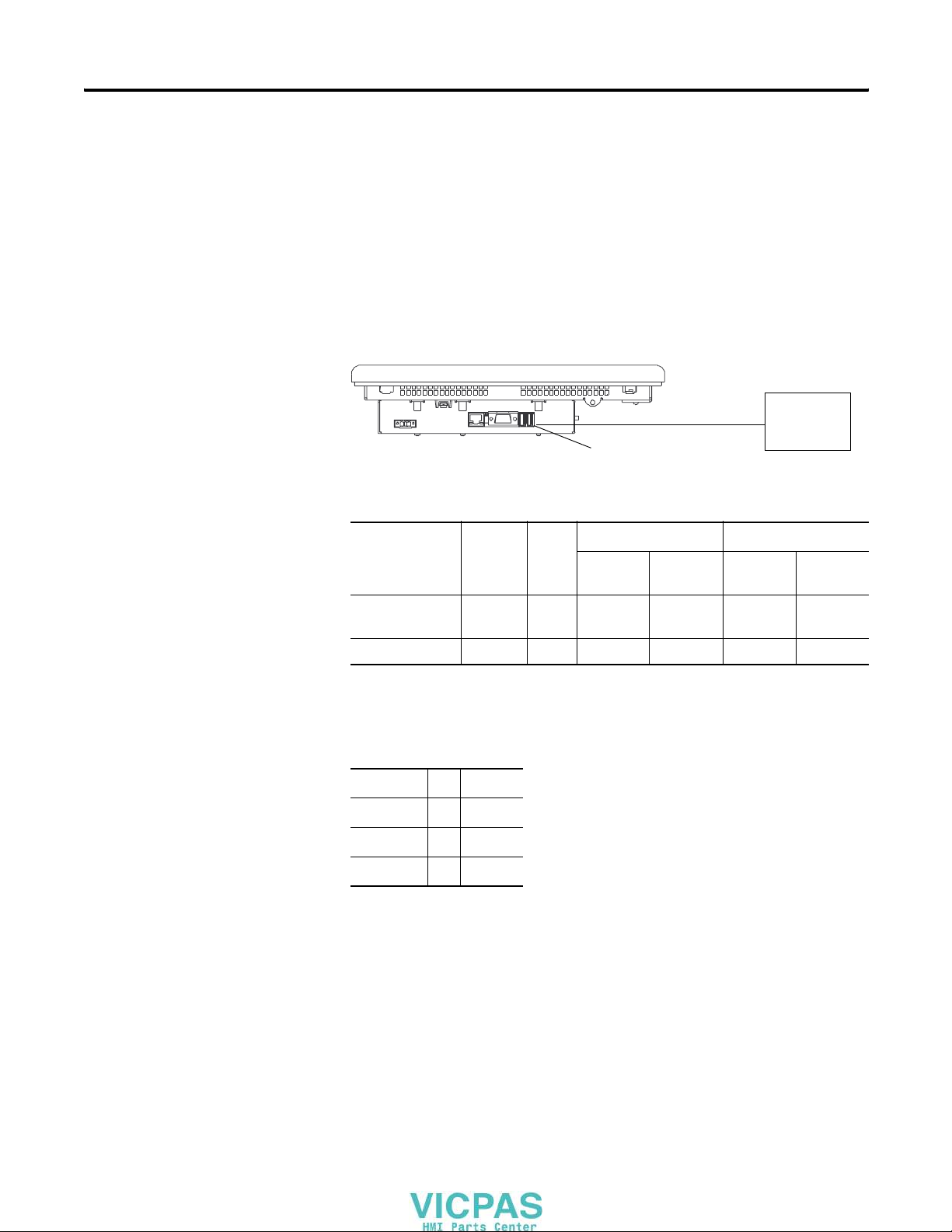

USB Ports
The PanelView Plus Compact terminals contain universal serial bus
(USB) ports that comply with hazardous location environments. This
section details the field-wiring compliance requirements and is
provided in accordance with the National Electrical Code, article 500.
PanelView Plus Compact Terminals Control Drawing
Selected nonincendive field wiring apparatus must have nonincendive
circuit parameters conforming with Table 2.
Table 1 - PanelView Plus Compact USB Port Circuit Parameters
Display Size Voc Isc
CaLa
Groups
A and B
Groups
C and D
Groups
A and B
Groups
C and D
400 and 600
Series C or later
5.25V DC 1.68 A 10 µF 10 µF 3.5 µH 15 µH
1000 5.25V DC 1.68 A 10 µF 10 µF 15 µH 15 µH
Table 2 - Required Circuit Parameters for the USB Peripheral Device
Vmax ≥Voc
Imax ≥Isc
Ci+ Ccable £ Ca
Li+ Lcable £ La
USB
Peripheral
Device
Nonincendive Field
Wiring Apparatus
USB Port
Nonincendive Field Wiring
Associated Nonincendive Field Wiring Apparatus
PanelView Plus 400, 600, or 1000 Host Product

Publication 2711PC-UM001A-EN-P - March 2009 15
Installing the Terminal Chapter 2
Application Information
Per the National Electrical Code the circuit parameters of
nonincendive field wiring apparatus for use in hazardous locations
shall be coordinated with the associated nonincendive field wiring
apparatus such that their combination remains nonincendive. The
PanelView Plus terminal and the USB peripheral device shall be
treated in this manner.
The circuit parameters of the PanelView Plus terminal USB port are
given in Table 1. The USB peripheral device and its associated cabling
shall have circuit parameters with the limits given in Table 2 for them
to remain nonincendive when used with the PanelView Plus terminal
USB port. If cable capacitance and inductance are not known the
following values from ANSI/ISA-RP 12.06.01-2003 may be used:
Ccable = 197 pF/m (60 pF/ft)
Lcable = 0.7 µH/m (0.20 µH/ft)
Nonincendive field wiring must be wired and separated in accordance
with 501.10(B)(3) of the National Electrical Code (NEC) ANSI/NFPA 70
or other local codes as applicable.
This associated nonincendive field wiring apparatus has not been
evaluated for use in combination with another associated
nonincendive field wiring apparatus.
Symbol Definitions
Voc Open circuit voltage of the host USB port.
Isc Maximum output current of the host USB port.
Vmax Maximum applied voltage rating of the USB peripheral device.
Vmax shall be greater than or equal to Voc in Table 1. (Vmax ≥Voc ).
Imax Maximum current to which the USB peripheral device can be subjected.
Imax shall be greater than or equal to Isc in Table 1. (Imax ≥Isc).
CiMaximum internal capacitance of the USB peripheral device.
CaMaximum allowed capacitance of the USB peripheral device and its
associated cable. The sum of Ciof the USB peripheral device and Ccable of
the associated cable shall be less than or equal to Ca. (Ci+ Ccable ≤Ca).
LiMaximum internal inductance of the USB peripheral device.
LaMaximum allowed inductance of the USB peripheral device and its
associated cable. The sum of Liof the USB peripheral device and Lcable of
the associated cable shall be less than or equal to La. (Li+ Lcable ≤La).

16 Publication 2711PC-UM001A-EN-P - March 2009
Chapter 2 Installing the Terminal
Environment and Enclosure
ATTENTION This equipment is intended for use in a Pollution Degree 2
industrial environment, in overvoltage Category II applications
(as defined in IEC 60664-1), at altitudes up to 2000 m (6561 ft)
without derating.
The terminals are intended for use with programmable logic
controllers. Terminals that are AC powered must also be
connected to the secondary of an isolating transformer.
This equipment is considered Group 1, Class A industrial
equipment according to IEC CISPR 11. Without appropriate
precautions, there may be difficulties ensuring electromagnetic
compatibility in residential and other environments due to
conducted or radiated disturbances.
This equipment is supplied as open-type equipment. It must be
mounted within an enclosure that is suitably designed for those
specific environmental conditions that will be present and
appropriately designed to prevent personal injury resulting from
accessibility to live parts. The interior of the enclosure must be
accessible only by the use of a tool. The terminals meet
specified NEMA Type and IEC ratings only when mounted in a
panel or enclosure with the equivalent rating. Subsequent
sections of this publication may contain additional information
regarding specific enclosure type ratings that are required to
comply with certain product safety certifications.
In addition to this publication, see:
•Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1, for additional installation requirements.
•NEMA Standards 250 and IEC 60529, as applicable, for
explanations of the degrees of protection provided by different
types of enclosure.

Publication 2711PC-UM001A-EN-P - March 2009 17
Installing the Terminal Chapter 2
Required Tools
These tools are required for panel installation:
•Panel cutout tools
•Small, slotted screwdriver
•Torque wrench (lb•in) for tightening the mounting clips on the
1000 terminal
Clearances
Allow adequate clearance around the terminal, inside the enclosure,
for adequate ventilation. Consider heat produced by other devices in
the enclosure. The ambient temperature around the terminals must be
between 0…55 °C (32…131 ºF).
Cutout Dimensions
Use the full size template shipped with your terminal to mark the
cutout dimensions.
Clearance Area 400 and 600 Terminals 1000 Terminal
Top 51 mm (2 in.) 51 mm (2 in.)
Bottom 102 mm (4 in.) 51 mm (2 in.)
Side(1)
(1) Minimum side clearance for insertion of memory card and cable wiring is 102 mm (4 in.).
25 mm (1 in.) 25 mm (1 in.)
Back None 25 mm (1 in.)
Terminal Type Height mm (in.) Width mm (in.)
400 Keypad, or Keypad and Touch 123 (4.86) 156 (6.15)
600 Touch 123 (4.86) 156 (6.15)
1000 Touch 224 (8.8) 305 (12.00)

18 Publication 2711PC-UM001A-EN-P - March 2009
Chapter 2 Installing the Terminal
Mount the 400 or 600
Terminal in a Panel
Mounting levers secure the terminal to the panel. The number of
levers you use (4 or 6) varies by terminal type.
Follow these steps to mount the 400 or 600 terminals in a panel.
1. Cut an opening in the panel by using the panel cutout shipped
with the terminal.
2. Make sure the terminal sealing gasket is properly positioned on
the terminal.
This gasket forms a compression-type seal. Do not use sealing
compounds.
3. Place the terminal in the panel cutout.
If installing the terminal in an existing 550 panel cutout, align
the terminal with the center of the cutout for best gasket sealing.
4. Insert all mounting levers into the mounting slots on the
terminal.
ATTENTION Disconnect all electrical power from the panel before making
the panel cutout.
Make sure the area around the panel cutout is clear.
Take precautions so metal cuttings do not enter any
components already installed in the panel.
Failure to follow these warnings may result in personal injury or
damage to panel components.
Sealing Gasket

Publication 2711PC-UM001A-EN-P - March 2009 19
Installing the Terminal Chapter 2
Slide each lever until the flat side of the lever touches the
surface of the panel.
5. When all levers are in place, slide each lever an additional notch
or two until you hear a click.
6. Rotate each lever in the direction indicated until it is in the final
latch position.
Follow the latching sequence for the optimum terminal fit.
Use this table as a guide to provide an adequate gasket seal
between the terminal and the panel.
Mounting Slots Mounting Levers
Flat Side of Lever
6 Levers
246
513
Notch 61
Alignment Marks
Rotate lever until notch in
lever aligns with proper
alignment mark on terminal.
14
32
4 Levers
Lever Position Panel Thickness Range Typical Gauge
1 1.52…2.01 mm (0.060…0.079 in.) 16
2 2.03…2.64 mm (0.08…0.104 in.) 14
3 2.67…3.15 mm (0.105…0.124 in.) 12
4 3.17…3.66 mm (0.125…0.144 in.) 10
5 3.68…4.16 mm (0.145…0.164 in.) 8/9
6 4.19…4.75 mm (0.165…0.187 in.) 7
Terminal Markings
or Alignment
1
2
3
4
5
6
ATTENTION Follow instructions to provide a proper seal and to
prevent potential damage to the product. Rockwell
Automation assumes no responsibility for water or
chemical damage to the terminal or other equipment
within the enclosure because of improper installation.

20 Publication 2711PC-UM001A-EN-P - March 2009
Chapter 2 Installing the Terminal
Mount the 1000 Terminal in
a Panel
Mounting clips secure the terminal to the panel.
Follow these steps to mount the terminal in a panel.
1. Cut an opening in the panel by using the panel cutout shipped
with the terminal.
2. Make sure the terminal sealing gasket is properly positioned on
the terminal.
This gasket forms a compression-type seal. Do not use sealing
compounds.
3. Place the terminal in the panel cutout.
ATTENTION Disconnect all electrical power from the panel before making
the panel cutout.
Make sure the area around the panel cutout is clear.
Take precautions so metal cuttings do not enter any
components already installed in the panel.
Failure to follow these warnings may result in personal injury or
damage to panel components.
Sealing Gasket
