Rockwell Automation VersaView 5100 User manual

VersaView 5100 Industrial Monitors
Catalog Numbers 6200M-12WBN, 6200M-15WBN, 6200M-19WBN, 6200M-22WBN
User Manual
Original Instructions

Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to
familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws,
and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are
required to be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may
be impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from
the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous
environment, which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 3
Table of Contents
Preface
Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 1
Monitor Features
Monitor Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Chapter 2
Install the Monitor
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installation Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Environment and Enclosure Information. . . . . . . . . . . . . . . . . . . . . . . 12
European Union Directive Compliance . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Enclosure Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mounting Clearance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Monitor Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Install the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Panel Mounting Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Panel Cutout Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Mount the Monitor in a Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
VESA Mount a Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connect Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connect Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connect AC Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connect DC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Chapter 3
Configure the Display
Set the Monitor Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Check and Change the Display Resolution . . . . . . . . . . . . . . . . . . . . . . . . . 23
Touch Screen Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Touch Screen Driver Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adjust the Display Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Table of Contents
Chapter 4
Clean the Monitor
Clean the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Clean the Integrated Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Clean the Air Openings and Cooling Fins . . . . . . . . . . . . . . . . . . . . . . 28
Remove Paint and Grease from Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Chapter 5
Troubleshoot the Monitor
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Ship or Transport the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dispose of the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 5
Table of Contents
Notes:

6Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Table of Contents
Notes:

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 7
Preface
This manual is a user guide for VersaView® 5100 industrial monitors. It
provides procedures to the following:
• Install the monitor.
• Make monitor connections.
• Operate the monitor.
• Troubleshoot the monitor.
Abbreviations This publication can use the following abbreviations.
Abbr Meaning Abbr Meaning
BIOS Basic input/output system PCB Printed circuit board
CF CompactFlash PCDC Product Compatibility and Download Center
CMOS Complementary metal oxide
semiconductor
PCI Peripheral component interconnect
COM Communication (serial port interface) PCIe Peripheral component interconnect express
DDR Double data rate (RAM) PELV Protective extra-low voltage
DIMM Dual in-line memory module POST Power on self-test
DP DisplayPort (digital display interface) RAM Random access memory
DVI Digital video interface RTC Real-time clock
EEA European Environment Agency SELV Safety extra low voltage
EMC Electromagnetic compatibility SSD Solid-state drive
ESD Electrostatic discharge TFT Thin film transistor
IEC International Engineering Consortium UEFI Universal extensible firmware interface
LAN Local area network USB Universal serial bus
NDM
Non-display model UPS Uninterruptible power source
NEMA National Electrical Manufacturers
Association
VGA Video graphics array
PCAP
Protective capacitive (touch screen)

8Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Preface
Additional Resources These documents contain additional information about related products from
Rockwell Automation.
You can view or download publications at
http://www.rockwellautomation.com/global/literature-library/overview.page.
To order paper copies of technical documentation, contact your local
Allen-Bradley distributor or Rockwell Automation sales representative.
Resource Description
Industrial Computer and Monitor Specifications Technical
Data, publication IC-TD001
Provides technical specifications about the VersaView
5100 industrial monitors.
Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1
Provides general guidelines for installing a Rockwell
Automation industrial system.
Product Certifications website,
http://www.rockwellautomation.com/global/
certification/overview.page
Provides declarations of conformity, certificates, and
other certification details.

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 9
Chapter 1
Monitor Features
The VersaView® 5100 monitors have an edge-to-edge, all glass, ten-point
multi-touch screen that can also be operated with gloves. The touch screens are
precalibrated so that recalibration is not necessary. These monitors are
optimized to work with the VersaView 5000 computer and thin client
portfolio to create a visualization, maintenance, control, or information
computing solution.
The monitors offer the following features:
• 12.1, 15.6, 18.5, or 21.5-inch active matrix display
• Native video resolutions from 1280 x 800 to 1920 x 1080 (full HD)
• Wide viewing angle with antiglare coating
• Windows and Linux compatible
• DC input power
Monitor Options Tab le 1 describes what options ship currently with VersaView 5100 industrial
monitors. To identify your monitor’s configuration, compare the nameplate
label on your monitor to Table 1.
A comparative summary of monitor features is in publication IC-TD001,
Industrial Computer and Monitors Specifications Technical Data.
Table 1 - VersaView 5100 Monitor Catalog Numbers and Display Sizes
Topic Page
Monitor Options 9
Hardware Features 10
Cat. No.
Display Size
(in.)
Resolution
(W x H, pixels)
Brightness
(cd/m2)Bezel
Touch
Screen
6200M-12WBN 12.1 1280 x 800 400 Tempered
Glass and
Stainless
Steel
PCAP
6200M-15WBN 15.6 1366 x 768
6200M-19WBN 18.5 450
6200M-22WBN 21.5 1920 x 1080 300

10 Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Chapter 1 Monitor Features

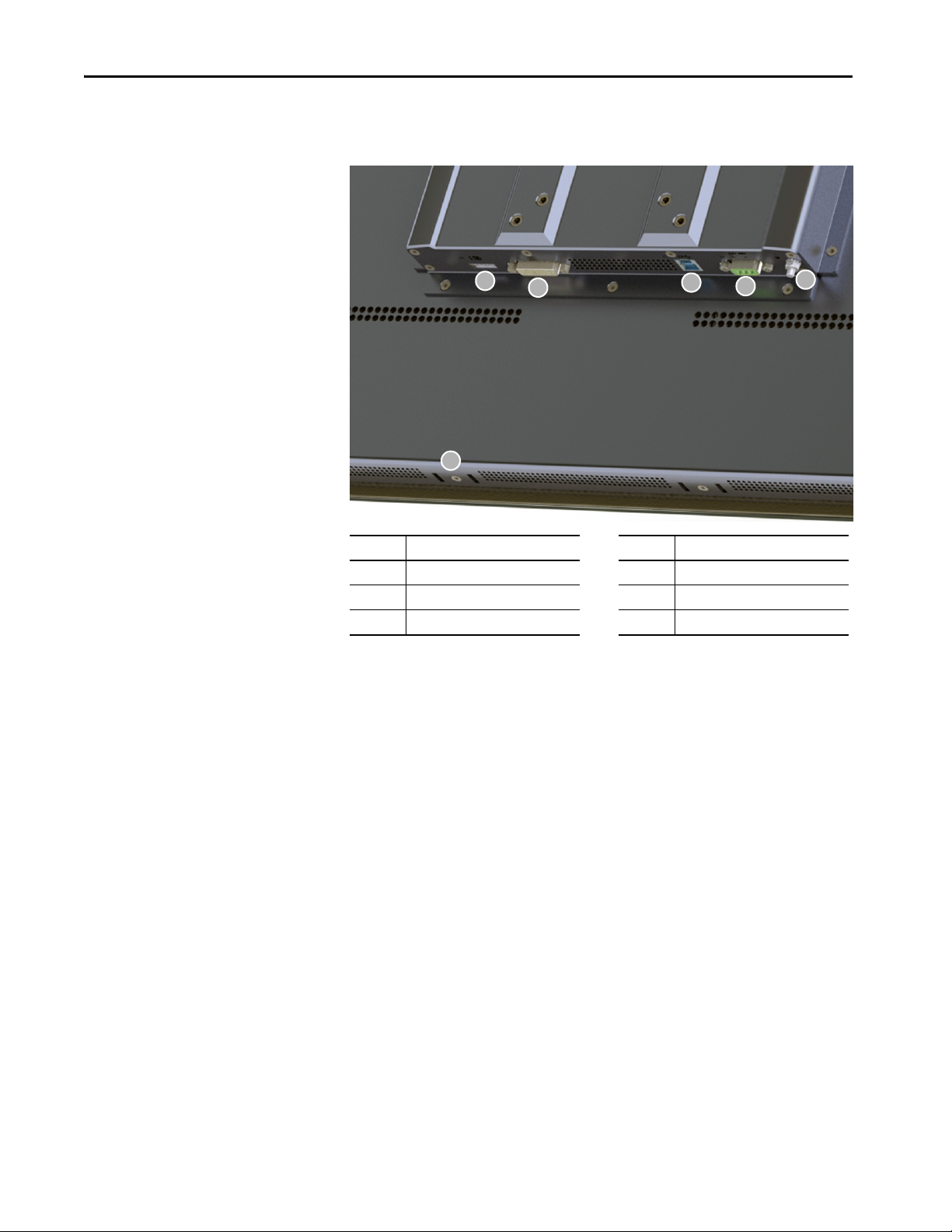

Hardware Features Figure 1 shows the hardware features of VersaView 5100 monitors.
Figure 1 - VersaView 5100 Hardware Features
Item Component Item Component
1 Mounting clip slot(1)
(1) Depending on the monitor model, slots accommodate 8 to 14 mounting clips.
4USBport
2DisplayPort 524VDCpowerinputconnection
3 DVI-I port(2)
(2) Can be used for VGA with DVI-to-VGA adapter, cat. no. 6189V-DVIVGA, which is sold separately.
6Groundscrew
2
1
3456

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 11
Chapter 2
Install the Monitor
Before You Begin Before you unpack the monitor, inspect the shipping carton for damage. If
damage is visible, immediately contact the shipper and request assistance.
Otherwise, proceed with unpacking.
Keep the original packing material in case you need to return the monitor for
repair or transport it to another location.
Parts List The monitors ship with the following items.
Topic Page
Before You Begin 11
Parts List 11
Installation Precautions 12
Installation Guidelines 13
Mounting Clearance Requirements 14
Monitor Dimensions 15
Required Tools 15
Install the Monitor 16
Connect Peripherals 20
Connect Power 20
Item Description
Hardware • Mounting clips
• DC terminal block
Documents • VersaView® 5100 Industrial Monitors, and VersaView 5000 Thin Clients, Industrial
Computers, and Accessories Product Information, publication 6200-PC001
• VersaView 5000 Thin Client and Integrated DisplayIndustrial Computers Cutout Template,
publication 6200-DS001

12 Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Chapter 2 Install the Monitor
Installation Precautions Read and follow these precautions before you install the monitor.
Environment and Enclosure Information
European Union Directive Compliance
This monitor meets the European Union Directive requirements when
installed within the European Union or EEA regions and have the CE
marking. A copy of the declaration of the conformity is available at
https://www.rockwellautomation.com/global/certification/overview.page.
ATTENTION: This equipment is intended for use in a Pollution Degree 2
industrial environment, in overvoltage Category II applications (as defined in
IEC 60664-1), at altitudes up to 2000 m (6561 ft) without derating.
This equipment is considered Group 1, Class A industrial equipment according to
IEC/CISPR 22. Without appropriate precautions, there can be potential
difficulties with electromagnetic compatibility in other environments due to
conducted as well as radiated disturbance.
This equipment is UL Listed. However, to meet some regulatory requirements,
the monitor must be mounted in an enclosure that is suitably designed for
environmental conditions that can be present.
All VersaView industrial monitors are shipped with a gasketed bezel to meet
specified NEMA, UL Type, and IEC IP ratings only when mounted in a panel or
enclosure with an equivalent rating.
In addition to this publication, see the following:
• Industrial Automation Wiring and Grounding Guidelines, publication
1770-4.1, for more installation requirements
• NEMA 250 and IEC 60529, as applicable, for explanations of the degrees of
protection provided by enclosures
ATTENTION: This monitor is intended to operate in an industrial or control
room environment, which uses some form of power isolation from the public
low–voltage mains. Some monitor configurations cannot comply with the
EN 61000-3-2 Harmonic Emissions standard as specified by the EMC Directive
of the European Union. Obtain permission from the local power authority
before you connect any monitor configuration that draws more than 75 W of
AC power directly from the public mains.
To comply with EN 55024, the Ethernet port LAN cable must be used only
indoors. All other I/O cables must be less than 3 m (9.84 ft) and used only
indoors.

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 13
Install the Monitor Chapter 2
Installation Guidelines Follow these guidelines to make sure your monitor provides service with
excellent reliability:
• The installation site must have sufficient power.
• In dry environments, static charges can build up easily. Proper grounding
of the monitor helps to reduce static discharges, which can cause shock
and damage electronic components.
• The ambient air temperature must not exceed the maximum operating
temperature of 0…50 °C (32…122 °F).
• The humidity of the ambient air must not exceed 90% @ 40 °C
(104 °F), noncondensing.
• The monitor cover must always remain in place during operation. The
cover provides protection against high voltages inside the monitor and
inhibits radio frequency emissions that can interfere with other
equipment.
• You can only mount and operate VersaView monitors in a horizontal
orientation (with the interfaces at the bottom) and the vertical
(upright) position. Vertical orientation (with the interfaces to the left or
to the right) is only possible when supported by the operating system
that is used.
ATTENTION: For applications with an AC power source, the AC-to-DC
power adapter (ordered separately) must be plugged into a
grounded outlet to maintain an electrically safe installation.
IMPORTANT The monitor can operate at a range of extremes. However, the life
span of any electronic device is shortened if you continuously
operate the monitor at its highest rated temperature, which
includes the touch screen and LCD panel.
IMPORTANT The monitor can operate at a range of extremes. However, the life
span of any electronic device is shortened if you continuously
operate the monitor at its highest rated temperature, which
includes the touch screen and LCD panel.

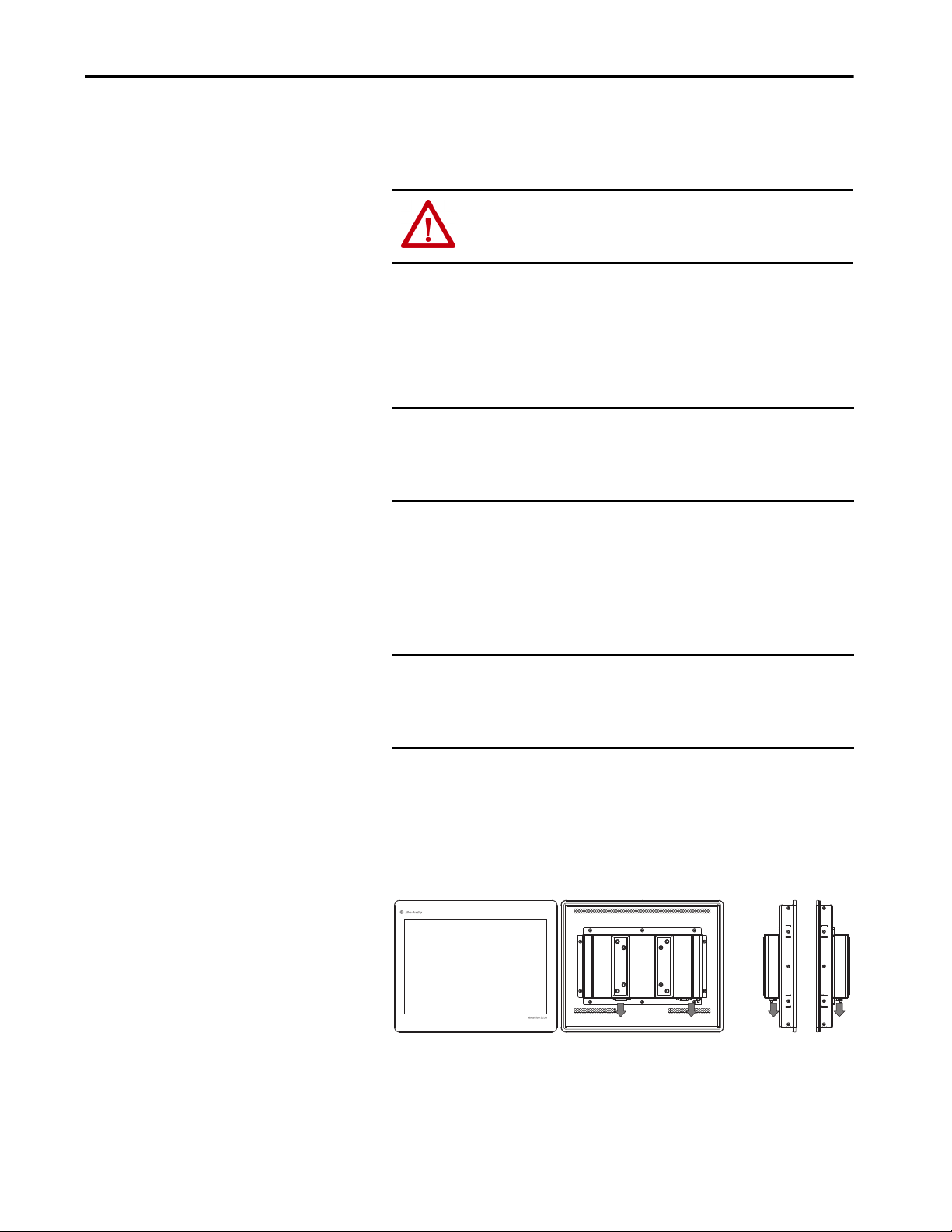

Horizontal Orientation
Vertical
Position
In both views, interfaces are at the bottom of the monitor.

14 Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Chapter 2 Install the Monitor
Enclosure Guidelines
• The enclosure must allow sufficient space around air inlets and outlets to
provide the circulation necessary for cooling. See Mounting Clearance
Requirements for further information. Never allow air passages to
become obstructed.
• Hot air rises. The temperature at the top of the enclosure is often higher
than the temperature in other parts of the enclosure, especially if air is
not circulating.
Consider a user-supplied fan, heat exchanger, or air conditioner for heat
generated by other devices in the enclosure. See Installation Guidelines
on page 13 for the acceptable temperature ranges for these monitors.
Mounting Clearance
Requirements
To help prevent overheating and to provide access to the
monitor I/O ports for cable connections, leave at least
5 cm (2 in.) of free space around the monitor.
Do not obstruct the air intake, exhaust openings, or
cooling fins of the monitor cover.
IMPORTANT Monitors generate heat. Therefore, do not operate the monitor in an
enclosure with the minimum clearances unless adequate ventilation or
other cooling methods are used to lower the temperature within the
enclosure.
Air Flow
Direction

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 15
Install the Monitor Chapter 2
Monitor Dimensions Review the monitor dimensions to make sure that you allow adequate
clearance on the sides and rear of the monitor for ventilation and cable
connections.
Figure 2 shows the monitor dimensions in mm (in.).

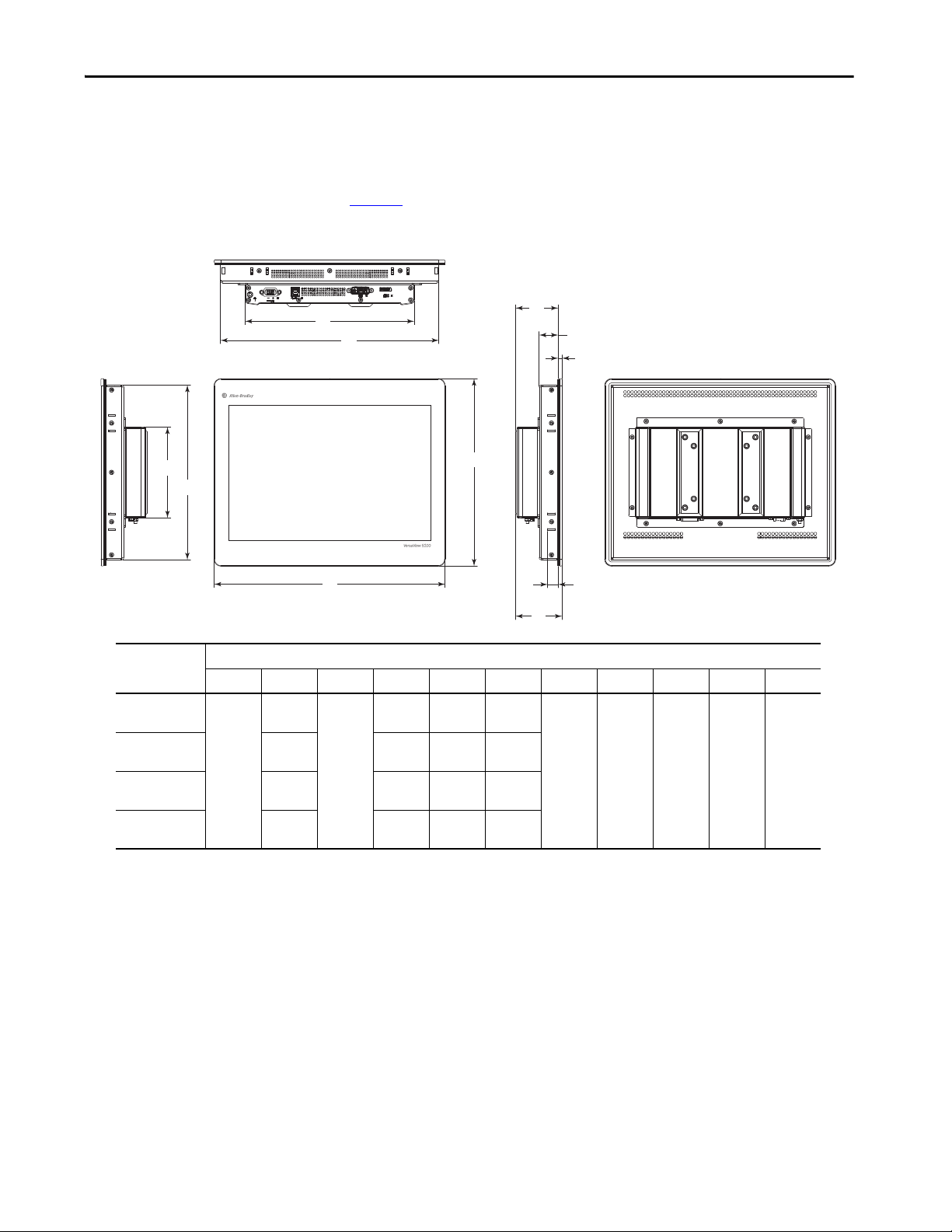

Figure 2 - VersaView 5100 Industrial Monitor Dimensions
Required Tools These tools are required for monitor installation:
• #2 cross-head screwdriver
• Panel cutout tools (for wall and panel mounting)
• 2 mm Allen wrench (for mounting clips)
• Anti-static wriststrap
315 (12.40) 26.6 (1.05)
291 (11.46)
340 (13.39)
5.5 (0.22)
12 (0.47)
235 (9.25)
60.5 (2.38)
260 (10.24)
197 (7.76)
A
B
CE
D
F
G
H
I
J
K
Monitor Model
Dimensions, mm (in.)
ABCDEFGHI JK
6200M-12WBN
240
(9.45)
310
(12.2)
129
(5.08)
248
(9.76)
266
(10.47)
328
(12.91)
60.5
(2.38)
27
(1.06)
5.6
(0.22)
15
(0.6)
66.1
(2.6)
6200M-15WBN 396
(15.6)
280
(11.02)
298
(11.73)
414
(16.3)
6200M-19WBN 462
(18.19)
319
(12.56)
337
(13.27)
480
(18.9)
6200M-22WBN 527
(20.74)
355
(13.97)
373
(14.69)
545
(21.46)

16 Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Chapter 2 Install the Monitor
Install the Monitor The monitors support panel mounting.
Panel Mounting Guidelines
Observe these guidelines when installing a monitor in a panel.
• Remove all electrical power from the panel before you make the cutout.
• Confirm that there is adequate space behind the panel. For specific
information, refer to Mounting Clearance Requirements on page 14.
• Cut supporting panels to specifications before installation. Take
precautions so metal cuttings do not enter components already installed
in panel.
The supplied mounting hardware accommodates panel thickness
between 1.5…6 mm (0.06…0.24 in.).
• Make sure the area around the panel cutout is clear.
• The only acceptable mounting position is in the horizontal position
with the I/O ports at the bottom. For further information, see the last
bullet point in Installation Guidelines on page 13.
Panel Cutout Dimensions
The VersaView 5000 Cutout Template, publication 6200-DS001, is shipped
with all VersaView 5100 industrial monitors.
The monitors must be mounted to meet these panel cutout dimensions.
ATTENTION: Failure to follow these guidelines can result in personal
injury or damage to the panel components.
Display Size (in.) Cutout Dimensions (H x W), approx.
12.1 250 x 312 mm (9.84 x 12.28 in.)
15.6 282 x 398 mm (11.1 x 15.67 in.)
18.5 321 x 464 mm (12.64 x 18.27 in.)
21.5 357 x 529 mm (14.06 x 20.83 in.)

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 17
Install the Monitor Chapter 2
Mount the Monitor in a Panel
Mounting clips secure the monitor to the panel. The number of clips varies by
model.
Follow these steps to mount the monitor in a panel.
1. Remove power from the panel.
2. Verify that the panel surface around the area to be cut is clean and free of
be debris.
3. Cut an opening in the panel by using the appropriate panel cutout
dimensions found in Panel Cutout Dimensions on page 16.
4. Attach cables to the monitor before installation if rear access to the
monitor is limited after installation.
For where to attach cables, see Connect Peripherals on page 20.
5. Make sure the sealing gasket is properly positioned on the monitor.
6. Place the monitor in the panel cutout.
7. Slide the mounting clips into the holes on the top, bottom, and sides of
the monitor.
8. Hand-tighten the mounting clips around the bezel by following the
tighten sequence in Figure 3 on page 18.
9. Repeat this process at least three times until the clips are hand-tight and
the gasket is compressed uniformly against the panel.
10. With a 2 mm Allen wrench, tighten the mounting clips to a torque of
0.4 N•m (3.5 lb•in) by following the torque sequence in Figure 3 on
page 18. Do not overtighten.
Display Size (in.) Clips (qty.) Cat. No. Description
12.1 8 6200V-MCLPS4 Replacement mounting clips (14)
15.6 12
18.5 14
21.5
ATTENTION: Take precautions so metal fragments do not enter
components already installed in the panel to avoid personal injury or
damage to the panel components.
IMPORTANT The gasket provided with the monitor forms a compression-type
seal. Therefore, do not use sealing compounds.

18 Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Chapter 2 Install the Monitor
11. Repeat this process at least three times until the clips are properly torqued
to
0.7 N•m (6.2 lb•in) . Verify that the gasket is compressed uniformly
against the panel.

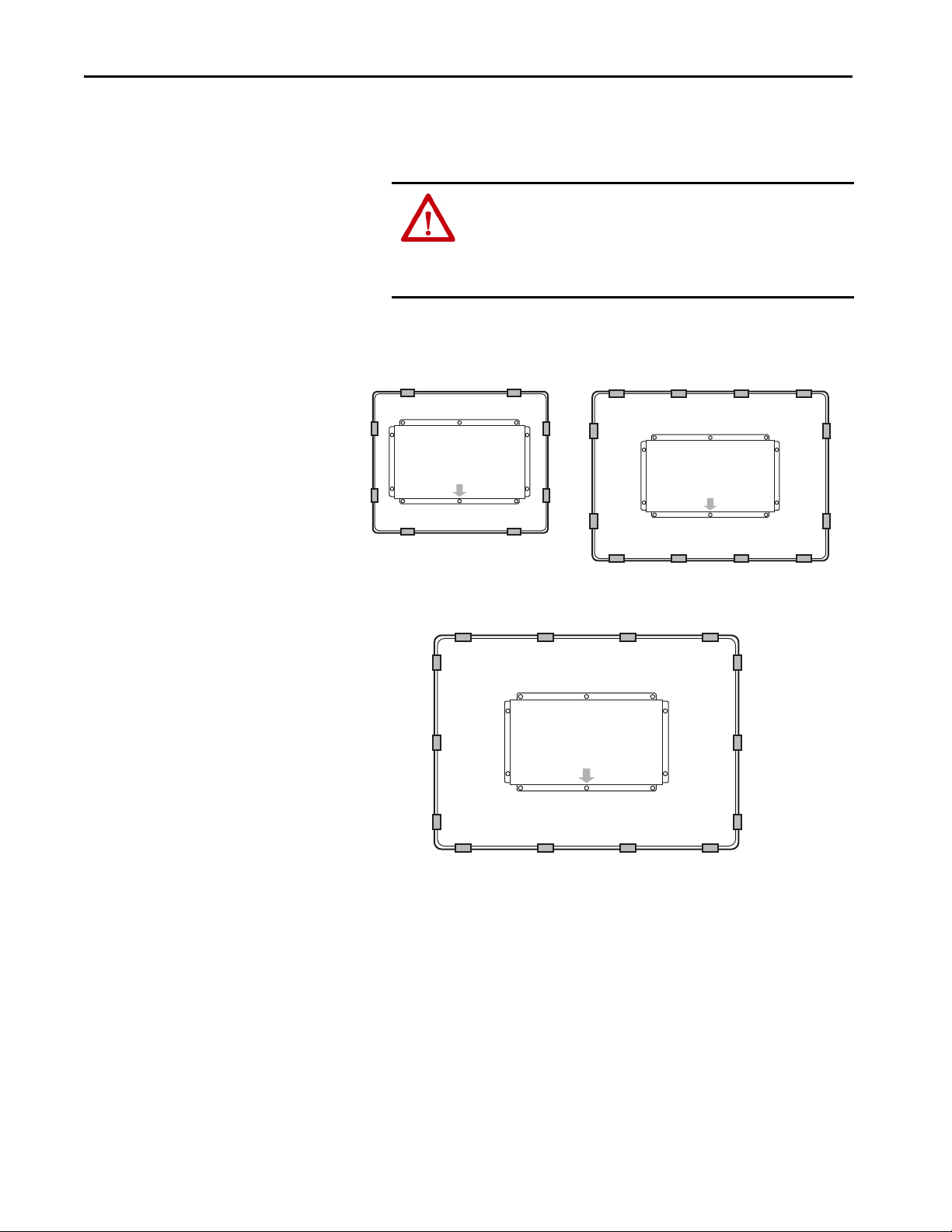

Figure 3 - Tightening and Torquing Sequence for Mounting Clips
ATTENTION: Tighten the mounting clips to the specified torque to
provide a proper seal and to prevent product damage. Rockwell
Automation assumes no responsibility for water or chemical damage
to the monitor or other equipment within the enclosure because of
improper installation.
4
3
6
18
27
12.1 in. Monitor Models
18.5 in. and 21.5 in. Monitor Models
8
3
4
7
10 1 5
11 6 2
13
8
7
14
34
10 1 5
11 6 2 9
12
12
9
15.6 in. Monitor Models
5
I/O Ports
I/O Ports
I/O Ports

Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017 19
Install the Monitor Chapter 2

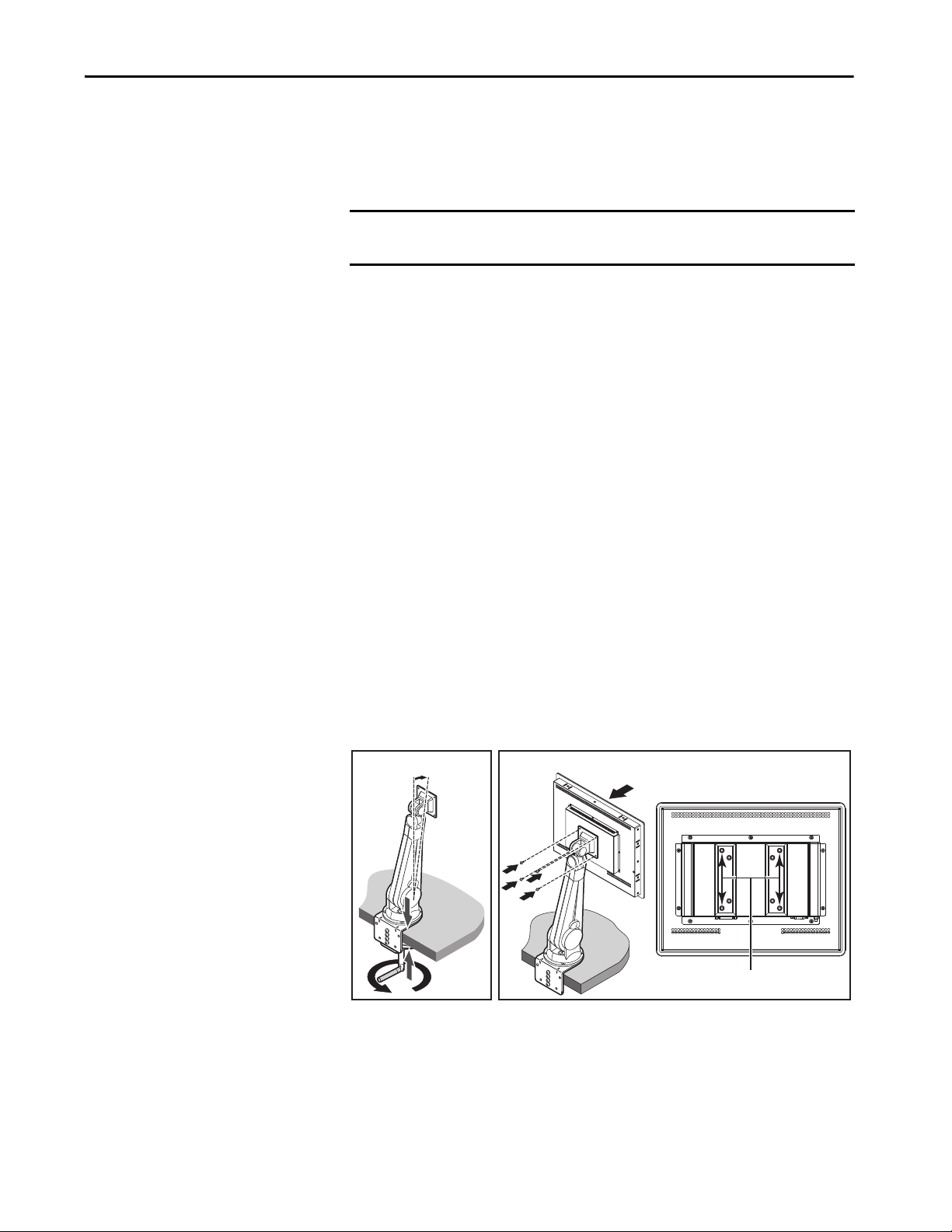

VESA Mount a Monitor
You can use an optional bench/tabletop adapter to mount VersaView monitors
on a bench or tabletop.
Observe these guidelines when you install a VersaView monitor on a mounting
arm:
• The mounting surface and the mounting arm must be strong enough to
support the monitor and the mounting hardware.
• The interface between the mounting arm and the monitor must meet
VESA FPMPMI 100 mm (3.94 in.) standards.
• The mounting location must provide adequate clearance to position and
move the adjustable unit, and to route cables.
Follow these steps to mount the VESA monitor to a bench or tabletop.
1. Mount the arm to the bench or tabletop by using screws, bolts, or clamps
so the monitor cannot tip.
2. Align the VESA mounting holes in the back of the monitor with the
holes in the arm bracket.
The illustration shows the mounting holes for VESA 100 mm interface
pad.
3. Insert the four supplied VESA mounting screws through the arm
bracket and into the monitor.
4. Tighten the screws to secure the monitor to the arm.
IMPORTANT If you choose to VESA mount a monitor, its IP rating is reduced from IP66 to
IP20.
Install Arm Install Monitor to Arm
VESA Mounting Holes (4)

20 Rockwell Automation Publication 6200M-UM001A-EN-P - December 2017
Chapter 2 Install the Monitor
Connect Peripherals See Hardware Features on page 10 for what ports are available to connect
peripherals. Use the table below for accessories to connect peripherals to
VersaV iew monitors.
Connect Power All VersaView 5100 monitors are factory shipped to be connected to a 24V
DC power source.
For applications with AC power sources, an AC-to-DC power adapter (cat. no.
6200V-MPS4) can be ordered separately.
Operate the monitor in an industrial or control room environment, which uses
some form of power isolation from the public low-voltage mains.
IMPORTANT For optimal performance, use only Rockwell Automation-approved active
DisplayPort adapters.
• For the DisplayPort, you need a DisplayPort cable or DisplayPort adapter
• For VGA, you need 6189V-DVIVGA adapter and a VGA cable
• For DVI, you need a DVI cable
• For the touch screen, you need the USB Type A to USB Type B touch
screen cable
Cat. No. Description
6189V-DVIVGA DVI-I to VGA adapter
6200V-DPVGA2 DisplayPort to VGA active adapter
6200V-DPDVI2 DisplayPort to DVI-D active adapter
6200V-DPCBL2M DisplayPort to DisplayPort cable, two meters (6.5 ft) long
6200V-DVICBL2M DVI-D to DVI-D cable, two meters (6.5 ft) long
6200V-VGACBL2M VGA to VGA cable, two meters (6.5 ft) long
6200V-USBCBL2M USB touch screen cable, two meters (6.5 ft) long
6200V-MPS4 AC-to-DC power adapter
6200V-DCCONN DC power mating connector housing
ATTENTION: Supply the monitor circuit with its own disconnect. Use an
uninterruptible power source (UPS) to help protect against unexpected power
failure or power surges.
