Rockwell Automation Allen-Bradley Guardmaster 442G-MAB B-U... User manual

Multifunctional Access Box
Catalog Numbers 442G-MABH-x, 442G-MABx-Uxx-Cxx, 442G-MABE1
User Manual
Original Instructions

Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to
familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws,
and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are
required to be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may
be impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from
the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous
environment, which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 442G-UM001B-EN-P - May 2016 3
Table of Contents
Preface
Who Should Use This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Purpose of This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Conventions Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Chapter 1
General Description 442G MAB Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Assembly Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Chapter 2
Safety Concept Standards Applied to the Guardmaster 
442G Multifunctional Access Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety Certification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Chapter 3
Installation and Wiring General Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Handle Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Terminal Assignment and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connection of Cover Controls and Indicators . . . . . . . . . . . . . . . . . . . 19
Indicator Lens Set Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Escape Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Chapter 4
Description of Operation Key to Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Status/Diagnostic Status Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Status/Diagnostic Status Indicators Table A
(Standalone Operation). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Status/Diagnostic Status Indicators Table B (Series Operation) . . . 30
Operation with Control Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Connection of Guard Locking Control . . . . . . . . . . . . . . . . . . . . . . . . . 32
Dual-Channel Solenoid Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Proving Basic Lock Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Change Device Configuration (using DIP switches). . . . . . . . . . . . . . 34
Change Actuation Direction of Handle Assembly. . . . . . . . . . . . . . . . 37
Fault Reset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Auxiliary/Manual Release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Emergency Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4Rockwell Automation Publication 442G-UM001B-EN-P - May 2016
Table of Contents
Chapter 4 (continued)
Bolt Locking Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Series Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Inspection and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Chapter 5
Application Wiring Examples Cat 1 Stop with Kinetix® 300 and GLT Time Delay Safety Relay . . 43
Cat 0 Stop with GLT Time Delay Safety Relay . . . . . . . . . . . . . . . . . . 44
Cat 1 Stop with PowerFlex® 525 and GLT Time Delay Safety Relay45
Cat 1 Stop with SMC™-50 and GLT Time Delay Safety Relay. . . . . 46
Cat 0 Stop with Speed Monitored Guard Lock Function with 
GSR-DI and GLP Safety Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Cat 0 Stop with Speed Monitored Guard Lock Function with 
GSR-SI and GLP Safety Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Cat 1 Stop with Speed Monitored Guard Lock Function with
PowerFlex 525, GSR-SI, and GLP Safety Relay . . . . . . . . . . . . . . . . . 49
Cat 1 Stop with Speed Monitored Guard Lock Function with 
SMC-50 and GLP Safety Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cat 1 Stop with Speed Monitored Guard Lock Function with 
Kinetix 300 and GLP Safety Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Cat 1 Stop with Speed Monitored Guard Lock Function with
PowerFlex 70 and GLP Safety Relay . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Chapter 6
Specifications Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Environmental Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Appendix A
Troubleshooting and Assistance Status/Diagnostic LED Indicators During Troubleshooting . . . . . . 59

Rockwell Automation Publication 442G-UM001B-EN-P - May 2016 5
Preface
Read this preface to become familiar with the rest of the manual. It provides
information concerning:
•Who would use this manual
•The purpose of this manual
• Related documentation
• Conventions that are used in this manual
Who Should Use This Manual Use this manual if you are responsible for designing, installing, programming,
or troubleshooting systems that use the 442G Multi-functional Access Box.
You must have a basic understanding of electrical circuitry and familiarity with
safety-related systems. If you do not, obtain the proper training before using
this product.
Purpose of This Manual This manual is a reference guide for the 442G Multi-functional Access Box. It
describes the procedures to use to install, wire, and troubleshoot the device.
This manual:
• Explains how to install and wire your 442G Multi-functional Access Box
• Provides an overview of the 442G Multi-functional Access Box
Conventions Used in This
Manual
The following conventions are used throughout this manual:
• Bulleted lists such as this one provide information, not procedural steps.
• Numbered lists provide steps or hierarchical information.
Additional Resources These documents contain additional information concerning related products
from Rockwell Automation.
You can view or download publications at
http://www.rockwellautomation.com/global/literature-library/overview.page.
To order paper copies of technical documentation, contact your local
Allen-Bradley distributor or Rockwell Automation sales representative.
Resource Description
Allen-Bradley Industrial Automation Glossary, 
publication AG-7.1
Glossary of industrial automation terms and
abbreviations
Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1 Provides general guidelines for installing a Rockwell
Automation industrial system.
Product Certifications website, http://
www.rockwellautomation.com/global/certification/
overview.page
Provides declarations of conformity, certificates, and
other certification details.

6Rockwell Automation Publication 442G-UM001B-EN-P - May 2016
Preface
Terminology
OSSD Output Signal Switching Device. Typically designates a pair of solid-state signals pulled
up to the DC source supply. The signals are tested for short circuits to the DC power
supply, short circuits to the DC common, and short circuits between the two signals.
Standard coding Same as Low coding as defined in EN/ISO 14119:2013
Unique coding Same as High coding as defined in EN/ISO 14119:2013

Rockwell Automation Publication 440G-UM001B-EN-P - May 2016 7
General Description Chapter 1
Chapter 1
General Description
442G MAB Overview The Guardmaster® Multifunctional Access Box is an electromagnetic
interlocking device with guard locking. The system consists of one locking
module and one handle assembly. An escape release is available as an option.
The Access Box functions by extending the locking bolt from the handle
assembly into the lock module. When the locking bolt is fully extended into
the lock module, the locking arm locks the bolt in this position, preventing the
opening of the guard. The version will determine whether it’s spring force or
solenoid force.
For Power to Release versions, the locking arm is kept in the locked position by
spring force and unlocked by solenoid force when the solenoid is switched ON.
For Power to Lock versions, the locking arm is kept in the locked position by
solenoid force and unlocked by spring force when the solenoid is switched
OFF.
Guard lock monitoring can be deactivated with DIP switches (see Change
Device Configuration (using DIP switches) on page 34).
With ACTIVE Guard Lock Monitoring:
In combination with a movable safety guard and the control system, this safety
device can prevent opening of the safety guard while a dangerous machine
movement is performed. The position of the guard locking is monitored
during this process.
Safety outputs (FO1A, FO1B) are enabled only when the locking bolt is sensed
in its extended position in the lock module AND the locking arm is in position
(for example, the guard is closed and the bolt is both extended and locked).
ATTENTION: For use as a guard locking device in accordance with EN ISO
14119, the guard lock monitoring must be ACTIVE.

8Rockwell Automation Publication 440G-UM001B-EN-P - May 2016
Chapter 1 General Description
With INACTIVE Guard Lock Monitoring:
In combination with a movable separating safety guard and the control system,
this safety device prevents dangerous machine movements from occurring
while the safety guard is open. A stop command is triggered if the safety guard
is opened during the dangerous machine function. The position of the guard
locking is not considered during this process.
Safety outputs (FO1A, FO1B) are enabled only when the locking bolt is sensed
in its extended position in the lock module (i.e, the guard door is closed and
the bolt is extended). In this mode, the status of the guard locking is not
considered.
Assembly Overview

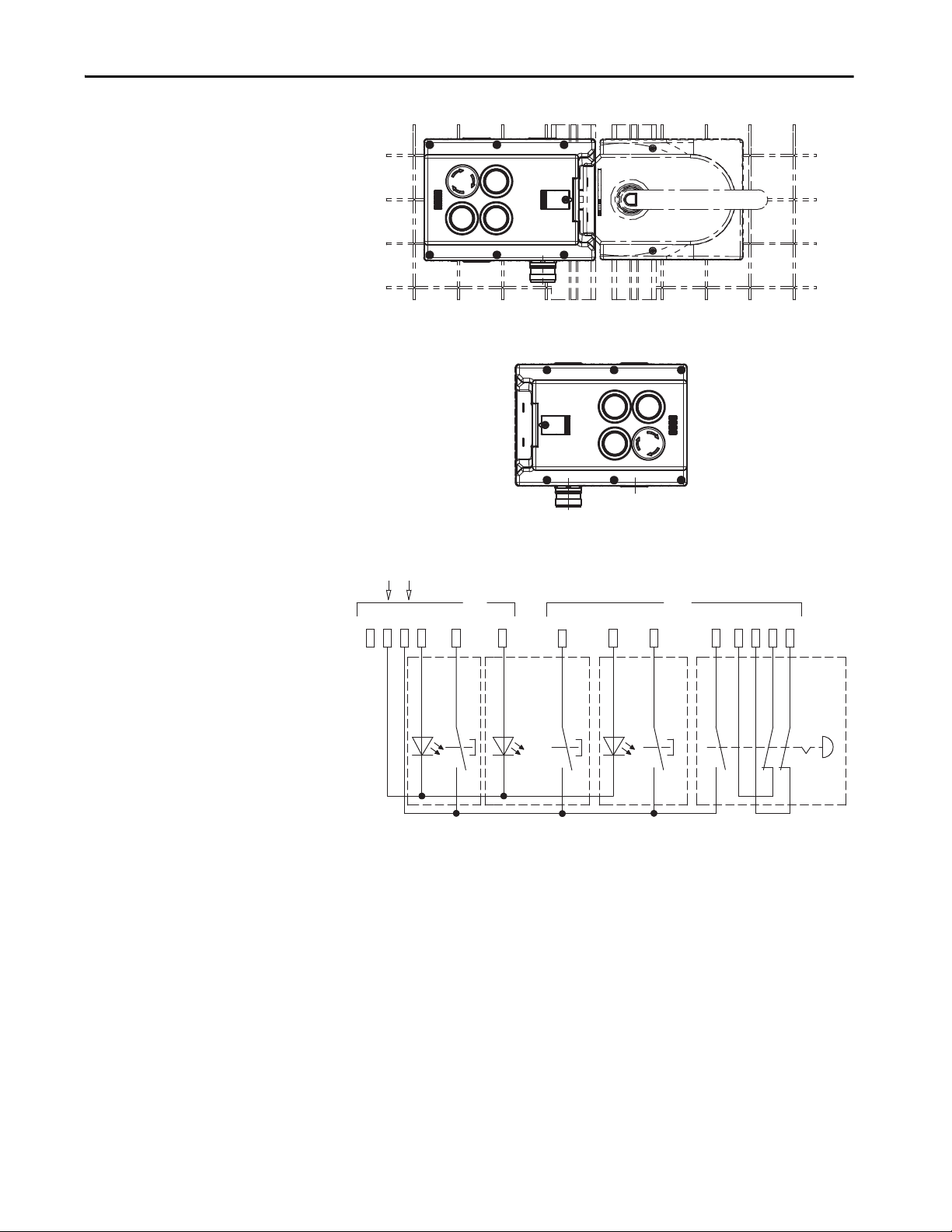

Figure 1 - Locking Module with Control Cover
* Apply to hardware revision B and higher.
IMPORTANT The safety outputs (FO1A, FO1B) are not enabled until a handle assembly
has been configured (see Handle Configuration on page 15). After
configuration is completed, the lock module will only recognize the unique
code of the configured handle.
Manual Release
Cover
Terminals X2-X5
DIP Switches
Status/Diagnostic
Status Indicators
Locking Bar
Cable Entry M20 x 1.5 or
QD Connector (version-
dependent)
1 x Torx T8
6 x Torx T10
Marking for Maximum
Mounting Distance
Internal Reset*
Jumper*

Rockwell Automation Publication 440G-UM001B-EN-P - May 2016 9
General Description Chapter 1

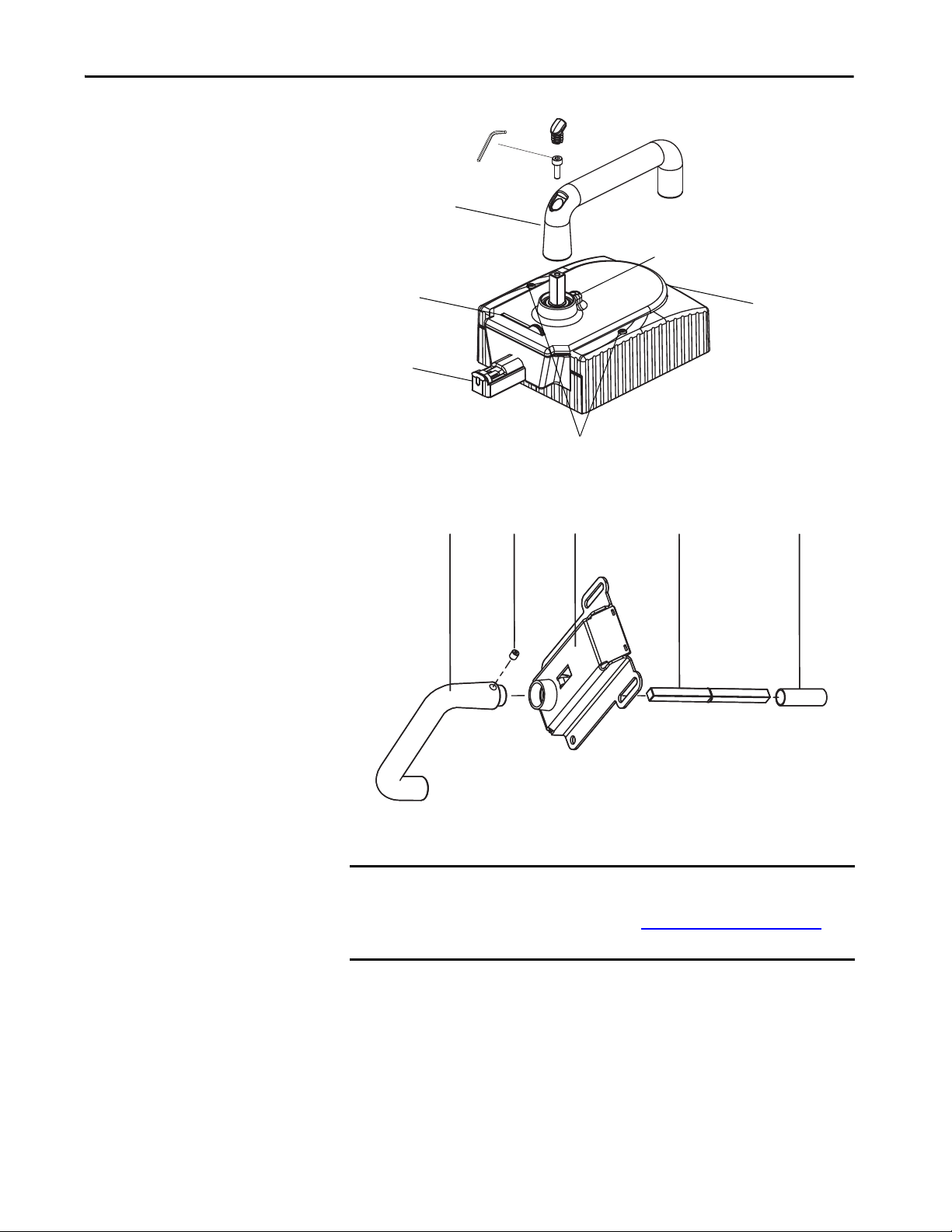

Figure 2 - Handle Assembly
Figure 3 - Escape Release (optional)
IMPORTANT The length of the actuation shaft (115 mm (4.53 in.)) is optimized for
mounting on a 45 mm (1.77 in.) profile. An extended shaft is available 
(442G-MABASHFT). See Chapter 3, Installation and Wiring on page 15 for
instructions regarding mounting on smaller or larger profiles.
3 mm
(0.12 in.)
Locking Pin for Handle
Adjustment
Bolt Tongue
Guard Door Handle
Roll-out Bolt Locking
Mechanism Automatically
Extended Bolt Lock
Mechanism
2 x Torx T10
Protective
Sleeve
Setscrew
Handle Cover
Actuation Shaft
8 x 8 mm
(0.31 x 0.31 in.)

10 Rockwell Automation Publication 440G-UM001B-EN-P - May 2016
Chapter 1 General Description
Figure 4 - Lock Module Mounting Plate [mm (in.)]
Figure 5 - Handle Assembly Mounting Plate [mm (in.)]
Figure 6 - Escape Release Mounting Plate [mm (in.)]
IMPORTANT The use of mounting plates is optional.
35 (1.38)
10 (0.39)
35 (1.38)
15 (0.59)
6.5 (0.25)
20.54 (0.81) 17.5 (0.69)
M6 (4x)
17.5 (0.69)
170
(6.69)
86.05
(3.39)
135
(5.31)
155 (6.10)
46
(1.81)
110
(4.33)
4 (0.16)
30 (1.18)
16
(0.63)
10
(0.39)
32 (1.26)
15
(0.59)
6.5 (0.25)
12 (0.47)
17.5 (0.69)
17.5
89.4
(3.54)
135
(5.31)
130.5 (5.14)
12.5
(0.49)
4 (0.16)
170
(6.69)
25
(0.98)
30 (1.18)
110
(4.33)
17.5
M6 (4x)
10
(0.39)
32 (1.26)3
(0.12)
6.5
(0.25)
12 (0.47)
17.5
(0.69)
17.5
135
(5.31)
113.5 (4.47)
4 (0.16)
170
(6.69)
20
(0.79)
89.4
(3.54)
M6 (4x)
20
(0.79)
68
(2.68)
43.5
(1.71)
83
(3.27)
7.5
(0.29)
86.5 (3.40)
19.5
(0.77)

Rockwell Automation Publication 440G-UM001B-EN-P - May 2016 11
General Description Chapter 1
Mounting Hardware Reference
Handle Module Mounting Plate is supplied with the following hardware:
4X DIN 7984-M6X12 ZN (screw)
4X DIN 433-6 NI (washer)
4X DIN 6797-JZ-D6,4 (lock washer)
Locking Module Mounting Plate is supplied with the following hardware:
4X DIN 912-M6X25-8.8 ZN (screw)
4X DIN 433-6 NI (washer)
4X DIN 6797-JZ-D6,4 (lock washer)
Escape Release Mounting Plate is supplied with the following hardware:
4X DIN 7984-M6X8 (screw)
4X DIN 433-6 NI (washer)
4X DIN 6797-JZ-D6,4 (lock washer)

12 Rockwell Automation Publication 440G-UM001B-EN-P - May 2016
Chapter 1 General Description
Notes:

Rockwell Automation Publication 442G-UM001B-EN-P - May 2016 13
Safety Concept Chapter 2
Chapter 2
Safety Concept
Standards Applied to the
Guardmaster 442G Multi-
functional Access Box
The Guardmaster® Access Box satisfies applicable requirements in the
following standards that are related to functional and machinery assembly:
• IEC 60947-5-3: 1999/A: 2005
• EN/ISO 13849-1:2008/AC: 2009
• EN/ISO 14119:2013
• UL 508 17th Edition dated 3/19/2013
Safety Certification The Guardmaster Access Box is a Type 4 interlocking device with guard
locking and high-coded RFID actuators according to EN ISO 14119.
The device is certified for use in safety applications up to and including
Performance Level PL e and Category 4 (EN ISO 13849-1) ISO13849-1, for
guard position and guard lock monitoring, including when connected in series.
From hardware revision B, this device is also certified for use in safety
applications up to and including PLe, Cat. 4 for guard locking control when
dual-channel solenoid control is utilized (refer to Connection Guard Locking
Control).
The safety level of guard locking control is determined by the device PFHdint.
and by the external control (for example, PFHdint. of the standstill monitor).

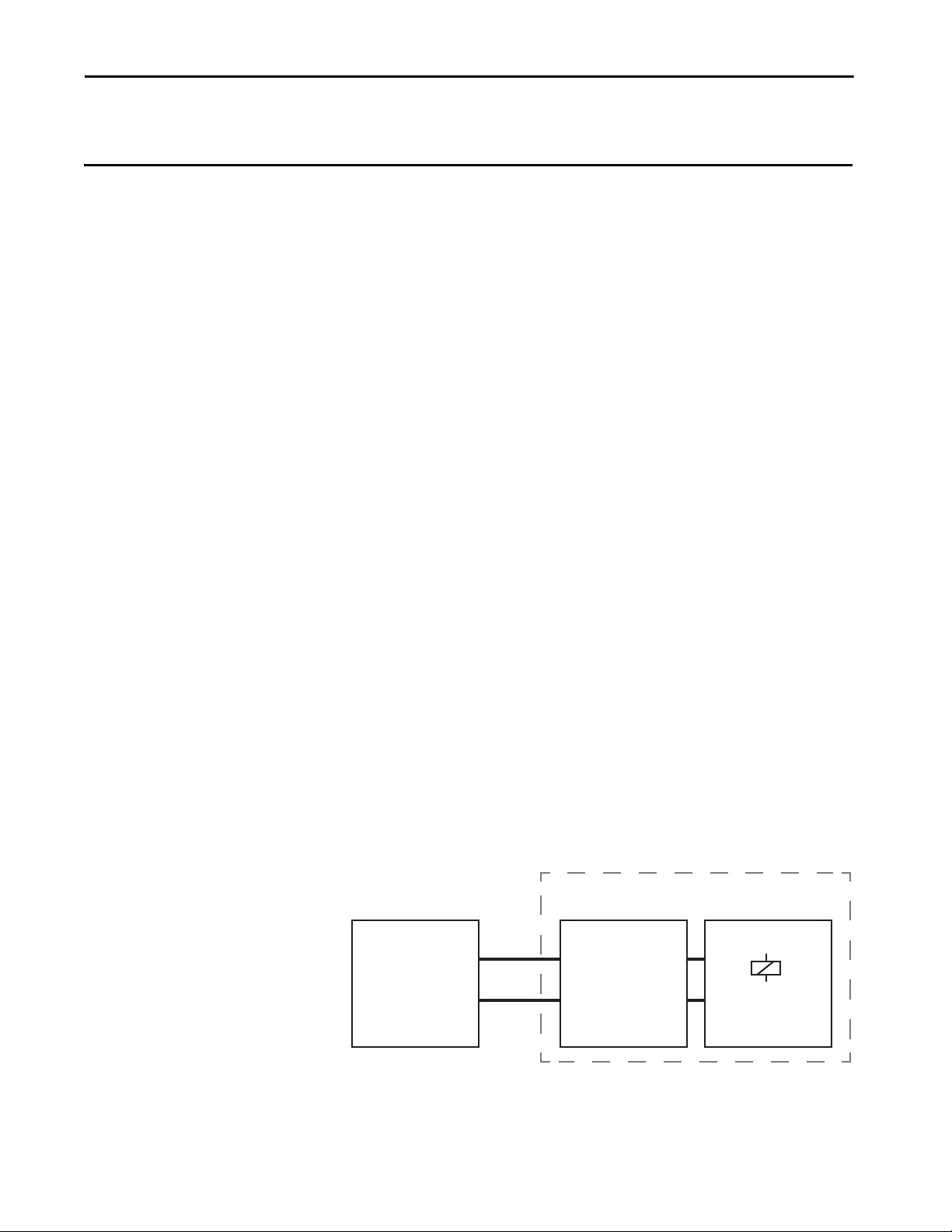

Figure 1 -
Guard Locking Device
PFHdext.
(for example,
standstill monitor)
PFHdint.
(access box)
(guard locking)

14 Rockwell Automation Publication 442G-UM001B-EN-P - May 2016
Chapter 2 Safety Concept
The Access Box must be installed in accordance with the applicable regulation
and standards.
While the Access Box can be used for PLe and Category 4 applications, the
installer must comply with guard requirements (for example, EN/ISO13854
and EN/ISO 13857) and in some cases also minimum (safe) distance
requirements (for example, EN/ISO 13855).
The installed system, including the safety control system and the means by
which the machine stops, must achieve the needed safety performance. The 
Access Box is one element in the safety system.
Before safety components are used, a risk assessment must be performed on the
machine in accordance with:
• EN ISO 13849-1, Safety of machinery. Safety related parts of control
systems. General principles for design, Annex B
• EN ISO 12100, Safety of machinery – Basic concepts - General
principles for design - Risk assessment and risk reduction.
Correct use includes compliance with the relevant requirements for
installation and operation, in particular
• EN ISO 13849-1, Safety of machinery. Safety related parts of control
systems. General principles for design
• EN ISO 14119, Safety of machinery. Interlocking devices that are
associated with guards. Principles for design and selection
• EN 60204-1, Safety of machinery. Electrical equipment of machines.
General requirements.
Additional guidance on guards, guard locking and guard interlocking is found
in:
• EN/ISO 12100 Safety of machinery—General principles for design—
Risk assessment and risk reduction
• EN/ISO 13855 Safety of machinery—Positioning of safeguards
concerning the approach speeds of parts of the human body
• EN/ISO 13857 Safety of machinery—Safety distances to prevent
hazard zones from being reached by upper and lower limbs
• EN/ISO TR 24119 Technical report that is associated with EN ISO
14119 addressing the logical serial connection of interlocking devices
• EN/ISO 14120 General requirements for the design and construction
of guards

Rockwell Automation Publication 440G-UM001B-EN-P - May 2016 15
Chapter 3
Installation and Wiring
General Considerations Installation must be in accordance with the present manual and must be
performed by qualified personnel exclusively. The Access Box guard locking
switch system is intended to be part of the safety-related control system of a
machine. Before installation, a thorough risk assessment must be performed to
determine whether the specifications (see page 53) of this device are suitable
for all foreseeable operational and environmental characteristics of the
application.
Use appropriate screws, bolts, or nuts that are fitted by tools to mount the lock
module and handle assembly to avoid tampering. Do not over-torque the
mounting hardware.
Handle Configuration The unique-coded handle assembly must be assigned to the locking module
before the system is functional.
During configuration of the handle, the safety outputs are switched off.
• Insert bolt tongue in the locking module.
•Apply operating voltage (U
A and UB).
• The State status indicator flashes (5 Hz) as the device performs a self-test
(up to 8 seconds).
• Programming begins when the State status indicator flashes (1 Hz).
After approximately 60 seconds, the State status indicator turns off.
• To complete the configuration, switch off the operating voltage (UB)
for a minimum of 3 seconds or apply 24V to the input RST for a
minimum of 3 seconds.
IMPORTANT The locking module disables the code for the previous handle assembly if
configuration is conducted for a new handle assembly. A disabled handle
assembly can be configured again only after a third handle assembly has
been configured.

16 Rockwell Automation Publication 440G-UM001B-EN-P - May 2016
Chapter 3 Installation and Wiring
Mounting The Access Box can be mounted on hinged or sliding doors. The use of the
mounting plates is optional.
Figure 1 - Installation Example for Guard Door That Is Hinged on the Right
ATTENTION: With two-wing hinged guard doors, one of the two guard door
wings must also be latched mechanically.
4x M6
2x M6
0.5 Nm
1 Nm (6x)
Cutout for Escape Release
IMPORTANT Be careful when mounting the lock module cover to avoid pinching the
ribbon cable.
TIP For easier installation, it is recommended that the handle assembly is
mounted to the guard door before the silver handle is attached to the
handle assembly.
IMPORTANT It must be possible to insert the bolt tongue in the locking module. To check,
close the safety guard several times and actuate the guard door handle.
If available, check the function of the escape release. It must be possible to
operate the escape release from the inside without excessive force
(approximately 40N).
ATTENTION: The escape release must ONLY be accessible from inside the
safeguarded area. The installation must not allow access to the escape
release from outside the safeguarded area.

Rockwell Automation Publication 440G-UM001B-EN-P - May 2016 17
Installation and Wiring Chapter 3
Terminal Assignment and
Wiring

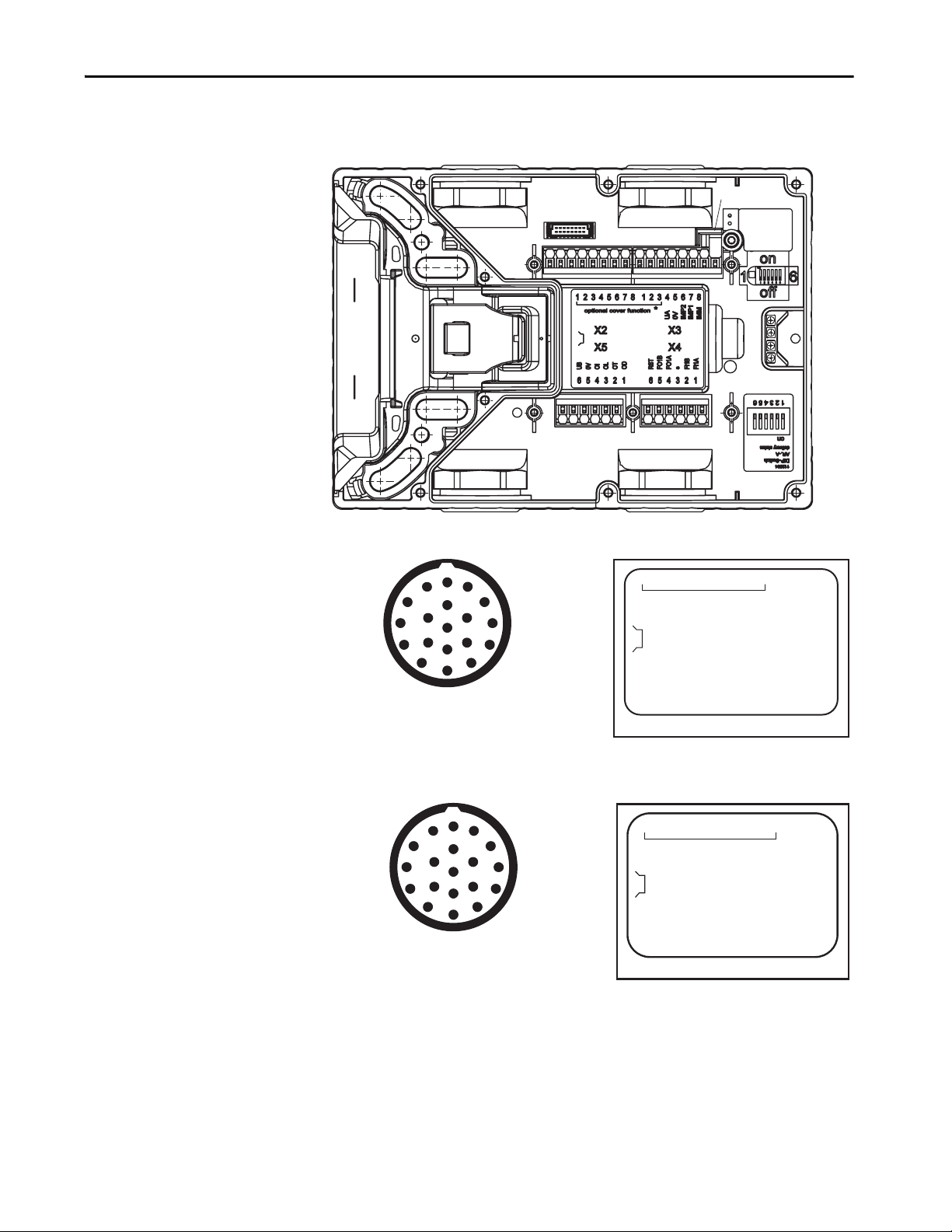

Figure 2 - Connections and Status Indicators
Hardware Rev B
Firmware Rev B
Hardware Rev A
Firmware Rev A
X5
X3
X4
Power
X2
LEDs
State
DIA
Lock
GN
GN
RD
YE
Reset
Jumper
2
3
4
5
1
11
10
9
8
7
12
18
19
15
6
17
16
13
14
2
3
4
5
1
11
10
9
8
7
12
18
19
15
6
17
16
13
14
19-pin M23 QD
87654321 87654321
X5 X4
X3
optional cover function*
X2
IMM IMP1 IMP2 0V UA
OT OL OI 0V UB
OD
654321
FI1B * FO1A FO1B RST
FI1A
654321
876543
8
X5 X4
X3X2
IMM IMP * 0V UA
OT OL OI 0V UB
OD
654321
FI1B
* FO1A FO1B RST
FI1A
654321
Terminal assignment
optional cover function*
2
3
4
5
1
11
10
9
8
7
12
18
19
15
6
17
16
13
14
2
3
4
5
1
11
10
9
8
7
12
18
19
15
6
17
16
13
14
19-pin M23 QD

18 Rockwell Automation Publication 440G-UM001B-EN-P - May 2016
Chapter 3 Installation and Wiring
119-pin mating cordset Cat. No. 889M-F19RM-*
2Lock modules are shipped from the factory with a jumper connecting IMP1 and IMP2 (“IMP1” was “IMP” for hardware revision A).
3The lock modules are factory preset for standalone operation. See the user manual for configuring the device for series operation.
4On QD models, terminal X5.6 is connected internally to terminal X3.4.
5Refer to Connection of Guard Locking Control section in the user manual.
For models with E-stop and three push buttons (lock module catalog numbers ending in –C04):
Table 1 - Terminal Assignment
M23
QD
19-Conductor
Cordset1
MAB Internal
Wire Color Terminal Function Description
1Violet BrownX3.7IMP1
2, 5 Lock command A
2 Red Yellow X2.1 S1.A1 E-stop circuit A
3 Grey White X2.2 S1.B1 E-stop circuit B
N/A N/A No Connection X4.1 FI1A Safety input channel A 3
N/A N/A No Connection X4.2 FI1B Safety input channel B 3
4 Red/Blue Green X4.4 FO1A Safety output channel A, ON when guard is locked
5 Green/Black Grey X4.5 FO1B Safety output channel B, ON when guard is locked
6 Blue Black X3.5 0V Connected internally to X5.5
7 Grey/Pink Pink X4.6 RST Reset, apply 24V for at least 3 seconds
8 White/Green Violet X5.2 OT Bolt monitoring output, ON when guard is closed and bolt is
extended
9 White/Yellow Brown/Green X5.4 OI Fault diagnostic, ON when the switch is in a fault state
10 White/Grey Red/Blue X2.3 S1.A2 E-stop circuit A
11 Black Grey/Pink X2.4 S1.B2 E-stop circuit B
N/A N/A No Connection X2.6 S1 Aux. E-stop monitoring contact
12 Green/Yellow N/A N/A GND Connector housing GND
13 Yellow/Brown Grey/Brown X2.7 S2 Push button switching element (S2)
14 Brown/Green White/Yellow X3.1 H2 Push button LED (H2)
15 White Yellow/Brown X3.2 S3 Push button switching element (S3)
16 Yellow White/Grey X3.3 H3 Push button LED (H3)
N/A N/A No Connection x5.1 OD Door monitoring output, ON when the guard is closed
17 Pink White/Green X5.3 OL Lock Monitoring output, ON when guard door is locked
18 Grey/Brown Yellow/Black X3.6 IMP22, 5 Lock Command B
N/A N/A x3.8 IMM Alternate Lock Command B5
19 Brown Blue X3.4 UA Power for solenoid and monitoring outputs
X5.6 UB Power for safety outputs4
17 Pink White/Green X2.5 S4 Push button switching element (S4)
18 Grey/Brown Yellow/Black X2.8 H4 Push button LED (H4)

Rockwell Automation Publication 440G-UM001B-EN-P - May 2016 19
Installation and Wiring Chapter 3
Connection of Cover Controls
and Indicators
Figure 3 - As Mounted on a Right-hinged Guard
Figure 4 - As Mounted on a Left-hinged Guard
Figure 5 - Connection of Controls and Indicators
S3
S1 S2
S4
S3
S2 S1
S4
H2
13
S1
725 43
S3
H3
0V
2
X2
68541
H4 S4
6
S2
A
U (24V)
X3

20 Rockwell Automation Publication 440G-UM001B-EN-P - May 2016
Chapter 3 Installation and Wiring
Indicator Lens Set
Installation

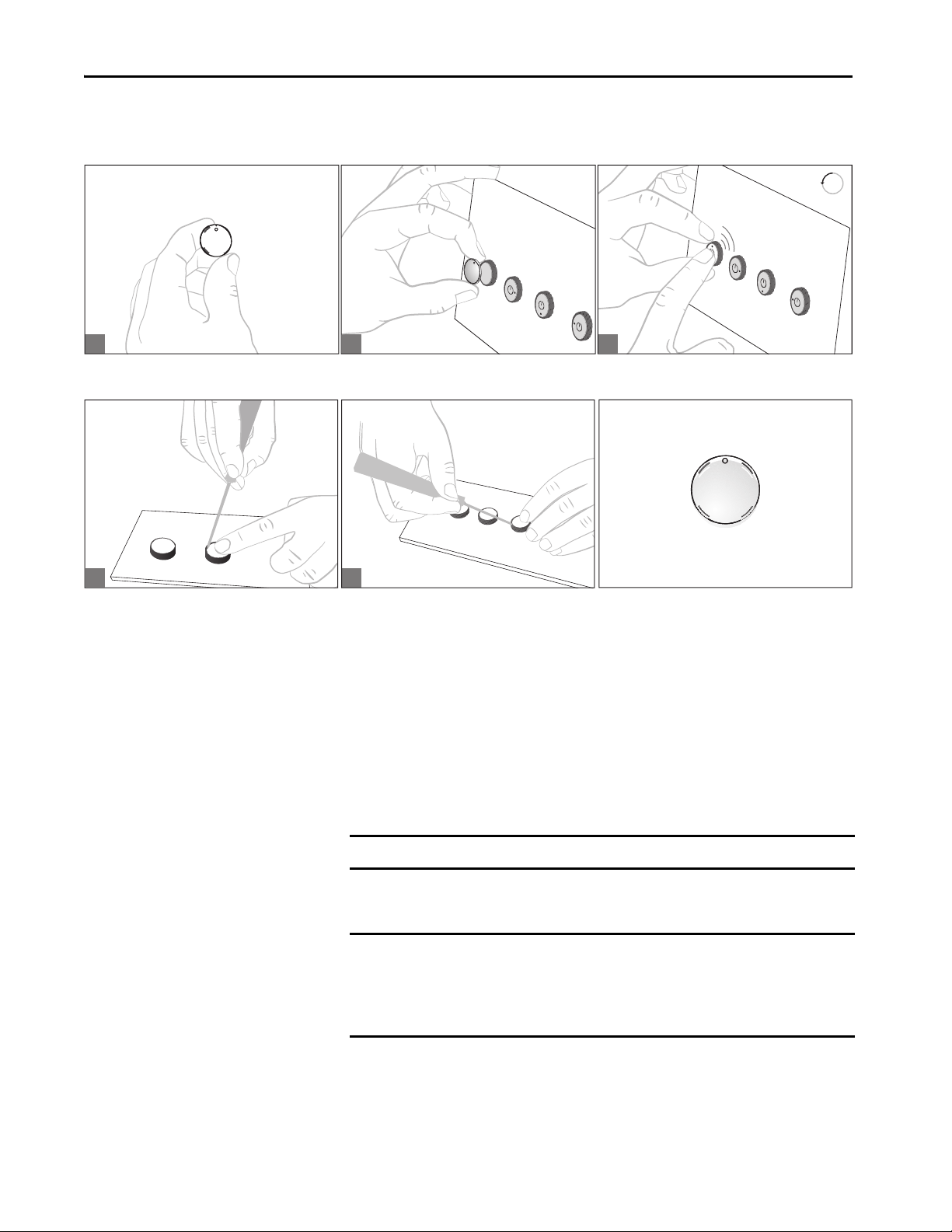

Figure 6 - Installing Lens Cover
Figure 7 - Removing Lens Cover
Escape Release The escape release is used to open a locked safety guard from inside the safe-
guarded area without tools.
With release monitoring active (default factory setting), the system enters into
a latching fault when the escape release is actuated. To reset the device, turn the
power off for at least three seconds or apply 24V to the input RST for a
minimum of three seconds.
Note: A latching fault may not occur if the escape release is actuated slowly.
12 3
90 °
Click!
1 2
Color Lens
IMPORTANTIMPORTANT The guard door must be in the open position to clear a latching fault.
IMPORTANT The escape release is not a safety function.
The machine manufacturer must select and use a suitable release according
to the risk assessment.
The correct operation must be checked at regular intervals.
