Rockwell Automation Allen-Bradley 1606-XLSREDS40HE User manual

Reference Manual Original Instructions
Single Input Redundancy
Module - 12…28V, 40 A
Catalog Number 1606-XLSREDS40HE

2Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
These labels may also be on or inside the equipment to provide specific precautions.
The following icon may appear in the text of this document.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).
Identifies information that is useful and can help to make a process easier to do or easier to understand.

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 3
Table of Contents
Terminology and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Catalog Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Input and Output Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lifetime Expectancy and Mean Time Between Failure . . . . . . . . . . . . . . . 8
Terminals and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

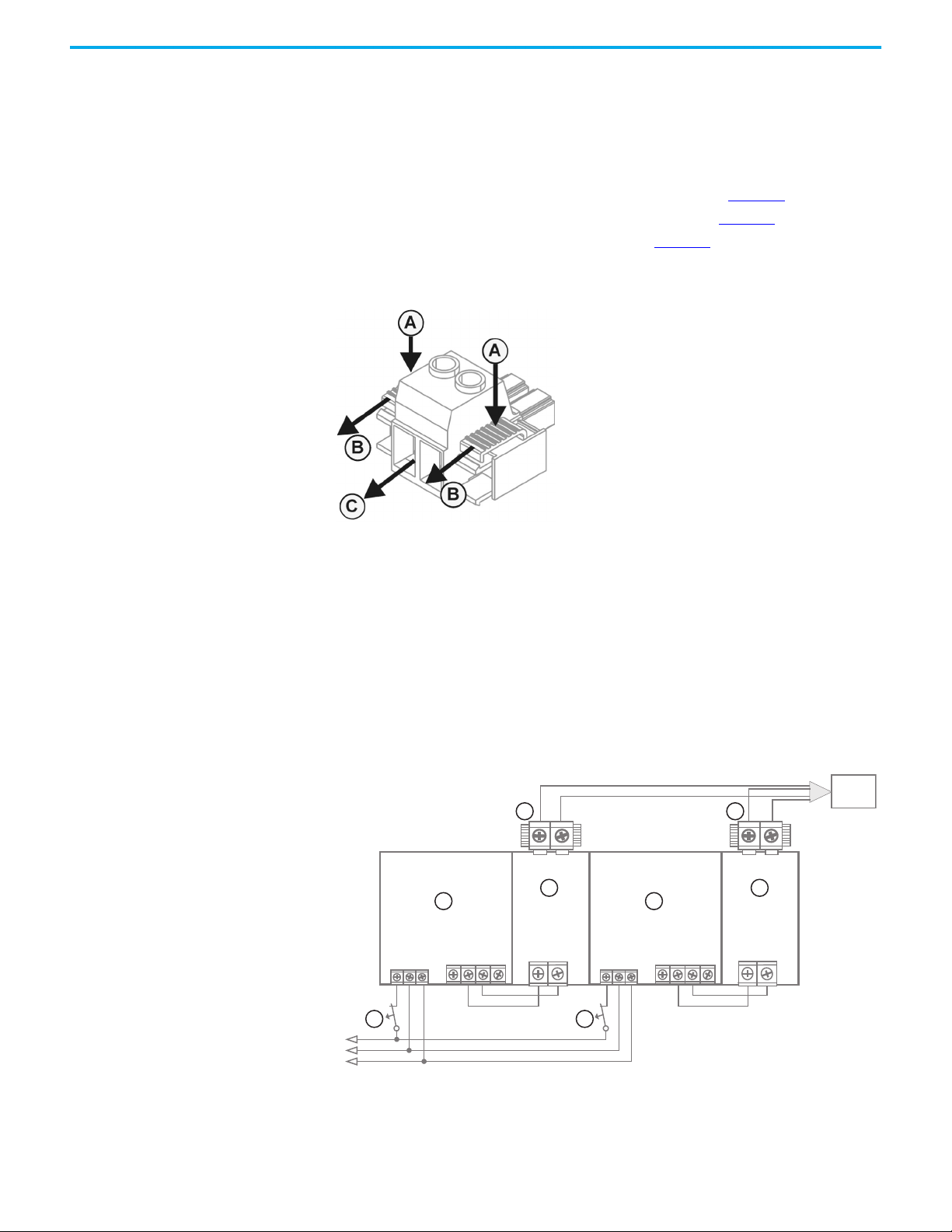

Instructions to Insert and Remove the Pluggable Outlet Terminal . 9
Replace Units While the System Is Running . . . . . . . . . . . . . . . . . . . . . . . . 9

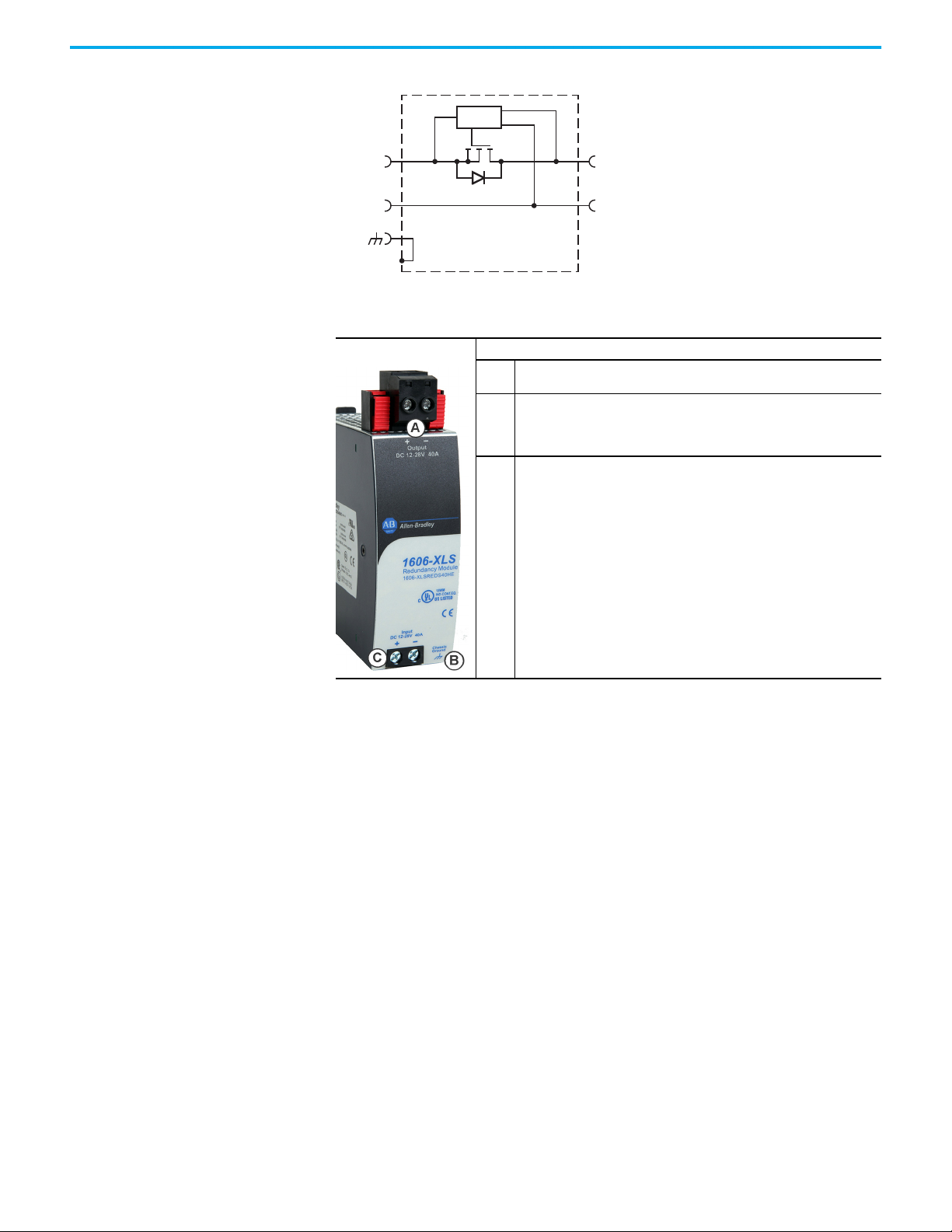

Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Approved, Fulfilled, or Tested Standards . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Regulatory Product Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Physical Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

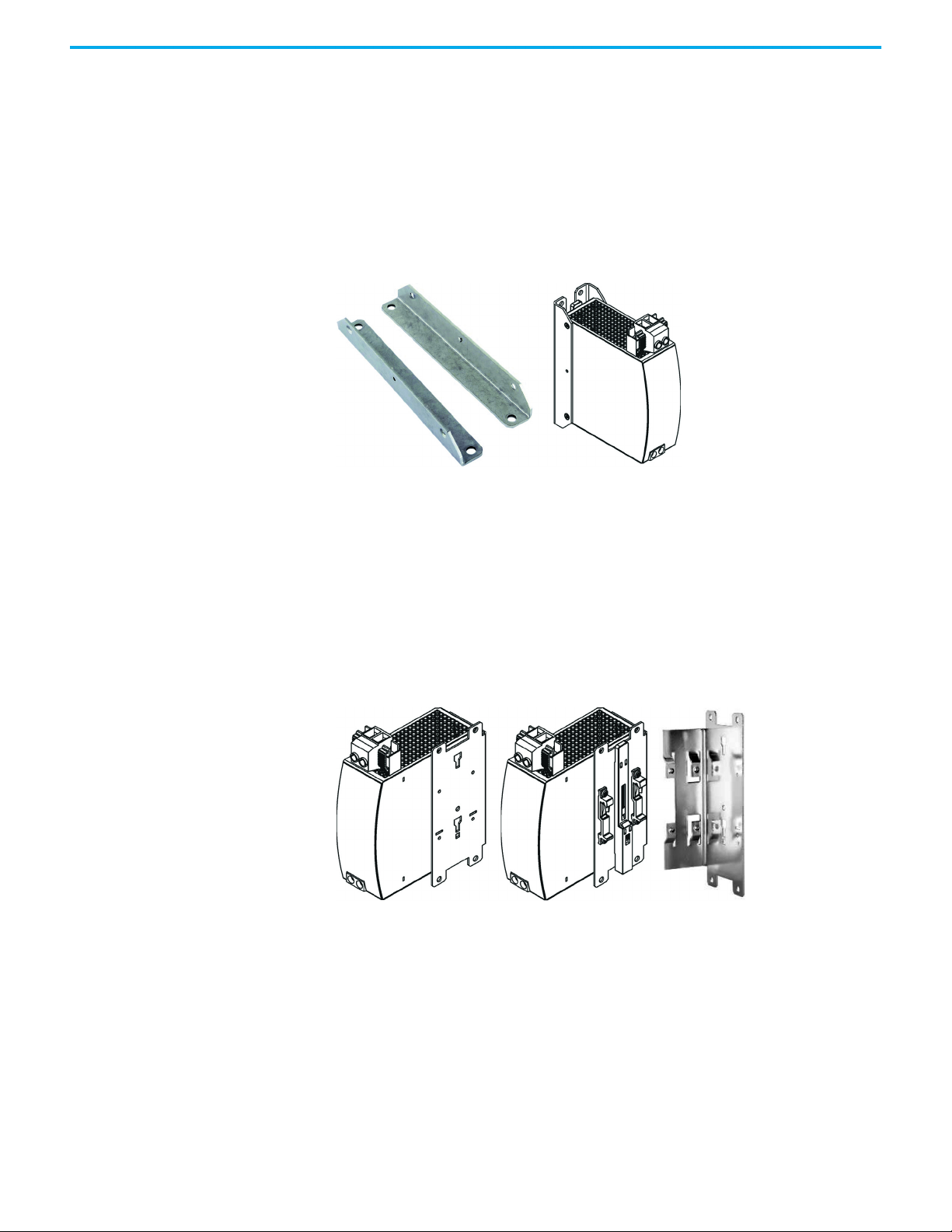

Wall/Panel Mount Bracket (Cat. No. 1606-XLC) . . . . . . . . . . . . . . . . . 15
Side Mount Bracket (Cat. No. 1606-XLA-S44) . . . . . . . . . . . . . . . . . . . 15
Recommendations for Redundancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Inductive and Capacitive Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Sidewards Installation Clearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Example: Redundancy for Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Example: 1+1 Redundancy Up To 40 A. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Example: N+1 Redundancy With 120 A. . . . . . . . . . . . . . . . . . . . . . . . . 17
Mounting Orientations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Table of Contents
Notes:

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 5
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Terminology and
Abbreviations
Terms Descriptions
PE The abbreviation for Protective Earth. PE has the same meaning as the symbol.
The symbol for Protective Earth.
Earth, Ground This document uses the term “earth,” which is the same as the U.S. term “ground”.
DC 24V A value that is displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%) included. For example: DC 12V describes a 12V
battery disregarding whether it is full (13.7V) or flat (10V).
24V DC A value with the unit (V DC) at the end is a momentary value without any additional
tolerances included.
nom Indicates a nominal value.
typ Indicates a typical value.
— (alone in table cell) A dash alone in a table cell indicates that there is no information to be included in that cell.
1+1 Redundancy
Use of two identical power supplies in parallel to provide continued operation following
most failures in a single power supply. Isolate the two power supply outputs from each
other by using diodes or other switching arrangements. For example, two 10 A power
supplies are needed to achieve a 10 A redundant system.
N+1 Redundancy
Use of three or more identical power supplies in parallel, which are allowed to be
connected in parallel for higher output currents, to provide continued operation following
most failures in a single power supply. Isolate all power supply outputs from each other by
using diodes or other switching arrangements. For example, to achieve a 40 A redundant
system, five 10 A power supplies are needed in an N+1 redundant system. Confirm that the
power supplies are allowed to be connected in parallel to increase the output power.
Figure 1 - 1+1 Redundancy Figure 2 - N+1 Redundancy
AC
DC
AC
DC
Load
-+
IN 1
OUT
IN 2
AC
DC
AC
DC
AC
DC
AC
DC
AC
DC
AC
DC
IN 1
OUT
IN 2 IN 1
OUT
IN 2 IN 1
OUT
IN 2
Load
-+

6Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual

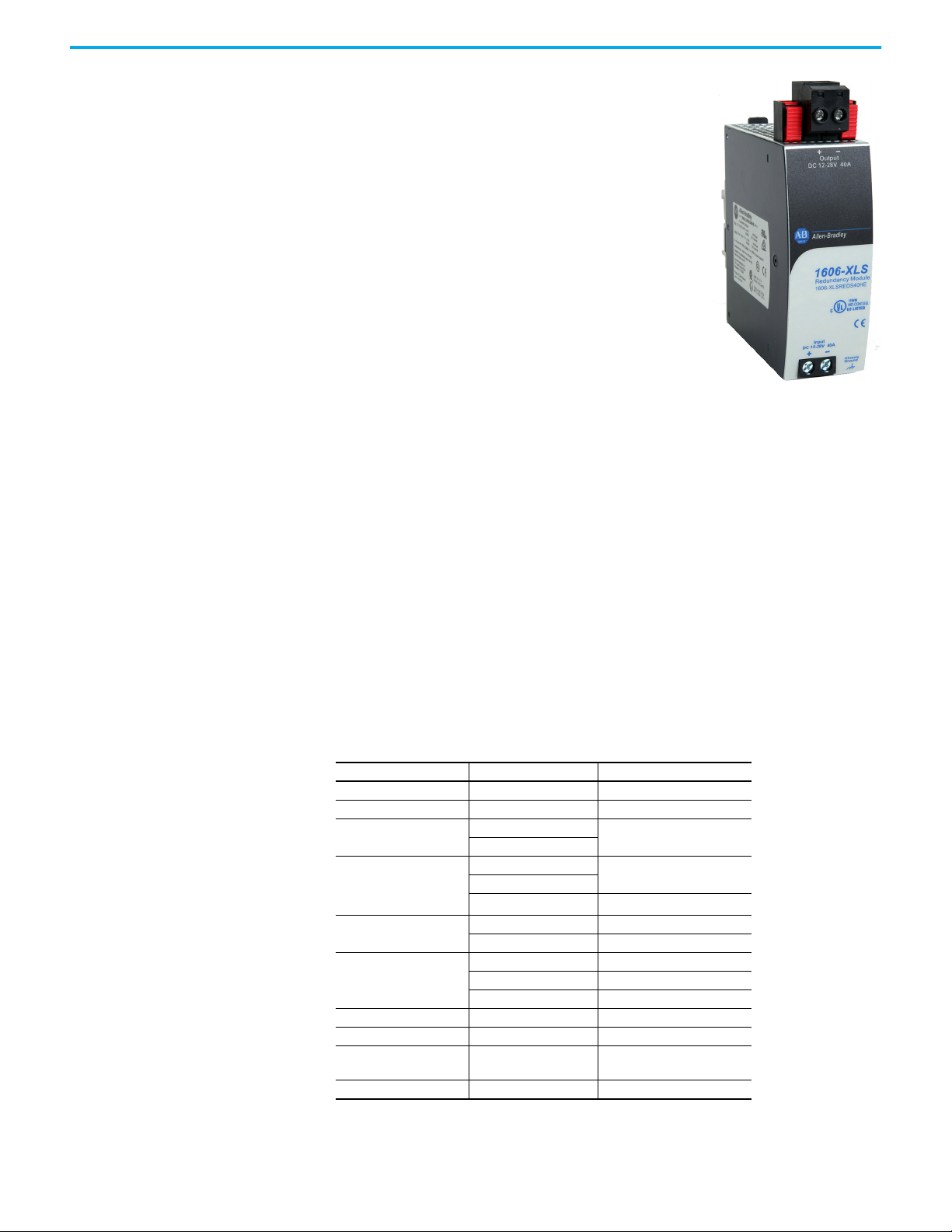

Product Overview The 1606-XLSREDS40HE is a redundancy module,
which can be used to build redundant systems. The
module has one input and one output, and can carry
nominal currents up to 40 A. The output is equipped
with a plug-connector, which allows for replacement
of the power supply or redundancy module while the
system is running (hot swapping).
The novelty of this redundancy module is that it uses
mosfets instead of diodes to decouple the output,
which helps reduce the heat generation and the
voltage drop between input and output. The
redundancy module does not require an additional
auxiliary voltage.
Due to the low-power losses, the unit is slender and
only requires 46 mm (1.81 in.) width on the DIN rail.
Large connection terminals provide a safe and fast
installation. The large international approval
package makes this module suitable for nearly every application.
Product features:
• Single input with single output
• Equipped with plug-connector for 'hot swapping'
• Suitable for all 1606 power supplies except 1606-XLS960E-3 and
1606-XLS960F-3
• Only 150 mV voltage drop at 40 A
•Only6.2Wat40A
• 160% (65 A) peak load capability
• Reverse input polarity protection
• Full power between -40…+60 °C (-40…+140 °F)
• Width only 46 mm (1.81 in.)
• Rugged metal housing
Specifications Attributes Values Notes
Input voltage DC 12…28V ±30%
Input voltage range 8.4…36.4V DC —
Input current 0…40 A Continuous for 5 seconds
40…65 A
Output current
0…40 A Continuous for 5 seconds
40…65 A
22 A, max In overload(1) or short circuit mode
(1) Currents at voltages below 6V.
Input to output voltage drop 80 mV typical At 20 A
150 mV typical At 40 A
Power losses
120 mV typical At no load
1.8 W typical At 24V, 20 A
6.2 W typical At 24V, 40 A
Temperature range -40…+70 °C (-40…+158 °F) Operational
Derating 1 A/1 °C (1 A/1.8 °F) 60…70 °C (140…158 °F)
Dimensions 46 x 124 x 127 mm
(1.81 x 4.88 x 5 in.)(2)
(2) Plus height for plug-in connector.
W x H x D
Weight 340 g (0.75 lb) —

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 7
Single Input Redundancy Module - 12…28V, 40 A Reference Manual

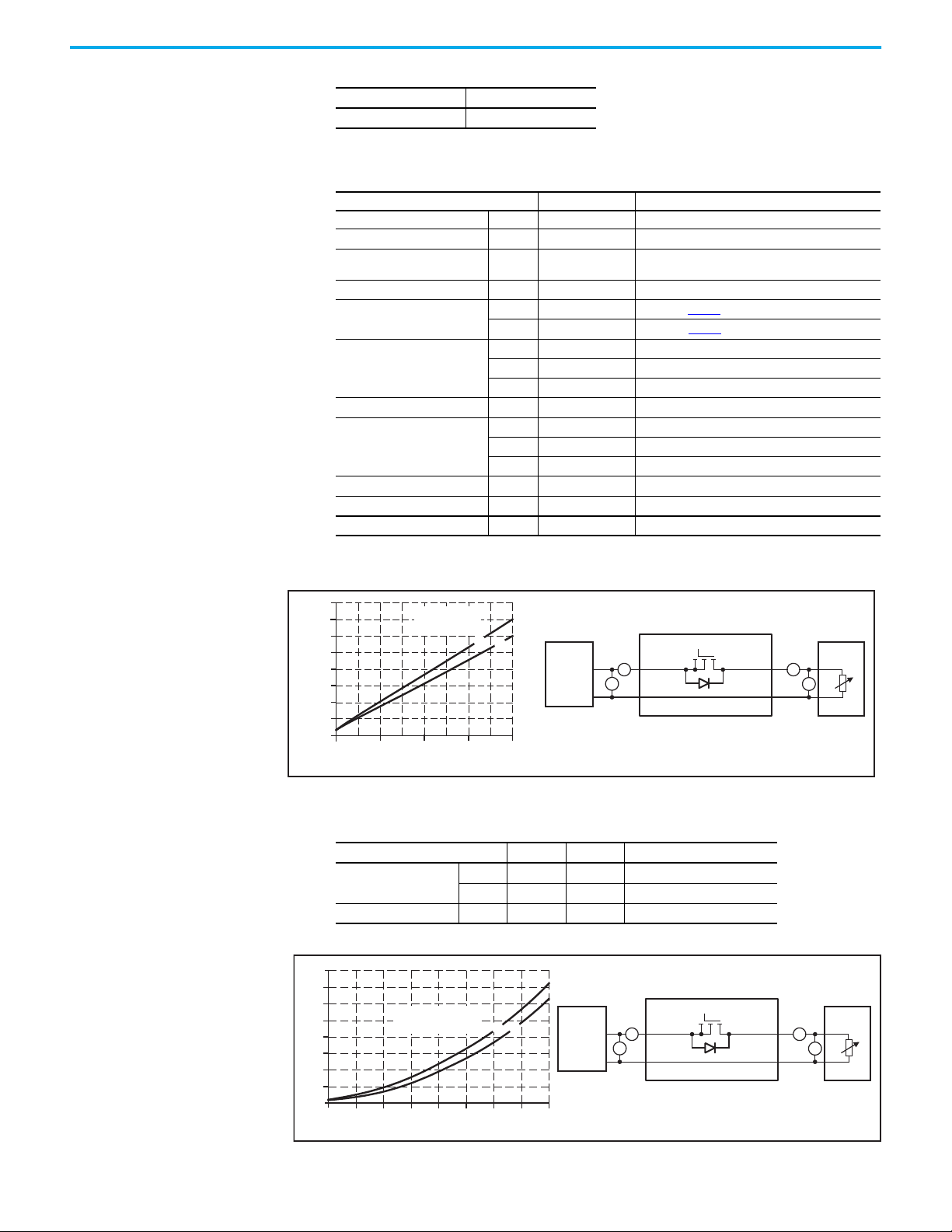

Catalog Number
Input and Output
Characteristics
Power Losses
Figure 4 - Power Losses When Both Inputs Draw Equal Current
Catalog Number Description
1606-XLSREDS40HE Redundancy module
Attributes Values Notes
Number of inputs — 1 —
Number of outputs — 1 —
Input voltage Nom DC 12…28V ±30% The input circuitry must meet the SELV requirements
stipulated by IEC/EN/UL 60950-1.
Input voltage range — 8.4…36.4 V DC —
Voltage drop, input to output Typ 80 mV At 20 A; see Figure 3
Typ 150 mV At 40 A; see Figure 3
Input current
Nom 0…40 A Continuous
Nom 40…65 A For 5 seconds
Max 22 A In overload (voltage <6V) or short circuit mode
Peak input current Max 1500 A For maximum 1 ms per input
Output current
Nom 40 A Continuous
Nom 40…65 A For 5 seconds
Max 22 A In overload (voltage <6V) or short circuit mode
Reverse current Max 1 mA At 24V per input, -40…+70 °C (-40…+158 °F)
Reverse voltage Max 40V DC Voltage applied to the output, continuously allowed
Output capacitance Typ 320 µF —
Figure 3 - Input to Output Voltage Drop When Both Inputs Draw Current
(Typical 1+1 redundant case when the output voltages of both units are equal)
Voltage Drop, mV (typ)
0
10 30
25
50
75
100
125
150
4020
Output Current, A
0
175
200
A
B
V
A
Power
Supply
24V, 40 A
+
-
A
V
U
OUT
I
OUT
U
IN
I
IN
Variable Load,
0…40 A
Input Output
A: 25 °C (77 °F)
B:60 °C (140 °F)
1606-XLSREDS40HE
Voltage Drop = UIN - UOUT
Attribute 12V DC 24V DC Notes
Power losses Typ 1.7 W 1.8 W At 20 A
Typ 6.1 W 6.2 W At 40 A
Standby power losses Typ 0.06 W 0.12 W At no output current
Power Losses, W (typ)
Output Current, A
V
A
+
-
A
V
U
OUT
I
OUT
U
IN
I
IN
Variable Load,
0…40 A
Input Output
1606-XLSREDS40HE
Losses = (UIN x IIN) - UOUT x IOUT
0
105030
1
4
5
8
402515 20 35
A
2
6
B
7
3
A: 24V, 25 °C (77 °F)
B:24V, 60 °C (140 °F)
Power
Supply
24V, 40 A

8Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Lifetime Expectancy and
Mean Time Between Failure
Terminals and Wiring The terminals are IP20 fingersafe constructed and suitable for field wiring.
To connect the chassis to the ground, use a ring-type terminal (ring cable lug)
that is suitable for an M4 screw. Connect this terminal to the chassis ground
terminal on top of the unit.
Wiring rules:
• The external circuitry of all terminals must meet the safety requirements
stipulated by IEC/EN/UL 60950-1: SELV.
• Use appropriate copper cables that are designed for minimum operating
temperatures of:
- 60 °C (140 °F) for ambient up to 45 °C (113 °F)
- 75 °C (167 °F) for ambient up to 60 °C (140 °F)
- 90 °C (194 °F) for ambient up to 70 °C (167 °F) minimum
• Do not connect or disconnect wires from the terminals below -25 °C
(-13 °F)
• Follow national installation codes and installation regulations.
• Verify that all strands of a stranded wire enter the terminal connection.
• Unused terminal compartments should be securely tightened.
• Ferrules are allowed.
Load Conditions Output: 20 A Output: 40 A Notes
Lifetime expectancy(1)
(1) The Lifetime expectancy values that are shown in the table indicate the minimum operating hours (service life) and are determined
by the lifetime expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is
calculated according to the manufacturer specification of the capacitor. The manufacturer of the electrolytic capacitors only states
a maximum life of up to 15 years (131,400 h). Any number that exceeds this value is a calculated theoretical lifetime, which can be
used to compare devices.
557,000 h 134,000 h At 24V and 40 °C (104 °F)
1,576,000 h 378,000 h At 24V and 25 °C (77 °F)
MTBF(2) SN 29500,
IEC 61709
(2) Mean Time Between Failure (MTBF) is calculated according to statistical device failures, and indicates reliability of a device. It is the
statistical representation of the likelihood of a unit to fail and does not necessarily represent the life of a product. The MTBF value
is a statistical representation of the likelihood of a device to fail. An MTBF value of, for example, 1,000,000 h means that statistically
one unit fails every 100 hours if 10,000 units are installed in the field. However, it cannot be determined if the failed unit has been
running for 50,000 h or only for 100 h.
13,290,000 h 6,357,000 h At 24V and 40 °C (104 °F)
22,628,000 h 12,238,000 h At 24V and 25 °C (77 °F)
MTBF (2) MIL HDBK 217F
381,000 h 278,000 h At 24V and 40 °C (104 °F) (Ground Fixed GF40)
518,000 h 366,000 h At 24V and 25 °C (77 °F) (Ground Fixed GF25)
1,816,000 h 1,401,000 h At 24V and 40 °C (104 °F) (Ground Benign GB40)
2,486,000 h 1,861,000 h At 24V and 25 °C (77 °F) (Ground Benign GB25)
Attributes Input Output
Type Screw terminals Pluggable screw terminals
Solid wire 0.5…16 mm20.2…16 mm2
Stranded wire 0.5…10 mm20.5…10 mm2
American Wire Gauge 22…8 AWG 22…6 AWG
Wire diameter max 5.2 mm (0.204 in.) (including ferrules) 5.4 mm (0.212 in.) (including ferrules)
Wire stripping length 12 mm (0.47 in.) 12 mm (0.47 in.)
Screwdriver 3.5 mm (0.138 in.) slotted or cross-head No 2 5.5 mm (0.217 in.) slotted or cross-head No 2
Recommended tightening torque 1.2 N•m (10.6 lb•in) 1.4 N•m (12.4 lb•in)

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 9
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Instructions to Insert and Remove the Pluggable Outlet Terminal
To avoid an accidental disconnection of the output, the plug connector is
equipped with a locking system.
To remove the latch mechanism, perform the following steps.
1. To unlock the red sliders, push the tabs down (A in Figure 5).
2. While pushing down, slide the tabs forward (B in Figure 5).
3. Pull out the connector to unplug it (C in Figure 5).
4. To inset the plug connector, reverse the above steps.
Figure 5 - Remove the Latch Mechanism
Replace Units While the
System Is Running
To replace the power supply or redundancy module while the system is
running, perform the following steps.
1. Switch off the circuit breaker (3a or 3b in Figure 6).
2. Remove the plug (4a or 4b), which helps prevent the cables from shorting.
3. Change the power supply (1a or 1b), or the redundancy module (2a or 2b),
or both (1a/2a or 1b/2b).
4. Reinstall the plug (4a or 4b).
5. Switch on the circuit breaker (3a or 3b).
Figure 6 - Functional Diagram
Load
Power Supply #1 Power Supply #2
Output
LNPE 24V DC
++ --
LNPE
L
II
N
PE
24V DC
++ --
+-
Input
+-
Output
+-
Input
+-
1a
3a 3b
2a
4a
1b
2b
4b
1606-XLSREDS40HE
Redundancy
Module #1
1606-XLSREDS40HE
Redundancy
Module #2

10 Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Functional Diagram Figure 7 - Functional Diagram
Front Side and User
Elements
+
-
Input
+
-
Output
Control
Chassis
Ground
Figure 8 - Front Side User Elements
AOutput terminals
Pluggable screw terminals
B Chassis ground terminal
To be connected on the top side of the housing with a ring-type terminal (ring
cable lug) that is suitable for a M4 screw. Chassis connection is optional and not
required since the unit fulfills the requirements according to protection class III.
C Input terminals
Screw terminals

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 11
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Electromagnetic
Compatibility
The redundancy module is suitable for applications in industrial, residential,
commercial, and light industrial environments without any restrictions.
The following table shows electromagnetic compatibility (EMC) immunity
according to generic standards EN 61000-6-1 and EN 61000-6-2.
The following table shows EMC emission according to generic standards
EN 61000-6-3 and EN 61000-6-4.
Attributes Standards Values Criteria(1)
Electrostatic discharge EN 61000-4-2 Contact discharge 8 kV Criterion A
Air discharge 15 kV Criterion A
Electromagnetic RF field EN 61000-4-3 80 MHz…2.7 GHz 20V/m Criterion A
Fast transients (Burst) EN 61000-4-4 Input lines 2 kV Criterion A
Output lines 2 kV Criterion A
Surge voltage on input lines EN 61000-4-5 + -500V Criterion A
+/- chassis ground 1 kV Criterion A
Surge voltage on output lines EN 61000-4-5 + -500V Criterion A
+/- chassis ground 1 kV Criterion A
Conducted disturbance EN 61000-4-6 0.15…80 MHz 20V Criterion A
Power-frequency magnetic field(2) EN 61000-4-8 50 Hz 30 A/m Criterion A
(1) Criteria A: Redundancy module shows normal operation behavior within the defined limits.
(2) A test is not applicable according to EN 61000-6-2, since the device does not contain components susceptible to magnetic fields; for
example, hall elements and electrodynamic microphones.
Attributes Standards Notes
Conducted emission input lines IEC/CISPR 16-1-2, IEC/CISPR 16-2-1
Limits for DC power ports according to EN 61000-6-3
fulfilled(1)(2)
(1) For information only, not mandatory for EN 61000-6-3.
(2) If power sources that are connected on the inputs fulfill the requirements, too.
Radiated emission EN 55011, EN 55022 Class B(2)
This device complies with FCC Part 15 rules.
Operation is subjected to the following two conditions: 1) This device must not cause harmful interference. 2) This device must accept
any interference received, including interference that may cause undesired operation.

12 Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Environment
Protection Features
Attributes Values Notes
Operational temperature(1)
(1) Operational temperature is the same as the ambient temperature and is defined as the air temperature 2 cm (0.79 in.) below the
unit.
-40…+70 °C (-40…+158 °F) —
Output derating 1 A/1 °C (1 A/1.8 °F) 60…70 °C (140…158 °F), see Figure 9
Storage temperature -40…+85 °C (-40…+185 °F) For storage and transportation
Humidity(2)
(2) Do not energize while condensation is present.
5…95% r.H. IEC 60068-2-30
Vibration sinusoidal(3)
(3) Tested in combination with DIN rails according to EN 60715 with a height of 15 mm (0.59 in.) and a thickness of 1.3 mm (0.051 in.)
and standard mounting orientation.
2…17.8 Hz: ±1.6 mm (0.063 in.)
17.8…500 Hz: 2 g
2 hours / axis IEC 60068-2-6
Shock(3) 30 g 6 ms, 20 g 11 ms,
3 bumps/direction, 18 bumps in total IEC 60068-2-27
Altitude 0…2000 m (0…6560 ft) Without any restrictions
2000…6000 m (6560…20,000 ft) Reduce output power or ambient temperature; see Figure 10
Altitude derating 2.5 A/1000 m (2.5 A/3281 ft), or
5°C/1000 m (41 °F/3281 ft) >2000 m (6500 ft); see Figure 10
Overvoltage category Not applicable The concept of the overvoltage category is used for equipment that is energized directly from the low voltage
mains (IEC 60664-1 §4.3.3.2.1).
Degree of pollution 2 IEC 62103, EN 62477-1, not conductive
Figure 9 - Output Current Versus Ambient Temperature Figure 10 - Output Current Versus Altitude
Allowed Output Current, A
0
-40
(-40) 20 (68)
040
(104) 70
(158)
10
20
30
40
50
65
60
(140)
-25
(-13)
Ambient Temperature, °C (°F)
Normal Mode
Short Term (< 5s)
Allowed Output Current, A
0
0 2000
(6562) 4000 (13,123) 6000
(19,685)
10
20
30
40
50
65
Altitude, m (ft)
ABC
Normal Mode
Short Term (<5 s)
A...Tamb <70 °C (<158 °F)
B...Tamb <60 °C (<140 °F)
C...Tamb <50 °C (<122 °F)
Attributes Descriptions Notes
Output overcurrent protection Not included —
Reverse input polarity protection Not included Wrong input polarity can damage the device.
Degree of protection IP 20 EN/IEC 60529
Penetration protection >3.6 mm (0.14 in.) For screws and small parts
Over-temperature protection Not included —
Input transient protection Not included —
Output transient protection Included See Electromagnetic Compatibility on page 11 for
details and values.
Internal input fuse Not included —

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 13
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Safety Features
Dielectric Strength The input and output voltages have the same reference, are floating and have
no ohmic connection to ground. Type and factory tests are conducted by the
manufacturer. Field tests can be conducted in the field using the appropriate
test equipment that applies the voltage with a slow ramp (2 s up and 2 s down).
Connect input/output terminals together before conducting the test. When
testing, set the cutoff current settings to the value in Figure 11.
Approved, Fulfilled, or
Tested Standards
For the most current information, visit rok.auto/literature.
Use 1606-XLSREDS40HE as your search criterion; 1606-CT identifies the
certifications in your search results.
Attributes Descriptions Notes
Input/output separation No galvanic separation Mosfet between input and output
Class of protection III —
PE resistance <0.1 ΩBetween housing and chassis ground terminal
Figure 11 - Dielectric Strength
Attributes Time (seconds) A in Figure 11
Type test 60
500V ACFactory test 5
Field test 5
Cut-off current setting >2 mA
A
Chassis
In- / Output
-
+
Approval Names Approval Symbols Notes
UL 508 UL certificate Applicable for US and Canada
See 1606-CT039 at rok.auto/literature
UL 60950-1 UL certificate Applicable for US and Canada
See 1606-CT034 at rok.auto/literature
ATEX Agency Certificate (Bureau Veritas)
See 1606-CT012 at rok.auto/literature
IECEx IECEx Certificate
See 1606-CT031 at rok.auto/literature
Class I Div 2 CSA Certificate Power Supplies for Hazardous Location
See 1606-CT046 at rok.auto/literature
Marine (DNV) DNV Certificate
DNV Type approved product
Marine (ABS) ABS Design Assessment Certificate
ABS (American Bureau of Shipment) assessed product
RCM Australian Declaration of Conformity
See 1606-CT024 at rok.auto/literature

14 Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Regulatory Product Compliance
Physical Dimensions and
Weight
Standard Names Standard Symbols Notes
EU Declaration of
Conformity
The CE marking indicates conformance with the following:
• EMC Directive
•ATEXdirective
• RoHS directive
See 1606-CT017 at rok.auto/literature
REACH Directive Manufacturer’s Statement EU-Directive regarding the Registration,
Evaluation, Authorization, and Restriction of Chemicals (REACH)
WEEE Directive
Manufacturer’s Statement
EU-Regulation on Waste Electrical and Electronic Equipment
(WEEE)
Registered in Germany as business to business (B2B) products
EAC Registration
EAC Certificate
EAC Eurasian Conformity-Registration Russia, Kazakhstan, and
Belarus
8504408200, 8504409000
Attributes Values and Descriptions
Width 46 mm (1.81 in.)
Height 124 mm (4.88 in.)
Depth 127 mm (5 in.)
The DIN rail height must be added to the unit depth to calculate the total required installation depth.
Weight 340 g (0.75 lb)
DIN rail Use 35 mm (1.38 in.) DIN rails according to EN 60715 or EN 50022 with a height of 7.5 mm (0.295 in.) or 15 mm
(0.59 in.).
Installation Clearances
Keep the following installation clearances:
• 40 mm (1.57 in.) on the top
• 20 mm (0.79 in.) on the bottom
• 5 mm (0.20 in.) on the left and right sides are recommended when the device is loaded permanently with
more than 50% of the rated output current. Increase the side clearances to 15 mm (0.59 in.) if the
adjacent device is a heat source, such as a power supply.
Figure 12 - Dimensions, Front and Side Views
46
(1.81)
124
(4.88)
Dimensions are in mm (in.)
127 (5)
DIN Rail
Depth
VIN
+-
VOUT
+-

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 15
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Accessories The following accessories are available for the 1606-XLSREDS40HE
redundancy module.
Wall/Panel Mount Bracket (Cat. No. 1606-XLC)
This bracket mounts the device on a flat surface or panel without using a
DIN rail. The bracket can be mounted without detaching DIN rail brackets.
This bracket kit contains the two brackets that are needed for one device.
Figure 13 - Cat. No. 1606-XLC Wall/Panel Mount Bracket
Side Mount Bracket (Cat. No. 1606-XLA-S44)
This bracket mounts the device sideways with or without using a DIN rail to
save installation depth.
The two aluminum brackets and the black plastic slider of the device must be
detached so that the steel bracket can be mounted.
For sideway DIN rail mounting, mount the removed aluminum brackets and
the black plastic slider on the side mount bracket.
Figure 14 - Cat. No. 1606-XLA-S44 Side Mount Bracket
Side Mounting
Without DIN rail Brackets
Side Mounting
With DIN rail Brackets

16 Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Recommendations for
Redundancy
Recommendations for the configuration of redundant power systems:
• Use three-phase power supplies to gain functional safety if one phase
fails.
• When single-phase power supplies are used, connect them to different
phases or mains circuits if possible.
• Use separate input fuses for each power supply.
• Set the power supply in “Parallel-Use” mode if this feature is available.
• It is desirable to set the output voltages of all power supplies to the same
value.
Inductive and Capacitive
Loads
The unit is designed to supply any kind of loads, including unlimited
capacitive and inductive loads.
Sidewards Installation
Clearance
Normally, the following installation clearances are recommended:
•40mmontop
• 20 mm on the bottom
• 5 mm on the left and right sides when the device is loaded permanently
with more than 50% of the rated power.
Increase this clearance to 15 mm in case the adjacent device is a heat
source (for example, another power supply).
The clearance between the power supplies and the redundancy module can be
reduced to zero under the following conditions:
• 1+1 redundancy application with a maximum 40 A output current.
• The power supplies are from the 1606-XLS or 1606-XLE family series.
• The redundancy module is placed between the two power supplies or at
least on one side of the power supply.
• The output voltage is set to the same level on both power supplies.
Figure 15 - Sidewards Installation Clearance Example
LNPE ++
--
24V, 40A
Parallel Use DC - OK
Single Use
Power Supply
1606-XLSREDS40HE
Redundancy Module
1606-XLSREDS40HE
Redundancy Module
Output Power Supply
AC Input
LNPE ++
--
24V, 40A
Parallel Use DC - OK
Single Use
AC Input
+ -
Input
+ -
Output
+ -
Input
+ -
40 A Load,
max
0 mm 0 mm 0 mm

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 17
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Example: Redundancy for
Controls
In many cases, two power supplies are used, one for the demanding loads and
another for the controls and sensitive loads. With the 1606-XLSREDS40HE
redundancy module, the power supply for the demanding loads can be used as
a redundant source to supply the controls. This provides a cost-effective
solution to get redundant power for a PLC or controller system.
Example: 1+1 Redundancy Up To 40 A
1+1 Redundancy up to 40 A requires two 40 A power supplies and two
1606-XLSREDS40HE redundancy modules. Use separate mains systems for
each power supply whenever it is possible.
Figure 16 - Wiring Diagram, 1+1 Redundancy, Up to 40 A Output Current
Example: N+1 Redundancy With 120 A
N+1 Redundancy up to 120 A requires four 40 A power supplies and four
1606-XLBRED20 redundancy modules. Use separate mains systems for each
power supply whenever it is possible.
Figure 17 - Wiring Diagram, N+1 Redundancy With 120 A Output Current
LNPE ++
--
24V, 40A
Parallel Use DC - OK
Single Use
Power Supply
1606-XLSREDS40HE
Redundancy Module
1606-XLSREDS40HE
Redundancy Module
Output Power Supply
AC Input
LNPE ++
--
24V, 40A
Parallel Use DC - OK
Single Use
AC Input
+ -
Input
+ -
Output
+ -
Input
+ -
L
N
PE
II
24V, 40 A
Load
Failure
Monitor
LNPE
++ --
24V, 40A
Parallel Use DC - OK
Single Use
Power Supply
1606-XLSREDS40HE
Redundancy Module
1606-XLSREDS40HE
Redundancy Module
Output
Power Supply
AC Input
LNPE
++ --
24V, 40A
Parallel Use DC - OK
Single Use
AC Input
+ -
Input
+ -
Output
+ -
Input
+ -
LNPE
++ --
24V, 40A
Parallel Use DC - OK
Single Use
Power Supply
1606-XLSREDS40HE
Redundancy Module
1606-XLSREDS40HE
Redundancy Module
Output
Power Supply
AC Input
LNPE
++ --
24V, 40A
Parallel Use DC - OK
Single Use
AC Input
+ -
Input
+ -
Output
+ -
Input
+ -
L
N
PE
II
Failure
Monitor
I I
24V,
120 A
Load
+
-

18 Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Mounting Orientations Mounting orientations other than input terminals on the bottom and output
on the top require a reduction in continuous output power or a limitation in
the maximum allowed ambient temperature.
The amount of reduction influences the lifetime expectancy of the power
supply. Therefore, there are two different derating curves for continuous
operation:
•Curve A1: Recommended output current
•Curve A2: Maximum allowed output current (results in approximately
half the lifetime expectancy of A1)
The following curves indicate the allowed output currents for altitudes up to
2000 m (6562 ft).
Figure 18 - Mounting Orientation A (upright; standard)
Figure 19 - Mounting Orientation B (upside down)
Figure 20 - Mounting Orientation C (table-top)
Figure 21 - Mounting Orientation D (horizontal with input on the left)
1606-XLSREDS40HE
Redundancy
Module
Output
Input
Output Current, A
0
10 (50) 20 (68) 30 (86) 40 (104) 60 (140)
10
20
30
40
50 (122)
A1
Ambient Temperature, °C (°F)
1606-XLSREDS40HE
Redundancy
Module
Output
Input
Output Current, A
0
10 (50) 20 (68) 30 (86) 40 (104) 60 (140)
10
20
30
40
50 (122)
A1
Ambient Temperature, °C (°F)
Output Current, A
0
10 (50) 20 (68) 30 (86) 40 (104) 60 (140)
10
20
30
40
50 (122)
Ambient Temperature, °C (°F)
A1
A2
1606-XLSREDS40HE
Redundancy
Module
Output
Input
Output Current, A
0
10 (50) 20 (68) 30 (86) 40 (104) 60 (140)
10
20
30
40
50 (122)
Ambient Temperature, °C (°F)
A2
A1

Rockwell Automation Publication 1606-RM041A-EN-P - September 2021 19
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Figure 22 - Mounting Orientation E (horizontal with input on the right)
1606-XLSREDS40HE
Redundancy
Module
Output
Input
Output Current, A
0
10 (50) 20 (68) 30 (86) 40 (104) 60 (140)
10
20
30
40
50 (122)
Ambient Temperature, °C (°F)
A2
A1

20 Rockwell Automation Publication 1606-RM041A-EN-P - September 2021
Single Input Redundancy Module - 12…28V, 40 A Reference Manual
Notes:
