Rockwell Automation Allen-Bradley 1606-XLE120B User manual

Power Supply - 12V, 10 A, 120 W,
Single-phase Input
Catalog Number 1606-XLE120B
Reference Manual Original Instructions

2Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply - 12V, 10 A, 120 W, Single-phase Input Reference Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 3
Table of Contents
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Input Inrush Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

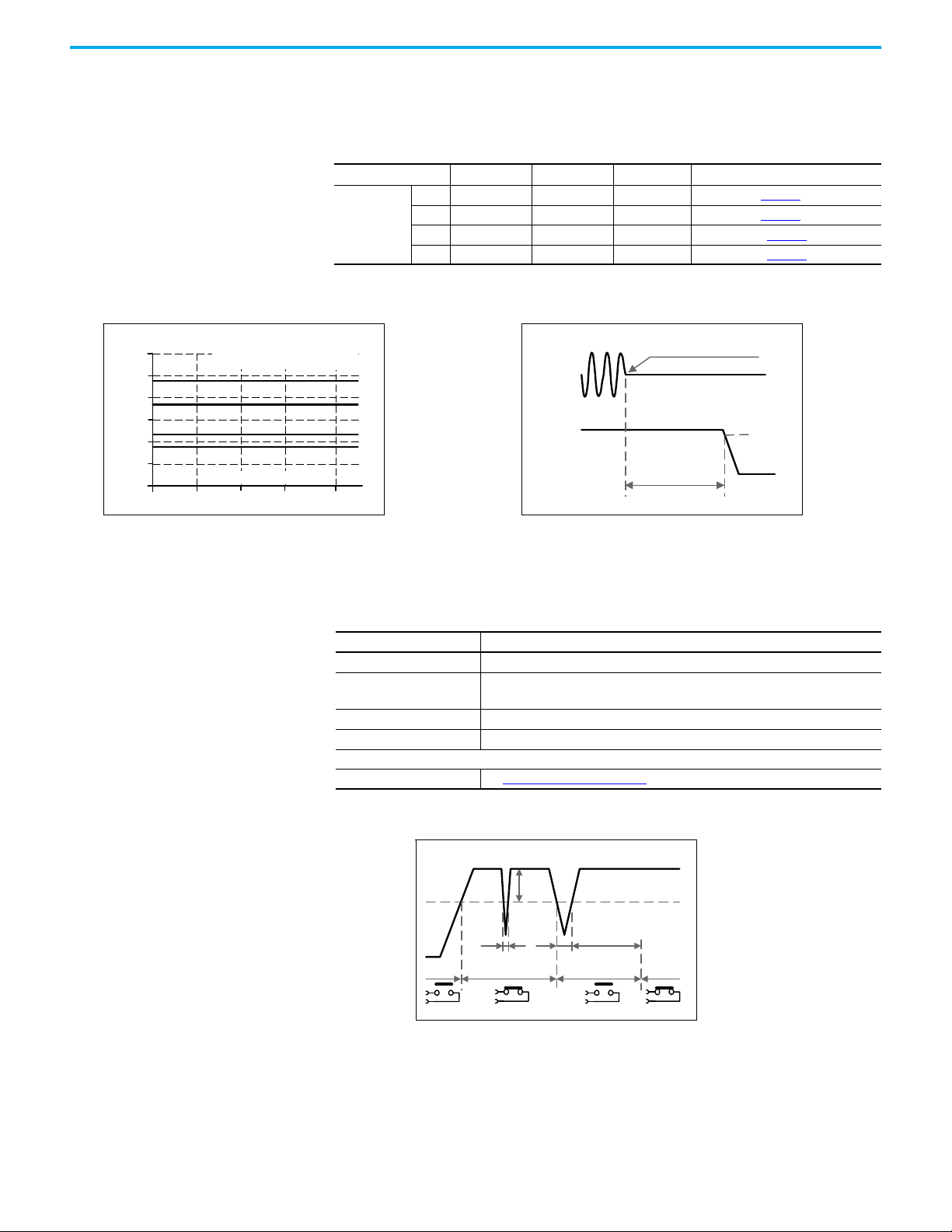

Hold up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DC OK Relay Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

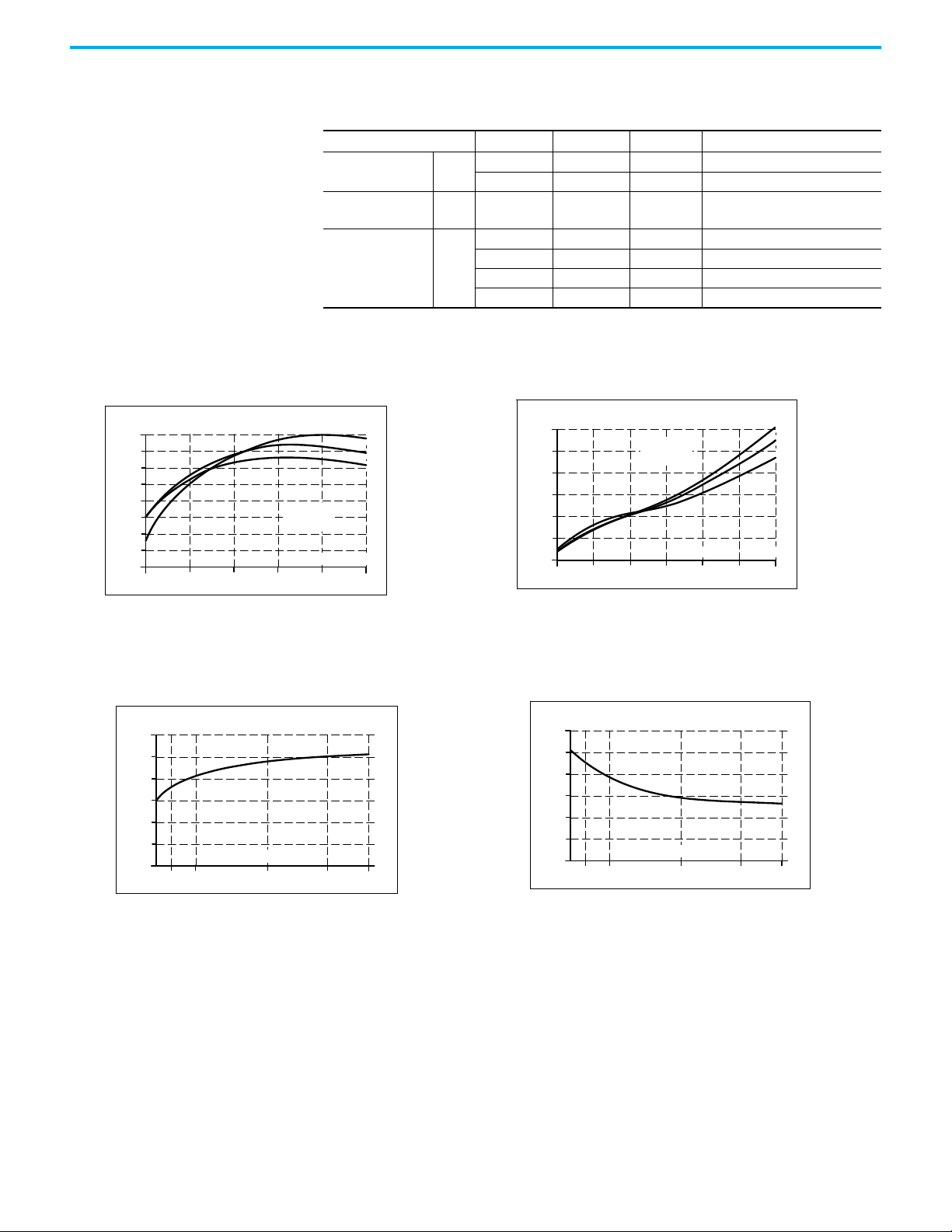

Efficiency and Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

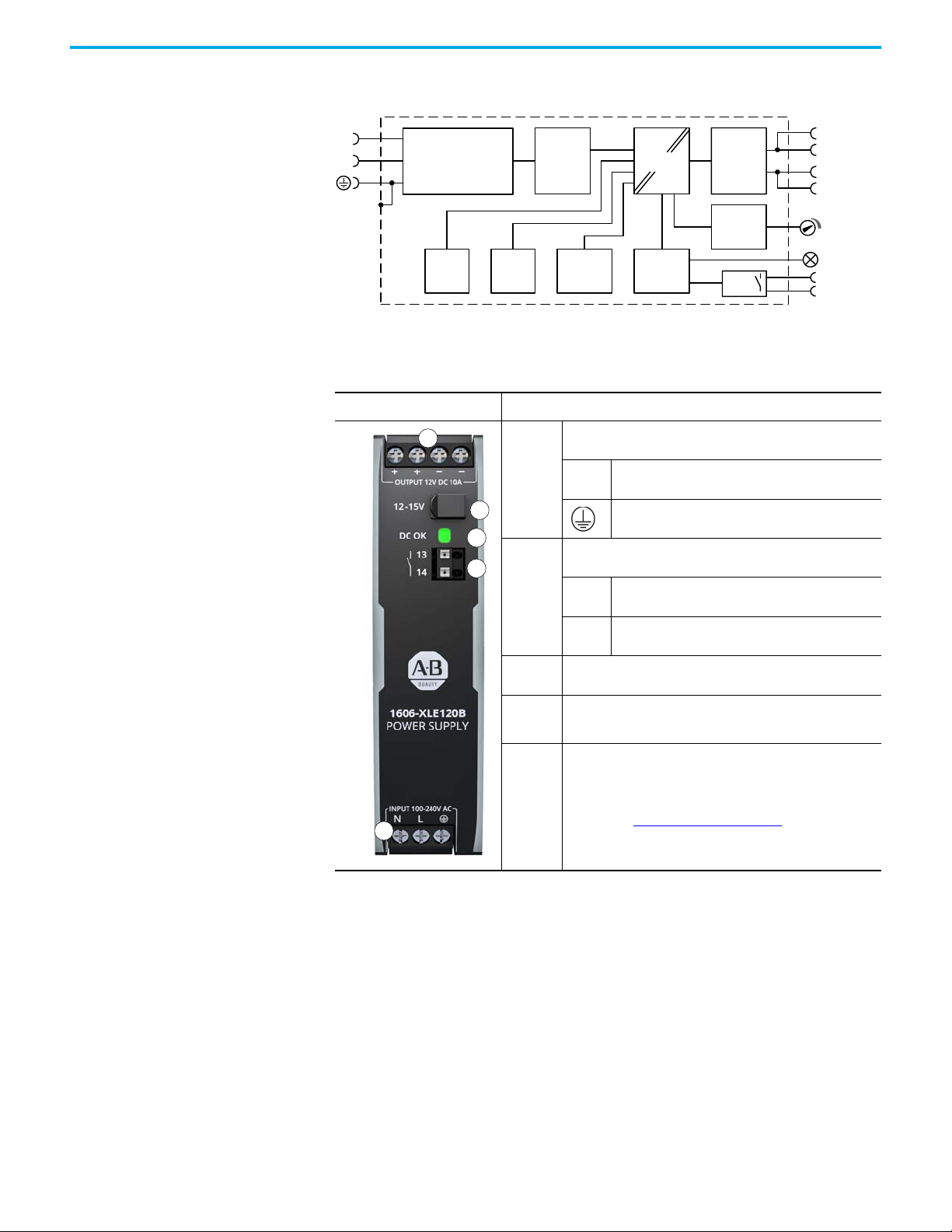

Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connection Terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lifetime Expectancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Mean Time Between Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Electromagnetic Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Safety and Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Certifications and Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . 21
Approximate Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

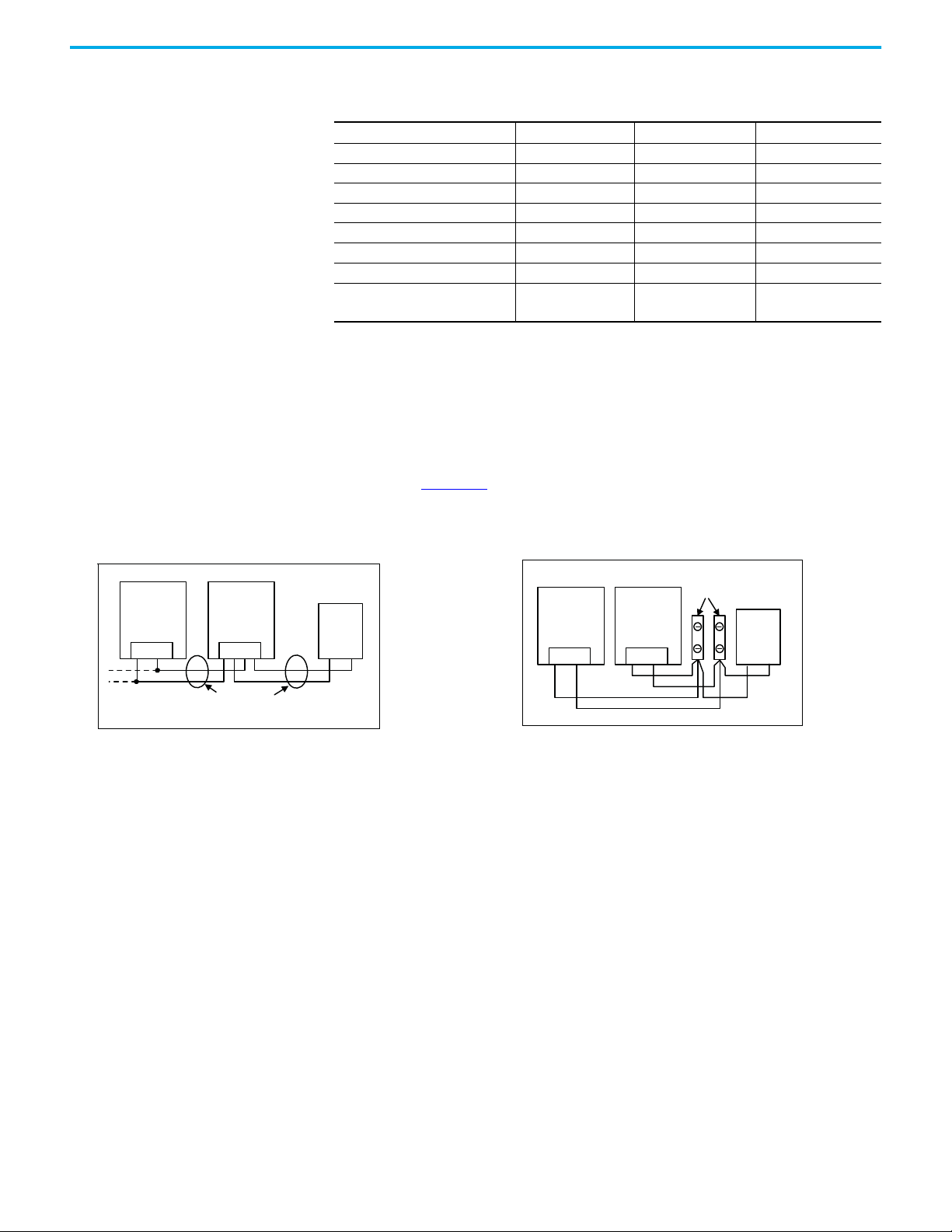

Redundancy Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
Notes

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 5
Power Supply —12V, 10 A, 120 W, Single Phase
Product Overview Bulletin 1606-XLE power supplies
are cost optimized without
compromising quality, reliability,
and performance.
The unit is compact with high
efficiency, featuring electronic
inrush current limitation, active
power factor correction (PFC) and
a wide operational temperature
range. The device has a power
reserve of 20% included, which
may even be used continuously at
temperatures up to 45 °C (113 °F).
Additionally, it can deliver three
times the nominal output current
for 12 ms which helps to trip fuses on faulty output branches.
The power supply features high immunity to transients, power surges
and low electromagnetic emission, a DC OK signal contact for remote
monitoring, and extensive approvals for a wide range of applications.
•100…240VACwide-rangeinput
• Width 32 mm (1.26 in.)
• Efficiency up to 94.0%
• Excellent Partial Load Efficiency
• 20% Output Power Reserves
• Easy Fuse Breaking – 3 times nominal current for 12 ms
• Safe HiccupPLUS Overload Mode
• Active Power Factor Correction (PFC)
• Minimal Inrush Current Surge
• Full Power Between -25… +60 °C (-13…+140 °F)
• DC OK Relay Contact

6Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
Specifications
Catalog Numbers
Attribute Value Notes
Output Voltage 12V DC Nominal
Adjustment Range 12…15V Factory setting 12V
Output Current
12…9.6 A Below 45 °C (113 °F) ambient
10…8 A At 60 °C (140 °F)ambient
7.5…6 A At 70 °C (158 °F) ambient
Derate linearly between 45…70 °C (113…158 °F)
Input Voltage AC 100…240V -15%/+10%
Frequency 50…60 Hz ±6%
Input Current AC 1.09/0.6 A At 120/230V AC
Power Factor 0.98/0.91 At 120/230V AC
Input Voltage DC 110…150V DC ± 20%
Input Current DC 1.21 A At 110/300V DC
AC Inrush current 4/4A At 120/230V AC
Efficiency 93.2/94% At 120/230V AC
Losses 8.8/7.7 W At 120/230V AC
Hold-up time 35/35 ms At 120/230V AC
Temperature range -25…+70 °C (-13…+158 °F) —
Size (W x H x D) 32 x 124 x 102 mm
(1.26 x 4.88 x 4.02 in) Without DIN rail
Weight 440 g (0.97 lb) —
Catalog Number Description
1606-XLE120B 12V, 10 A, 120W Single-phase Power Supply

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 7
Power Supply —12V, 10 A, 120 W, Single Phase
AC Input The device is suitable to be supplied from TN, TT, or IT mains networks with
AC voltage. For suitable DC supply voltages, see DC Input on page 8 .
Attribute Value Notes
AC input Nom AC 100…240V —
AC input range Min 85…264V AC Continuous operation
Min 264…300V AC Occasionally for maximal 500 ms
Allowed voltage L or N to earth Max 300V AC Continuous, according to IEC 606641
Input frequency Nom 50…60 Hz ±6%
Turn-on voltage Typ 80V AC Steady-state value.
See Figure 1 .
Shut-down voltage Typ 74V AC Steady-state value, See Figure 1 .
External input protection —
AC 100V AC 120V AC 230V
Input current Typ 1.30 A 1.09 A 0.60 A At 12V, 10A See Figure 3
Power factor Typ 0.99 0.98 0.91 At 12V, 10 A See Figure 4,
Crest factor Typ 1.7 1.8 2.2
At 12V, 10 A The crest factor is the
mathematical ratio of the peak value
to RMS value of the input current
waveform.
Startup delay Typ 400 ms 350 ms 375 ms
See Figure 2
Rise time
Typ 30 ms 30 ms 30 ms At 12V, 10 A const. current load, 0mF
load capacitance.
See Figure 2
Typ 50 ms 50 ms 50 ms At 12V, 10 A const. current load, 10mF
load capacitance . See Figure 2
Turn-on overshoot Max 200 mV 200 mV 200 mV See Figure 2
Figure 1 - Input Voltage Range Figure 2 - Turn-on Behavior, Definitions
Figure 3 - Input Current Versus Output Current at 12V Output Voltage Figure 4 - Power Factor Versus Output Current at 12V Output Voltage
Turn-on
85V
Rated
input range
max.
500 ms
V
IN
P
OUT
300V AC264V
Shut-down
Start-up Rise
delay Time
Overshoot
- 5%
Output
Voltage
Input
Voltage
12 A
12468
0
0.25
0.5
0.75
1.0
1.25
1.5 A
Input Current, typ
10
a) 100V AC
b) 120V AC
c) 230V AC
Output Current
(a)
(b)
(c)
Power Factor, typ
2 4 6 8 10 12 A
0.75
0.8
0.85
0.9
0.95
1.0
Output Current
(a) 100V AC,
(b) 120V AC,
(c) 230V AC
(a)
(b)
(c)

8Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
DC Input The device is suitable to be supplied from a DC input voltage. Use a battery or a
similar DC source. A supply from the intermediate DC-bus of a frequency
converter is not recommended and can cause a malfunction or damage the
unit.
Connect +pole to L, –pole to N and the PE terminal to an earth wire or to the
machine ground.
Attribute Value Notes
DC input Nom DC 110…150V ±20%
DC input range Min 88…180V DC Continuous operation
DC input current Typ 1.21 A At 110V DC
Allowed Voltage (+) or (-) input to
Earth Max 180V DC According to IEC 60664-1, continuous operation
Turn-on voltage Typ 74V DC Steady state value
Shut-down voltage Typ 67V DC Steady state value
Figure 5 - Wiring for DC Input
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 9
Power Supply —12V, 10 A, 120 W, Single Phase
Input Inrush Current An active inrush limitation circuit (NTCs, which are bypassed by a relay
contact) limits the input inrush current after turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the
first microseconds after switch-on.
100V AC 120V AC 230V AC
Inrush current
Max 8 Apeak 7 Apeak 7Apeak At 40 °C (104 °F), cold start
Typ 5 Apeak 4 Apeak 4Apeak At 25 °C (77 °F), cold start
Typ 5 Apeak 5 Apeak 6Apeak At 40 °C (104 °F), cold start
Inrush energy Max 0.4 A²s 0.5 A²s 1A²s At 40 °C (104 °F), cold start
Figure 6 - Typical Turn-on Behavior at Nominal Load, 120V AC Input
and 25 °C (77 °F) Ambient Figure 7 - Typical Turn-on Behavior at Nominal Load, 230V AC Input and 25 °C (77 °F) Ambient
50ms/DIV
Output voltage
Input
voltage
200V/DIV
Input
current
2A/DIV
4A
50ms/DIV
Input
current
2A/DIV
4A
Input
voltage
200V/DIV
Output voltage

10 Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
O utput The output provides a SELV/PELV rated voltage, which is galvanically isolated
from the input voltage.
The device is designed to supply any kind of loads, including capacitive and
inductive loads. If large capacitors, such as electric double layer capacitors
(EDLCs) or “UltraCaps” with a capacitance > 0.3 F are connected to the output,
the unit might charge the capacitor in an intermittent mode.
The output is electronically helps protect against overload, no-load, and short-
circuits. If there is a protection event, audible noise occurs
.
Attribute Value Notes
Output voltage Nom 12V —
Adjustment
range
Min 12…15V Guaranteed value
Max 16.0V This is the maximum output voltage which can occur at the clockwise end position of the potentiometer due to tolerances. It is not a guaranteed
value which can be achieved.
Factory settings Typ 12.0V ±0.2%, at full load and cold unit
Line regulation Max 10 mV Between 85…300V AC
Load regulation Max 50 mV Between 0A and 12A, static value
Ripple and noise
voltage
Max 50 mVpp Load >0.3A, Bandwidth 20 Hz to 20MHz, 50Ohm
Max 200 mVpp Load <0.3A, Bandwidth 20 Hz to 20MHz, 50Ohm
Output current Nom
12 A(1)
(1) This current is also available for temperatures up to +70 °C (158 °F)with a duty cycle of 10% and/ or not longer than 1 minute
every 10 minutes.
At 12V and an ambient temperatures below 45 °C (113 °F)
10 A At 12V and 60 °C (140 °F) ambient temperature
7.5 A At 12V and 70 °C (158 °F) ambient temperature
9.6 A(2)
(2) At heavy overloads (when output voltage falls below 7V), the power supply delivers continuous output current for 1s. After
this, the output is switched off for approx. 9s before a new start attempt is automatically performed. This cycle is repeated
as long as the overload exists. If the overload has been cleared, the device will operate normally. See Figure 10.
At 15V and an ambient temperatures below 45 °C (113 °F)
8.0 A At 15V and 60 °C (140 °F) ambient temperature
6.0 A At 15V and 70 °C (158 °F) ambient temperature
Derate linearly between 45 …70 °C (113…158 °F)
Fuse breaking
current Typ 30 A Up to 12 ms once every five seconds, see Figure 9. The fuse braking
current is an enhanced transient current which helps to trip fuses on
faulty output branches. The output voltage stays above 10V.
Overload behavior Continuous Output voltage > 7V DC, see Figure 8.
Intermittent Output voltage < 6V DC, see Figure 8.
Overload/ short-
circuit current
Max 14.2 A Continuous current, see Figure 8.
Typ 15 A Intermittent current peak value for typical 1 s Load impedance 50 mOhm,
see Figure 10. Discharge current of output capacitors is not included.
Max 5 A Intermittent current average value (R.M.S.) Load impedance 50 mOhm,
see Figure 10.
Output Typ 2 700 μF Included inside the power supply
Back-feeding
loads Max 25V
The unit is resistant and does not show malfunctioning when a load feeds
back voltage to the power supply. It does not matter whether the power
supply is on or off. The absorbing energy can be calculated according to
the built-in large sized output capacitor.

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 11
Power Supply —12V, 10 A, 120 W, Single Phase
Figure 8 - Output Voltage Versus Output Current, Typical Figure 9 - Dynamic Output Current Capability, Typical
Output Voltage
0
012
2
4
6
15V
8
10
12
20 A82 4 10 14 16618
Adjustment
Range
Output Current
A: continuous current
B: intermittent current
A
B
Output Voltage (dynamic behavior, < 12ms)
0
0
2
4
6
15V
8
10
12
50
A
2010 30 40
515253545
Adjustment
Range
Output Current
Figure 10 - Short-Circuit on Output, HiccupPLUS Mode, Typical
Output
Current
0
15A
9 s 9 s
9 s 1 s 1 s
1 s
t
Short -circuit Normal
operation
Normal
operation

12 Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
Hold-up Time The hold-up time is the time during which a power supply’s output voltage
remains within specification following the loss of input power. The hold-up
time is output load dependent. At no load, the hold-up time can be up to
several seconds. The green DC OK status indicator is also on during this time
.
DC OK Relay Content This feature monitors the output voltage on the output terminals of a running
power supply.
AC 100V AC 120V AC 230V Notes
Hold-up Time
Typ 70 ms 70 ms 70 ms At 12V, 5A, see Figure 11.
Min 55 ms 55 ms 55 ms At 12V, 5A, see Figure 11.
Typ 35 ms 35 ms 35 ms At 12V, 10 A, see Figure 11.
Min 27 ms 27 ms 27 ms At 12V, 10 A, see Figure 11.
Figure 11 - Hold-up Time Versus Input Voltage Figure 12 - Shutdown Behavior, Definitions
0
15
30
45
60
90 ms
90 120 155 190 230V AC
Input Voltage
75
Hold-up Time
a
b
c
d
a) 12V 5 A Typ
b) 12V 5 A Min c) 12V 10 A Typ
d) 12V 10 A Min
- 5%
Hold-up Time
Zero Transition
Output
Voltage
Input
Voltage
Attribute Value
Contact closes As soon as the output voltage reaches typical 90% of the adjusted output voltage
Contactopens As soon as the output voltage dips more than 10% below the adjusted output
voltage.
Switchinghysteresis Typically 0.4V
Contact ratings Maximal 60V DC 0.3 A, 30V DC1 A, 30V AC 0.5 A, resistiveload
Minimal permissible load: 1 mA at 5V DC
Isolation voltage See Dielectric Strength on page 20.
Figure 13 - DC OK Relay Contact Behavior
V
OUT
= V
ADJ
100 ms
0.9* V
ADJ
<
1 ms
10%
>
1 ms
open openclosed closed

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 13
Power Supply —12V, 10 A, 120 W, Single Phase
Efficiency and Power
Losses
AC 100V AC 120V AC 230V Notes
Efficiency Typ 92.6% 93.2% 94.0% At 12V, 10 A
92.2% 92.9% 93.8% At 12V, 12 A (Power Boost)
Average efficiency(1) Typ 91.6% 92.0% 92.3% 25% at 2.5 A, 25% at 5 A,
25% at 7.5 A. 25% at 10 A
Power losses Typ
0.9 W 0.9 W 1.0 W At 12V, 0 A
4.9 W 4.7 W 4.6 W At 12V, 5 A
9.6 W 8.8 W 7.7 W At 12V, 10 A
12.2 W 11.0 W 9.5 W At 12V, 12 A (Power Boost)
(1) The average efficiency is an assumption for a typical application where the power supply is loaded with 25% of the nominal
load for 25% of the time, 50% of the nominal load for another 25% of the time, 75% of the nominal load for another 25% of the
time and with 100% of the nominal load for the rest of the time.
Figure 14 - Efficiency Versus Output Current at 12V Typical Figure 15 - Power Losses Versus Output Current at 12V Typical
Eciency
2 4 6 10 12 A
88
89
90
91
92
93
94%
Output Current
8
(a)
(b)
(c)
(a) 100V AC
(b) 120V AC
(c) 230V AC
87
86
Power Losses
0 4 6 12 A
2
0
4
6
8
12 W
10
10
28
Output Current
(a)
(b)
(c)
(a) 100V AC
(b) 120V AC
(c) 230V AC
Figure 16 - Efficiency Versus Input Voltage at 12V, 10 A, Typical Figure 17 - Losses Versus Input Voltage at 12V, 10 A, Typical
Eciency
120 180 230 264V AC
89
90
91
92
Input Voltage
93
94
95%
100
Power Losses
120 180 230 264V AC
5
6
7
8
Input Voltage
9
10
11 W
100

14 Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
Functional Diagram
Front Side and User
Elements
+
+
-
-
Output
Over-
Voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temper-
ature
Shut-
down
Input Fuse
Input Filter
Input tÐÆĴðťÐr
Inrush Current Limiter
V
OUT
L
N
DC OK
Contact
DC Ok
Status Indicator
DC OK
Relay
Figure 18 - Front Side User Elements
1
Input Terminals
N, L N, L Line Input
PE (Protective Earth) Input
2
Output Terminals
Two identical + poles and two identical - poles
+Positive Output
-Negative (return) Output
3 Output Voltage Potentiometer
4
DC OK Status Indicator (green)
On, when the output voltage is >90% of the adjusted output
voltage
5
DC OK Relay Contact
The DC OK relay contact is synchronized with the DC OK status
indicator. See DC OK Relay Content on page 12.
1
2
3
4
5

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 15
Power Supply —12V, 10 A, 120 W, Single Phase
Connection Terminals The terminals are IP20 Finger safe constructed and suitable for field- and
factory wiring.
Daisy Chaining
Daisy chaining (jumping from one power supply output to the next) is allowed
as long as the average output current through one terminal pin does not
exceed 25 A. If the current is higher, use a separate distribution terminal block
as shown in Figure 20.
Input Output DC OK Signal
Terminal Type Screwtermination Screwtermination Push-intermination
Solid wire, Max 6 mm26 mm21.5 mm2
Stranded wire, Max 4 mm24 mm21.5 mm2
American Wire Gauge AWG 20…10 AWG 20…10 AWG 24…16
Max wire diameter (including ferrules) 2.8mm (0.11 in.) 2.8 mm (0.11 in.) 1.6 mm (0.06 in.)
Recommended tightening torque 1 N•m (9 lb•in) 1 N•m (9 lb•in) -
Wire stripping length 7 mm (0.28 in.) 7 mm (0.28 in.) 7 mm (0.28 in.)
Screwdriver 3.5 mm (.137 in.) slotted
or cross- head No 2
3.5 mm (.137 in.) slotted
or cross- head No 2 3.5 mm (.137 in.) slotted
to open the spring
Figure 19 - Daisy Chaining of Outputs Figure 20 - Using Distribution Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output
Max 25 A continuous
Distribution
Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output

16 Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
Lifetime Expectancy The Lifetime expectancy shown in the table indicates the minimum operating
hours (service life) and is determined by the lifetime expectancy of the built-in
electrolytic capacitors. Lifetime expectancy is specified in operational hours
and is calculated according to the capacitor’s manufacturer specification. The
manufacturer of the electrolytic capacitors only guarantees a maximum life of
up to 15 years (131,400 hr). Any number exceeding this value is a calculated
theoretical lifetime which can be used to compare devices
.
Mean Time Between Failure Mean Time Between Failure (MTBF), is calculated according to statistical
device failures, and indicates reliability of a device. It is the statistical
representation of the likelihood of a unit to fail and does not necessarily
represent the life of a product.
An MTBF figure such as, 1,000,000 hr means that statistically one unit will fail
every 100 hours if 10,000 units are installed in the field. However, it can not be
determined if the failed unit has been running for 50,000 hr or only
for 100 hr.
For these types of units the MTTF (Mean Time To Failure) value is the same
value as the MTBF value.
Lifetime Expectancy
AC 100V AC 120V AC 230V Notes
284,000 hr 297,000 hr 294,000 hr At 12V, 5 A and 40 °C (104 °F)
804,000 hr 839,000 hr 833,000 hr At 12V, 5 A and 25 °C (77 °F)
88,000 hr 94,000 hr 110,000 hr At 12V, 10 A and 40°C (104 °F)
248,000 hr 267,000 hr 311,000 hr At 12V, 10 A and 25 °C (77 °F)
44,000 hr 51,000 hr 61,000 hr At 12V, 12 A and 40 °C (104 °F)
126,000 hr 143,000 hr 171,000 hr At 12V, 12 A and 25 °C (77 °F)
AC 100V AC 120V AC 230V Notes
MTBF SN 29500, IEC 61709 682,000 hr 687,000 hr 732,000 hr At 12V, 10 A and 40 °C (104 °F)
1,212,000 hr 1,221,000 hr 1,294,000 hr At 12V, 10 A and 25°C (77 °F)
MTBF MIL HDBK 217F
287,000 hr 290,000 hr 308,000 hr At 12V, 10 A and 40 °C (104 °F);
Ground Benign GB40
417,000 hr 421,000 hr 447,000 hr At 12V, 10 A and 25 °C (77 °F);
Ground Benign GB25
68,000 hr 69,000 hr 73,000 hr At 12V, 10 A and 40 °C (104 °F);
Ground Fixed GF40
91,000 hr 93,000 hr 99,000 hr At 12V, 10 A and 25 °C (77 °F);
Ground Fixed GF25

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 17
Power Supply —12V, 10 A, 120 W, Single Phase
Electromagnetic
Compatibility
The electromagnetic compatibility (EMC) behavior of the device is designed
for applications in industrial, residential, commercial, and light industry
environments.
The device is investigated according to EN 61000-6-1, EN 61000-6-2,
EN 61000-6-3 and EN 61000-6-4.
EMC Immunity
Electrostatic
discharge EN 61000-4-2 Contact discharge Air discharge 8 kV 15 kV CriterionA(1)
CriterionA
(1) Performance Criteria:
A: The device shows normal operation behavior within the defined limits.
C: Temporary loss of function is possible. The device may shut-down and restarts by itself. No damage or hazards for the
device will occur.
Electromagnetic RF EN 61000-4-3 80 MHz…2.7 GHz 20V/m CriterionA
Fast transients
(Burst) EN 61000-4-4 Input lines Output lines DC OK signal (coupling clamp)
4 kV
2 kV
2 kV
CriterionA
CriterionA
CriterionA
Surge voltage on
input EN 61000-4-5 L N L PE, N PE
4 kV
2 kV CriterionA CriterionA
Surge voltage on
output EN 61000-4-5 + -
+ / -  PE
1 kV
2 kV CriterionA CriterionA
Surge voltage on EN 61000-4-5 DC OK signal PE 1 kV CriterionA
Conducted EN 61000-4-6 0.15…80 MHz 20V CriterionA
Mains voltage dips EN 61000-4-11
0%of 100V AC
40%of100V AC
70%of100V AC
0%of 200V AC
40%of200V AC
40%of200V AC
70%of200V AC
0V AC, 20 ms
40V AC, 200 ms
70V AC, 500 ms
0V AC, 20 ms
80V AC, 200 ms <8 A
80V AC, 200 ms >8 A
140V AC, 500 ms
Criterion A
Criterion C
Criterion A
Criterion A
Criterion A
Criterion C
Criterion A
Voltage EN 61000-4-11 0% of200V AC(=0V) 5000 ms Criterion C
Powerfultransients VDE 0160 Over entire load range 750V, 0.3 ms CriterionA
EMC Emission
Conducted emission input lines EN 55011, EN 55022, FCC Part 15,
CISPR 11, CISPR 22 Class B
Conducted emission output
lines IEC/CISPR16-1-2,IEC/CISPR16-2-1 Limits for local DC power networks fulfilled
Radiatedemission EN 55011, EN 55022 Class B
Harmonic input current (PFC) EN 61000-3-2 Fulfilled for Class A equipment
Voltage fluctuations, flicker EN 61000-3-3 Fulfilled, tested with constant current loads,
non pulsing
This device complies with FCC Part 15 rules.
Operation is subjected to following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Switching Frequencies
PFC converter 30 kHz…140 kHz Input voltage and output power dependent
Mainconverter 60 kHz…140 kHz Output load dependent
Auxiliary converter 30 kHz…60 kHz Output load dependent

18 Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
Environment
Attribute Value Notes
Operational temperature -25 …+70°C (-13…+158°F) Operational temperature is the same as the ambient or surrounding temperature and is defined as the air
temperature 2 cm (0.98 in.) below the unit.
Storagetemperature -40…+85°C (-40…+185°F) For storage and transportation
Output de-rating 1.6 W/°C 3 W/°C
0.67 A/1000 mor 5 °C/1000 m
Between +45…60 °C (113…140°F)
Between +60 …70°C (140…158°F)
For altitudes >2000 m (6560 ft), see Figure 22.
The de-rating is not hardware controlled. The user has to take care by himself to stay below the de-rated current
limits in order not to overload the unit.
Humidity 5…95% r.h. According to IEC 60068-2-30
Atmospheric pressure 110…54 kPa See Figure 22 for details
Altitude Up to 5000 m (16,400 ft) See Figure 22 for details
Over-voltage category
III According to IEC 60664-1 for altitudes up to 2000 m
(6560 ft)
II According to IEC 60664-1, for altitudes above 2000 m
(6560 ft)
Degree of pollution 2 According to IEC 62477-1,not conductive
Vibration sinusoidal 2…17.8 Hz: ±1.6 mm;
17.8…500 Hz: 2 g According to IEC 60068-2-6
Shock 30 g 6 ms, 20 g 11 ms 3 bumps/direction,
18 bumps in total According to IEC 60068-2-27
Shock and vibration is tested in combination with DIN rails according to EN 60715 with a height of 15mm and a
thickness of 1.3mm and standard orientation.
LABS compatibility As a rule, only non-silicon precipitating materials are used. The unit conforms to the
LABS criteria and is suitable for use in paint shops.
Corrosive gases Tested according to ISA-71.04-1985, Severity Level G3 and IEC 60068-2-60 Test Ke
Method 4 for a service life of minimum 10years in these environments.
Audible noise Some audible noise may be emitted from the power supply during no load, overload or
short circuit.
Figure 21 - Output Current Versus Ambient
Temperature Figure 22 - Output Current Versus Altitude
Allowed Output Current at 12V
0
-25 0 45 70 °C
7.5 A
10 A
12 A
60
A
Ambient Temperature
A... 85 to 264V AC, continuous
B... short term
B
2000 m 5000 m
8 A
10 A
12 A
Altitude
Allowed Output Current at 12V
B
A...Tamb<60°C
B...Tamb<45°C
C...Shortterm
A
C
AP
*)
80 kPa 54 kPa110 kPa
0 m
*) Atmospheric pressure

Rockwell Automation Publication 1606-RM109A-EN-P - August 2020 19
Power Supply —12V, 10 A, 120 W, Single Phase
Safety and Protection
Features
Attribute Value Notes
Isolation resistance
Min 500 MΩ At delivered condition between input and output,
measured with 500V DC
Min 500 MΩ At delivered condition between input and PE measured
with 500V DC
Min 500 MΩ At delivered condition between output and PE, measured
with 500V DC
Min 500 MΩ At delivered condition between output and DC OK contacts,
measured with 500V DC.
PE resistance Max 0.1 Ω Resistance between PE terminal and the housing in the
area of the DIN rail mounting bracket.
Output over-voltage protection Typ 16.2V DC —
Max 17V DC —
In case of an internal defect, a redundant circuit limits the maximum output voltage. The output shuts down and
performs three restart attempts. If the failure continues, the output shuts down. Cycle input power to reset.
Class of protection I According to IEC 61140
A PE (Protective Earth) connection is required
Degree of protection IP 20 According to EN/IEC60529
Over-temperature protection Included
Output shut-down with automatic restart. Temperature
sensors are installed on critical components inside the
unit and turn the unit off in safety critical situations,
which can happen for example, when ambient
temperature is too high, ventilation is obstructed or the
de-rating requirements are not followed. There is no
correlation between the operating temperature and turn-
off temperature since this is dependent on input voltage,
load and installation methods.
Input transient protection Metal Oxide
Varistor (MOV)
For protection values, see Electromagnetic Compatibility
on page 17.
Internal input fuse Included Not user replaceable slow-blow high-braking capacity
fuse
Touch current (leakage current)
Typ
0.10 mA/0.27 mA At 100V AC, 50 Hz, TN-,TT-mains/IT-mains
0.13 mA/0.38 mA At 120V AC, 60 Hz, TN-,TT-mains/IT-mains
0.20 mA/0.60 mA At 230V AC, 50 Hz, TN-,TT-mains/IT-mains
Max
0.13 mA/0.35 mA At 110V AC, 50 Hz, TN-,TT-mains/IT-mains
0.17 mA/0.51 mA At 132V AC, 60 Hz, TN-,TT-mains/IT-mains
0.27 mA/0.81 mA At 264V AC, 50 Hz, TN-,TT-mains/IT-mains

20 Rockwell Automation Publication 1606-RM109A-EN-P - August 2020
Power Supply —12V, 10 A, 120 W, Single Phase
Dielectric Strength The output voltage is floating and has no ohmic connection to the ground. The
output is insulated to the input by a double or reinforced insulation.
Type and routine tests are conducted by the manufacturer. Field tests may be
conducted in the field using the appropriate test equipment which applies the
voltage with a slow ramp (2 s up and 2 s down). Connect all input- terminals
together and all output poles before conducting the test. When testing, set the
cut-off current settings to the value in the table below.
Figure 23 - Dialectic Strength
IMPORTANT Connect either the + pole or the – pole to the protective earth
system. This helps to avoid situations in which a load starts
unexpectedly or can not be switched off when unnoticed earth
faults occur.
ABCD
Type test 60 s 2500V AC 3000V AC 1000V AC 500V AC
Routine test 5 s 2500V AC 2500V AC 500V AC 500V AC
Field test 5 s 2000V AC 2000V AC 500V AC 500V AC
Field tests cut-off current settings > 10 mA > 10 mA > 20 mA > 1 mA
(1) B: When testing input to DC OK ensure that the maximal voltage between DC OK and the output is not exceeded
(column D). We recommend connecting DC OK pins and the output pins together when performing the test.
DA
C
B
B
N
L
Input DC OK
Earth, PE Output
-
+
1
