Rockwell Automation Allen-Bradley 1606-XLE120E User manual

Power Supply - 24V, 5 A, 120 W,
Single-phase Input
Catalog Numbers 1606-XLE120E, 1606-XLE120EC,
1606-XLE120EL, 1606-XLE120EH, 1606-XLE120ED
Reference Manual Original Instructions

2Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Important User Information
Read this document and the documents listed in the additional resources section about installation, configuration, and
operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize
themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to
be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be
impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use
or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for
actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software
described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is
prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Labels may also be on or inside the equipment to provide specific precautions.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to
potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL
Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 3
Table of Contents
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Terminology and Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Input Inrush Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Hold-up Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
DC OK Relay Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

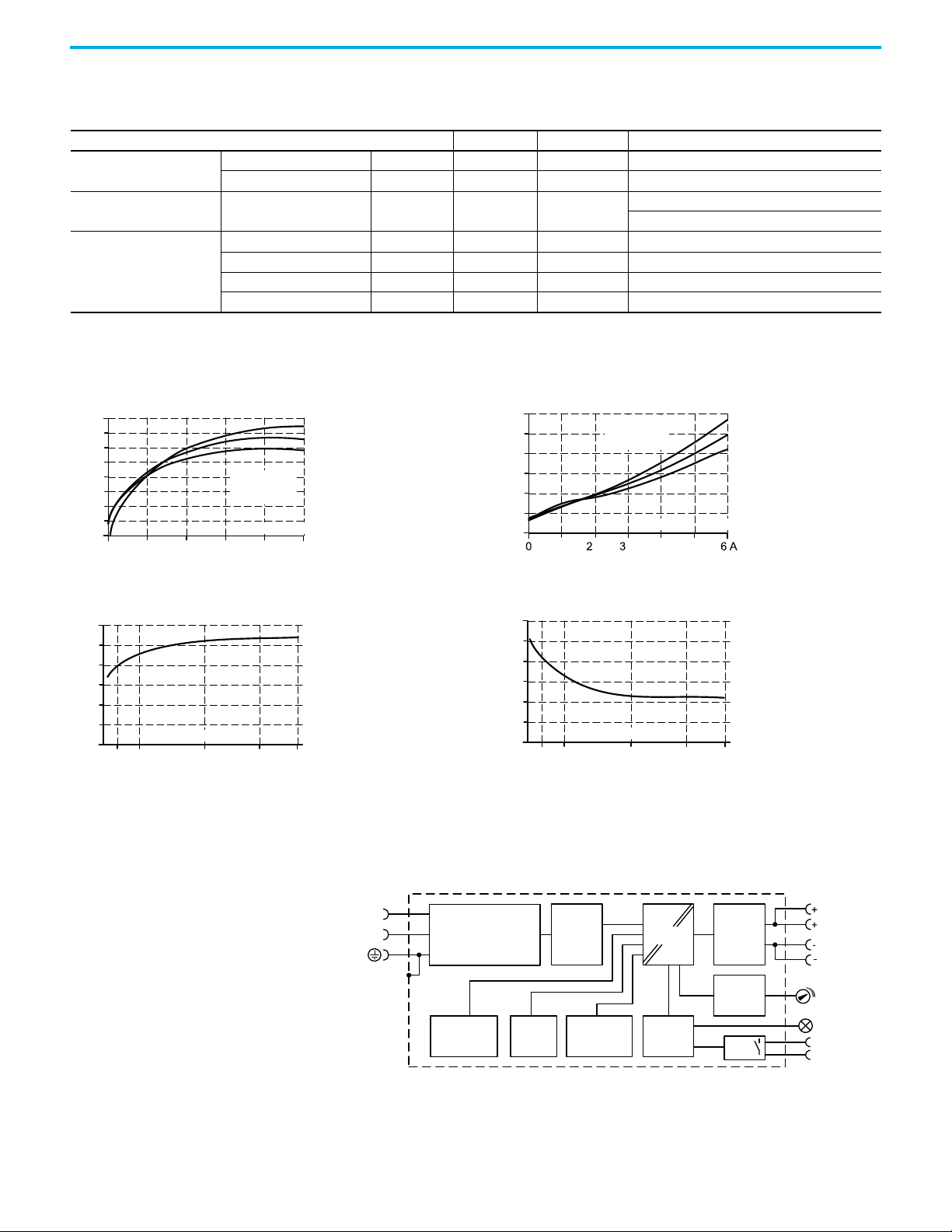

Efficiency and Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connection Terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Lifetime Expectancy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Mean Time Between Failure (MTBF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Safety and Protection Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Dielectric Strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Approvals and Fulfilled Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Physical Dimensions
and Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Notes:

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 5
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual

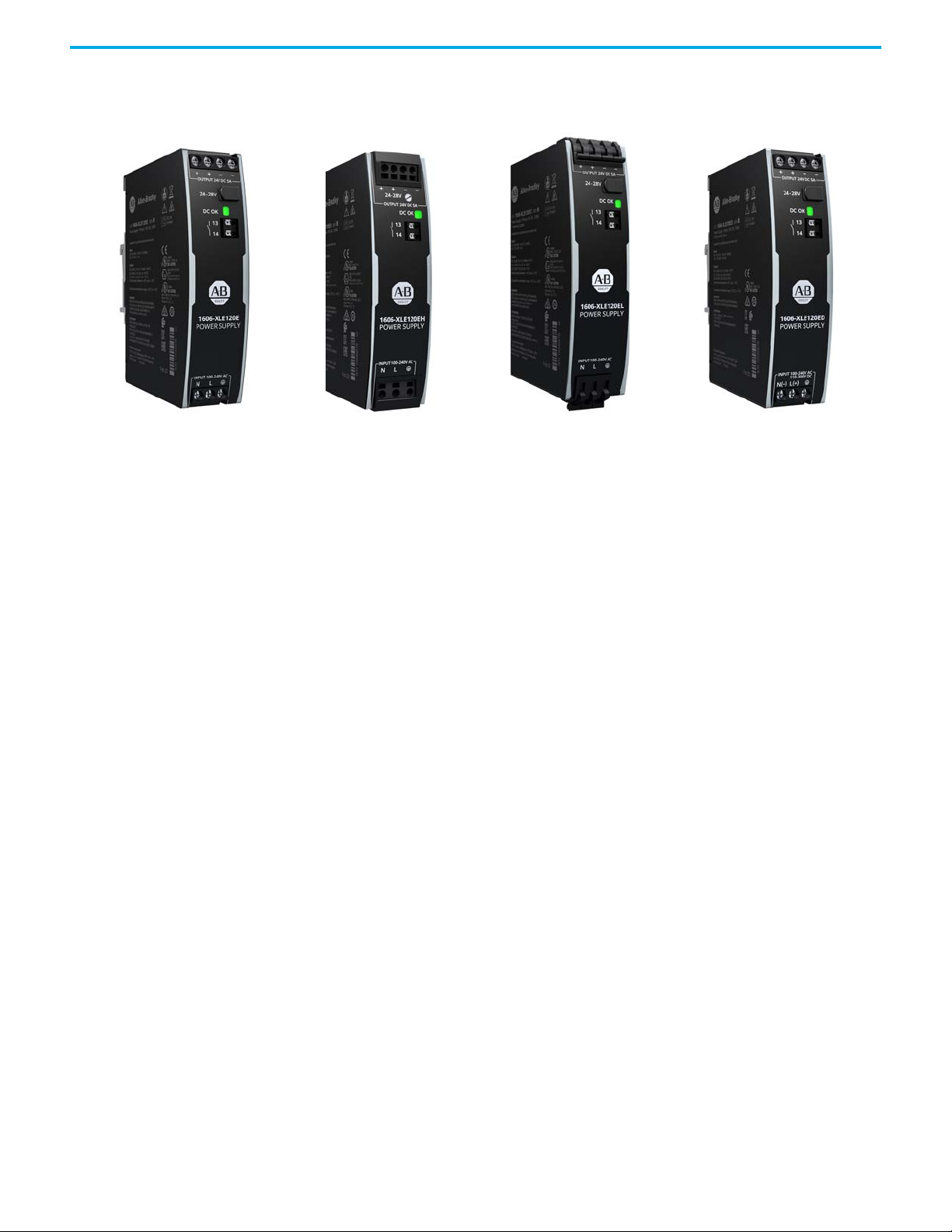

Product Overview
The 1606-XLE units are high-end power supplies in a medium price range
without compromising quality, reliability, and performance. The XLE Series is
part of the Bulletin 1606 power supply family.
The 1606-XLE120E power supplies come with three connection terminal
options: screw, spring-clamp, or push-in terminals, which are optimized for
automated wiring.
The 1606-XLE120EC is equipped with conformal coated printed circuit boards
that are preferred for the use in harsh environments and the 1606-XLE120ED
features an enhanced DC input voltage range.
These units feature a small size, high efficiency, electronic inrush current
limitation, active power factor correction, and a wide operational temperature
range. The devices have a power reserve of 20% included, which can even be
used continuously at temperatures up to +45 °C (113 °F). Additionally, they can
deliver three times the nominal output current for 12 ms that helps to trip fuses
on faulty output branches.
High immunity to transients and power surges and low electromagnetic
emission, a DC OK signal contact for remote monitoring, and a large
international approval package for various applications.
• AC 100…240V Wide-range Input
• Width only 32 mm(1.26 in.)
• Efficiency up to 94.3%
• Excellent Partial Load Efficiency
• 20% Output Power Reserves
• Easy Fuse Breaking—three times nominal current for 12 ms
• Safe HiccupPLUS Overload Mode
• Active Power Factor Correction (PFC)
• Minimal Inrush Current Surge
• Full Power -25…+60 °C (-13 °F…+140 °F)
• DC OK Relay Contact

6Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Specifications
Catalog Numbers
Terminology and
Abbreviations
Attribute Value Notes
Output voltage 24V DC Nominal
Adjustment range 24…28V Factory setting 24.1V
Output current
6.0…5.1 A Below 45 °C (113 °F) ambient
5.0…4.3 A At 60 °C (140 °F) ambient
3.8…3.2 A —
Derate linearly 45…70 °C (113…158 °F)
Input voltage AC AC 100…240V -15%/+10%
Mains frequency 50…60 Hz ±6%
Input current AC 1.09/0.6 A At 120/230V AC
Powerfactor 0.98/0.91 At 120/230V AC
Input voltage DC DC 110…150V ±20% For 1606-XLE120E, 1606-XLE120EC, 1606-XLE120EL,
1606-XLE120EH
DC 110…300V ±20% For 1606-XLE120ED
Input current DC 1.21/0.43 A At 110/300V DC
ACInrush current 4/4 A At 120/230V AC
Efficiency 93.6/94.3% At 120/230V AC
Losses 8.2/7.3 W At 120/230V AC
Hold-up time 35/35 ms At 120/230V AC
Temperature range -25…+70 °C (-13…+158 °F) —
Size (WxHxD) 32x124x102 mm (1.26x4.88x4.02 in.) WithoutDIN rail
Weight 440 g (0.97 lb) —
Power Supply Connection
1606-XLE120E Screwterminals
1606-XLE120EC Screw terminals and conformal coatedpc-boards
1606-XLE120EL Spring-damp terminals
1606-XLE120EH Push-in terminals
1606-XLE120ED Screw terminals and enhanced DC input
Term Definition
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning as the symbol.
Earth, Ground This document uses the term ‘earth’ which is the same as the U.S. term ‘ground.’
AC 230V A figure that is displayed with the AC or DC before the value represents a nominal voltage with standard tolerances (usually ±15%) included. For example: DC 12V describes a 12V
battery disregarding whether it is full (13.7V) or flat (10V).
230V AC A figure with the unit (V AC) at the end is a momentary figure without any additional
tolerancesincluded.
50 Hz vs. 60 Hz As long as not otherwise stated, AC 230V parameters are valid at 50 Hz mains frequency.

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 7
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
AC Input The device is suitable to be supplied from TN, TT, or IT mains networks with
AC voltage. For suitable DC supply voltages, See DC Input on page 8.
Attribute Value Notes
AC input Nom AC 100-240V —
AC input range Min 85-264V AC Continuous operation
Min 264-300V AC Occasionally for maximal 500 ms
Allowed voltage L or N to earth Max 300V AC Continuous, according to IEC 60664-1
Input frequency Nom 50…60 Hz ±6%
Turn-on voltage Typ 80V AC Steady-state value, see Figure 1
Shut-down voltage Typ 74V AC Steady-state value, see Figure 1
External input protection See Installation Instructions on page 6.
AC 100V AC 120V AC 230V
Input current Typ 1.30 A 1.09 A 0.60 A At 24V, 5 A, see Figure 3
Power factor Typ 0.99 0.98 0.91 At 24V, 5 A, see Figure 4
Crest factor Typ 1.7 1.8 2.2 At 24V, 5 A, The crest factor is the mathematical ratio of the peak value to RMS value of the input current
waveform.
Startupdelay Typ 420 ms 380 ms 385 ms See Figure 2
Rise time
Typ 80 ms 80 ms 80 ms At 24V, 5 A constant current load, 0 mF load capacitance, see Figure 2
Typ 100 ms 100 ms 110 ms At 24V, 5 A constant current load, 5 mF load capacitance, see Figure 2
Max 200 mV 200 mV 200 mV See Figure 2
Figure 1 - Input Voltage Range Figure 2 - Turn-on Behavior, Definitions
Figure 3 - Input Current Versus Output Current at 24V Output Voltage Figure 4 - Power Factor Versus Output Current at 24V Output Voltage

8Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual

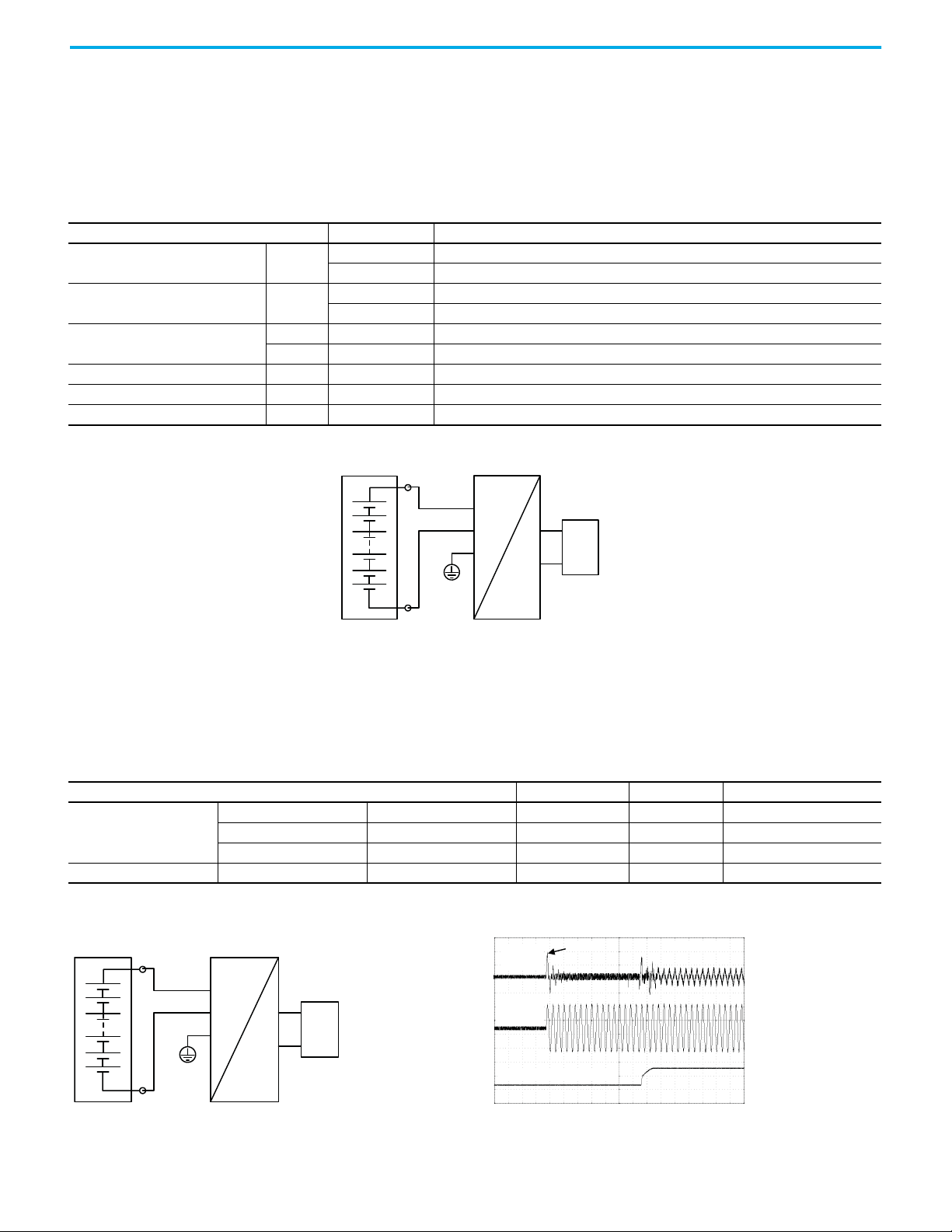

DC Input The device is suitable to be supplied from a DC input voltage. Use a battery or a
similar DC source. A supply from the intermediate DC-bus of a frequency
converter is not recommended and can cause a malfunction or damage the
unit.
Connect the +pole to the L, the –pole to N, and the PE terminal to an earth wire
or to the machine ground.
Figure 5 - Wiring for DC Input
Input Inrush Current An active inrush limitation circuit (NTCs, are bypassed by a relay contact)
limits the input inrush current after turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the
first microseconds after switch-on
.
Attribute Value Notes
DC input Nom DC 110…150V ±20% For 1606-XLE120E, 1606-XLE120EC, 1606-XLE120EL, 1606-XLE120EH
DC 110…1300V ±20% For 1606-XLE120ED
DC input range Min 88…180V DC Continuous operation for 1606-XLE120E, 1606-XLE120EC, 1606-XLE120EL, 1606-XLE120EH
88…360V DC Continuous operation for 1606-XLE120ED
DC input current Typ 1.21 A At 110V DC, at 24V, 5 A
Typ 0.43 A At 300V DC, at 24V, 5 A
Allowed Voltage (+) or (-) input to Earth Max 360V DC Continuous according to IEC 60664-1
Turn-on voltage Typ 74V DC Steady state value
Shut-down voltage Typ 67V DC Steady state value
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N
Attribute AC 100V AC 120V AC 230V Notes
Inrush current
Max 8 Apeak 7 Apeak 7 Apeak At 40 °C (104 °F), cold start
Typ 5 Apeak 4 Apeak 4 Apeak At 25 °C (77 °F), cold start
Typ 5 Apeak 5 Apeak 6 Apeak At 40 °C (104 °F), cold start
Inrushenergy Max 0.4 A²s 0.5 A²s 1 A²s At 40 °C (104 °F), cold start
Figure 6 - Typical Turn-on Behavior at Nominal Load, 120V AC Input,
and 25 °C (77 °F) Ambient Figure 7 - Typical Turn-on Behavior at Nominal Load, 230V AC Input, and 25 °C (77 °F) Ambient
+
-
Load
L
PE
+
-
Power Supply
AC
DC
Battery
N
50ms/DIV
Input
current
2A/DIV
Input
voltage
200V/DIV
Output voltage
4A

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 9
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Output The output provides a SELV/PELV rated voltage, which is galvanically isolated
from the input voltage.
The output is designed to supply any kind of loads, including capacitive and
inductive loads. If extreme large capacitors, such as EDLCs (electric double
layer capacitors or ‘Ultra Caps’) with a capacitance > 0.3 F are connected to the
output, the unit can charge the capacitor in an intermittent mode.
The output is electronically protected against overload, no-load, and
short-circuits. If there is a protection event, audible noise can occur.
Attribute Value Notes
Output voltage Nom 24V —
Adjustment range
Min 24…28V Guaranteed value
Max 30.0V This is the maximum output voltage that can occur at the clockwise end position of the
potentiometer due to tolerances. It is not a guaranteed value that can be achieved
Factory settings Typ 24.1V ±0.2%, at full load and cold unit
Line regulation Max 10 mV Between 85V and 300V AC
Load regulation Max 50 mV Between 0 A and 6 A, static value, see Figure 8
Ripple and noise voltage Max 50 mVpp Load > 0.2 A, Bandwidth 20 Hz to 20 MHz, 50 Ohms
Max 200 mVpp Load < 0.2 A, Bandwidth 20 Hz to 20 MHz, 50 Ohms
Output current
Nom 6 A(1) —
Nom 5 A —
Nom 3.8 A —
Nom 5.1 A —
Nom 4.3 A —
Nom 3.2 A —
Derate linearly 45…70 °C (113…158 °F)
Fuse breaking current Typ 15 A Up to 12 ms once every 5 seconds, see Figure 9. The fuse braking current is an enhanced
transient current that helps to trip fuses on faulty output branches. The output voltage stays
above 20V.
Overload behavior Continuouscurrent For output voltage above 13V DC, see Figure 8
Intermittent current(2) For output voltage below 13V DC, see Figure 8
Overload/short-circuit current
Max 7.2 A Continuous current, see Figure 8
Typ 9 A Intermitter current peak value for Typ 1 s.
Load impedance 50 mΩ, see Figure 10 Discharge current of output capacitors is not included
Max 3.5 A Intermitter current average value (R.M.S.) Load impedance 50 mΩ, see Figure 10
Output capacitance
Typ 1800 μF Included inside the powersupply
Max 35V The unit is resistant and does not show malfunctioning when a load feeds back voltage to the power supply. It does not matter whether the power supply is on or off. The absorbing energy
can be calculated according to the built-in large sized output capacitor.
(1) This current is also available for temperatures up to +70°C (+158 °F) with a duty cycle of 10% and/ or not longer than 1 minute every 10 minutes.
(2) At heavy overloads (when output voltage falls below 13V), the power supply delivers continuous output current for 1s. After this, the output is switched off for approx. 9s before a new start
attempt is automatically performed. This cycle is repeated as long as the overload exists. If the overload has been cleared, the device will operate normally. See Figure 10
Figure 8 - Output Voltage Versus Output Current, Typ Figure 9 - Dynamic Output Current Capability, Typ
Output Voltage
0
6078
4
8
12
28V
16
20
24
10
A
41 2 5 93
Adjustment
Range
Output Current
A: continuous current
B: intermittent current
A
B
Output Voltage (dynamic behavior, < 12ms)
0
0
4
8
12
28V
16
20
24
25
A
10515202.5 7.5 12.5 17.5 22.5
Adjustment
Range
Output Current

10 Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual

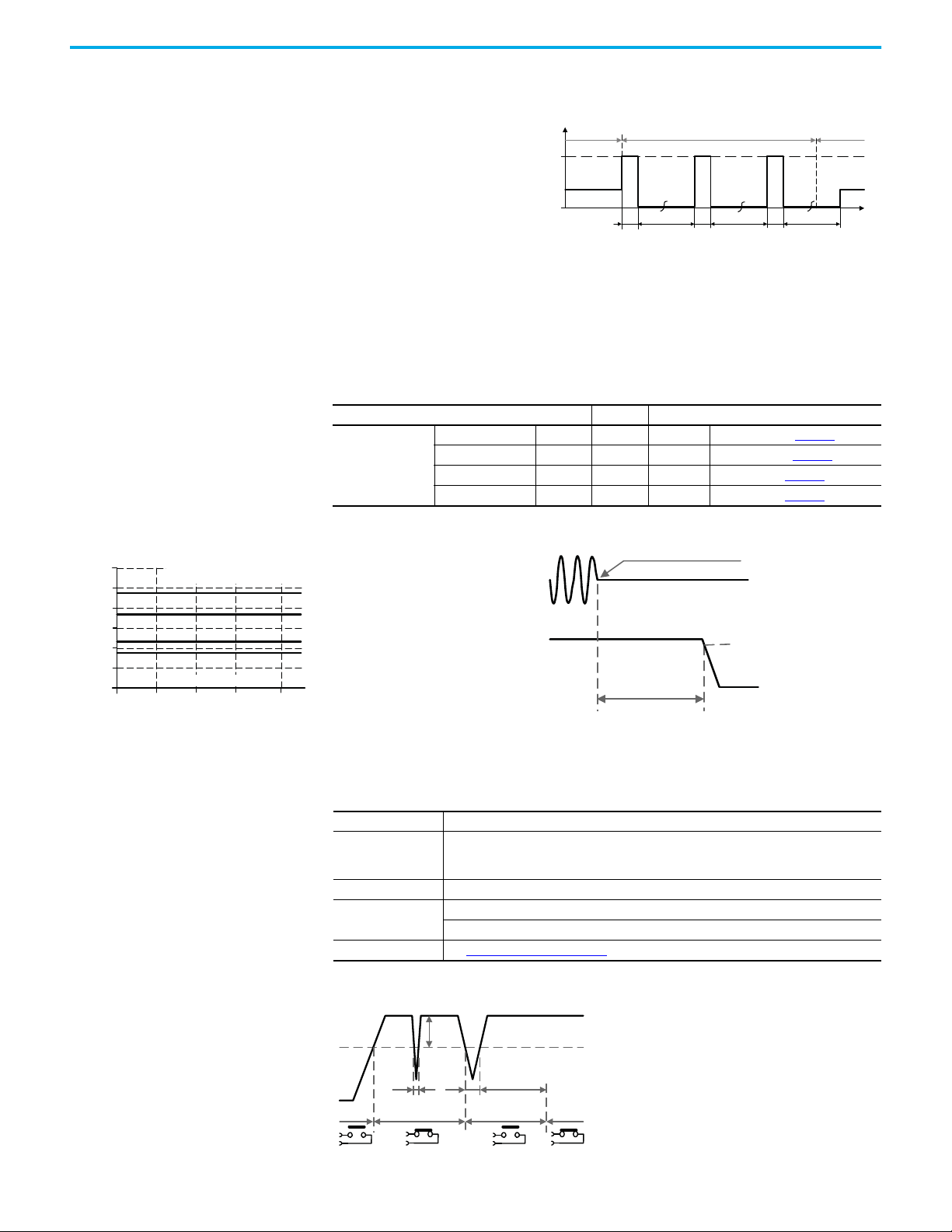

Hold-up Time The hold-up time is the time during which a power supply’s output voltage
remains within specification following the loss of input power. The hold-up
time is output load dependent. At no load, the hold-up time can be up to
several seconds. The green DC OK lamp is also on during this time
.
DC OK Relay Contact This feature monitors the output voltage on the output terminals of a running
power supply.
Figure 13 - DC OK Relay Contact Behavior
Figure 10 - Short-circuit on Output, HiccupPLUS Mode, Typ
Output
Current
0
9A
9s 9s
9s 1s 1s
1s
t
Short-circuit
Normal
Operation Normal Operation
AC 100V AC 120V AC 230V
Hold-up Time
Typ 70 ms 70 ms 70 ms At 24V, 2.5 A, see Figure 11
Min 55 ms 55 ms 55 ms At 24V, 2.5 A, see Figure 11
Typ 35 ms 35 ms 35 ms At 24V, 5 A, see Figure 11
Min 27 ms 27 ms 27 ms At 24V, 5 A, see Figure 11
Figure 11 - Hold-up Time Versus Input Voltage Figure 12 - Shutdown Behavior, Definitions
0
15
30
45
60
90 ms
90 120 155 190 230V AC
Input Voltage
75
Hold-up Time
a
b
c
d
c) 24V 5 A typ.
d) 24V 5 A min.
a) 24V 2.5 A typ.
b) 24V 2.5 A min.
- 5%
Hold-up Time
Zero Transition
Output
Voltage
Input
Voltage
Contactcloses As soon as the output voltage reaches Typ 90% of the adjusted output voltage level.
Contactopens As soon as the output voltage dips more than 10% below the adjusted output voltage. Short dips will be extended to a signal length of 100 ms. Dips shorter than 1 ms will be
ignored.
Switching hysteresis Typically 0.7V
Contact ratings Maximal 60V DC 0.3 A, 30V DC 1 A, 30V AC 0.5 A, resistive load
Minimal permissible load: 1 mA at 5V DC
Isolation voltage See Dielectric Strength on page 17
0.9* V
ADJ
<
10%
open
V
OUT =
V
ADJ
openclosed closed
>
1...4ms1ms 100ms

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 11
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Efficiency and Power
Losses
Functional Diagram
Attribute AC 100V AC 120V AC 230V Notes
Efficiency Typ 92.9% 93.6% 94.3% At 24V, 5 A
Typ 92.7% 93.5% 94.5% At 24V, 6 A (Power Boost)
Average efficiency(1))Typ 91.3% 91.7% 92.0% 25% at 1.25 A, 25% at 2.5 A
25% at 3.75 A. 25% at 5 A
Power losses
Typ 1.3 W 1.3 W 1.4 W At 24V, 0 A
Typ 4.6 W 4.4 W 4.1 W At 24V, 2.5 A
Typ 9.2 W 8.2 W 7.3 W At 24V, 5 A
Typ 11.3 W 9.8 W 8.4 W At 24V, 6 A (Power Boost)
(1) The average efficiency is an assumption for a typical application where the power supply is loaded with 25% of the nominal load for 25% of the time, 50% of the nominal load for another 25% of the time, 75%
of the nominal load for another 25% of the time and with 100% of the nominal load for the rest of the time.
Figure 14 - Efficiency Versus Output Current at 24V, Typ Figure 15 - Losses Versus Output Current at 24V, Typ
Figure 16 - Efficiency Versus Output Current at 24V, 5 A, Typ Figure 17 - Losses Versus Output Current at 24V, 5 A, Typ
Efficiency
123 56A
89
90
91
92
93
94
95%
Output Current
4
(a
)
(b)
(c
)
(a) 100V AC
(b) 120V AC
(c) 230V AC
88
87
Power Losses
2
0
4
6
8
12W
5
10
1 4
Output Current
(a
)
(b)
(c
)
(a) 100 V AC
(b) 120 V AC
(c) 230 V AC
Efficiency
120 180 230 264VAC
89
90
91
92
Input Voltage
93
94
95%
100
Power Losses
120 180 230 264VAC
5
6
7
8
Input Voltage
9
10
11W
100
Output
Over-voltage
Protection
PFC
Converter
Output
Voltage
Regulator
Power
Converter
Output
Filter
Output
Voltage
Monitor
Output
Power
Manager
Temperature
Shut-down
Input Fuse
Input Filter
Input Rectifier
Inrush Current Limiter
V
OUT
L
N
DC OK
Contact
DC OK
LED
DC-ok
Relay

12 Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Front Side and User
Elements
Connection Terminals The terminals are IP20 fingersafe constructed and suitable for field and
factory wiring.
Figure 18 - 1606-XLE120E, -XLE120EC Figure 19 - 1606-XLE120EL User Elements
1
Input Terminals
N, L N, L Line Input
PE (Protective Earth) Input
2
Output Terminals
Two identical + poles and two identical - poles
+Positive Output
-Negative (return) Output
3 Output Voltage Potentiometer
4
DC OK light-emitting diode (LED) (green)
On, when the output voltage is >90% of the adjusted output
voltage
5
DC OK Relay Contact
The DC OK relay contact is synchronized with teh DC OK light-
emitting diode (LED). See DC OK Relay Contact on page 10.
1
2
3
4
5
1
2
3
4
5
Figure 20 - 1606-XLE120EH Figure 21 - 1606-XLE120ED User Elements
1
Input Terminals
N, L N, L Line Input
PE (Protective Earth) Input
2
Output Terminals
Two identical + poles and two identical - poles
+Positive Output
-Negative (return) Output
3 Output Voltage Potentiometer
4
DC OK light-emitting diode (LED) (green)
On, when the output voltage is >90% of the adjusted output
voltage
5
DC OK Relay Contact
The DC OK relay contact is synchronized with teh DC OK light-
emitting diode (LED). See DC OK Relay Contact on page 10.
1
2
3
4
5
1
2
3
4
5

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 13
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
1606-XLE120E, 1606-XLE120EC,
1606-XLE120ED Input Output DC OK-Signal
Type Screw termination Screw termination Push-in termination
Solid wire Max 6 mm2Max 6 mm2Max 1.5 mm2
Stranded wire Max 4 mm2Max 4 mm2Max 1.5 mm2
American Wire Gauge AWG 20…10 AWG 20…10 AWG 24…16
Wire diameter max (including ferrules) 2.8 mm (0.11 in.) 2.8 mm (0.11 in.) 1.6 mm (0.06 in.)
Recommended tightening torque Max 1 N•m, 9 lb•in Max 1 N•m, 9 lb•in -
Wire stripping length 7 mm (0.28 in.) 7 mm (0.28 in.) 7 mm (0.28 in.)
Type Screwtermination Screwtermination Push-intermination
Screwdriver Slotted or Cross- head No 2 Slotted or Cross- head No 2 3.0 mm(0.12 in.) slotted to open the spring
1606-XLE120EL Input Output DC OK-Signal
Type Quick-connectspring-clamp
termination Quick-connectspring-clamp termination Push-intermination
Solid wire Max 6 mm2Max 6 mm2Max 1.5 mm2
Stranded wire Max 4 mm2Max 4 mm2Max 1.5 mm2
American Wire Gauge AWG 20…10 AWG 20…10 AWG 24…16
Wire diameter max (including ferrules) 2.8 mm (0.11in.) 2.8 mm (0.11 in.) 1.6 mm (0.06 in.)
Wire stripping length 10 mm (0.4 in.) 10 mm (0.4 in.) 7 mm (0.28 in.)
Screwdriver - - 3.0 mm (0.12 in.) slotted to open the spring
1606-XLE120EH Input Output DC OK-Signal
Type Push-intermination Push-in termination Push-in termination
Solid wire Max 2.5 mm2Max 2.5 mm2Max 1.5 mm2
Stranded wire Max 2.5 mm2Max 2.5 mm2Max 1.5 mm2
American Wire Gauge Max 1.5 mm2Max 1.5 mm2Max 1.5 mm2
Wire diameter max (including ferrules) AWG 24…12 AWG 24…12 AWG 24…16
Recommended tightening torque 2.3 mm (0.09 in.) 2.3 mm (0.09 in.) 1.6 mm (0.06 in.)
Wire stripping length 10 mm (0.4 in.) 10 mm (0.4 in.) 10 mm (0.4 in.)
Screwdriver 3.0 mm (0.12 in.) slotted to open spring 3.0 mm (0.12 in.) slotted to open spring 3.0 mm (0.12 in.) slotted to open the spring

14 Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual

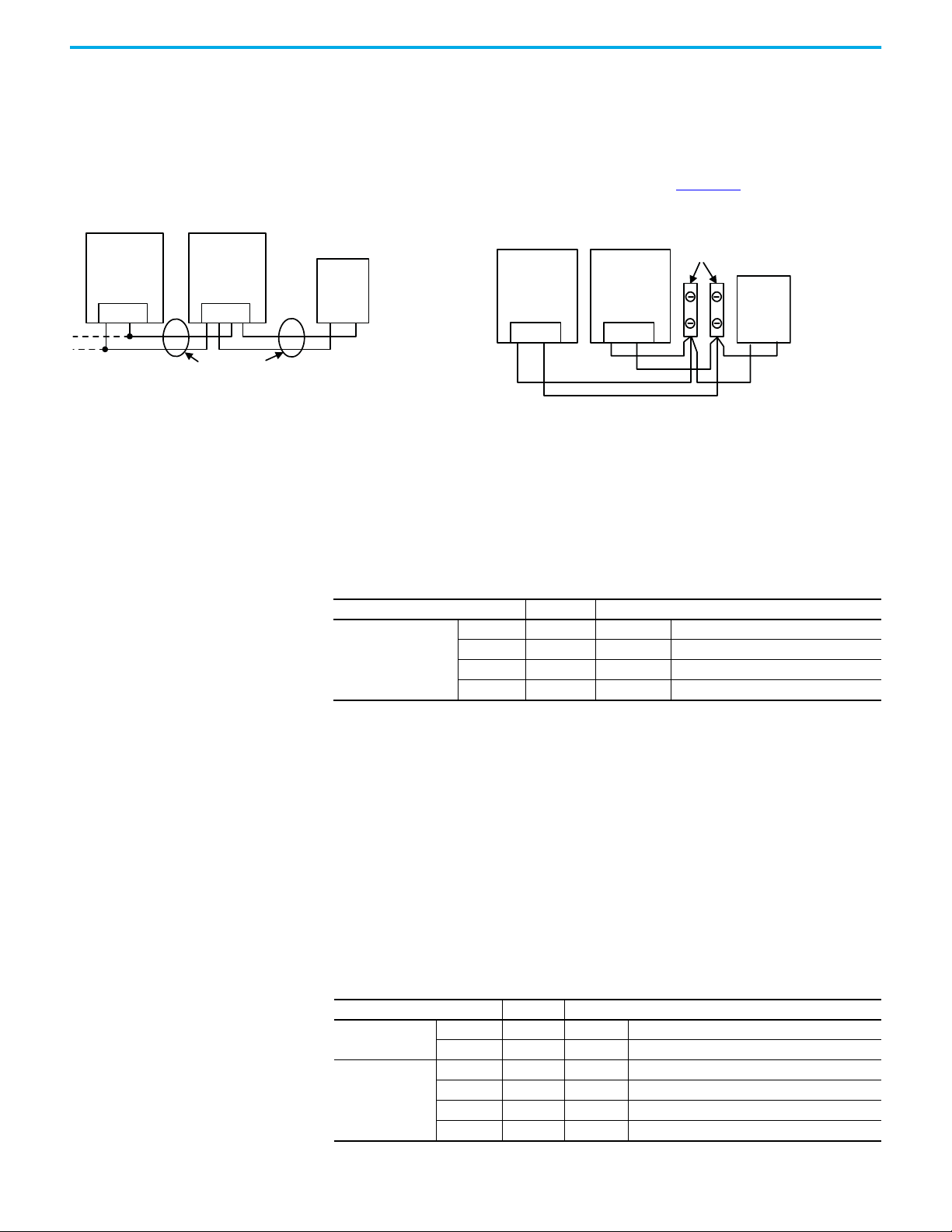

Daisy Chaining
Daisy chaining (jumping from one power supply output to the next) is allowed
as long as the average output current through one terminal pin does not
exceed 25 A or 15 A for the 1606-XLE120EH. If the current is higher, use a
separate distribution terminal block as shown in Figure 23.
Lifetime Expectancy The Lifetime expectancy that is shown in the table indicates the minimum
operating hours (service life) and is determined by the lifetime expectancy of
the built-in electrolytic capacitors. Lifetime expectancy is specified in
operational hours and is calculated according to the capacitor manufacturer
specification. The manufacturer of the electrolytic capacitors only guarantees
a maximum life of up to 15 years (131,400 hr). Any number exceeding this value
is a calculated theoretical lifetime that can be used to compare devices.
Mean Time Between Failure
(MTBF)
MTBF is calculated according to statistical device failures, and indicates
reliability of a device. It is the statistical representation of the likelihood of a
unit to fail and does not necessarily represent the life of a product.
The MTBF figure is a statistical representation of the likelihood of a device to
fail. An MTBF figure of, for example, 1,000,000 hr means that statistically one
unit will fail every 100 hours if 10,000 units are installed in the field. However,
it cannot be determined if the failed unit has been running for 50,000hr or
only for 100 hr.
For these types of units, the MTTF (Mean Time To Failure) value is the same
value as the MTBF value.
Figure 22 - Daisy Chain of Outputs Figure 23 - Distribution Terminals Use
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output
Maximal 15 A continuous for 1606-XLE120EH
Maximal 25 A continuous for all other units
Distribution
Terminals
Load
+
-
Power
Supply
+ +
- -
Output
Power
Supply
+ +
- -
Output
AC 100V AC 120V AC 230V
Lifetime Expectancy
265,000 hr 270,000 hr 274,000 hr At 24V, 2.5 A and 40 °C (104 °F)
748,000 hr 764,000 hr 775,000 hr At 24V, 2.5 A and 25 °C (77 °F)
128,000 hr 143,000 hr 166,000 hr At 24V, 5 A and 40 °C (104 °F)
363,000 hr 405,000 hr 469,000 hr At 24V, 5 A and 25 °C (77 °F)
AC 100V AC 120V AC 230V
MTBF SN 29500, IEC
61709
800,000 hr 807,000 hr 867,000 hr At 24V, 5 A and 40 °C (104 °F)
1,402,000 hr 1,414,000 hr 1,510,000 hr At 24V, 5 A and 25 °C (77 °F)
MTBF MIL HDBK
217F
339,000 hr 343,000 hr 368,000 hr At 24V, 5 A and 40 °C (104 °F); Ground Benign GB40
490,000 hr 496,000 hr 529,000 hr At 24V, 5 A and 25 °C (77 °F); Ground Benign GB25
81,000 hr 83,000 hr 89,000 hr At 24V, 5 A and 40 °C (104 °F); Ground Fixed GF40
800,000 hr 807,000 hr 867,000 hr At 24V, 5 A and 40 °C (104 °F)

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 15
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
EMC The electromagnetic capability (EMC) behavior of the device is designed for
applications in the industrial environment and residential, commercial, and
light industry environments.The device is investigated according to EN 61000-
6-1, EN 61000-6-2, EN 61000-6-3, and EN 61000-6-4.
EMC Immunity
Electrostaticdischarge EN 61000-4-2 Contact discharge 8 kV Criterion A(1)
(1) A: The device shows normal operation behavior within the defined limits.
C: Temporary loss of function is possible. The device can shut down and restarts by itself. No damage or hazards for the
device will occur.
Air discharge 15 kV Criterion A
Electromagnetic RF field EN 61000-4-3 80 MHz…2.7 GHz 20V/m Criterion A
Fast transients (Burst) EN 61000-4-4
Input lines Output lines 4 kV Criterion A
Output lines 2 kV Criterion A
DC OK signal (coupling
clamp) 2 kV Criterion A
Surge voltage on input EN 61000-4-5 L to N, 2 kV Criterion A
L to PE, N to PE 4 kV Criterion A
Surge voltage on output EN 61000-4-5 + to - 1 kV Criterion A
+/- to PE 2 kV Criterion A
Surge voltage on DC OK EN 61000-4-5 DC Okay Signal to PE 1 kV Criterion A
Conducteddisturbance EN 61000-4-6
0.15…80 MHz 20V Criterion A
0% of 100V AC 0V AC, 20 ms Criterion A
40% of 100V AC 40V AC, 200 ms Criterion C
70% of 100V AC 70V AC, 500 ms Criterion A
0% of 100V AC 0V AC, 20 ms Criterion A
40% of 100V AC 80V AC, 200 ms, < 4 A Criterion A
40% of 100V AC 80V AC,500 ms, > 4 A Criterion C
70% of 100V AC 140V AC, 20 ms Criterion A
Voltage interruptions EN 61000-4-11 0%of200V AC(=0V) 5000 ms Criterion C
Powerfultransients VDE 0160 Over entire load range 750V, 0.3 ms Criterion A
EMC Emission
Conducted emission input lines EN 55011, EN 55022, FCC Part 15, CISPR 11, CISPR 22 Class B
Conducted emission output lines IEC/CISPR 16-1-2, IEC/CISPR 16-2-1 Limits for local DC power networks fulfilled
Radiated emission EN 55011, EN 55022 Class B
Harmonic input current (PFC) EN 61000-3-2 Fulfilled for Class A equipment
Voltage fluctuations, flicker EN 61000-3-3 Fulfilled, tested with constant current loads, non-
pulsing
This device complies with FCC Part 15 rules. Operation is subjected to following two conditions: (1) this device cannot cause harmful interference, and (2) this device must
accept any interference received, including interference that can cause undesired operation.
Switching Frequency
PFC converter 110 kHz Fixed frequency
Main converter 84 kHz …140 kHz Output load dependent
Auxiliary converter 60 kHz Fixed frequency

16 Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Environment
Operational
temperature -25 …+70 °C (-13…158 °F) Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 20 mm (0.79 in.) below the unit
Storagetemperature - 40 °C…+85 °C (-40 °F…185 °F) For storage and transportation
Output de-rating
.6 W/1 °C (1.6 W/1.8 °F) 45 °C…60 °C (113 °F…140 °F)
3 W/1 °C (3 W/1.8 °F) 60 °C…70 °C (140 °F…158 °F)
0.33A/1000 m or 5 °C/1000 m For altitudes >2000 m (6560 ft), see Figure 25
The de-rating is not hardware that is controlled. The user has to take this into consideration to stay below the de-rated current limits in order not
to overload the unit.
Humidity 5...95% r.h. According to IEC 60068-2-30
Atmospheric pressure 110…54 kPa See Figure 25 for details
Altitude Up to 5000 m (16,400 ft) See Figure 25 for details
Overvoltage category III According to IEC 60664-1 for altitudes up to 2000 m (6560 ft)
II According to IEC 60664-1 for altitudes above 2000 m (6560 ft)
Degree of pollution 2 According to IEC 62477-1, not conductive
Vibration sinusoidal 2-17.8Hz: ±1.6mm; 17.8-500Hz: 2 g 2 hours/axis According to IEC 60068-2-6
Shock
30 g 6 ms, 20 g 11 ms 3 bumps per direction, 18 bumps in total Accordingto IEC 60068-2-27
Shock and vibration are tested in combination with DIN rails according to EN 60715 with a height of 15 mm (0.59 in.) and a thickness of 1.3 mm
(0.05 in.) and standard orientation.
LABS compatibility As a rule, only non-silicon precipitating materials are used. The unit conforms to the LABS criteria and is suitable for use in paint shops.
Corrosive gases Tested according to ISA-71.04-1985, Severity Level G3 and IEC 60068-2-60 Test Ke Method 4 for a service life of minimum 10 years in these
environments.
Audible noise Some audible noise can be emitted from the power supply during no load, overload, or short circuit.
Figure 24 - Output Current Versus Ambient Temperature Figure 25 - Output Current Versus Altitude
Allowed Output Current at 24V
0
-25 0 45 70°C
3.8 A
5 A
6 A
60
A
Ambient Temperature
A... 85 to 264V AC, continuous
B... short term
B
2000 m 5000 m
4 A
5 A
6 A
A
ltitude
Allowed Output Current at 24V
B
A...Tamb<60°C
B...Tamb<45°C
C...Short term
A
C
A
P
*
80 kPa 54 kPa110 kPa
0m
* Atmospheric pressure

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 17
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Safety and Protection
Features
Dielectric Strength The output voltage is floating and has no ohmic connection to the ground. The
output is insulated to the input by a double or reinforced insulation.
Type and routine tests are conducted by the manufacturer. Field tests can be
conducted in the field using the appropriate test equipment that applies the
voltage with a slow ramp (2 s up and 2 s down). Connect all input-terminals
together and all output poles before conducting the test. When testing, set the
cutoff current settings to the value in the table below.
We recommend that either the + pole or the – pole is to be connected to the
protective earth system. This helps to avoid situations in which a load starts
unexpectedly or cannot be switched off when unnoticed earth faults occur.
Isolation resistance
Min 500 M Ohm At delivered condition between input and output, which is measured with 500V DC
Min 500 M Ohm At delivered condition between input and PE, measured with 500V DC
Min 500 M Ohm At delivered condition between output and PE, measured with 500V DC
Min 500 M Ohm At delivered condition between output and DC OK contacts, which are measured with 500V DC
PE resistance Max 0.1 Ohm Resistance between PE terminal and the housing in the area of the DIN rail mounting bracket
Output overvoltage protection
Typ 30.5V DC
Max 32.0V DC
In case of an internal anomaly, a redundant circuit limits the maximum output voltage. The output shuts down and performs three restart
attempts. If the failure continues, the output shuts down. Cycle input power to reset.
Class of protection I According to IEC 61140 — A PE (Protective Earth) connection is required
Degree of protection IP 20 According to EN/IEC 60529
Over-temperature protection Included
Output shutdown with automatic restart.
Temperature sensors are installed on critical components inside the unit and turn off the unit in safety
critical situations, which can happen, for example, when ambient temperature is too high, ventilation is
obstructed or the derating requirements are not followed. There is no correlation between the operating
temperature and turn-off temperature since this is dependent on input voltage, load, and installation
methods.
Input transient protection Metal Oxide
Varistor (MOV) For protection values See EMC on page 15.
Internal input fuse Included Not user replaceable slow-blow high-braking capacity fuse.
Touch current (leakage
current)
Type.
0.10 mA / 0.27 mA At 100V AC, 50 Hz, TN-,TT-mains/IT-mains
Type. 0.13 mA/ 0.38 mA At 120V AC, 60 Hz, TN-,TT-mains/IT-mains
Type. 0.20 mA/ 0.60 mA At 230V AC, 50 Hz, TN-,TT-mains/IT-mains
Max 0.13 mA/ 0.35 mA At 110V AC, 50 Hz, TN-,TT-mains/IT-mains
Max 0.17 mA/ 0.51 mA At 132V AC, 60 Hz, TN-,TT-mains/IT-mains
Max 0.27 mA/ 0.81 mA At 264V AC, 50 Hz, TN-,TT-mains/IT-mains
ABCD
Type test 60 s 2500V AC 3000V AC 1000V AC 500V AC
Routine test 5 s 2500V AC 2500V AC 500V AC 500V AC
Field test 5 s 2000V AC 2000V AC 500V AC 500V AC
Field test cut off current settings > 10 mA > 10 mA > 20 mA > 1 mA

18 Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual

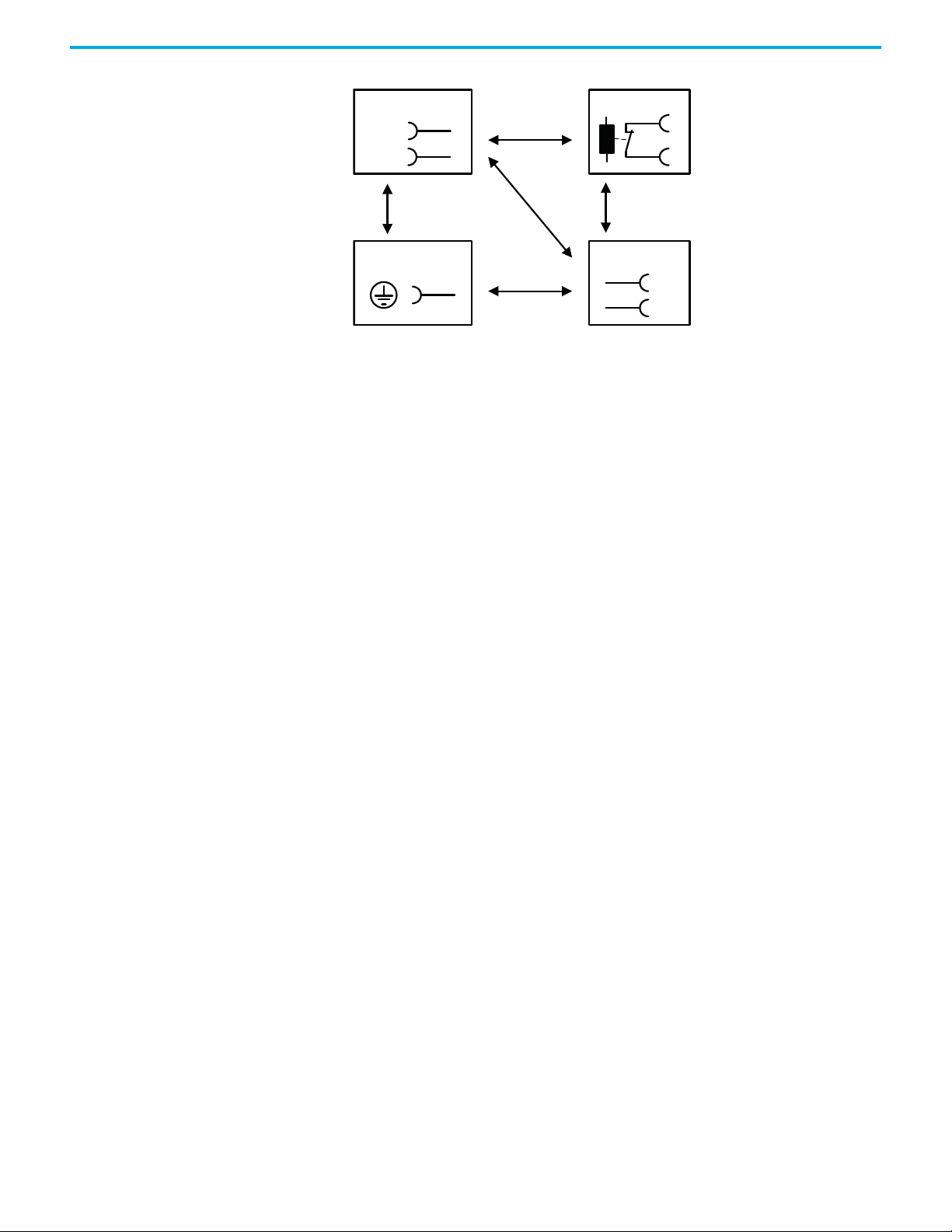

Figure 26 - Dielectric Strength
(1) When testing inputs to DC OK confirm that the maximal voltage between DC OK and the output is not exceeded (column D).
We recommend connecting DC OK pins and the output pins together when performing the test.
DA
C
B
B
1
N
L
Input DC-ok
Earth, PE Output
-
+

Rockwell Automation Publication 1606-RM100A-EN-P - July 2020 19
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Approvals and Fulfilled
Standards
Regulatory Compliance
IEC 61010
CB Scheme Certificate
IEC 61010-2-201 Electrical Equipment for
Measurement, Control, and Laboratory Use—
Particular requirements for control equipment
IEC 62368
CB Scheme Certificate
IEC 62368-1 Audio/video, information, and
communication technology equipment—Safety
requirements
Output safety level: ES1
UL 61010-2-201
(former UL 508)
UL Certificate
Listed equipment for category NMTR - UL 61010-2-
201 Electrical Equipment for Measurement, Control,
and Laboratory Use - Particular requirements for
control equipment
Applicable for US and Canada NMTR(7).E56639
IND. CONT. E
Q.
CE
EU Declaration of Conformity
Trade conformity assessment for Europe
The CE marking indicates conformance with the European
RoHS directive,
EMC Directive and the Low-voltage directive (LVD
REACH Directive Manufacturer's Statement EU-Regulation regarding the Registration, Evaluation,
Authorization, and Restriction of Chemicals
WEEEDirective At the end of its life, this equipment should be collected
separately from any unsorted municipal waste.
RoHS
(China RoHS 2)
Manufacturer's Statement
Administrative Measures for the Restriction of the Use of
Hazardous Substances in Electrical and Electronic Pr
oducts
25 years
EAC EAC Certificate EAC Eurasian Conformity—Registration Russia, Kazakhstan,
and Belarus

20 Rockwell Automation Publication 1606-RM100A-EN-P - July 2020
Power Supply - 24V, 5 A, 120 W, Single-phase Input Reference Manual
Physical Dimensions
and Weight Attribute Value
Width 32 mm (1.26 in.)
Height 124 mm (4.88 in.)
Depth
102 mm (4.02 in.)
The DIN rail height must be added to the unit depth to calculate the total required
installation depth.
Weight 440 g (0.97 lb)
DIN rail Use 35 mm (1.38 in.) DIN rails according to EN 60715 or EN 50022 with a height of 7.5
mm or 15 mm (0.3 in. or 0.6 in.) Housing material
Body Aluminum alloy Cover:Zinc-platedsteel
Installation clearances See Installation Instructions on page 6
Penetrationprotection Small parts like screws, nuts, etc. with a diameter larger than 3.5 mm (0.14 in.)
Figure 27 - Front View Approximate Dimensions (in millimeters) Figure 28 - Side View Approximate Dimensions (in millimeters)
1606
-XLE120E,
-XLE120EC,
-XLE120ED 1606-XLE120EH
1606-XLE120EL
