Rocky Mountain ALTITUDE CARBON User manual

PLATFORM MANUAL
ALTITUDE CARBON
Rider: Jesse Melamed
Photo: Margus Riga
Location: North Vancouver, BC

2Altitude Carbon Platform Manual Table of Contents
Introduction
Shrediquette
Getting to know your bike
Basic setup
Shock eyelet bearing
Shock setup
RIDE-9
RM two-position axle

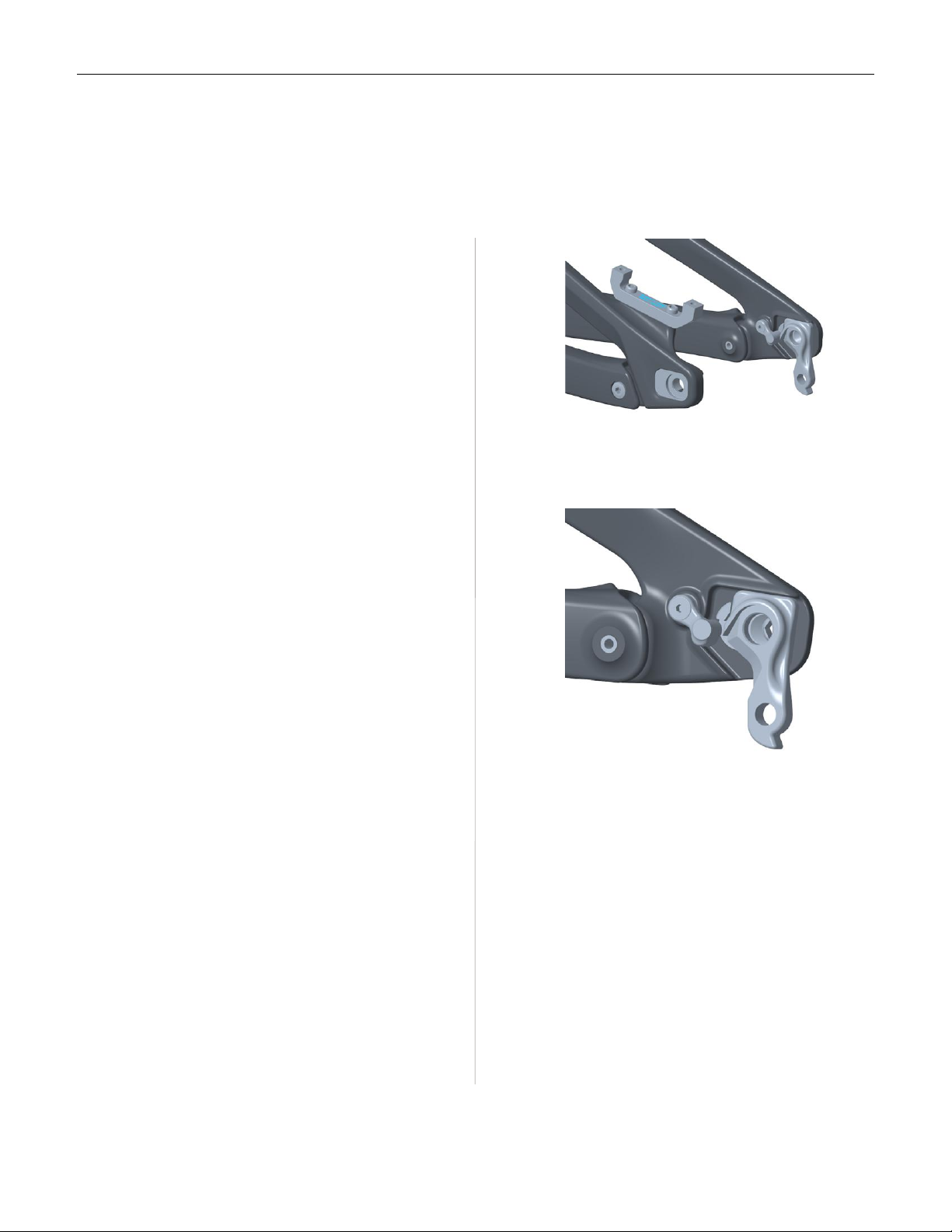

UDH Hanger

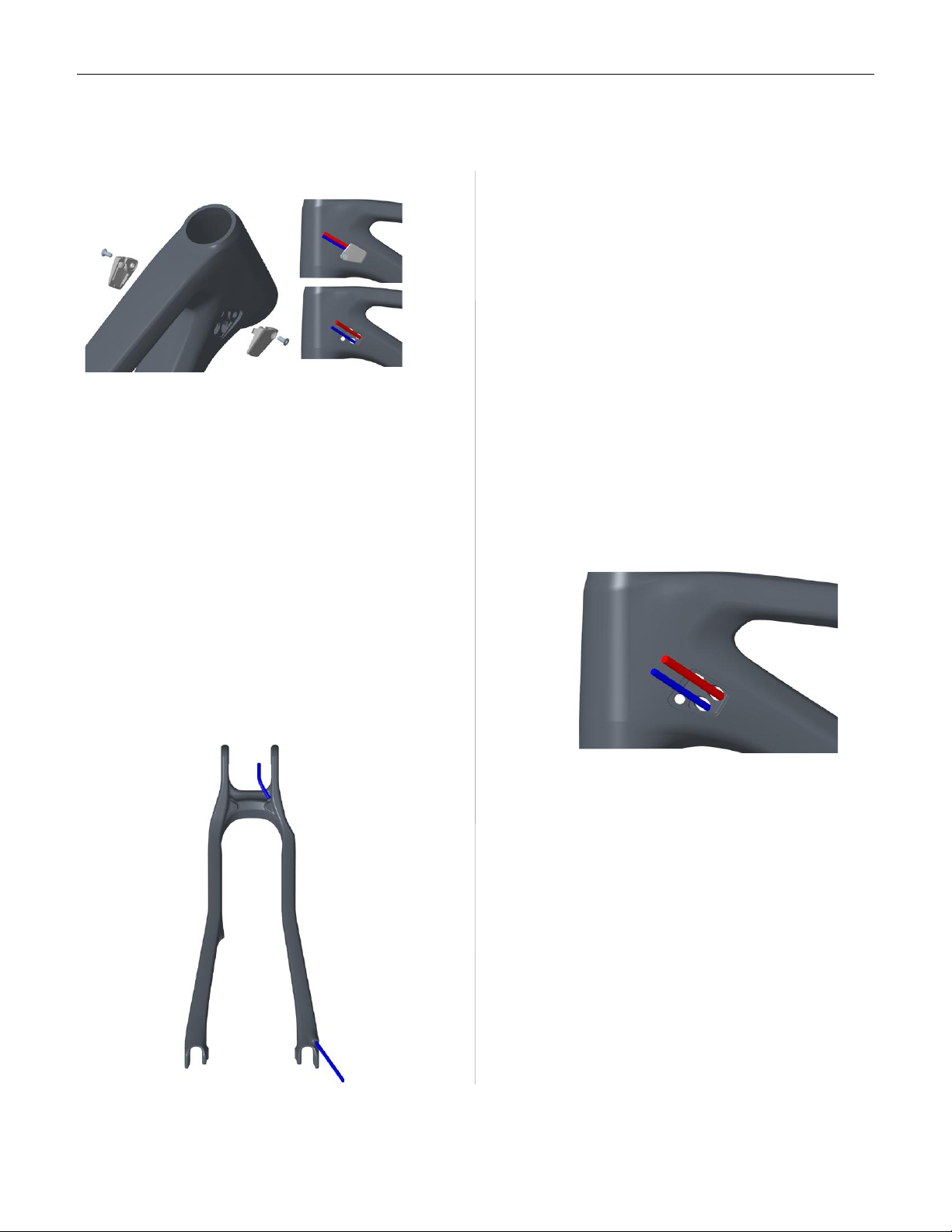

Cable routing how-to
Critical dimensions
Pro tips & tricks

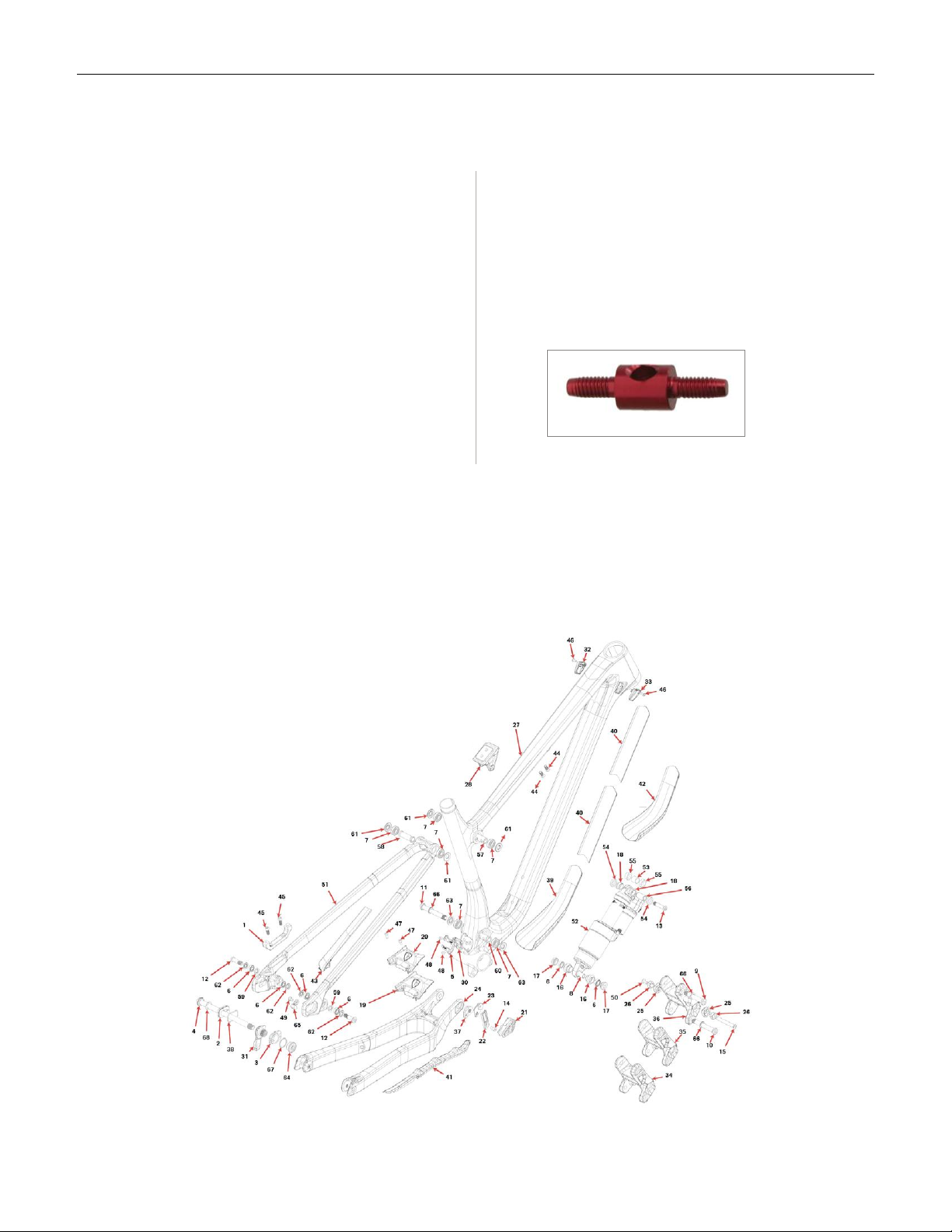

Exploded view
Full list of parts
Small parts kit
Warranty information
3
3
4
5
5
6
11
12
13
14
18
19
19
20
23
26
TABLE OF CONTENTS
Rider: ALN
Photo: Margus Riga
Location: North Vancouver, BC

3Altitude Carbon Platform Manual Introduction & Shrediquette
Rider: Jesse Melamed
Photo: Margus Riga
Location: North Vancouver, BC
The Altitude will be our key platform for enduro racing and aggressive trail riding. Ridden
by the Rocky Mountain Race Face Enduro Team, this bike is fast. Already race proven with
Jesse's win at the EWS in Zermatt, Switzerland, the redesigned Altitude is now more capable
than ever.
The goal with the redesign was to create a bike that would be competitive on today's
racetracks while still being a ton of fun for those getting out on weekends. We might not all
smash racetracks and stand on podiums like Jesse Melamed, but we can all relate to the
feeling of committing to ride a little faster or hitting that feature you usually skip over. The
Altitude has everything that you need to take your riding to the next level.
This manual contains important safety, maintenance, and user information. Read and


conjunction with your Rocky Mountain Owner’s Manual, which is included with your bike.

Owner’s Manual, you can get it from your nearest authorized Rocky Mountain dealer.
SHREDIQUETTE
Riders
Always be courteous to other trail users. Use extra caution around domestic animals, such as
dogs and horses. Give other trail users right-of-way in all situations, during both climbing and
descending.
Trails
Only ride your bicycle on trails and paths sanctioned for bicycle use. Follow all local laws
and regulations. As for all trail users, care should be taken to avoid impacts on the trail or
environment. Do not skid on or modify trails.
INTRODUCTION

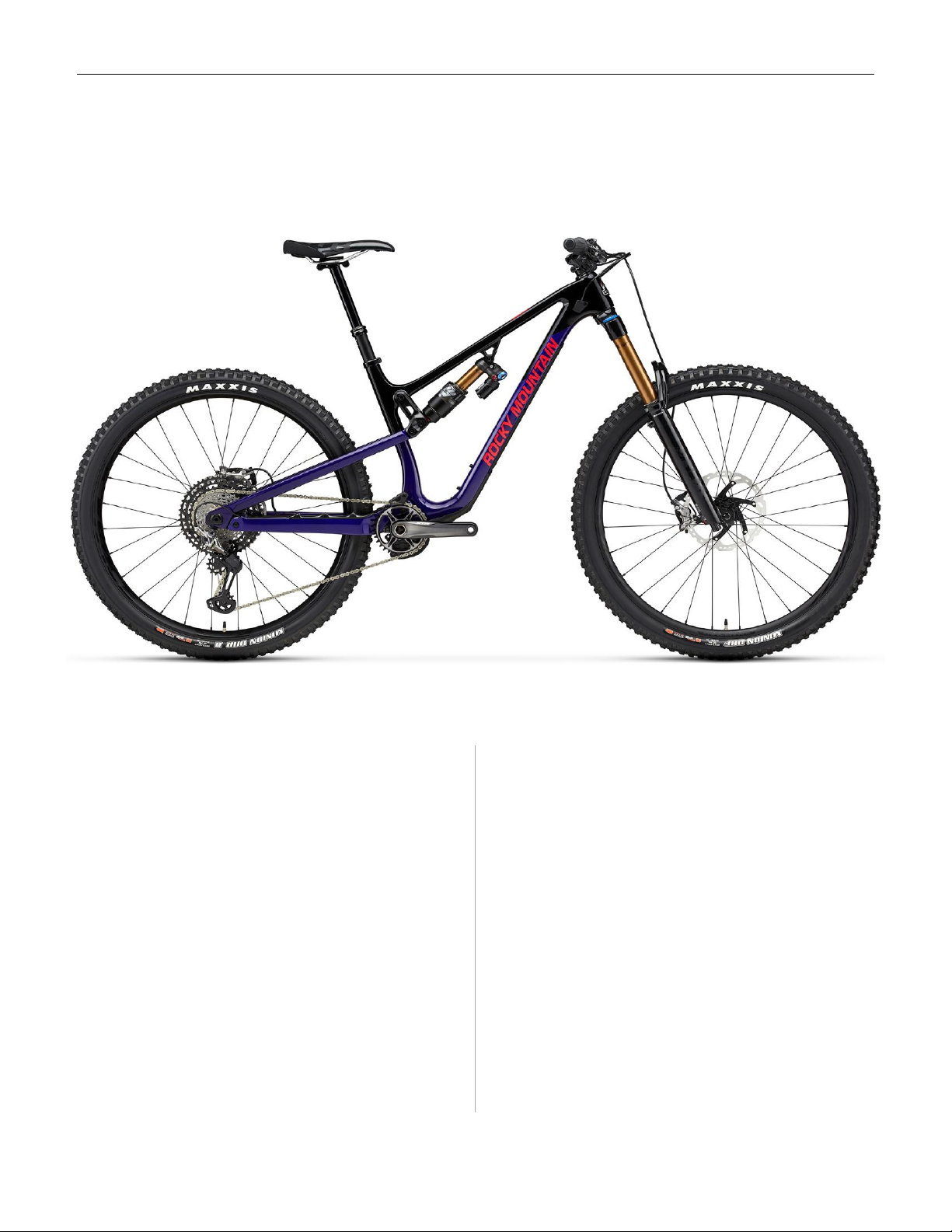

4Altitude Carbon Platform Manual Getting to know your bike
GETTING TO KNOW YOUR BIKE
Technical details
 
frame means it is tough enough to withstand aggressive
descents and light enough to make easy work of the
liaisons between stages.
• The RIDE-9™ adjustment system allows riders to quickly

keys.
• We’ve increased the reach, made the seat tube angle
steeper, lengthened the chainstays, and designed for a 44

maintaining its trail manners.
• Improved small bump compliance and reduced pedal kick,
while providing increased mid-stroke sensitivity and end-
stroke progression.
• New, smaller sealed bearings at the shock eyelet
dramatically improve shock sensitivity (aftermarket shock
compatible).
• The result is a sensitive yet supportive feeling platform
that’s dialed in for bottom out resistance with both coil and
modern air shocks.
• Bearing shields throughout help prevent contamination
from gnarly trail conditions or post-ride wash stations.
 
• The fully enclosed internal routing on our carbon models
and large open ports on alloy allow for easy cable and hose
installations.
• Integrated OneUp chain guide, with 2-bolt ISCG05 for
mounting a bashguard, keeping your chain on and your ring
intact.
• Integrated downtube protector and shuttle guard.
• All frame sizes are water bottle compatible.

5Altitude Carbon Platform Manual Basic setup
BASIC SETUP
Fork sag
We recommend approximately 15–20% sag for this platform.
Shock sag
We recommend approximately 30–35% sag for this platform.
Regular Kinematic (Size MD - LG - XL)
Light Kinematic (Size SM)
Shock stroke
230x60 mm
Sag
30%: 18mm
35%: 21mm
Shock stroke
210x55 mm
Sag
30%: 16.5mm
35%: 19.5mm
Sag
15%: 26mm
20%: 34mm
Fork travel
170 mm


suspension moves under just the weight of the rider (including all riding accessories). Air pressure or coil spring rate and preload is adjusted until
the desired amount of sag is measured.
Please observe the minimum and maximum amount of preload recommended by the manufacturer for a given coil spring.If you need to change
the spring rate, please note you must remove the eyelet bearings to remove the coil spring.

6Altitude Carbon Platform Manual Basic setup
SHOCK EYELET BEARING
If you have your shock serviced, we highly recommend
removing these components, as suspension service centres
cannot guarantee they will be returned.
To remove the system, follow these steps:
• Use the Rocky Mountain Bearing Eyelet Tool Kit
(Part# 1810031)
• Install the top hat piece on one side of the bearing eyelet
• Next, install one of the cup removal tools over the bearing
cup with the top hat piece installed.
• Thread the M8 screw snuggly against the top hat piece
• Install the other cup removal tool over the other bearing cup
• Thread the M8 screw all the way in until it starts pushing on
the other side. It is contacting the inside of the top hat
piece.
• Keep threading until one of the cups is full pushed out.
• Next insert the drift tool through the shock eyelet and rest it
 
shock eyelet.
 
is fully removed from the shock eyelet.
If you do not have the Rocky Mountain Bearing Eyelet Tool
Kit, use a blind bearing puller:
• Use a blind bearing puller (8 mm extension) to remove both
bearings.
• Remove the centre sleeve.
• Use the blind bearing puller (10 mm extension) to remove
the empty cups.
NOTE: the inner diameter of the cups is 11 mm, which means
the 12 mm extension won’t t (So don't force it); Use the 10
mm extension.
To install new cups, use a bearing press or vice with soft jaws
installed, making sure to press on the outer edge of the cups,
and don’t forget the centre spacer sleeve between the cups.
Service
Your frame is equipped with cartridge bearings in the rear eyelet, allowing for better small-bump compliance. These bearings are carried by cups


7Altitude Carbon Platform Manual Shock setup
ALTITUDE SPRING CHART
Rebound
Rebound adjustment controls how quickly your suspension
returns to full extension after it hits a bump. Too much rebound
control, and the fork or shock will move too slowly, sinking
deeper and deeper into its travel under repeated hits, which
will feel harsh. Too little, and the suspension can spring back
too quickly, causing a loss of traction and control. Follow the
manufacturer’s recommendations for base settings, and

Compression
Low speed compression (LSC) controls rider weight shifts,
pumping through terrain, G-outs, and other slow inputs. Too
much LSC will result in a harsher ride feel; too little LSC will
result in a ride feel that’s too soft and unresponsive.
2021 ALTITUDE 230x60 FOX DHX2 COIL SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG
STEEL SPRING
WEIGHT
FOX SLS SPRING
WEIGHT SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
HSR SETTING
RECOMMENDED
LSC SETTING
RECOMMENDED
HSC SETTING
100 / 45 300 300 19-21 mm 10 -11 6-7 14-15 6-7
110 / 50 300 325 19-21 mm 9 - -11 6-7 14-15 6-7
120 / 55 350 350 19-21 mm 8-9 6-7 14-15 6-7
130 / 59 350 375 19-21 mm 8-10 6-7 13-14 6-7
140 / 64 400 400 19-21 mm 6-7 5-6 12-13 5-6
150 / 68 400 425 19-21 mm 6-7 5-7 11-13 5-6
160 / 73 450 450 19-21 mm 5-6 4-5 9-10 5-6
170 / 77 450 475 19-21 mm 5-6 4-5 9-11 4-6
180 / 82 500 500 19-21 mm 4-5 4-5 9-10 4-5
190 / 86 500 525 19-21 mm 4-5 3-5 7-9 3-4
200 / 91 550 550 19-21 mm 3-4 3-4 6-7 3-4
210 / 95 600
Not Available
19-21 mm 2-3 2-3 5-6 2-3
220 / 100 600 19-21 mm 2-3 2-3 5-6 2-3
230 / 105 650 19-21 mm 1-2 1-2 4-5 1-2
240 / 109 700 19-21 mm 1-2 0-1 3-4 0-1
250 / 114 Not Available 19-21 mm Not Available Not Available Not Available Not Available
2021 ALTITUDE 210x55 FOX DHX2 COIL SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG
STEEL SPRING
WEIGHT
FOX SLS SPRING
WEIGHT SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
HSR SETTING
RECOMMENDED
LSC SETTING
RECOMMENDED
HSC SETTING
100 / 45 300 325 17-19 m m 9-11 6 -7 14-15 6-7
110 / 50 350 350 17-19 mm 8-9 6-7 14-15 6-7
120 / 55 350 375 17-19 mm 8-10 6-7 13-14 6-7
130 / 59 400 400 17-19 mm 6-7 5-6 12-13 5-6
140 / 64 400 400 17-19 mm 6-7 5-6 12-13 5-6
150 / 68 400 425 17-19 mm 6-7 5-7 11-13 5-6
160 / 73 450 450 17-19 mm 5-6 4-5 9-10 5-6
170 / 77 450 475 17-19 mm 5-6 4-5 9 -11 4-6

8Altitude Carbon Platform Manual Shock setup
ALTITUDE SPRING CHART
2021 ALTITUDE 230x60 FOX FLOAT X2 AIR SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG FOX FLOAT X2 PSI SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
HSR SETTING
RECOMMENDED
LSC SETTING
RECOMMENDED
HSC SETTING
100 / 45 130 19-21 mm 12-14 5-6 14-16 6-7
110 / 50 140 19-21 mm 11-13 5-6 14-16 6-7
120 / 55 150 19-21 mm 10-12 5-6 13-15 6-7
130 / 59 160 19-21 mm 9-11 4-5 13-15 6-7
140 / 64 170 19-21 mm 8-10 4-5 12-14 5-6
150 / 68 180 19-21 mm 7-9 4-5 11-13 5-6
160 / 73 190 19-21 mm 7-9 3-4 10-12 5-6
170 / 77 200 19-21 mm 6-8 3-4 9-11 4-5
180 / 82 210 19-21 mm 6-8 3-4 8-10 4-5
190 / 86 220 19-21 mm 5-7 2-3 7-9 4-5
200 / 91 230 19-21 mm 4-6 2-3 6-8 4-5
210 / 95 240 19-21 mm 3-5 2-3 5-7 3-4
220 / 100 250 19-21 mm 2-4 2-3 4-6 3-4
230 / 105 260 19-21 mm 2-4 1-2 2-4 3-4
240 / 109 270 19-21 mm 1-3 1-2 2-4 3-4
250 / 114 280 19-21 mm 1-3 1-2 2-4 2-3
2021 ALTITUDE 210x55 FOX FLOAT X2 AIR SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG FOX FLOAT X2 PSI SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
HSR SETTING
RECOMMENDED
LSC SETTING
RECOMMENDED
HSC SETTING
100 / 45 140 17-19 mm 11-13 5-6 14-16 6-7
110 / 50 150 17-19 mm 10 -12 5-6 13-15 6-7
120 / 55 160 17-19 mm 9-11 4-5 13-15 6-7
130 / 59 170 17-19 mm 8-10 4-5 12-14 5-6
140 / 64 180 17-19 mm 7-9 4-5 11-13 5-6
150 / 68 190 17-19 mm 7-9 3-4 10 -12 5-6
160 / 73 200 17-19 mm 6-8 3-4 9-11 4-5
170 / 77 210 17-19 mm 6-8 3-4 8-10 4-5

9Altitude Carbon Platform Manual Shock setup
2021 ALTITUDE 230x60 FOX DPX2 AIR SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG FOX DPX2 PSI SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
LSC SETTING *IF AVAILABLE
100 / 45 150 19-21 mm 12 Start open / Adjust to suit
110 / 50 160 19-21 mm 11-12 Start open / Adjust to suit
120 / 55 170 19-21 mm 11 Start open / Adjust to suit
130 / 59 180 19-21 mm 10 -11 Start open / Adjust to suit
140 / 64 190 19-21 mm 10 Start open / Adjust to suit
150 / 68 200 19-21 mm 8-10 Start open / Adjust to suit
160 / 73 210 19-21 mm 8 Start open / Adjust to suit
170 / 77 220 19-21 mm 7-8 Start open / Adjust to suit
180 / 82 230 19-21 mm 7 Start open / Adjust to suit
190 / 86 240 19-21 mm 7 Start open / Adjust to suit
200 / 91 250 19-21 mm 7 Start open / Adjust to suit
210 / 95 260 19-21 mm 5-6 Start open / Adjust to suit
220 / 100 270 19-21 mm 5 Start open / Adjust to suit
230 / 105 280 19-21 mm 2-3 Start open / Adjust to suit
240 / 109 290 19-21 mm 2 Start open / Adjust to suit
250 / 114 300 19-21 mm 2 Start open / Adjust to suit
2021 ALTITUDE 210x55 FOX DPX2 AIR SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG FOX DPX2 PSI SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
LSC SETTING *IF AVAILABLE
100 / 45 160 17-19 mm 11-12 Start open / Adjust to suit
110 / 50 170 17-19 mm 11 Start open / Adjust to suit
120 / 55 180 17-19 mm 10 -11 Start open / Adjust to suit
130 / 59 190 17-19 mm 10 Start open / Adjust to suit
140 / 64 200 17-19 mm 8-10 Start open / Adjust to suit
150 / 68 210 17-19 mm 8 Start open / Adjust to suit
160 / 73 220 17-19 mm 7-8 Start open / Adjust to suit
170 / 77 230 17-19 mm 7 Start open / Adjust to suit
ALTITUDE SPRING CHART

10Altitude Carbon Platform Manual Shock setup
ALTITUDE SPRING CHART
2021 ALTITUDE 210x55 ROCKSHOX DELUXE AIR SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG ROCKSHOX SDLX PSI SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
LSC SETTING *IF AVAILABLE
100 / 45 130 17-19 mm 7 Start open / Adjust to suit
110 / 50 140 17-19 mm 6-7 Start open / Adjust to suit
120 / 55 150 17-19 mm 6-7 Start open / Adjust to suit
130 / 59 160 17-19 mm 6 Start open / Adjust to suit
140 / 64 170 17-19 m m 5-6 Start open / Adjust to suit
150 / 68 180 17-19 mm 5-6 Start open / Adjust to suit
160 / 73 190 17-19 mm 5 Start open / Adjust to suit
170 / 77 200 17-19 mm 4-5 Start open / Adjust to suit
2021 ALTITUDE 230x60 ROCKSHOX DELUXE AIR SHOCK *Count clicks from Closed: 0 Clicks = Closed*
RIDER WEIGHT
LBS / KG ROCKSHOX SDLX PSI SHOCK SAG RECOMMENDED
LSR SETTING
RECOMMENDED
LSC SETTING *IF AVAILABLE
100 / 45 120 19-21 mm 7 Start open / Adjust to suit
110 / 50 130 19-21 mm 7 Start open / Adjust to suit
120 / 55 140 19-21 mm 6-7 Start open / Adjust to suit
130 / 59 150 19-21 mm 6-7 Start open / Adjust to suit
140 / 64 160 19-21 mm 6 Start open / Adjust to suit
150 / 68 170 19-21 mm 5-6 Start open / Adjust to suit
160 / 73 180 19-21 mm 5-6 Start open / Adjust to suit
170 / 77 190 19-21 mm 5 Start open / Adjust to suit
180 / 82 200 19-21 mm 4-5 Start open / Adjust to suit
190 / 86 210 19-21 mm 4-5 Start open / Adjust to suit
200 / 91 220 19-21 mm 4 Start open / Adjust to suit
210 / 95 230 19-21 mm 4-3 Start open / Adjust to suit
220 / 100 240 19-21 mm 4-3 Start open / Adjust to suit
230 / 105 250 19-21 mm 3 Start open / Adjust to suit
240 / 109 260 19-21 mm 3-2 Start open / Adjust to suit
250 / 114 270 19-21 mm 3-2 Start open / Adjust to suit

11Altitude Carbon Platform Manual RIDE-9
The RIDE-9™
thanks to a pair of rotating chips. Geometry setup is a complex artform with huge variables in rider style, preference, terrain, and ability. We do
recommend the use of professional services, but we also believe that learning to dial in your own bike is the best way to fully understand its
performance. When adjusting your RIDE-9 position, make gradual, incremental changes, take notes, and be methodical. Don’t adjust in a hurry
before a big ride. Take your time and enjoy the process.
Go HERE to download the full guide.
RIDE-9
1
95
1
9
5
1
95
1
9
5
1
95
1
9
5
Position 1
SLACK
Stability at high speeds.
Recommended for
more aggressive trail
riding.
Position 9
STEEP
Quicker handling.
Recommended for
better climbing traction.
Position 5
NEUTRAL
Balanced handling
and stability.
READY FOR ANY TRAIL
The RIDE-9™ adjustment system allows

suspension with a pair of Allen keys.
STEEPER

SLACKER

LES S
PROGRESSIVE
SUSPENSION
MORE
PROGRESSIVE
SUSPENSION
14
6
8
7
25
9

12Altitude Carbon Platform Manual RM two-position axle
The 2021 Altitude frame, in both alloy and carbon, is equipped with a 2-position axle dropout. This allows the user to choose a short or long rear-
center length that suits their personal preferences. To match the position of the rear axle to the brake caliper, the frame is also equipped with a

to the rotor with maximum clamping surface area. This adapter comes with laser etched instruction regarding its required mounting orientation in
relation to the chosen axle position.
Short ----> FWD means the arrow should be pointing forward when the axle is in the short position.
Long ----> FWD means the arrow should be pointing forward when the axle is in the long position.
RM TWO-POSITION AXLE USER MANUAL

13Altitude Carbon Platform Manual UDH Hanger
Your new frame is compatible with Sram’s UDH hanger. Due to the two-position axle design, as well as our axle design, there are three pieces of
information to consider for proper UDH function:
UDH HANGER
3. The UDH hanger is only compatible with the SRAM Maxle
Stealth Rear Thru Axle - 12x148, 171.5mm Length, part
number 00.4318.005.033
1. The UDH hanger is only compatible with the frame in the
long axle position. Since the UDH hanger is meant to rotate
as part of Sram’s design to protect the rear derailleur, the long
position is the only suitable position that allows the derailleur
to rotate fully without contacting the frame.
2. The installation of a UDH hanger requires the use of the
UDH Stopper (item #65 in the Full List of Parts) to limit the
rotation amount.
1.
2.

14Altitude Carbon Platform Manual Cable routing how-to
Removing the rear wheel and rear shock will allow you to cycle the rear triangle and give better access to direct the housing in the area between
the chain stay and main pivot. Cycling the rear triangle as you push the housing forward also reduces friction as the housing moves through the
bottom bracket port.
CABLE ROUTING HOW-TO


or oil; this will leave a mess and attract dirt.

15Altitude Carbon Platform Manual Cable routing how to
3. Beginning from the rear of the bike, begin feeding the
housing into the cable opening on the drive side chain stay.
Push the housing forward and simultaneously twist the
housing until it comes out at the forward end of the chain stay.
REPLACING/INSTALLING REAR DERAILLEUR CABLE HOUSING
4. Guide the housing into the housing port above the bottom
bracket. Make sure you insert the derailleur housing into the
port labeled “Shift.”
1. Remove non-drive side head tube port cover.
2. If replacing the old housing, cut a new piece to the same
length. If you do not have the old piece, approximate the length
required and cut a slightly longer portion. 5. Push the cable from the rear until it comes out at the head
tube port.
6. Once the housing is installed, re-install the headtube port.

16Altitude Carbon Platform Manual Cable routing how to
REPLACING/INSTALLING DROPPER POST HOUSING
1. Remove drive side head tube port cover.
3. Beginning from the head tube port, begin feeding the
housing into the bottom housing opening. Push the housing
forward until it comes out at the seat tube.
2. If replacing the old housing, cut a new piece to the same
length. If you don’t have the old piece, approximate the length
required and cut a slightly longer portion.
4. Complete the dropper post installation as per the dropper
post manufacturer’s instructions.
5. Once the seat post is correctly installed, re-install the
headtube port.
1.
3.
5.

17Altitude Carbon Platform Manual Cable routing how to
REPLACING/INSTALLING REAR HYDRAULIC BRAKE HOSE
3. Guide the brake hose into the housing port above the
bottom bracket. Make sure you insert the derailleur housing
into the port labeled “Brake.” The standard port is the outside
one, the moto / reverse port is the middle one.
4. Push the brake hose from the rear until it comes out at the
head tube port.
1. Remove non-drive side head tube port cover for standard
rear brake lever position (right-hand side) or drive side head
tube port cover for moto/reverse rear brake lever position
(left-hand side).
2. Push the hose forward and simultaneously twist the hose in
a circular motion until it comes out at the forward end of the
chain stay.
5. Once the hose is re-attached to the brake lever, re-install
the headtube port.
Removing the rear wheel and rear shock will allow you to cycle the rear triangle and give better access to direct the housing in the area between
the chain stay and main pivot. Cycling the rear triangle as you push the housing forward also reduces friction as the housing moves through the
bottom bracket port.

18Altitude Carbon Platform Manual Critical dimensions
Shock tment
We check clearances for many shocks but cannot guarantee compatibility with all makes and models.

Please note that you cannot run a 230mm eye-to-eye shock with a stroke longer than 60mm. The 62.5mm and 65mm stroke versions will
result in the link colliding with the frame due to the increased stroke.
CRITICAL DIMENSIONS
Max chainring size:
36t
Bottom bracket standard:
Press Fit BB92
Ream depth (CARBON):
S: 210 mm
M: 235 mm (Both 27.5 and 29)
L: 250 mm
XL: 280 mm
Seatpost outer diameter: 30.9 mm
Seat QR inner diameter: 34.9 mm
Headset standard:
ZS44 top
ZS56 bottom
Fork:
Altitude 27.5
Max Travel = 170mm
Max Axle to Crown
Length = 567
Altitude 29
Max Travel =170mm
Max Axle to Crown
Length = 586
Hardware:
25 mm x M8
Shock dimensions:
Size SM
210 x 55 mm
Size MD – LG – XL
230x60mm
Hardware:
Rocky Mountain
bearing eyelets
Bashguard standard:
Two-bolt ISCG05
Chain guide standard:
Rocky Mountain Canadarm with
OneUp Components V2 TopGuide
Rear hub spacing:
Boost 148 mm
Brake standard:
180 mm post mount
Max rotor:
203 mm
Max tire size:
27.5 x 2.6 /
29 x 2.6
Minimum insertion:
100 mm
Approved shocks (for 210x55 (size SM) and 230x60 (size MD-LG-XL)
Fox
• FLOAT DPS
• FLOAT DPX2
• FLOAT X2
• DHX2
RockShox
• Deluxe
• Super Deluxe Air
• Super Deluxe Coil
Cane Creek
• DB Coil
• DBIL Coil
• DB Air
• DBIL Air
Marzocchi
• Bomber RC
UDH Compatible
IN LONG POSITION ONLY:
Requires use of SRAM
00.4318.005.033 rear axle

19Altitude Carbon Platform Manual Pro tips & tricks & Exploded view
PRO TIPS & TRICKS
Please refer to the table for torque values and assembly details.
These views are provided to explain how your frame is assembled.
EXPLODED VIEW
ROCKSHOX REVERB TOOL
• When tuning your suspension, write down your settings
so you can refer back to them. Better yet, use an online
spreadsheet on your phone!
• Use a 4 mm plastic housing ferrule to plug any unused
cable ports at the head tube.
• When removing your rear wheel, you can rest the chain on
the driveside seatstay protector to prevent it from dangling
awkwardly.
• When replacing shift or post housing, you can use
a RockShox reverb tool to simply pull a new piece of
housing right into place, without disturbing the inner
foam tubes.
• When assembling pivot bolts, use grease to “stick” any
spacers into place while you assemble.
 
with the inside of the inner race, holding washers in
place while you assemble.
• Zip-tie a spare derailleur hanger to your saddle rails so you
always have one with you when you’re deep in the woods.

20Altitude Carbon Platform Manual Full list of parts
Please refer to the small-parts kits available for purchase.
There are several kits that can help you maintain your bike for maximum trail performance: https://shop.bikes.com/collections/parts
These are available from your local dealer and on: www.bikes.com.
#QTY ITEM PARTS NO. DESCRIPTION TORQUE (NM) INSTALLATION NOTES
1 1 ADAPTER 1801022 BRAKE ADAPTER
2 1 AXLE CHIP 3221001 AXLE FLIP CHIP, LEFT
3 1 AXLE CHIP 3221002 AXLE FLIP CHIP, RIGHT
4 1 AXLE, REAR 3227009 REAR AXLE 12X 173MM, HARD BLACK ANO 10
APPLY GREASE TO AXLE SHAFT
AND THREADS. USE STAINLESS


5 1 BB PORT COVER 1800001 SLAYER BB PLASTIC PORT COVER
6 6 BEARING 1801010 ENDURO 688 LLU MAX 16X8X5
7 6 BEARING 1807042 ENDURO BEARING 6900 2RS MAX TYPE,
22X10X6 SIZE
8 1 BEARING SLEEVE 1807028 BEARING EYELET CENTRE SLEEVE
9 1 BOLT 1800011 LINK BOLT, UPPER, M10X1.0, L:58.5, 6MM
HEX 8
APPLY GREASE TO PIVOT BOLTS

SCREW THREADS.
10 1BOLT 1801004 LINK BOLT, LOWER, M10X1.0, L:70.5, 6MM
HEX 8
APPLY GREASE TO PIVOT BOLTS

SCREW THREADS.
11 1BOLT 1801005 MP BOLT, M10X1.25, L:75, 6MM HEX 15
APPLY GREASE TO INNER
BEARING RACES AND LOCTITE
243 TO FEMALE CHAIN STAY
THREADS.
12 2BOLT 1801007 DROPOUT BOLT, M8X1.0, L:30, 6MM HEX 8 APPLY LOCTITE 243 TO FEMALE
SEAT STAY THREADS.
13 1BOLT 1801018 SHOCK BOLT, M8X1.0, L:34.5, 5MMHEX 8
TORQUE ONLY WITH CORRECT
SHOCK AND HARDWARE
INSTALLED.
14 1BOLT 1801019 SOCKET HEAD CAP SCREW; M5X8, BLUE
LOCTITE < 1  MALE THREADS.
15 1BOLT 1807049 CSUNK BOLT, 8MM X 57MM X M6 INT. 8
TORQUE ONLY WITH CORRECT
SHOCK AND HARDWARE
INSTALLED.
16 2BRG CUP 1800031 BEARING EYELET FOR 16X8X5 BRG
17 2BRG SPACER 1800032 EYELET BEARING SPACER, T:6.3, FOR 40 MM
LINK WIDTH
18 2 BUSHING, FOX N/A FOX IGUS BUSHING
19 1CANADIAN
SHIELD 29 1091005 29" CHAINSTAY YOKE COVER
20 1CANADIAN
SHIELD 275 1991006 27.5" CHAINSTAY YOKE COVER
21 1CHAINGUIDE 3391004 ONEUP CHAINGUIDE ASSEMBLY (1C0686)
22 1CHAINGUIDE BASE 3391001 BASE PART OF CHAINGUIDE
23 1CHAINGUIDE
SLIDE 3391002 SLIDING PART OF CHAINGUIDE
24 1CHAINSTAY
27.5"/29"

1050123CBN ALTITUDE CHAINSTAY CARBON
FULL LIST OF PARTS
