RODE Microphones Stereo VideoMic X User manual

INSTRUCTION MANUAL ENGLISH
1
www.rodemic.com/svmx
Broadcast On-Camera
Stereo Microphone
Stereo VideoMic X

2 3
Features
Compact true condenser stereo microphone
• Heavy duty, lightweight aluminium alloy body
• Broadcast recording quality
• ½” externally biased true condenser capsules, acoustically
matched.
• Integrated shock mount provides isolation from handling and
mechanical noise
• Integrated professional Mini-XLR balanced stereo output for
professional camera use
• 3.5mm stereo minijack output
Detailed control
• Three step high-pass filter (0, 75H Hz, 150Hz)
• Three position level control (-10dB, 0dB, +20dB)
• High frequency boost (+6dB)
• LED power on/low battery indicator
• Integrated billeted metal camera shoe mount with 3/8” thread
for easy boompole mounting
• Integrated digital switching with power On/Off delay

4 5
Features cont.
High quality performance
• 9V battery powered – over 30 hours use (alkaline)
• P48 phantom power via Mini XLR
• Flexible and lightweight removable 3.5mm stereo cable (to
minimise handling noise and ensure isolation)
• Premium pop shield and wind shield provided for protection in
all situations.
• Australian designed and manufactured
• 10 Year Warranty*
*Online registration required
Register your SVMX now and
validate your free 10 year warranty.
Scan the QR code with a smartphone, or visit
warranty.rodemic.com/stereovideomicx
The Stereo VideoMic X is covered by a limited warranty for one (1)
year from the date of purchase. This can be extended free of charge
to a full ten (10) year warranty by registering your microphone
online at warranty.rodemic.com/stereovideomicx
Warranty

6 7
Specications
Acoustic Principle Pressure Gradient
Polar Pattern Cardioid
Frequency Range 40Hz ~ 20kHz
Frequency Range (High
Pass Filter)
0, 75, 150Hz
Variable Level -10, 0, +20dB
Output Impedence 200Ω
Signal to Noise Ratio 82 dBA SPL (as per IEC651)
Equivalent Noise 12 dBA SPL (as per IEC651)
Maximum SPL 143dB SPL
Sensitivity -32 dB re 1V/Pa (25mV @ 94dB SPL) ±
2dB @ 1kHz
Dynamic Range 131 dB SPL
Power requirements 9V alkaline battery
Output Connection 3.5 Stereo mini jack plug (dual mono),
Tip – left channel, Ring – right channel,
Dual Mini XLR output (P48 compatible)
Battery Life 30 hours
Weight (No Battery) 300g
Dimension (W x L x H) 102mm x 118mm x 100mm

8 9
Specications
75Hz HPF
150Hz HPF
High Boost
0˚
90˚ 270˚
180˚
-2.0
-20.0
-10.0
0.0
-2.0
-4.0
-6.0
-8.0
-10.0
-12.0
-14.0
-16.0
-18.0
-20.0
-22.0
-24.0 -25.0
dB rel. 1V/Pa
+5.0
Frequency:
500 Hz:
1000 Hz:
4000 Hz:

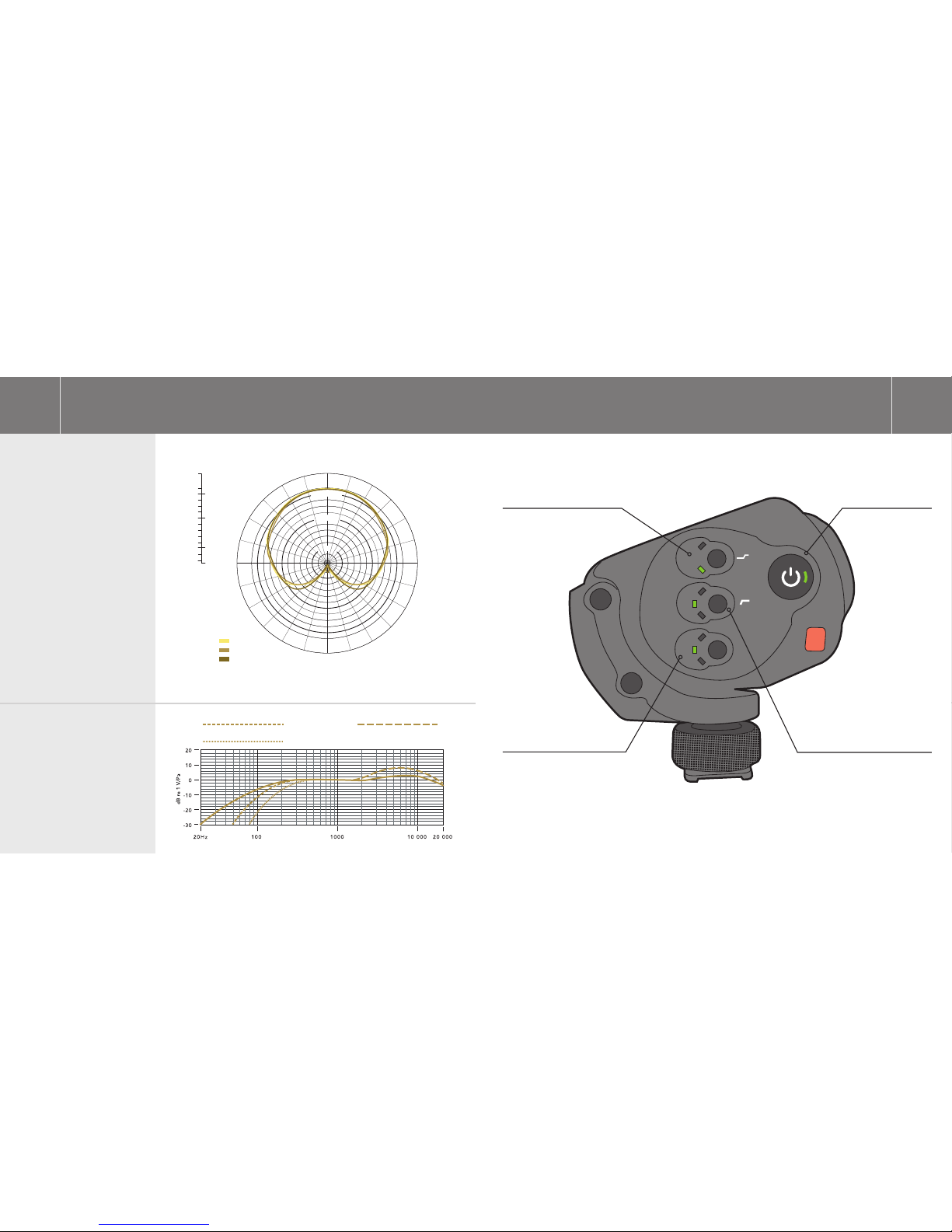

Polar Response
Frequency
Response
Control overview
150
75
0
+6
0
+20
0
-10
dB±
On/off power
button
High pass filter
switch control button
High frequency boost
control button
Level control button

10 11
Powering the SVMX
Installing the battery
Before you can record with your Stereo VideoMic X, you will need to
install a standard 9V battery (ANS1:1604A or IEC:6LR61), or connect
the microphone via the Mini XLR connections with individual 48v
phantom power supplied for each channel.
RØDE recommends using a high quality lithium or alkaline battery
to achieve the best possible battery life. To install the battery, open
the battery cover that is located on the left hand side of the Stereo
VideoMic X. To remove the cover, hold the microphone in one hand,
and push the indentation across with your index finger to un-latch
the battery door.

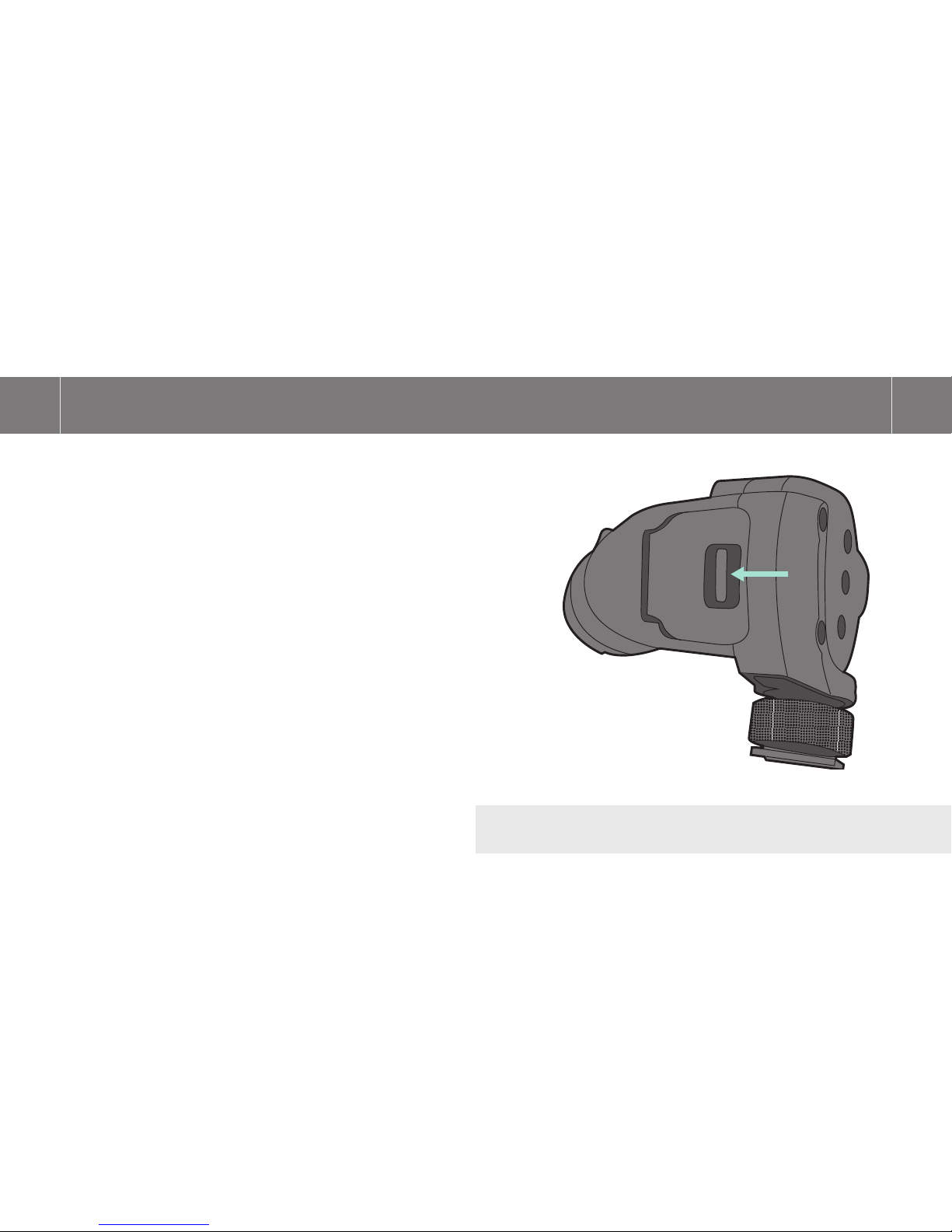

Diagram 1 - Push the indentation accross to un-latch battery door
STEREO VIDEOMIC X
MADE IN AUSTRALIA

12 13
Insert the battery with the negative terminal (-) on the bottom as
shown in Diagram 2. The correct battery orientation is also shown
on the inside of the battery cover. If the battery orientation is not
correct you will be unable to close the battery door.

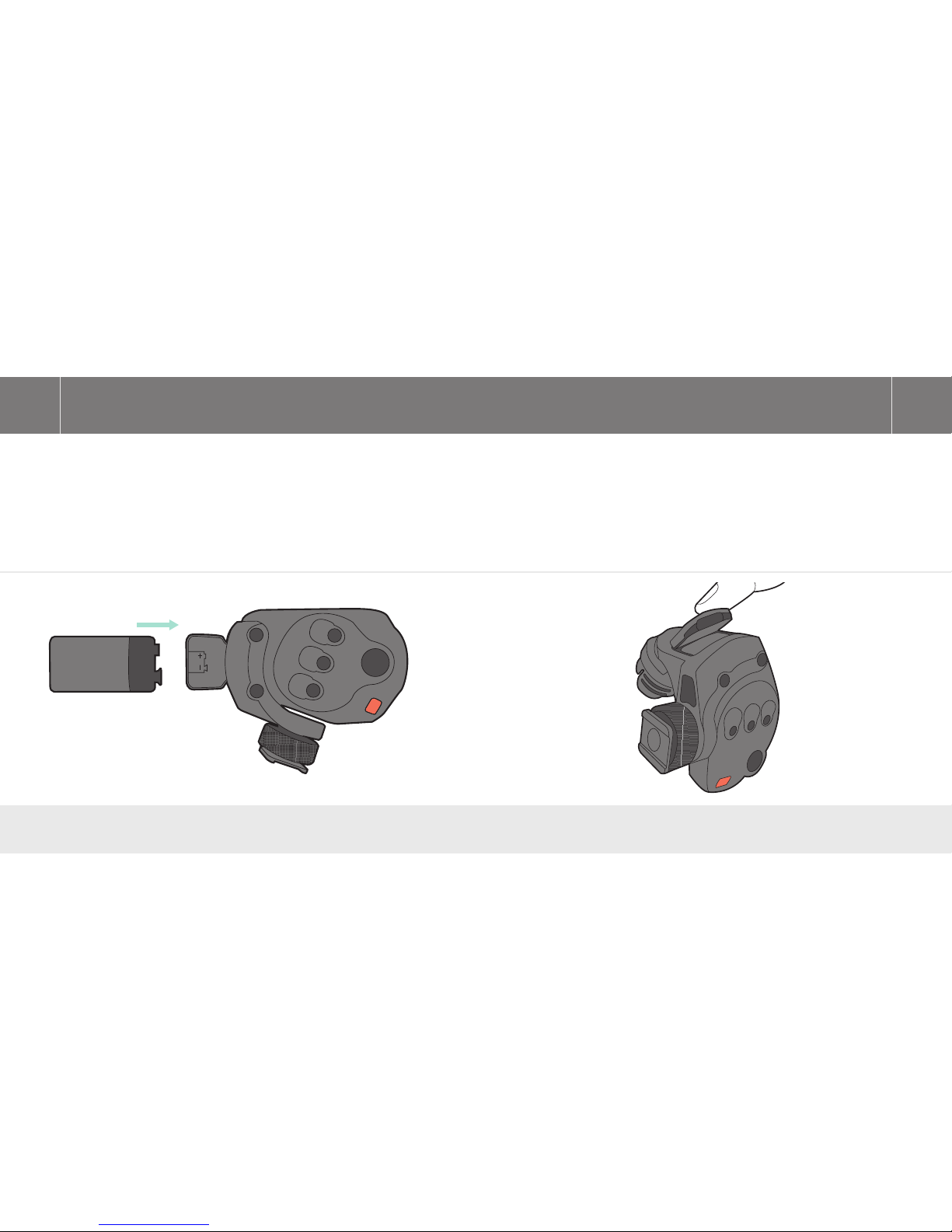

Diagram 2 - Insert 9V battery
Powering the SVMX
Replace the cover by simply pushing the door closed until it locks
into place. The cover will push the battery against its spring
terminal during installation.
Diagram 3 - Push the cover until it locks into place
9V

14 15
Powering the SVMX
The Stereo VideoMic X will run continuously for over 30 hours with
a high quality alkaline or lithium battery. Battery performance may
vary depending on ambient temperature and battery shelf life, so it
is wise to always carry a spare battery. We suggest always installing
a fresh battery when the application is critical, with no opportunity
to re-shoot. Always remember to switch off the Stereo VideoMic X
when not in use, by holding the power button for approximately two
seconds.
Mounting and connecting your Stereo VideoMic X
The Stereo VideoMic X incorporates a standard camera shoe mount
on the underside of microphone body. The camera shoe mount
has a 3/8” thread at the bottom to additionally allow mounting on
tripods and boompoles.
Some older model and low-cost cameras may produce a higher
level of mechanical noise, which can be picked up by the Stereo
VideoMic X. The integrated high-pass filter should be switched on to
reduce the resulting low frequency rumble.
Mounting the SVMX

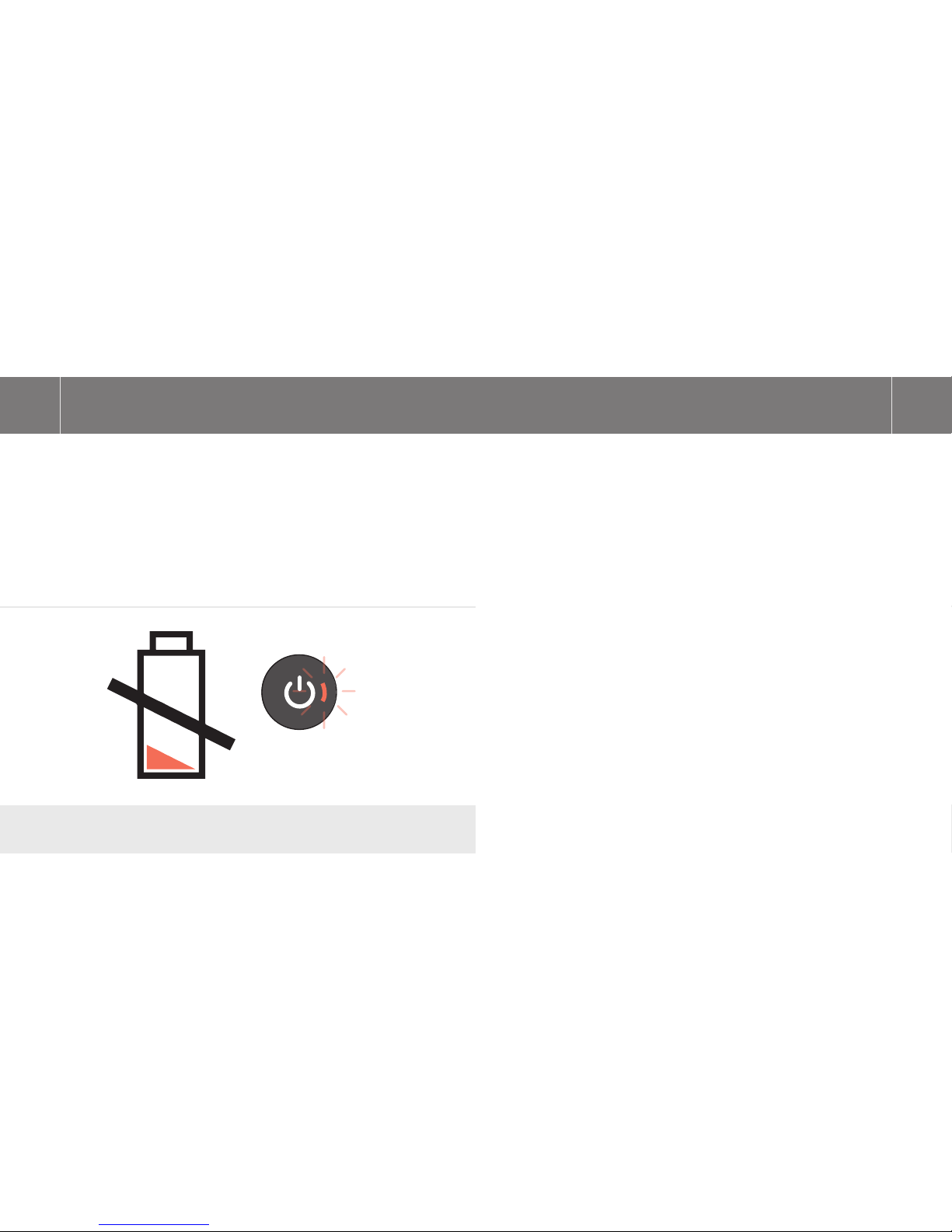

Diagram 4 - The power indicator LED will turn red to indicate a low battery level.

16 17
Mounting the SVMX
Before sliding the camera shoe into place, loosen the fastening ring
by turning anti-clockwise until it is loose enough to fit easily into
your camera’s shoe mount. Once the shoe is in place, gently tighten
by turning the fastening ring clockwise until the Stereo VideoMic X
is seated firmly in place.

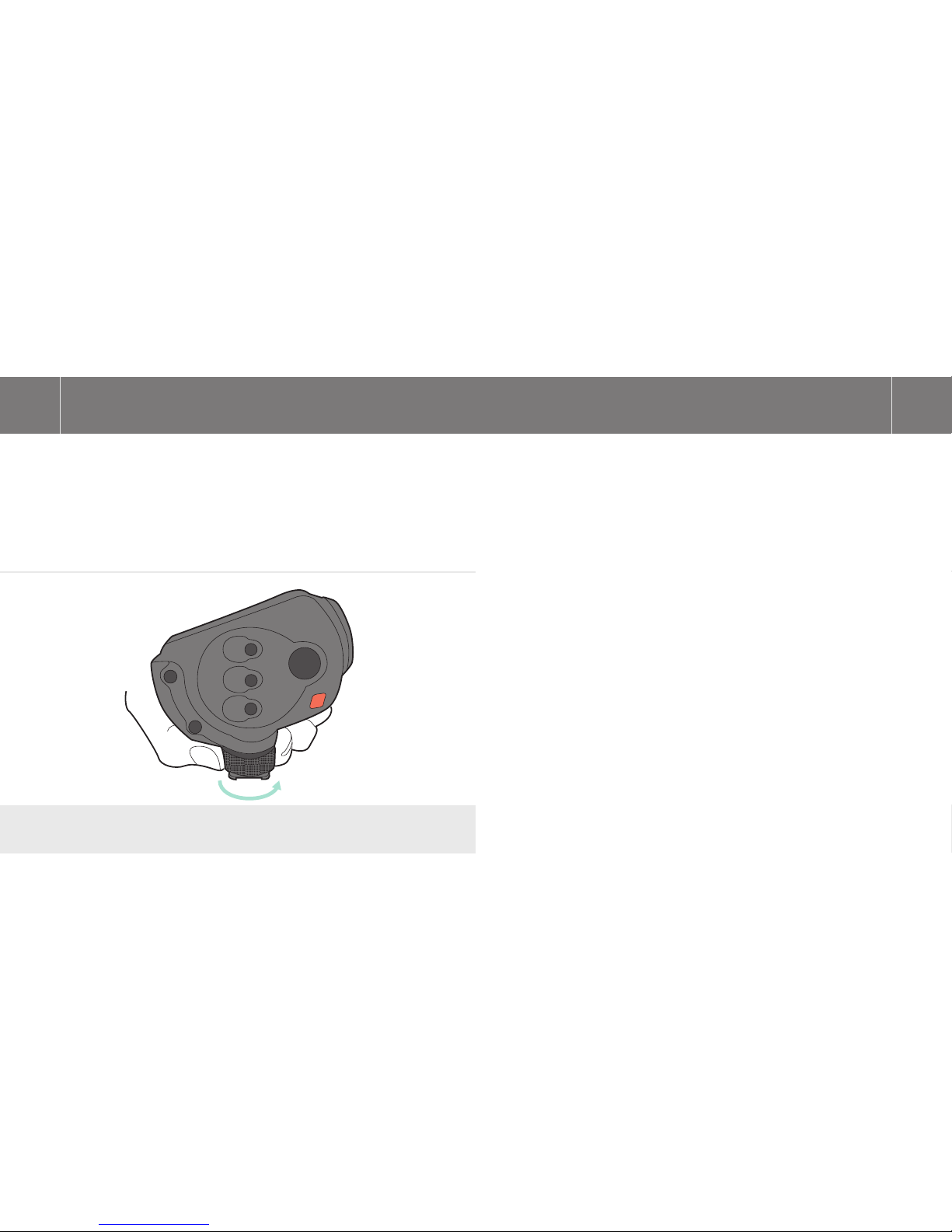

Diagram 5 - Twist the fastening ring anti-clockwise to loosen
The Stereo VideoMic X delivers a mic-level signal to the video camera
via the stereo minijack audio port on the underside of the microphone
body, or via the Mini XLR output connections on the right hand side of the
Stereo VideoMic X body.
Connecting via Minijack: To connect to your camera via the 3.5mm
minijack connection, first connect the red cable supplied with your
microphone to the socket on the underside of the Stereo VideoMic X.
The minijack should be connected to the camera via the camera’s
“audio-in” socket – refer to your video camera user manual for the
location of the socket on your camera model. Now that you have the
Stereo VideoMic X securely fastened to your camera and the audio output
lead connected, you can switch the microphone on and start recording.
Connecting via Mini XLR: To connect the Stereo VideoMic X to a
professional recording device via the mini XLR connectors, lift the
protective cover on the side of the microphone to expose the mini XLR
jacks. Ensuring that the levels on your recording device are set to zero,
connect a mini XLR cable (available separately) to each of the two jacks
on the microphone, followed by the corresponding ends on your recording
device. Power on the microphone and then increase the recording levels
of your recording device as required.
Connecting the SVMX

18 19
Powering the Stereo VideoMic X
To turn the microphone on, first press and hold the power putton
until the power symbol lights up.

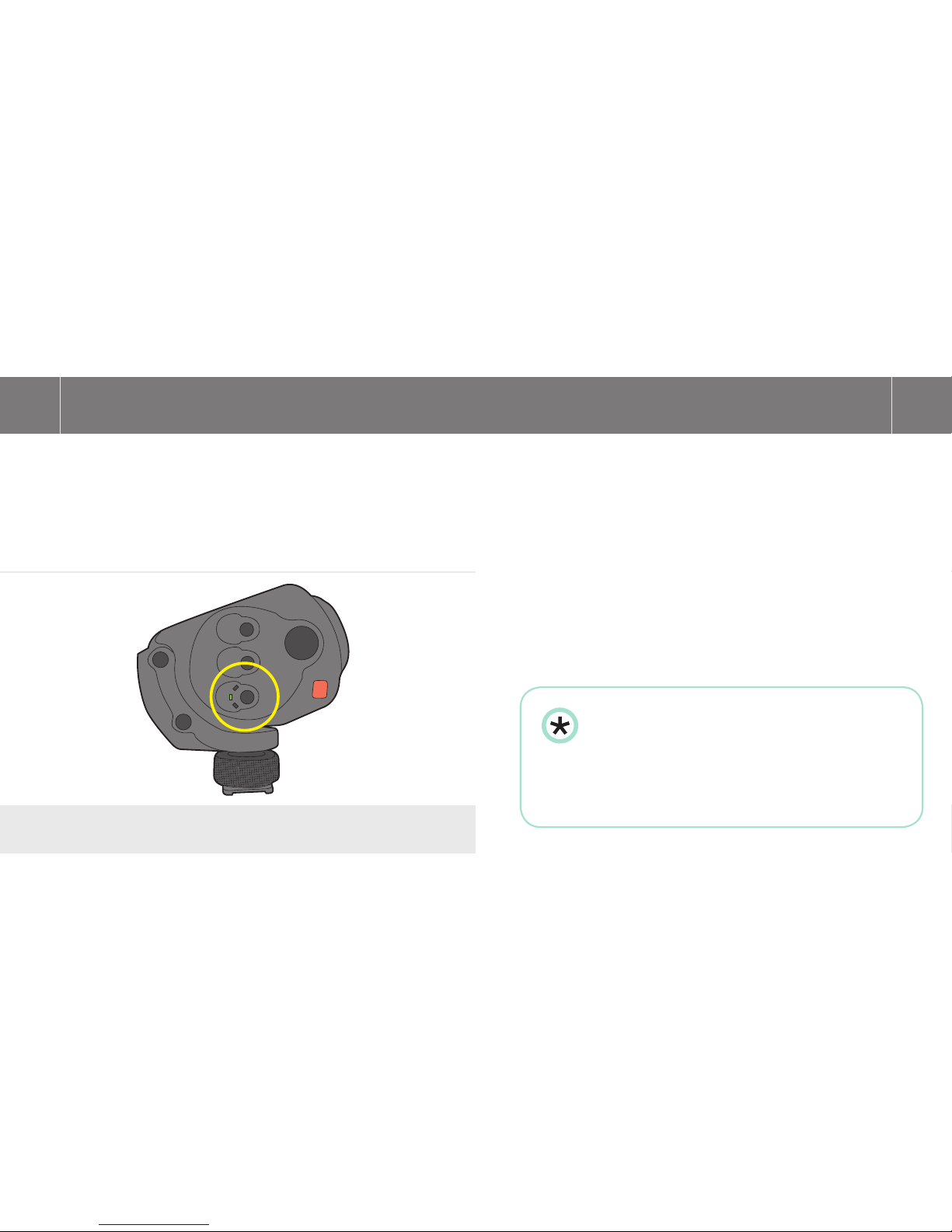

Diagram 6 - Press the power buttong until the power symbol lights
The power indicator LED is located within the power button. This
LED will display a green light indicating a healthy battery level.
When the battery runs low the LED will remain red and you should
replace the battery. The microphone will work for over two hours
once the red indicator is lit, however with reduced performance.
RØDE recommends changing the battery as soon as possible after
the LED has turned red.
General operation

20 21
General operation
High-pass lter switch
The high-pass filter (HPF) is a low frequency cut-off setting, which
you can use to reduce rumble and other low frequency noise picked
up by the microphone while recording.

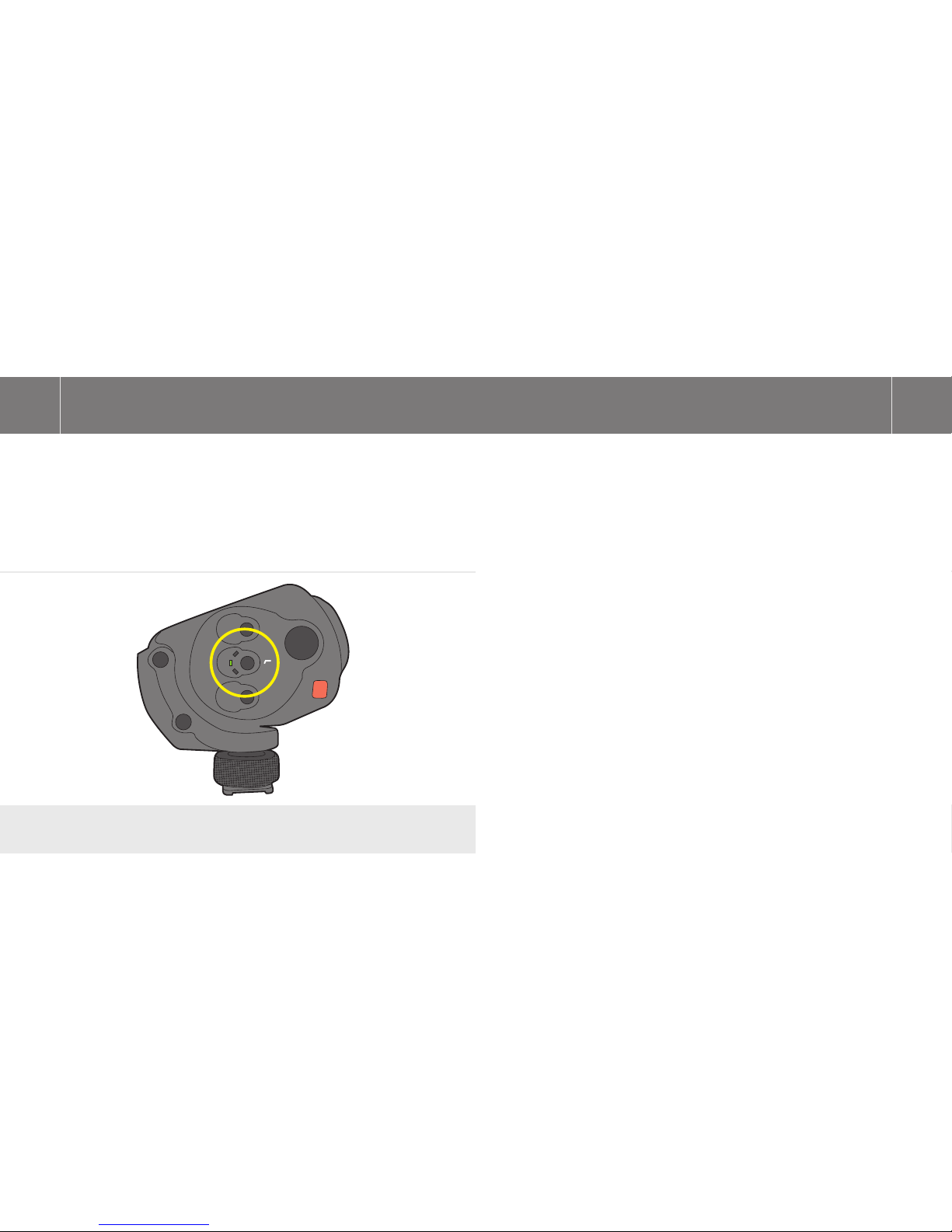

Diagram 7 - High pass filter switch control button
For instance, it may be helpful to engage the high-pass filter to cut
out the sound of air conditioning, handling noise while adjusting
focus settings and distant traffic audible in the background.
To engage the high-pass filter, press the center button on the back
of the microphone. The Stereo VideoMic X will cycle through each
setting as the button is pressed, and the green LED will indicate the
position that is currently selected.
150
75
0

22 23
Level control
The Stereo VideoMic X features three settings to control the signal
output level to your recording device. These are set via the lowest
selector button on the back of the microphone.
Diagram 8 - Level control button
The lowest setting (-10) will reduce or attenuate the signal by 10dB,
meaning that loud sound sources will be reduced and be less likely
to overload or ‘clip’ the input of the recording device. The middle
setting (0dB) is the nominal gain setting of the microphone for use
in ideal recording conditions. The highest setting (+20) will increase
the signal level by 20dB. This is useful for recording quiet sound
sources, or when your camera requires a higher input level for
better signal to noise ratio (as in many digital SLR cameras).
Please note that when setting the input level you should always be
mindful of your camera’s internal audio level setting. If you have
the +20dB level selected on the Stereo VideoMic X you may need to
reduce the input level on your camera.
General operation
+20
0
-10
dB±
For best results when recording to DSLR cameras, reduce
the camera’s input level as much as possible, selecting the
+20dB input level on the Stereo VideoMic X and working
downward until the appropriate input level is achieved. This will
result in a much lower noise floor and an overall clearer recording
when plugging the Stereo VideoMic X into the typically low quality
mic preamps found on most DSLR cameras.

24 25
The Stereo VideoMic X has been designed to work best with the
camera’s auto-gain control (AGC) switched off. (see your camera’s
user manual for instructions on setting the gain control to manual)
As always, it is recommended to test your audio first before
recording anything of importance.
The Stereo VideoMic X has been RF/EMI shielded for very high
rejection of radio frequency interference, but we suggest you keep
all transmitters, cell phones, pagers etc. at least two metres away
to reduce the possibility of interference affecting your recordings.
High frequency boost control
The Stereo VideoMic X features a unique high frequency boost,
which is designed to help pick out high frequency detail such as
voices in a recording environment. The boost will also combat any
high frequency loss experienced with the use of wind protection.
The high frequency boost function is engaged via the top button on
the back of the microphone body.
Diagram 9 - High frequency boost control button
When engaged, the high frequency boost will apply a +6db shelf
from 3kHz upwards, adding overall clarity to the recorded signal.
General operation
+6
0

26 27
A premium pop shield and wind shield is provided with the Stereo
VideoMic X for the ultimate in wind protection for all situations.
Pop shield:
The pop shield is designed to protect the Stereo VideoMic X
capsules from very light air movement such as a gentle breeze,
and has been designed to be acoustically transparent, whilst
still providing wind protection. It is also useful for protecting the
microphone from the noise caused by fast camera movements, like
tracking or dolly shots.
To fit or remove the pop shield, simply squeeze it on the sides
(labelled with the RODE logo) to allow it to fit over the microphone
capsules.
Wind shield:
The wind shield is designed to protect the Stereo VideoMic X
capsules from light breezes to heavy wind, and is recommended
for use in all outdoor shooting situations, where wind gusts can
often be unexpected and unpredictable. The wind shield is made Diagram 10 - Pop shield (left) and wind shield (right)
from a high quality synthetic fur mounted on a low-density foam,
with a rubber lip that provides a tight seal around the microphone
body. Although the wind shield is designed to be as acoustically
transparent as possible, we recommend engaging the high
frequency boost feature on the Stereo VideoMic X to combat the
slight loss of high frequency detail experienced when covering any
microphone capsule.
Selecting & Fitting Wind Shields
In very strong wind the combination of wind shield, high
boost and high-pass filter can be used to best effect.

28 29
Additional tips and tricks
For additional recording tips and tricks, please visit the RØDE
University – RØDE’s free online microphone training website ( www.
rodeuniversity.com ). Check out the Broadcast recording semester
for tutorials most relevant to the Stereo VideoMic X.
For more entertaining videos, you may also wish to visit RØDE TV (
www.rodemic.com/tv ) – featuring a wide range of demos, reviews,
interviews and behind-the-scenes clips for anyone interested in
music, audio and recording.
Safety & maintenance
When not in use, always keep your Stereo VideoMic X in a cool, dry
place, preferably in a camera bag or equivalent to protect from dust
or damage. When not in use for long periods of time, remove the
battery before storage. Do not expose the Stereo VideoMic X to rain
or moisture.
It is recommended that the pop shield be left on at all times
possible to protect the microphone and sensitive capsules from
damage, dust and moisture.
In instances where the microphone has become exposed to the
elements and the foam has become moist or dirty, it may be
necessary to remove the foam gently and dry it separately to
the microphone body to prevent moisture from damaging the
microphone. Take care in this operation so as not to damage or tear
the foam during removal. The foam windshield can be hand washed
in cold water, then dried thoroughly in the sun before refitting.
Inside the Stereo VideoMic X box, you will find a sachet of moisture
absorbent crystals. Please retain these crystals and store with the
Stereo VideoMic X to keep the microphone in ideal condition.

30 31
Safety & maintenance
Eventually this pack of crystals will need to be dried. This is
indicated by the crystals turning pink in colour. They can easily be
re-used by placing them in an oven at 100-150 degrees Celsius
for approximately ten minutes. The crystals will operate effectively
again once they have turned blue.
The Stereo VideoMic X has no internal user serviceable parts.
Should you encounter a problem, please refer all servicing to
qualified service personnel.
Support
If you experience any problem, or have any questions regarding your
RØDE microphone, first contact the dealer who sold it to you. If the
microphone requires a factory authorised service, return will be
organised by that dealer.
We have an extensive distributor/dealer network, but if you have
difficulty getting the advice or assistance you require, please do not
hesitate to contact us directly.
Alternatively please visit www.rodemic.com/support for contact
details and a list of Frequently Asked Questions.
Importers & distributors
For a full list of international importers and distributors, visit our
website at www.rodemic.com/distributors.

32 33
BEDIENUNGSANLEITUNG DEUTSCH
33
www.rodemic.com/svmx
Stereomikrofon für die
Kameramontage
Stereo VideoMic X
BEDIENUNGSANLEITUNG DEUTSCH
32

34 35
Merkmale
Kompaktes, aber vollwertiges Stereo-
Kondensatormikrofon
• Robustes, leichtes Gehäuse aus Aluminiumlegierung.
• Absolute Broadcast-Qualität.
• Akustisch abgestimmte 1/2”-Kondensatorkapseln mit exter-
ner Vorspannung.
• Die elastische Aufhängung verhindert Handhabungs- und
mechanische Geräusche.
• Hochwertiger symmetrischer Mini-XLR-Ausgang (stereo) für
professionelle Anwendungen.
• 3,5mm Stereo-Miniklinkenausgang.
Umfassende Einstellungsmöglichkeiten
• Hochpassfilter mit drei Einstellungsmöglichkeiten (0, 75Hz,
150Hz).
• Pegel in 3 Stufen einstellbar (–10dB, 0dB, +20dB).
• Anhebung der hohen Frequenzen (+6dB).
• LED für die Status- und Ladungsanzeige.
• Blitzschuhmontage, 3/8”-Gewinde für Stativmontage.
• Interne digitale Schaltfunktion mit Ein-/Ausschaltverzögerung.

36 37
Merkmale (Fortsetzung)
Hochwertige Signalqualität.
• Speisung per 9V-Batterie, Laufzeit von über 30 Stunden
(Alkali).
• P48-Phantomspeisung über Mini-XLR.
• Flexibel einsetzbares und federleichtes 3,5mm-Kabel (stereo)
für eine optimale Isolierung und minimale Handhabungsge-
räusche.
• Hochwertiger Popp- und Windschutz für eine optimale Signal-
qualität.
• Entwickelt und hergestellt in Australien.
• 10 Jahre Garantie*
* Mittels Online-Registrierung.
Registrieren Sie Ihr SVMX jetzt, um
Ihre kostenlose 10-Jahres-Garantie
zu aktivieren.
Scannen Sie den QR-Code mit Ihrem Smartphone
oder surfen Sie zu warranty.rodemic.com/
stereovideomicx.
Für das Stereo VideoMic X gilt eine Garantiefrist von 2 Jahren ab
dem Erstkaufdatum. Diese kann jedoch kostenlos auf zehn (10)
Jahre verlängert werden, indem man das Mikrofon unter warranty.
rodemic.com/stereovideomicx registriert.
Garantie

38 39
Technische Daten
Akustisches Prinzip Druckgradient
Richtcharakteristik Niere
Übertragungsbereich 40Hz~20kHz
Grenzfrequenz
(Hochpassfilter)
0, 75, 150Hz
Pegeleinstellung –10, 0, +20dB
Ausgangsimpedanz 200Ω
Fremdspannungsabstand 82dBA Schalldruck (gemäß IEC651)
Eigenrauschen 12dBA Schalldruck (gemäß IEC651)
Grenzschalldruck 143dB
Empfindlichkeit –32dB re 1V/Pa (25mV bei Schalldruck
von 94dB) ±2dB @1kHz
Dynamikbereich 131dB
Spannungsanforderungen 9V-Alkalibatterie
Ausgang Stereo-Miniklinkenstecker (3,5mm,
Doppelmono),
Spitze – linker Kanal, Ring – rechter
Kanal, Doppelter Mini-XLR-Ausgang
(P48-kompatibel)
Batterielaufzeit 30 Stunden
Gewicht (ohne Batterie) 300g
Abmessungen (B x L x H) 102mm x 118mm x 100mm
