Rohde & Schwarz FSW Series User manual

R&S®FSW
Signal and Spectrum
Analyzer
Getting Started
Getting Started
(=<ìD2)
1312.9420.02 ─ 15
Test & Measurement

This manual applies to the following R&S®FSW models with firmware version
2.00 and higher:
●R&S®FSW8 (1312.8000K08)
●R&S®FSW13 (1312.8000K13)
●R&S®FSW26 (1312.8000K26)
●R&S®FSW43 (1312.8000K43)
●R&S®FSW50 (1312.8000K50)
●R&S®FSW67 (1312.8000K67)
In addition to the base unit, the following options are described:
●R&S FSW-B4, OCXO (1313.0703.02)
●R&S FSW-B10, external generator control (1313.1622.02)
●R&S FSW-B13, high-pass filter (1313.0761.02)
●R&S FSW-B17, digital baseband interface (1313.0784.02)
●R&S FSW-B21, external mixer (1313.1100.26)
●R&S FSW-B24, preamplifier (1313.0832.13/26)
●R&S FSW-B25, electronic attenuator (1313.0990.02)
●R&S FSW-B71, analog baseband interface (1313.1651.13/26, 1313.6547.02)
●R&S FSW-B160, bandwidth extension (1313.1668.02) / R&S FSW-U160
(1313.3754.02)
●R&S FSW-B320, bandwidth extension (1313.7172.02) / R&S FSW-U320
(1313.7189.02)
●R&S FSW-B320, bandwidth extension (1313.7172.02) / R&S FSW-U320
(1313.7189.02)
●R&S FSW-B500, bandwidth extension (1313.4296.02)
The firmware of the instrument makes use of several valuable open source software packages. For infor-
mation, see the "Open Source Acknowledgement" on the user documentation CD-ROM (included in deliv-
ery).
Rohde & Schwarz would like to thank the open source community for their valuable contribution to embed-
ded computing.
© 2014 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Fax: [phone]
E-mail: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
The following abbreviations are used throughout this manual: R&S®FSW is abbreviated as R&S FSW.

Contents
R&S®FSW
3Getting Started 1312.9420.02 ─ 15
Contents
1Preface....................................................................................5
1.1 Key Features......................................................................................... 5
1.2 Documentation Overview.....................................................................6
1.3 Conventions Used in the Documentation...........................................8
2Preparing for Use...................................................................9
2.1 Putting into Operation.......................................................................... 9
2.2 Windows Operating System.............................................................. 18
2.3 Connecting USB Devices................................................................... 21
2.4 Connecting an External Monitor........................................................23
2.5 Setting Up a Network (LAN) Connection.......................................... 25
2.6 Configuring the Initial Instrument Settings...................................... 30
2.7 Protecting Data Using the Secure User Mode..................................31
3Instrument Tour................................................................... 34
3.1 Front Panel View................................................................................. 34
3.2 Rear Panel View.................................................................................. 50
4Trying Out the Instrument...................................................58
4.1 Measuring a Basic Signal...................................................................58
4.2 Displaying a Spectrogram..................................................................61
4.3 Activating Additional Measurement Channels.................................62
4.4 Performing Sequential Measurements............................................. 67
4.5 Setting and Moving a Marker............................................................. 68
4.6 Displaying a Marker Peak List........................................................... 70
4.7 Zooming into the Display................................................................... 71
4.8 Saving Settings................................................................................... 75

Contents
R&S®FSW
4Getting Started 1312.9420.02 ─ 15
4.9 Printing and Saving Results.............................................................. 77
5Operating the Instrument....................................................78
5.1 Understanding the Display Information............................................78
5.2 Accessing the Functionality.............................................................. 89
5.3 Changing the Focus........................................................................... 89
5.4 Entering Data.......................................................................................90
5.5 Displaying Results..............................................................................92
5.6 Getting Help.......................................................................................101
5.7 Remote Control................................................................................. 104
6Obtaining Technical Support............................................106
Index................................................................................... 108

Preface
R&S®FSW
5Getting Started 1312.9420.02 ─ 15
1 Preface
1.1 Key Features
The R&S FSW Signal and Spectrum Analyzer sets standards in RF performance
and usability. Outstanding key features are:
●Unmatched phase noise
●Excellent dynamic range
●Up to 160 MHz analysis bandwidth
●High sensitivity even at low frequencies
●High measurement rates and fast sweep times with sweep rates up to 1000
sweeps per second
●Multiple measurement applications can be run and displayed in parallel
●Easy and intuitive to operate via the large touchscreen user interface and opti-
mized user guidance
●Integrated support of R&S®NRP-Zxx power sensors
For a detailed specification refer to the data sheet.
Due to these features the R&S FSW is ideal for various measurement tasks, for
instance:
●Measuring oscillators for radar and communications applications due to the
low phase noise
●Identifying and analyzing spurious emissions due to the large spurious-free
dynamic range and low DANL
●Measuring harmonics due to integrated highpass filters
●Measuring wide-band modulated or frequency-agile signals due to the large
bandwidth
●Detecting errors caused by interaction between signals by measuring multiple
standards simultaneously
Key Features

Preface
R&S®FSW
6Getting Started 1312.9420.02 ─ 15
1.2 Documentation Overview
The user documentation for the R&S FSW consists of the following parts:
●Printed Getting Started manual
●Online Help system on the instrument
●Documentation CD-ROM with:
– Getting Started
– User Manuals for base unit and firmware applications
– Service Manual
– Release Notes
– Data sheet and product brochures
Online Help
The Online Help is embedded in the instrument's firmware. It offers quick, con-
text-sensitive access to the complete information needed for operation and pro-
gramming. Online help is available using the icon on the toolbar of the
R&S FSW.
Web Help
The web help provides online access to the complete information on operating
the R&S FSW and all available options, without downloading. The content of the
web help corresponds to the user manuals for the latest product version. The web
help is available from the R&S FSW product page at http://www.rohde-
schwarz.com/product/FSW.html > Downloads > Web Help.
Getting Started
This manual is delivered with the instrument in printed form and in PDF format on
the CD. It provides the information needed to set up and start working with the
instrument. Basic operations and handling are described. Safety information is
also included.
The Getting Started manual in various languages is also available for download
from the Rohde & Schwarz website, on the R&S FSW product page at http://
www2.rohde-schwarz.com/product/FSW.html.
Documentation Overview

Preface
R&S®FSW
7Getting Started 1312.9420.02 ─ 15
User Manuals
User manuals are provided for the base unit and each additional (firmware) appli-
cation.
The user manuals are available in PDF format - in printable form - on the Docu-
mentation CD-ROM delivered with the instrument. In the user manuals, all instru-
ment functions are described in detail. Furthermore, they provide a complete
description of the remote control commands with programming examples.
The user manual for the base unit provides basic information on operating the
R&S FSW in general, and the Spectrum application in particular. Furthermore, the
software functions that enhance the basic functionality for various applications are
described here. An introduction to remote control is provided, as well as informa-
tion on maintenance, instrument interfaces and troubleshooting.
In the individual application manuals, the specific instrument functions of the
application are described in detail. For additional information on default settings
and parameters, refer to the data sheets. Basic information on operating the
R&S FSW is not included in the application manuals.
All user manuals are also available for download from the Rohde & Schwarz web-
site, on the R&S FSW product page at http://www2.rohde-schwarz.com/product/
FSW.html.
Service Manual
This manual is available in PDF format on the Documentation CD-ROM delivered
with the instrument. It describes how to check compliance with rated specifica-
tions, instrument function, repair, troubleshooting and fault elimination. It contains
all information required for repairing the R&S FSW by replacing modules.
Release Notes
The release notes describe the installation of the firmware, new and modified
functions, eliminated problems, and last minute changes to the documentation.
The corresponding firmware version is indicated on the title page of the release
notes.
The most recent release notes are also available for download from the Rohde &
Schwarz website, on the R&S FSW product page at http://www2.rohde-
schwarz.com/product/FSW.html > Downloads > Firmware.
Documentation Overview

Preface
R&S®FSW
8Getting Started 1312.9420.02 ─ 15
1.3 Conventions Used in the Documentation
1.3.1 Typographical Conventions
The following text markers are used throughout this documentation:
Convention Description
"Graphical user interface
elements" All names of graphical user interface elements on the screen, such as dialog boxes, menus, options, buttons, and softkeys are
enclosed by quotation marks.
KEYS Key names are written in capital letters.
File names, commands,
program code
File names, commands, coding samples and screen output are
distinguished by their font.
Input Input to be entered by the user is displayed in italics.
Links Links that you can click are displayed in blue font.
"References" References to other parts of the documentation are enclosed by
quotation marks.
1.3.2 Conventions for Procedure Descriptions
When describing how to operate the instrument, several alternative methods may
be available to perform the same task. In this case, the procedure using the
touchscreen is described. Any elements that can be activated by touching can
also be clicked using an additionally connected mouse. The alternative procedure
using the keys on the instrument or the on-screen keyboard is only described if it
deviates from the standard operating procedures.
The term "select" may refer to any of the described methods, i.e. using a finger on
the touchscreen, a mouse pointer in the display, or a key on the instrument or on
a keyboard.
Conventions Used in the Documentation

Preparing for Use
R&S®FSW
9Getting Started 1312.9420.02 ─ 15
2 Preparing for Use
●Putting into Operation....................................................................................... 9
●Windows Operating System............................................................................18
●Connecting USB Devices................................................................................21
●Connecting an External Monitor......................................................................23
●Setting Up a Network (LAN) Connection.........................................................25
●Configuring the Initial Instrument Settings...................................................... 30
●Protecting Data Using the Secure User Mode................................................ 31
2.1 Putting into Operation
This section describes the basic steps to be taken when setting up the R&S FSW
for the first time.

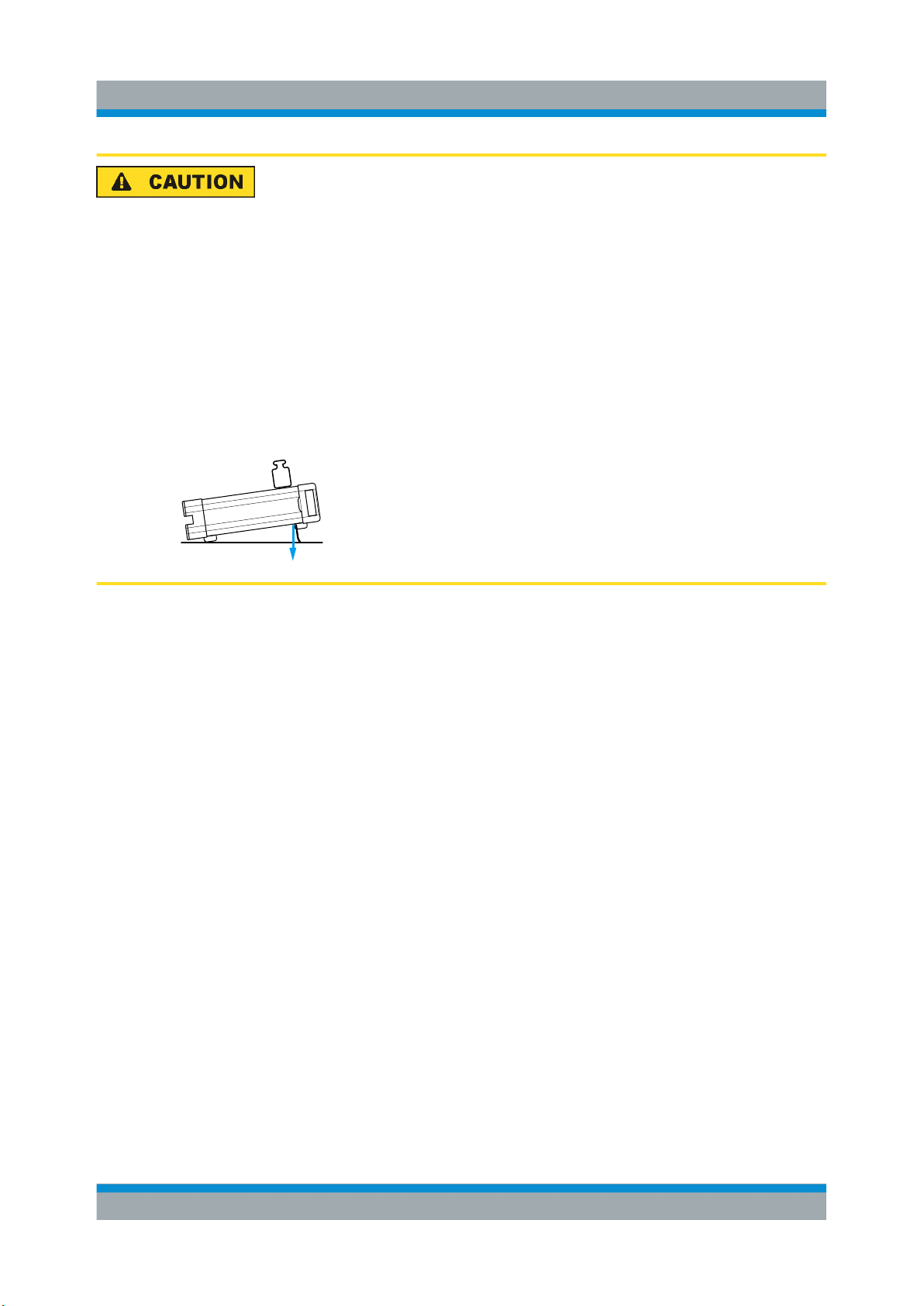

Risk of injury and instrument damage
The instrument must be used in an appropriate manner to prevent electric
shock, fire, personal injury, or damage.
●Do not open the instrument casing.
●Read and observe the "Basic Safety Instructions" at the beginning of
this manual or on the documentation CD-ROM, in addition to the safety
instructions in the following sections. Notice that the data sheet may
specify additional operating conditions.
Risk of instrument damage
Note that the general safety instructions also contain information on operat-
ing conditions that will prevent damage to the instrument. The instrument's
data sheet may contain additional operating conditions.
Putting into Operation

Preparing for Use
R&S®FSW
10Getting Started 1312.9420.02 ─ 15
Risk of electrostatic discharge (ESD)
Electrostatic discharge (ESD) can cause damage to the electronic compo-
nents of the instrument and the device under test (DUT). ESD is most likely
to occur when you connect or disconnect a DUT or test fixture to the instru-
ment's test ports. To prevent ESD, use a wrist strap and cord and connect
yourself to the ground, or use a conductive floor mat and heel strap combi-
nation.
For details, refer to the safety instructions delivered in electronic format on
the documentation CD-ROM.
Risk of instrument damage during operation
An unsuitable operating site or test setup can cause damage to the instru-
ment and to connected devices. Ensure the following operating conditions
before you switch on the instrument:
●All fan openings are unobstructed and the airflow perforations are unim-
peded. The minimum distance from the wall is 10 cm.
●The instrument is dry and shows no sign of condensation.
●The instrument is positioned as described in the following sections.
●The ambient temperature does not exceed the range specified in the
data sheet.
●Signal levels at the input connectors are all within the specified ranges.
●Signal outputs are correctly connected and are not overloaded.
EMI impact on measurement results
Electromagnetic interference (EMI) may affect the measurement results.
To suppress generated electromagnetic interference (EMI):
●Use suitable shielded cables of high quality. For example, use double-
shielded RF and LAN cables.
●Always terminate open cable ends.
●Note the EMC classification in the data sheet.
Putting into Operation

Preparing for Use
R&S®FSW
11Getting Started 1312.9420.02 ─ 15
●Unpacking and Checking the Instrument........................................................ 11
●Accessory List................................................................................................. 12
●Placing or Mounting the Instrument................................................................ 12
●Connecting the AC Power...............................................................................15
●Switching the Instrument On and Off.............................................................. 15
●Performing a Self-Alignment and a Selftest.................................................... 16
●Checking the Supplied Options.......................................................................17
2.1.1 Unpacking and Checking the Instrument
Check the equipment for completeness using the delivery note and the accessory
lists for the various items. Check the instrument for any damage. If there is dam-
age, immediately contact the carrier who delivered the instrument. Make sure not
to discard the box and packing material.
Packing material
Retain the original packing material. If the instrument needs to be transpor-
ted or shipped at a later date, you can use the material to protect the control
elements and connectors.
Putting into Operation

Preparing for Use
R&S®FSW
12Getting Started 1312.9420.02 ─ 15
Risk of damage during transportation and shipment
Insufficient protection against mechanical and electrostatic effects during
transportation and shipment can damage the instrument.
●Always make sure that sufficient mechanical and electrostatic protection
is provided.
●When shipping an instrument, the original packaging should be used. If
you do not have the original packaging, use sufficient padding to pre-
vent the instrument from moving around inside the box. Pack the instru-
ment in antistatic wrap to protect it from electrostatic charging.
●Secure the instrument to prevent any movement and other mechanical
effects during transportation.
The carrying handles at the front and side of the casing are designed to lift
or carry the instrument. Do not apply an excessive external force to the
handles.
Observe the information on transporting heavy instruments in the basic
safety instructions included at the front of the printed manual and on the
supplied CD ROM.
2.1.2 Accessory List
The instrument comes with the following accessories:
●Power cable
●Printed Getting Started manual
●"R&S FSW User Documentation" CD-ROM
2.1.3 Placing or Mounting the Instrument
The R&S FSW is designed for use under laboratory conditions, either on a bench
top or in a rack.
Bench Top Operation
If the R&S FSW is operated on a bench top, the surface should be flat. The
instrument can be used in horizontal position, standing on its feet, or with the sup-
port feet on the bottom extended.
Putting into Operation

Preparing for Use
R&S®FSW
13Getting Started 1312.9420.02 ─ 15
Risk of injury if feet are folded out
The feet may fold in if they are not folded out completely or if the instrument
is shifted. This may cause damage or injury.
●Fold the feet completely in or completely out to ensure stability of the
instrument. Never shift the instrument when the feet are folded out.
●When the feet are folded out, do not work under the instrument or place
anything underneath.
●The feet can break if they are overloaded. The overall load on the fol-
ded-out feet must not exceed 500 N.
F < 500 N
Putting into Operation

Preparing for Use
R&S®FSW
14Getting Started 1312.9420.02 ─ 15
Risk of injury and instrument damage if stacking instruments
A stack of instruments may tilt over and cause injury. Furthermore, the
instruments at the bottom of the stack may be damaged due to the load
imposed by the instruments on top.
Observe the following instructions when stacking instruments:
●Never stack more than three instruments. If you need to stack more
than three instruments, install them in a rack.
●The overall load imposed on the lowest instrument must not exceed
500 N.
●All instruments must have the same dimensions (width and length).
●If the instruments have foldable feet, fold them in completely.
Rackmounting
The R&S FSW can be installed in a rack using a rack adapter kit (order no. see
data sheet). The installation instructions are part of the adapter kit.
Risk of instrument damage in a rack
An insufficient airflow can cause the instrument to overheat, which may dis-
turb the operation and even cause damage.
Make sure that all fan openings are unobstructed, that the airflow perfora-
tions are unimpeded, and that the minimum distance from the wall is 10 cm.
Putting into Operation

Preparing for Use
R&S®FSW
15Getting Started 1312.9420.02 ─ 15
2.1.4 Connecting the AC Power
In the standard version, the R&S FSW is equipped with an AC power supply con-
nector. The R&S FSW can be used with different AC power voltages and adapts
itself automatically to it. Refer to the datasheet for the requirements of voltage
and frequency. The AC power connector is located on the rear panel of the instru-
ment.
For details on the connector refer to chapter 3.2.2, "AC Power Supply Connection
and Main Power Switch", on page 51.
►Connect the R&S FSW to the AC power supply using the supplied power
cable.
Since the instrument is assembled in line with the specifications for safety
class EN61010, it may only be connected to an outlet that has a ground con-
tact.
2.1.5 Switching the Instrument On and Off
Switching the instrument on
► Press the AC power switch on the rear panel to position "I".
The instrument is supplied with AC power. After booting, the instrument is
ready for operation. A green LED above the POWER key indicates this.
An orange LED indicates the instrument is in standby mode
Warm-up time for OCXO
When the instrument is switched on, the OCXO requires an extended
warm-up time (see data sheet). No warm-up time is required when starting
from standby mode.
Switching the instrument off
1. Press the POWER key on the front panel.
Putting into Operation

Preparing for Use
R&S®FSW
16Getting Started 1312.9420.02 ─ 15
The R&S FSW switches to standby mode.
2. Set the AC power switch on the rear panel to position "O", or disconnect the
instrument from the AC power supply.
The R&S FSW changes into off mode.
Risk of losing data
If you switch off the running instrument using the rear panel switch or by
disconnecting the power cord, the instrument loses its current settings. Fur-
thermore, program data may be lost.
Press the Power key first to shut down the application properly.
2.1.6 Performing a Self-Alignment and a Selftest
During instrument start, the installed hardware is checked against the cur-
rent firmware version to ensure the hardware is supported. If not, an error
message is displayed ("WRONG_FW") and you are asked to update the
firmware. Until the firmware version is updated, self-alignment fails.
(For details refer to the R&S FSW User Manual).
Furthermore, it may be necessary to align the data to a reference source by per-
forming a self-alignment when strong temperature changes occur.
Operating temperature
Before performing this functional test, make sure that the instrument has
reached its operating temperature (for details, refer to the data sheet).
A message in the status bar ("Instrument warming up...") indicates that the oper-
ating temperature has not yet been reached.
Performing a self-alignment
1. Press the SETUP key.
2. Press the "Alignment" softkey.
Putting into Operation

Preparing for Use
R&S®FSW
17Getting Started 1312.9420.02 ─ 15
3. Select the "Start Self-Alignment" button in the "Alignment" dialog box.
Once the system correction values have been calculated successfully, a mes-
sage is displayed.
To display the alignment results again later
●Press the SETUP key.
●Press the "Alignment" softkey.
Performing a selftest
The selftest does not need to be repeated every time the instrument is switched
on. It is only necessary when instrument malfunction is suspected.
1. Press the SETUP key.
2. Press the "Service" softkey.
3. Switch to the "Selftest" tab in the "Service" dialog box.
4. Select the "Start Selftest" button.
Once the instrument modules have been checked successfully, a message is
displayed.
2.1.7 Checking the Supplied Options
The instrument may be equipped with both hardware and firmware options. In
order to check whether the installed options correspond to the options indicated
on the delivery note, proceed as follows.
1. Press the SETUP key.
2. Press the "System Config" softkey.
3. Switch to the "Versions + Options" tab in the "System Configuration" dialog
box.
A list with hardware and firmware information is displayed.
4. Check the availability of the hardware options as indicated in the delivery
note.
Putting into Operation

Preparing for Use
R&S®FSW
18Getting Started 1312.9420.02 ─ 15
2.2 Windows Operating System
The instrument contains the Windows 7 operating system which has been config-
ured according to the instrument's features and needs. Changes in the system
setup are only required when peripherals like keyboard or a printer are installed
or if the network configuration does not comply with the default settings. After the
R&S FSW is started, the operating system boots and the instrument firmware is
started automatically.
To ensure that the instrument software functions properly, certain rules must be
adhered to concerning the operating system.
Risk of causing instrument unusability
The instrument is equipped with the Windows 7 operating system. Addi-
tional software can therefore be installed on the instrument. The use and
installation of additional software may impair instrument function. Thus, run
only programs that Rohde & Schwarz has tested for compatibility with the
instrument software.
The drivers and programs used on the instrument under Windows 7 have
been adapted to the instrument. Existing instrument software must always
be modified using only update software released by Rohde & Schwarz.
The following program packages have been tested:
●R&S Power Viewer Plus - virtual power meter for displaying results of the
Power Sensor R&S NRP-Zxx (install only this component!)
●Symantec Endpoint Security – Virus-protection software
●FileShredder - for reliable deletion of files on the hard disk
2.2.1 Virus Protection
Users must take appropriate steps to protect their instruments from infection.
Beside the use of strong firewall settings and regularly scanning any removable
storage device used with a Rohde & Schwarz instrument, it is also recommended
that anti-virus software be installed on the instrument. While Rohde & Schwarz
does NOT recommend running anti-virus software in the background ("on-
Windows Operating System

Preparing for Use
R&S®FSW
19Getting Started 1312.9420.02 ─ 15
access" mode) on Windows-based instruments, due to potentially degrading
instrument performance, it does recommend running it during non-critical hours.
For details and recommendations, see the Rohde & Schwarz White Paper "Mal-
ware Protection" available at http://www.rohde-schwarz.com/appnote/1EF73.
2.2.2 Service Packs and Updates
Microsoft regularly creates security updates and other patches to protect Win-
dows-based operating systems. These are released through the Microsoft Update
website and associated update server. Instruments using Windows, especially
those that connect to a network, should be updated regularly.
For more details and information on configuring automatic updates see the R&S
White Paper "Malware Protection" (available at http://www.rohde-schwarz.com/
appnote/1EF73).
2.2.3 Login
Windows 7 requires that users identify themselves by entering a user name and
password in a login window. By default, the R&S FSW provides two user
accounts: an administrator account ("Instrument") with unrestricted access to the
computer/domain, and a standard user account ("NormalUser") with limited
access. In both cases the initial password is 894129. Note that this password is
very weak, and it is recommended that you change the password for both users
after initial login. You can change the password in Windows 7 for any user at any
time via "Start > Control Panel > User Accounts".
Secure User Mode
If the secure user mode option (R&S FSW-K33) is installed, an additional
account is provided: the "SecureUser", also with the password 894129.
When the secure user mode is activated the first time after installation, the
user is prompted to change the passwords for all user accounts in order to
improve system security.
For details see chapter 2.7, "Protecting Data Using the Secure User Mode",
on page 31.
For the administrator account, an automatic login function is active by default. If
activated, login is carried out automatically for the administrator (with full access)
Windows Operating System

Preparing for Use
R&S®FSW
20Getting Started 1312.9420.02 ─ 15
in the background when the R&S FSW is started, without having to enter a pass-
word.
Some administrative tasks require administrator rights (e.g. the configuration of a
LAN network). Refer to the description of the basic instrument setup (SETUP
menu) to find out which functions are affected.
2.2.3.1 The Automatic Login Function
Deactivating the automatic login function
When shipped, the instrument is already configured to automatically log on under
Windows 7. To deactivate the automatic login function, perform the following
steps:
1.
Select the "Windows" icon in the toolbar to access the operating system of the
R&S FSW (see also chapter 2.2.4, "Accessing the Start Menu",
on page 21).
2. In the "Start" menu, select "Run".
The "Run" dialog box is displayed.
3. Enter the command C:\R_S\INSTR\USER\NO_AUTOLOGIN.REG.
4. Press the ENTER key to confirm.
The automatic login function is deactivated. The next time you switch on the
instrument, you are prompted to enter your user name and password before
the firmware is started.
Reactivating the automatic login function
1. In the "Start" menu, select "Run".
The "Run" dialog box is displayed.
2. Enter the command C:\R_S\INSTR\USER\AUTOLOGIN.REG.
3. Press the ENTER key to confirm.
The automatic login function is reactivated. It will be applied the next time the
instrument is switched on.
Windows Operating System
