Rohde & Schwarz SMCVB-K168 User manual

R&S®SMCVB-K168
DVB-S2
User Manual
1179106402
Version 03
(;Ý:Î2)

This document describes the following software option:
●R&S®SMCVB-K168 DVB-S2x (1434.3919.xx)
This manual describes firmware version FW 4.90.002.xx and later of the R&S®SMCV100B.
© 2021 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1179.1064.02 | Version 03 | R&S®SMCVB-K168
The following abbreviations are used throughout this manual: R&S®SMCV100B is abbreviated as R&S SMCVB, R&S®WinIQSIM2 is
abbreviated as R&S WinIQSIM2

Contents
R&S®SMCVB-K168
3User Manual 1179.1064.02 ─ 03
Contents
1 Welcome to the DVB-S2x Option..........................................................5
1.1 Accessing the DVB-S2x Dialog....................................................................................5
1.2 Documentation Overview............................................................................................. 5
1.2.1 Getting Started Manual................................................................................................... 5
1.2.2 User Manuals and Help...................................................................................................6
1.2.3 Service Manual............................................................................................................... 6
1.2.4 Instrument Security Procedures......................................................................................6
1.2.5 Printed Safety Instructions.............................................................................................. 6
1.2.6 Data Sheets and Brochures............................................................................................ 6
1.2.7 Release Notes and Open Source Acknowledgment (OSA)............................................ 7
1.2.8 Application Notes, Application Cards, White Papers, etc................................................7
1.3 Scope............................................................................................................................. 7
1.4 Notes on Screenshots.................................................................................................. 7
2 About the DVB-S2x Option....................................................................9
2.1 Required Options.......................................................................................................... 9
3 DVB-S2 Configuration and Settings...................................................10
3.1 General Settings..........................................................................................................10
3.2 Input Signal Settings.................................................................................................. 15
3.2.1 General Settings........................................................................................................... 16
3.2.2 Info................................................................................................................................ 18
3.2.3 Test Signal Settings.......................................................................................................20
3.2.4 IP Channnel x Settings..................................................................................................22
3.3 Coding Settings...........................................................................................................25
3.3.1 General Settings........................................................................................................... 26
3.3.2 IS1/TSL1 Settings......................................................................................................... 29
3.3.3 IS 2 - x Settings.............................................................................................................35
3.3.4 TSL 2 - x Settings..........................................................................................................36
3.4 Special Settings.......................................................................................................... 37
3.5 Global Connector Settings.........................................................................................39
3.6 TS Player......................................................................................................................39
3.6.1 TS Player Settings........................................................................................................ 40

Contents
R&S®SMCVB-K168
4User Manual 1179.1064.02 ─ 03
3.6.2 Player Output Settings.................................................................................................. 43
3.6.2.1 General Settings........................................................................................................... 44
3.6.2.2 Stuffing Settings............................................................................................................ 45
3.6.3 Seamless Loop Settings............................................................................................... 47
3.7 Local IP Data Network Settings................................................................................. 48
4 Performing DVB-S2x Signal Generation Tasks................................. 51
4.1 Configuring the Input Signal......................................................................................51
4.1.1 How to Apply an External IP Input Signal..................................................................... 51
4.1.2 How to Apply an External TS Input Signal.................................................................... 54
4.1.3 How to Generate an Internal TS Signal........................................................................ 55
4.2 Monitoring the Input Signal........................................................................................56
4.2.1 How to Monitor External IP Input Data..........................................................................56
4.2.2 How to Monitor an External TS Input Signal................................................................. 57
4.2.3 How to Monitor an Internal TS Player Signal................................................................ 57
5 Remote-Control Commands............................................................... 58
5.1 General Commands.................................................................................................... 59
5.2 Input Commands.........................................................................................................61
5.2.1 General Commands...................................................................................................... 61
5.2.2 Info Commands.............................................................................................................62
5.2.3 Test Signal Commands................................................................................................. 64
5.2.4 IP Subsystem................................................................................................................ 65
5.3 Coding Commands..................................................................................................... 69
5.3.1 General Commands...................................................................................................... 69
5.3.2 TSL Commands............................................................................................................ 70
5.4 Special Commands..................................................................................................... 72
5.5 TSGen Subsystem...................................................................................................... 73
5.6 BCIP Subsystem......................................................................................................... 81
Glossary: Abbreviations......................................................................85
Glossary: Specifications..................................................................... 87
List of commands................................................................................ 88
Index......................................................................................................90

Welcome to the DVB-S2x Option
R&S®SMCVB-K168
5User Manual 1179.1064.02 ─ 03
1 Welcome to the DVB-S2x Option
The R&S SMCVB-K168 is a firmware application that adds functionality to generate
signals in accordance with the DVB-S2x digital standard.
The R&S SMCVB-K168 option features:
●DVB-S2 signal generation
●DVB-S2x signal generation
This user manual contains a description of the functionality that the application pro-
vides, including remote control operation.
All functions not discussed in this manual are the same as in the base unit and are
described in the R&S SMCV100B user manual. The latest version is available at:
www.rohde-schwarz.com/manual/SMCV100B
Installation
You can find detailed installation instructions in the delivery of the option or in the
R&S SMCV100B service manual.

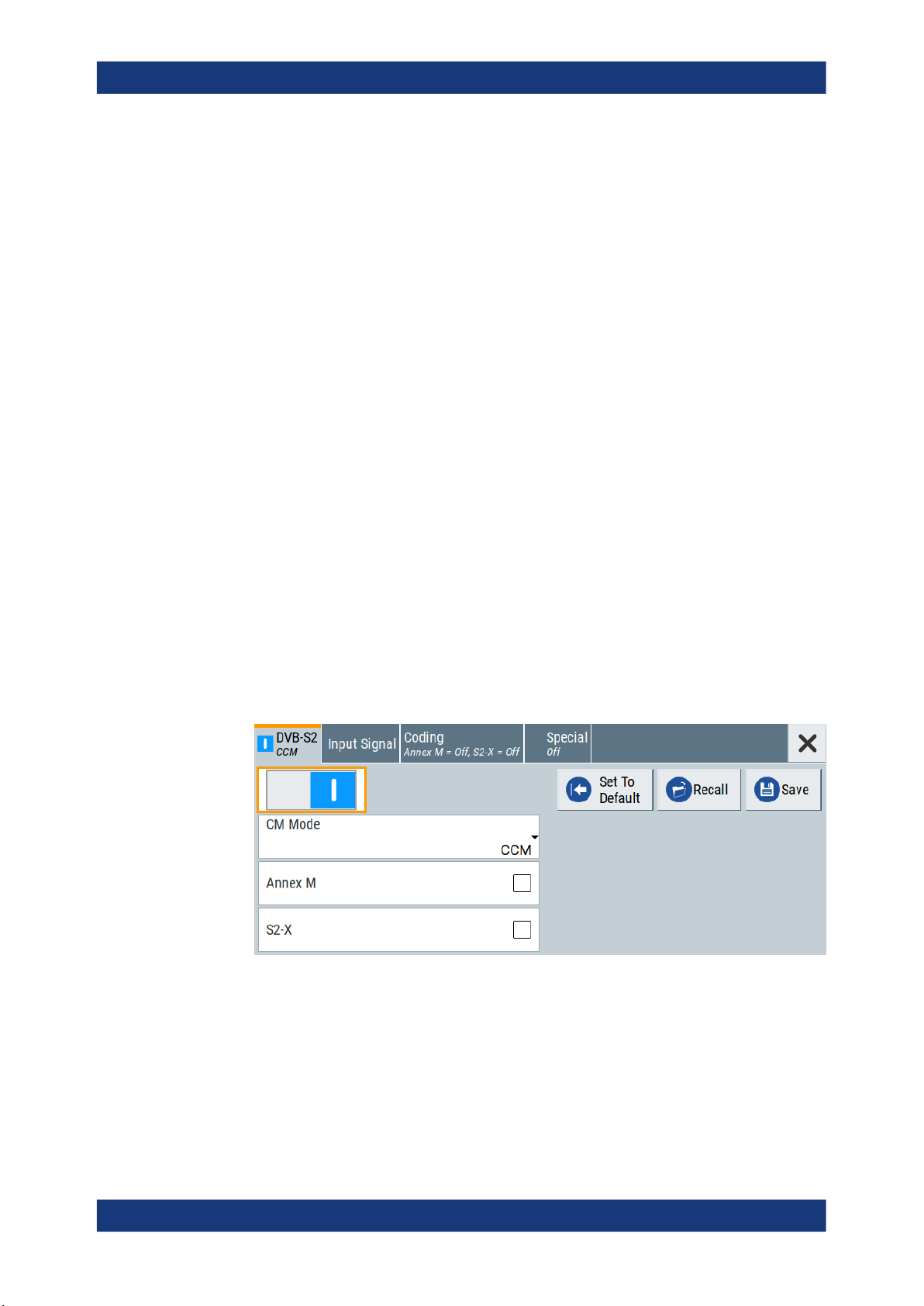

1.1 Accessing the DVB-S2x Dialog
To open the dialog with DVB-S2x settings
► In the block diagram of the R&S SMCV100B, select "Baseband > DVB-S2".
A dialog box opens that displays the provided general settings.
The signal generation is not started immediately. To start signal generation with the
default settings, select "State > On".
1.2 Documentation Overview
This section provides an overview of the R&S SMCV100B user documentation. Unless
specified otherwise, you find the documents on the R&S SMCV100B product page at:
www.rohde-schwarz.com/manual/smcv100b
1.2.1 Getting Started Manual
Introduces the R&S SMCV100B and describes how to set up and start working with the
product. Includes basic operations, typical measurement examples, and general infor-
mation, e.g. safety instructions, etc. A printed version is delivered with the instrument.
Documentation Overview

Welcome to the DVB-S2x Option
R&S®SMCVB-K168
6User Manual 1179.1064.02 ─ 03
1.2.2 User Manuals and Help
Separate manuals for the base unit and the software options are provided for down-
load:
●Base unit manual
Contains the description of all instrument modes and functions. It also provides an
introduction to remote control, a complete description of the remote control com-
mands with programming examples, and information on maintenance, instrument
interfaces and error messages. Includes the contents of the getting started manual.
●Software option manual
Contains the description of the specific functions of an option. Basic information on
operating the R&S SMCV100B is not included.
The contents of the user manuals are available as help in the R&S SMCV100B. The
help offers quick, context-sensitive access to the complete information for the base unit
and the software options.
All user manuals are also available for download or for immediate display on the Inter-
net.
1.2.3 Service Manual
Describes the performance test for checking compliance with rated specifications, firm-
ware update, troubleshooting, adjustments, installing options and maintenance.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS):
https://gloris.rohde-schwarz.com
1.2.4 Instrument Security Procedures
Deals with security issues when working with the R&S SMCV100B in secure areas. It
is available for download on the Internet.
1.2.5 Printed Safety Instructions
Provides safety information in many languages. The printed document is delivered with
the product.
1.2.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S SMCV100B. It also
lists the options and their order numbers and optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
Documentation Overview

Welcome to the DVB-S2x Option
R&S®SMCVB-K168
7User Manual 1179.1064.02 ─ 03
See www.rohde-schwarz.com/brochure-datasheet/smcv100b
1.2.7 Release Notes and Open Source Acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The open-source acknowledgment document provides verbatim license texts of the
used open source software.
See www.rohde-schwarz.com/firmware/smcv100b
1.2.8 Application Notes, Application Cards, White Papers, etc.
These documents deal with special applications or background information on particu-
lar topics.
See www.rohde-schwarz.com/application/smcv100b
1.3 Scope
Tasks (in manual or remote operation) that are also performed in the base unit in the
same way are not described here.
In particular, it includes:
●Managing settings and data lists, like saving and loading settings, creating and
accessing data lists, or accessing files in a particular directory.
●Information on regular trigger, marker and clock signals and filter settings, if appro-
priate.
●General instrument configuration, such as checking the system configuration, con-
figuring networks and remote operation
●Using the common status registers
For a description of such tasks, see the R&S SMCV100B user manual.
1.4 Notes on Screenshots
When describing the functions of the product, we use sample screenshots. These
screenshots are meant to illustrate as many as possible of the provided functions and
possible interdependencies between parameters. The shown values may not represent
realistic usage scenarios.
Notes on Screenshots

Welcome to the DVB-S2x Option
R&S®SMCVB-K168
8User Manual 1179.1064.02 ─ 03
The screenshots usually show a fully equipped product, that is: with all options instal-
led. Thus, some functions shown in the screenshots may not be available in your par-
ticular product configuration.
Notes on Screenshots

About the DVB-S2x Option
R&S®SMCVB-K168
9User Manual 1179.1064.02 ─ 03
2 About the DVB-S2x Option
DVB-S2 is the second-generation DVB standards for satellite services. It has evolved
from DVB-S. Comparing DVB-S2 with DVB-S at the same transponder bandwidth and
EIRP shows the following. By using innovative and more efficient channel coding meth-
ods, combined with higher-order modulation modes, 30 % more data can be transmit-
ted with DVB-S2.
DVB-S2 complies with specification EN 302 307.
2.1 Required Options
The equipment layout for generating DVB-S2x signals includes:
●Base unit
●Option Enable Broadcast Standard (R&S SMCVB-K519)
●Option DVB-S / DVB-S2 (R&S SMCVB-K167)
●Option DVB-S2x (R&S SMCVB-K168)
Required Options

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
10User Manual 1179.1064.02 ─ 03
3 DVB-S2 Configuration and Settings
Access:
► Select "Baseband > DVB-S2".
This section provides an overview on the DVB-S2x settings.
The remote commands required to define these settings are described in Chapter 5,
"Remote-Control Commands", on page 58.
Settings:
●General Settings..................................................................................................... 10
●Input Signal Settings............................................................................................... 15
●Coding Settings.......................................................................................................25
●Special Settings...................................................................................................... 37
●Global Connector Settings...................................................................................... 39
●TS Player................................................................................................................ 39
●Local IP Data Network Settings.............................................................................. 48
3.1 General Settings
Access:
► Select "Baseband > DVB-S2".
The tab provides functionality for calling default settings, save and recall settings.
Also it provides settings to set coding and modulation mode, S2x operation and
time-slicing as specified in annex M of specification EN 302 307.
Settings:
State.............................................................................................................................. 11
Set To Default................................................................................................................11
Save/Recall................................................................................................................... 11
General Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
11User Manual 1179.1064.02 ─ 03
CM Mode.......................................................................................................................11
Annex M........................................................................................................................13
S2-X.............................................................................................................................. 14
State
Activates the standard and deactivates all the other digital standards and digital modu-
lation modes in the same path.
Remote command:
[:SOURce<hw>]:BB:DVS2:STATe on page 59
Set To Default
Calls the default settings. The values of the main parameters are listed in the following
table.
Parameter Value
State Not affected by the "Set to Default"
Remote command:
[:SOURce<hw>]:BB:DVBS2:PRESet on page 59
Save/Recall
Accesses the "Save/Recall" dialog, that is the standard instrument function for saving
and recalling the complete dialog-related settings in a file. The provided navigation
possibilities in the dialog are self-explanatory.
The settings are saved in a file with predefined extension. You can define the filename
and the directory, in that you want to save the file.
See also, chapter "File and Data Management" in the R&S SMCV100B user manual.
Remote command:
[:SOURce<hw>]:BB:DVBS2:SETTing:CATalog on page 59
[:SOURce<hw>]:BB:DVBS2:SETTing:DELete on page 59
[:SOURce<hw>]:BB:DVBS2:SETTing:LOAD on page 60
[:SOURce<hw>]:BB:DVBS2:SETTing:STORe on page 60
CM Mode
Sets the coding and modulation (CM) mode.
General Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
12User Manual 1179.1064.02 ─ 03
Figure 3-1: CM mode block diagram
Example: VCM merger cycle with 3 input streams
BB frame #1: IS 1, settings of IS 1, padding to complete BB frame #1.
BB frame #2: IS 2, settings of IS 2, padding to complete BB frame #2.
BB frame #3: IS 3, settings of IS 3, padding to complete BB frame #3.
BB frame #4: IS 1, .... (next merger cycle)
Figure 3-2: VCM multiple input stream (timing diagram)
"CCM" Constant coding and modulation (CCM). Uses one input stream. PCR
correction is active.
General Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
13User Manual 1179.1064.02 ─ 03
"ACM" Variable coding and modulation. Changes of settings are executed
seamlessly at the end of a complete PL frame.
"VCM" Enables multiple input streams (MIS).
Depending on the Num. Input Streams, you can set the input signal
parameters individually for 2 input streams. For all other input
streams, test TS packets are used. All input streams are using differ-
ent PIDs for the TS test packets.
Thus, you can perform a BER measurement on every input stream, if
the PID filter of the BER measurement is enabled. For input stream 1,
set the PID of the TS test packets, see " PID (Hex) " on page 21.
For all subsequent input streams, the PID is derived from its prede-
cessor by subtracting 1.
Example:
For input stream 1, set "PID > 1FFF" (0x1FFF). The PIDs of the other
input streams (IS) are as follows: IS2: 0x1FFE, IS3: 0x1FFD,
IS4: 0x1FFC, IS5: 0x1FFB, IS6: 0x1FFA, IS7: 0x1FF9, IS8: 0x1FF8.
After completing one BB frame, the next input stream is used to fill
one BB frame.
If necessary, padding is performed to complete the BB frame. A new
BB frame uses the next input stream. After the last input stream, a
new merger cycle starts, and the next BB frame uses input stream 1.
Remote command:
[:SOURce<hw>]:BB:DVBS2[:INPut]:CMMode on page 61
Annex M
Enables the annex M features as specified in EN 302 307. Depending on this setting, a
different PL header is used.

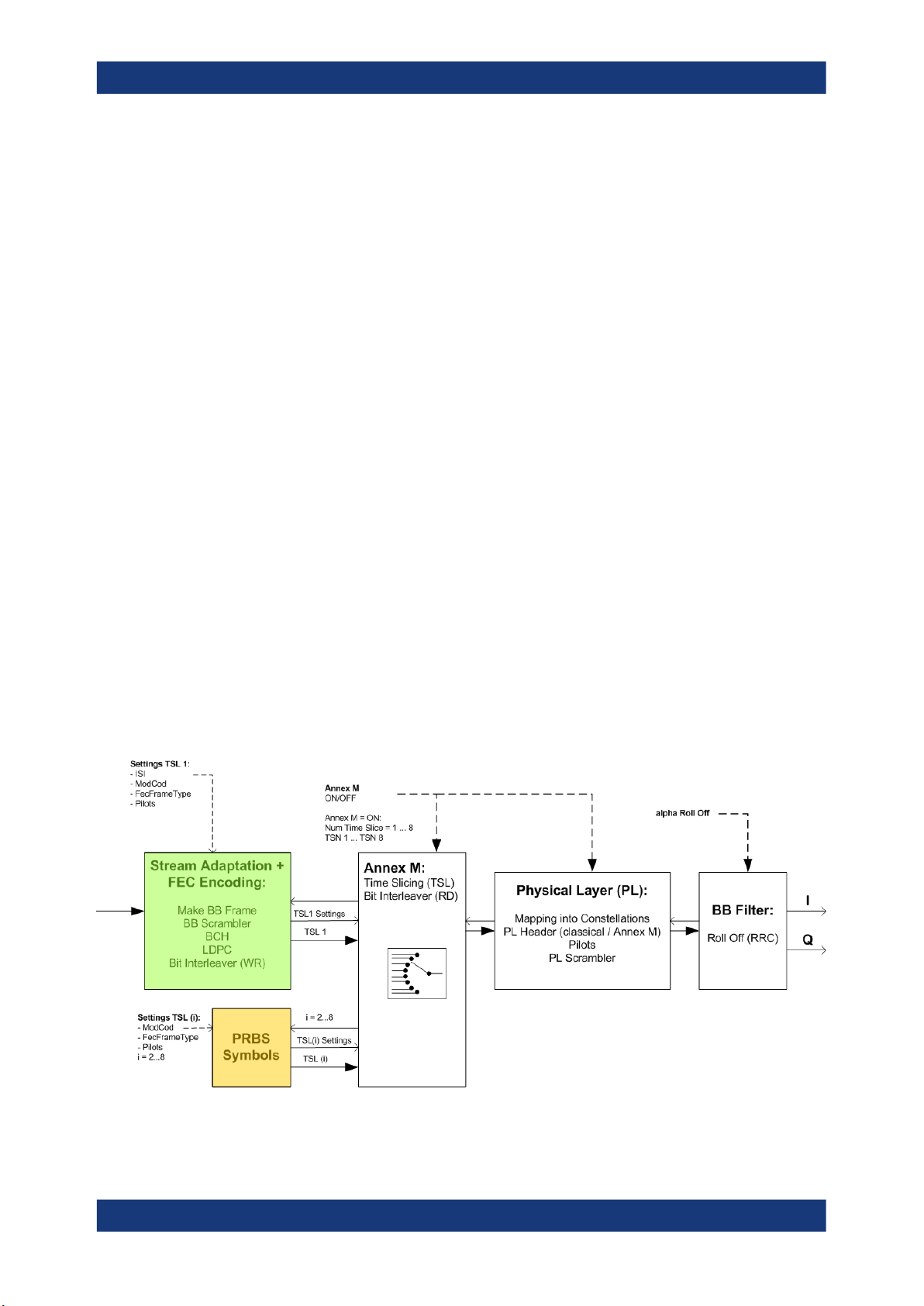

Figure 3-3: Annex M block diagram
General Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
14User Manual 1179.1064.02 ─ 03
Example: Annex M with 3 time slices
Time slice #1: TSN 1, data symbols from FEC encoding
Time slice #2: TSN 2, PRBS data symbols
Time slice #3: TSN 3, PRBS data symbols
Time slice #4: TSN 1, data symbols from FEC encoding .... (next time slice cycle)
Figure 3-4: Annex M time slicing (timing diagram)
"On" Time-slicing can be activated and more modulation coding settings
can be signaled.
"Off" No time-slicing.
Remote command:
[:SOURce<hw>]:BB:DVBS2:ANNM on page 69
S2-X
Enables S2-X features.
For DVB-S2-X, additional modulation coding settings are defined to obtain a finer SNR
granularity compared to classical S2 modulation coding:
●Clear sky conditions (e.g. 256 APSK)
●Linear channel models (marked with"-L")
●Very low SNR conditions (VL-SNR)
●...
Related to a DVB-S2-X modulation coding setting is a corresponding LDPC code rate
and a FEC frame type. If the order of the modulation coding is higher than QPSK, a bit
interleaver pattern is related to this modulation coding setting.
Note: VL-SNR modulation coding, super frame and channel bonding are released in a
later version.
Remote command:
[:SOURce<hw>]:BB:DVBS2:S2X on page 60
General Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
15User Manual 1179.1064.02 ─ 03
3.2 Input Signal Settings
Access:
► Select "Baseband > DVB-S2 > Input Signal".
The dialog provides access to settings necessary to configure the input signal.
Input signal tasks
The settings allow you to perform the following tasks:
●Selecting an MPEG TS source
●Displaying information about the selected MPEG TS (e.g. data rate)
●Configuring the internal MPEG TS test packets or internal IP test packets
●Selecting the CM mode. If "CM Mode > VCM", you can also select the number of
input streams.
How to: Chapter 4.1, "Configuring the Input Signal", on page 51.
Common input signal settings
The setting of the following parameters is used for all broadcast standards.
●"Source"
●"Input/Input Type"
●"IP TS Channel"
Settings:
●General Settings..................................................................................................... 16
●Info.......................................................................................................................... 18
●Test Signal Settings.................................................................................................20
●IP Channnel x Settings............................................................................................22
Input Signal Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
16User Manual 1179.1064.02 ─ 03
3.2.1 General Settings
Access:
► Select "Input Signal > General".
The tab provides general settings necessary to configure the input signal.
Settings:
Num. Input Streams...................................................................................................... 16
Source ..........................................................................................................................16
Input ............................................................................................................................. 17
Input Format..................................................................................................................17
IP TS Channel...............................................................................................................17
Stuffing.......................................................................................................................... 18
Test Signal.....................................................................................................................18
Num. Input Streams
Requires "CM Mode > VCM".
Sets the number of input streams. Maximum 8 input streams are possible.
You can configure the first 2 input streams individually. All other input streams are
using test TS packets.
Remote command:
[:SOURce<hw>]:BB:DVBS2[:INPut]:NIS on page 61
Source
Sets the modulation source for the input signal.
Note: If "CCM > VCM", you can set this parameter for 2 input streams individually. The
source of all other input streams is automatically set to "Test Signal".
Input Signal Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
17User Manual 1179.1064.02 ─ 03
"External" Uses a transport stream, that is input at the "TS IN"/"IP Data" inter-
face.
For more information about connecting to the interfaces, see also:
●"TS IN" interface: Section "Configuring the Global Connectors" in
the R&S SMCV100B user manual.
●"IP Data" interface: Chapter 3.7, "Local IP Data Network Set-
tings", on page 48.
"TS Player" Uses an internal transport stream with TS packet data played from a
file. The player requires no option.
Playing encrypted files with extension _c requires a stream library
option R&S SMCVB-KSx.
See also:
●Chapter 3.6, "TS Player", on page 39
●Supported TS player file types
"Test Signal" Uses an internal test signal as specified in Chapter 3.2.3, "Test Signal
Settings", on page 20.
Remote command:
[:SOURce<hw>]:BB:DVBS2:SOURce on page 61
Input
Requires "Source > External".
Sets the external input interface.
"TS IN" Input for serial transport stream data. The signal is input at the "User
1" connector.
"IP" Input for IP-based transport stream data (TSoverIP). The signal is
input at the "IP Data" connector.
Remote command:
[:SOURce<hw>]:BB:DVBS2:INPut[:IS<ch>] on page 62
Input Format
Requires "Source > External" and "Input > TS IN".
Sets the format of the input signal.
"ASI" ASI format
"SMPTE 310" SMPTE 310 format
Remote command:
[:SOURce<hw>]:BB:DVBS2:INPut[:IS<ch>]:FORMat on page 62
IP TS Channel
Requires "Source > External" and "Input > IP".
Selects the IP-based transport stream (TS) channel. You can select 1 out of 4 IP TS
channels as input at the "IP Data" interface.
To configure a particular channel, see Chapter 3.2.4, "IP Channnel x Settings",
on page 22.
Remote command:
[:SOURce<hw>]:BB:DVBS2:INPut[:IS<ch>]:TSCHannel on page 62
Input Signal Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
18User Manual 1179.1064.02 ─ 03
Stuffing
Requires "Source > External/TS Player" and "CM Mode > CCM/ACM".
Activates stuffing.
"On" The installed input interface provides the transport stream data rate
required for the current modulation parameters (regardless of the
input data rate of the external transport stream).
The setting is fixed.
"Off" Not available if "CM Mode > VCM".
The data rate of the transport stream source must match the data
rate required for the current modulation parameters.
The value equals the "Max. Useful Data Rate" on page 19.
Remote command:
[:SOURce<hw>]:BB:DVBS2[:IS<ch>]:STUFfing on page 62
Test Signal
Requires "Source > Test Signal".
Defines the test signal data.
The data consists of test TS packets.
"Test TS Packet"
Standardized packet data used as modulation data in the transport
stream. To configure the packet structure, select the side tab "Test
Signal > Test TS Packet".
See also " Test TS Packet " on page 21.
Remote command:
[:SOURce<hw>]:BB:DVBS2[:IS<ch>]:TESTsignal on page 64

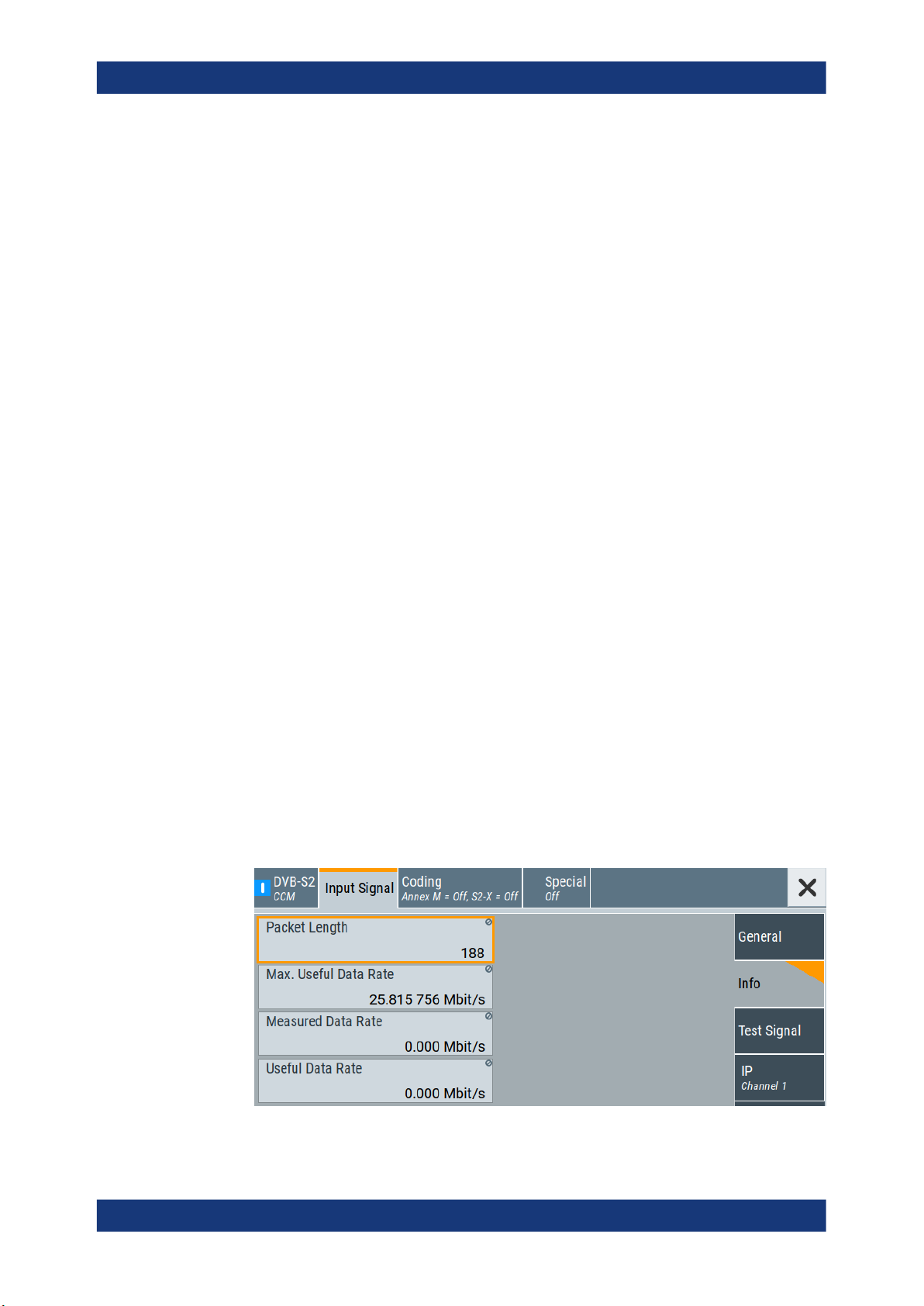

3.2.2 Info
Access:
► Select "Input Signal > Info".
The tab displays information on the input signal.
Input Signal Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
19User Manual 1179.1064.02 ─ 03
The displayed information depends on the coding and modulation mode:
●"CM Mode > CCM/ACM": Single input stream information.
●"CM Mode > VCM": Multiple input stream information displayed in the "Input
Stream <num>" table.
See "Input Stream <num> table" on page 19.
Settings:
Input Stream <num> table.............................................................................................19
└Packet Length ................................................................................................19
└Max. Useful Data Rate....................................................................................19
└Measured Data Rate ......................................................................................20
└Useful Data Rate ............................................................................................20
Input Stream <num> table
Displays individual parameters for each input stream <num>. The table displays infor-
mation of up to 8 input streams with <num> ranging from 1 to 8.
For 2 input streams, you can set and read the input signal parameters individually. For
all other input streams, the source is fixed to "Test Signal" and only displayed in the
table.
Packet Length ← Input Stream <num> table
Requires "Source > External".
Displays the packet length of the external transport stream in bytes.
If the packet length does not match the specified length, the output signal is erroneous.
"Packet Length > Invalid" is displayed.
"188" 188 byte packets specified for serial input ("Input > TS IN") and paral-
lel input ("Input > IP").
If stuffing is disabled, only this value is allowed.
"204" 204 byte packets specified for serial input and parallel input.
"Invalid" Packet length does not match the specified length.
Remote command:
[:SOURce<hw>]:BB:DVBS2[:IS<ch>]:PACKetlength? on page 63
Max. Useful Data Rate ← Input Stream <num> table
Requires "Source > External/TS Player".
Displays the maximum data rate, that is derived from the current modulation parameter
settings.
The value is the optimal value at the TS input interface, that is necessary for the modu-
lator.
If "Stuffing > On", the value indicates the maximum useful data rate, that is allowed in
the transport stream.
If "Stuffing > Off", the value indicates the transport stream input data rate that is
required for the transport stream.
Remote command:
[:SOURce<hw>]:BB:DVBS2[:IS<ch>]:USEFul[:RATE]:MAX? on page 63
Input Signal Settings

DVB-S2 Configuration and Settings
R&S®SMCVB-K168
20User Manual 1179.1064.02 ─ 03
Measured Data Rate ← Input Stream <num> table
Requires "Source > External".
Displays the measured value of the data rate rmeas of one of the following:
●External transport stream including null packets input at "User 1" connector
●External transport stream including null packets input at "IP Data/LAN" connector
(TSoverIP)
The value rmeas equals the sum of useful data rate ruseful and the rate of null packets r0:
If "Stuffing > Off", ensure that the measured data rate equals the maximum useful data
rate (rmeas = rmax. useful).
Remote command:
[:SOURce<hw>]:BB:DVBS2[:INPut][:IS<ch>]:DATarate? on page 64
Useful Data Rate ← Input Stream <num> table
Requires "Source > External/TS Player".
Displays the data rate of useful data ruseful of the external transport stream. The data
rate is measured at the input of the installed input interface.
Remote command:
[:SOURce<hw>]:BB:DVBS2[:IS<ch>]:USEFul[:RaTE] on page 63
3.2.3 Test Signal Settings
Access:
► Select "Input Signal > Test Signal".
The tab provides settings necessary to configure the input test signal.
Input Signal Settings
