Rohde & Schwarz SMW-K141 User manual

R&S®SMW-K141/-K177
IEEE 802.11ad/ay
User Manual
1178260902
Version 13
(;ÜJ92)

This document describes the following software options:
●R&S®SMW-K141 IEEE 802.11ad (1413.1333.xx)
●R&S®SMW-K177 IEEE 802.11ay (1434.8191.xx)
This manual describes firmware version FW 5.20.043.xx and later of the R&S®SMW200A.
© 2023 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Muenchen, Germany
Phone: [phone] - 0
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
All other trademarks are the properties of their respective owners.
1178.2609.02 | Version 13 | R&S®SMW-K141/-K177
The following abbreviations are used throughout this manual: R&S®SMW200A is abbreviated as R&S SMW, R&S®WinIQSIM2 is
abbreviated as R&S WinIQSIM2; the license types 02/03/07/11/13/16/12 are abbreviated as xx.

Contents
R&S®SMW-K141/-K177
3User Manual 1178.2609.02 ─ 13
Contents
1 Welcome to the IEEE 802.11ad/ay options.......................................... 7
1.1 Accessing the IEEE 802.11ad/ay dialog...................................................................... 7
1.2 What's new.....................................................................................................................8
1.3 Documentation overview..............................................................................................8
1.3.1 Getting started manual....................................................................................................8
1.3.2 User manuals and help................................................................................................... 8
1.3.3 Tutorials...........................................................................................................................9
1.3.4 Service manual............................................................................................................... 9
1.3.5 Instrument security procedures.......................................................................................9
1.3.6 Printed safety instructions............................................................................................... 9
1.3.7 Data sheets and brochures............................................................................................. 9
1.3.8 Release notes and open source acknowledgment (OSA).............................................. 9
1.3.9 Application notes, application cards, white papers, etc.................................................10
1.3.10 Videos........................................................................................................................... 10
1.4 Scope........................................................................................................................... 10
1.5 Notes on screenshots.................................................................................................10
2 About the IEEE 802.11ad/ay options.................................................. 12
2.1 Required options.........................................................................................................12
2.2 About IEEE 802.11ad...................................................................................................13
2.2.1 DMG control PHY mode................................................................................................14
2.2.2 DMG SC PHY............................................................................................................... 14
2.3 About IEEE 802.11ay...................................................................................................15
2.3.1 EDMG and non-EDMG format...................................................................................... 16
2.3.2 Channelization.............................................................................................................. 20
2.3.3 MIMO and beamforming............................................................................................... 20
2.3.4 EDMG and non-EDMG control mode............................................................................21
2.3.5 EDMG and non-EDMG SC mode................................................................................. 23
3 802.11ad/ay common settings............................................................ 27
3.1 General settings.......................................................................................................... 27
3.2 Frame configuration................................................................................................... 30
3.3 Data settings................................................................................................................31

Contents
R&S®SMW-K141/-K177
4User Manual 1178.2609.02 ─ 13
3.4 A-MPDU settings......................................................................................................... 32
3.5 MAC header and FCS settings...................................................................................34
4 802.11ad configuration and settings..................................................39
4.1 PPDU configuration.................................................................................................... 39
4.1.1 General settings............................................................................................................ 39
4.1.2 Header settings............................................................................................................. 42
5 802.11ay configuration and settings.................................................. 45
5.1 General settings.......................................................................................................... 45
5.2 PPDU configuration (frame block 1)..........................................................................46
5.2.1 General settings............................................................................................................ 46
5.2.2 User Configuration settings...........................................................................................55
5.3 PPDU configuration per user..................................................................................... 56
5.3.1 General settings............................................................................................................ 56
5.3.2 Data settings................................................................................................................. 58
5.3.3 MAC header and FCS settings..................................................................................... 58
6 Signal generation control....................................................................59
6.1 Filter/clipping settings................................................................................................59
6.1.1 Filter settings.................................................................................................................59
6.1.2 Clipping settings............................................................................................................61
6.2 Trigger settings........................................................................................................... 62
6.3 Marker settings............................................................................................................67
6.4 Clock settings..............................................................................................................69
6.5 Local and global connectors settings.......................................................................69
7 Remote-control commands.................................................................70
7.1 General commands.....................................................................................................71
7.2 Filter/clipping commands...........................................................................................74
7.3 Trigger settings........................................................................................................... 77
7.4 Marker settings............................................................................................................82
7.5 Clock commands........................................................................................................ 86
7.6 802.11ad frame configuration commands................................................................ 87
7.6.1 General commands.......................................................................................................87
7.6.2 Frame block PPDU configuration..................................................................................88

Contents
R&S®SMW-K141/-K177
5User Manual 1178.2609.02 ─ 13
7.6.3 Frame block MPDU configuration................................................................................. 93
7.6.4 MAC header configuration............................................................................................ 95
7.7 802.11ay frame configuration commands.................................................................99
7.7.1 EDMG general commands..........................................................................................101
7.7.2 L-Header commands...................................................................................................102
7.7.3 EDMG-Header-A commands...................................................................................... 103
7.7.4 EDMG-Header-B commands...................................................................................... 108
7.7.5 User commands.......................................................................................................... 109
Glossary: List of terms and abbreviations.......................................111
Glossary: IEEE 802.11ad/ay references........................................... 112
List of commands...............................................................................113
Index....................................................................................................116

Contents
R&S®SMW-K141/-K177
6User Manual 1178.2609.02 ─ 13

Welcome to the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
7User Manual 1178.2609.02 ─ 13
1 Welcome to the IEEE 802.11ad/ay options
The options R&S SMW-K141 and R&S SMW-K177 are firmware applications that add
functionality to generate signals in accordance with the wireless LAN standards
IEEE 802.11ad and IEEE 802.11ay.
R&S SMW-K141 key features
●Support of directional multi-Gigabit (DMG) Single Carrier (SC) PHY
●Configurable PPDU with the support of all modulation and coding schemes
●Configurable MAC header and FCS
R&S SMW-K177 key features
●Support of Enhanced directional multi-Gigabit (EDMG) Single Carrier (SC) PHY:
– EDMG SC 2.16 GHz PPDU with modulation and coding schemes (MCS) 1 to
21 (transmit and receive)
– EDMG SC 4.32 GHz PPDU with MCS 1 to 21 (transmit and receive)
●Single spatial stream (transmit and receive) in all channel widths that the EDMG
STA supports
●Short, normal and long guard interval
This user manual contains a description of the functionality that the application pro-
vides, including remote control operation.
All functions not discussed in this manual are the same as in the base unit and are
described in the R&S SMW user manual. The latest version is available at:
www.rohde-schwarz.com/manual/SMW200A
Installation
You can find detailed installation instructions in the delivery of the option or in the
R&S SMW service manual.
1.1 Accessing the IEEE 802.11ad/ay dialog
To open the dialog with IEEE 802.11ad/ay settings
► In the block diagram of the R&S SMW, select "Baseband > IEEE 802.11ad/ay".
A dialog box opens that displays the provided general settings.
The signal generation is not started immediately. To start signal generation with the
default settings, select "State > On".
Accessing the IEEE 802.11ad/ay dialog

Welcome to the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
8User Manual 1178.2609.02 ─ 13
1.2 What's new
This manual describes firmware version FW 5.20.043.xx and later of the
R&S®SMW200A.
Compared to the previous version, it provides the new features listed below:
●IEEE 802.11ay signal generation, see Chapter 2.3, "About IEEE 802.11ay",
on page 15.
●EDMG single carrier PHY format, see Chapter 5.1, "General settings",
on page 45.
●EDMG PPDU configuration per frame block, see Chapter 5.2, "PPDU configuration
(frame block 1)", on page 46.
●EDMG PPDU configuration for single user (SU), see Chapter 5.3, "PPDU configu-
ration per user", on page 56.
●Editorial changes
1.3 Documentation overview
This section provides an overview of the R&S SMW user documentation. Unless speci-
fied otherwise, you find the documents at:
www.rohde-schwarz.com/manual/smw200a
1.3.1 Getting started manual
Introduces the R&S SMW and describes how to set up and start working with the prod-
uct. Includes basic operations, typical measurement examples, and general informa-
tion, e.g. safety instructions, etc. A printed version is delivered with the instrument.
1.3.2 User manuals and help
Separate manuals for the base unit and the software options are provided for down-
load:
●Base unit manual
Contains the description of all instrument modes and functions. It also provides an
introduction to remote control, a complete description of the remote control com-
mands with programming examples, and information on maintenance, instrument
interfaces and error messages. Includes the contents of the getting started manual.
●Software option manual
Contains the description of the specific functions of an option. Basic information on
operating the R&S SMW is not included.
The contents of the user manuals are available as help in the R&S SMW. The help
offers quick, context-sensitive access to the complete information for the base unit and
the software options.
Documentation overview

Welcome to the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
9User Manual 1178.2609.02 ─ 13
All user manuals are also available for download or for immediate display on the Inter-
net.
1.3.3 Tutorials
The R&S SMW provides interactive examples and demonstrations on operating the
instrument in form of tutorials. A set of tutorials is available directly on the instrument.
1.3.4 Service manual
Describes the performance test for checking compliance with rated specifications, firm-
ware update, troubleshooting, adjustments, installing options and maintenance.
The service manual is available for registered users on the global Rohde & Schwarz
information system (GLORIS):
https://gloris.rohde-schwarz.com
1.3.5 Instrument security procedures
Deals with security issues when working with the R&S SMW in secure areas. It is avail-
able for download on the internet.
1.3.6 Printed safety instructions
Provides safety information in many languages. The printed document is delivered with
the product.
1.3.7 Data sheets and brochures
The data sheet contains the technical specifications of the R&S SMW. It also lists the
options and their order numbers and optional accessories.
The brochure provides an overview of the instrument and deals with the specific char-
acteristics.
See www.rohde-schwarz.com/brochure-datasheet/smw200a
1.3.8 Release notes and open source acknowledgment (OSA)
The release notes list new features, improvements and known issues of the current
firmware version, and describe the firmware installation.
The software makes use of several valuable open source software packages. An open-
source acknowledgment document provides verbatim license texts of the used open
source software.
Documentation overview

Welcome to the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
10User Manual 1178.2609.02 ─ 13
See www.rohde-schwarz.com/firmware/smw200a
1.3.9 Application notes, application cards, white papers, etc.
These documents deal with special applications or background information on particu-
lar topics.
See www.rohde-schwarz.com/application/smw200a and www.rohde-schwarz.com/
manual/smw200a
1.3.10 Videos
Find various videos on Rohde & Schwarz products and test and measurement topics
on YouTube: https://www.youtube.com/@RohdeundSchwarz
On the menu bar, search for your product to find related videos.
Figure 1-1: Product search on YouTube
1.4 Scope
Tasks (in manual or remote operation) that are also performed in the base unit in the
same way are not described here.
In particular, it includes:
●Managing settings and data lists, like saving and loading settings, creating and
accessing data lists, or accessing files in a particular directory.
●Information on regular trigger, marker and clock signals and filter settings, if appro-
priate.
●General instrument configuration, such as checking the system configuration, con-
figuring networks and remote operation
●Using the common status registers
For a description of such tasks, see the R&S SMW user manual.
1.5 Notes on screenshots
When describing the functions of the product, we use sample screenshots. These
screenshots are meant to illustrate as many as possible of the provided functions and
Notes on screenshots

Welcome to the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
11User Manual 1178.2609.02 ─ 13
possible interdependencies between parameters. The shown values may not represent
realistic usage scenarios.
The screenshots usually show a fully equipped product, that is: with all options instal-
led. Thus, some functions shown in the screenshots may not be available in your par-
ticular product configuration.
Notes on screenshots

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
12User Manual 1178.2609.02 ─ 13
2 About the IEEE 802.11ad/ay options
The IEEE 802.11ad/ay options enable you to create signals according to the WLAN
standards IEEE Std 802.11ad™-2012 and IEEE Std 802.11ay™-2021. This section
lists required options and provides background information on IEEE 802.11ad/ay
WLAN technology for signal generation on the R&S SMW.
You can find a more detailed description of the technology in 1MA220, from which
parts of this description were taken.
2.1 Required options
Test setup with single R&S SMW instrument
The basic equipment layout for generating IEEE 802.11ad/ay signals with up to 2 GHz
RF bandwidth includes the following options:
●Wideband baseband generator (R&S SMW-B9)
●Wideband baseband main module (R&S SMW-B13XT)
●RF bandwidth options:
– Baseband extension to 1 GHz RF (R&S SMW-K525)
– Baseband extension to 2 GHz RF (R&S SMW-K527)
Requires option R&S SMW-K525.
●RF frequency 100 kHz to 67 GHz for RF path A (R&S SMW-B1067)
●Digital standard IEEE 802.11ad (R&S SMW-K141), per signal path
●Digital standard IEEE 802.11ay (R&S SMW-K177), per signal path
Requires option R&S SMW-K141.
Test setup with multiple R&S SMW instruments
The equipment layout for generating IEEE 802.11ay signals with up to 4 GHz RF band-
width requires multiple R&S SMW instruments equipped with the following options:
●R&S SMW basic equipment per instrument, see "Test setup with single R&S SMW
instrument" on page 12.
●Bandwidth Extension (R&S SMW-K555) per instrument
Requires R&S SMW-K525 and R&S SMW-K527 per instrument. Extends the RF
bandwidth to 4 GHz.
Test setup with R&S SMW and I/Q upconverter
Former IEEE 802.11ad test setups with an R&S SMW and an I/Q upconverter include
the following options:
●R&S SMW basic equipment, see "Test setup with single R&S SMW instrument"
on page 12.
●RF frequency R&S SMW-B1003)
Required options

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
13User Manual 1178.2609.02 ─ 13
●R&S SZU100A I/Q upconverter with optional equipment:
– Frequency option 57 GHz to 66 GHz, WR15 (R&S SZU-B1066)
– Optional USB+IQ cable, combined differential IQ/USB cable (R&S SZU-Z1)
– Optional, waveguide-coax-adapter WR15-1.85 (R&S WCA70) for cabled test
setups
– Optional, waveguide-to-waveguide adapter WR15, HP/A compatible (as test
port saver)
You can generate signals via play-back of waveform files at the signal generator. To
create the waveform file using R&S WinIQSIM2, you do not need a specific option.
To play back the waveform file at the signal generator, you have two options:
●Install the R&S WinIQSIM2 option of the digital standard, e.g. R&S SMW-K255 for
playing LTE waveforms
●If supported, install the real-time option of the digital standard, e.g. R&S SMW-K55
for playing LTE waveforms
For more information, see data sheet.
2.2 About IEEE 802.11ad
This chapter provides basic information of the IEEE 802.11ad technology. For related
information and further reading, see IEEE Std 802.11ad™-2012 standard specification.
Directional multi-gigabit (DMG) PHY modes
The R&S SMW-K141 option supports two modulation modes:
●DMG control PHY, see Chapter 2.2.1, "DMG control PHY mode", on page 14.
●DMG single carrier (SC) PHY, see Chapter 2.2.2, "DMG SC PHY", on page 14.
●DMG OFDM PHY is not supported.
All DMG PHYs use the same PPDU format, but they differ in how the individual fields
are defined as well as in the coding and modulation that is used.
DMG PPDU format

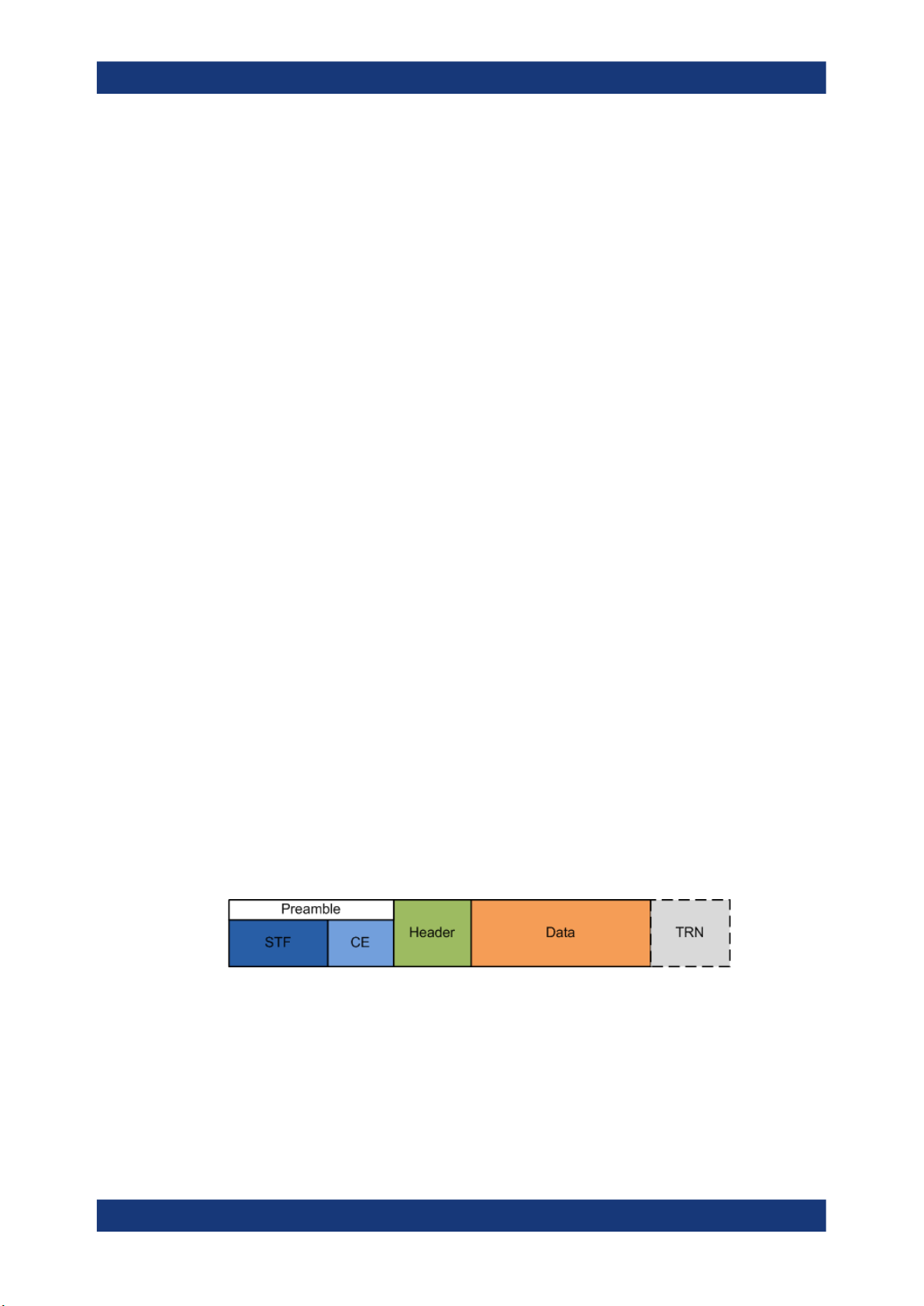

Figure 2-1: DMG PPDU format
The DMG PPDU consists of the following common parts:
●Preamble
The preamble consists of the short training field (STF) and the channel estimation
(CE) field. It is required in every packet. It supports the receiver during automatic
gain control (AGC), when recognizing the packet and estimating the frequency off-
set. The receiver can also use the known CE field to estimate the channel.
About IEEE 802.11ad

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
14User Manual 1178.2609.02 ─ 13
●Header
The header is different for every PHY and contains additional important information
for the receiver, such as the modulation mode (MCS), the length of the data field or
a checksum.
●Data
This part is used to transmit the actual data with different modulations (MCS). The
length of the field varies (number of bytes/octets).
●Training for beamforming (TRN)
An optional field that includes beamforming information and can be appended to all
packets.
2.2.1 DMG control PHY mode
The control mode is used to exchange signaling and/or control messages to establish
and monitor connections between the various devices. Support for this mode is there-
fore mandatory for all devices.

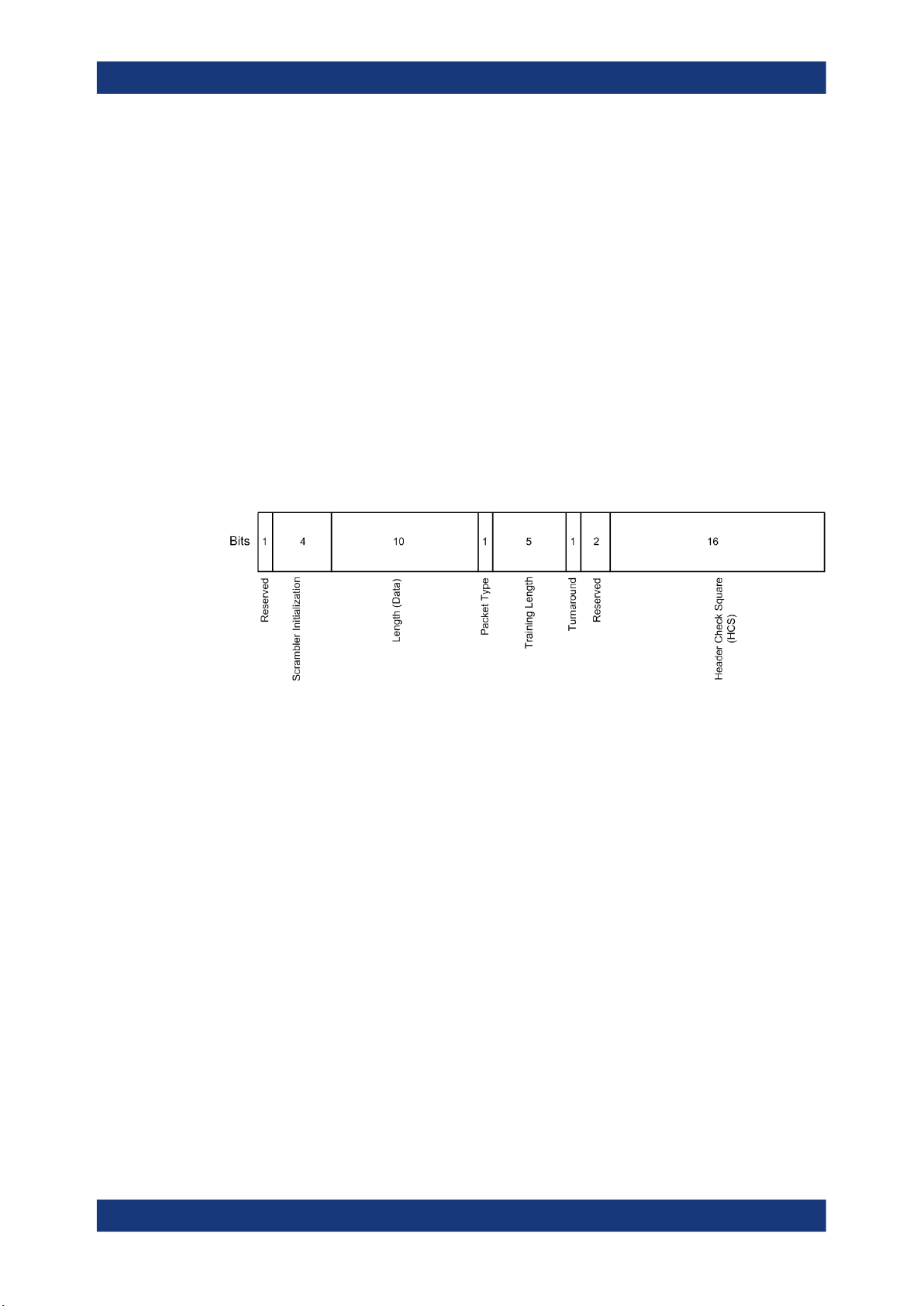

Figure 2-2: Control packet header
The control header is 40 bits long and includes the following fields:
●Scrambler initialization: provides the start point for the scrambler
●Length (data): specifies the length of the data field. For control, the range is 14
octets to 1023 octets.
●Packet type: specifies whether the beamforming training field is intended for the
receiver or the transmitter. It carries no information when "Training Length = 0"
●Training length: specifies whether a beamforming training field is used and if so,
how long it is
●HCS: provides a checksum per CRC for the header
2.2.2 DMG SC PHY
The single carrier (SC) mode supports data rates from 385 Mbit/s up to 4.620 Gbit/s.
About IEEE 802.11ad

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
15User Manual 1178.2609.02 ─ 13
Figure 2-3: Single carrier packet header
The header of the SC PHY mode is 64 bits long and includes the following fields:
●Scrambler initialization: provides the start point for the scrambler
●MCS: displays the modulation and coding scheme used in the data field
●Length (data): specifies the length of the data field. For control, the range is 1 octet
to 262143 octets
●Packet type: specifies whether the beamforming training field is intended for the
receiver or the transmitter. It carries no information when "Training Length = 0"
●Training length: specifies whether a beamforming training field is used and if so,
how long it is
●Tone pairing type: specifies the tone pairing used for MCS13 to 17
●Last RSSI: displays the power level of the last received field
●HCS: provides a checksum per CRC for the header
2.3 About IEEE 802.11ay
This chapter provides basic information of the IEEE 802.11ay technology. For related
information and further reading, see IEEE Std 802.11ay™-2021 standard specification.
Enhanced directional multi-gigabit (EDMG) PHY modes
The EDMG PHY modes are EDMG control, EDMG single carrier (SC) and EDMG
orthogonal frequency division multiplexing (OFDM) modes. The R&S SMW-K177
option supports EDMG single carrier (SC) PHY, see Chapter 2.3.5, "EDMG and non-
EDMG SC mode", on page 23.
The EDMG PHY adds support for multiple space-time streams, downlink multi-user
(MU) transmissions and PPDU transmissions with multiple channel bandwidths. These
bandwidths include 4.32 GHz, 6.48 GHz, 8.64 GHz, 2.16+2.16 GHz, and
4.32+4.32 GHz.
The channels making up a 2.16+2.16 GHz and 4.32+4.32 GHz PPDU transmission
can be contiguous or noncontiguous. The maximum number of spatial streams per
STA is eight. An MU PPDU transmission supports up to eight STAs. For
About IEEE 802.11ay

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
16User Manual 1178.2609.02 ─ 13
2.16+2.16 GHz and 4.32+4.32 GHz transmissions, the maximum number of spatial
streams in each 2.16 GHz channel and 4.32 GHz channel, respectively, is four.
●EDMG and non-EDMG format................................................................................ 16
●Channelization........................................................................................................ 20
●MIMO and beamforming......................................................................................... 20
●EDMG and non-EDMG control mode......................................................................21
●EDMG and non-EDMG SC mode........................................................................... 23
2.3.1 EDMG and non-EDMG format
EDMG PPDU format
All EDMG PHY modes have a single PPDU format. Figure 2-4 shows this EDMG
PPDU format and all possible fields. Transmission of these fields depends on the
PPDU type (SU PPDU or MU PPDU) or a part of an A-PPDU.
Non-EDMG portion
Pre-EDMG modulated fileds
EDMG portion
EDMG modulated fileds
L-STF L-CEF L-Header EDMG-
Header-A
EDMG-
STF
EDMG-
CEF
EDMG-
Header-B Data TRN
Figure 2-4: EDMG PPDU format
The EDMG PPDU starts with fields that belong to the non-EDMG portion as specified
in the DMG PHY specification ("Directional multi-gigabit (DMG) PHY modes"
on page 13). The other fields belong to the EDMG portion and are specific to EDMG
PPDUs as specified in the EDMG PHY specification. For an overview and further read-
ing, see Table 2-1.
Table 2-1: EDMG PPDU fields
Field Description Remark
L-STF Non-EDMG Short Training field Defined in chapter "Common Preamble" of the DMG
PHY specification.
L-CEF Non-EDMG Channel Estimation
field
Defined in chapter "Common Preamble" of the DMG
PHY specification.
L-Header Non-EDMG Header field Defined in chapter "Non-EDMG portion of EDMG format
preamble" of the EDMG PHY specification.
EDMG-
Header-A
EDMG Header A field Defined in chapter "EDMG portion of EDMG format pre-
amble" of the EDMG PHY specification. Includes two
subfields EDMG-Header-A1 and EDMG-Header-A2.
EDMG-STF EDMG Short Training field Defined in chapter "EDMG portion of EDMG format pre-
amble" of the EDMG PHY specification.
EDMG-CEF EDMG Channel Estimation field Defined in chapter "EDMG portion of EDMG format pre-
amble" of the EDMG PHY specification.
About IEEE 802.11ay

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
17User Manual 1178.2609.02 ─ 13
Field Description Remark
EDMG-
Header-B
EDMG Header B field Defined in chapter "EDMG portion of EDMG format pre-
amble" of the EDMG PHY specification. For EDMG MU
PPDUs only.
Data The Data field carries one or
more PSDUs.
Data field content further defined by L-Header field, see
Table 2-2.
TRN Training sequence field TRN-R (receive) or TRN-T (transmit) subfields
EDMG preamble
Like the EDMG PPDU, the EDMG preamble has a non-EDMG portion and an EDMG
portion. For a single PPDU transmission, the fields of the non-EDMG portion and the
EDMG-Header-A field of the EDMG portion form the pre-EDMG modulated field, see
Figure 2-4. The subsequent fields in the PPDU form the EDMG modulated fields.
For an EDMG A-PPDU transmission, the fields of the non-EDMG portion and the
EDMG-Header-A field of the EDMG portion of the first EDMG PPDU form the pre-
EDMG modulated fields. Subsequent fields in the EDMG A-PPDU form the EDMG
modulated fields. For 4.32 GHz, 6.48 GHz and 8.64 GHz EDMG PPDU transmissions,
the pre-EDMG modulated fields are transmitted using the non-EDMG duplicate format.
The pre-EDMG modulated fields of each secondary channel have a relative delay com-
pared to corresponding fields of the primary channel. This delay is between zero (inclu-
sive) and the chip time duration Tc (inclusive). The relative delay of each secondary
channel transmission can differ between channels but is maximum Tc.
The L-Header field further defines the content of the Data field. Bit values "B46" and
"B37" distinguish if the data is part of a DMG MPDU/A-MPDU or an EDMG MPDU/A-
MPDU, see Table 2-2.
Table 2-2: L-Header field values and data field content
B46 B37 Data field content
0 0 DMG MPDU
0 1 DMG A-MPDU
1 0 EDMG MPDU
1 1 EDMG A-MPDU
EDMG-Header-B field
The EDMG-Header-B is transmitted only in EDMG MU PPDUs and on a per STA
basis. The EDMG-Header-B field is defined in the table Table 2-3. The value of the
Spoofing Error Length Indicator subfield within all EDMG-Header-B fields present in an
EDMG MU PPDU is the same. The transmitter sets reserved bits in the EDMG-
Header-B field to 0 so that the receiver ignores them.
About IEEE 802.11ay

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
18User Manual 1178.2609.02 ─ 13
Table 2-3: EDMG-Header-B field structure and definition
Subfield Nbits Start bit Description
Scrambler Seed 7 0 -
PSDU Length 22 7 Length of the PSDU field octets with range 1 to 4194302
(222 - 1).
Base MCS 5 29 Generated from TXVECTOR parameter EDMG_MCS.
Indicates the lowest index of the modulation and coding
scheme to define the modulation and coding scheme of
the spatial streams.
Differential EDMG-
MCS
2 34 Generated from TXVECTOR parameter EDMG_MCS. The
Base MCS field defines the modulation and coding
scheme for the spatial stream 1
Superimposed Code
Applied
1 36 Corresponds to TXVECTOR parameter LDPC_SUPERIM-
POSED.
If the LDPC code rate is 7/8 and this field is set to 0, it
indicates puncturing code with codeword length 624 or
1248 is applied. If the LDPC code rate is 7/8 and this field
is set to 1, it indicates that superimposed code with code-
word length 672 or 1344 is applied.
If the EDMG-MCS field indicates a value of 13 and the π/
2-8-PSK Applied field is 1, then this field indicates the 7/8
code. This code is employed in the encoding procedure
with codeword shortening to achieve the effective code
rate of 5/6. In all other cases, this field is reserved.
Short/Long LDPC 1 37 Corresponds to the TXVECTOR parameter
LDPC_CW_LENGTH. Indicates the LDPC codeword
length used in the PSDU.
Set to 0 for LDPC codeword of length 672, 624, 504, or
468. Set to 1 for LDPC codeword of length 1344, 1248,
1008, or 936.
STBC Applied 1 38 Corresponds to the TXVECTOR parameter STBC.
If set to 1, indicates that STBC was applied at the trans-
mitter. Otherwise, set to 0. If set to 1, the DCM BPSK
Applied and the Phase Hopping fields are set to 0.
NUC Applied 1 39 Corresponds to the TXVECTOR parameter NUC_MOD.
If this field is set to 1, π/2-64-NUC is applied at the trans-
mitter for the MCSs indicated by the Base MCS and Differ-
ential EDMG-MCS fields, if supported.
If an indicated MCS does not support π/2-64-NUC, then π/
2-64-QAM uniform constellation is applied for this particu-
lar MCS. If set to 0, π/2-64-QAM uniform constellation is
applied for MCSs signaled in the Base MCS and Differen-
tial EDMG-MCS fields.
π/2-8-PSK Applied 1 40 Corresponds to TXVECTOR parameter PSK_APPLIED.
If this field is set to 1, π/2-8-PSK with corresponding
LDPC shortening code with rates 2/3 or 5/6 is applied at
the transmitter for MCS 12 or 13. The EDMG-MCS field
indicates the MCS.
If set to 0, π/2-16-QAM constellation with regular LDPC
code with rates 1/2 or 5/8 is applied at the transmitter for
MCS 12 or 13.
About IEEE 802.11ay

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
19User Manual 1178.2609.02 ─ 13
Subfield Nbits Start bit Description
Spoofing Error Length
Indicator
1 41 If set to 0 in an EDMG OFDM PPDU, indicates that the
spoofing error is smaller than TOFDM-SYM. This error is
defined as the difference between the PPDU duration
based on L-Header and the actual PPDU duration.
TOFDM-SYM = TDFT + TGI, TDFT is the OFDM IDFT/DFT period
and TGI is the guard interval duration. The durations are
determined by bits B2 and B3 of the Last RSSI field within
the L-Header of the PPDU.
Otherwise, if set to 1 in an EDMG OFDM PPDU, indicates
that the spoofing error is greater than or equal to TOFDM-
SYM. For an EDMG SC PPDU, this field is reserved.
Beamformed 1 42 Corresponds to the TXVECTOR parameter BEAM-
FORMED.
If set to 1, indicates active digital beamforming. Set to 0
otherwise.
Number of Transmit
Chains
3 43 Corresponds to TXVECTOR parameter
NUM_TX_CHAINS.
The value of this field plus 1 indicates the number of trans-
mit chains used in the transmission of the PPDU. The
value of the field plus 1 also indicates the total number of
orthogonal sequences in a TRN field.
This field is reserved when the EDMG TRN Length field is
0, or when the EDMG Beam Tracking Request field is 1
and the PPDU is an EDMG BRP-RX PPDU.
Reserved 2 46 -
CRC 16 48 Header check sequence. Calculation of the header check
sequence is defined in 20.3.7.
EDMG A-PPDU format
An EDMG A-PPDU is a concatenation of EDMG PPDUs and is available for single
users (SU MPDU) only. Figure 2-5 shows the EDMG A-PPDU format and all possible
fields.
Non-EDMG portion
Pre-EDMG modulated fileds
EDMG portion
EDMG modulated fileds
L-STF L-CEF L-Header EDMG-
Header-A
EDMG-
STF
EDMG-
CEF Data EDMG- Header-A Data TRN
EDMG-
Header-A Data...
1st EDMG PPDU Nth EDMG PPDU
2nd EDMG
PPDU
Figure 2-5: EDMG A-PPDU format
The first PPDU ("1st EDMG PPDU") includes the fields L-STF, L-CEF, L-Header,
EDMG-Header-A, EDMG-STF, EDMG-CEF, and Data. Each subsequent PPDU
includes EDMG-Header-A and Data fields only. The TRN field, if present, is appended
only once at the end of an EDMG A-PPDU.
Transmission of these fields within an EDMG A-PPDU depends on the values of NCB
(number of contiguous 2.16 GHz channels) and NSTS (number of space-time streams
About IEEE 802.11ay

About the IEEE 802.11ad/ay options
R&S®SMW-K141/-K177
20User Manual 1178.2609.02 ─ 13
reported). The EDMG-Header-A field preceding a Data field defines the parameters of
the PSDU transmitted in the Data field.
2.3.2 Channelization
EDMG stations (STAs) use the channelization as in Figure 2-6.
Figure 2-6: EDMG STA channelization
The center of the trapezoid shows the channel number defining the particular channel
location. The support of the 2.16 GHz channel number 2, and the 4.32 GHz channel
number 10 with channel number 2 as a primary channel is mandatory. The support of
other channels is optional.
2.3.3 MIMO and beamforming
SU-MIMO beamforming
An EDMG STA is SU-MIMO capable if the SU-MIMO Supported subfield of the Beam-
forming Capability subelement in the EDMG Capabilities element of the STA is 1. The
SU-MIMO beamforming protocol supports beamforming training for subsequent trans-
mission and reception of multiple spatial streams between an SU-MIMO capable initia-
tor and an SU-MIMO capable responder.
The SU-MIMO beamforming protocol enables the determination of transmit antenna
settings and the corresponding receive antenna settings. Determination is for simulta-
neous transmission of multiple spatial streams from the initiator to the responder or
About IEEE 802.11ay
