Roland CM-32L User manual

Roland
LA SOUND MODULE
см-зес
OWNER'S MANUAL
Roland CM TEE

For the U.K.
IMPORTANT:
THE
WIRES
IN
THIS
MAINS
LEAD
ARE
COLOURED
IN
ACCORDANCE
WITH
THE
FOLLOWING
CODE.
BLUE : NEUTRAL
BROWN : LIVE
As
the
colours
of
the
wires
in
the
mains
lead
of
this
apparatus
may
not
correspond
with
the
coloured
markings
identifying
the
terminals
in
your
plug
proceed
as
follows:
The
wire
which
is
coloured
BLUE
must be
connected
to
the
terminal
which
is
marked
with
the letter
N
or
coloured
BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.
For West Germany
Bescheinigung des Herstellers/Importeurs
Hiermit wird bescheinigt, daß der/die‘das in Übereinstimmung mit den Bestimmungen der
LA SOUND MODULE CM-32L Amtsbl. Víg 1046/1984
(Geral Тур. Bezeichnung} (Amtsblattverfugung)
funk-entstórt ist
Der Deutschen Bundespost wurde das Inverkehrbringen dieses Gerátes angezeigt und die Berechtigung zur Überprulung
der Serie au! Einhaltung der Bestimmungen eingeräumt.
Roland Corporation Osaka/Japan
Name des Herstellers imponeurs
For the USA
RADIO AND TELEVISION INTERFERENCE
WARNING — 0 Tris equipment has been verified 10 comply wih the limits for a Class B computing device. pursuant to Subpart Ј of Рап 15. cC FOC rules, Operation with
non-certifien or non-venhed equipment is likely to result in interference Io radio and TV reception
The equipment described in this manual generates and uses radio frequency energy. Н itis not installed and used properly. that is. in stict accordance with our instructions,
и may cause interference with radio and television reception. This equipment has been tested and found to comply with the hmits [or а Class В computing de: n accordance
with
the
sperifications
in
Subpart
J
ol
Part
15.
of
FCC
Rules.
These
ruies
are
designed
to
provide
reasonable
protection
against
such
а
interference
m
a
rasi
iai
installation
However. there 15 no guarantee that the interference will not occur in а particular installation. И this equipment does cause imere! е югайо or television reception, wich
can be determined by luring the equipment оп and ой the user 15 encouraged to try to correct the interference by the following ute
Disconnect
other
devices
and
ther
pul
output
cables
one
al
a
time.
ff
the
interference
stops.
itis
sed
by
either
the
other
or
its
LO
са
These devices usually require Roland designated shielded ІО cables For Roland devices you can сіна the proper shielded cable пон your dealer For aon Roland
devices. contact the manufacturer or dealer for assistance
Н your equipment does cause гиеНегепсе 10 evision reception. you can try to correct the interference by using one or more of thy
Turn the TV or radio antenna until the interference stops
Move the equipment to one side or the other cl the TV or radio
Move the equipment farther away from the TV or radio
Plug the equipment into an Outlet that is опа different сиси than the TV or radio. (That is. make certain the equipment and the radio or television set are on circuits Con:
trolled by different circuit breakers or fuses j
Consider
installing
a
rooftop
television
antenna
with
coaxial
cable
leadan
between
the
antenna
and
TV.
Н
necessary.
you
should
consult
your
dealer
or
an
experenced
racdioAetevision Technician tor addilinnal suggestions. You may trg helpful the following booklet prepared by the Federal Communications Commission
“How to Identity and Resolve Radio — TV interference Problems"
This
booklet
is
available
from
the
US
Government
Panting
Office.
Washington,
ОС.
20402.
Stock
No.
004-000-00345-4
owing measures
For Canada
CLASS B NOTICE
This
digital
apparatus
does
not
exceed
the
Class
B
limits
for
radio
noise
emissions
set
out
in
the
Radio
Interference
Regulations of the Canadian Department of Communications.
CLASSE
B
AVIS
]
Cet
appareil
numérique
ne
dépasse
pas
les
limites
de
la
classe
B
au
niveau
des
émissions
de
bruits
radioélectriques
fixes
dans
le
Réglement
des
signaux
parasites
par
le
ministere
canadien
des
Communications.

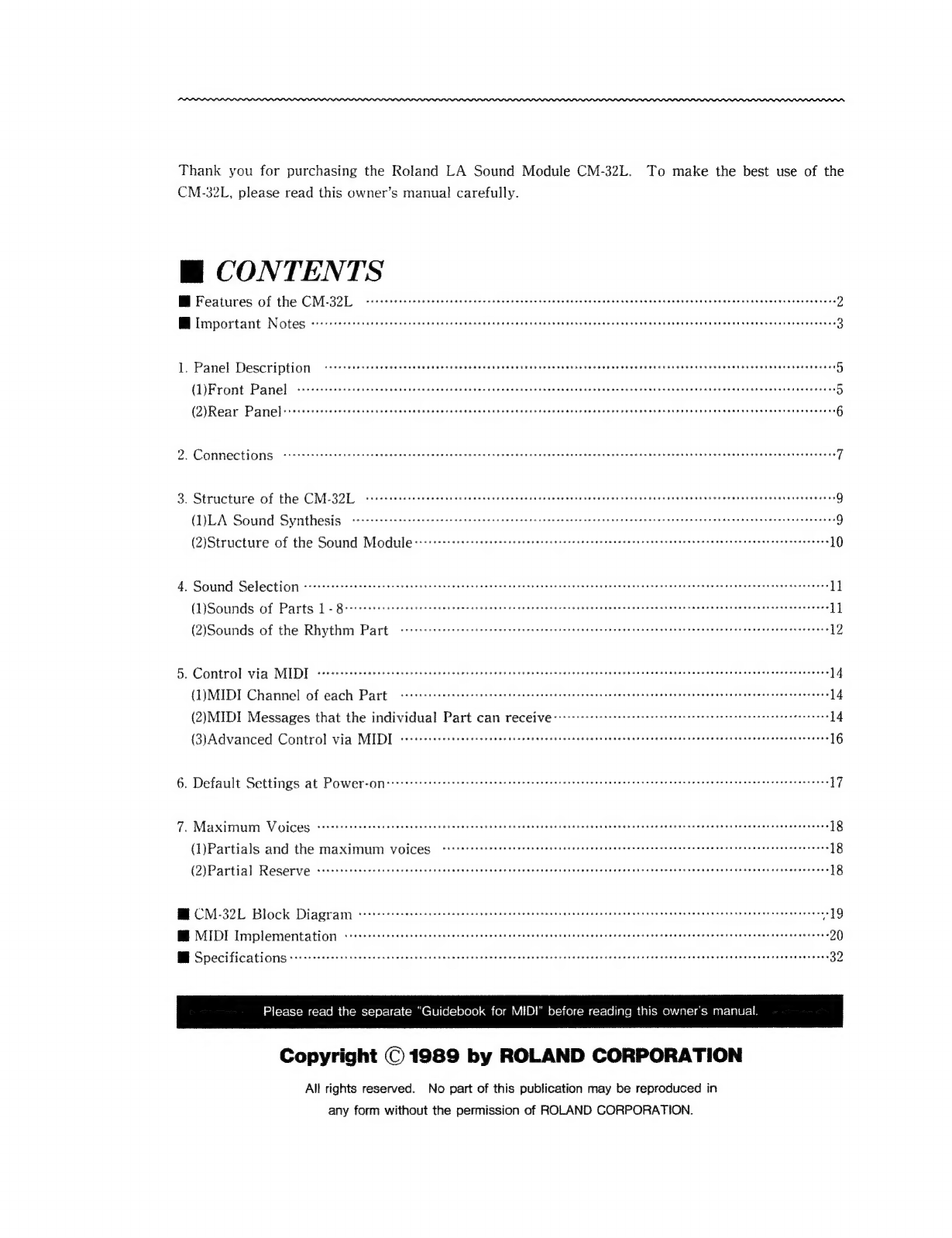

Thank you for purchasing the Roland LA Sound Module CM-32L. То make the best use of the
CM-32L, please read this owner's manual carefully.
Ш CONTENTS
W Features of Ше CM-32L “нана 2
a
Important
Notes
NZLLD————————————————
EE
SH
ESTE
ӨН.
3
1. Panel Description deessesomssuevesceeeevssetquececeeosooeerpesvetsevveeeseovsereeeevoveoveeceetevssessevrvsvsseeviseeeseeeoobosesecont 5
(Front Panel аа 5
(2)Rear Panel ST osoveevetssecseecetusesveteveteeecvoeovevoereeeeveeveeeeoteseseoeposoeereeseseoveesevuseveunoeecccts 6
2, Connections “аа 7
3. Structure of the CM-32L. «e nen Henne nenne ennemi] nenne EE EE OE nenne EEE ES 9
(DLA Sound Synthesis ПОТИ аа араў ГУГЛ Ba а 9
(2)Structure of the Sound Module Mesoeesseosesososonoseseesuseeepeveseeveesecosoovreveeeevteesesseseosoocaceveeceveseceooon 10
4. Sound Selection «mee ине 11
(1)Sounds of Parts 1 з 8 Peseostetuosasuteseodqosseccacesocceseceesoosasocoosessesososaeucuepvecveeceenseosessecceeocesseseoncacorsee 11
(2)Sounds of the Rhythm Part eee reer rrr rece Terre reer rere eer errr eee rere Tere Tre ere reer er eee err errr ree eer eee 12
5. Control via MIDI eoresosevooncosososevossesveosarsoopossvueoeoososossocoesoevsevseepeesecosacassososeocecersesovoscasscovoacreoe 14
(1)MIDI Channel of each Part aesesssesesuqoseeoansonseceqeaenscnaceeeoveqaceeeeevossheoovesseepssooeerecesememeseesevececeasen 14
(2)MIDI Messages that the individual Part can гесеіуе: MH 14
(3)Advanced Control via MIDI «н 16
6. Default Settings at Power-on:e ee ec 17
7. Maximum Voices ооо во ооо зоо ооо во о ха чо ооо оо пою вв оп есовав зоо фо о ть вь юн оне оов вава оо лее воен о наи она чу уве и ана ао вю я юевив иво в 18
(1)Partials and the maximum voices esesactssapacsosossecoatoevbeboscssesesestseeceneacoscatcesoscosoececeovesoeseseseaesesosee 18
(2)Partial Reserve deesaesacesesecosepacoseseesoevevepeececeseveseeocesspvodeceeesoooseteesesesseseseshotesecsessueeeeanoeoontus 18
|| MIDI Implementation seevopssepoeoevxesesevesecaecorsovsatueveeeteseveeuoooseeevenesesoceesavosesconeepeuseveuvsnesacesseneeesae 20
Ш Specifications «emm enne 32
Please read the separate "Guidebook for MIDI" before reading this owner's manual.
Copyright © 1989 by ROLAND CORPORATION
All rights reserved. Мо part of this publication may be reproduced in
any form without the permission of ROLAND CORPORATION.

B Features of the CM-32L
The following describes the features of the CM-32L.
G Sound Module that is ideal for computer music
The CM-32L features a multi timbral sound module that consists of 9 different Part (including one
Rhythm Part) and therefore can be used as 8 individual synthesizers plus a rhythm sound module.
The compact and simply designed body may be effectively used for computer music.
The CM-32L's sound module is almost the same as the Multi Timbral Sound Module MT-32 and
therefore can use the application software of the MT-32.
G9 The CM-32L adopts LA sound system that results in high quality sounds
LA synthesis involves a great many technological advances resulting not only in a superior sound
quality but also an improved ease of programming which have been proved in the D-50 or D-20.
G9 The CM-32L can produce a maximum of 32 voices using 32 Partials
Because the CM-32L can produce as many as 32 voices at the same time, you can enjoy high level
ensemble performance.
G Rhythm Part is provided specifically for rhythm performance
'The Rhythm Part features various drum and percussive voices, allowing you to enjoy wide varieties
of rhythm performances. It also includes SE's (sound effects) such as a laughing voice or explosion
for you to create unique performance.
©The CM-32L features a great many sounds
The CM-32L stores 128 different instrument sounds, 30 rhythm sounds and 33 SE's (sound effects).
Q The built-in Digital Reverb that create realistic reverb effect
The CM-32L's digital reverb adds spaciousness and richness to the sound.

Ш Important Notes
«Concerning the power supply»
Ф When employing an AC adaptor, make certain you use only one that has been supplied by the
manufacturer. Use of any other power adaptor could result in malfunction or damage.
Ф When you make any connections with other devices, always turn off the power to all equipment first.
This will help in preventing malfunction, and damage to speakers.
Q Do not force the unit to share the same power outlet as one used for distortion producing devices
(such as motors, variable lighting devices). Be sure to use a separate power outlet.
© Before using the AC adaptor, always make certain the voltage of the available power supply
conforms to its rating.
Q Do not place heavy objects onto, step on, or otherwise risk causing damage to the power cord.
Q Whenever you disconnect the AC adaptor from the outlet, always grasp it by plug, to prevent internal
damage to the cord and hazard of possible short circuits.
ФІ: the unit is not to be used for a long period of time, unplug the cord from the socket.
«Concerning placement»
Ф Avoid using or storing the unit in the following places, as damage could result.
OPlaces subject to extremes in temperature. (Such as under direct sunlight, near heating units,
above equipment generating heat, etc.)
OPlaces near water and moisture. (Baths, washrooms, wet floors, etc.) Places otherwise subject to
high humidity.
©Dusty environments.
OPlaces where high levels of vibration are produced.
Ф Placing the unit near power amplifiers or other equipment containing large transformers may
induce hum.
Q Should the unit be operated nearby television or radio receivers, TV pictures may show signs of
interference, and static might be heard on radios. In such cases, move the unit out of proximity with
such devices.

«Maintenance»
Q For everyday cleaning, wipe the unit with a soft dry cloth, or one that is dampened slightly. To
remove dirt that is more stubborn, wipe using a mild, neutral detergent. Afterwards, make sure to
wipe thoroughly with a soft cloth.
Ф Never apply benzene, thinners, alcohol or any like agents, to avoid the risk of discoloration and
deformation.
(Other Precautions>
Q Protect the unit from strong impact.
Ф Avoid getting any foreign objects (coins, wire, etc.), or liquids (water,drinks, etc.) into the unit.
ФА certain small amount of heat will be radiated from the unit, and thus should not be considered
abnormal.
@ Before using the unit in a foreign country, check first with your local Roland Service Station.
Фл: any time that you notice a malfunction, or otherwise suspect there is damage, immediately refrain
from using the unit. Then contact the store where bought, or the nearest Roland Service Station.
G Since the unit is equipped with a circuit, protection device, it requires a brief interval after power is
turned on before it can be operated.

1. Panel Description
(1)Front Panel
: VOLUME (Volume Control Knob)
This
adjusts
the
overall
volume
of
the
CM-32L
that
is
output
from
the
Output
Jacks
or
Headphone
Jack.
Rotating
the
knob
clockwise
will
increase
the
volume,
and
rotating it counter clockwise will decrease it.
*
The
volume
balance
of
the
individual
Part
can
be
controlled
with
the
MIDI
Volume
(Control
Change) messages.
MIDI MESSAGE (MIDI Message Indicator)
This lights up when the MIDI messages received.
Roland CM-32L.
LA SOUNG MODULE
COTO oo ih Ini 4
POWER (Power Indicator)
This lights up when the unit is switched on.

ASSI
PPP
AAA
IPS
P
AA
AAA
PE
PP
PPS
PPS
LI
LS
LAILA
PPPA
PIL
LP
PIPA
(2)Rear Panel
. MIDI IN OUT / THRU (MIDI Connectors)
То these sockets, connect MIDI devices.
PHONES (Headphone Jack)
Connect
headphones
to
this
jack.
Use
headphones
of
8
to
150
ohm
impedance,
if
possible.
Even
while
the
Headphone
Jack
is
connected,
the
Output
Jack
send
signals
just
the
same.
DC IN SV
USE ROLAND АСЕ
ADAPTER ONLY
TT OuTPUT
|
S
@ @
Hes
О
О
О
GO00mA
x
абм»
PENN
nc
PHONES
ia
OUTPUT (Output Jacks)
Sounds of the CM-32L are output through these Output Jacks. The І, and К
jacks are provided, so use both of them for stereo output. For mono output,
use the L (MONO) jacks.
DC IN (AC Adaptor Jack)
Connect the supplied AC adaptor to this jack.

2. Connections
То play the CM-32L, connect the devices as shown below.
INPUT jacks, AUX jacks, LINE jacks. etc.
Stereo Component System,
Keyboard Amplifier, etc.
QUTPUT
MIDI
IN L
Computer,
MIDI Sequencer,
etc.
AC Adaptor
To AC Concent
@MIDI Cable Connections
Connect the MIDI IN connector on the CM-32L to the MIDI OUT socket on a MIDI sequencer
using a MIDI cable.
То use another MIDI sound module together with the CM-32L, connect it to the MIDI THRU
connector. However, do not connect more than three or four MIDI devices through MIDI THRU's.
If more number of devices, MIDI signals may not be received correctly causing malfunction of the
entire system. If you wish to setup many number of devices, use the MIDI Thru Box.
MIDI OUT : Transmits MIDI messages to an
external MIDI device. (Normally,
this socket is not used.)
MIDI THRU : Transmits an exact copy of the MIDI IN : Receives MIDI messages sent
messages received at MIDI IN. from an external device.
a Li
о о о о
ооо о 0
тнки IN

PENA
IPSIS
PIA
PU
PSP
P
PPP PPS
P
IPSE
PPS
PISIS
P
P
SPP
PS
PPS
PPS
P
SPP
PP
PSP
PS
P
IL
PPP
P
P
S
LL
PP
PP
PS
PAPEL
G Audio Cable Connections
Connect
the
Output
Jacks
of
the
CM-32L
to
the
input
jacks
of
a
keyboard
amplifier
or
stereo
component
system
using
an
audio
cable.
The
CM-32L
features
stereo
outputs,
but
use
the
L
(MONO)
jack only for mono output.
Ф When connecting the CM-32L to a keyboard amplifier or an electronic piano that
features external input jack :
If it features an input level selector switch, set it to “Н”.
Ф When connecting the CM-32L to a stereo component system :
Connect the CM-32L to the LINE IN or AUX IN (input jack). When the input
jack are pin jack type, remove the adaptor from the audio cable of accessory.
PET
4 LINE IN |
OC

3. Structure of the CM-32L
The following briefly explains the structure of the CM-32L.
(1)LA Sound Synthesis
LA stands for Linear Arithmetic synthesis which is the heart of the new technology. LA synthesis
involves a great many technological advances resulting not only in a superior sound quality but also
an improved ease of programming. The LA system uses Partials to create wide varieties of sounds.
А Partial may be called the smallest element of a sound. For instance, a sound may be made from
three elements (Partials) : attack, decay and release.
Attack Portion
a Aa aa en NG pet a — - 2
Decay Portion Complete Form
of the Sound
Release Portion
Partial Tone

(2)Structure of the Sound Module
The CM-32L is a multi timbral sound module that consists of 9 different Parts
adopting the ГА synthesis. These Parts work like 8 different synthesizers and a
rhythm machine.
Each Part is controlled by information received on an individual MIDI channel.
So, you must set the receive channel of each Part to the same number as the
transmit channel of the external MIDI device. Using a computer or MIDI sequen-
cer that can send more than one MIDI channel messages, you can enjoy ensemble
performance with different Parts.
128 Sounds
MIDI IN
Rhythm Part
Rhythm Sound :30
Sound Effects :33
Фран
The CM-32L stores 128 different sounds, and any of these sounds can be assigned to each of 1-8
Parts. Sounds in a Part can be changed by MIDI Program Change messages.
In the Rhythm Part, 63 different drum and SE (sound effects) are assigned to the note numbers.
G Partial
The CM-32L can produce a maximum of 32 voices at the same time using 32 Partials. A Tone
consists of one to four Partials, and the maximum number of voices that can be played at the same
time will vary depending on the number of Partials used in the Tone. For details, see page 18
"7. Maximum Voices".
10

4. Sound Selection
The CM-32L can use the following sounds:
(1)Sounds of Parts 1 - 8
Parts 1 to 8 can use the following sounds:
PROG#
1/00H
TONE
AcouPiano 1 Fantasy
65/40H AcouBass 1
PROG # TONE Pilg
97/60H | Brs Sect 2
2/01H | AcouPiano 2 34/21H | Harmo Pan
3/02H | AcouPiano 3 35/22H | Chorale
66/41Н
67/42Н
4/03H | ElecPiano 1 36/23H
Glasses
68/43H
5/04H | ElecPiano 2 37/244 | Soundtrack
69/44H
AcouBass 2
ElecBass 1
98/61H
99/62H | Vibe 2
ElecBass 2
SlapBass І
100/63H | Syn Mallet
Windbell 101/64H
Га: mosphere
6/05H
7/06H
8/07H
9/08H
10/09H
ПАН
38/25H
39/26H
40/27H | Funny Vox
45/2CH
ran rae [т
ЕЯ
EH
Str Sect 1
ElecPiano 3
ElecPiano 4 Warm Bell
——
Honkytonk
Elec Org 1
Elec Org 2
Elec Org 3
12/0BRH
13/0CH
14/0DH
15/0EH
16/0FH
17/10Н
18/11H
Elec Org 4
Pipe Org 1
Pipe Org2
Pipe Org З
Accordion
Harpsi ]
Harpsi 2 50/31H | Str Sect 2
|
70/45H
SlapBass 2
71/46H | Fretless 1 4
72/47H
Fretless 2
102/65H | Glock
СЕСИИ
Dosen [nme 3 |
evene [|
поло wer [> |
ps wine ДЭ
Breathpipe
Timpani
MelodicTom
19/12H | Harpsi 3
Clarinet 1 kl 3
Deep Snare
20/13H | Clavi 1 Pizzicato
Clarinet 2
21/14H | Clavi 2 53/34H | Violin 1 Oboe
116/73H | ElecPerc 1
117/74H | ЕесРегс 2
22/15H | Clavi 3 54/35H | Violin2
86/55H
Engl Horn
118/75H | Taiko
23/16H
24/17H
Celesta 1 55/36H | Cello 1
Celesta 2 56/37H | Cello 2
88/57H
Bassoon
Harmonica
119/76H | Taiko Rim
120/77H | Cymbal
25/18H | SynBrass 1 57/38H | Contrabass
Trumpet 1
Castanets
26/19H
27/1AH
SynBrass 2 58/39Н | Harp!
SynBrass 3 Harp 2
91/5AH
Trumpet 2
Trombone 1
122/79H | Triangle
123/ТАН | Orche Hit
SynBrass 4 60/3BII| Guitar 1
92/5BII Trombone 2
124/7BI1| Telephone
28/1BT 0
29/1CH
30/1DH
31/1EH
62/3DH| Elec Gtr 1
63/3EH | Elec Gtr 2
Syn Bass 1
Syn Bass 2
Syn Bass 3
93/5CH
Fr Horn 1
125/7CH | Bird Tweet
126/7DH | OneNoteJam
127/7EH | WaterBells
32/1FH | Syn Bass 4 64/3FH | Sitar
96/5FH
Brs Sect 1
PROG # : MIDI Program Change Number (decimal indication / hexadecimal indication).
РО 8: The number of partials used for a sound.
11

(2)Sounds of the Rhytlun Part
'The following rhythm sounds and SE are assigned to note numbers of
Note Мапе : Tone name
: Acoustic Bass Drum Ж
the Rhythm Part:
Center Right
h
Rim Shot ж
Acoustic Bass Drum ж
38/26H)
Acoustic Snare Drum *
39/?7Hi
Hand Clap ж
Electronic Snare Dr
um ж
10/2811
Acoustic Low Tom ж
ФАН) | Closed High Hat ж
21 43/2BH) | Acoustic Low Tom ж
СЕ НАСИ) | Open High Нас? ж
А 2( 45/2DH). | Acoustic Middle Tom ж
ASX 162ЕН) г Open High Hat І ж
3 2 A7/2FH
ET
——
3/35H)
54/36H)
АЖ И 58/3АН!
Ви 59/3311)
І н "n
| Tambourine ж
|
| C wwbell ж
|
|
67/43H)
| High Agogo ж
60/3CHD High Bongo Ж 1
61/3DH) | Low Bongo # bu
62/3ET) | Mute High Conga * Г |
GM3FID |HighConga * т |
ВОН) [Low Conga * я
ИН) i High Timbale ж Eod
66/228) | Low Timbale € — — 1 Г
68/44Н1)
| Low Agogo ж
А At 69/45H)
| Cabasa ж
|
= АМС 70/46H) | Магасав * | 1 |
В 4(T1/47H). | Short Whistle ж WS
Са РАЗН) | Long Whistle ж EN
Се 73/19H) | Quijada ж Nux
D 5 ДАН. | Iv
025 75/4BH) | Claves ж arn
12

| РИЕ | Рап | Left Center Right |
| Laughing
| Sercaming
АЕТ) | Punch
М 79/4FHà | Heartbeat
ВИЗ |
ГА pplause
| Creaking
|
-—
i
i
| Door
| yee
i Scratch
! Windehime
Engine
| Car-stop
uy zo
8959 НІ | Car-pass
ў 90/5AMI | Crash
z Иран
ЧЪВИ | Siren
9 | Train
| Machinegun
(98/62H) | Lasergun
ИУ Dog
Е 701/651) | Horse
PFS7102/661) | Birds
б TÜ03/67H) | Rain
GE7004/68H) | Thunder —
A ташап | Wind
БАН) | Waves
УСНО | Bubble -
Pt] Z : The number of Partials used for a sound. Pan : Pan value
* Pan determines the sound positioning of stereo output. SE (after Laughing) sounds are all set to the center
panning, but some sounds are played in different pannings.
* The number of Partials means the partials needed to play a note of the Tone.
* The sounds marked with ignore the Note Off messages (No sustain).
13

5. Control via MIDI
The
following
explains
the
MIDI
messages
that
the
CM-32L
uses
and
how
to
use
the
messages.
ж
The
МЮ!
messages
indicate
decimal
number
and
hexadecimal
number.
You
may
use
either
of
them
depending
on
the
MIDI device
you use.
64//40H
Decimal number Hexadecimal number (with H at the end)
(MIDI Channel of each Part
The
MIDI
channels
of
each
Part
of
the
CM-32L
is
set
as
shown
below.
You
must
set
the
transmit
channel
of
the
external
MIDI
device
to
the
receive
channel
of
the
relevant
Part.
MIDI Receive ch
2
Rhythm Part
(2)MIDI
Messages
that
the
individual
Part
can
receive
Each
Part
can
receive
the
following
MIDI
messages:
G9 Note Messages
Note
messages
are
for
playing
the
keyboard.
Іп
the
Rhythm
Part,
various
different
drum
voices
and
SE
can
be
played.
@Pitch Bender Messages
Pitch
Bender
messages
conirol
the
Pitch
Bend
lever
or
Pitch
Bend
wheel,
changing
the
pitch
continuously.
G Program Change Messages
These
are
for
changing
sounds.
The
sounds
in
the
Part
that
receives
Program
Change
messages
will
change
depending
on
the
received
Program
Change
number.
(The
Program
Change
messages
are
ignored
in
the
Rhythm
Part.)
ж Roland used Program Change numbers 1 to 128, but some software units or sequencers use О to 127
numbers. So please be careful.
14

G Control Change Messages
These are for controlling various parameters and functions. Each Control number has its own
function. The CM-32L can receive the following Control Change messages:
Modulation (Control Number : 1,/01H)
This controls the depth of vibrato effect.
Data Entry (Control Number : 6//06H)
This is used for setting the RPN.
Volume (Control Number : 7//07H)
This controls the volume of each part, adjusting the volume balance between Parts. The actual
volume is determined by the value of the expression (Control Number 11), volume (Control Number 7)
and Master Volume (Exclusive messages) and the position of the Volume control knob.
Pan (Control Number : 10/0АН)
This sets the sound positioning of stereo output. (This information is ignored in the Rhythm Part.)
15 levels are normally valid for the pan value of the CM-32L, but only 8 levels are valid when you use
a certain sound.
119-127 | 11- = 102-110 | 94- uu 85-93 = M | 68-76 | 60-67 | 51-59 | 43-50 | 3432 | 2&3 | 17-25 9-16 (-8
T7H-7PH | 6FH-76H | 66Н-бЕН | SEH-65H | 58H-5DH | HDH-54H | 44H-4CH | 3CH-43H |33H-3BH | 2BH-32H ]22H-2AH | AH-21H | HH-191E | 09H-10H | 06H-08H
Expression (Control Number : 11/0BH)
This controls the volume of each part. The actual volume is determined by the value of the expression
(Control Number 11), volume (Control Number 7) and Master Volume (Exclusive messages) and the
position of the Volume Control knob.
Hold 1 (Control Number : 647 40H)
This sustains the sound currently played, just like a damper pedal of a piano.
КРМ (Control Number : 100 & 101/64H& 65H)
RPN stands for Registered Parameter Number. In the CM-32L, the bender range of each Part can be
controlled with the RPN number 0, Pitch Bend Sensitivity.
Reset All Controllers (Control Number : 1217911)
This returns the Modulation, Expression, Hold 1 and Pitch Bender parameters to the default settings.
The Part received this message will be set as shown below:
vi
Expression 127/7FH
Hold 1 0/00H
Pitch Bender +0/2000H
15

(3)Advanced Control via MIDI
G Using another MIDI sound module
If you wish to extend the number of sounds using another MIDI sound module, make connections as
follows. Set the MIDI receive channel of the connected sound module to a number other than the
MIDI receive channel used for the CM-32L (channels 1, 11 - 16).
MIDI
OUT
Computer, н
MIDI Sequencer,
etc.
MID! Sound Module |
G Bender Range Control with RPN
The CM-32L allows you to control the bender range of each Part using the RPN (Registered
Parameter Number).
То do that, send Control Change messages from an external MIDI device in the sequence shown
below :
(p RPN MSB (Control Number : 100/64H) 0/00Н
@ RPN LSB (Control Number : 101,/65H) 0700Н
(3 Data Entry(Control Number: 6/06H) vv
жуу is the value of the bender range to be set. It can be set in semi-tone steps within 2 octaves (0 - 24,” 00H -
18H).
< Example» To set the bender range of Part 4 (MIDI channel 5) to 12 (1 octave):
Control
Number
DRPN MSB f 100/64H 0/00H
RPN LSB : 101/65H 0/00H
Data Entry 5. С 6/06H 12/0CH
MIDI ch Data MIDI Message
ВАН, 64H, 00H
B4H, 65H, 00H
B4H, 06H, 0CH
ж Some types of MIDI sequencer transmits Control Change numbers of the same step (timing) in the sequence of
smaller number to larger number. If you use this type of sequencer, be sure to set it so that the Control Change
will be sent in the sequence of RPN MSB - RPN LSB - Data Entry by sifting the position of the RPN forward, etc.
G Control using the Exclusive Messages
Exclusive messages are messages exclusive to a particular manufacturer, such as sound data and
setup data. Various parameters can be controlled using the Exclusive messages.
For details, see the MIDI Implementation at the back of this owner's manual.
16

6. Default Settings at Power-on
The CM-32L is default to the following values. (The programs you have made will be erased when the
unit is switched off.)
Sound Pan Volume Expression
Part 1 SlapBass І >< 100/64Н 127/7FH
Str Sect ] P 100/64H 127/7FH
100/64H 127/7FH
100/64H 127/7FH
Ice Rain <: 100/64H 127/7FH
ElecPiano 1 > 100/64H 127/7FH
к tiet be рәте
Bottleblow : 100/64H 127/7FH
Orch Hit > 100/64H | 127/7FH
Rhythm Part ee 100/64H 127/7FH
17

7. Maximum Voices
As
previously
explained
in
"3.
Structure
of
the
CM-32L”,
a
sound
is
made
of
some
Partials.
Because
the
CM-32L
produces
sounds
using
Partials,
the
maximum
voices
that
it
can
produce
simultaneously
will
vary
depending
on
the
number
of
Partials
used
for
the
sound.
The
following
explains
the
relation
between the Partial and the maximum voices of the CM-32L.
(1)Partials and the maximum voices
The CM-32L can play any sound in any Part within 32 voices (Partials).
For
example,
if
you
play
three
sounds
which
are
made
of
two
Partials,
six
Partials
will
be
used
altogether(2
Partials
X
3).
In
other
words,
when
the CM-32L is
used
as
a
multi
timbral sound
module,
it
uses
(the
number
of
Partials
assigned
to
Part
1)
х
(the
number
of
voices
currently
playing
in
Part
1),
that
is,
the
total
number
of
Partials
used
in
each
Part.
In
the
Rhythm
Part,
the
number
of
Partial
used
in
each
rhythm
sound
is
different,
thercfore,
count
the
total
number
of
Partials
used
for
the
rhythm
sound currentry playing.
(2)Partial Reserve
The CM-32L can play any sound in any Part within 32 voices (Partials).
However,
when
vou
try
to
use
more
than
32
Partials,
the
Partial
Reserve
function
sets
the
number
of
зага! which can be used for a certain Part prior to the other Parts. In other words, even when more
key messages than reserved are sent, they will be put to work in the principal Part without being cut.
The Partial Reserve of the CM-32L is preprogrammed as shown below. The number of the Partials
of each Part represents the number of Partials which can be reserved on top of the usual 52 Partials.
You may consider the Partial Reserve then determine what phrases should be played in what Part.
Part 1
Part 3 | | 6 |
Part 4 | | “а ў
| Part 5 3
Part 6 К
i Part 7 | 0
Part 8 EE 0 _
Rhythm Part
18
