Rollplay 12V Jaguar CX-75 Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
Model #: W466AC, W466AC-F
12V Jaguar CX-75

Introduction
Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys
it for miles to come. Please read this instruction guide carefully before
assembling and operating the vehicle. Please have your model number
and serial number ready before calling. Please have proof of purchase.
Keep your sales receipt or register your product at
www.rollplay.com.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.com
Specifications:
BATTERY 12V 7AH
MOTOR 12V 50W
AGE 3 Years and Up
MAX WEIGHT 35 kg (77 lbs)
PRODUCT SIZE 122.5 x 74 x 53 cm (48.2” x 29.1” x 20.9”)
SPEED 0 - 7.0 km/h (0 - 4.4 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 12.0V

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.com as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

This page is intentionally left blank.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Rear Wheels.....................11
Attach the Mirrors ...................................12
Attach the Steering Wheel......................13
Attach the Seat ........................................14
Door Operation ........................................15
Operation Instructions ............................16
Maintenance ............................................17
General Care ............................................18
Troubleshooting Guide............................19
FCC Information ......................................21
Service and Repairs ...............................22
Warranty ...................................................23
Product Registration ...............................24

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3years old and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
• Riders must always wear a tted helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
• Do not operate near water, swimming pools or other uids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand or ne gravel.
• Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes
ALWAYS sit on the seat
RISK OF FIRE. Do not bypass.

7
Safety (Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

8Parts
•Phillips screwdriver
•Pliers
Not Included:
8
9
9
10
10
15 16
17
1
2
3
4
6
5
7
7
11
12
13
8
9
10
14
1. Body
2. Mirrors (2)
3. Steering Wheel Assembly
4. Seat
5. Rear Wheels (2)
6. Front Wheels (2)
7. Wheel Rims (4)
8. Rear Washer (2+1 extra)
9. Front Washer (4+ 1 extra)
10. Snap Pins (4 + 2 extra)
11. Steering Wheel Screw
12. Steering Wheel Nut
13. MP3 Cable
14. Blister Pack
15. Battery
16. Charger
17. Manual

9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To connect the battery:
1. Ensure the vehicle is stopped and turned
off.
2. Unlock and remove the seat.
3. Located the battery connector (A)
that attaches directly to the battery.
4. Connect the battery connector to
the battery charger connector (B).
5. Replace the seat.
To charge the battery:
6. The charging station is located
underneath the left door (1).
7. Plug the charger connector firmly into
the charging station.
8. Plug the charger into a 120V outlet (2).
9. Unplug the charger from the outlet when
charging is complete.
10. Remove the charger connector from the
charging station.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!
1
1
2
BA

10
9
9
10
6
7

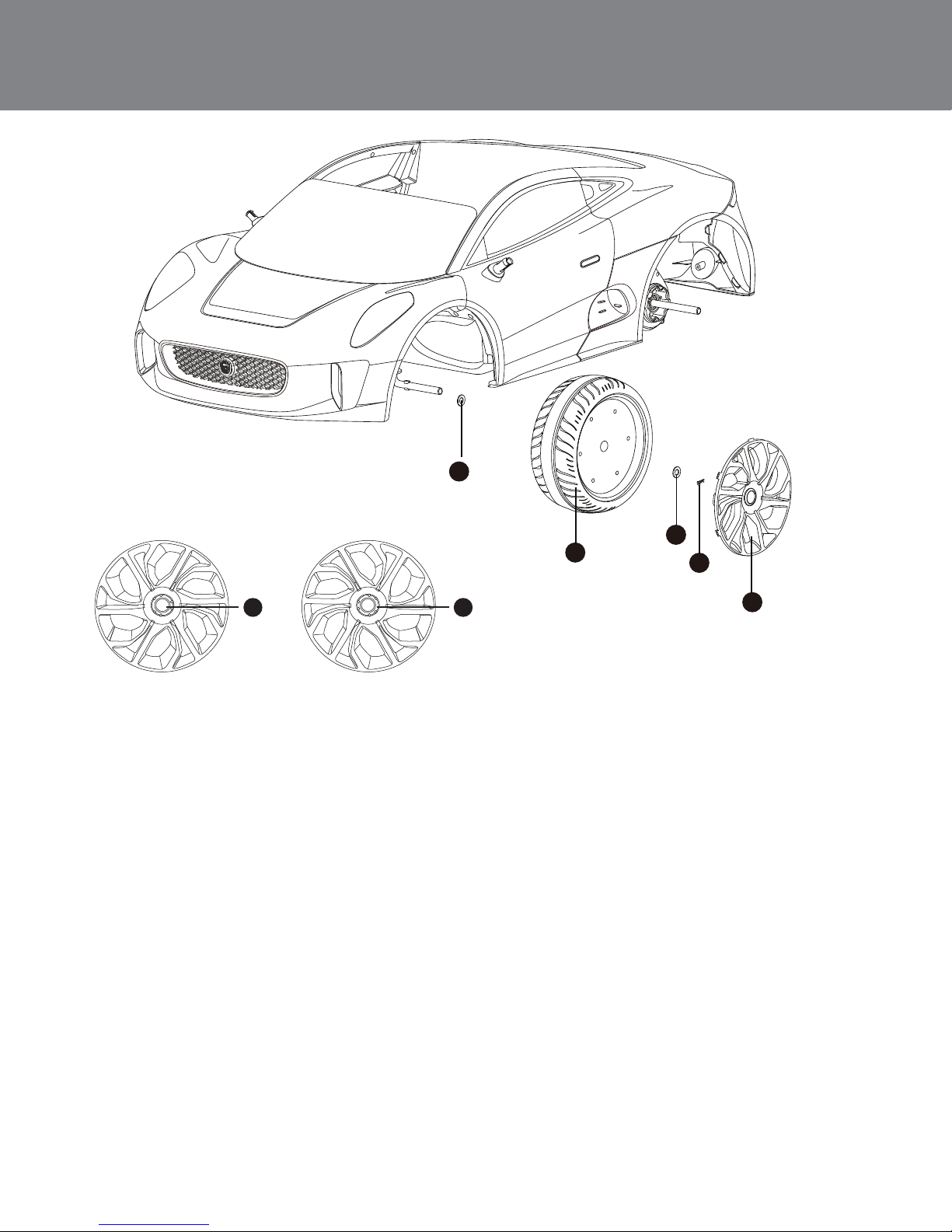

Assemble the Front Wheels
1. Locate the front washer (9) and snap pin (10) from the blister pack.
2. Slide a front washer (9) onto the front axle.
3. Slide the front wheel (6) onto the front axle.
4. Slide another front washer (9) onto the axle.
5. Insert the straight end of a snap pin (10) into the hole on the front axle to secure
the parts in place.
6. Snap the wheel rim (7) onto the wheel.
7. Repeat steps 1-6 for the other front wheel.
Right Wheel Rims Left Wheel Rims
R L
R L

11
7
8
10
5
Assemble the Rear Wheels
1. Locate the rear washer (8) and snap pin (10) from the blister pack.
2. Slide the rear wheel (5) with the gear teeth facing inward onto the right rear wheel
axle.
3. Line up the gear teeth on the wheel with the grooves on the gear box.
4. Slide the rear washer (8) onto the rear wheel axle.
5. Push the straight end of the snap pin (10) through the hole on the rear wheel axle.
6. Snap the wheel rim (7) onto the wheel.
7. Repeat steps 1-5 for the other rear wheel. Helpful Tip:
1. If you encounter trouble tting both
wheels onto the rear axle, then your rear
wheel axle may not be centered. This
is critical for wheels to t correctly. This
usually occurs when attempting to put
on the second wheel.
2. In this case, remove the second wheel
and adjust the axle according until it
is center. Then, proceed to attach the
second wheel.

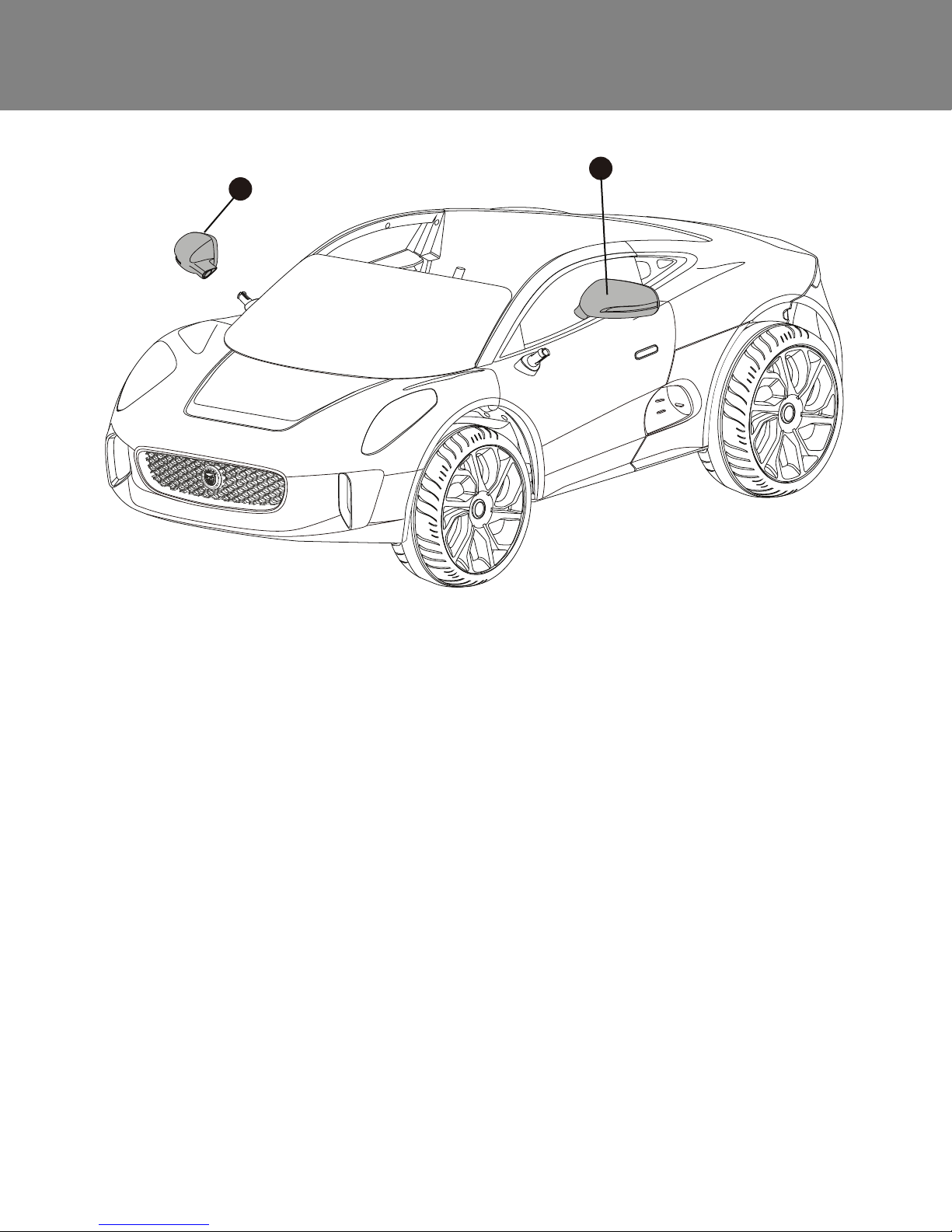

12 Attach the Mirrors
1. Insert the left mirror into the slot on the left door near the windshield.
2. Push down on the mirror until it clicks into place.
3. Repeat steps 1-2 for the right mirror.
2
2

13
BA
11
12
3
Attach the Steering Wheel
1. Open the right door.
2. Locate the steering wheel screw (11) and nut (12) from the blister pack.
3. Plug the steering wheel connector (A) into the dashboard connector (B).
4. Carefully slide the wires into the steering column.
5. Slide the steering wheel onto the steering rod that comes up through the
dashboard, and align the holes on the steering wheel with the holes on the
steering rod.
6. Insert the screw into the hole on the steering wheel, and fasten the nut on the
other side to secure. Helpful Tip:
1. If you encounter trouble aligning the
holes on the axle with the holes on
the steering wheel, then the steering
rod may not be pushed through the
dashboard completely.
2. Reach underneath the car and locate
the steering rod. Push up on the steering
rod so that it is completely through the
dashboard.

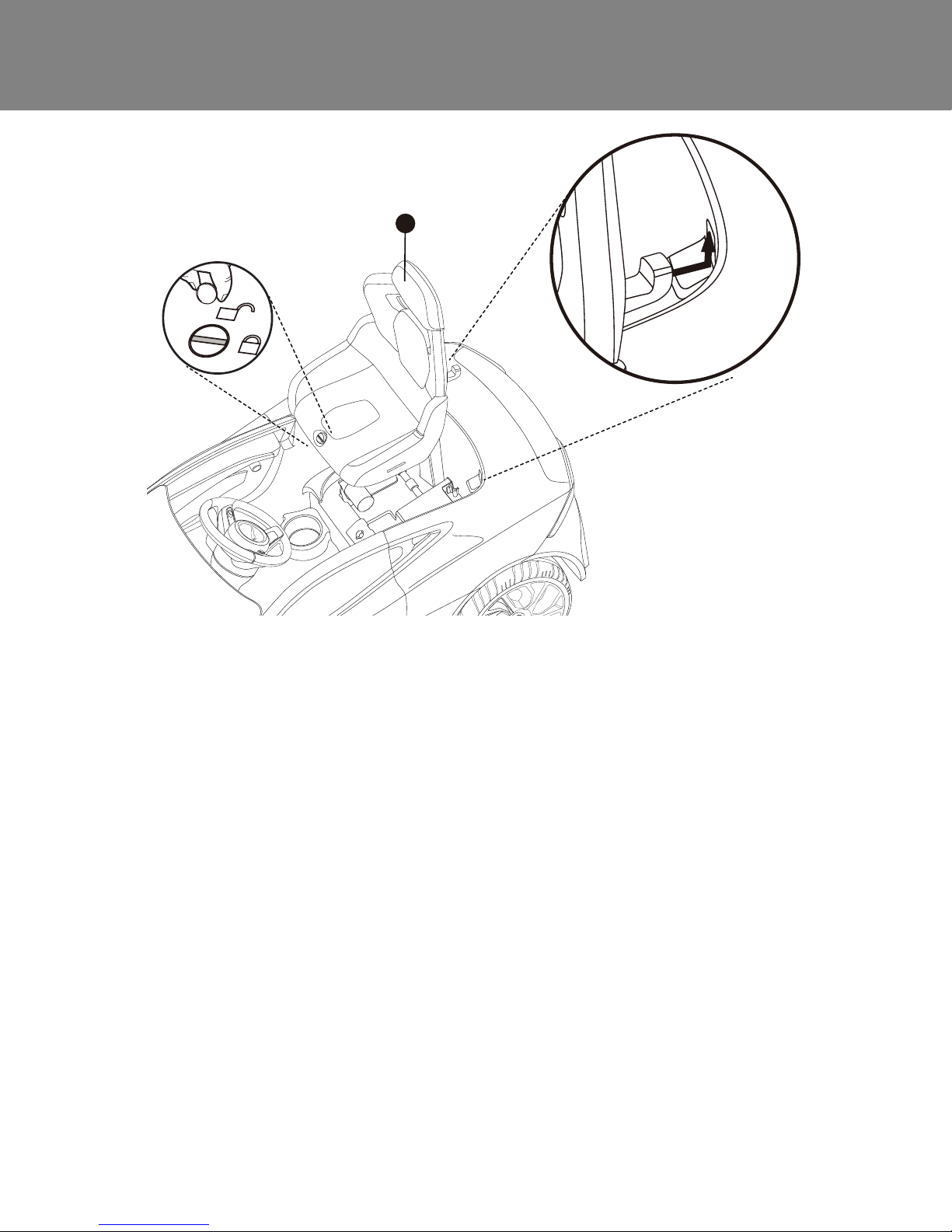

14 Attach the Seat
1. Position the seat (4) over the battery compartment.
2. Insert the hooks on the back of the seat into the slots on the body of the car.
3. Ensure the seat is properly clicked into place, then turn the thumbscrew on the
seat clockwise to lock it into place.
4

15
Door Operation
1. Press the button on the inside of one of the doors.
2. Then slightly push the door outward to open the door.
3. Both doors open on the vehicle.

16 Operation Instructions
• Power Switch: Push the power switch to turn on the car. The power indicator
light will turn on when the car is on. Press the power switch again to turn off the
car.
• Dashboard Lights: The dashboard lights will light up when the power switch is
pushed to on.
• Shifter: Push the shifter up to move forward. Pull the shifter down to go in
reverse.
• MP3: Insert the MP3 cable (13) into the MP3 jack and connect to your device. The
car must be turned on to use.
• Foot Pedal: Press the foot pedal down to move forward. Release the foot pedal to
stop.
• Sounds: Press the left and right steering wheel buttons for horn and engine
sounds
• Radio: Press the tuning button to nd a station. Press the reset button to reset
the radio.
• Battery power indicator: Press the power indicator button to check battery
level.
• Green, Yellow, & Red Lights: Battery is fully charged
• Yellow & Red Lights: Battery level is low
• Red Light: Battery power is lower than 11V, and the battery must be recharged
Foot Pedal
Shifter
Power Switch
MP3 Jack Battery Life
Indicator
Tuning
Sounds
Dashboard Lights
Reset

17
Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
• Charge the battery for 24 hours before using the vehicle for the rst
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Only use the charger specied with the original item. Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 22 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

18 General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service information on Page 22.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

19
Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 20 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle 35
kg / 77 lbs
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.

20
Problem Potential Cause Solution
Vehicle needs a push to
start
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service
“Dead spot” on motor A “dead spot” means
electricity is not being
delivered to the terminal.
Contact Customer Service
Difculty shifting Attempting to shift while
vehicle is moving
Stop the vehicle before
shifting
Motor or gear box
making grinding noises
Motor or gear damage Contact Customer Service
Battery will not recharge Charger is not plugged in Plug in the charger to a
functional wall outlet
Charger is not working Call Customer Service
Loose connector or loose
adapter
Check that the connectors are
securely plugged in to each
other
Battery makes bubbling
noise while recharging
This is normal No action required
Charger is warm This is normal No action required
