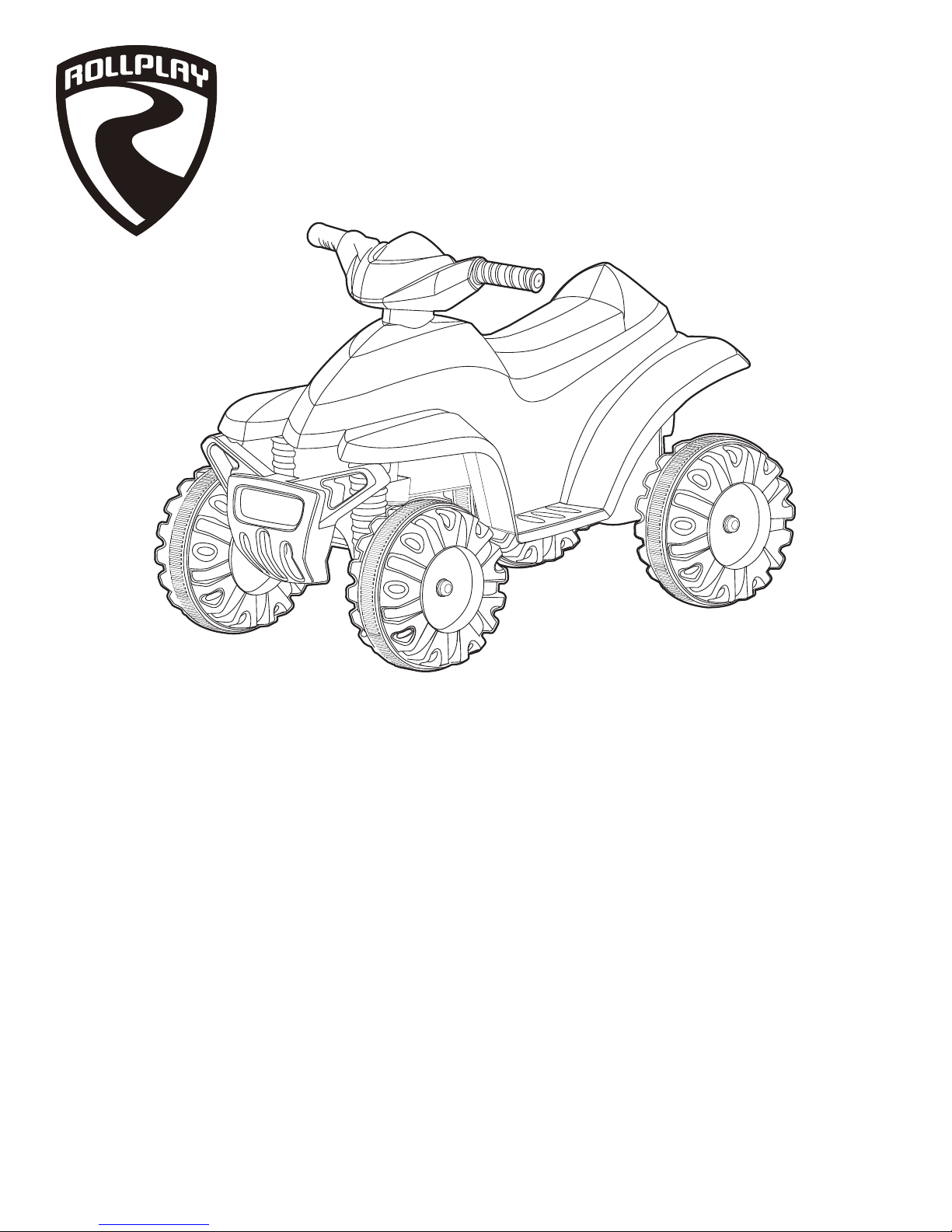

Rollplay 6V Mini Quad ACQUAD-P Assembly instructions

Owner’s Manual and Assembly Instructions
Model #: ACQUAD-P, ACQUAD-CAM, ACQUAD
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.rollplay.net for
assistance and replacement parts.
RollPlay 6V Mini Quad

Introduction
Thank you for purchasing this RollPlay vehicle from Rollplay. We hope the
rider enjoys it for miles to come. Please read this instruction guide carefully
before assembling and operating the vehicle. Please have your model
number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.rollplay.net.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Web: www.rollplay.net
Email: [e-mail]
Phone: [phone]
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 4AH
6V 15W
18-36 Months
20.4 kg (45 lbs)
68.5 x 43 x 48 cm
(26.97 x 16.93 x 18.9 in.)
2 - 3.2 km/h
(1.25 - 2 MPH)
8-12 Hours
1-2 Hours
DC 7.0V

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product
at www.rollplay.net as we may require proof of purchase.
[e-mail]
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation of
the vehicle.

5
Table of Contents
Safety ..........................................................6
Parts ...........................................................8
Charging Instructions ..................................9
Assemble the Wheels................................10
Attach the Handlebar ................................11
Assemble the Front Bumper .....................12
Attach the Seat..........................................13
Operating Instructions...............................14
Maintenance..............................................15
General Care .............................................16
Troubleshooting Guide ..............................17
FCC Information........................................19
Service and Repairs ..................................20
Warranty ....................................................21
Product Registration .................................23

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may occur
to the user.
Always use common sense and safe practices when using the vehicle. The user must be
at least 18 months old and weigh no more than 20.4 kg (45 lbs).
This product contains small parts that are for adult assembly only. Keep small children
away when assembling. Remove and dispose of all protective material and plastic bags
before assembly.
Riders must always wear a fitted helmet that complies with U.S. Consumer Product
Safety Commission (CPSC) Standard 16 CFR 1203.
Only sit on the seat in the vehicle.
Do not allow more than one rider.
Do not overload the vehicle. Do not remove the weight restriction decals.
Do not pull the vehicle with another vehicle or similar device.
Keep body parts such as hands, legs, hair and clothing away from moving parts. Moving
parts can cause serious injury.
Always wear shoes in the vehicle.
Do not operate near streets or motor vehicles.
Do not operate near drop-offs such as steps, steep inclines or hills. Operate on relatively
level ground.
Do not operate near water, swimming pools or other fluids.
Do not operate in dangerous weather conditions such as rain or snow.
Do not operate near loose dirt, mud, sand or fine gravel.
Do not operate near flammable vapors (gasoline, paint thinner, acetone, etc.).
Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming pools
or other bodies of water.
ALWAYS wear shoes
ALWAYS sit on the seat
RISK OF FIRE. Do not bypass.

7
Safety (Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
flush immediately with cool water for 15 minutes. If the chemical is swallowed
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, fi e or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
• IMPORTANT: Before using the vehicle for the first time, the battery must b
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

8Parts
1. Battery
2. Charger
3. Quad Body
4. Wheels (4)
5. Hex Nuts (Installed on wheel axles)
6. Front Bumper
7. Handlebar
8. Seat
9. Screw Wrench
10. Hardware Bag
1
2
3
4
4
4
5
5
6
7
8
9
10

9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the quad is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove the battery for
charging. However, if the battery does not reach
the outlet, it can be removed for charging. Use
a screwdriver to release the battery clamp and
disconnect the red battery connector from the red
engine connector to remove the battery.
Battery
CA
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
A B

10 Wheel Assembly
1. Remove the hex nut, split washer and small, at washer from
each axle. The large, at washer stays on the axle.
2. Slide the wheel (4) onto the axle.
3. Slide small, at washer onto the axle.
4. Slide the split washer onto the axle.
5. Slide the hex nut onto the assembled wheel and tighten in place
with a wrench.
6. Repeat steps 1-5 for the remaining wheels.
Wheel Flat Washer
Split Washer
Hex Nut

11
Attach the Handlebar
1. Remove the screw and nut from the handlebar assembly (7) before
attaching.
2. Plug the handlebar connector (A) into the dashboard connector (B).
3. Slide the handle bar (7) onto the steering rod, and align the screw
holes on the handlebar with the holes on the steering rod.
4. Insert the screw into the hole and fasten the nut to secure.
A
B

12 Assemble the Front Bumper
1. Flip the quad onto its back
2. Slide the square hole on the back of the front bumper (6) onto the
front post protruding from the quad
3. Align the three screw holes on the bumper with the three screw
holes on the quad.
4. Remove the three screws from the hardware bag (10).
5. Using a screwdriver, tighten the screws to secure.

13
Attach the Seat
1. Ensure the red battery connector is connected to the red engine
connector before attaching the seat
2. Position the seat (8) over the battery compartment
3. Turn the lock at the end of the seat to the open position and align the
lock with the lock hole on the back of the battery compartment
4. Slide the notch on the front of the seat into the hole on the front of
the battery compartment
5. Turn the lock to the close position

14 Operation
•The rider should be sitting comfortably on the quad
•Push the nger switch on the handlebar to go forward
•Release the button to stop the quad
•The quad drives 2 MPH in a forward movement only
•Use the handlebar to turn the quad to the left and the right
Finger Switch

15
Maintenance
Important Battery and Charger Information
•Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
•Charge the battery for 24 hours before using the vehicle for the rst
time.
•Charge the battery immediately after each use. Charge for at least 8-12
hours, but no more than 20 hours.
•Charge the battery at least once a month, even if the vehicle is not used
or stored.
•Never leave the battery in a discharged condition.
•Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
•It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
•Keep the charger away from water or excessive moisture to prevent
short-circuiting.
•Only use the charger specied with the original item. Do not charge the
battery with any other charger.
•Do not attempt to recharge non-rechargeable batteries with the original
charger.
•Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 20for
replacement information.
•Remove damaged batteries from the quad immediately. Recycle or
dispose of the used batteries responsibly.
•Do not short circuit the supply terminals.
•Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
•The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

16 General Care
•Regularly inspect all vehicle parts to ensure they are in good working
condition.
•Regularly inspect the charger, cord, plug, and other related parts for
damage.
•Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service and Repairs on Page 20for more
information.
•DO NOT operate the vehicle if there are any damaged parts.
•Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
•Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.

17
Troubleshooting Guide
Problem Potential Cause Solution
Vehicle does not run Battery is low Recharge the battery
Thermal fuse tripped Reset fuse
Snap pins are loose Tighten snap pins
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service for repairs
Battery is dead Call Customer Service for
replacement battery
Electrical system is
damaged
Call Customer Service for
repairs
Motor is damaged Call Customer Service for
repairs
Vehicle only runs for a
short time
Undercharged battery Ensure a secure connection
when the battery is
recharging. Recharge for at
least 8-12 hours
Overcharged battery Never charge the battery for
more than 30 hours
Battery is old Replace battery
Vehicle runs slowly Battery is not fully
charged
Ensure a secure connection
when the battery is recharging
Battery is old Call Customer Service to
order replacement battery
Too much weight on
vehicle
Reduce weight on vehicle (45
lbs max)
Harsh conditions Operate the vehicle on level
ground and safe surfaces
Completely read through the manual and troubleshooting guide before
contacting Customer Service.

18
Problem Potential Cause Solution
Vehicle needs a push to
start
Loose wires or loose
connectors
Ensure the battery connectors
are securely attached. If wires
are loose, contact Customer
Service for repairs
“Dead spot” on motor A “dead spot” means
electricity is not being
delivered to the terminal.
Contact Customer Service for
repairs
Cannot stop the quad Electronic part destroyed Contact Customer Service for
repairs
Motor or gear box
making grinding noises
Motor or gear damage Contact Customer Service for
repairs
Battery will not recharge Charger is not plugged in Plug in the charger to a
functional wall outlet
Charger is not working Call Customer Service for a
replacement
Loose connector or loose
adapter
Check that the connectors are
securely plugged in to each
other
Battery makes bubbling
noise while recharging
This is normal No action required
Battery produces noise
and heat when charging
This is normal No action required

19
FCC Information
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the distance between the equipment and the receiver.
•Consult dealer or an experienced radio/TV technician for help.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Check the state or local requirements for the product before using the
product.
Caution: Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.

20
Do not return this vehicle to the store.
If your product requires service, repairs or replacement parts, please
visit us online at www.rollplay.net
Or contact us at:
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.net
Hours: 9 AM - 5 PM (CST), Monday - Friday
For a list of available replacement parts, please visit www.rollplay.net.
Service and Repairs
