Rollplay W510AC-FC Assembly instructions

Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.
Owner’s Manual and Assembly Instructions
Model #: W510AC-FC
6V Chevy Tahoe Fire Rescue

Introduction
Thank you for purchasing this RollPlay vehicle from Rollplay. We hope
the rider enjoys it for miles to come. Please read this instruction guide
carefully before assembling and operating the vehicle. Please have your
model number and serial number ready before calling. Please have proof of
purchase. Keep your sales receipt or register your product at
www.rollplay.net.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Phone: [phone]
Email: [e-mail]
Web: www.rollplay.net
Specifications:
BATTERY 6V 7AH
MOTOR 6V 15W
AGE 3 Years and Up
MAX WEIGHT 35 kg (77 lbs)
PRODUCT SIZE 121 x 47 x 65 cm (47.6” x 18.5” x 25.6”)
SPEED 4 km/h (2.5 MPH)
RECHARGE TIME 8-12 Hours
TYPICAL RUN TIME 1-2 Hours
CHARGER OUTPUT DC 7.0V0.7A

IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Call Customer Service if you need assistance or replacement parts. Please
have your model number and serial number ready before calling. Please
have proof of purchase. Keep your sales receipt or register your product at
www.rollplay.net as we may require proof of purchase.
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.

This page is intentionally left blank.

5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Wheels..............................10
Assemble the Right Rear Wheel ............11
Assemble the Mirrors..............................12
Attach the Megaphone/Searchlight.......13
Assemble the Steering Wheel ................14
Assemble the Front Bumper...................15
Assemble the Seat ..................................16
Operation Instructions ............................17
Battery Removal ......................................18
Maintenance ............................................19
General Care ............................................20
Troubleshooting Guide............................21
FCC Information ......................................23
Service and Repairs ...............................24
Warranty ...................................................25
Product Registration ...............................26

6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
• Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
• Riders must always wear a tted helmet that complies with U.S. Consumer
Product Safety Commission (CPSC) Standard 16 CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
• Do not operate near water, swimming pools or other uids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand or ne gravel.
• Do not operate near ammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.
PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in
vehicle. Direct adult supervision is REQUIRED.
NEVER use in roadways, near cars, on or near steep inclines or steps, swimming
pools or other bodies of water.
ALWAYS wear shoes
ALWAYS sit on the seat
RISK OF FIRE. Do not bypass.

7
Safety (Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

8Parts
1. Manual
2. Steering Wheel
3. Seat
4. Searchlight
14.7. MP3 Cable
5. Megaphone
6. Left and Right Mirrors
7. Front Wheels (2)
8. Rear Wheels (2)
9. Rims (4)
10. Front Bumper
11. Car Body
12. Battery
13. Battery Charger
14. Blister Pack
14.1. Steering Wheel Screw (1)
14.2. Steering Wheel Nut (1)
14.3. Snap pin (4)
14.4. Φ10 Small Washer (4)
14.5. Φ12 Large Washer (3)
14.6. Inner Wheel Spacer
rPhillips screwdriver
rPliers
r2 AA Batteries
Not Included:
1
2
4
5
10
8
9
712 13
14
14.1
14.2
14.3
14.4
14.5
14.6
14.7
6
Helpful Tip:
1. Parts 14.1-14.7 are located
in the blister pack
2. Spare parts:
Small washer 1
Large washer 1
Snap pin 2
3
11

9

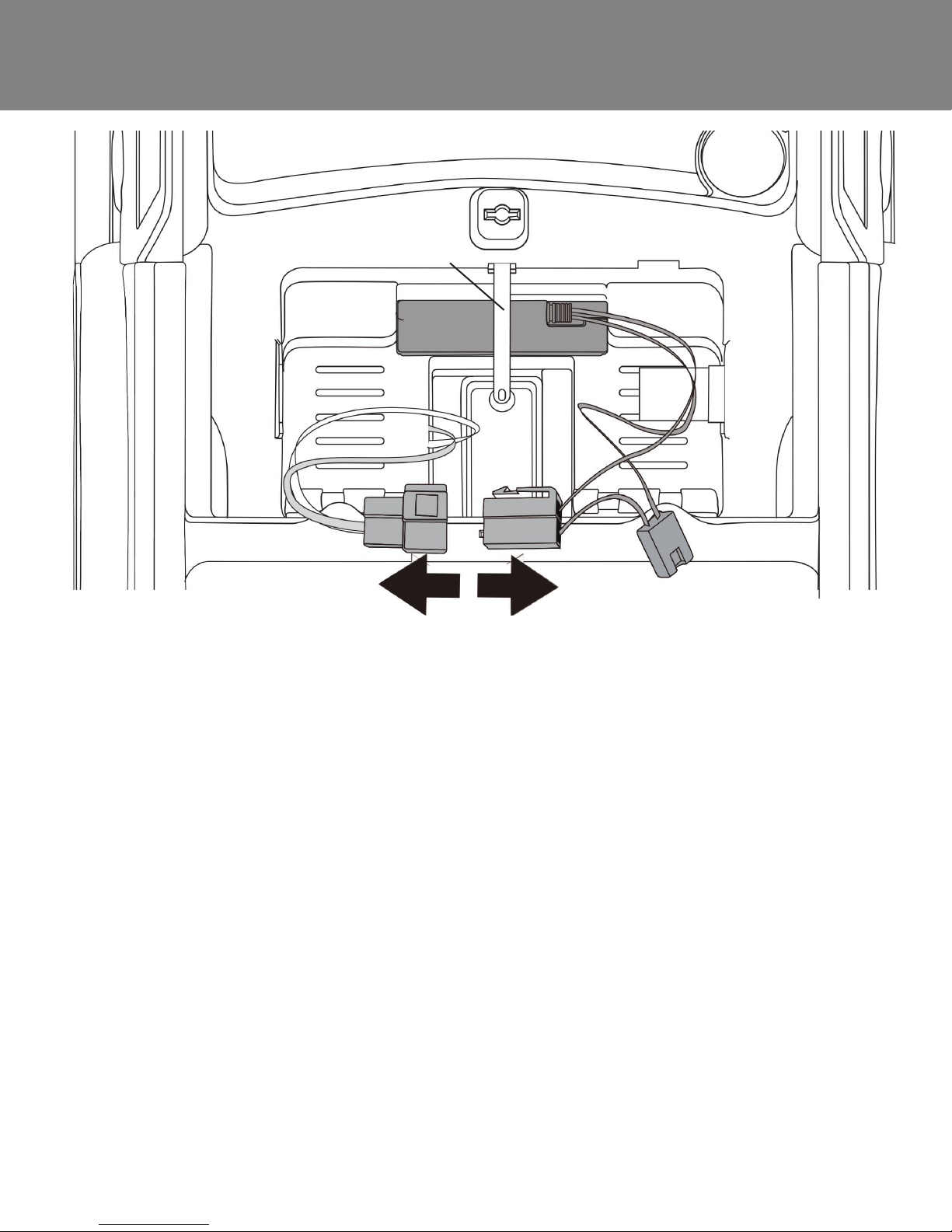

Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the vehicle is stopped and turned
off.
2. Unlock and remove the seat.
3. Locate the red battery connector (A)
that attaches directly to the battery.
4. Connect the red battery connector to the
red battery charger connector (B).
5. Plug into a 120 V outlet.
To Reconnect the Battery:
6. Unplug the battery charger from the
outlet.
7. Unplug the red battery connector from
the red charger connector (B).
8. Connect the red battery connector (A) to
the red engine connector (C).
9. Replace the seat and tighten lock.
Note: It is not necessary to remove the
battery for charging. However, if the
battery does not reach the outlet, it can be
removed for charging. For Battery Removal
instructions, see Page 18.
YOU MUST CHARGE THE BATTERY FOR 24 HOURS
BEFORE THE FIRST USE!
A
B
Helpful Tip:
1. Ensure the red battery connector
is connected to the red engine
connector
2. Ensure the white gear box connector
is connected to the white engine
connector
3. NEVER connect a red connector to a
white connector
C

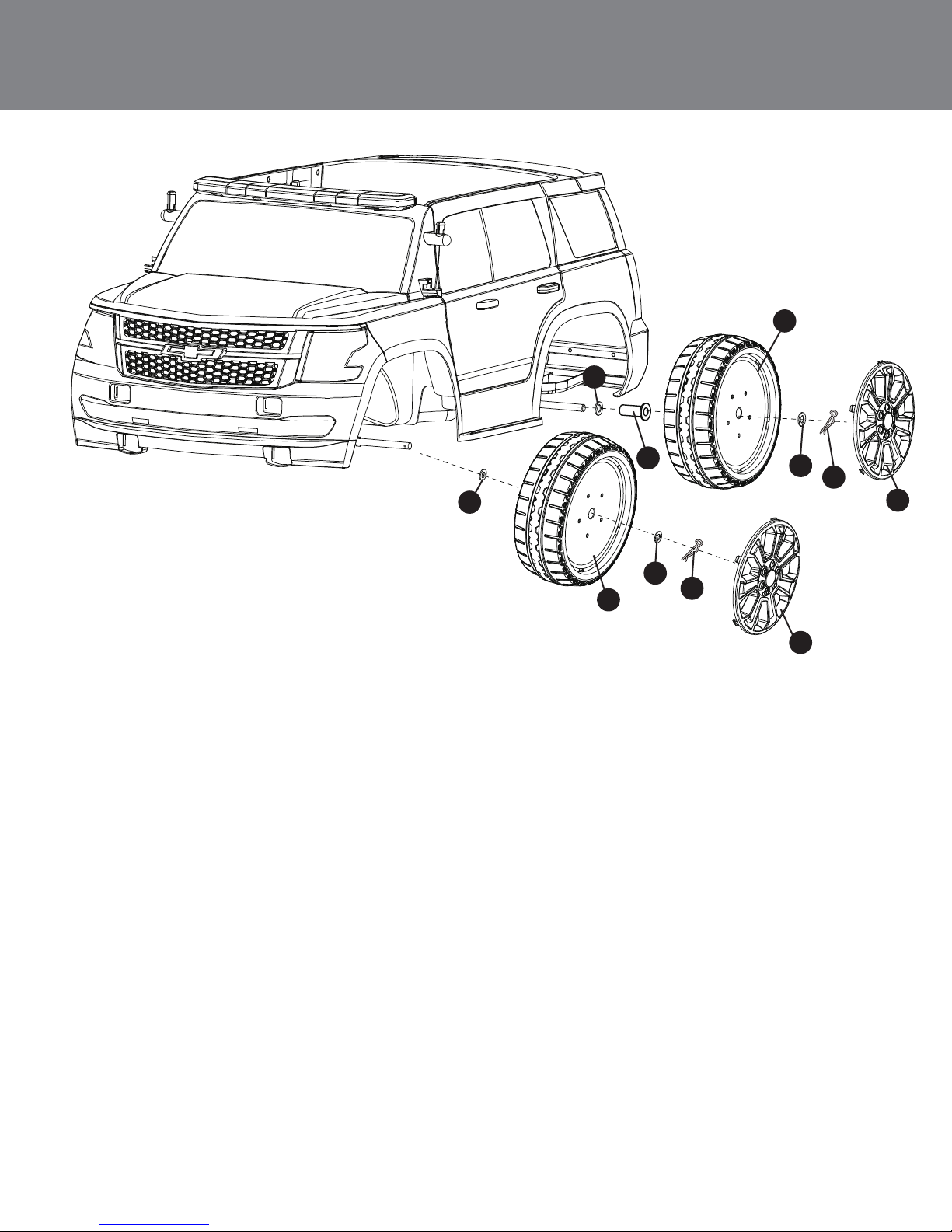

10 Assemble the Wheels
1. Locate the snap pins (14.3) and small washers (14.4) from the blister box.
2. Slide the front small washer (14.4) onto the axle.
3. Slide the front wheel (7) onto the axle.
4. Slide the front small washer (14.4) onto the axle, and then insert the straight end of
the snap pin through the hole on the front axle.
5. Snap the wheel rim (9) onto the front wheel.
6. Repeat steps 1-5 for the other front wheel.
1. Locate the snap pins (14.3), inner wheel spacer (14.6) and large washers (14.5) from
the blister box.
2. Slide the rear large washer (14.5) onto the axle.
3. Slide the inner wheel spacer (14.6) onto the axle.
4. Slide the rear wheel (8) onto the axle with the gear teeth facing inward.
5. Slide the rear large washer (14.5) onto the axle, and then insert the straight end of
the snap pin through the hole on the rear axle.
6. Snap the wheel rim (9) onto the rear wheel.
To assemble the front wheels:
To assemble the left rear wheel:
8
7
14.3
14.4
14.3
14.5
14.6
14.5
14.4
9
9

11
Assemble the Right Rear Wheel
1. Locate the snap pins (14.3) and large washers (14.5) from the blister box.
2. Slide the rear wheel onto the axle with the gear teeth facing in. Ensure the gear
teeth fully engage with the pre-installed gearbox.
3. Slide the rear large washer (14.5) onto the axle, and then insert the straight end of the
snap pin through the hole on the rear axle.
4. Snap the wheel rim (9) onto the rear wheel.
Helpful Tip:
1.
wheels onto the rear axle, then your rear
wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel
axle. Using two hands, push down on
the rear wheel axle and slide it gently
toward the side of the vehicle that needs
more room.
To assemble the right rear wheel:
14.3
14.5
9

12 Assemble the Mirrors
1. Remove the screw and nut from the mirror (6).
2. Align the hole on the mirror with the hole on the car.
3. Insert the screw into the hole, and insert the nut underneath the mirror
slot.
4. Fasten the screw with a screwdriver to secure.
5. Repeat steps 1-4 for the other mirror.
6

13

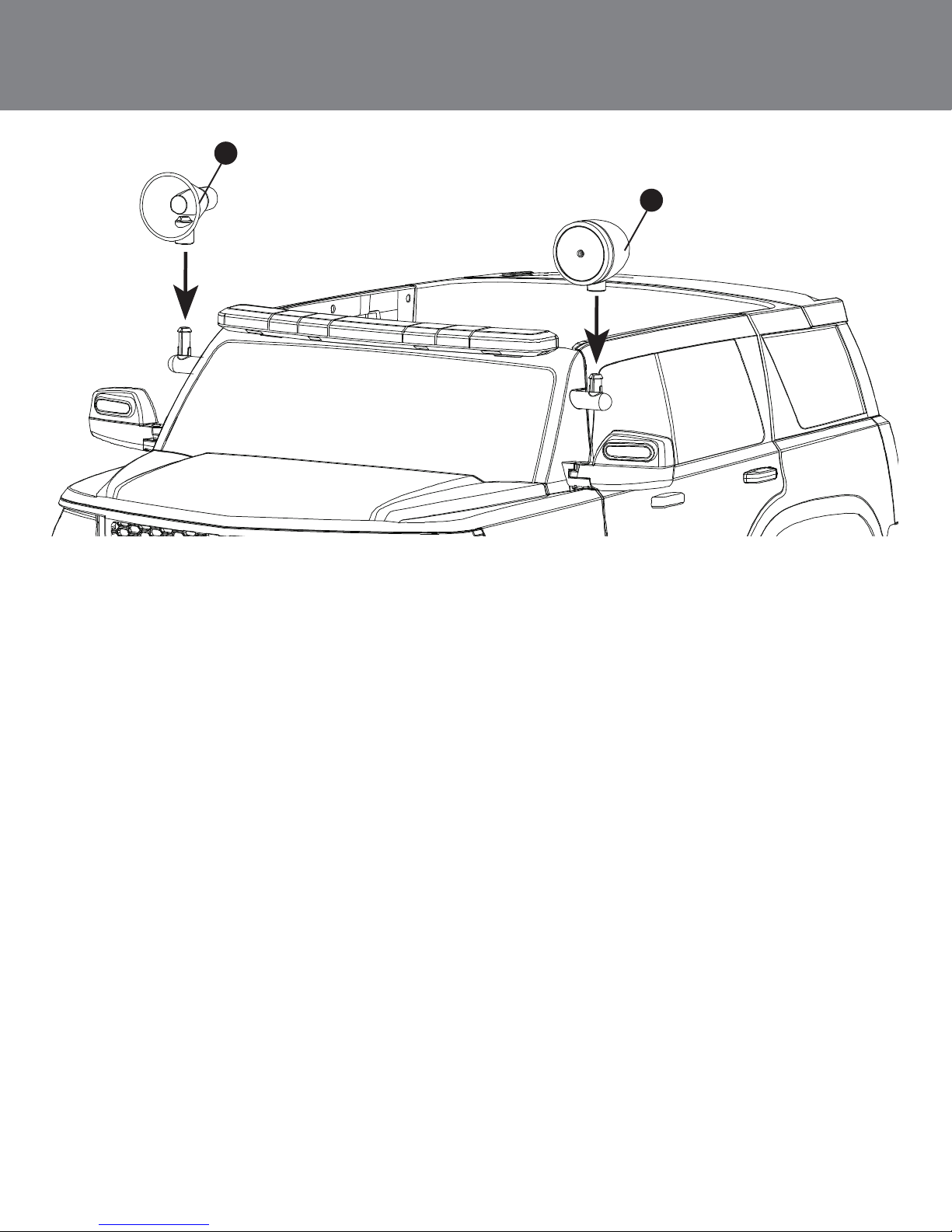

Attach the Megaphone/Searchlight
1. Locate the searchlight (4) in the packaging.
2. Insert the searchlight into the slot near the left door.
3. Gently push until it clicks into place.
4. Repeat steps 1-3 for the megaphone (5).
8
4
5

14 Assemble the Steering Wheel
1. Use a Phillips head screwdriver to remove the screw on the battery
compartment of the steering wheel (2).
2. Insert two AA batteries into the battery compartment (batteries not
included).
3. Replace cover and use the screwdriver to fasten.
4. Locate the steering wheel screw (14.1) and steering wheel nut (14.2)
from the blister box.
5. Slide the steering wheel onto the steering rod. (Note: ensure that the
steering rod is pulled up through the dashboard all the way).
6. Align the holes on the steering wheel with the holes on the steering rod.
7. Slide the steering wheel screw through the left side of the steering
wheel and steering rod.
8. Fasten the nut to the end of the screw and tighten the screw with a
screwdriver.
WARNING
rDo not mix old batteries with new batteries or batteries of different types.
rDo not mix alkaline, standard (carbon-zinc), or rechargable (nickel-
cadmium) batteries.
AA 1.5V
AA 1.5V
AA 1.5V
-
-
+
+
2
14.1
14.2

15
Assemble the Front Bumper
1. Locate the front bumper (10) in the packaging.
2. Align the top and bottom slots on the bumper with the four holes on the
car body.
3. Slide the bumper into the holes until it snaps into place.
10

16 Assemble the Seat
1. Ensure the lock on the car seat (3) is in the unlock position.
2. Align the hook on the back of the car seat (3) with the holes on the back
of the battery compartment.
3. Insert the hook into the holes and rotate the seat down into place.
4.
position.
Hook Slot
3

17
Operation Instructions
1. Power: Push the red power button to turn on the car. The power light will turn on
when the car is on. Press the power switch again to turn off the car.
2. Forward/Reverse: Push the shifter up to move forward. Pull the shifter down to go
in reverse.
3. Foot Pedal: Press the foot pedal down to go. Release the foot pedal to stop. The
headlights will turn on when the foot pedal is pressed.
4. MP3: Insert the MP3 cable (5) into the MP3 jack and connect to your device. The
car must be turned on to use.
5. Sounds: Press the left and right steering wheel buttons for horn and engine
sounds.
6. Siren and Emergency Lights: Press the siren button for siren sounds and
emergency lights. Press the button to turn off the sounds and lights.
7. Battery Life Indicator: Green, Yellow, & Red Lights: Battery is fully charged.
Yellow & Red Lights: Battery level is low. Red Light: Battery power is lower than
5.5V, and the battery must be recharged
8. Loudspeaker: Slide the microphone out of the holster. Press the yellow button on
the left side and speak into the microphone.
3. Foot Pedal
2. Shifter
1. Power Switch
4. MP3 Jack 7. Battery Life
Indicator
5. Sounds
6. Siren
8. Loudspeaker

18 Battery Removal
1. Unlock and remove the seat
2. Disconnect the red battery connector from the red engine connector
3. Loosen and remove the screw from the battery strap using a Phillips
screwdriver
4. Slide the battery strap out from the battery strap slot
5. Remove the battery
Note: It is not necessary to remove the battery for charging. However,
if the battery does not reach the outlet, then it can be removed for
charging.
Battery Strap

19
Maintenance
Important Battery and Charger Information
• Only an adult who has read and understands the safety warnings may
handle and operate the battery and battery charger. Keep away from
children.
• Charge the battery for 24 hours before using the vehicle for the rst
time.
• Recharge the battery immediately after each use. Charge for at least
8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used
or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger
into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above
71°C / 160°F, disconnect the charger and call Customer Service for
assistance.
• Keep the charger away from water or excessive moisture to prevent
short-circuiting.
• Only use the charger specied with the original item. Do not charge the
battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original
charger.
• Do not replace the battery with any other battery, or the warranty
will be voided. If you need a replacement battery, see Page 24 for
replacement information.
• Remove damaged batteries from the car immediately. Recycle or
dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods
of time when the vehicle is not being used. Disconnect the battery
connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric
circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

20 General Care
• Regularly inspect all vehicle parts to ensure they are in good working
condition.
• Regularly inspect the charger, cord, plug, and other related parts for
damage.
• Remove any damaged parts and immediately contact Customer Service
for replacement parts. See Service information on Page 24.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not
get water in or near any electrical parts. Do not wash the vehicle with a
hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from
stoves, heaters, or other sources of heat.
