Roltec Viper User manual

1
ROLTEC el-kørestole A/S
User Manual
User Manual for
ROLTEC Viper
Category B wheelchair
(FWD) Viper_USERMANUAL v1.5.2 UK

MANUAL MANUAL
2
Preface
ROLTEC el-kørestole A/S would like to congratulate you on the purchase of your new
wheelchair and thank you for the trust you have placed in us in choosing our product.
Models may vary, therefore not everything will necessarily apply to your wheelchair.
ALWAYS READ THE USER MANUAL BEFORE USING THE WHEELCHAIR.
⚠The first time the wheelchair is used, it should be in an area with plenty of space and no
traffic, starting at a low speed.
❗Children and young people should read the documentation for the wheelchair with an adult
before using it for the first time.
In this user manual you will find all the information you need to be able to operate the
wheelchair. If you have any questions that are not clarified in this user manual, you are always
welcome to contact your ROLTEC dealer.
If you find that the font size in the printed version of the user manual is difficult to read, the
user manual is available in large font in an electronic version of this manual and is available
from ROLTEC upon request. You can enlarge the PDF file on the screen using the zoom
function.
Intended use/INDICATIONS
ROLTEC’s electric wheelchairs are designed for people who have a partial or full walking
disability, but whose sight, physical and mental capacity enables them to use an electric
wheelchair.
Contraindications
There are no known contraindications.
(FWD) ROLTEC Viper
Category B
User manual: Viper_USERMANUAL v1.5.2 UK
Article number: Viper_USERMANUAL v1.5.2 UK
Produced and issued by ROLTEC A/S

3
IMPORTANT INFORMATION ABOUT THIS INSTRUCTION MANUAL
Note:
The following symbols will be used throughout this user manual to indicate elements that are
crucial for safety.
⚠
Exercise extreme caution when
this symbol is shown. Failure
to do so may lead to personal
injury and material damage,
including damage to the
wheelchair.
❗
Exercise caution when this
symbol is shown.
✋
Do not ride in the chair
when this symbol is shown.
Read the user manual and the
enclosed documentation
This product complies with
EU Directive 93/42/EEC for
medical devices
Manufacturer
ROLTEC contact Info:
ROLTEC el-kørestole A/S
Lægårdsvej 13
DK - 8520 Lystrup.
Telephone [phone]
Fax [phone]
E-mail: [e-mail]

MANUAL MANUAL
4
Table of Contents
Preface ............................................................................................................................................................... 2
Intended use/INDICATIONS ............................................................................................................................... 2
Contraindications............................................................................................................................................... 2
IMPORTANT INFORMATION ABOUT THIS INSTRUCTION MANUAL................................................................... 3
ROLTEC contact Info:.......................................................................................................................................... 3
Product approval................................................................................................................................................ 7
Check before running......................................................................................................................................... 7
Inspection:.......................................................................................................................................................... 7
Daily inspection:............................................................................................................................................. 7
Weekly check ................................................................................................................................................. 7
Monthly check................................................................................................................................................ 8
Annual check.................................................................................................................................................. 8
Warranty: ........................................................................................................................................................... 8
SAFETY INSTRUCTIONS....................................................................................................................................... 9
General............................................................................................................................................................... 9

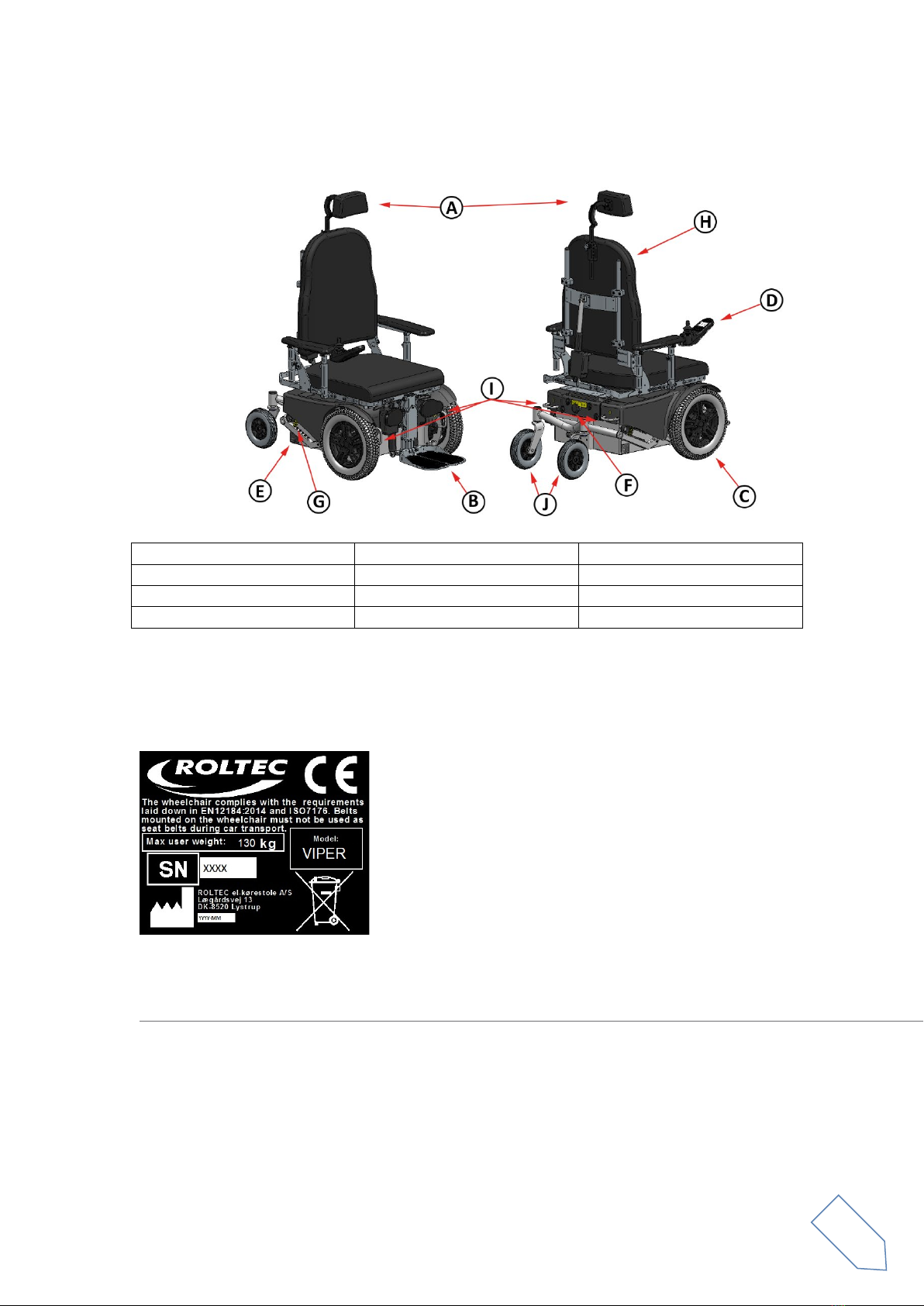

Component list................................................................................................................................................. 13
Using the PG R network. .................................................................................................................................. 14
General advice on wheelchair control:............................................................................................................ 14
Speed: .............................................................................................................................................................. 14
Drive profile: .................................................................................................................................................... 15

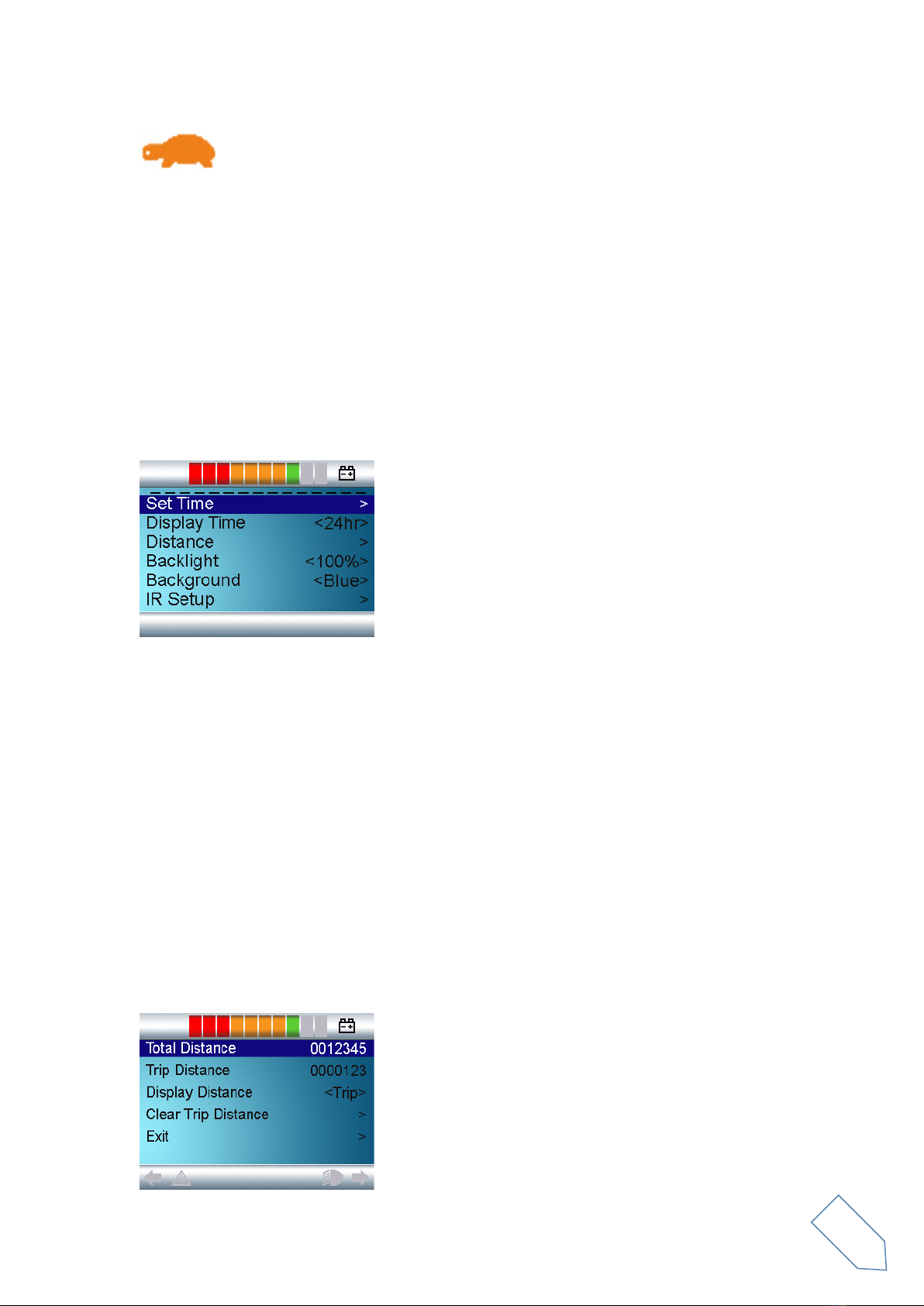

Settings menu: ............................................................................................................................................. 15
Set time - Adjusting the time: ...................................................................................................................... 15
Backlight:...................................................................................................................................................... 16
Background: ................................................................................................................................................. 16
Battery indicator: ......................................................................................................................................... 16
Locking the joystick:..................................................................................................................................... 16

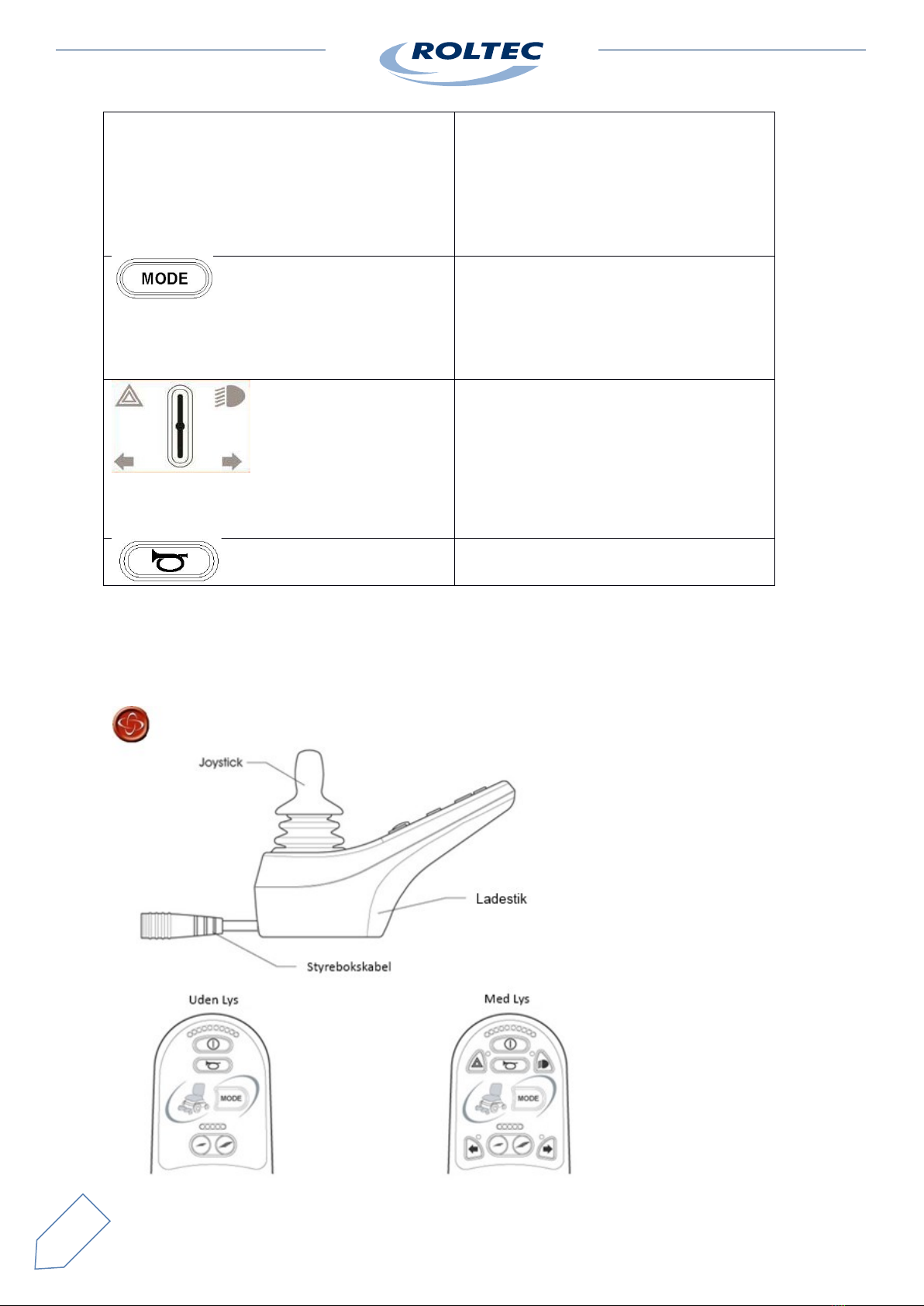

CJSM:................................................................................................................................................................ 17
CJSM2:.............................................................................................................................................................. 19
JSM:.................................................................................................................................................................. 20
Swivel bracket .................................................................................................................................................. 23
Charging: .......................................................................................................................................................... 24
The chair’s mechanical settings ....................................................................................................................... 25
Seat depth.................................................................................................................................................... 25

5
Back height ...................................................................................................................................................25
Chair back height..........................................................................................................................................26
Adjusting the foot support ...........................................................................................................................27
Adjusting the calf support ............................................................................................................................27
Angle of the foot plate .................................................................................................................................28
Adjusting the length of the leg support .......................................................................................................29
Armrest.........................................................................................................................................................30
Armrest height..............................................................................................................................................30
Armrest cushions..........................................................................................................................................31
Transferring to and from the wheelchair.....................................................................................................32
Headrest. ......................................................................................................................................................33
Adjustment of the headrest. ........................................................................................................................33
Suspension/Shock-absorber.............................................................................................................................33
Adjusting the suspension. ............................................................................................................................33
External control box: ........................................................................................................................................34
Transport of the chair.......................................................................................................................................34
Loading/unloading........................................................................................................................................34
Securing during transportation ....................................................................................................................34
Transportation as freight:.............................................................................................................................34
Transportation by car: ......................................................................................................................................34
Securing the wheelchair with a strap system...............................................................................................35
Angles for tie-down straps ...........................................................................................................................36
Mounting of Dahl docking locking plate underneath the wheelchair..........................................................39
Description of function for Dahl Docking System ........................................................................................41
Release from the docking station.................................................................................................................42
Manual release in the event of an electrical fault........................................................................................42
Mounting the Dahl Docking System in the vehicle ......................................................................................43
Positioning belts: ..............................................................................................................................................44
Push function....................................................................................................................................................45
Brakes. ..............................................................................................................................................................46
Lights and reflectors.........................................................................................................................................46
Access to the battery room ..............................................................................................................................47
Access to the batteries .................................................................................................................................49
Batteries: ..........................................................................................................................................................49

MANUAL MANUAL
6
Tyres:................................................................................................................................................................ 49
Flywheel:.......................................................................................................................................................... 50
Drive wheel: ..................................................................................................................................................... 50
Disposal of the wheelchair:.............................................................................................................................. 51
Cleaning: .......................................................................................................................................................... 51
Disinfection: ..................................................................................................................................................... 51
Recycling: ......................................................................................................................................................... 51
Fuse:................................................................................................................................................................. 52
Storage ............................................................................................................................................................. 52
Troubleshooting:.............................................................................................................................................. 53
CJSM:................................................................................................................................................................ 53
CJSM2:.............................................................................................................................................................. 54
JSM:.................................................................................................................................................................. 55
PRE-SALE INFORMATION ................................................................................................................................. 57
Data:................................................................................................................................................................. 58
Measurements:............................................................................................................................................ 58
Weight:......................................................................................................................................................... 58
Temperature range:..................................................................................................................................... 58
Explanation of labels/stickers on electric wheelchair...................................................................................... 60
Spare parts and accessories............................................................................................................................. 61
Components that are included in the supply................................................................................................... 61

7
Product approval
This product meets the requirements of standard EN 12184:2014
The chair is crash-tested in accordance with ISO 10542-5 & 7176-19 – 2008
Check before running
❗The following should be checked before running:
❗The battery’s charge status
❗Set at the required speed
⚠Turn off the control box before getting in and out
Users are advised that changes made to the control parameters and other settings by the user
or other unauthorised personnel are done so at their own risk!
❗Always let the dealer carry out adjustments and settings
Inspection:
Daily inspection:
⚠It is extremely important to check the chair for damage on a daily basis. Pay particular
attention to visible breakages in cables and defects in the rubber bellows on the joystick.
✋If the damage mentioned above is present, the wheelchair should not be used, and
driving it is at your own risk!
⚠If you find that the wheelchair and its accessories are not working as expected, or if there
are unusual noises or a suspected defect, contact your wheelchair supplier as soon as
possible.
Weekly check
Parking brake: This test should be carried out on an even surface, with at least one metre’s
clearance around the wheelchair.
1. Power up the wheelchair.
Check that the wheelchair remains switched on after initialisation and that the
battery indicator shows a sufficient battery level.
2. Push the joystick slowly forwards, until you hear that the parking brakes are
activated. The wheelchair will now start to run slowly.

MANUAL MANUAL
8
3. Release the joystick. You should now be able to hear both parking brakes
being activated within a couple of seconds, and the chair braking.
Repeat the test three more times.
Push the joystick slowly backwards, to the left and to the right.
Connectors and cables: Check that the cables and connector are arranged neatly and not
damaged.
Joystick rubber seal: Check that the rubber around the control stick is not damaged or torn, so
that no water or foreign bodies are able to penetrate.
Joystick mounting: Check that the control box and fittings are mounted properly and are not
loose. Do not over-tighten any screws
Monthly check
❗Check the air pressure in the wheels at least once a month.
Annual check
❗We recommend that the chair is sent for servicing once a year by an authorised
ROLTEC dealer in the country in which it was purchased. Contact your dealer if there are any
problems or if a solution is not described in this user manual.
If your chair is equipped with an electrically adjustable back rest, this should be checked once
a year. Moving parts should be lubricated and checked for wear.
All visible bolts should be re-tightened.
❗Power consumption increases significantly if there is not enough air in the tyres. Different
pressure in the tyres will result in uneven running
Warranty:
The warranty is invalidated if the user has not carried out regular maintenance of the
wheelchair, and the warranty will also be invalidated if the user has undertaken, or allowed a
third party to undertake, repairs, mounting or modifications without ROLTEC’s prior written
consent. Nor does the warranty cover defects or damage caused by incorrect usage or storage
of the wheelchair. The warranty will also be invalidated if the wheelchair is used in a manner
or for a purpose for which it is inherently not suitable.

9
SAFETY INSTRUCTIONS
General
⚠
If the height is changed using force, with the seat raised or tipped, there is a risk of the chair
overturning. In such case, to minimise this risk, it is important that the seat is raised as little as
possible, and is in a horizontal position with the chair back as upright as possible.
⚠
Driving on surfaces that slope to one side should be avoided, as the tilting may increase the
risk of the chair overturning. When the chair is used on uneven surfaces, the seat should not
be raised, to ensure the chair’s stability.
⚠
Avoid touching leaking batteries, as the contents are corrosive and can be harmful to your
health.
⚠
ROLTEC el-kørestole A/S is exempt from all liability for any accidents caused through
negligence, nor can ROLTEC el-kørestole A/S be held liable for the personal injuries or
material damage that may arise if the user or other person has not followed the
recommendations, warnings and instructions that are given in this user manual. You should
therefore read the instructions for use thoroughly. It contains important warnings and
instructions.
⚠
Increased risk of overturning if lift, tilt and electric back are used.
⚠
ROLTEC Viper is approved for a user weight of 130 kg.
⚠
You should always switch off the wheelchair when getting in or out of the chair - also when
you are being assisted by an attendant, so that the chair does not start to roll if the joystick is
inadvertently activated.
⚠
When the control box is swung out to the side or into place, there may be a risk of getting
caught on the swivel bracket. Take care not to get your own or anyone else´s fingers caught.

MANUAL MANUAL
10
⚠
The wheelchair is EMC-tested. However, this does rule out the possibility of the wheelchair
being affected by electro-magnetic fields, from mobile phones, for example. For this reason,
transportable transmission, receiving and communications devices should not be used or
switched on when the wheelchair is switched on. Should the wheelchair be started up
unintentionally, or if the brakes fail, the wheelchair must be switched off immediately. Note
that this does not rule out the possibility of the chair emitting electromagnetic fields, which may
affect the surroundings, for example, office alarm systems.
⚠
Warning; the chair’s electronics may cause so much electromagnetic interference that store
alarms, for example, and electric gates in the immediate vicinity of the wheelchair can be
affected.
⚠
Exercise particular care when driving down ramps.
⚠
When the chair’s brakes are released, the chair may start to roll if it is standing on a sloping
surface.
⚠
When braking (emergency braking) by pressing the On/Off button, the user’s upper body can
fall forwards and, in extreme cases, this may result in the user falling out of the chair. This form
of braking should only be used as an emergency stop.
⚠
Batteries should be charged in a well-ventilated area.
⚠
If the batteries are damaged and leak, contact your dealer, as it may be hazardous to come
into contact with the contents of the batteries. The wheelchair should then be stored in a dry,
well-ventilated room. Spent batteries should be taken to the local authority’s waste disposal
site for recycling. This also applies to other parts of the wheelchair, e.g. used tyres and tubes.
The whole wheelchair may also be returned to the dealer to be disposed of.
⚠
If there is a strong smell during charging (there may be a fault with the batteries), contact your
dealer, as it may be hazardous to breathe in the vapours from the battery. The wheelchair
should then be stored in a dry, well-ventilated room.

11
⚠
When the wheelchair is exposed to external heat sources, such as the sun’s rays, the surface
temperature may increase so much on some surfaces that you could burn yourself on them.
This applies to dark and black surfaces in particular.
⚠
Warning; the wheelchair’s operating parameters can be adjusted, so they fall outside the limits
specified in the standard (EN 12184). The user must beware of the dangers this can lead to,
such as long braking distances. Always let the dealer carry out adjustments and settings
⚠
Warning; there is a danger of the wheelchair being caught up on poor terrain, e.g. loose sand
or deep holes.
⚠
With regard to fire hazards, it is hereby stated that the combination of the seat’s foam padding
and upholstery has been tested and approved in accordance with EN 1021-1:2006 and EN
1021-2:2006
⚠
Only equipment that is assembled by personnel authorised by ROLTEC may be used.
⚠
When using the chair and its functions, there may be a danger of getting stuck in it. When the
control box is swung in or out to the side, there may be a risk of getting caught on the swivel
fitting.
⚠
A headrest should always be used when the electrical functions - Tilt and Back - are used.
⚠
Beware that, if the chair is left in sunlight, the upholstery can get so hot that it can cause burns.
⚠
The wheelchair’s lift and tilt functions are designed in such a way that it will not fall by itself,
but will only move when these functions are used.
These functions are also designed to ensure continual driving.

MANUAL MANUAL
12
⚠
If the wheelchair is not secured properly in a vehicle, this may cause damage to the vehicle
itself, the wheelchair or the passengers in the vehicle during the journey. If you do not use a
seatbelt while sitting in a wheelchair, this may lead to serious injuries in the event of an
accident.
⚠
No modifications or replacements should be made to the wheelchair’s mounting points or to
the construction and frame parts or components without consulting the wheelchair
manufacturer.
⚠
A Dahl Docking Station may only be incorporated into a wheelchair by the qualified and
authorised staff of a registered firm that carries out car adaptations. To order Dahl Docking
and accessories, please contact Dahl Engineering in Denmark for further details.
You can find Dahl at www.dahlengineering.dk
⚠
The wheelchair may only be transported in a vehicle that is approved or adapted for such
purposes. It is safer if the wheelchair is separated from the driver’s cabin. Transport in a trailer
is also an optional recommendation. If the wheelchair is transported in a bus, van or other
vehicle, it is essential that the chair is properly secured and that the vehicle’s mounting points
are firmly fixed. In all transport situations, the wheelchair must be correctly secured at the 4 tie-
down points, to prevent the chair from slipping or tilting during the journey. Check that the
wheelchair is properly secured and that the parking brakes are activated. The wheelchair can
be locked in position by attaching the mounting straps through the fittings on the front and
back, each of which has an indication label.
⚠
Follow the vehicle manufacturer’s mounting instructions to secure the wheelchair. Always make
sure that the mounting points on the vehicle are securely fixed. This is strongly recommended,
as the heavy wheelchair may cause serious problems in the event of a road accident.
⚠
If the instructions for use are not followed carefully, this will put the user at great risk of danger
and the wheelchair at risk of damage

13
Component list
A-Headrest
B-Leg support
C-Drive wheel
D-Control box
E-Identification label
F-Push/run handle
G-Adjustable spring
H-Chair back
I-Clamping eyes
J-Flywheel
K-Armrest
L-Seat cushion
All of ROLTEC’s chairs have one unique identification number (label), which is located on the
right side of the wheelchair, see diagrams.
It also has information, including the max. user weight and the time of production.
The chair must be disposed of as electrical waste, i.e. the product must not be thrown out with
household waste, but should be collected separately for environmentally-friendly disposal.

MANUAL MANUAL
14
Using the PG R network.
General advice on wheelchair control:
The wheelchair is switched off when there is no light on the display, and on when the display
lights up.
The wheelchair’s control system can be in two or more statuses: either ready to drive, or in a
status in which it cannot be driven but where the joystick (control stick) can be used to operate
all electrically powered parts of the chair - leg supports, seat lift, etc. - and make various
adjustments to the chair.
Mode:
If you want to use the control stick for any other functions other than running, you can switch
from drive status to mode status (there may well be several mode statuses) by activating the
mode button, and hence gain access to the wheelchair’s other functions.
Use the mode button to switch from one mode to another.
Apart from the display diagrams that refer to the electrically-powered parts of your wheelchair,
other mode diagrams are available if additional control equipment is fitted
The wheelchair’s electrical functions are activated by moving the control stick either forwards
or backwards.
If the display does not show the part of the wheelchair you want to activate, you can scroll
forward to the required part by moving the control stick to the right or left.
Speed:
The maximum speed can be controlled by using the speed button on the control unit.
The speed bar in the display will show the maximum speed in the profile selected.
The speed can be controlled by using the joystick during driving. If the joystick is moved a little,
the wheelchair will move more slowly.

15
The wheelchair’s top speed is reduced when the seat is raised or tipped beyond a certain
point. When this happens, it will be shown by an orange tortoise appearing in the display.
Drive profile:
The control unit can be set to make the wheelchair suitable for different environments. For
example, if you select the “Soft” profile, the wheelchair will react more gently. When you are
outdoors, the profile can be set to a more constant driving style.
The name of the current profile is shown at the bottom of the display.
The Profiles button allows the user to navigate through the available Profiles of the control
system. The number of profiles available depends on how the control system is programmed.
Settings menu:
The settings menu enables you to change the clock, the light strength, background light,
colour and kilometre counter.
To access the settings menu, you will need to hold down the buttons for speed down and
speed up at the same time on the CJSM. On the CJSM2 there is a hazard light which needs to
be held in.
The following points are then displayed in the menu:
Set time - Adjusting the time:
Turn the control stick to the right to set the time.
Select exit at the bottom of the menu to get back.
Display time:
Selecting the time format to be shown.
Selection options:
12h, 24h, Off.
Distance:

MANUAL MANUAL
16
The following sub-menu appears:
Total distance: total distance the power module has driven.
Trip distance: the trip counter can be reset.
Display distance: select whether trip or total should appear in the display.
Clear trip distance: Reset the trip counter.
Exit: exit the menu.
Backlight:
Background light.
Selection options: 0% to 100% in steps of10%.
Background:
Background. The background colour can be selected here.
Blue = blue background in all profiles
White = White background in all profiles (the display is more visible with a white background in
strong sunlight)
Auto = The wheelchair can be programmed to show a different background with different
profiles.
Battery indicator:
The battery indicator shows the status of the battery.
Red, yellow and green lights: Full range!
Red and yellow lights: Reduced range!
Red diodes flash slowly: Very short range! The wheelchair must be re-charged immediately to
prevent damage to the batteries or stalling.
The battery indicator “increases”: The wheelchair is on charge. You will not be able to use the
wheelchair while the charger is connected. It must be switched off and on again to be able to
run.
Locking the joystick:
The system can be locked by using the joystick, so the wheelchair is unable to run, and the
system cannot be activated.
Locking the system:
1. With the wheelchair switched on, press and hold the “on/off” button.
2. After 1 second, the wheelchair beeps, release the “on/off” button
3. Move the joystick forwards until you hear a beep
4. Move the joystick backwards until you hear a beep

17
5. Release the joystick, you will now hear a long beep
6. The wheelchair is now locked - a symbol appears in the display
Unlocking the system
1. If the wheelchair is switched off, switch it on
2. Move the joystick forwards until you hear a beep
3. Move the joystick backwards until you hear a beep
4. Release the joystick, you will now hear a long beep
5. The wheelchair is now unlocked - the symbol disappears from the display.

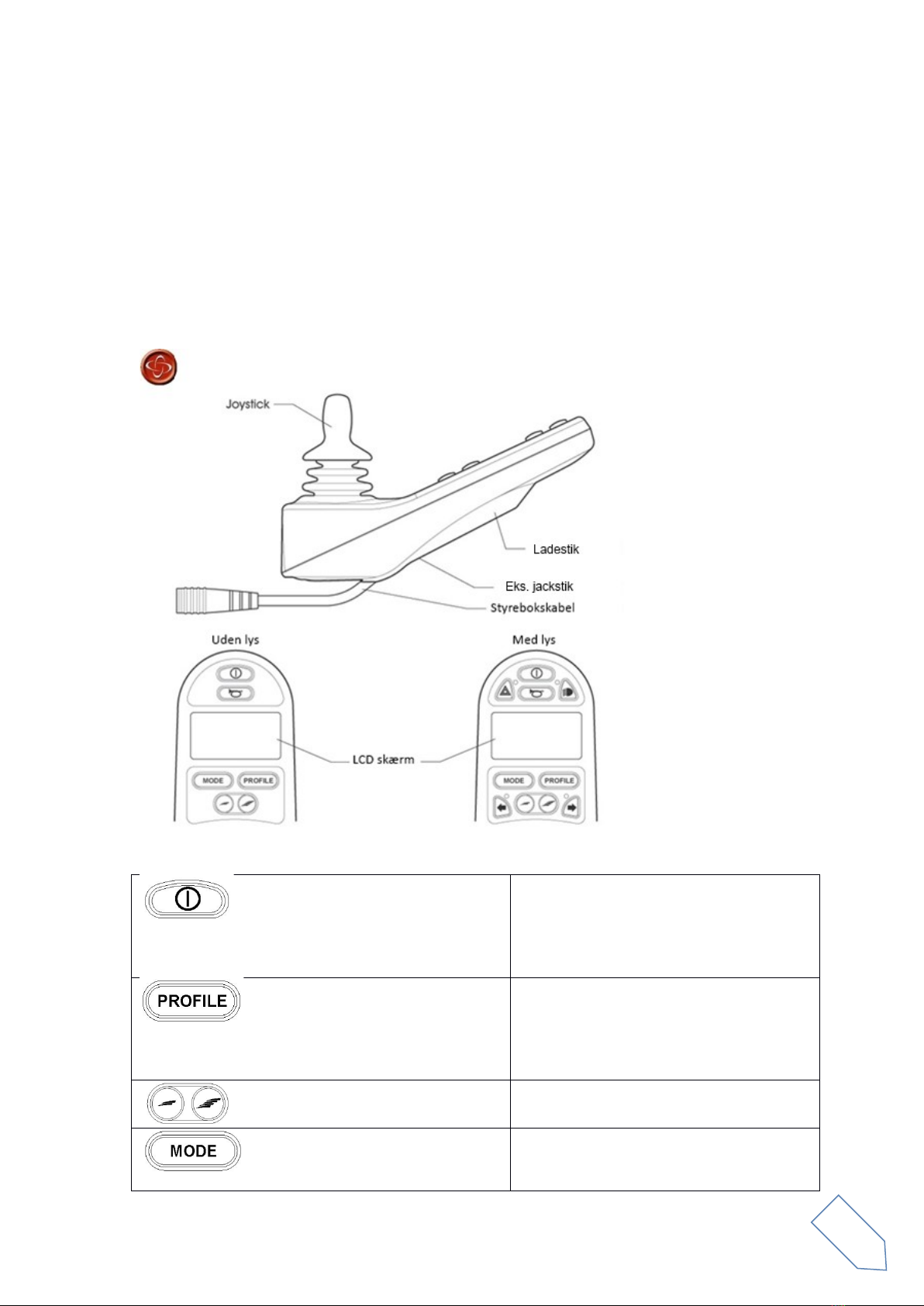

CJSM:
Use the on/off button to turn the chair
on/off. Do not use the on/off button to
stop the wheelchair, except in an
emergency.
The profile button allows the user to
navigate between the drive profiles. The
number of profiles available depends on
how the control system is programmed.
These buttons reduce/increase the
driving speed
The mode button allows the user to
navigate through the different
electrically-powered functions. The

MANUAL MANUAL
18
functions available depend on
programming and the additional
equipment for control.
This button activates and deactivates the
wheelchair’s lighting. Press the button to
turn the lights on and press the button
again to turn them off. When the light is
activated, the LED light at the side of the
button indicates that it is activated.
*There may be additional equipment on some models.
Warning signal with sound.
These buttons activate and deactivate the
wheelchair’s left/right flashing indicator
lights. Press the button to activate the
flashing and press the button again to
turn it off. When the flashing light is
activated, the LED light at the side of the
button indicates that it is activated.
*There may be additional equipment on some models.
This button activates and deactivates the
wheelchair’s hazard light. Press the
button again to turn on the hazard light.
When it is activated, the wheelchair’s
light flashes. At the same time, the LED
light at the side of the button indicates
that it is activated.
*There may be additional equipment on some models.

19
CJSM2:
Use the on/off button to turn the chair
on/off. Do not use the on/off button to
stop the wheelchair, except in an
emergency.
The profile button allows the user to
navigate between the drive profiles. The
number of profiles available depends on
how the control system is programmed.
These buttons reduce/increase the driving
speed
Battery indicator
All 10 bars light up (red, yellow and
green): The wheelchair is fully charged
7 bars light up (red and yellow): The

MANUAL MANUAL
20
wheelchair must be re-charged as soon as
possible
3 bars light up or flash slowly (red): The
wheelchair must be re-charged
immediately to prevent damage to the
batteries.
The mode button allows the user to
navigate through the different electrically-
powered functions. The functions available
depend on programming and the
additional equipment for control.
These buttons control the wheelchair’s
lighting functions.
The function for each button is illustrated
with an icon, which appears on the LCD
screen at the side of the button. When the
function is activated, the icon will light up
or flash.
Warning signal with sound.
JSM:
