Ronis TRONIC+ User manual

Operating Instructions

TRONIC +
Operating Instructions
****
Single User Mode:
To Open:
Enter the 4 digit code. Default: 1111 and press
Enter. The lock is open.
To Close:
The latch closes automatically after 2 seconds
(Slam Door Function)
* * * *
Multi User Mode:
To Open:
Enter a 4 digit code. The code is erased every time the
lock is opened.
After 3 error attempts the system locks out and blocks
any access for 30 seconds.
To Close:
Enter a 4 digit code.
Open using Master Code:
Inspection Mode:
Input Master Code and press Enter.
Press Enter to close lock within 30
seconds.
The User Code is not deleted (Multi
User Mode).
* * * * *
Less than 30 seconds:
Inspection Mode
More than 30 seconds:
User Code Deleted
Delete User Code - Multi User Mode:
Input Master Code and press Enter.
After 30 seconds the lock remains open.
The User Code has been deleted and a
new User Code is required.
* * * * *
*****
Input the current Master Code
and press Enter. Default: 98765
+
Change the User Code:
****
* * * *
++
Input the current User Code
and press Enter. Default: 1111
Input the new User Code
and press Enter.
Input the new Master Code
and press Enter.
+
* * * *
Hold for
3 secs
Change the Master Code:
Hold for
3 secs

E-LOCK +
Operating Instructions
****
Single User Mode:
To Close:
Press Enter then turn the knob manually.
* * * *
Multi User Mode:
To Open:
Enter a 4 digit code. The lock opens automatically.
The code is erased every time the lock is opened.
After 3 error attempts the system locks out and blocks
any access for 30 seconds.
To Close:
Enter a 4 digit code and turn the knob manually
Change the User Code:
****
****
++
Hold for
3 secs
Input the current User Code
and press Enter. Default: 1111
Input the new User Code
and press Enter.
*****
Change the Master Code:
Input the current Master Code
and press Enter. Default: 98765
Hold for
3 secs
+
Input the new Master Code
and press Enter.
+
*****
Open using Master Code:
Inspection Mode:
Input Master Code and press Enter.
Press Enter to close lock within 30
seconds.
The User Code is not deleted (Multi
User Mode).
*****
Less than 30 seconds:
Inspection Mode
More than 30 seconds:
User Code Deleted
Delete User Code - Multi User Mode:
Input Master Code and press Enter.
After 30 seconds the lock remains open.
The User Code has been deleted and a
new User Code is required.
* * * *
To Open:
Enter the 4 digit code. Default: 1111 and press
Enter. The lock is open.

TRONIC EVOLUTION / PROFESSIONAL
Operating Instructions
* * * *
Single User Mode:
To Close:
The latch closes automatically after 2 seconds
(Slam Door Function)
* * * *
Multi User Mode:
To Open:
Enter a 4 digit code. The code is erased every time the
lock is opened.
After 3 error attempts the system locks out and blocks
any access for 30 seconds. The time can be adjusted
via the software.
To Close:
Enter a 4 digit code.
* * * *
Change the Master Code:
*****
Input the current Master Code
and press Enter. Default: 98765
+
+
Change the User Code:
****
++
Input the current User Code
and press Enter. Default: 1111
Input the new User Code
and press Enter. Input the new Master Code
and press Enter.
Open using Master Code / Electronic Master Key:
Inspection Mode:
Input Master Code (Insert Key) and
press Enter. (Remove Key)
Press Enter to close lock within 30
seconds.
The User Code is not deleted (Multi
User Mode).
*****
Delete User Code - Multi User Mode:
Input Master Code (Insert Key) and press
Enter. (Remove Key)
After 30 seconds the lock remains open.
User Code has been deleted and a new User
Code is required.
Settings Key:
Load settings from the computer
to the Settings Key (Black).
+
Connect the Key to the lock.
Settings automatically transferred.
Less than 30 seconds:
Inspection Mode
More than 30 seconds:
User Code Deleted
****
*****
Hold for
3 secs Hold for
3 secs
To Open:
Enter the 4 digit code. Default: 1111 and press
Enter. The lock is open.

E-LOCK PROFESSIONAL
Operating Instructions
* * * *
Single User Mode:
To Close:
Press Enter then turn the knob manually.
* * * *
Multi User Mode:
To Open:
Enter a 4 digit code. The code is erased every time the
lock is opened.
After 3 error attempts the system locks out and blocks
any access for 30 seconds. The time can be adjusted
via the software.
To Close:
Enter a 4 digit code and turn the knob manually
* * * *
Change the User Code:
* * * *
++
Input the current User Code
and press Enter. Default: 1111
Input the new User Code
and press Enter.
Change the Master Code:
*****
Input the current Master Code
and press Enter. Default: 98765
++
Input the new Master Code
and press Enter.
Settings Key:
Load settings from the computer
to the Settings Key (Black).
+
Connect the Key to the lock.
Settings automatically transferred.
Open using Master Code / Electronic Master Key:
Inspection Mode:
Input Master Code (Insert Key) and
press Enter. (Remove Key)
Press Enter to close lock within 30
seconds.
The User Code is not deleted (Multi
User Mode).
*****
Delete User Code - Multi User Mode:
Input Master Code (Insert Key) and press
Enter. (Remove Key)
After 30 seconds the lock remains open.
User Code has been deleted and a new User
Code is required.
Less than 30 seconds:
Inspection Mode
More than 30 seconds:
User Code Deleted
* * * *
*****
Hold for
3 secs Hold for
3 secs
To Open:
Enter the 4 digit code. Default: 1111 and press
Enter. The lock is open.

TRONIC MIFARE
Operating Instructions
Select Mode: Single User / Multi User
Single User Mode
Press On: Show the Management
Card 3 times.
GREEN LED and 4 short beeps =
Single User mode activated.
Multi User Mode
Press On: Show the Management
Card 2 times.
GREEN LED and 2 short beeps =
Multi User mode activated.
Create and Delete Master Cards
Create
Press On: Show the Management Card
followed by the new Master Card. Up to 5
Master Cards can be created per lock.
GREEN LED and long beep = Master Card
created successfully.
RED LED and 3 short beeps = Master
Card creation failed.
Delete
Press On: Show the Management Card
then the Master Card.
RED LED, 3 fast blinks and 3 short beeps
= Master Card deleted.
Create and Delete User Cards: (Single User Mode)
Create
Press On: Show the Master Card
followed by the new User Card. Up
to 50 User Cards can be created
per lock.
GREEN LED and long beep = User
Card created successfully.
RED LED and 3 short beeps = User
Card creation failed.
Delete
Press On: Show the Master Card
then the User Card.
RED LED, 3 fast blinks and 3 short
beeps = User Card deleted.
Single User / Multi User: Open and Close
Single User Mode
Press On: Show the User Card.
After 2 seconds the lock closes
automatically.
(Slam Door Function)
Multi User Mode
Press On: Show the User Card.
GREEN LED and 1 long beep = Correct
Card
RED LED and 3 short beeps = Incorrect
Card

TRONIC MIFARE
Operating Instructions
Open using Master Card: Inspection Mode /
Delete User Card Inspection Mode:
Press On: Show the Master Card
GREEN LED and long beep =
Lock opens for 30 seconds.
After 30 seconds time lock closes
automatically. User Card is NOT
deleted.
Delete User Card:
Press On: Show the Master Card
(2 times).
GREEN LED and long beep = The
lock remains open.
User Card has been deleted.
Delete All User Cards: (Single User Mode)
Press On: Show the Master Card
(4 times).
All User Cards for this lock have
now been deleted.
Settings Key:
Load settings from the computer
to the Settings Card.
Connect the Key to the lock.
Settings automatically transferred.
+
Table Reader / Writer
The use of the table reader allows
management functions from a
remote place (i.e. reception desk)
such as:
•Create and delete Management /
Master / User Cards
•Read relevant information from
the Card
•Assign users to locks, limiting
time of use
•Read last events of the locks
•Read all settings from the locks
•Create SETTINGS Cards to modify
the parameters of the lock.

TRONIC MIFARE
Operating Instructions
Cards and functions:
Management Card:
Single User / Multi User mode selection
Create and Delete Master Cards
Master Card:
Create and Delete User Cards (Single Users Only)
Inspection Mode and Delete User Cards
User Card:
Open and Close locks
Settings Card:
Transfer parameters from software to locks
Single User / Multi User modes
LED Signal
Acoustic Sound
Codes
Automatic Opening Time

TRONIC TOUCH
Operating Instructions
* * * *
Single User Mode:
To Close:
The latch closes automatically after 2 seconds
(Slam Door Function)
* * * *
Multi User Mode:
To Open:
Enter a 4 digit code. The code is erased every time the
lock is opened.
After 3 error attempts the system locks out and blocks
any access for 30 seconds. The time can be adjusted
via the software.
To Close:
Enter a 4 digit code.
* * * *
Change the Master Code:
* * * * *
Input the current Master Code
and press Enter. Default: 98765
+
+
Change the User Code:
* * * *
++
Input the current User Code
and press Enter. Default: 1111
Input the new User Code
and press Enter. Input the new Master Code
and press Enter.
Open using Master Code / Electronic Master Key:
Inspection Mode:
Input Master Code (Insert Key) and
press Enter. (Remove Key)
Press Enter to close lock within 30
seconds.
The User Code is not deleted (Multi
User Mode).
*****
Delete User Code - Multi User Mode:
Input Master Code (Insert Key) and press
Enter. (Remove Key)
After 30 seconds the lock remains open.
User Code has been deleted and a new User
Code is required.
Settings Key:
Load settings from the computer
to the Settings Key (Black).
+
Connect the Key to the lock.
Settings automatically transferred.
Less than 30 seconds:
Inspection Mode
More than 30 seconds:
User Code Deleted
****
* * * * *
Hold for
3 secs Hold for
3 secs
To Open:
Enter the 4 digit code. Default: 1111 and press
Enter. The lock is open.

K.T.S.
Operating Instructions
Single User Mode:
To Open:
Show the User Card to the lock.
1 beep = Lock Open.
To Close:
The latch closes automatically after 2 seconds
(Slam Door Function).
Multi User Mode:
Access by transponder. The transponder code
isxed.
To Open:
Show the User Card to the lock.
1 beep = Lock Open.
To Close:
Show the card to the lock.
1 beep - Lock Closed.
Access by transponder. The transponder code is
erased every time the lock is opened, being available
for a new user.
UserCards:AddaNewUserCard/DeleteExistingUser
Card
Add a New User Card:
Show the lock the Master Tag once and then
show the Blank User Card.
Delete a User Card:
Show the lock the Master Tag once and then
show the User Card you wish to delete.
Master Tag: Open / Reset
To Open:
Show the lock the Master Tag (2 times).
To Close:
The latch closes automatically after 2 seconds
(Slam Door Function).
To Reset:
Show the lock the Master Tag (4 times).
Please note: After using the Reset Mode ALL
User Cards will be erased.

MAINTENANCE
Battery Replacement
Thor T20
TRONIC RANGE Battery Replacement:
IMPORTANT:
When replacing the batteries, it must
be done within 5 minutes (otherwise
the clock will lose the programmed
time).
For security reasons, you must change
the default codes before using this
product.
E-LOCK RANGE Battery Replacement:
IMPORTANT:
When replacing the batteries, it must
be done within 5 minutes (otherwise
the clock will lose the programmed
time).
For security reasons, you must change
the default codes before using this
product.
T
hor T20
K.T.S. Battery Replacement:
IMPORTANT:
When replacing the batteries, it must
be done within 5 minutes (otherwise
the clock will lose the programmed
time).
For security reasons, you must change
the default codes before using this
product.
Battery Support Pack:
OFF ON
A battery support pack for
emergencies to operate the TRONIC
series.
In the same way that the Settings
Key conencts to the locks, you simply
insert the cable into the bottom of
the lock.
This will provide enough charge to
open the lock and change the battery.

R
L
PP




 



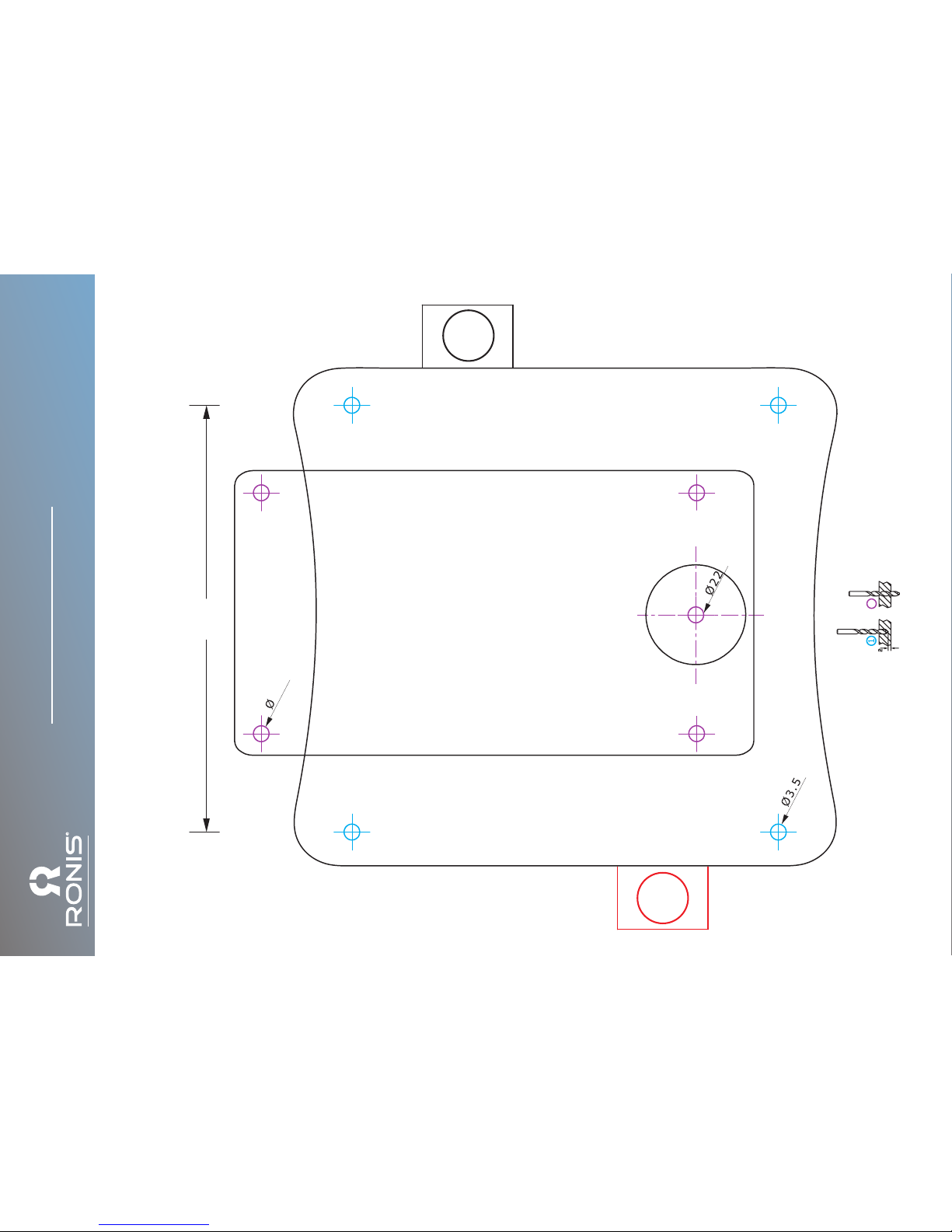

DRILL TEMPLATE
TRONIC KEYPAD / RFID

R
L
PP
 


 

4.5


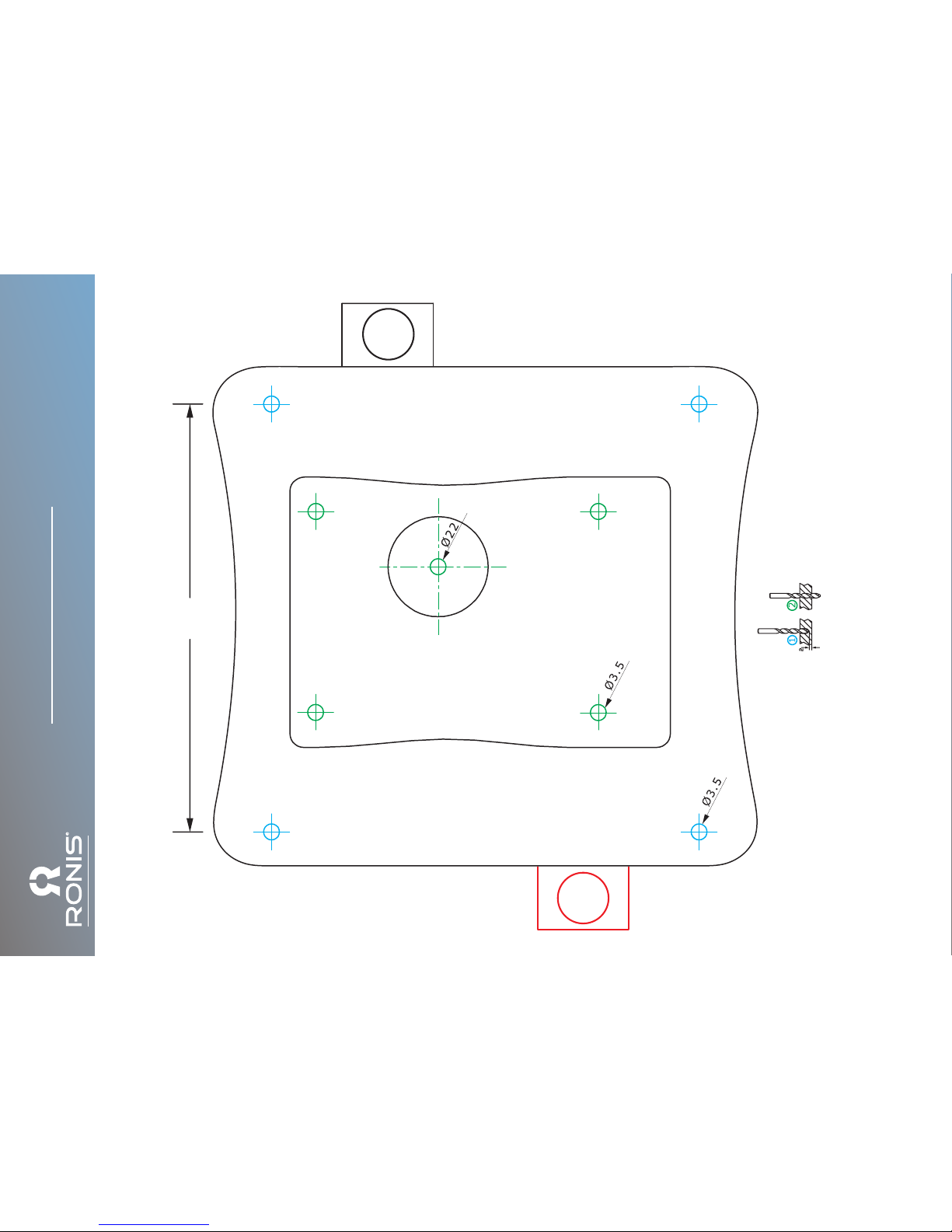

DRILL TEMPLATE
TRONIC TOUCH


 
R
L
PP



DRILL TEMPLATE
E-LOCK RANGE


  

4.5
DRILL TEMPLATE
K.T.S.

DOM Sicherheitstechnik
GmbH & Co. KG
Postfach 1949
DE-50309 Brühl
Tel. [phone] - 704 0
Fax.+49(0)2232-704375
www.dom-sicherheitstechnik.com
[email protected]
DOM Sicherheitstechnik GmbH
Missindorfstraße 19-23
AT-1140 Wien
Tel. +43(0)1 - 7 89 73 77
Fax.+43(0)1-789737773
www.dom.at
[email protected]
DOM AG Sicherheitstechnik
Breitenstrasse 11
CH-8852 Altendorf
Tel. +41(0)55 - 4 51 07 07
Fax.+41(0)55-4510701
www.dom-sicherheitstechnik.ch
dom.schweiz@dom-
sicherheitstechnik.ch
RONIS S.A.S.
Rue de Neuilly
FR-18600 SANCOINS
Tel. [phone]
Fax.+33(0)248762294
www.ronis.fr
[email protected]
RONIS-DOM Ltd.
Unit 1 Junction 2 Industrial Estate
Demuth Way, Oldbury
GB-Birmingham, B69 4 LT
Tel. +44(0)121 - 5 69 77 90
Fax.+44(0)121-5697798
www.ronis-dom.co.uk
[email protected]
Securidev Hungary
Csepel U.3
HU-9400 Sopron
Tel. [phone]
Fax.+36(0)99514180
www.securidev.hu
[email protected]
Titan D.D.
Kovinarska 28
SI-1241 Kamnik
Tel. [phone] - 09 100
Fax.+386(0)183-09200
www.titan.si
[email protected]
Hoberg.N.V.
Avenue Edison 27
B-1300 Wavre
Tel. [phone]
Fax.[phone]
www.hoberg.be
[email protected]
Securidev Romania
B-Dul Petrolului
RO-NR.51C Ploiesti
Tel. +40(0)344 - 11 53 26
Fax.+40(0)344-115326
www.securidev.ro
[email protected]
DOM-Nederland
Tiber 32-34
NL-2491 DH Den Haag
Tel. +31(0)70 - 3 19 30 06
Fax.+31(0)70-3996903
www.dom-nederland.nl
[email protected]
C.R. SERRATURE S.P.A.
Via Regaldi 13
IT-10154, Torino
Tel. +39(0)11 - 2 48 23 20
Fax.+39(0)11-2481985
www.cr-serrature.com
[email protected]
Securidev CZ spol.s.r.o.
U Pekarky 1a/484
CZ-180 00 Praha 8
Tel. +420(0)2 - 22 78 34 10
Fax.+420(0)2-22783006
www.secuirdev.cz
[email protected]
