Ropox 25-20010 User manual

All-in-One Hoist
User Manual
25-20010, 25-20020, 25-20030
25-20040, 25-20050
PDF 5946 Marts-2019

2
General about the hoist
Index
General about the hoist 3
Operation Operating instructions 4
Battery charging 4
Safety function, lifting motor 5
Emergency stop 5
Emergency lowering 5
Brakes 5
Transfer - person lifting General 6
Lifting to and from wheelchair 6
Lifting to and from bed 7
Lifting from floor 7
Transfer –Stand-up hoist General 8
Lifting from chair 8

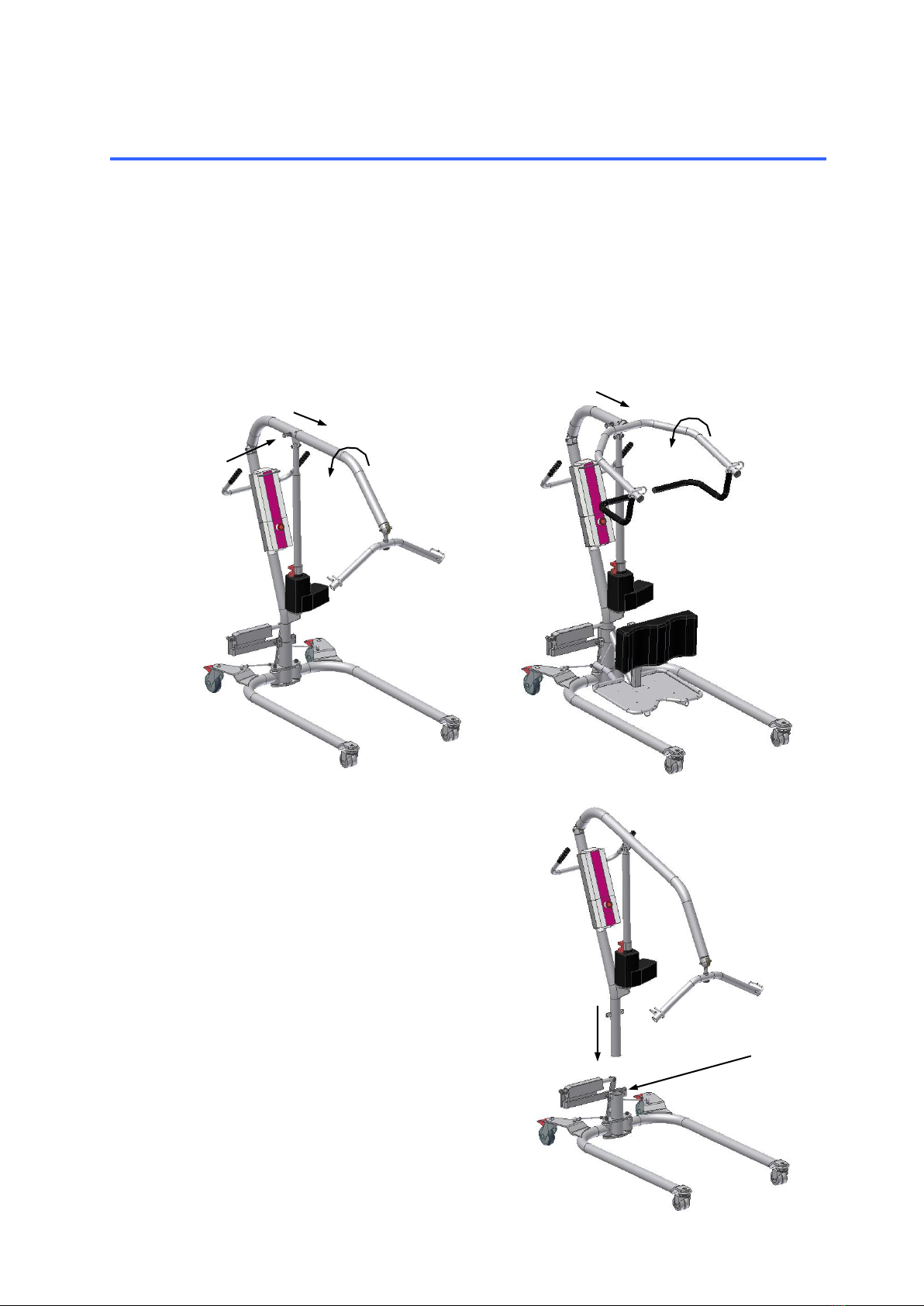

Assembly instructions 25-20010, 25-20020, 25-20030 9
25-20040, 25-20050 10

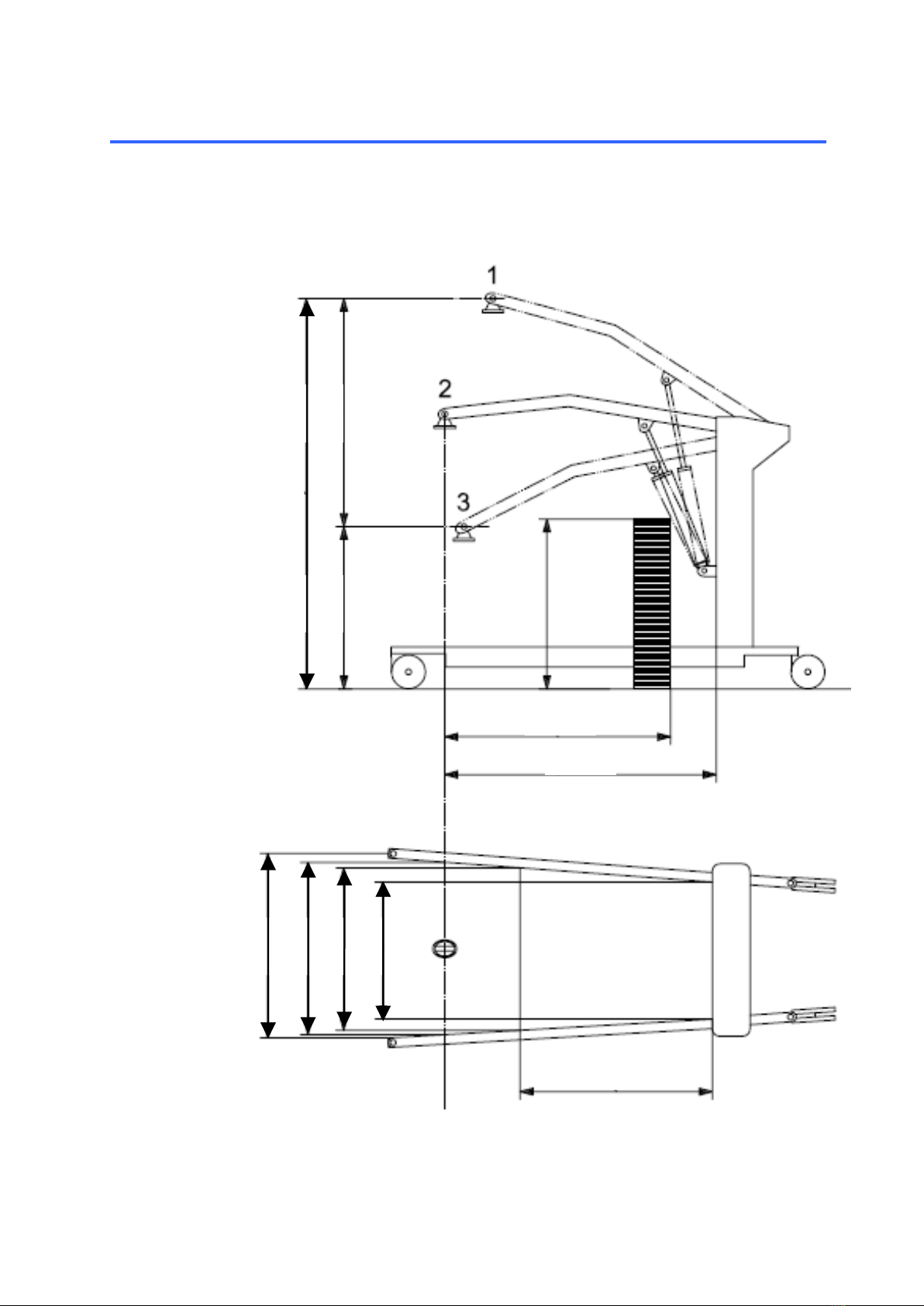

Technical information 11
Maintenance Daily check 14
Cleaning 14
Monthly maintenance 14
Yearly inspection 14
Trouble shooting 15
Claims deadline and service 16
In case of inquiries concerning spare parts and service, please state the
following information:
Customer:
Hoist model:
Serial number:
Year and month:
Max. load:
Producer Distributor
Ropox A/S
Ringstedgade 221
DK-4700 Næstved
Tel.: [phone]
Fax: [phone]
[e-mail]
www.ropox.dk

3
General about the hoist
Note! It is important that the user is familiar with the operation of the hoist
and its facilities and that the hoist performs properly. In order to
obtain optimum safety, all persons operating the hoist must read
these instructions carefully prior to use.
All-in-One lifts have a life expectancy of 10 years, subject to the electronics and moving
parts that depend on the daily use and maintenance according to this manual.
Ropox A/S is only responsible for the safety of the hoist, its reliability and performance
subject to the following conditions:
•The hoist must be assembled and connected according to our instructions.
•The hoist must be used and cleaned as described in these instructions.
•The hoist must be used indoor.
•The hoist must be inspected at least once a year according to the procedures of the
“Service Manual”.
The hoists are intended for lifting persons, e.g. from floor, chair and bed. The special
leg-spreading facility also makes it possible to lift the person from toilet and bath.
NOTE! UNDER NO CIRCUMSTANCES should the hoist be used for lifting objects
other than persons –and only persons, whose weight, including the lifting
sling, does not exceed the maximum load stated.
In the event of loads exceeding the maximum value prescribed or lifting of
objects other than persons Ropox A/S shall disclaim any responsibility in
connection with insurance, right to complain and service.
Users should always make sure that the mechanical and electrical systems of the hoist
work satisfactorily. In case of malfunction the hoist must be stopped immediately and
inspected or repaired, as required. Malfunction may be a symptom of defects that may
get worse and jeopardise the safety in critical situations
The battery should be charged at regular intervals to ensure that the hoist is always
operational (e.g. every night).
Warning!or Note!means that the text contains important safety and operating
instructions, which must be observed in order to avoid
accidents.
The All-in-One hoist has CE-marking and thus meets the functional and safety
requirements of the Directives for Medical Devices, Low Voltage and EMC.
Declaration of Conformity can be delivered on request.
The product is in risk group 1.
It has been tested by the Danish Centre for Assistive Technology according to the rules
of Standard DS / EN ISO 10535, „Hoists for the transfer of disabled persons –
requirements and test methods“. All electrical components meet current electrical
standards.

4
Operation
Note! It is important to have read this User Manual prior to operation in order to be
familiar with the use of the hoist and its facilities. This will ensure optimum
safety for all users.
For the All-in-One you can use any of Ropox Domino slings
Operating instructions
1. Check that the emergency stop has been released. If not, turn the button clockwise
until release.
2. The hoist is operated by means of the hand control unit. The two upper buttons
control the lifting/lowering movement, whereas the two lower buttons control the leg
spreading facility. It is not possible to use two functions simultaneously.
Note! In case of erroneous operation of the hand control unit (e.g. too quick change
of direction) the hoist does not react. Let go of the push button –wait a few
seconds and press again.
3. Check that the sling provided is correct for the lifting operation to be performed. This
applies to size as well as shape. Further information about the choice of slings will
be found in ”Domino Slings User manual”.
4. The battery should be recharged regularly, to ensure that the hoist is always
available (e.g. every night).
Emergency situation
Emergency stop and emergency lowering (electrical and mechanical) should be used in
emergencies only. Should it be necessary to activate the emergency functions, contact
the distributor before using the hoist again.
Recharging the battery
•The battery must be recharged after approx. 60 lifting operations –i.e. at 50%
battery capacity. In case of continued use you will hear an acoustic signal. The
battery can still be used, but it will affect is recharging capability.
•We recommend charging as soon as the hoist is not being used for a longer period
of time, e.g. every night. The battery cannot be over-charged and it is only ”healthy”
for the battery to be recharged often as it increases the battery life.
•Charging is made directly in the control unit by means of the mains cable provided.
Insert the cable into the wall outlet and the control unit, see drawing page 12, and
switch on power. The hoist cannot be used when connected to mains voltage.
•A green light on the control unit indicates connection to mains voltage. A yellow light
indicates that the battery is being recharged.
•When the battery has been fully charged, the yellow light will be out.
•Full recharging takes 4-5 hours.
•If charging is made via a wall-mounted charging station (optional) a battery may be
constantly charged in the station. The batteries may be easily switched by means of
the snap system on top of the battery box.
Note! Make sure that the plug from the battery is correctly
inserted in the control box, if the plug have been pulled out, before
using the lift again.

5
Operation
Safety function, liftingmotor
The lifting motor is provided with a safety function, splejn, against jamming. If the lifting
arm meets with resistance during lowering, the movement of the arm will stop
automatically. Thus, a person cannot get jammed between the lifting arm and the bed.
WARNING!! Owing to the safety function on the motor the lifting arm and
spreader bar may fall freely to the spindle of the motor.
Therefore make sure that the lifting arm does not ”hang”, that is
has always been pressed down to ensure that it rests on the
spindle of the motor before and after all lifting operations. This is
important as otherwise an injury may result if the lifting arm ”falls”
down.
Emergency stop
If the hoist is to be stopped owing to an emergency –press the red button on the
control unit. When the button has been depressed the electrical functions of the hoist
cannot be activated and the battery indicator has been switched off.
Emergency lowering
If the hoist is to be lowered and the hand control unit does not work, there are two
possible solutions:
-The electrical emergency lowering of the control unit (marked emergency), see
drawing page 12. Press with a ball pencil or the like and the person will be lowered
slowly.

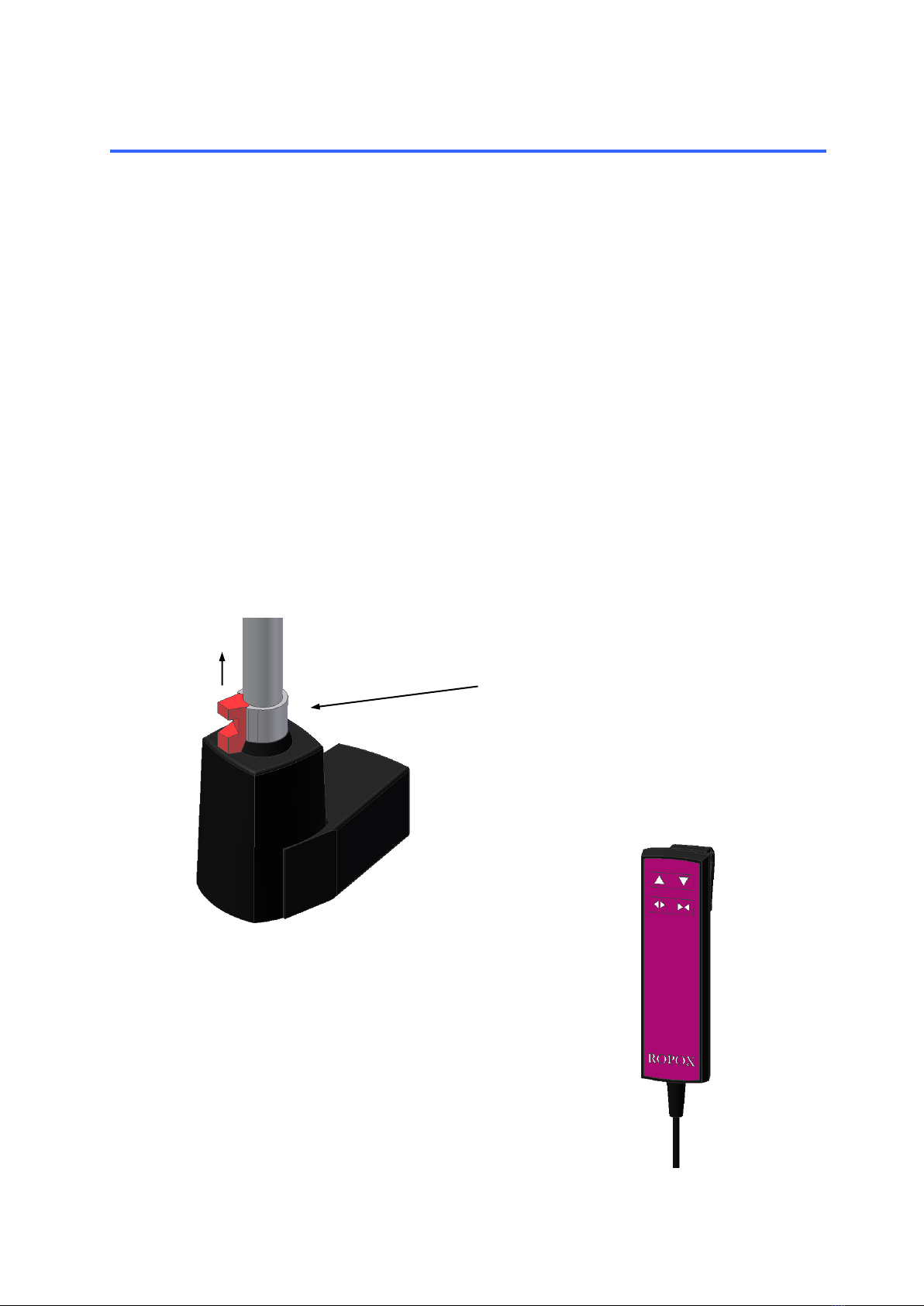

-The mechanical emergency lowering of the lifting motor. Pull up the red handle, see
drawing page 11.
Brakes
The hoist may be
braked on the two
large rear wheels.
Press down the rear
part of the brake with
the foot to brake the
hoist. Release the
brake by pressing the
front part of the brake
with the foot.
Note! Never brake the hoist during lifting except when used in stand-up mode.
Brake
Release

6
Transfer- person lifting
General
•It is important that the user is familiar with the hoist and that it works satisfactorily
before lifting a person.
•It is important to choose the correct type of sling for the lifting operation to be
performed. This applies to size as well as shape. Further information about the choice
of sling will be found in ”Instructions for the Use of Domino Slings”.
•With a person in the hoist always move slowly in order to avoid swaying.
•Only use the hoist on surfaces with less than 5° gradient.
•Only brake the hoist when it is parked or standing on a sloping surface, e.g. in
bathrooms.
•Never lift a person higher than necessary.
•Be aware of the maximum load of the hoist.
Lifting from wheelchair
•Mount the sling.
•Increase the width between the legs of the hoist and move it to the chair.
•Place the spreader bar above the person in the chair.
•Lower the lifting arm and place the straps of the sling correctly in the hooks of the
spreader bar. Make sure that all straps have been fitted correctly.
•Lift the person a few centimetres above the seat of the chair - STOP –and make sure
that the sling has been fitted correctly.
•When the person is comfortable in the sling, lift him/her clear of the chair.
•Pull the hoist away from the chair - STOP –adjust the legs of the hoist to parallel
position before proceeding with the transfer.
Placing in wheelchair
To place a person in a wheelchair proceed in reverse order:
•Increase the width between the legs of the hoist and move it to the chair.
•Make sure that the person has been placed correctly in relation to the chair and lower
the hoist slowly.
•Check that the person is in the proper position during the entire operation.
•When assisting a person in getting back into the chair, lower the person to just touch
the chair.
•If the chair can be tilted a little backward it is easier to place the person correctly. Also
pull the straps on the back of the sling.
•If two helpers are available, one may press gently on the knees of the person.
Note! The wheelchair must be braked during transfer to and from the chair.
Before lifting a client, try the hoist yourself.
Risk assessment shall be carried out to ensure that the
correct size, type and shape of slings is being used for
the patient

7
Transfer –person lifting
Lifting to and from bed
•If the bed has an adjustable headrest and the client is capable of being raised a little,
a raised headrest will facilitate application of the sling.
•Place the lower edge of the sling so that it just covers the base of the spine.
•If the client is to be transferred from wheelchair to bed, a raised headrest will also
facilitate the operation. It will be easier to place the client correctly in the bed and to
remove the sling straps.
•As an alternative roll the client to a lateral position. Unfold the sling and place it so that
the lower edge just covers the base of the spine.
•Place the spreader bar above the bed and lower it to approx. 25 cm above the waist.
•Fix the straps of the sling in the spreader bar.
•Lift the client slowly approx. 2 cm above the bed and make sure that the sling is
positioned correctly and that the client is comfortable and properly supported.
•Lift the client clear of the bed and transfer him/her to the required position.
Note! Always adjust the sling before lifting the client completely clear of the bed.
Lifting from floor
Make sure that the general condition of the client allows him/her to be lifted.
•Follow the same procedures as when lifting from bed when placing the sling under the
client.
•Lift the client to a half seated position and use a chair or a similar stable back support
with a cushion.
•Move the open end of the hoist towards the client and lift the legs of the client over
one leg of the hoist. Do not brake the hoist.
•The hoist may be placed in the opposite position, i.e. with the head of the client
towards the control unit of the hoist.
•Lower the lifting arm and fix the straps of the sling in the spreader bar.
•Lift the client slowly while checking that the sling is placed correctly and that the client
is comfortable and properly supported.
Note! When operating the hoist use the wheels opposite to the push handles as a
pivot point. This will facilitate manoeuvring.

8
Transfer –Stand-up hoist
General
•It is important that the user is familiar with the operation of the hoist and that it
performs properly prior to lifting.
•It is important to choose the correct type of sling for the lifting operation to be
performed. This applies to size as well as shape. Further information about the choice
of slings will be found in ”Instructions for the Use of Domino Slings”.
•Transfer of a person in a stand-up hoist must only be made to and from seated
position.
•The stand-up hoist must be braked during lifting.
•The client must not wear slippery clothes or underwear.
•Be aware of the maximum load of the hoist.
Lifting from chair
•Apply the Thorax standing sling with the lower edge right above the waistband.
•Increase the width between the legs of the hoist and move it to the chair.
•Approach the client and place his/her legs on the base plate.
•Push the hoist as closely to the client as possible –brake the hoist.
WARNING! MAKE SURE THAT THE FEET OF THE CLIENT DO NOT GET
JAMMED BETWEEN BASE PLATE AND FLOOR.
•Adjust the knee support so that it provides support right under the knees of the client.
•Lower the lifting arm.
•Place the lifting straps of the sling in the hooks of the fork-shaped lifting bar.
•If the client can hold on to the lifting bar with his/her arms during lifting, use the middle
step of the suspension strap.
•If the client has but little stability and strength in the upper part of the body, use the
outermost step of the suspension strap.
•Tell the client to lean back in the sling and look up.
•Now lifting may be commenced. If required, support the client during lifting.
•Lift the client to standing position.
Note! We recommend lifting the client approx. ¾, so that the knees are slightly bent.
Be aware of the pressure on the knees/lower part of the leg.
•To prevent the sling from sliding upward, place the straps in a loop.

9
Assembly instructions
Assembly instructions for All-in-One :
25-20010, 25-20020 and 25-20030
•Place the lifting mast in the mast holder of
the frame. Tighten the two screws with the
5mm Insex wrench provided.
•Connect the cable from the leg spreading
motor to the control unit in output terminal 2,
see ”Technical information” .
Mounting and dismounting of arm
with spreader bar and stand-up hoist
module
Mounting
•Brake the rear wheels.
•Hold the lifting module (turn it through 90°) so that the locking pin may be pushed
into the corresponding slide rail of the lifting mast.
•Be aware that the bar may swing. We recommend holding on to it.
•Push in the lifting module.
•Then turn it 90° clockwise until you hear a click.
•Make sure that the arm has been properly locked.
•If the hoist is going to be used as a stand-up hoist, hook on the knee support with
base plate.
•
Now the hoist is ready for use.
Screws

10
Assembly instructions
Dismounting
•Brake the rear wheels.
•If the hoist has been used as a stand-up hoist, lift off the knee support.
•Pull the locking pin while turning the lifting module 90° counter-clockwise.
•Be aware that the bar may swing. We recommend holding on to it.
•Now the lifting module may be pulled out.
Note! Be aware of the weight of the lifting module.
Assembly instructions for All in One
25-20040 and 25-20050
•Place the lifting mast in the mast holder of
the frame. Tighten the two screws with the
5mm Insex wrench provided.
•Connect the cable from the leg spreading
motor to the control unit in output terminal
2, see ”Technical information” .
Now the hoist is ready for use.
Locking
pin
Screws
