Rose electronics CrystalView EX DVI Multi CRK-1DTXT2DM-2T-EX6 User manual

CrystalView EX DVI Multi
Multi
-head CATx Extender • DVI/USB 2.0/Audio • 330' (100m)
Installation
and
Operation Manual
10707 Stancliff Road
Houston,
Texas 77099
Phone: [phone]
[email protected]

LIMITED WARRANTY
Copyright Rose Electronics 2017. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and
recording, without the prior written permission of Rose Electronics.
manual-crystalview-ex-dvi-multi-2018-04-24.docx
Rose Electronics®warrants the CrystalView EX DVI Multi to be in good working order for one year from the
date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working
order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the
Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced
parts become the property of Rose Electronics. This limited warranty does not include service to repair
damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including
static discharge and power surges.
Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose
Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,
you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the
warranty service location, and to use the original shipping container or its equivalent. You must call for a return
authorization number first. Under no circumstances will a unit be accepted without a return authorization
number. Contact an authorized repair center or Rose Electronics for further information.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A
PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS
OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE
REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE
ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST
SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR
THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER
PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY
Copyright Rose Electronics 2017. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and
recording, without the prior written permission of Rose Electronics.
manual-crystalview-ex-dvi-multi-2018-04-24.docx
FCC Radio Frequency Interference
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1. (1) this device may not cause harmful interference
2. (2) this device must accept any interference received including interference that may cause undesired
operation.
CE Statement
This product is in conformity with European Standards EN 55022, EN 61000, and EN 55024.
IC Statement
This Class A digital apparatus complies with Canadian ICES-003.
WEEE Statement
The European Union has established regulations for the collection and recycling of all waste electrical and
electronic equipment (WEEE). Implementation of WEEE regulations may vary slightly by individual EU member
states. Please check with your local and state government guidelines for safe disposal and recycling or contact
your national WEEE recycling agency for more information.

TABLE OF CONTENTS
Contents
Disclaimer 1
System Introduction 1
Features 2
Package Contents 2
Additional Installation Items 2
System Overview 2
CrystalView EX DVI Dual Models 3
Connectors 4
Indicators 5
System Installation 6
Transmitter installation 6
Receiver installation 6
Installation Verification 7
Connecting USB Devices 7
System Operation 7
System Troubleshooting 8
Safety 9
Maintenance and Repair 10
Technical Support 10
Figures
Figure 1. CrystalView EX DVI Dual Front Panel 3
Figure 2. Sample CrystalView EX DVI Dual Transmitter Rear Panel 3
Figure 3. Sample CrystalView EX DVI Dual Receiver Rear Panel 3
Figure 4. CrystalView EX DVI Quad Front Panel 3
Figure 5. Sample CrystalView EX DVI Quad Transmitter Rear Panel 3
Figure 6. Sample CrystalView EX DVI Quad Receiver Rear Panel 3
Figure 7. Typical Installation 6
Appendices
Appendix A —Specifications 11
Appendix B —Part Numbers 12
CRYSTALVIEW EX DVI MULTI — EXTENDER KITS 12
CRYSTALVIEW EX DVI MULTI — TRANSMITTER ONLY 13
CRYSTALVIEW EX DVI MULTI — RECEIVER ONLY 14
CRYSTALVIEW EX DVI COMPACT UNITS 15
OPTIONS and ACCESSORIES 15

INTRODUCTION
CrystalView EX DVI Multi Manual 1
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting
from the use of the information contained herein. The manufacturer reserves the right to change the
specifications, functions, or circuitry of the product without notice.
The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances
outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury
arising directly or indirectly from the use of this product.
System Introduction
Thank you for choosing the CrystalView EX DVI Multi extender from Rose Electronics for your remote
accessing needs. The CrystalView EX DVI Multi system consists of a Transmitter unit and a Receiver unit. The
Transmitter unit connects to your computer’s DVI-D and USB Type A connectors using DVI and USB cables.
The Receiver unit connects to your workstation. The Transmitter and Receiver units are connected together
with industry standard CAT5e or better cable. This provides access to your computer from up to 330 feet
(100m) away.
The extender system is available with DVI connections to two or four computers. These multi-unit models are
used to aggregate several DVI+USB extensions into one chassis. Multi-head models extend multiple video
outputs and one USB only. They are intended for use with computers operated by only one user. The video-
only models omit any USB functions and extend the video only.
The CrystalView EX DVI Multi extender complies with USB 1.1 and USB 2.0 specifications and supports
USB 1.1 and low bandwidth USB 2.0 devices. It is ideal for use in industrial control areas, digital signage,
connecting cameras for security systems, USB device printing, scanning and storage.
If additional USB devices are needed, you can add up to 4 USB hubs to the Receiver and connect up to 13
USB devices.
The CrystalView EX DVI Multi supports all major operating systems including Windows®, MAC®, and Linux®.
USB printers, scanners, web cameras, USB hard drives, flash drives, MP3 players and more can easily be
connected to the Receiver unit.
Since there are a number of factors that affect the operation of the CrystalView EX DVI Multi, not all devices
are compatible with this product.

CrystalView EX DVI Multi Manual 2
Features
■Available as multi-unit (each video has USB extension), multi-head (only one video has USB extension),
or video-only (no USB)
■Uncompressed video extension provides uncompromised quality at resolutions of 1920×1200@60Hz,
1920×1080@60Hz, and others
■Supports USB 2.0 at speeds to 40 Mbps and USB 1.1 and 1.0 at speeds from 1.5 to 12 Mbps
■Compatible with USB host ports: xHCI (USB 3.0), EHCI (USB 2.0), and OHCI/UHCI (USB 1.1)
■Compatible with Windows, OS-X, and Linux
■Transparent USB provides plug-and-play installation with no configuration required
■Remote USB ports provide 500mA each
■Two chassis styles: mini and wide
■Options include: bi-directional analog audio and RS-232
■USB 2.0 audio devices are supported
■Optional locking DC power supplies
■Optional rackmount kit
* CAT5e or better cable, Solid core CAT6 STP cable is recommended
Package Contents
■Transmitter unit
■Receiver unit
■5V, 3A power adapter (Transmitter)
■5V, 3A power adapter (Receiver)
■Product Manual
Additional Installation Items
■Computer with DVI-D/DVI-I output
■USB 1.1 or 2.0 host computer
■1 -CAT5e cable (Transmitter to Receiver – Point-To-Point)
■USB 1.1 or 2.0 compatible devices
System Overview
The CrystalView EX DVI Multi is a very versatile and flexible system that can be easily and quickly installed.
You can position your computer anywhere within 330 feet of the Receiver unit and access and control it as if
you were directly connected to the computer. You can control and use a USB keyboard, USB mouse, webcam,
flash drive, USB speakers, microphone and other compatible USB devices.
The versatility of the CrystalView EX DVI Multi makes it ideal for security, medical, signage, and industrial
applications where remote access is required.
The Receiver unit has 3 USB Type A connectors. These are usually connected to a USB mouse, USB
keyboard, and a USB HUB. The CrystalView EX DVI Multi supports up to 13 USB devices and 4 HUB levels.

MODELS
CrystalView EX DVI Multi Manual 3
CrystalView EX DVI Dual Models
The CrystalView EX DVI Multi is highly customizable. It comes in a dual chassis with two DVI cards, or a quad
chassis with four DVI cards. Each card has optional USB connections. Other options include a second power
supply, a serial and an audio connection. Sample dual chassis and quad chassis configurations are displayed
below.

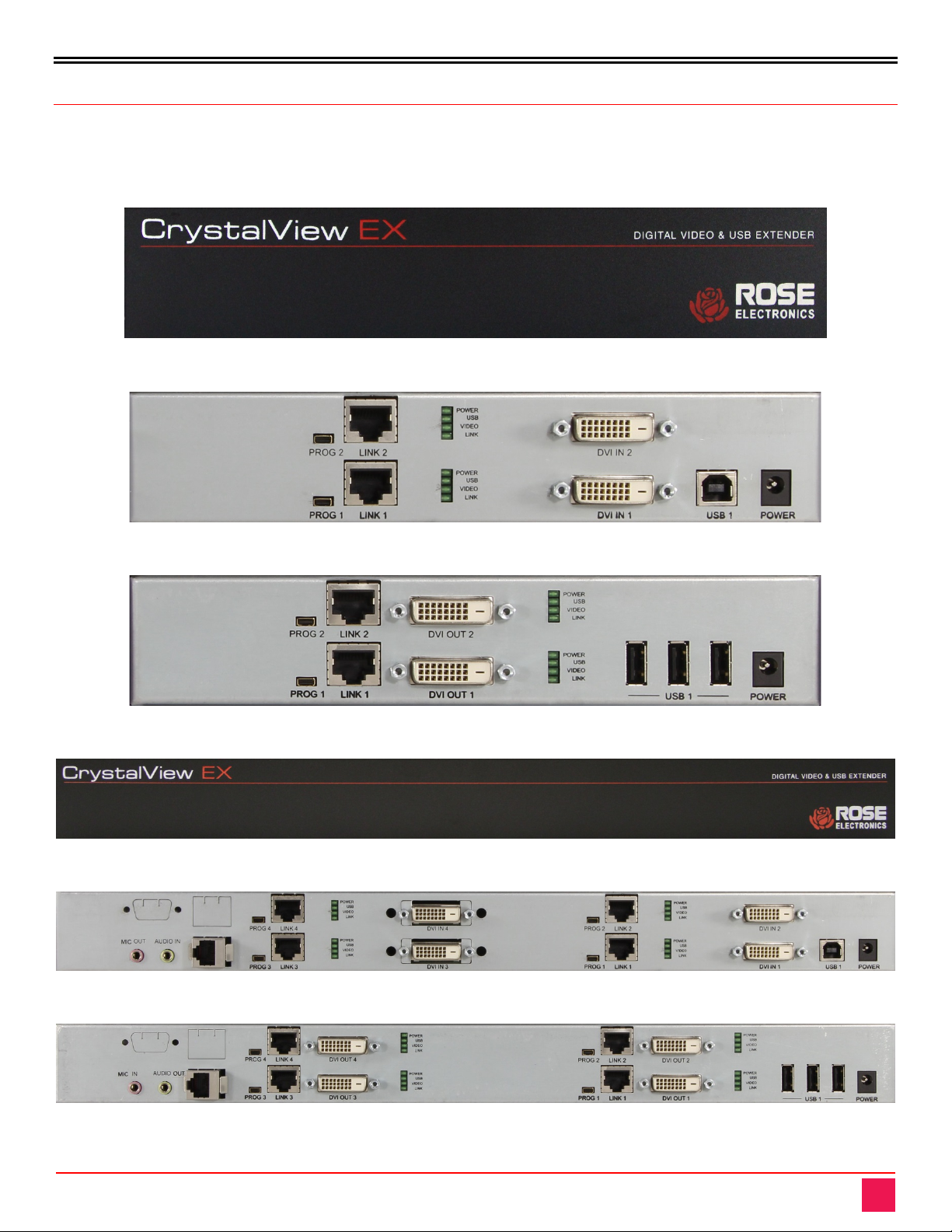

Figure 1. CrystalView EX DVI Dual Front Panel
Figure 2. Sample CrystalView EX DVI Dual Transmitter Rear Panel
Figure 3. Sample CrystalView EX DVI Dual Receiver Rear Panel
Figure 4. CrystalView EX DVI Quad Front Panel
Figure 5. Sample CrystalView EX DVI Quad Transmitter Rear Panel
Figure 6. Sample CrystalView EX DVI Quad Receiver Rear Panel

CrystalView EX DVI Multi Manual 4
Connectors
Transmitter:
■Video In (always present): DVI-D Female

2x for Dual Chassis

2x - 4x for Quad Chassis (depending on how many main cards are present)
■Main Card Link (always present): RJ45 Female

2x for Dual Chassis

2x - 4x for Quad Chassis (depending on how many main cards are present)
■Program (always present): Micro USB Female

2x for Dual Chassis

2x - 4x for Quad Chassis (depending on how many main cards are present)
■USB (optional): USB Type B

0-2x for Dual Chassis

0-4x for Quad Chassis
■Power: 1.7 mm Barrel Jack Female

1x for Dual Chassis (always present)

1x always present, 1x optional for Quad Chassis
■Serial (optional): DB9 Female

1x for Dual and Quad Chassis
■Serial Link (optional – present if Serial present): RJ45 Female

1x for Dual and Quad Chassis
■Audio (optional): 3.5 mm Jack

1x Audio In for Dual and Quad Chassis

1x Audio Out for Dual and Quad Chassis
■Audio Link (optional – present if Audio present): RJ45 Female

1x for Dual and Quad Chassis

CrystalView EX DVI Multi Manual 5
Receiver:
■Video Out (always present): DVI-D Female

2x for Dual Chassis

2x - 4x for Quad Chassis (depending on how many main cards are present)
■Main Card Link (always present): RJ45 Female

2x for Dual Chassis

2x - 4x for Quad Chassis (depending on how many main cards are present)
■Program (always present): Micro USB Female

2x for Dual Chassis

2x - 4x for Quad Chassis (depending on how many main cards are present)
■USB (optional): USB Type A

0, 3x or 6x for Dual Chassis

0, 3x, 6x, 9x or 12x for Quad Chassis
■Power: 1.7 mm Barrel Jack Female

1x for Dual Chassis (always present)

1x always present, 1x optional for Quad Chassis
■Serial (optional): DB9 Female

1x for Dual and Quad Chassis
■Serial Link (optional – present if Serial present): RJ45 Female

1x for Dual and Quad Chassis
■Audio (optional): 3.5 mm Jack

1x Audio In for Dual and Quad Chassis

1x Audio Out for Dual and Quad Chassis
■Audio Link (optional – present if Audio present): RJ45 Female

1x for Dual and Quad Chassis
Indicators
■Power: Green = powered and ready
■Link: Green = Link established
■USB: Green = USB host connected
■Video: Solid Green = HDCP video signal; Blinking Green = non-HDCP video

INSTALLATION AND OPERATION
CrystalView EX DVI Multi Manual 6
System Installation
Before installing the CrystalView EX DVI Multi, plan the layout of the computer, the Transmitter, the Receiver,
and the equipment that will be connected to the Receiver. The Transmitter and Receiver units should be in a
location that are easily accessible. The CAT5e cable should be routed away from equipment or environments
that can cause interference with the data transmission between the Transmitter and Receiver.
The CrystalView EX DVI Multi is installed in a “Point-To-Point” configuration. This is easily done by connecting
CAT5e* cables (330 ft / 100m) directly from the Transmitter’s RJ45 ports to the Receiver’s RJ45 ports.
Figure 7. Typical Installation
Transmitter installation
1. Locate the Transmitter unit near the computer.
2. Connect a USB Type A/B cable to the Transmitter unit’s USB Type B port and to an available USB (1.1 or
2.0) Type A port on the computer.
3. Connect DVI cables to the Transmitter unit’s DVI-D In connectors and to the DVI video ports on the
computer.
4. Connect an audio cable to the Transmitter unit’s Audio port and to the audio output port on the computer.
5. Connect CAT5e* cables from the Transmitter’s RJ45 connectors to the Receiver’s RJ45 connectors.
6. Connect the supplied 5V, 3A power adapter to an AC outlet and to the Transmitter’s power port.
Receiver installation
1. Locate the Receiver unit near the monitors and USB devices.
2. Connect the DVI monitor cables to the DVI-D out connectors on the Receiver’s rear panel.
3. Connect your USB devices to the 3 USB Type A ports on the rear panel of the Receiver. Normally these
USB ports are connected to a USB keyboard, USB mouse, and a USB Hub.
4. Connect an audio cable to the Receiver unit’s Audio port and to the audio input port on the console sound
device.
5. Connect CAT5e* cables from the Transmitter’s RJ45 connectors to the Receiver’s RJ45 connectors.
6. Connect the supplied 5V, 3A power adapter to an AC outlet and to the Receiver’s power port.
* CAT5 cable – It is recommended that only CAT5e or better, UTP cabling be used to connect the Transmitter
and Receiver units together. The CAT5e cabling must have straight-through conductors with no crossovers
and terminated with 8 conductor RJ45 connectors at each end. The maximum CAT5e cable length for a point-
to-point configuration is 330 feet (100 meters).

CrystalView EX DVI Multi Manual 7
Installation Verification
The Power, Link, Video, and USB LEDs on the Transmitter and Receiver units will provide information
regarding the installation, cabling, video, and other items. Verify that the LEDs are registering properly
If a Link LED is off, the CAT5e cable between the Transmitter and Receiver is not connected.
The Power LED should be solid green. If it is off, the system is not ready.
Connecting USB Devices
Up to 13 USB 1.1 or 2.0 devices can be connected to the Receiver unit using USB Hubs. Normally the three
USB Type A connectors on the Receiver are connected to a USB Keyboard, USB mouse, and a USB Hub.
Installing your USB devices is no different than installing them when connected directly to a computer’s USB
port.
1. Install the USB device according to the manufacturer’s procedure and any required software to operate the
USB device.
2. Connect the USB device to the Receiver’s USB ports or a HUB port.
3. Verify that the operating system has recognized the USB device and, if needed, installed the proper drivers
to operate the USB device.
4. Test the USB device.
Each USB Type A port on the Receiver unit can supply up to 500ma to a USB device or USB Hub. When
connecting additional USB devices through a USB Hub, consider the total current needed to operate all of the
USB devices. If the total power is greater than 500ma, use a powered Hub to supplement the power to the
devices.
The CrystalView EX DVI Multi is compatible with a wide variety or graphic cards, monitors, USB devices, and
operating systems.
System Operation
The operation of the CrystalView EX DVI Multi is no different than operating your computer with your keyboard,
monitor, mouse, and USB devices directly connected to it. The only difference is the computer can be located
anywhere within 330 feet from the Receiver unit. Applications can be executed, files opened, edited, and
saved, upgrades can be performed and normal system operations can be performed as if you were directly
connected to your computer.

TROUBLESHOOTING
CrystalView EX DVI Multi Manual 8
System Troubleshooting
All LEDs on the Transmitter or Receiver are off
■Check the DC power adapter connection to the Unit
■Verify there is power at the power source
Link LED on the Transmitter and Receiver are off
■Check the CAT5e Link connections on the Transmitter and Receiver
Video and/or USB performance is not satisfactory
High amount of network traffic, reduce the number of CrystalView EX DVI Multi units on the network or
reduce the network traffic.
Graphic/video settings do not list the specific resolution
■Up to date video drivers are not installed
■Resolution is not supported
The CrystalView EX DVI Multi Transmitter and Receiver indicators will provide information about the operation,
connectivity and data transmission. Observe these.

PRODUCT SAFETY
CrystalView EX DVI Multi Manual 9
Safety
The CrystalView EX DVI Multi, like all electronic equipment, should be used with care. To protect yourself from
possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.

Follow all instructions and warnings marked on this Unit.

Except where explained in this manual, do not attempt to service this Unit yourself.

Do not use this Unit near water.

Assure that the placement of this Unit is on a stable surface.

Provide proper ventilation and air circulation.

Keep connection cables clear of obstructions that might cause damage to them.

Use only power cords, power adapter and connection cables designed for this Unit.

Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and
foreign objects might come in contact with voltage points that could create a risk of fire or electrical
shock.

Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source
before cleaning.
Remove power from the Unit and refer servicing to a qualified service center if any of the
following conditions occur:

The connection cables are damaged or frayed.

The Unit has been exposed to any liquids.

The Unit does not operate normally when all operating instructions have been followed.

The Unit has been dropped or the case has been damaged.

The Unit exhibits a distinct change in performance, indicating a need for service.

SERVICE AND MAINTENANCE
CrystalView EX DVI Multi Manual 10
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance,
you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center.
This Return Authorization number must appear on the outside of the shipping container. See the Limited
Warranty page for more information.
When returning a Unit, it should be double-packed in the original container or equivalent, insured and shipped
to:
Rose Electronics
Attn: RA__________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need assistance in setting up, configuring or operating your product,
consult the appropriate sections of this manual. If, however, you require additional information or assistance,
please contact the Rose Electronics Technical Support Department at:
Phone: [phone]
E-Mail: [e-mail]
Web: www.rose.com
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose
Electronics Technical Support Department.

APPENDICES
CrystalView EX DVI Multi Manual 11
Appendix A —Specifications
Dimensions
(W × D × H)
Mini: 8.8” × 4.85” × 1.75” / 223 × 123 × 44 mm
Wide: 16.7” × 4.85” × 1.75” / 424 × 123 × 44 mm
Weight Mini chassis: 4.4 lb (2 kg)
Wide chassis: 6 lb (2.7 kg)
Power 100-240 VAC 50-60Hz
External adapter (1 or 2), +5V, 4A, grounded
Dual: 15W Triple: 30W Quad, 45W
Maximum Resolution Uncompressed 1920x1200@60Hz
Color 24-bit color
Latency Less than 1ms
USB speed USB 2.0: up to 40Mbps
USB 1.1: 1.5 to 12Mbps
USB host xHCI (USB 3.0), EHCI (USB 2.0), OHCI/UHCI (USB 1.1)
USB hubs Up to 4 hubs per single chain
USB devices Maximum of 30 USB devices per Receiver port
USB power 500 mA per USB port at the Receiver
Connectors for each
port
Common to transmitter and receiver:
Video:2× to 4x DVI-D female
Link port: 2x to 4× RJ45 jack
Power: 1 × or 2 × 1.7mm barrel jack
Audio in: 1 × 3.5mm jack (optional)
Audio out: 1 × 3.5mm jack (optional)
Serial: 1 × DB9 Female (optional)
Transmitter:
USB(when present): 0x to 4× Type B receptacle
Receiver:
USB(when present): 0, 3×, 6x, 9, or 12x Type A receptacle
Indicators Power: Green = powered and ready
Link: Green = Link established
USB: Green = USB host connected
Video: Solid Green = HDCP video signal
Blinking Green = non-HDCP video
Environment Operating temp: 32°F – 104°F (0°C – 40°C)
Storage temp: -4°F – 158°F (-20°C – 70°C)
Rel. humidity: 20% – 80%, non-condensing
Compliance FCC Part 15 Class A, CE Class A, ICES-003 Class A, RoHS2 (CE)

CrystalView EX DVI Multi Manual 12
Appendix B —Part Numbers
CRYSTALVIEW EX DVI MULTI — EXTENDER KITS
(Includes transmitter unit, receiver unit, and power supply external adapters)
MULTI-UNIT KIT — 2, 3, or 4 DVI+USB
Part number DVI USB CHASSIS POWER SUPPLIES
CRK-1DTXT2DM-2T-EX6 2 2 Mini 2
CRK-1DTXT2D-2T-EX6 2 2 Wide 2
CRK-1DTXT3D-3T-EX6 3 3 Wide 3
CRK-1DTXT4D-4T-EX6 4 4 Wide 3
MULTI-HEAD KIT — one USB and 1, 2, 3, or 4 DVI
Part number DVI USB CHASSIS POWER SUPPLIES
CRK-1DTXT1DM-EX6 1 1 Mini 2
CRK-1DTXT2DM-EX6 2 1 Mini 2
CRK-1DTXT2D-EX6 2 1 Wide 2
CRK-1DTXT3D-EX6 3 1 Wide 2
CRK-1DTXT4D-EX6 4 1 Wide 2
VIDEO-ONLY KIT — no USB and 1, 2, 3, or 4 DVI
Part number DVI USB CHASSIS POWER SUPPLIES
CRK-1DTX01DM-EX6 1 0 Mini 2
CRK-1DTX02DM-EX6 2 0 Mini 2
CRK-1DTX02D-EX6 2 0 Wide 2
CRK-1DTX03D-EX6 3 0 Wide 2
CRK-1DTX04D-EX6 4 0 Wide 2

CrystalView EX DVI Multi Manual 13
CRYSTALVIEW EX DVI MULTI — TRANSMITTER ONLY
(Includes transmitter unit and power supply external adapter)
MULTI-UNIT TRANSMITTER — 2, 3, or 4 DVI+USB
Part number DVI USB CHASSIS POWER SUPPLIES
CRV-SLDTXT2DM-2T-EX6 2 2 Mini 1
CRV-SLDTXT2D-2T-EX6 2 2 Wide 1
CRV-SLDTXT3D-3T-EX6 3 3 Wide 1
CRV-SLDTXT4D-4T-EX6 4 4 Wide 1
MULTI-HEAD TRANSMITTER — one USB and 1, 2, 3, or 4 DVI
Part number DVI USB CHASSIS POWER SUPPLIES
CRV-SLDTXT1DM-EX6 1 1 Mini 1
CRV-SLDTXT2DM-EX6 2 1 Mini 1
CRV-SLDTXT2D-EX6 2 1 Wide 1
CRV-SLDTXT3D-EX6 3 1 Wide 1
CRV-SLDTXT4D-EX6 4 1 Wide 1
VIDEO-ONLY TRANSMITTER — no USB and 1, 2, 3, or 4 DVI
Part number DVI USB CHASSIS POWER SUPPLIES
CRV-SLDTX01DM-EX6 1 0 Mini 1
CRV-SLDTX02DM-EX6 2 0 Mini 1
CRV-SLDTX02D-EX6 2 0 Wide 1
CRV-SLDTX03D-EX6 3 0 Wide 1
CRV-SLDTX04D-EX6 4 0 Wide 1

APPENDICES
CrystalView EX DVI Multi Manual 14
CRYSTALVIEW EX DVI MULTI — RECEIVER ONLY
(Includes receiver unit and power supply external adapter(s))
MULTI-UNIT RECEIVER — 2, 3, or 4 DVI+USB
Part number DVI USB CHASSIS POWER SUPPLIES
CRV-SRDTXT2DM-2T-EX6 2 2 Mini 1
CRV-SRDTXT2D-2T-EX6 2 2 Wide 1
CRV-SRDTXT3D-3T-EX6 3 3 Wide 2*
CRV-SRDTXT4D-4T-EX6 4 4 Wide 2*
*3-port and 4-port receiver units require two power supplies due to increased USB current
MULTI-HEAD RECEIVER — one USB and 1, 2, 3, or 4 DVI
Part number DVI USB CHASSIS POWER SUPPLIES
CRV-SRDTXT1DM-EX6 1 1 Mini 1
CRV-SRDTXT2DM-EX6 2 1 Mini 1
CRV-SRDTXT2D-EX6 2 1 Wide 1
CRV-SRDTXT3D-EX6 3 1 Wide 1
CRV-SRDTXT4D-EX6 4 1 Wide 1
VIDEO-ONLY RECEIVER — no USB and 1, 2, 3, or 4 DVI
Part number DVI USB CHASSIS POWER SUPPLIES
CRV-SRDTX01DM-EX6 1 0 Mini 1
CRV-SRDTX02DM-EX6 2 0 Mini 1
CRV-SRDTX02D-EX6 2 0 Wide 1
CRV-SRDTX03D-EX6 3 0 Wide 1
CRV-SRDTX04D-EX6 4 0 Wide 1

APPENDICES
CrystalView EX DVI Multi Manual 15
CRYSTALVIEW EX DVI COMPACT UNITS
TRANSMITTER OR RECEIVER — always come with 1 DVI and 1 USB
Part number DVI USB CHASSIS POWER SUPPLIES
CRK-1DTXT-EX6 (kit w/
Transmitter & Receiver)
1 1 Compact 2
CRV-SLDTXT-EX6 (Transmitter) 1 1 Compact 1
CRV-SRDTXT-EX6 (Receiver) 1 1 Compact 1
OPTIONS and ACCESSORIES
OPTIONS (fitted on multi TX and RX units)
/A2 Bi-directional Audio
/S Serial RS232
/AS Bi-directional Audio + Serial
ACCESSORIES
CAB-DVIMMnnn DVI male to male cable, nnn = length
CAB-USBABnnn USB type A/B cable, nnn=length
RM-UM19 Rackmount kit for mini chassis
RM-UB19 Rackmount kit for wide chassis
RM-CRV-EX/19 Rackmount kit for compact chassis (holds 2 units, side-by-side)
RM-CRVEX/CP Blanking plate for compact chassis rackmount kit
RM-UD/CRV-EX Under desk bracket for compact chassis
TFR-05D400FSUB-1.7F Replacement power supply for multi transmitter or receiver
TFR-05D300FSUB-1.7F Replacement power supply for compact transmitter or receiver

WWW.ROSE.COM
▪
[e-mail]
▪
[phone]
Rose Electronics
▪10707 Stancliff Road ▪Houston, Texas 77099
Rose USA (281)
933-7673 ▪Rose Europe [phone]
Rose Asia [phone]
▪Rose Australia [phone]
WWW.ROSE.COM
