CrystalView HDMI 4K60
4K
60 HDBase-T Extender
Installation
and
Operation Manual
10707 Stancliff Road
Houston, Texas 77099
Phone: [phone]
[email protected]

LIMITED WARRANTY
Copyright Rose Electronics 2018. All rights reserved.
No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and
recording, without the prior written permission of Rose Electronics.
manual-crystalview-hdmi-4k60-2018-04-06
Rose Electronics®warrants the CrystalView HDMI 4K60 extender to be in good working order for one year
from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good
working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or
replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All
replaced parts become the property of Rose Electronics. This limited warranty does not include service to
repair damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit,
including static discharge and power surges.
Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose
Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,
you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the
warranty service location, and to use the original shipping container or its equivalent. You must call for a return
authorization number first. Under no circumstances will a unit be accepted without a return authorization
number. Contact an authorized repair center or Rose Electronics for further information.
ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A
PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS
OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE
REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE
ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST
SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR
THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER
PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY
This is to certify that, when installed and used according to the instructions in this manual, the units listed and
described here are shielded against the generation of radio interferences in accordance with the application of
Council Directives 2014/30/EU and 2014/30/EU.
This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at their own expense.
The manufacturer complies with the EU Directive 2012/19/EU on the prevention of waste electrical and
electronic equipment (WEEE). The device labels carry a respective marking.
These devices comply with Directive 2011/65/EU of the European Parliament and of the council of 8 June
2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(RoHS 2, RoHS II). The device labels carry a respective marking.

TABLE OF CONTENTS
Contents
Disclaimer 1
System Introduction 1
Features 1
Package Contents 2
Compatibility 2
CrystalView HDMI 4K60 Units 3
CrystalView HDMI 4K60 Transmitter 3
CrystalView HDMI 4K60 Receiver 4
Installing the CrystalView HDMI 4K60 Extender 5
Installing the IR Components 5
Safety 6
Maintenance and Repair 7
Technical Support 7
Figures
Figure 1. Transmitter front and rear panels 3
Figure 2. Receiver front and rear panels 4
Figure 3. CrystalView HDMI 4K60 – installation diagram 4
Figure 4. IR transmitter cable 5
Figure 5. IR receiver cable 5
Appendices
Appendix A —Specifications 8
Appendix B —Part Numbers 8

INTRODUCTION
CrystalView HDMI 4K60 Manual 1
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting
from the use of the information contained herein. The manufacturer reserves the right to change the
specifications, functions, circuitry of the product, and manual content at any time without notice.
The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances
outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury
arising directly or indirectly from the use of this product (See limited warranty).
System Introduction
Thank you for choosing the Rose Electronics CrystalView HDMI 4K60 extender for your ultra high-resolution
video extension needs. This product boosts digital video and audio transmission distance for 1080p signals up
to 330ft (100 m) over a single CATx cable. HDR 4K signals can be extended up to 230ft (70 m).
HDCP support enables uncompressed video from a computer, DVD player, Blu-ray player, or a set-top box to
be displayed on remote monitors, HDTV’s, or video projectors, with full support for high definition 7.1ch audio.
The CrystalView HDMI 4K60 features bidirectional IR remote control extension, as well as full duplex RS-232
extension at baud rates up to 115,200 bps. The system utilizes PoC (Power over Cable), so a single power
supply connected to either the Transmitter or Receiver can power the device at the other end.
The instructions in this manual assume a general knowledge of computer installation procedures, familiarity
with cabling requirements, and some familiarity with HDMI device operation.
Features
■HDMI 2.0a compliant
■Supports 4K2K@60Hz (4:4:4, 8 bits) and HDR 4K2K@60Hz (4:2:0, 10 bits)
■Extends full HD 1080p signal up to 330ft (100 m) and 4K2K@60Hz signal up to 230ft (70 meters)
■PoC (Power over Cable) feature provides for both transmitter and receiver units to be powered by a
single power supply on either end
■Terminal block connectors support full-duplex RS-232 extension at rates to 115,200 bps
■Supports bidirectional IR remote controls at frequencies from 20 KHz to 60 KHz
■Video latency less than 20µs
■Supports HDCP 2.2 and EDID pass through
■HDMI-CEC support
■Supports uncompressed HDMI 7.1 channel digital audio, DTS-HD Master Audio and Dolby TrueHD high
bit rate audio
■Firmware updates provided
■Wall mounted housing design for sturdy installation

CrystalView HDMI 4K60 Manual 2
Package Contents
The package contents consist of the following items:

CrystalView HDMI 4K60 transmitter and receiver units

1 x IR transmitter

1 x IR receiver

1 x 12VDC 2A power adapter with power cord

Installation and operations manual.
Compatibility

HDMI 2.0a

HDCP 2.2

All 3D formats and deep color video

DTS-HD, Dolby TrueHD, and 7.1 channel digital audio

Full Duplex RS-232 to 115,200 baud
All references to HDMI cables in this document refer to the maximum recommended distances for each cable type.
Maximum recommended cable distances should not be exceeded.

MODELS
CrystalView HDMI 4K60 Manual 3
CrystalView HDMI 4K60 Units
The CrystalView HDMI 4K60 comes in a single model. The front and rear views of the transmitter and receiver
units are shown below.

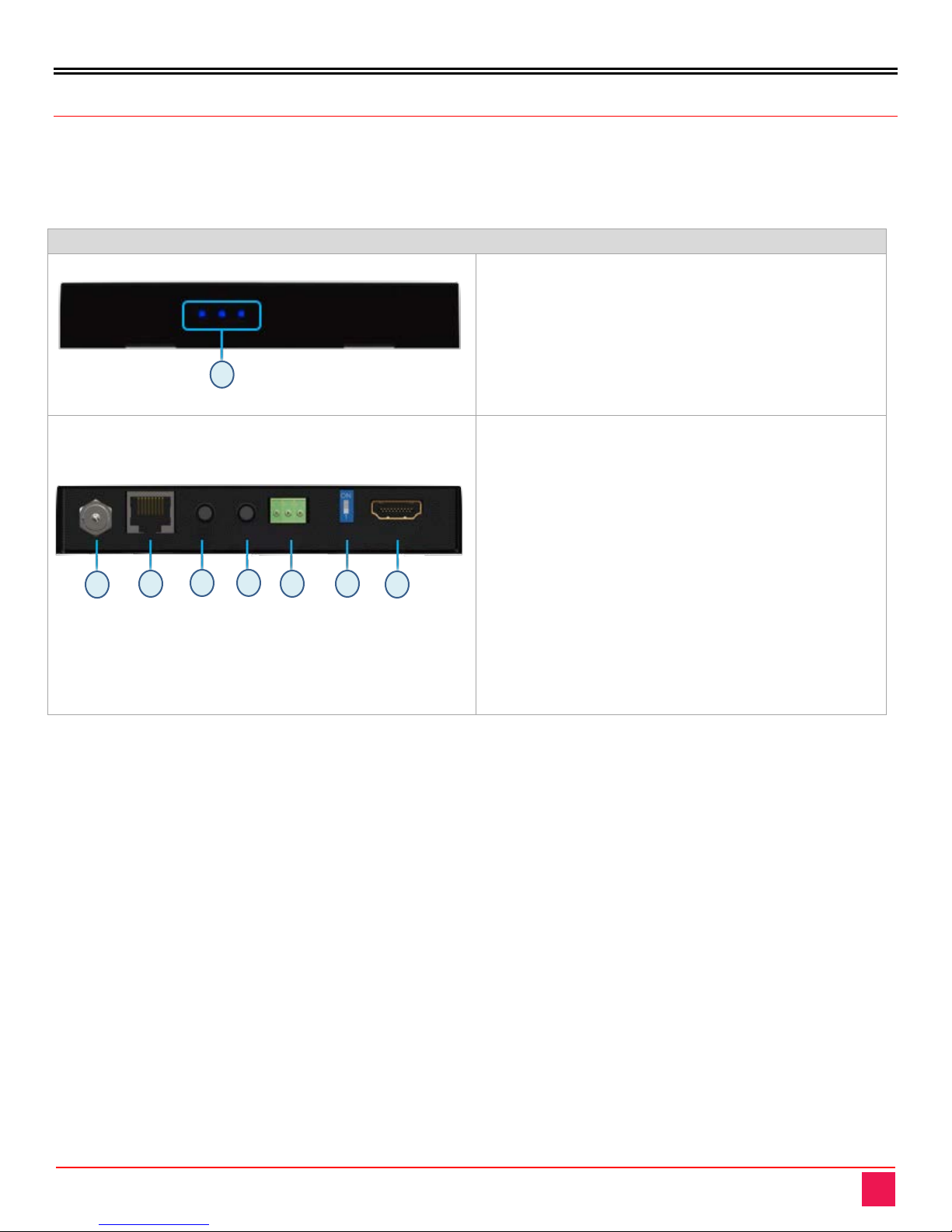

CrystalView HDMI 4K60 Transmitter
CrystalView HDMI 4K60 – transmitter unit front and rear panels
Front Panel
1. LED Indicators: From left to right
Power indicator
Link indicator
HDMI Signal Indicator
Rear Panel
2. Locking power jack: Connect to 12V DC power
supply
3. RJ45: Connect CAT5/5e/6 cable to link to the
receiver unit
4. IR RX: 3.5mm socket for plugging in the IR
receiver cable
5. IR TX: 3.5mm socket for plugging in the IR
transmitter cable
6. RS-232 terminal block: Connect the source RS-
232 left to right – (TX, RX, GND)
7. DIP Switch:
OFF – Normal operation
ON – Firmware update
8. HDMI IN: Connect to the HDMI source with
HDMI male-male cable
Figure 1. Transmitter front and rear panels
1
2
8
3
4
5
6
7

CrystalView HDMI 4K60 Manual 4

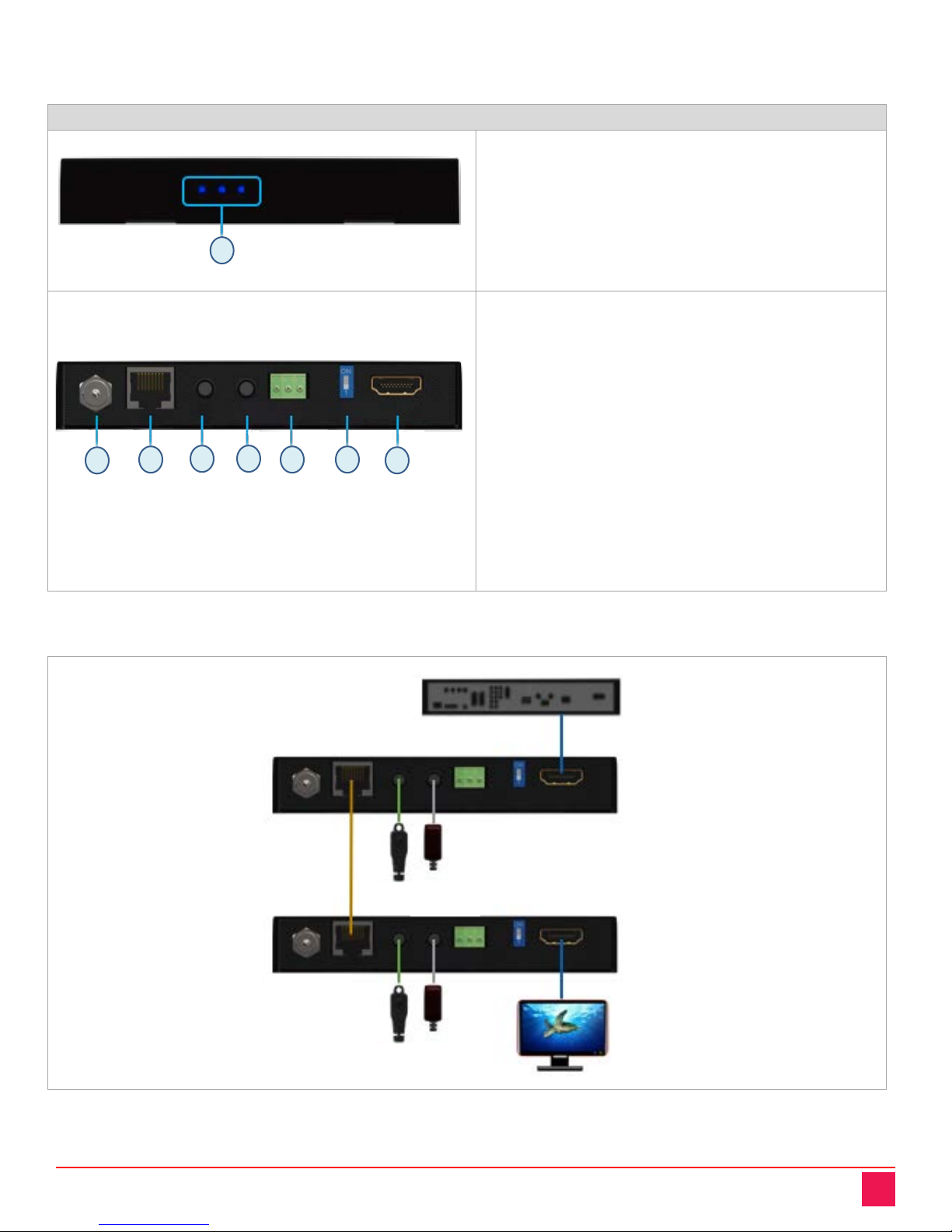

CrystalView HDMI 4K60 Receiver
CrystalView HDMI 4K60 – receiver unit front and rear panels
Front Panel
9. LED Indicators: From left to right
Power indicator
Link indicator
HDMI Signal Indicator
Rear Panel
10. Locking power jack: Connect to 12V DC
power supply
11. RJ45: Connect CAT5/5e/6 cable to link to the
transmitter unit
12. IR RX: 3.5mm socket for plugging in the IR
receiver cable
13. IR TX: 3.5mm socket for plugging in the IR
transmitter cable
14. RS-232 terminal block: Connect the source
RS-232 left to right – (TX, RX, GND)
15. DIP Switch:
OFF – Normal operation
ON – Firmware update
16. HDMI OUT: Connect to the HDMI display with
HDMI male-male cable
Figure 2. Receiver front and rear panels
Figure 3. CrystalView HDMI 4K60 – installation diagram
9
10
16
11
12
13
14
15
Transmitter
Blu-ray Player
Receiver
IR-RX
IR-TX
IR-RX
IR-TX
HDMI
Display
CATx
HDBase-T

INSTALLATION and OPERATION
CrystalView HDMI 4K60 Manual 5
Installing the CrystalView HDMI 4K60 Extender
Installing the CrystalView HDMI 4K60 is a very simple and straightforward process. It is recommended that all
equipment be powered off prior to beginning the installation. The installation steps are given below.
1. Connect the HDMI video source (PC, Set-Top Box, DVD Player) to the HDMI IN connector on the rear
panel of the transmitter.
2. Connect the HDMI display cables to the HDMI OUT connectors on the rear panel of the receiver.
3. Connect the IR receiver to the IR RX connector on the rear panel of the receiver.
4. Connect the IR transmitter to the IR TX connector on the rear panel of the transmitter.
5. Connect a CAT5/5e/6 cable between the transmitter and receiver.
6. Connect the 12VDC power adapter to the power jack of the receiver, or the transmitter.
7. Apply power to the display and the HDMI video source.
Installing the IR Components
IR transmitter Cable
Plug the IR transmitter cable into the 3.5 mm connector on the transmitter unit. The IR transmitter will emit all
IR command signals transmitted by an IR receiver connected to the receiver unit.
Figure 4. IR transmitter cable kit
IR receiver Cable
Plug the IR receiver cable into the 3.5 mm connector on the Receiver unit to receive and transmit the IR control
signals of the remote control device.
Figure 5. IR receiver cable kit
CAUTION! Plugging the IR transmitter or receiver cable into the wrong connector can result in failure of
the IR Extenders. Please ensure that the IR transmitter is only plugged into the connector labeled IR TX the IR
receiver into the connector labeled IR Rx.

SAFETY
CrystalView HDMI 4K60 Manual 6
Safety
The CrystalView HDMI 4K60 Extender, like all electronic equipment, should be used with care. To protect
yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety
instructions.

Follow all instructions and warnings marked on this Unit.

Except where explained in this manual, do not attempt to service this Unit yourself.

Do not use this Unit near water.

Assure that the placement of this Unit is on a stable surface.

Provide proper ventilation and air circulation.

Keep connection cables clear of obstructions that might cause damage to them.

Use only power cords, power adapter and connection cables designed for this Unit.

Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and
foreign objects might come in contact with voltage points that could create a risk of fire or electrical
shock.

Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source
before cleaning.
Remove power from the unit and refer servicing to a qualified service center if any of the
following conditions occur:

The connection cables are damaged or frayed.

The Unit has been exposed to any liquids.

The Unit does not operate normally when all operating instructions have been followed.

The Unit has been dropped or the case has been damaged.

The Unit exhibits a distinct change in performance, indicating a need for service.

SERVICE AND MAINTENANCE
CrystalView HDMI 4K60 Manual 7
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance,
you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center.
This Return Authorization number must appear on the outside of the shipping container.
See Limited Warranty for more information.
When returning a Unit, it should be double-packed in the original container or equivalent, insured and shipped
to:
Rose Electronics
Attn: RA __________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need assistance installing your product, consult the appropriate section of
this manual. If, however, you require additional information or assistance, please contact the Rose Electronics
Technical Support Department at:
Phone: [phone]
E-mail: T[email protected]
Web: www.rose.com
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose
Electronics Technical Support Department.

APPENDICES
CrystalView HDMI 4K60 Manual 8
Appendix A —Specifications
Chassis Dimensions (W x D x H) and Weight
Dimensions
4.7 × 2.9 × 0.8-inch, (121 × 74 × 20 mm)
Weight
0.27lb (121g) (per unit)
Power Requirements
Power Source
Transmitter: 5VDC, 2A (or PoC), 3W (max)
Receiver: 5VDC, 2A (or PoC), 7W (max)
Video
Input Format
1 x HDMI 2.0a
Output Format
1 x HDMI 2.0a
Color Support
Deep color
Video Bandwidth
600MHz (18Gbps)
Maximum Resolution
HDR 4K2K@60Hz (4:2:0, 10 bits), 4K2K@60Hz (4:4:4, 8 bits)
HDCP Compliance
HDCP 2.2
EDID Management
Pass through
Audio
Supported Protocols
Surround sound 7.1 channel LPCM, Dolby True HD and DTS-HD Master Audio
RS-232
Terminal Block
Full duplex transmission up to 115,200 baud
Connectors
HDMI
Type A (19-pin female)
RJ45
WE/SS 8P8C (Reverse Mode) for CAT5/5e/6 cable
3.5mm IR extender
Dedicated Transmitter and Receiver connectors
RS-232
Terminal Block connectors: TX, RX, GND
Source Control
IR Remote Control
Bi-directional command signal pass through using IR transmitter and receiver
ESD Protection
Human body model ±15kV (air-gap discharge) and ±8kV (contact discharge)
Environmental
Operating Temp
32°F to 104°F (0°C to 40°C)
Storage Temp
-4°F to 140°F (-20°C to 60°C)
Operating Humidity
20-90% relative, non-condensing
Approvals FCC and CE certified, WEEE, RoHS compliant
Appendix B —Part Numbers
Part Numbers Description
CRK-1DTX0H1-ASR/P CrystalView HDMI 4K60 Kit with Transmitter and Receiver
CRK-SLDTX0H1-ASR/P CrystalView HDMI 4K60 Transmitter
CRK-SRDTX0H1-ASR/P CrystalView HDMI 4K60 Receiver
CAB-HDMIMM006 HDMI extension cable M/M, 6ft (2 m)
CAB-HDMIMM010 HDMI extension cable M/M, 10ft (3 m)
ACC-DVIFHDMIM HDMI(M) to DVID(F) adapter cable

WWW.ROSE.COM
▪
[e-mail]
▪
[phone]
Rose Electronics
▪10707 Stancliff Road ▪Houston, Texas 77099
Rose USA (281) 933
-7673 ▪Rose Europe [phone]
Rose Asia [phone]
▪Rose Australia [phone]
WWW.ROSE.COM
