INTRODUCTION
Vista LC DVI KVM Switch Manual 1
Disclaimer
While every precaution has been taken in the preparation of this manual, the manufacturer assumes no
responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting
from the use of the information contained herein. The manufacturer reserves the right to change the
specifications, functions, circuitry of the product, and manual content at any time without notice.
The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances
outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury
arising directly or indirectly from the use of this product (See limited warranty).
System Introduction
Thank you for choosing the Rose Electronics Vista LC DVI KVM Switch, a compact and high performance
KVM Switch, connecting up to 12 PC’s with a DVI/USB/Audio interface.
Supporting DVI video resolutions up to 1920x1200@60Hz, the Vista LC DVI uses either
keyboard hot-keys or front panel buttons to switch between the connected PC’s. The supported keyboard and
mouse is the USB-HID type.
The instructions in this manual assume a general knowledge of computer installation procedures, familiarity
with cabling requirements, and some familiarity with DVI and USB device operation.
Features
■DVI/USB and analog audio KVM Switch in 1U chassis
■Supports 1920x1200 video resolution
■12 CPU ports, with DVI-D and USB-HID interface
■USB-HID for keyboard and mouse
■Multiplatform for PC, server, blade server SUN and MAC
■Port switching via front panel button and keyboard hotkeys
■Hot pluggable switch, no software
■Audio speaker supported
■Supports SUN 1152x900 resolution

Vista LC DVI KVM Switch Manual 2
Package Contents
The package contents consist of the following items:
■Vista LC DVI Switch
■Quantity 6 of 6ft (2.0m) DVI/USB/Audio cables
■Mounting kit and screws
■External power supply
■Power cable
■Installation & Operation Manual
Additional Items required
■DVI/USB/Audio cables – 6ft (2.0m)
■DVI/USB/Audio cables – 10ft (3.0m)
All references to DVI and USB cables in this document refer to the maximum recommended distances for each cable
type. Maximum recommended cable distances should not be exceeded.
Example of a DVI/USB/Audio Combo Cable for the Switch to PC interface
The included combo cables are terminated with
DVI/USB connectors at the switch end, and
DVI/USB/Audio connectors at the PC end

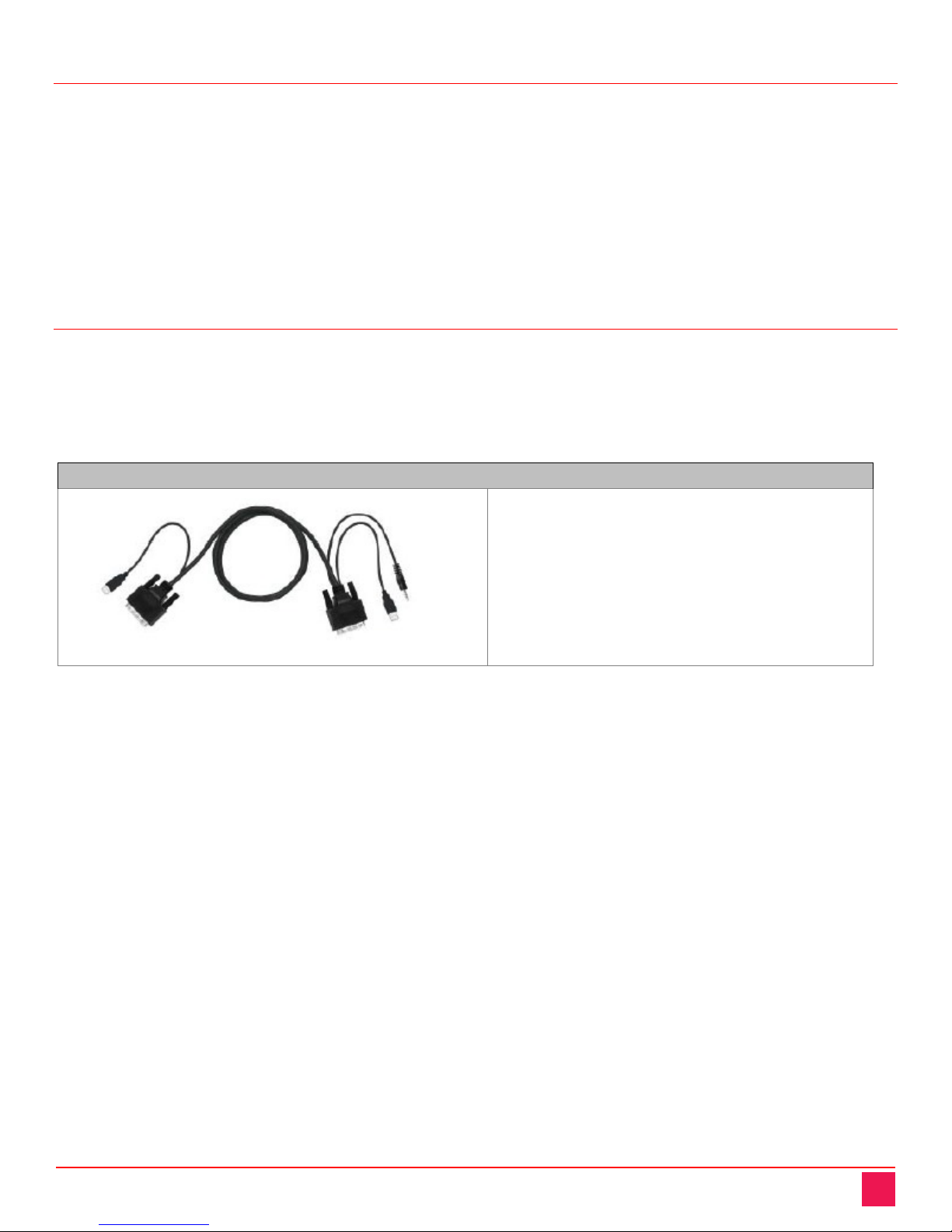

Figure 1. Vista DVI LC – DVI/USB/Audio combo cable

INSTALLATION
Vista LC DVI KVM Switch Manual 3
Installing the Vista LC DVI Switch
Unpack the Vista LC DVI switch and check the contents of the package.
If the switch is to be rackmounted, then attach a rackmount bracket to either side of the switch using the
provided screw-set.
Before installing the switch into the rack, connect two PC’s using the included DVI/USB/Audio cables, and then
connect a monitor, keyboard and mouse to the user port.
Power on the monitor, then the switch, followed by the PC’s. Check to confirm the PC’s can be switched (via
front panel or keyboard hotkey) and that full operation of the switch is confirmed.
Once this operation has been confirmed, the switch can then be fully installed into the rack. Connect the
remainder of the DVI/USB/Audio cables to the Vista LC DVI switch

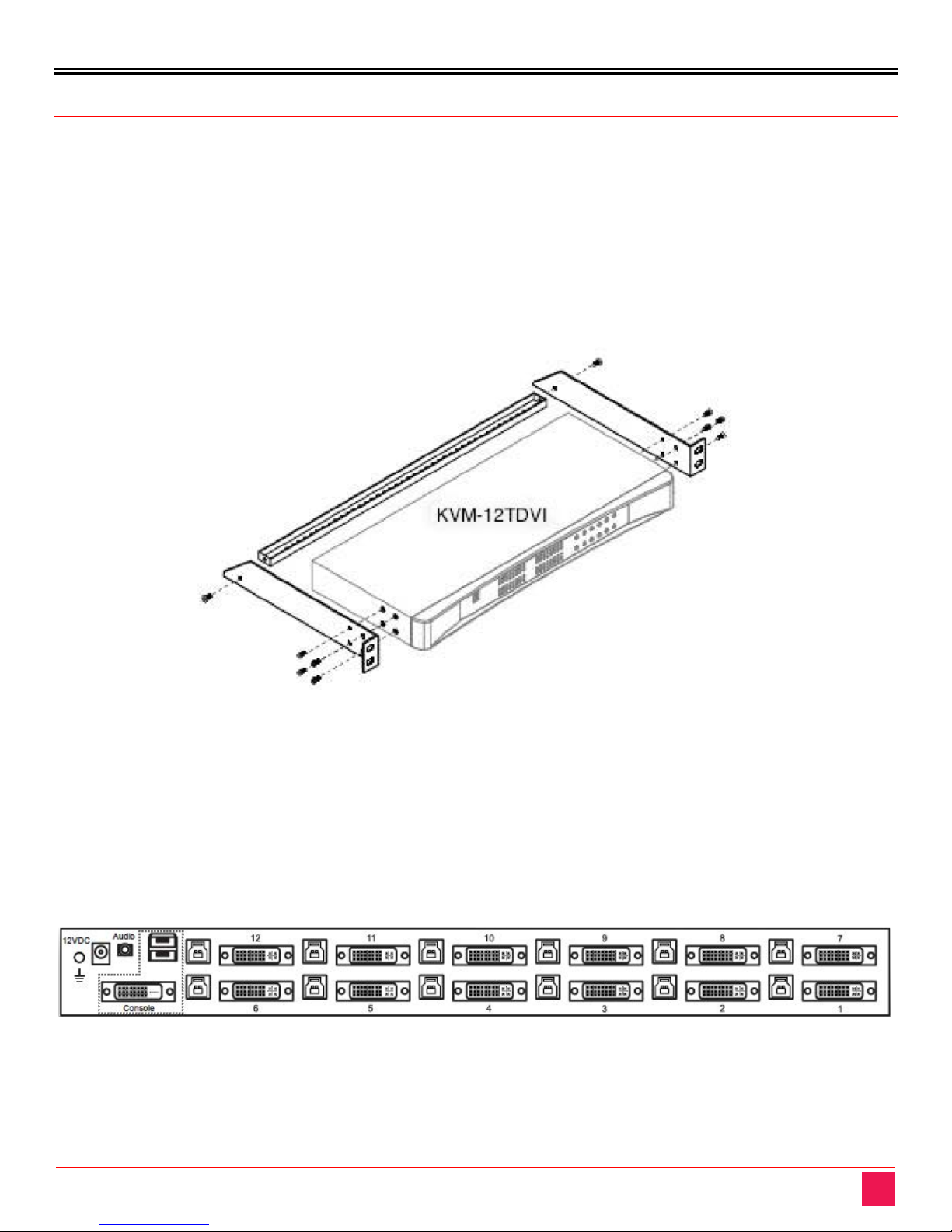

Figure 2. Vista LC DVI Switch showing the rackmount bracket assembly
Back Panel Connectors
The Vista LC DVI switch has 12 CPU ports and a single user console port. Each of the 12 CPU ports has a
DVI and a USB-B type connector.
The local port consists of a DVI-D connector, two USB-A type connectors for USB keyboard and mouse, an
audio output port and a DC power jack.
Figure 3. Vista LC DVI Switch – back panel connectors

INSTALLATION
Vista LC DVI KVM Switch Manual 4
Back Panel – Cable Connectivity
Connecting PC’s to the switch is easy. Simply connect a CPU cable to the DVI/USB ports on the switch by
locking the cables in place, and the other end of the cable direct to the PC.
It is advisable to use only 6ft/10ft (2.0/3.0m) CPU cables as longer cables may result in DVI video defects or
intermittent USB keyboard/mouse performance.
Figure 4. Vista LC DVI Switch - back panel cable connectivity
Front Panel – Buttons and LED’s
The PC Port LED’s indicate whether a PC is Online or Active.
The PC Port buttons can be used for PC port selection. Alternatively, keyboard hotkeys can also be used for
PC port selection.
Figure 5. Vista LC DVI Switch – front panel buttons and LED’s

INSTALLATION
Vista LC DVI KVM Switch Manual 5
PC Port LED’s
Online -A blue LED indicates a PC is connected to the port
Active -A green LED indicates the selected/active channel
Keyboard Hotkey Switching
Hotkey Description Function
Scroll Lock + Scroll Lock + Switch to previous port
Scroll Lock + Scroll Lock + Switch to next port
Scroll Lock + Scroll Lock + Port Number Switch to specific port
Scroll Lock + Scroll Lock + SAuto scan for powered on PC’s
Scroll Lock + Scroll Lock + BEnable/Disable beeper sound
Table 1. Vista LC DVI Switch – keyboard hotkey commands
Example: Switch to Port #4. Scroll Lock + Scroll Lock + 0 + 4
Switch to Port #12. Scroll Lock + Scroll Lock + 1 + 2
You must press the hotkey within 2 seconds
A beep sound will be heard when you successfully enter a hotkey command
Figure 6. Vista LC DVI Switch – hotkey label

PRODUCT SAFETY
Vista LC DVI KVM Switch Manual 6
Safety
The Vista LC DVI KVM Switch, like all electronic equipment, should be used with care. To protect yourself from
possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.

Follow all instructions and warnings marked on this Unit.

Except where explained in this manual, do not attempt to service this Unit yourself.

Do not use this Unit near water.

Assure that the placement of this Unit is on a stable surface.

Provide proper ventilation and air circulation.

Keep connection cables clear of obstructions that might cause damage to them.

Use only power cords, power adapter and connection cables designed for this Unit.

Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and
foreign objects might come in contact with voltage points that could create a risk of fire or electrical
shock.

Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source
before cleaning.
Remove power from the unit and refer servicing to a qualified service center if any of the
following conditions occur:

The connection cables are damaged or frayed.

The Unit has been exposed to any liquids.

The Unit does not operate normally when all operating instructions have been followed.

The Unit has been dropped or the case has been damaged.

The Unit exhibits a distinct change in performance, indicating a need for service.

SERVICE AND MAINTENANCE
Vista LC DVI KVM Switch Manual 7
Maintenance and Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance,
you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center.
This Return Authorization number must appear on the outside of the shipping container.
See Limited Warranty for more information.
When returning a Unit, it should be double-packed in the original container or equivalent, insured and shipped
to:
Rose Electronics
Attn: RA __________
10707 Stancliff Road
Houston, Texas 77099 USA
Technical Support
If you are experiencing problems, or need assistance installing your product, consult the appropriate section of
this manual. If, however, you require additional information or assistance, please contact the Rose Electronics
Technical Support Department at:
Phone: [phone]
E-mail: T[email protected]
Web: www.rose.com
Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday through Friday.
Please report any malfunctions in the operation of this Unit or any discrepancies in this manual to the Rose
Electronics Technical Support Department.

APPENDICES
Vista LC DVI KVM Switch Manual 8
Appendix A —Specifications
Part Numbers Description
KVM-12TDVI-K1 Vista LC DVI 12-Port DVI/USB KVM Switch with 6 CPU cables
CAB-CMBDVUAC006 CPU Cable, 6ft (2.0m), DVI-D/USB-A/Audio to DVI-D/USB-B
CAB-CMBDVUAC015 CPU Cable, 15ft (4.5m), DVI-D/USB-A/Audio to DVI-D/USB-B
Chassis Dimensions (W x D x H) and Weight
Dimensions 17.4” x 6.7” x 1.73” (443 x 170 x 44 mm)
Weight 5.5lb (2.5kg)
Power Requirements
Power Source 100-240VAC, AC input, 12V, Max 13 Watts
Video Resolution
1600 x 1200@60Hz (4:3) up to 1920 x 1200 (16:10)
Controls
PC Selection Front panel buttons and keyboard hotkey
Status LED’s
12 LED’s on the front panel for PC operation
Online = Blue
Active = Green
Connectors
Local User Port Connectors
1 x DVI-D
2 x USB-A for keyboard and mouse
1 x 3.5mm stereo audio
1 x 12V PSU jack
CPU Connectors 12 x DV-D
12 x USB3.0(B) connectors for keyboard, mouse and audio
System Compatibility
Hardware
OS Support
PC’s, IBM, Dell Server and Blade Server, SUN, MAC
Windows, Linux, Unix, MAC OS
Environmental
Operating Temp 32°F to 122°F (0°C to 50°C)
Storage Temp -23°F to 140°F (-5°C to 60°C)
Operating Humidity 20% to 90% relative, non-condensing
Storage Humidity 5% to 90% relative, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5 ~ 500Hz, 1G RMS random
Approvals FCC and CE certified, RoHS and REACH compliant

WWW.ROSE.COM
▪
[e-mail]
▪
[phone]
Rose Electronics
▪10707 Stancliff Road ▪Houston, Texas 77099
Rose USA (281) 933
-7673 ▪Rose Europe [phone]
Rose Asia [phone]
▪Rose Australia [phone]
WWW.ROSE.COM
