UltraLink Q ick Start G ide
All Models
The following 12 pages are Q ick Start G ides for all UltraLink models
Pages A, B, C – Model UL-V3
Pages D, E, F – Model UL-LV3
Pages G, H, I – Model UL-DV3
Pages J, K, L – model UL-QV3
Refer to the appropriate pages for yo r model

Introduction
The installation assumes the following:
 You have an active Ethernet TCP/IP network.
 You are connecting the UltraLink to a standalone
computer or K M switch.
 You have a PC on the network where you will
install the iewer software.
Connections
Connect the cables to the UltraLink.
 Connect your keyboard, monitor, and mouse to the
connectors on the bottom row as shown.
 Connect the network cable (not provided) to your
10MB or 100MB Ethernet network port.
 Connect the DB25 connector to a K M switch or to
a standalone computer with one or the other
provided cables.
Note: These instructions do not apply to installation of
the local K M port, please refer to the UltraLink
manual for instructions on how to connect it.
UltraLink configuration
Configure the UltraLink IP address
 Power on the UltraLink and you will see its
start-up splash screen. Wait for the green screen.
 Hit F10 to go to the UltraLink configuration. The
screen changes color from green to gray.
 Hit F1 if you want to read some help.
 Enter a user ID of “admin” with no password.
 Enter the IP address, subnet mask, optional
gateway address, TCP port, and Speed/duplex.
 Hit F10 to save the network information.
 The UltraLink is now active at this address.
A
 Use the DB25 to DB25 cable to connect to
the KVM port of a Rose KVM switch.
 Use the DB25 to HD15-PS2-PS2 cable to
connect to a stan alone computer or another
KVM switch.

UltraLink Quick Start Guide version 1.2 Copyright Rose Electronics 2002
Viewer installation
Install the Viewer on a PC on your network.
 Two installation diskettes are provided.
 Insert the setup diskette and run setup.
 You will be guided through a standard Windows-style
installation process.
 Click through to specify the installation directory and
if you want the associated start menu folder,
desktop, and quick launch icons.
 Read the readme file for late breaking developments.
Viewer configuration
Configure the Viewer s IP address.
 Run the UltraLink iewer program.
 Go to the Settings-Connections tab and use Edit
Location to modify Default to a name of your
choosing.
 Change the IP address to the one previously
given to the UltraLink.
 Once you click OK, the new location name
appears on the UltraLink tool bar.
 Click help if you want to know more about the iewer
or proceed below to make a connection.
Viewer operation
Make a connection.
 Hit the connect icon (second from the left) or click on
Connect. A logon box should appear.
 Enter the user ID of “admin” and no password.
 After a moment, you should see the video attached
to the UltraLink.
 The pass-through message box appears. Click OK
to forward your local keyboard and mouse to the
remote computer.
 Hit Ctrl-Alt-P to exit the iewer from pass-
through mode or move the mouse rapidly.
 Don’t forget to go to the Settings-Security tab to
change the user ID and password for its unsecured
default value.
 Refer to the manual or iewer help for further
exploration.
B

UltraLink UL-V3
Connector Label Type/Usage
POWER IEC320 / 115-230 AC, 50-60Hz, Auto-switching
A USB Type A / USB keyboard / mouse
B Serial (2) DB9 (Reserved)
C GA-In ideo loopback
D Monitor HD15M / K M monitor
E SWITCH/CPU DB25F / K M switch or standalone computer
connection
F Keyboard MiniDin6 / K M keyboard
G Mouse MiniDin6 / K M mouse
H GA-Out ideo loopback
I NETWORK RJ45 / Network connection (10MB / 100MB)
C
A B C D E
F G H I
POWER

UltraLink Quick Start Guide version 1.2 Copyright Rose Electronics 2002
Introduction
The installation assumes the following:
 You have an active Ethernet TCP/IP network.
 You are connecting the UltraLink to a standalone
computer or K M switch.
 You have a PC on the network where you will install
the iewer software.
Connections
Connect the cables to the UltraLink.
 Connect your keyboard, monitor, and mouse to the
corresponding UltraLink rear connectors.
 Connect the network cable (not provided) to your
10MB or 100MB Ethernet network port.
 Connect the DB25 connector to a K M switch or to
a standalone computer with one of the provided
cables. Use the DB25 to DB25 cable to connect to
the K M port of a Rose K M switch. Use the DB25
to HD15-PS2-PS2 cable to connect to a standalone
computer or another K M switch.
Note: These instructions do not apply to installation of
the local K M port, please refer to the UltraLink
manual for instructions on how to connect it.
UltraLink configuration
Configure the UltraLink IP address
 Power on the UltraLink and you will see its
start-up splash screen. Wait for the green screen.
 Hit F10 to go to the UltraLink configuration. The
screen changes color from green to gray.
 Enter a user ID of “admin” with no password.
 Enter the IP address, subnet mask, optional
gateway address, TCP port, and Speed/duplex.
 Hit F10 to save the network information.
 The UltraLink is now active at this address
 Hit F1 if you want to read some help.
.
D

UltraLink UL-L 3 Quick Start Guide version 1.2 Copyright Rose Electronics 2002
Viewer installation
Install the Viewer on a PC on your network.
 Two installation diskettes are provided.
 Insert the setup diskette and run setup.
 You will be guided through a standard Windows-style
installation process.
 Click through to specify the installation directory and
if you want the associated start menu folder,
desktop, and quick launch icons.
 Read the readme file for late breaking developments.
Viewer configuration
Configure the Viewer s IP address.
 Run the UltraLink iewer program.
 Go to the Settings-Connections tab and use Edit
Location to modify Default to a name of your
choosing.
 Change the IP address to the one previously
assigned to the UltraLink.
 Once you click OK, the new location name
appears on the UltraLink tool bar.
 Click help if you want to know more about the iewer
or proceed below to make a connection.
Viewer operation
Make a connection.
 Hit the connect icon (second from the left) or click on
Connect. A logon box will appear.
 Enter the user ID of “admin” and no password.
 After a moment, you should see the video attached
to the UltraLink.
 The pass-through message box appears. Click OK
to forward you local keyboard and mouse to the
remote computer.
 Hit Ctrl-Alt-P to exit the iewer from the pass-
through mode or move the mouse rapidly.
 Don’t forget to go to the Settings-Security tab to
change the user ID and password from its unsecured
default value.
 Refer to the manual or iewer help for further
exploration.
E

UltraLink UL-LV3
Rose Electronics 10707 Stancliff Road, Houston, Texas 77099 USA
281-933-7673 800-333-9343 (USA) [phone] (Europe) [phone](Far East)
W W W . R O S E . C O M
Connector Label Type/Usage
A SERIAL DB9M/ Serial ports for modem or serial device
(Reserved for future use)
B MONITOR HD15F / Local monitor connection
C SWITCH/CPU DB25F / K M switch or standalone computer
connection
D KEYBOARD PS/2 / Local keyboard connection
E MOUSE PS/2 / Local mouse connection
F SERIAL DB9M/ Serial ports for modem or serial device
(Reserved for future use)
G NETWORK RJ45 / Network connection (10MB / 100MB)
POWER IEC320 / 115-230 AC, 50-60Hz, Auto-switching
F
A B C
POWER D E F
G

Introduction
The installation assumes the following:
 The Dual UltraLink consists of two independent
modules. Each one must be set-up and configured.
 You have an active Ethernet TCP/IP network.
 You are connecting the UltraLink to two standalone
computers or a K M switch.
 You have a PC on the network where you will
install the iewer software.
Connections
Connect the cables to the UltraLink.
 Connect a keyboard, monitor, and mouse to the
appropriate connectors on one or both modules..
 Connect two network cables (not provided) to a
10MB or 100MB Ethernet network port or hub.
 Connect two DB25 connector to a K M switch or
two standalone computers with one of the provided
cables. Use the DB25 to DB25 cable to connect to
the K M port of a Rose K M switch. Use the
DB25 to HD15-PS2-PS2 cable to connect to a
standalone computer or another K M switch.
Note: These instructions do not apply to installation of
the local K M port. Please refer to the UltraLink
manual for instructions on how to connect it.
UltraLink configuration
G
Configure the UltraLink IP addresses
 Power on the UltraLink and you will see its
start-up splash screen. Wait for the green screen.
 Hit F10 to go to the UltraLink configuration. The
screen changes color from green to gray.
 Hit F1 if you want to read some help.
 Enter a user ID of “admin” with no password.
 Enter the IP address, subnet mask, optional
gateway address, TCP port, and Speed/duplex.
 Hit F10 to save the network information.
 The UltraLink is now active at this address.
 Repeat the above set-up for the other module. .

Viewer installation
Install the Viewer on a PC on your network.
 Two installation diskettes are provided.
 Insert the setup diskette and run setup.
 You will be guided through a standard Windows-style
installation process.
 Click through to specify the installation directory and
if you want the associated start menu folder,
desktop, and quick launch icons.
 Read the readme file for late breaking developments.
Viewer configuration
Configure the Viewer s IP addresses.
 Run the UltraLink iewer program.
 Go to the Settings-Connections tab and use Edit
Location to modify Default to a name of you
choosing.
 Change the IP address to one that was assigned to
one of the two UltraLinks. Click OK. This sets up the
first UltraLink.
 Click on “Add Location” and add the second
UltraLink to the iewer. Enter its correct IP address.
This sets up the second UltraLink. Once you click
OK, the new location name appears on the UltraLink
tool bar.
 Click help if you want to know more about the iewer
or proceed below to make a connection.
Viewer operation
Make a connection.
 Hit the connect icon (second from the left) or click on
Connect. A logon box should appear.
 Enter the user ID of “admin” and no password.
 After a moment, you should see the video attached
to the UltraLink.
 The pass-through message box appears. Click OK
to forward you local keyboard and mouse to the
remote computer.
 Hit Ctrl-Alt-P to exit the iewer from pass-
through mode or move the mouse rapidly.
 Don’t forget to go to the Settings-Security tab to
change the user ID and password for its unsecured
default value.
 Refer to the manual or iewer help for further
exploration.
H

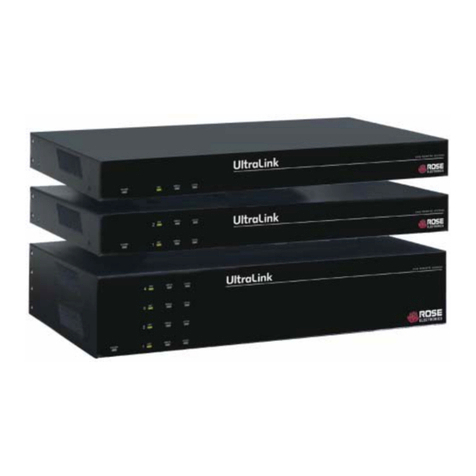

UltraLink UL-DV3
Rose Electronics 10707 Stancliff Road, Houston, Texas 77099 USA
281-933-7673 800-333-9343 (USA) [phone] (Europe) [phone](Far East)
W W W . R O S E . C O M
Connector Label Type/Usage
A SERIAL DB9M/ Serial ports for modem or serial device
(Reserved for future use)
B MONITOR HD15F / Local monitor connection
C SWITCH/CPU DB25F / K M switch or standalone computer
connection
D KEYBOARD PS/2 / Local keyboard connection
E MOUSE PS/2 / Local mouse connection
F SERIAL DB9M/ Serial ports for modem or serial device
(Reserved for future use)
G NETWORK RJ45 / Network connection (10MB / 100MB)
POWER IEC320 / 115-230 AC, 50-60Hz, Auto-switching
I
A B C A B C
D E F G
D E F G POWER
MODULE
#1
MODULE
#2

Introduction
The installation assumes the following:
 You have an active Ethernet TCP/IP network.
 You are connecting the UltraLink to four standalone
computers or a VM switch.
 You have a PC on the network where you will install
the Viewer software.
Connections
Connect the cables to the UltraLink.
 The Quad UltraLink consists of four independent
modules. Each one must be setup and configured.
 Connect a keyboard, monitor, and mouse to the
appropriate connectors on one of the modules.
 Connect a network cable (not provided) to your 10MB
or 100MB Ethernet network port.
(Note: The four network outputs can be connected
to a hub)
 Connect the DB25 connectors to a VM switch or to
four standalone computers with one of the provided
cables. Use the DB25 to DB25 cable to connect to
the VM ports of a Rose VM switch. Use the Db25
to HD15-PS/2-PS/2 cable to connect to a standalone
computer or another VM switch.
Note: These instructions apply for each of the 4 modules
UltraLink configuration
J
Configure the UltraLink IP address
 Power on the UltraLink and you will see its
start-up splash screen. Wait for the green screen.
 Hit F10 to go to the UltraLink configuration. The
screen changes color from green to gray.
 Hit F1 if you want to read some help.
 Enter a user ID of “admin” with no password.
 Enter the IP address, subnet mask, optional gateway
address, TCP port, and Speed/duplex for this
UltraLink.
 Hit F10 to save the network information.
 This UltraLink is now active at this address.
 Repeat the above procedure for each of the four
UltraLink modules.

Viewer installation
Install the Viewer on a CP on your network.
 Two installation diskettes are provided.
 Insert the setup diskette and run setup.
 You will be guided through a standard Windows-style
installation process.
 Click through to specify the installation directory and
if you want the associated start menu folder,
desktop, and quick launch icons.
 Read the readme file for late breaking developments.
Viewer configuration
Configure the Viewer s IP address.
 Run the UltraLink iewer program.
 Go to the Settings-Connections tab and use Edit
Location to modify Default to a name of you
choosing.
 Change the IP address to one that was assigned to
one of the four UltraLink modules, Click OK. This
sets up the first UltraLink.
 Click on “Add Location” and add the other three
UltraLink modules to the iewer. Enter its correct IP
address. This sets up the next UltraLink module.
Once you click OK, the new location name appears
on the UltraLink tool bar.
 Repeat the “Add Location” function for the other
UltraLink modules.
Viewer operation
Make a connection.
 Hit the connect icon (second from the left) or click on
Connect. A logon box should appear.
 Enter the user ID of “admin” and no password.
 After a moment, you should see the video attached
to the UltraLink.
 The pass-through message box appears. Click OK
to forward you local keyboard and mouse to the
remote computer.
 Hit Ctrl-Alt-P to exit the iewer from pass-
through mode or move the mouse rapidly.
 Don’t forget to go to the Settings-Security tab to
change the user ID and password for its unsecured
default value.
 Refer to the manual or iewer help for further
exploration.
K

UltraLink UL-QV3
Rose Electronics 10707 Stancliff Road, Houston, Texas 77099 USA
281-933-7673 800-333-9343 (USA) [phone] (Europe) [phone](Far East)
W W W . R O S E . C O M
Connector Label Type/Usage
A SERIAL DB9M/ Serial ports for modem or serial device
(Reserved for future use)
B MONITOR HD15F / Local monitor connection
C SWITCH/CPU
DB25F / K M switch or standalone computer
connection
D KEYBOARD PS/2 / Local keyboard connection
E MOUSE PS/2 / Local mouse connection
F SERIAL DB9M/ Serial ports for modem or serial device
(Reserved for future use)
G NETWORK RJ45 / Network connection (10MB / 100MB)
POWER IEC320 / 115-230 AC, 50-60Hz, Auto-switching
L
A B C A B C
D E F G
D E F G POWER
MODULE
#3
MODULE
#1
MODULE
#4
MODULE
#2

Table of Contents
I
NTRODUCTION ................................................................................................................ 1
Front Panel .................................................................................................................. 5
Back Panel .................................................................................................................. 5
G
ETTING S TARTED ........................................................................................................... 6
In the Box.................................................................................................................... 6
ou Will Need ............................................................................................................ 6
C
ONNECTIONS .................................................................................................................. 7
There are two ways to connect the UltraLink............................................................. 7
S
TART U P ......................................................................................................................... 8
Power On .................................................................................................................... 8
About Logins .............................................................................................................. 9
Using Configure Login for the First Time................................................................ 10
Using Connect Login for the First Time................................................................... 10
The Configure Screen ............................................................................................... 11
Connect Contention .................................................................................................. 12
Password Defeat........................................................................................................ 12
I
NSTALLING THE U LTRA L INK V IEWER ........................................................................... 13
Requirements ............................................................................................................ 13
The Setup Wizard ..................................................................................................... 13
Using the Viewer for the First Time ......................................................................... 14
T
HE V IEWER S CREEN ..................................................................................................... 15
The Title Bar ............................................................................................................. 15
Menu Commands ...................................................................................................... 15
The Toolbar............................................................................................................... 15
The Display Area ...................................................................................................... 16
The Status Bar........................................................................................................... 17
Windows Buttons...................................................................................................... 17
Question Mark Help.................................................................................................. 18
M
ENU C OMMANDS ........................................................................................................ 19
File ............................................................................................................................ 19
Connect ..................................................................................................................... 20
View.......................................................................................................................... 20
Shortcuts ................................................................................................................... 23
Settings...................................................................................................................... 24
Help........................................................................................................................... 26
C
ONFIGURATION S ETTINGS ............................................................................................ 27
Connections............................................................................................................... 28
Keyboard and Mouse ................................................................................................ 30
KVM Switch ............................................................................................................. 33
Security ..................................................................................................................... 35
C
ONNECTING AND L OGGING I N ...................................................................................... 39
Connecting ................................................................................................................ 39
Login......................................................................................................................... 39
Pass-through Mode ................................................................................................... 40
Disconnecting ........................................................................................................... 42

V IEW M ODES ................................................................................................................. 43
Scaled / Scrolled ....................................................................................................... 43
Auto Size................................................................................................................... 44
Full Screen / Windowed............................................................................................ 45
Color Modes.............................................................................................................. 46
U
SING A KVM S WITCH .................................................................................................. 47
KVM Switch Features............................................................................................... 47
Remote Computer Select .......................................................................................... 47
Quad Screen .............................................................................................................. 48
Switch File Import and Export.................................................................................. 49
S
AFET ............................................................................................................................ 3
A
PPENDIX A. R ACK MOUNT ........................................................................................... 52
Rack mount illustration............................................................................................. 52
I
NDEX ............................................................................................................................ 53

Introd ction
UltraLink User Man al
Introduction
KVM Remote Access
Access your servers anywhere in the world from the UltraLink Viewer program
Features and Benefits
UltraLink is a powerful product that extends the range of access to your computers to
anywhere in the world. Its advanced design makes it compatible with industry standard
KVM switches and computers. It is most commonly used to extend a KVM switch’s user
port to be accessed by either a LAN, WAN, or dial-up connection.
Connect the unit to a standalone computer or KVM switch and your Ethernet network.
Assign an IP address to the UltraLink and run the remote access client from any
workstation.
ou can access the server just like you were standing in front of it, but you can be at home,
work, or half way around the world. Easy to configure security features, prevent
unauthorized access.
The UltraLink has a sophisticated scaling feature allowing you to position any size image of
your server anywhere on your screen. Now you can monitor servers while you work on
other tasks. It is also ideal for fast updates over slow links because less data is sent.
Because the unit is a fully embedded product with no hard drive or complicated operating
system, you are ensured of the highest reliability and availability.
A maximum resolution of 1280 x 1024 is supported for access to not only PCs, but also Sun
and other high-resolution computers. ou can also access the UltraLink through its serial
port for dial-up modem access. The UltraLink also features a local KVM port for access
directly at the unit.
 Connect to remote computer over Ethernet or dial-up
 Up to 1280x1024 resolution
 1U high chassis
 Easy to install, just give it an IP address and run the remote client application
 Compatible with all Rose KVM products and other KVM devices
 Local KVM port to access computers at UltraLink location
 Scaling of computer image reduces amount of data sent and permits fast screen
updates over slow links
 Quad screen mode allows you to see four servers from one screen

Introd ction
UltraLink User Man al
2
 Front panel shows power and currently connected input port either net, serial, or local
KVM
 Solid-state embedded unit has no disk drive for maximum reliability
 Remote client application is simple to use, installs very easily, and requires no
licensing
 Password security prevents unauthorized configuration
 Made in USA
 One-year warranty
Installation
UltraLink is easy to install. Just connect the UltraLink to your standard 10/100 Ethernet
network, a keyboard, monitor, and mouse, and a KVM switch or standalone computer.
ou can also connect a modem if you like for dial-up access. An IP address is assigned
from a simple menu at the local KVM port on the UltraLink. That completes the basic
UltraLink installation. Now go to a PC on the network and run the UltraLink Viewer
provided. Enter the IP address of the UltraLink and hit the connect icon. ou are now
prompted for a password. Enter the correct password and you will be connected to the
switch or standalone computer as if you were directly connected.
Operation
The UltraLink has three access points to the switch or standalone computer: Ethernet,
serial, and a local KVM port. The local KVM port is an integrated switched analog port.
When you connect the UltraLink to a KVM switch, the integrated local KVM port
allows you to have direct analog access to the switch, so you do not lose the KVM port
on the switch. From the local KVM port, you are able to configure the basic network
and password information. All access to the attached computers is through a menu. The
menu prompts you to enter the password. Once the correct password is entered, if no
one else is connected you are granted access. Otherwise, you are informed that another
connection is in progress and you are denied access. If you use the Administrator
password, you can override the connection in progress for immediate connection.
Server Windowing
ou can choose the size of the window that you work with. This allows you to either
park a scaled image of your server in the corner of your screen or work with it at full
resolution. By resizing the UltraLink window, you automatically communicate to the
UltraLink unit, which then sends scaled video to fit your resized window. When using a
reduced window, less data is sent improving performance and reducing network
bandwidth. If you wish, you can run in -scaled, scrolled, or full-screen modes.
