Rosenbauer RLS2000 Operation manual

RLS2000
User information
(EN, DE, SLO, ES, FR, PL, CZ, HU)

Rosenbauer - RLS2000
2

RLS2000 - Rosenbauer
3
User information EN
DE
SLO
ES
FR
CZ
PL
HU
Benutzerinformation
Informacije za uporabnika
Infos pour l'utilisateur
Información para el usuario
Návod k použití
Instrukcja obsługi
Használati útmutató

Rosenbauer - RLS2000
4
RLS2000
Rechargeable LED Worklight
QUICK-START GUIDE
Intended Use / Industrial applications:
SAFETY INFORMATION:
▪Only recharge in a well ventilated area.
▪Do not stare directly into the light head or LEDs when switched on.
▪Do not submerse the unit in water / liquids.
▪Do not switch the light head on in close proximity to flammable materials.
Ensure that the front of the light head is at least 1.5m away from the nearest
object or surface when switched on. Failure to do so could result in heat build
up and fire.
IMPORTANT!
▪Recharge battery immediately after use. Do not leave in a discharged state.
Failure to do this will significantly reduce the lifespan and performance of the
battery.
▪Only use approved batteries and chargers. Use of other batteries and chargers
may cause damage and/or reduce the performance of equipment.
Operating Modes:
Torch Worklight

RLS2000 - Rosenbauer
5
▪x = Switch on ( light heads on)
▪x = Light Head  only
▪x = Light Head  only
▪x = Light Head  only
▪x =  Light Heads on
▪Switch off (Press for  seconds)
Colour Modes
▪x = White
▪x = Blue Flashing
▪x = Green Flashing
▪x = Red Flashing
▪x = Amber Flashing
▪x = White
Signal Modes (White)
▪x = White
▪x = White Flashing (Press for  seconds)
▪x = SOS Flashing
▪x = White
Increase Brightness
▪x = %
▪x = %
▪x = %
▪Increases in % increments per press, up to % max
Decrease Brightness
▪x = %
▪x = %
▪x = %
▪Decreases in % increments per press, down to % min
Operation:
EN

Rosenbauer - RLS2000
6

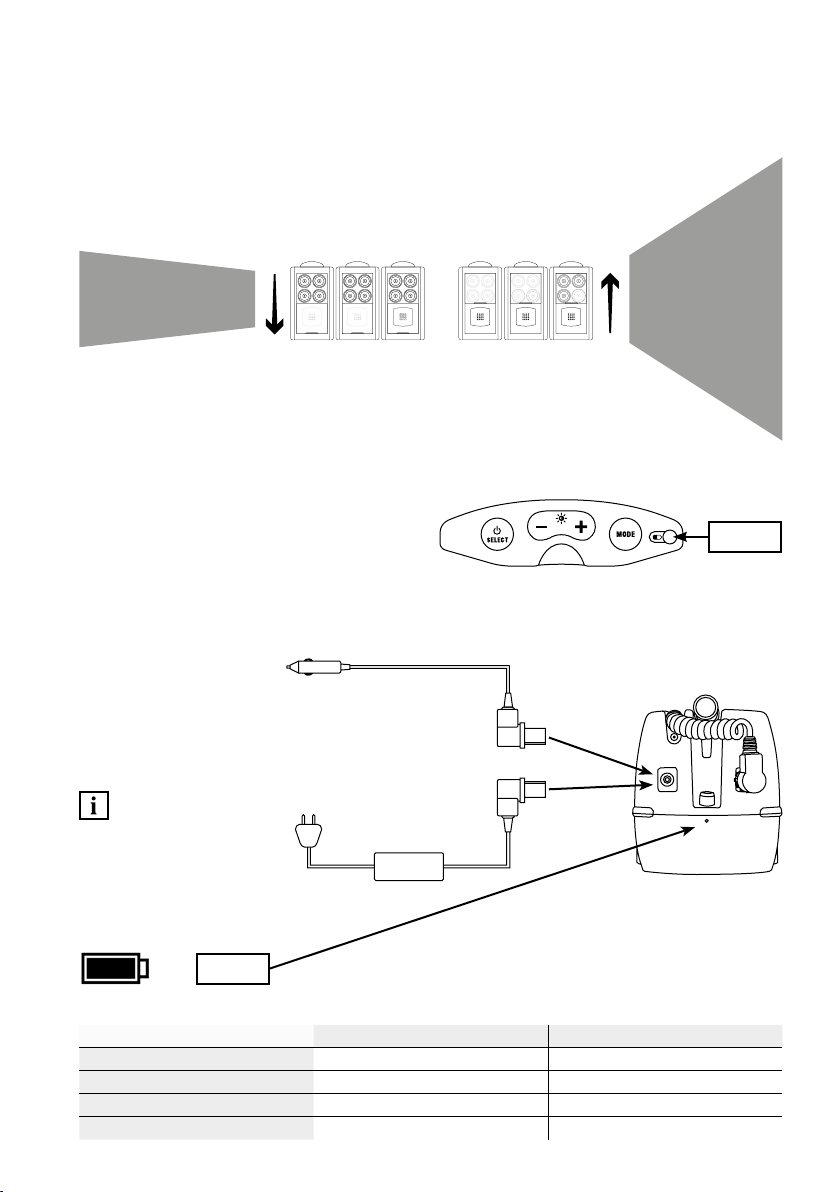

Focussing:
Battery Status:
▪~100 % - 75 %: LED = Green
▪~75 % - 50 %: LED = Amber
▪~50 % - 25 %: LED = Red
▪~25 % - 0 %: LED = Flashing Red
Spot light Flood light
LED
Charging:
▪12 – 30V DC
Option
▪100 – 240V AC
LED
RLS2000 SLA / 312305 RLS2000 Lion / 3123051
~0 % - 80 % LED = Red LED = Red
~80 % - 100 % LED = Flashing Red LED = Amber
~100 % LED = Green LED = Green
Charge standby LED = Green LED = Flashing Green

RLS2000 - Rosenbauer
7
Integrated Tripod:
HEIGHT = 1.8 m MAX
H
EN

Rosenbauer - RLS2000
8
CONFORMANCE
The contents of this manual are subject to change without prior notice.
We take no responsibility for errors or omissions.
▪CE
▪EN 61000-6-3 & 61000-6-4
Lamp Type 12 x High Power / Flux SMD LED’s
Colour Temperature 6500 Kelvin
Nominal life expectancy of LED's 50,000 Hours
Power consumption 70 watts - 100% mode, 105 watts - boost mode
Operating modes Choice of 2 main modes
1. Worklight 15 brightness levels
2. Coloured signal light Flashing Blue, Green, Red, Amber & White
Focusing system Variable intensity from spot to full flood
Circuit protection MCB circuit breaker - 15A thermal circuit breaker
Protection class IP54
Dimensions (L x W x H) 430 mm x 215 mm x 255 mm
Model / Article number RLS2000 / 312305 RLS2000 Lion / 3123051
Battery type Sealed Lead Acid Lithium-Ion
Battery voltage / amp hour 12V / 22AH 14.4V / 41.6AH
Recharge times
Integrated intelligent charging system
12V - 30V DC input / 12V 4A max output 6 hours 15 hours
Optional 230V mains adapter (31230801)
100 - 240V AC input / 19V 3.4A max output 6 hours 15 hours
Nominal operating voltage 12V DC 14.4V DC
Weight (including extension poles) 12.2 Kg 9.3 Kg
TECHNICAL DATA
Brightness level
Boost Mode*
10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 110% 120% 130% 140% 150%
Lumen Output
850 1700 2550 3400 4250 5100 5950 6800 7650 8500 9325 10100 10800 11425 12000
Duration SLA (approx) (312305)
40h 20h 13h 10h 7h 5h 30m 4h 25m 3h 45m 3h 20m 3h 2h 45m 2h 30m 2h 15m 2h 1h 45m
Duration Lion (approx) (3123051)
90h 45h 27h 21h 16h 13h 11h 10h 9h 8h 7h 20m 6h 30m 5h 50m 5h 5m 4h 30m
*Boost mode on SLA units automatically switches back to 100% level after approximately 10 minutes to optimize duration.

RLS2000 - Rosenbauer
9
EN

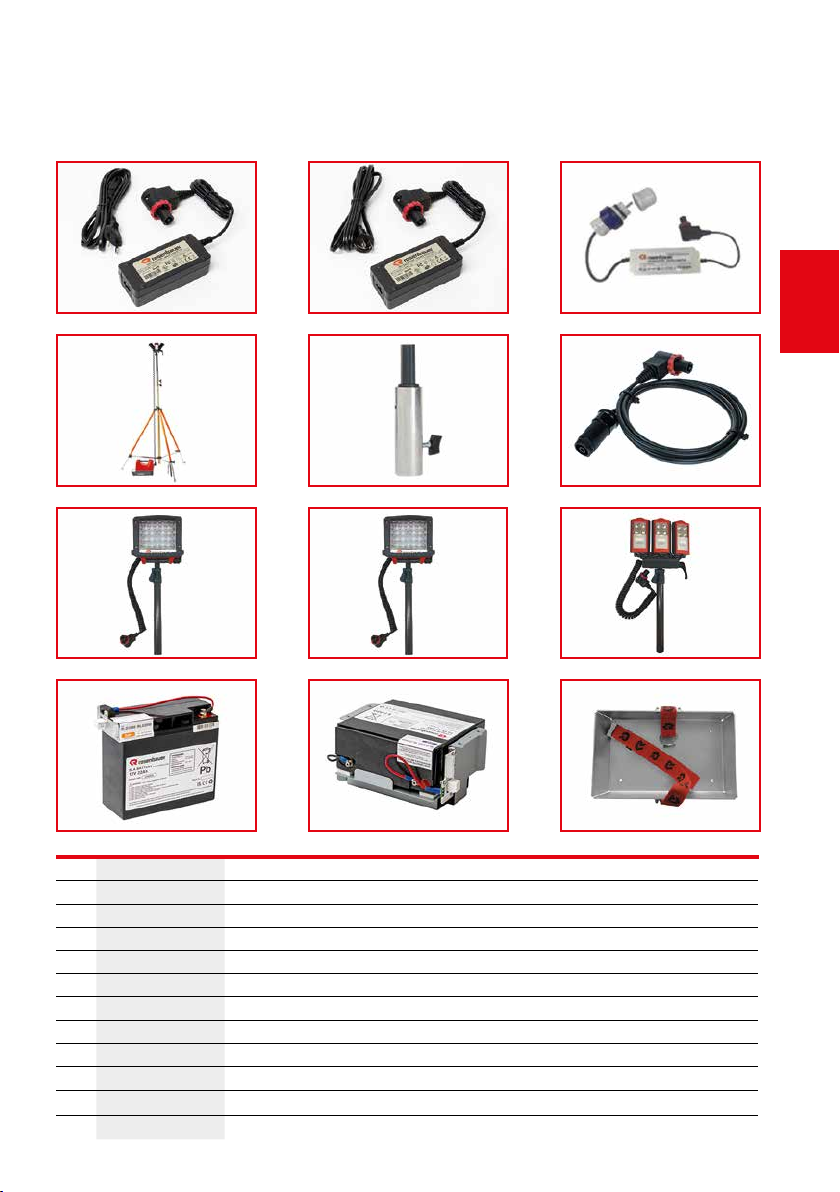

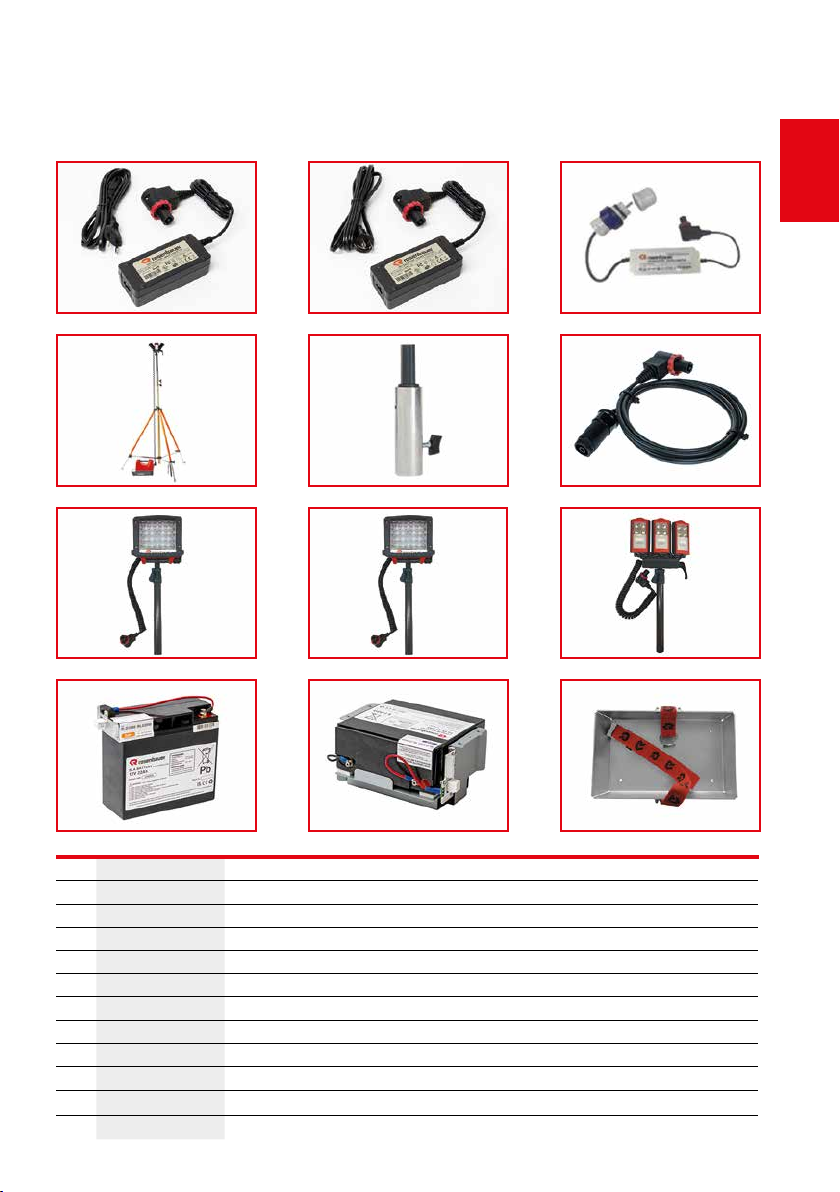

ACCESSORIES FOR RLS AND RLS
1 31230801 Mains adapter 100V–240V, IEC Type C plug
2 31230808 Mains adapter 100V–240V, IEC Type A plug
3 312307E25 Mains adapter 100V–240V, Schuko plug, IP54
4 314100 Tripod 4.7m
5 31230804 Tripod adapter for DIN mounting spigots
6 31230805 Extension cable 3m for a light head height of 5m with larger tripods
7 312307E03 Additional light head complete for RLS1000 (SLA units only)
8 3123071E01 Additional light head complete for RLS1000 (Lion units only)
9 312305E01 Additional light head complete for RLS2000 (SLA and Lion units)
10 312305E02 Replacement SLA battery for RLS1000 and RLS2000
11 3123051E01 Replacement Lion battery for RLS1000 Lion and RLS2000 Lion
12 856486-001 Storage tray for mounting in vehicles
1
4
7 8
2
5
9
1210 11
3
6

Rosenbauer - RLS2000
10
RLS2000
AKKU LED-Beleuchtungssystem
SCHNELLSTARTANLEITUNG
Verwendungszweck: Industrieller Einsatz
SICHERHEITSHINWEISE:
▪Bitte stellen Sie beim Aufladen sicher, dass das Gerät ausreichend belüftet ist.
▪Schauen Sie nie direkt in den Lichtkopf oder die LEDs wenn das Gerät
eingeschaltet ist.
▪Das Gerät nicht in Wasser oder andere Flüssigkeiten eintauchen.
▪Schalten Sie den Lichtkopf nicht in der Nähe brennbarer Materialien ein. Stellen
Sie sicher, dass die Vorderseite des Lichtkopfes mindestens 1,5 m von anderen
Gegenständen oder Oberflächen entfernt ist, wenn er eingeschaltet ist.
Andernfalls kann es zu Hitzeaufbau und Feuer kommen.
WICHTIG!
▪Ein Wiederaufladen der Batterie ist nach jedem Einsatz unbedingt erforderlich.
Lassen Sie das Gerät nie in einem entladenem Zustand. Bei Missachtung wird
die Lebensdauer und Leistung der Batterie deutlich verringert.
▪Bitte verwenden Sie nur zugelassene Batterien und Ladegeräte. Der Gebrauch
anderer Batterien und Ladegeräte kann Schäden hervorrufen und/oder die
Leistung des Gerätes beeinträchtigen.
Betriebsarten:
Handlampe Arbeitslampe
