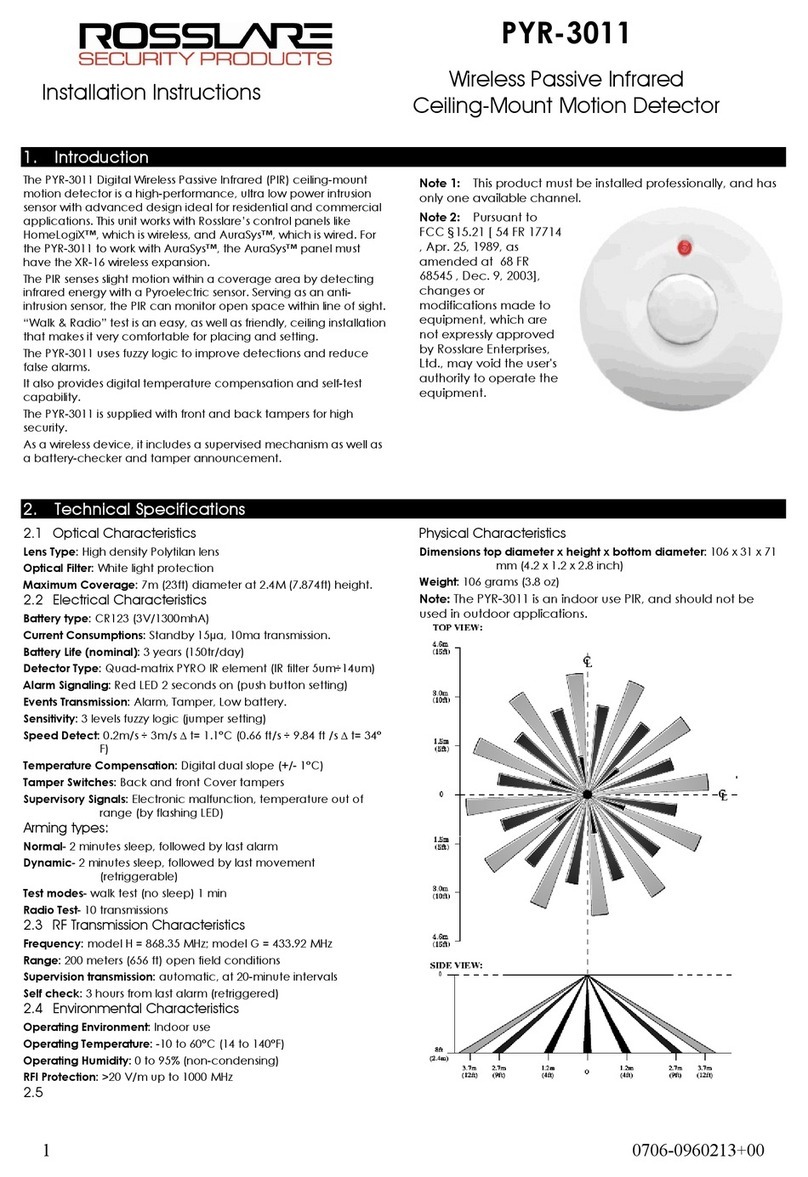

Rosslare PYR-3011 H/G User manual

PYR-3011 H/G
Installation Instructions Wireless Passive Infrared Ceiling-
Mount Motion Detector
1 0706-0960213+00
1. Introduction
e PYR-3011 H/G DigTh ital Wireless Passive Infrared (PIR)
ceiling-mount motion detector is a high-performance, ultra
low power intrusion sensor with advanced design ideal for
residential and commercial applications. This unit works with
Rosslare’s control panels like HomeLogiX™, which is wireless,
and AuraSys™, which is wired. For the PYR-3011 H/G to work
with AuraSys™, the AuraSys™ panel must have the XR-16
wireless expansion.
The PIR senses slight motion within a coverage area by
detecting infrared energy with a Pyroelectric sensor.
Serving as an anti-intrusion sensor, the PIR can monitor open
space within line of sight.
“Walk & Radio” test is an easy as well as friendly ceiling
installation that makes it very comfortable for placing and
setting. The PYR-3011 H/G uses fuzzy logic to improve
detections and reduce false alarms. It also provides digital
temperature compensation and self-test capabilities.
The PYR-3011 H/G is supplied with front and back tampers for
high security.
As a wireless device, it includes a supervised mechanism as
well as a battery-checker and tamper announcement.
2. Technical Specifications
2.1 Optical Characteristics
Lens Type: High density Polytilan lens
Optical Filter: White light protection
Maximum Coverage: 7m (23ft) diameter at 2.4M (7.874ft)
height.
Electrica2.2 l Characteristics
Battery type: CR123 (3V/1300mhA)
Current Consumptions: Standby 15µa, 10ma transmission.
Battery Life (nominal): 3 years (150tr/day)
Detector Type: Quad-matrix PYRO IR element (IR filter
5um÷14um)
Signaling:
Alarm d LED 2 seconds on (push button setting)
Re
Events Transmission: Alarm, Tamper, Low battery.
Sensitivity: 3 levels fuzzy logic (jumper setting)
Speed Detect: 0.2m/s ÷ 3m/s ∆t= 1.1°C
(0.66 ft/s ÷ 9.84 ft /s ∆t= 34° F)
Temperature Compensation: Digital dual slope (+/- 1°C)
Tamper Switches: Back and front Cover tampers
Supervisory Signals: Electronic malfunction, temperature out of
range (by flashing LED)
Arming types:
Normal- 2 minutes sleep, followed by last alarm
Dynamic- 2 minutes sleep, followed by last movement
(retriggerable)
Test modes- walk test (no sleep) 1 min
Radio test- 10 transmissions
2.3 RF Transmission Characteristics
Frequency: model H = 868.35 MHz; model G = 433.92 MHz
Range: 180 meters (590.55ft) open field conditions
Supervision transmission: automatic, at 20-minute intervals
Self check: 3 hours from last alarm (retriggered)
2.4 Environmental Characteristics
Operating Environment: Indoor use
Operating Temperature: -10 to 60°C (14 to 140°F)
Operating Humidity: 0 to 95% (non-condensing)
RFI Protection: >20 V/m up to 1000 MHz
2.5 Physical Characteristics
Dimensions: 106.5mm top diameter x 30.85mm height x
70.7mm bottom diameter (4.192 in. x 1.214 in. x 2.783 in.)
Weight: 106 grams (3.79 oz)
Note: The PYR-3011 H/G is an indoor use PIR, and should
not be used in outdoor applications.

3. PYR-3011 H/G Features
•Advanced micro-controller electronics: 10-bit A-to-D and
advanced algorithms for superior movement speed
spectrum analysis
•Shielded quad-element Pyro: Inside a dust-proof chamber
designed to reduce thermal changes and insect
protection
•Three levels of sensitivity: High, medium or low; by jumper
selection
•Power saving: Two transmission modes by jumper
•Extra wide free height installation: The detector may be
installed at any height between 2 and 4 Meters without
any PCB adjustment.
•Back and Front Cover tamper switches: Protection
against cover or wall removal for higher security.
•Easy & comfortable installation: Easy installation without
removal of PCB.
•Walk & Radio test: Check both in snappiness, with LED
indication and without open case.
•Energy detection system: By using fuzzy logic algorithms,
detection is improved and false alarms are reduced
•Environment temperature compensation: Maintains
constant detection capability
•Adaptive filter:Compensates for changes in a detected
object’s speed
•Continuous monitoring: Sends visual alerts in case of
malfunction (digital and analog) and temperature out of
range
4. Installation
4.1 False Alarm Reduction Effort
To reduce false alarms caused by detector installation.
•AVOID: Wiring of the PYR-3011 H/G in such a way that it is
parallel to and sitting close to 110V AC or 220V AC
transmission equipment or mains power line.
•AVOID: Placing near or under heat and air ducts, ovens,
heat sources, radiators, and air conditioners as this may
cause a false detection.
•AVOID: Placing near PL lamps, electrical ballasts, above
cookers, and ovens, and above steam sources.
•AVOID: Placing near continuously moving objects.
•NEVER: Touch the Pyro-electric sensor on the PCB as this
causes permanent damage and loss of sensitivity.
Important Note: PIR works according to field of view and
brightness. In very dark place, the coverage would be less
than the normal coverage. Avoid placing near obstructions
such as large plants, curtains, behind open doors and places
where there are temperature shifts.
4.2 Selecting the Physical Location
You need to select the best physical location to install the PIR.
To select a physical location:
1) Select a flat ceiling in a room or hallway that best
matches the criteria in False Alarm Reduction Effort.
2) Make sure that the PIR is mounted on a non-moving, non-
vibrating surface of the room.
3) The field of view of the detector is about 50° vertical and
the coverage area depends on the installation height,
refer to the following table.
Installation
height(M) Coverage area (diameters M)
2M 4.8
2.5M 7
3.3M 9
4M 13
Table 1: coverage area based on installation height
4) Mount the PIR in the selected location. (refer below to
Mounting the PIR section)
5) After the installation, perform a walk test from the
mounting location to ensure that the sensor pattern can
detect within the coverage area (see Testing the
Detector)
4.3 Mounting the PIR
The PYR-3011 H/G PIR is designed for easy & quick mounting
onto a ceiling
To mount the PIR onto the ceiling:
1) There are 4 opened holes on the back of the casing. Two
L-shaped holes (A) and two “water-drop” holes (B)
2) Open the back cover by twisting the top cover counter
clock wise.
3) Place the back cover over the installation location. Ensure
that the screws are aligned with holes B.
4) Mark the location for the mounting screws in holes B (wide
end).
5) Remove the back cover from the ceiling and drill. Place
the plugs in the drilled holes and screw in the screws
leaving it out by about 4mm.
6) Pass the screws through the wide end of holes B. turn the
back cover counter clock wise until the screws rest at the
narrow end of holes B.
tighten the screws.
7) Insert the battery (check for correct polarity).
8) Replace the top cover over the back end as shown in the
drawing below (please note the arrow marks)
9) At this point, the detector starts a warm up period which
performs a self check for about 1-2 minutes. At the end,
you can start a walk test (refer to signaling and testing
sections).
2 0706-0960213+00

Closing the top over bottom casing
5. Jumper and Tamper Setting
PYR-3011 H/G has two jumpers, JP1 and JP2 and one tact
switch S3 (test mode) operated by the guide light switch on
the external casing.
5.1 Sensitive Level Jumper (JP2)
To prevent false alarms in harsh environments, three sensitivity
modes were designated:
•Low – for harsh environments, jumper on pins 2 and 3
•Medium – for normal usage, jumper off
•High – for high sensitivity when there is little chance of
false alarms, jumper on pins 1 and 2
5.2 APS – Auto Power Save Mode (JP1)
To save power, the PYR-3011 H/G goes into sleep mode after
sending an alarm. The time the device will be latent is set by
the radio mode jumper, JP1.
Normal (always 2 minutes between alarms) – no jumper.
Dynamic (2 minutes retriggered between alarms) – jumper on.
When the dynamic mode is set, an alarm event will be sent
only if there were 2 minutes of silence prior to the current
alarm. This setting is useful for places with a high level of traffic,
such as factories, shops, etc.
5.3 Back Tamper (R11)
The PYR-3011 H/G has both front and back tamper detection.
Front tamper detection is on by default and it is activated
when the cover is opened cannot be changed. The back
tamper detection is activated when the detector is pulled off
the ceiling and is disabled by default, to enable the back
tamper detection cut the back tamper wire (R11).
5.4 Test Mode Switch (S3)
This pushbutton is used for walk test or radio test, as follows:
Walk test – press for 1 second only; PIR functionality will be
evaluated during the calibration process, for a 1 minute
period. (After self check at power up the walk test is automatic
enable for 2 minutes.)
Radio test – press for more than 3 seconds; the red indicator
illuminates. 10 Alarms events are transmitted every 4 seconds.
This test is to insure clear RF passes between the detector and
the control panel.
In all modes the LED will remain activate at all trouble
announcements.
PCB front view
6. Signaling
The LED on the front of the PYR-3011 H/G is used to send several signals to the user. The following table describes the signals for
different activities:
Activity LED Signal
Warm-Up The LED flashes on for 2 seconds and off for 2 seconds for a period of 1 minute. If the
warm-up is successful, the LED stops flashing and the system is ready for detection.
Detect Condition The LED flashes on for 2 seconds and then turns off.
PIR Problem The LED flashes on for 1 second and then off for 1 second. A PIR check is conducted every
3 hours.
Temperature Problem The LED flashes on in short bursts.
3 0706-0960213+00

7. Testing the Detector
The PYR-3011 H/G PIR has a built-in walk test function where
the LED of the PIR is enabled. This test is used to check the
detection of the PIR and the coverage pattern.
To perform a walk test:
1) Ensure all of the settings in the PIR are adjusted as
necessary for the location according to the installation
instructions above.
2) Insert battery in the closed case as described above. The
LED flashes on for 2 seconds and off for 2 seconds for a
period of 1 minute. Then the LED turns off. At this point a
walk test can be performed. As default, perform a walk
test of 1 minute at the end of the self test. If more than 1
minute pasts, refer to paragraph 3.
3) Push the guide light according to the required LED mode.
(Refer to setting test Mode, above)
4) With the LED enabled the LED flashes every time the
detector detects motion. There is a two second wait
period before the next detection.
5) It is recommended that the installer test the detection by
going over the protected area and seeing that the
detection pattern is good.
6) After 1 minute, the LED goes off. If a new walk test is
needed, refer to paragraph 3.
8. Low battery supervision:
Prior to each RF transmission, the battery voltage is sampled. If the voltage is low (as indicated by the red blinking light) for 3
sequential samples, a special message is sent. Once the battery level returns to the minimum preset value, fault transmissions cease.
9. Enrolling the detector:
After ending the self test, the detector can be enrolled. The easiest way to enroll the detector is by opening and closing the front
tamper. For specific steps to be followed for the enrolling, refer to the manual supplied with the alarm panel.
10. Limited Warranty
ROSSLARE ENTERPRISES LIMITED S (Rosslare) ONE YEAR LIMITED
WARRANTY is applicable worldwide. This warranty supersedes any other
warranty. Rosslare's ONE YEAR LIMITED WARRANTY is subject to the
following conditions:
Warranty
Warranty of Rosslare's products extends to the original purchaser (Customer)
of the Rosslare product and is not transferable.
Products Covered By This Warranty and Duration
ROSSLARE ENTERPRISES LTD. AND / ORSUBSIDIARIES (ROSSLARE)
warrants that the PYR-3011 H/G Ceiling-Mount Digital Wired Passive Infrared
Motion Detector, to be free from defects in materials and assembly in the
course of normal use and service. The warranty period commences with the
date of shipment to the original purchaser and extends for a period of 1 year
(12 Months).
Warranty Remedy Coverage
In the event of a breach of warranty, ROSSLARE will credit Customer with the
price of the Product paid by Customer, provided that the warranty claim is
delivered to ROSSLARE by the Customer during the warranty period in
accordance with the terms of this warranty. Unless otherwise requested by
ROSSLARE ENTERPRISES LTD. AND / OR SUBSIDIARIES representative,
return of the failed product(s) is not immediately required.
If ROSSLARE has not contacted the Customer within a sixty (60) day holding
period following the delivery of the warranty claim, Customer will not be
required to return the failed product(s). All returned Product(s), as may be
requested at ROSSLARE ENTERPRISES LTD. AND /OR SUBSIDIARY’S
sole discretion, shall become the property of ROSSLARE ENTERPRISES
LTD. AND /OR SUBSIDIARIES.
To exercise the warranty, the user must contact Rosslare Enterprises Ltd. to
obtain an RMA number after which, the product must be returned to the
Manufacturer freight prepaid and insured
In the event ROSSLARE chooses to perform a product evaluation within the
sixty (60) day holding period and no defect is found, a minimum US$ 50.00 or
equivalent charge will be applied to each Product for labor required in the
evaluation.
Rosslare will repair or replace, at its discretion, any product that under normal
conditions of use and service proves to be defective in material or
workmanship. No charge will be applied for labor or parts with respect to
defects covered by this warranty, provided that the work is done by Rosslare
or a Rosslare authorized service center.
Limited Warranty Terms
THIS WARRANTY SETS FORTH THE FULL EXTENT OF ROSSLARE
ENTERPRISES LTD.AND IT’S SUBSIDIARY'S WARRANTY
THE TERMS OF THIS WARRANTY MAY NOT BE VARIED BY ANY PERSON,
WHETHER OR NOT PURPORTING TO REPRESENT OR ACT ON BEHALF OF
ROSSLARE.
THIS LIMITED WARRANTY IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES.ALL OTHER WARRANTIES EXPRESSED OR IMPLIED,
INCLUDING WITHOUT LIMITATION,IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,ARE
SPECIFICALLY EXCLUDED.
IN NO EVENT SHALL ROSSLARE BE LIABLE FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT,OR FOR ANY OTHER
INCIDENTAL,CONSEQUENTIAL OR SPECIAL DAMAGES,INCLUDING BUT
NOT LIMITED TO LOSS OF USE,LOSS OF TIME,COMMERCIAL LOSS,
INCONVENIENCE,AND LOSS OF PROFITS,ARISING OUT OF THE
INSTALLATION,USE,OR INABILITY TO USE SUCH PRODUCT,TO THE
FULLEST EXTENT THAT ANY SUCH LOSS OR DAMAGE MAY BE DISCLAIMED
BY LAW.
THIS WARRANTY SHALL BECOME NULL AND VOID IN THE EVENT OF A
VIOLATION OF THE PROVISIONS OF THIS LIMITED WARRANTY.
11. Contact Information
Asia Pacific, Middle East, Africa
Headquarters:
905-912 Wing Fat Industrial Bldg, 12 Wang Tai Road, Kowloon Bay HK
Tel:[phone] Fax: [phone]
E-mail: [email protected]
United States and Canada
1600 Hart Court, Suite 103 Southlake, TX, USA 76092
Toll Free:[phone] Local:[phone] Fax: [phone]
E-mail: [email protected]
Europe
Global Technical Support & Training Center:
HaMelecha 22 Rosh HaAyin, Israel 48091
Tel: [phone] Fax: [phone]
E-mail: [email protected]
South America
Pringles 868, 1640 Martinez Buenos Aires Argentina
Tel: [phone] Fax: [phone]
E-mail: [email protected]
Web Site: www.rosslaresecurity.com
4 0706-0960213+00
