Device ID CARBT_1234
Pass Key 1234

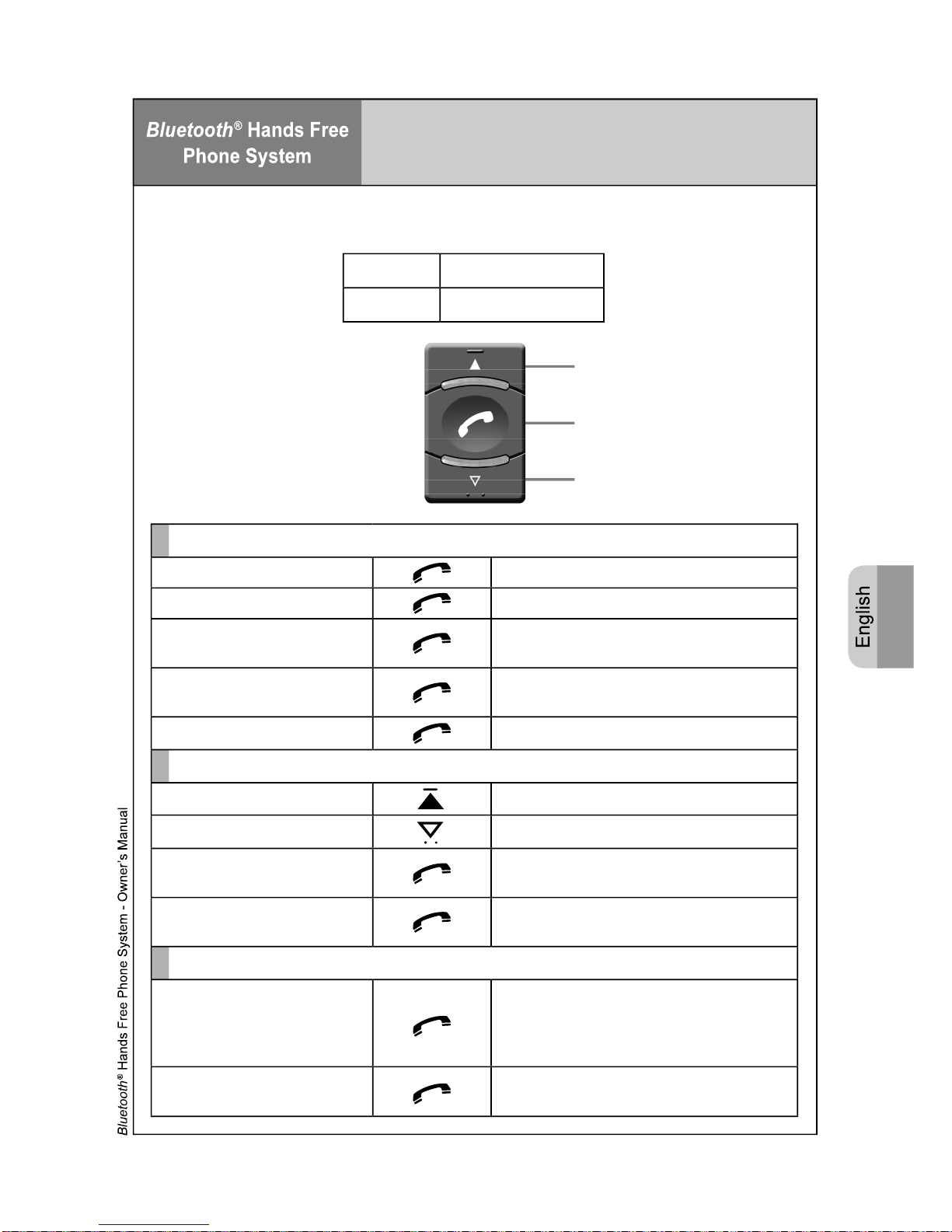

Making and Answering Calls
Answer a Call Short press
Ending a Call Short press
Reject a Call Press for 2 seconds and release
when you hear 1 beep
Redial the last number Press for 2 seconds and release
when you hear 1 beep
Voice Dialing Short press
In a Call
Adjust the volume Up Short press
Adjust the volume Down Short press
Transfer a Call to handset Press for 4 seconds and release
when you hear 2 beeps
Reconnect Call Press for 4 seconds and release
when you hear 2 beeps
Manual Pairing
Pairing
Press for 8 seconds and release
when you hear 3 beeps the
Bluetooth ® will enter pairing mode
for the next 5 minutes.
Memory Erase Press for 15 seconds and release
when you hear 4 beeps.
Quick-Start Guide
Car Bluetooth® Hands Free System
Up Key
Answer Key
Down Key

4
Operation
The call volume in the vehicle can be increased or decreased during the call by short
presses on the volume up or down key. Once you have reached the end of the scale,
you will hear a beep to signal that you have reached the minimum or maximum volume
level.
Sound Quality
The system uses the highest quality components and latest DSP (digital signal processing)
to give you the best possible sound quality for the caller and receiver. A few things must
be remembered though to give you the best results:
a. Road Noise The faster you drive the more background noise exists and the
lower the sound quality will be for your caller. The system has excellent DSP to reduce
the noise but closing your windows etc. will help.
b. Echo Cancellation The system has excellent echo cancellation to prevent
the caller hearing themselves back through the kit. To give the best quality for your caller,
try and have the volume at the lowest level which you can still easily hear them. This
helps reduce any echo effects.
c. Talk at a normal level With some older phone systems you had to yell at
the system for people to hear you. This system uses the latest in sensitive microphones
to allow you to talk at a normal level. If you yell at the system then your voice will be
reduced in volume by the DSP and you may even sound quieter. Just talk at a normal
level and your caller will easily be able to hear you.
Volume Control

5
Operation
If you dial a number on the keypad of your mobile phone, it could be possible you hear
the key tones over the speakers. The speakers will remain muted for a period of 2
seconds after you press a key, if you don’t press the next key or “SEND” button within
these 2 seconds, the Mute will be deactivated and the sound of your radio will be heard
over the speakers. If you experience any inconvenience, we advise you to set keysound
to “silent” in your handset menu.
Dial tones and speaker mute note
IMPORTANT: If you arrive at your destination during a call, it may be necessary
to transfer the call back to your handset. Normally the call will be transferred
back to your handset automatically when you turn off your vehicle, but it is
possible with older mobile phones that the call gets disconnected. To avoid
this from happening if you experience this, hold the CARBT Dial button for 4
seconds until you hear 2 beeps. (Transfer a call to handset on page 3)
After you enter the car and turn the ignition on, the system will link with your phone
connect you have to reconnect using your connection menu in your mobile phone.
Bluetooth® Menu,
My Devices
Select CARBT_1234
Options
Connect
Connection
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

6
Operation
a. Voice Dial A quick press of the phone button activates the voice dial feature
on your handset, and when ready the system lets out a “Bleep”. Simply say the name
of the person you wish to call. These names must be pre-recorded on the phone. Follow
the instructions in your phone user manual on how to record the names. To cancel
a voice dial press the button once more. If the phone has no voice dials or does not
support voice dial you will hear 4 negative beeps.
b. Dial a number Enter the number you want to dial on the phone and press
the dial button.
c. Redial To redial a last called number, press and hold the button until you hear
one beep after 2 seconds.
Dial
End a Call
Press the dial button.
Reject a Call
Hold the button down until you hear a beep after 2 seconds to reject an incoming call.

7
Operation
If you want to have a private call on your handset, after you answer the call, simply press
and hold the button until you hear 2 beeps after 4 seconds and the system will transfer
the call to the handset. Press and hold the button again until you hear 2 beeps after 4
seconds to get the call back on the hands free system.
If you enter the car and you do not want any phone calls in hands free mode, just press
and hold the button until you hear 2 beeps after 4 seconds and the kit will disconnect.
When calls come in they will only be on your handset. To manually connect again, press
and hold the button again until you hear 2 beeps after 4 seconds or restart the vehicle.
If you want to clear all paired phones from the kit, just press and hold the button until you
hear 4 beeps after 15 seconds, and the memory will be erased.
Private Call
Disconnect from Kit
Memory Erase
Cellular phone use limits vary by state, province or locality. Obey all laws while driving.
Caution

8
Audio Streaming
You can use your vehicles Bluetooth® Hands Free system to also listen to music that
is stored on your Mobile Phone / PDA / Smart Phone. The music will come through in
stereo, with full clarity, on the front two speakers of the vehicle.
Introduction
You can use this feature on any Mobile Phone / PDA / Smart Phone that supports the
Bluetooth®
Compatibility
Ensure your phone is paired to the Bluetooth® system and the
Connection is active. Refer to the Connection instructions in the
Operation section for more information.
You should now hear the music playing on the front two speakers of
the vehicle.
If you do not hear music on the speakers, please refer to your Phone’s
user manual for further information, or verify that the phone does
support A2DP.
STEP 1
STEP 2
STEP 3
STEP 4
If you are in audio streaming mode you can redial by pressing the answer key
for 2 seconds, releasing when you hear one beep.
Redial

9
Audio Streaming
You can control the music playback either from the phone, or using the Bluetooth® button
in the car. Refer to the following guide:
Playback Control
Playback Control
Play Short Press on the Answer Key
Pause Short Press on the Answer Key
Next Track Double Press on the Up Key
Previous Track Double Press on the Down Key
Volume Adjustment
Volume Up Press and Hold on the Up Key
Volume Down Press and Hold on the Down key
Up Key
Answer Key
Down Key
If you receive a call while using Bluetooth® Audio Streaming, the phone call will take
playing music. If not, press the answer key or phone play button to resume audio.
Receiving Calls
When using Bluetooth® Audio Streaming, the vehicle Radio is in a “Muted” state as the
phone system takes control. To return back to the AM/FM Radio, CD or Cassette, you
must stop the music playback from your Phone / PDA / Smart Phone.
Important Note
Note: All other phone functions as described on page 3 will work with the
exception of voice dial.

Can
Bluetooth®menu Please see the user manual of your phone for
assistance on various phone models.
Phone will not pair Sometimes phones have software problems and
need to be reset. Please remove and reinstall
your battery and try again. Try deleting all other
devices from your phone and try again, as you
may have exceeded the maximum number of
connections for your handset.
I paired my phone but
when I start the car it does
not connect automatically
See the Pairing Note above for Nokia users.
Pairing your phone is simple, just follow these steps :
(The system can pair up to 3 phones)
1. Hold button down until you hear 3 short beeps, after 8 seconds.
(This puts the system into pairing mode for 5 minutes)
2. Go to settings or connections in your phone menu.
3. Find the Bluetooth®menu.
4. Turn Bluetooth®on.
Your phone will have a function like:
Search for new device New Handsfree Search
Depending on the phone, the selection will vary, select the function
and the phone will search for the Bluetooth®kit.
Your Phone will then display all the Bluetooth®devices in the area. Select CARBT
Enter the passcode 1234. The system will let out a positive bleep to advise you are
now paired.
IMPORTANT NOKIA USERS: If you want the kit to connect automatically
you must now select Paired Devices and select the CARBT and change
default to: Device Authorised Yes, or Conn Auth Yes or
Yes
This allows your phone to automatically connect when you start the car.
Pairing Troubleshooting
10
Pairing Guide

11

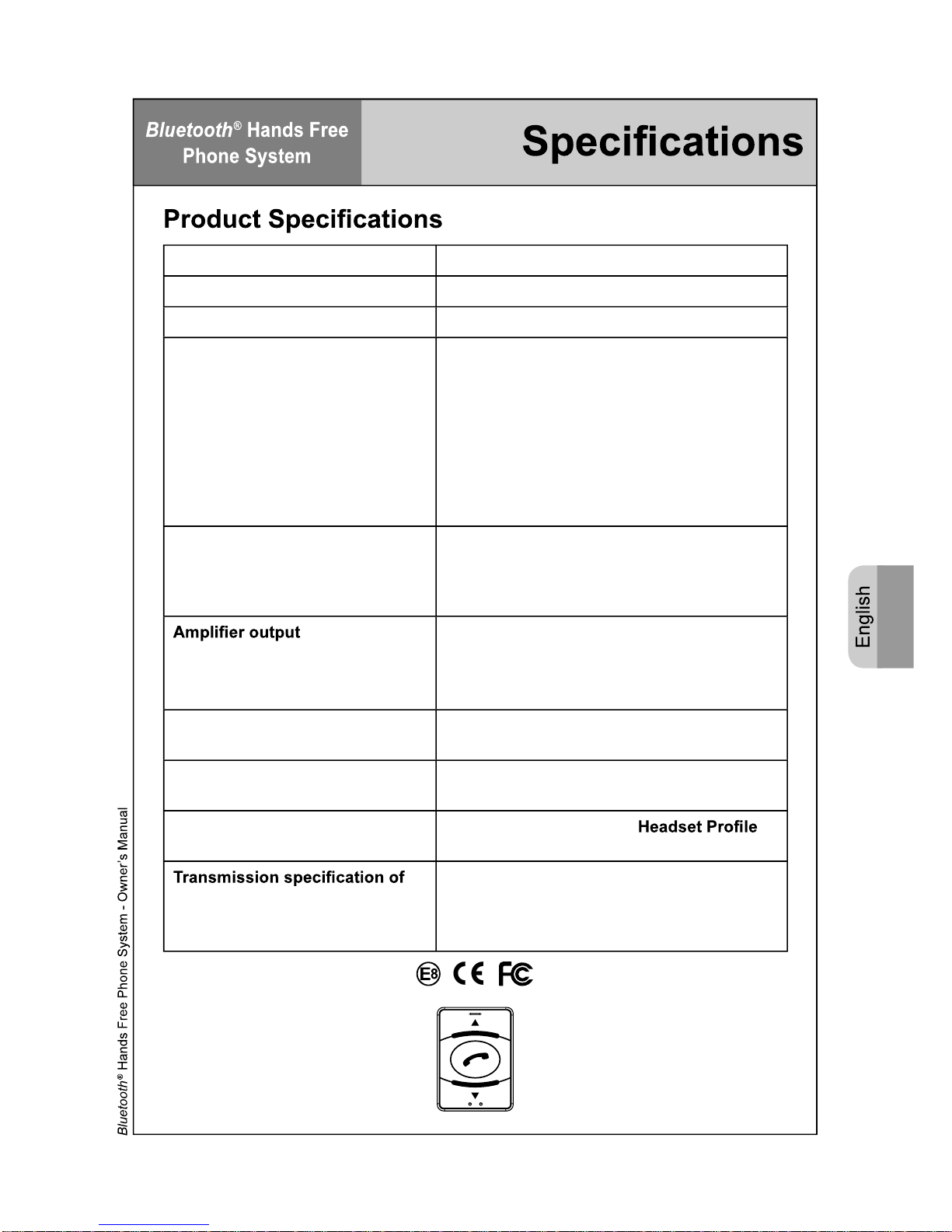

Power supply voltage scope DC 9 ~ 25 volts
Working temperature - 35°C ~ 85°C
Storage temperature - 45°C ~ 105°C
Current consumption In Operation:
• ACC ON (during charging + conservation)
300mA ~ 1.5A(Max) / DC 12V
In Static Mode:
• ACC ON (during charging) 100mA(Max)
/ DC 12V
• ACC ON (mobile is not connected)
100mA(Max) / DC 12V
• ACC OFF ~ 0mA
Microphone (including amplifying
circuit)
• Category: Directional
• Sensitivity: 50dB ± 4dB tolerance
• SN ratio: >55dB (Min)
• Frequency response: 100 ~ 16 KHz
(drive
loudspeaker)
• Output power: 2 x 6W RMS
• Impedance: 4 Ohm
• Max output current: 2.6A
• Max undistorted amplitude: 8Vpp
Mute Mode Negative Trigger
•
Bluetooth ® DSP Full Duplex, Noise Reduction, Echo
Cancellation
Bluetooth ® module Conforms to Bluetooth ®
v1.1, v2.0, v2.1 + EDR
each terminal
Terminal connecting to the vehicle
bodyline
> Batt: • Supply Voltage : 9 ~ 25V
• Supply Current : 1.5A (Max)

Form #7500 Rev. RTP 2/09
