Rowenta DZ5 User manual

Ref : 1103899452 INDEX 03
DZ5000 1103899452 couv-Index03 23/06/06 15:28 Page 1

www.rowenta.com
F
I
E
GB
D
P
RF
GR
UA
DZ5000 1103899452 couv-Index03 23/06/06 15:28 Page 2

56
9
7
8
10
12
13
14
4
3
3a 3c
3d*
3b*
2
1
A
U
T
O
-
O
F
F
11a 11c
11d
11b
F
I
E
GB
D
P
RF
GR
UA
DZ5000 1103899452 couv-Index03 23/06/06 15:28 Page 3

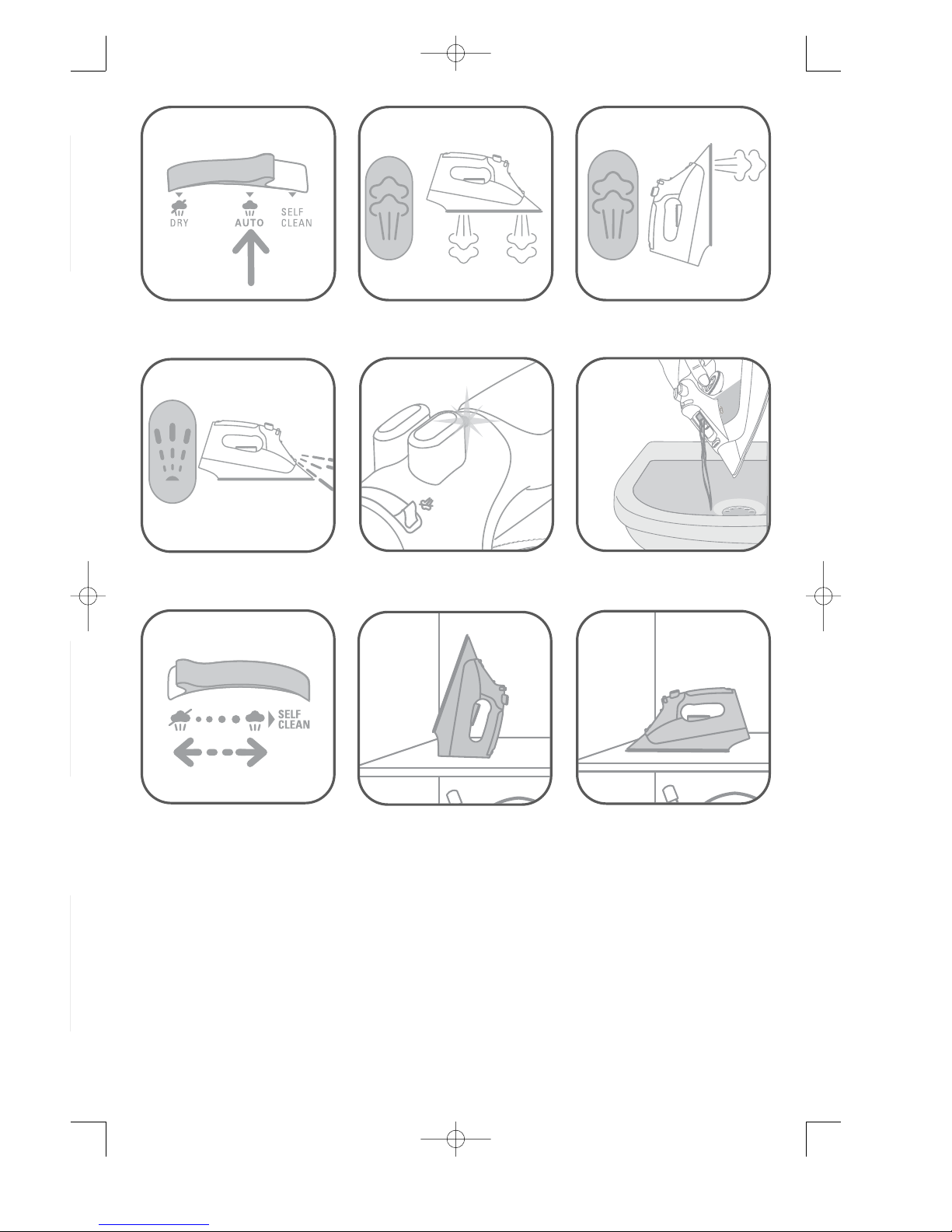

fig. 1 fig. 2 fig. 3
fig. 4 fig. 5 fig. 6
fig. 7 fig. 8
NONO OKOK
fig. 9
A
U
T
O
-
O
F
F
A
U
T
O
-
O
F
F
NONO OKOK
fig. 10 fig. 11 fig. 12
DZ5000 1103899452 couv-Index03 23/06/06 15:28 Page 4

fig. 13 fig. 14 fig. 15
fig. 16 fig. 17 fig. 18
fig. 19 fig. 20
NO
fig. 21
DZ5000 1103899452 couv-Index03 23/06/06 15:28 Page 5

DZ5000 1103899452 couv-Index03 23/06/06 15:28 Page 6

3
1 Spray nozzle
2 Filling inlet
(with slide-button opening)
3 Variable steam control
a Dry ironing
b Steam max. position *
c Self Clean
d Autosteam *
4 Spray button
5 Shot of steam button
6 Auto-off indicator light*
7 Cord
8 Handle
9 Thermostat control light *
10
Temperature control dial
11 LED display *
a Yellow LED
b Green LED
c Red LED
d Auto-off LED
12 Water tank
13 Maximum water level
indicator
14 Soleplate
DESCRIPTION
SAFETY INSTRUCTIONS
This appliance complies with the technical rules and standards
for safety currently in force (Electromagnetic Compatibility, Low
Voltage, Environment).
The appliance may only be connected to alternating current as
specified on the rating plate. Only safe extension leads should
be used.
An electrical appliance is not a toy. Use and store the appliance out
of reach of children. Do not let the supply cord hang down.
Do not leave the appliance unattended while it is connected to the
mains supply.
Electrical appliances generate high temperatures. Always use the
handle and warn other users of the potential dangers (e.g. escaping
steam or hot water, especially when ironing vertically).
Never direct steam at persons or animals, never treat clothing
which is being worn.
Always unplug the appliance before filling or emptying the water
tank; before leaving the room (even for a short time); before
cleaning the appliance and after use.
Never unplug the appliance by tugging on the cord.Do not immerse
the appliance in water.
An electrical appliance should not be used if:
– the appliance is not functioning correctly;
– the appliance, the supply cord or the cord protector is damaged;
– the appliance has been dropped;
* depending on model
GB
DZ5000 1103899452-Index02 23/06/06 15:04 Page 3

4
– the appliance is obviously leaking. In these cases the appliance
should be returned to an approved Rowenta Customer Service
Centre for repair. (See enclosed Service Centre addresses.) Repairs
to electrical appliances may only be carried out by specialists.
Improperly carried out repairs can cause serious danger to users.
To avoid danger to users, a defective or damaged supply cord may
only be replaced by an authorised Rowenta Service Centre .
This product has been designed for domestic use only.
Any commercial use, inappropriate use or failure to comply
with the instructions, the manufacturer accepts no responsibility
and the guarantee will not apply.
Environment protection first !
Your appliance contains valuable materials which can
be recovered or recycled. Leave it at a local civic waste
collection point.
Keep these instructions
BEFORE USE
1 • Unpacking
Take the iron out of the box and remove all the stickers.
IMPORTANT Before doing anything else, remove the soleplate
protector (fig.1)!
2 • What water may be used ?
Your iron has been designed to operate using untreated tap water up
to 17° dH (German water hardness). If in doubt, check with your local
water authority. However, if your water is very hard, you can mix
50% untreated tap water with 50% distilled or demineralised water.
IMPORTANT Heat concentrates the elements contained in
water during evaporation.The types of water listed below
contain organic waste or mineral elements that can cause
spitting, brown staining or premature wear of the appliance:-
water from clothes dryers, scented or softened water, water
from refrigerators, batteries or air conditioners, pure distilled
DZ5000 1103899452-Index02 23/06/06 15:04 Page 4

5
or demineralised water or rain water should not be used in
your iron. Also do not use boiled, filtered or bottled water.
3 • Using for the first time
Plug in the iron (fig.2) and set the temperature control dial (fig.3)
to ••• to heat the appliance.
A little smoke and a slight smell may be emitted, but this is only
temporary.
Unplug the iron (fig.4) and fill the water tank (§ 4 Filling the
water tank).
To remove any impurities in the iron's steam chamber, unplug the
iron and hold it over a sink horizontally. Push the steam control into
the Self Clean position : steam will now begin to build up.
After a few seconds water will emerge from the soleplate,
rinsing any impurities out of the steam chamber (fig.5).
Move the steam control to steam position after approx.
1 minute. Plug in the iron and allow the iron to heat up again.
Wait until the remaining water has evaporated. Unplug from the
mains and allow the iron to fully cool down.
USE
4 • Filling the water tank
IMPORTANT Before filling the water tank, unplug the iron and
set the steam control to dry position .
Tilt the iron. Open the filling inlet (fig.6). Pour in water up to the
max mark (fig.7). Close the filler inlet (fig.8) and return the iron to
the horizontal.
5 • Setting the temperature
Set the iron temperature to suit the type of material using the
temperature control dial (fig.3).
Temperature control*:The temperature control light indicates that
the soleplate is heating up.When the temperature control light goes
off (fig.9), the set temperature is reached and you can begin ironing.
* depending on model
DZ5000 1103899452-Index02 23/06/06 15:04 Page 5

6
* depending on model
Ironing label Fabric Temperature
control
Synthetic fibres, e.g.
viscose, polyester…
•
Silk, wool
••
Cotton, linen
•••
YELLOW The soleplate is still too cold for the selected
material.
GREEN The soleplate is at the right temperature for the selected
material.
RED The soleplate is still too hot for the selected material.
AUTO- OFF The automatic electronic cut-out* is active.
Electronic temperature control*:The traffic lights tell you whether
the soleplate is at the selected temperature (fig.10).
IMPORTANT The iron takes longer to cool down than to heat
up. We recommend that you start with fabrics to be ironed at
a low temperature. For mixed fabrics set the temperature for
the most delicate fabric.
TIP Always spray starch onto the reverse side of the fabric to
be ironed.
6 • Dry ironing
Set the variable steam control to (fig.11) and set the
temperature to suit the type of material (care points •, ••, •••).
7 • Steam ironing
You can steam iron from temperature setting •• upwards.
Steam function*The steam quantity can be set to between no
steam (minimum steam quantity) and (maximum steam
quantity) (fig.12).We recommend setting to maximum steam
DZ5000 1103899452-Index02 23/06/06 15:04 Page 6
