USE AND CARE GUIDE
Model # GFM00725R
STEEL AND ALUMINUM CARPORT
THANK YOU
We appreciate the trust and condence you have placed in Royal Garden through the purchase of this carport. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Royal Garden!
WWW.ROYALGARDEN.COM

2
Contact the Customer Service Team at [phone] or visit WWW.ROYALGARDEN.COM
Table of Contents
Table of Contents..........................................................2
Warranty ........................................................................2
What is Not Covered ................................................................2
What is Covered........................................................................2
Pre-Assembly ................................................................3
Planning Assembly .................................................................. 3
Hardware Included ................................................................ 3
Package Contents...................................................................4
Warranty
1 YEAR FRAME LIMITED WARRANTY
WHAT IS COVERED
We warrant the frames to be free of manufacturing defects to the original purchaser for one year.
WHAT IS NOT COVERED
Safety Information
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
commercial use, hardware, acts of nature, fire, freezing and abusive use. In addition, purchased parts are not covered under this warranty. We
reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
Carport Assembly ..........................................................6
Care and Cleaning ....................................................... 24
Safety Information .......................................................2
Product Caution .................................................................... 2
Safety Warnings ..................................................................... 2
PRODUCT CAUTION
SAFETY WARNINGS
This carport was made for the explicit purpose of providing outdoor functions and is not to be used as a toy. This product is intended for
normal outdoor use; however, the manufacturer recommends storing and / or covering this carport when any formidable / severe weather
nthe
product. Children under the age of 10, near the product, should be supervised by a competent adult at all times. This product is NOT
intended for commercial use and will void the warranty.
CAUTION: This carport is made for the explicit purpose
of providing limited outdoor sunshade and is
not to beused as a toy, shelter,or tent.
CAUTION: Keep roof and gutters clean of snow, dirt&
leaves. Heavy amount of snow can damage the
carport making it unsafe to stand under or nearby.
CAUTION: Do not locate the carport near any
CAUTION: Do not use the carport as support.
CAUTION: Do not shake, lean, or climboon the carport.
CAUTION: Children under the age of 10 who are near
the carport should be supervised by a competent
adult at all times.
CAUTION: Thiscarportmustbe bolted to the ground
securely after assembly.

3
Pre-Assembly
PLANNING ASSEMBLY
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
NOTE: More than one person may be required to
assemble this product.

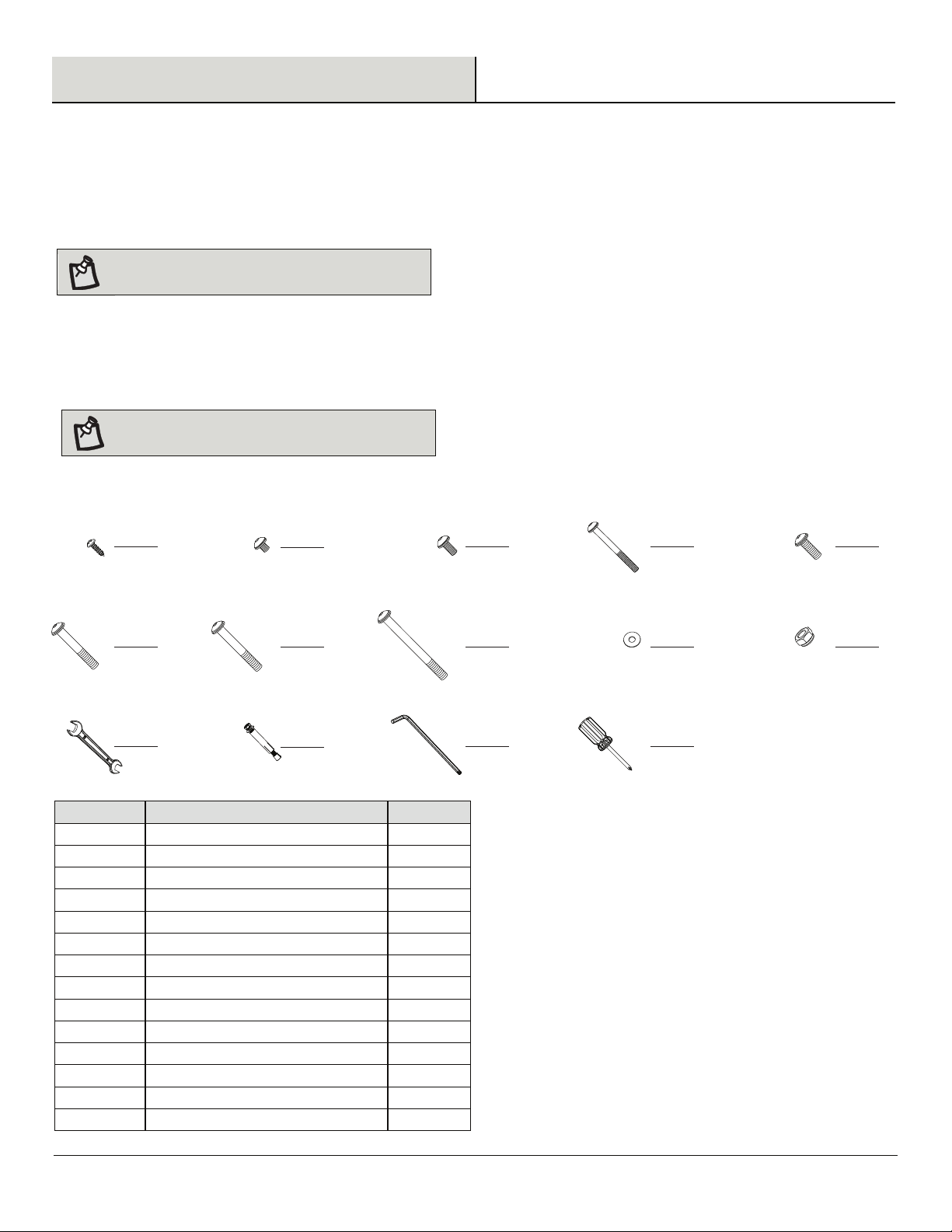

HARDWARE INCLUDED
BB
AA CC
GG
FF
LL
JJ
NOTE: Hardware not shown to actual size.
AA ST4.2x12 screw
Description QuantityPart
BB M6 x 8 combination bolt
8+1
8+1
CC M6 x 15 combination bolt 128+1
DD
DD
EE
EE
FF
GG
HH
HH
II
II
JJ
KK
KK
LL
MM
MM
NN
NN
M8x25
combination bolt
M8x55 combination bolt
M8x60 combination bolt
M8x90 combination bolt
M8 washer
M8 nut
Wrench
Hex wrench
M6x60 expansion screw
Screwdriver
24+1
6+1
24+1
8+1
36+1
36+1
2
12+1
2
1
M6 x 65 combination bolt18+1
Please contact [phone] for further assistance.
WWW.ROYALGARDEN.COM

4
Pre-Assembly (continued)

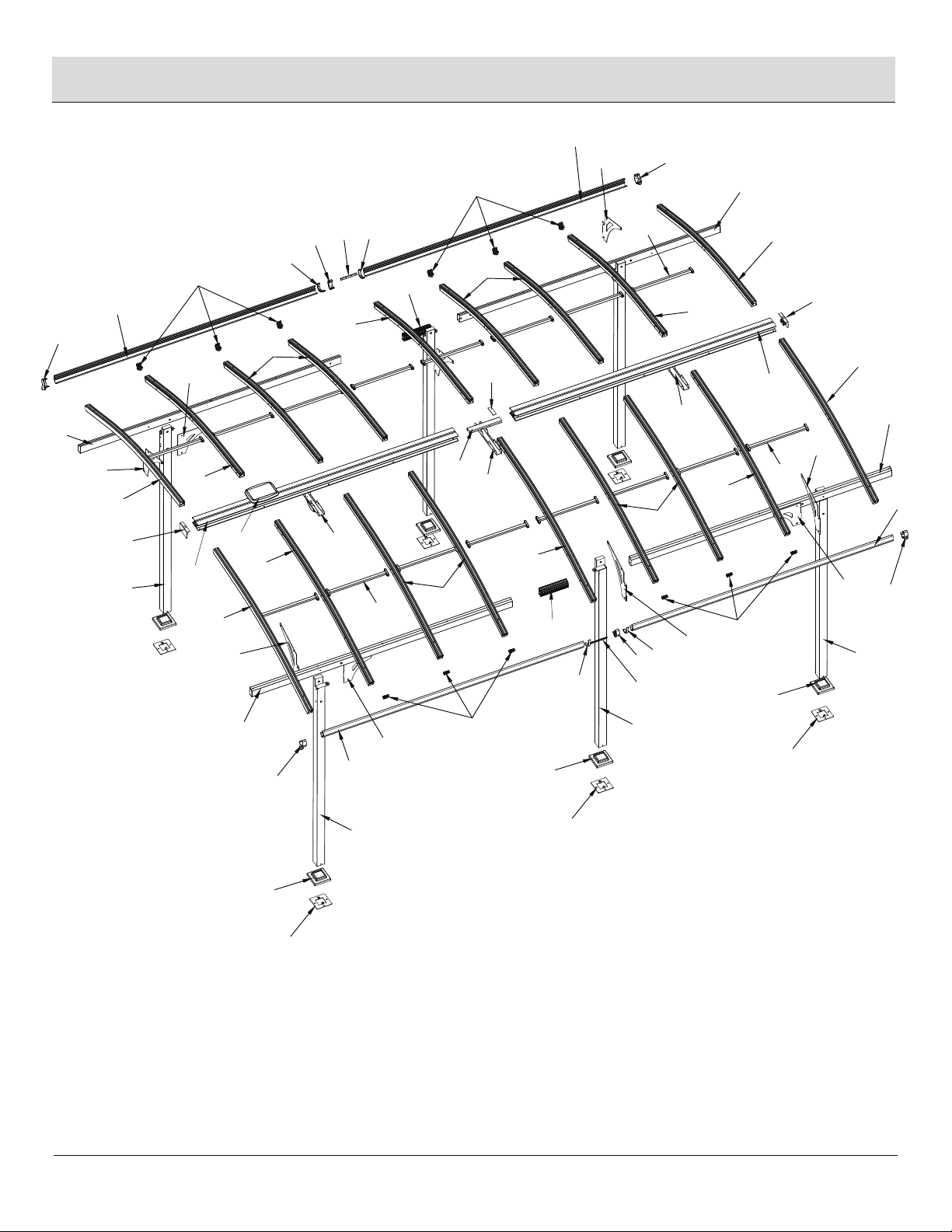

PACKAGE CONTENTS
B1
I
G1
G2
S
A2
A3
A1
N
R
C2
Q
R
Q
M
P
O1
P
C1
G1
D1
A1
E1 D3
J
I
D2
R
B2
Q
G2
C1
P
D4
D3
H
U
P
D3
D4
O2
D3
D4
F
U
B2
D2
R
F
D3
D4
E2
O2
F
B1
D1
R
C2
D3
T
L1
NL2
L2
HL1
K
T
T
S
S

A1
5
Pre-Assembly (continued)
Please contact [phone] for further assistance.
WWW.ROYALGARDEN.COM
A2
A3
B1
B2
C1
C2
D1
D2
D3
D4
E1
E2
G1
G2
H
I
J
K
L1
L2
M
N
O1
O2
P
Q
R
S
T
U
V
W
Right pillar
Left pillar
Middle pillar
Left beam
Right beam
Right drain-pipe
Left drain-pipe
Side top tube A
Side top tube B
Top tube A
Top tube B
Light tube A
Light tube B
Left drain-pipe plastic part
Right drain-pipe plastic part
Middle drain-pipe plastic part
Top tube cover plate
Solar receiver
Silicone sheet
Leak-proof part 2
Leak-proof part 1
Top tube liner
U shape part
Top support part and induction mask
Top support part
Top tube metal part
Support chip 1
Support chip 2
Pillar base plate
Pillar base cap
Alum. Liner pipe
Sun board
Glue (not included )
2
2
2
2
2
2
2
2
2
6
8
1
1
2
F Top horizontal tube 16
2
2
2
1
1
2
2
1
2
1
2
12
4
6
6
6
2
16
1
Part
Description
Quantity
PACKAGE CONTENTS

1
6
Assembly
Attach the pillar base caps (T) and pillar base plates (S) to the right pillars (A1) using M6X15 combination bolts (CC), as shown below.
Repeat this step for the left pillars (A2) and middle pillars (A3).
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE PILLAR BASE PLATES AND PILLAR BASE CAPS TO THE PILLARS
CC
S
T
A1&A2&A3
CC
A1
A2
T
T
T
A3

2
7
Lay the left beam (B1) and the right beam (B2) down on a soft surface.

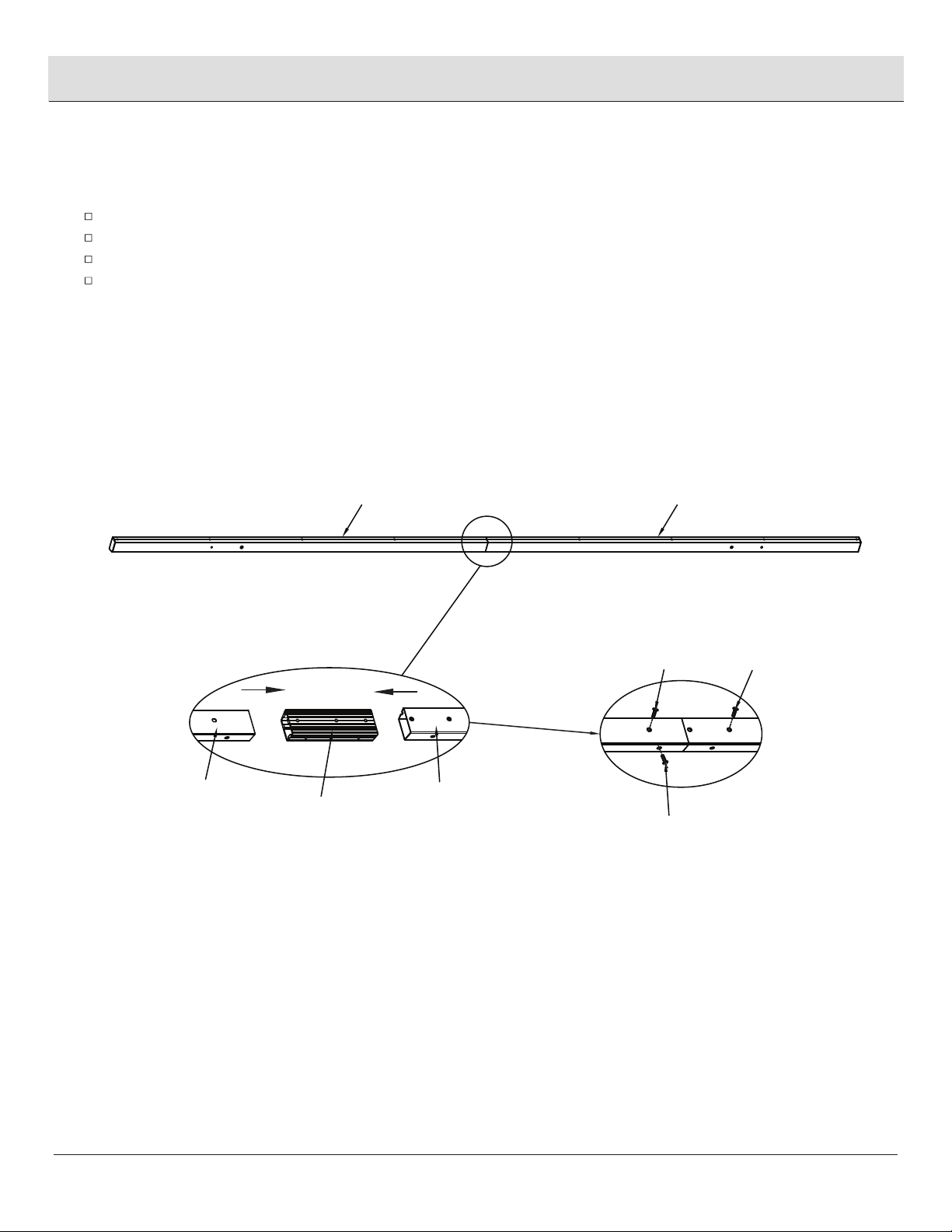

Connect the left beam (B1) and the right beam (B2) with the Alum. Liner pipe (U).
Secure the left beam (B1) and the right beam (B2) using M8x25 combination bolts (EE), as shown below.
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE LEFT BEAM AND THE RIGHT BEAM
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
Assembly (continued)
B1 B2
EE
B2 B1
EE
EE
U

3
8

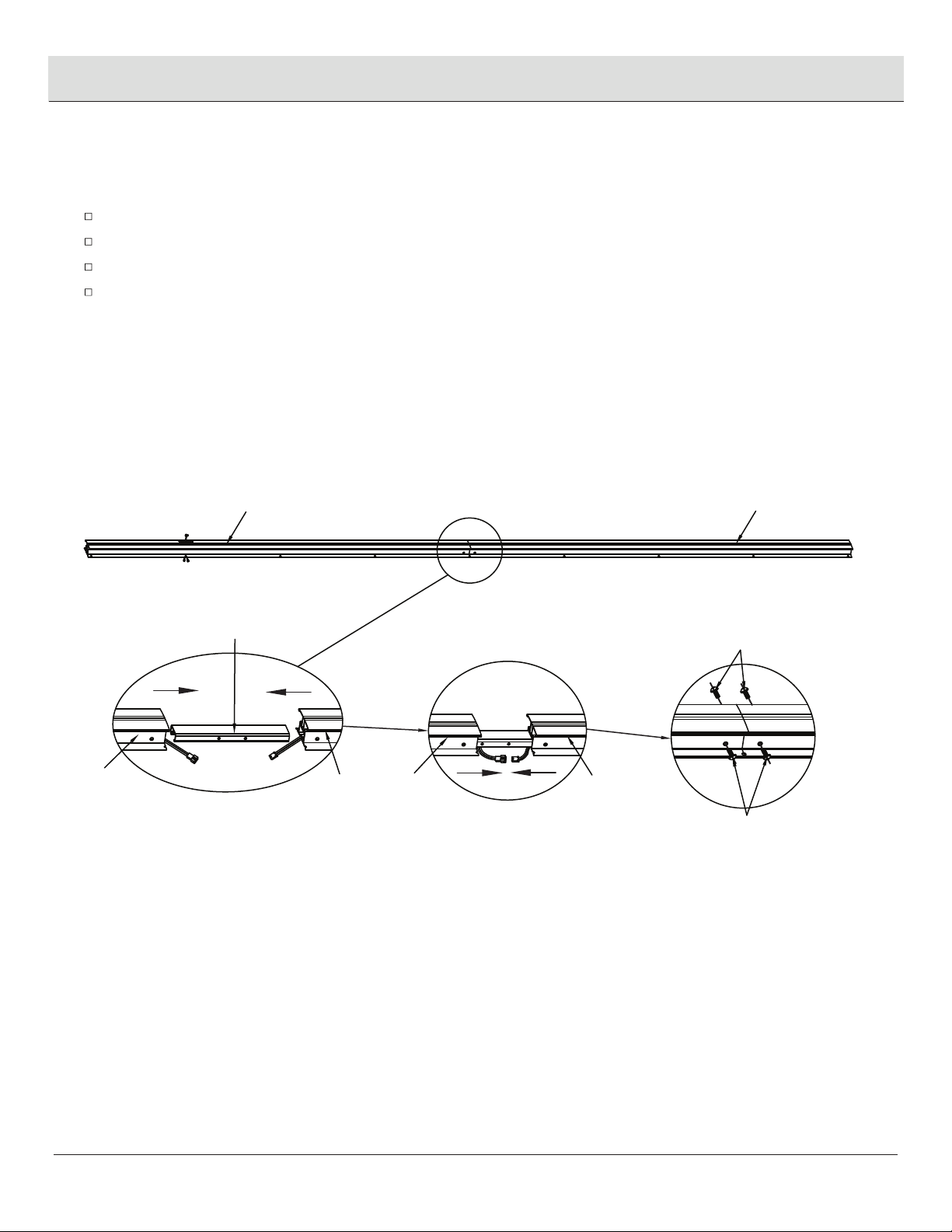

Lay the light tube A (E1) and the light tube B (E2) down on a soft surface.
Connect the light tube A (E1) and the light tube B (E2) with the top tube liner (M), and join the plugs together (see gure 3-1, 3-2).
Secure the light tube A (E1) and the light tube B (E2) using M6X15 combination bolts (CC), as shown below (see gure 3-3).
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE LIGHT TUBES
Assembly (continued)
E1 E2
E1 E2 E2
M
E1
CC
CC
3-1 3-2 3-3

4
9
Put the assembled left beam (B1) and the right beam (B2) on each side, the light tube A (E1) and the light tube B (E2) in the
middle, as shown below.
Attach top tubes A (D3) to the assembled left beams (B1) and right beams (B2) using M6x65 combination bolts (DD).
Attach top tubes A (D3) to the assembled light tube A (E1) and light tube B (E2) using M6x15 combination bolts (CC).
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE TOP TUBES TO THE BEAMS AND THE LIGHT TUBES
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
Assembly (continued)
B2 & B1
D3
DD
CC
D3
D3
D3
D3
D3
E1
E2
B1
B2
B2
B1
D3
D3
D3
E2 & E1
B1 & B2
E1 & E2

Assembly (continued)
10
5
Attach the top support parts (O2) to the top tubes A (D3) using M8x60 combination bolts (GG), M8 washers (II) and M8 nuts (JJ), as shown below.
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE TOP SUPPORT PARTS TO THE TOP TUBES A
GG
GG
JJ
JJ
II
II
II
JJ
E1 & E2
D3
D3
D3
D3
D3
D 3
E1
E2
O 2
O2
O2
E2 & E1

Assembly (continued)
11
Please contact [phone] for further assistance.
WWW.ROYALGARDEN.COM

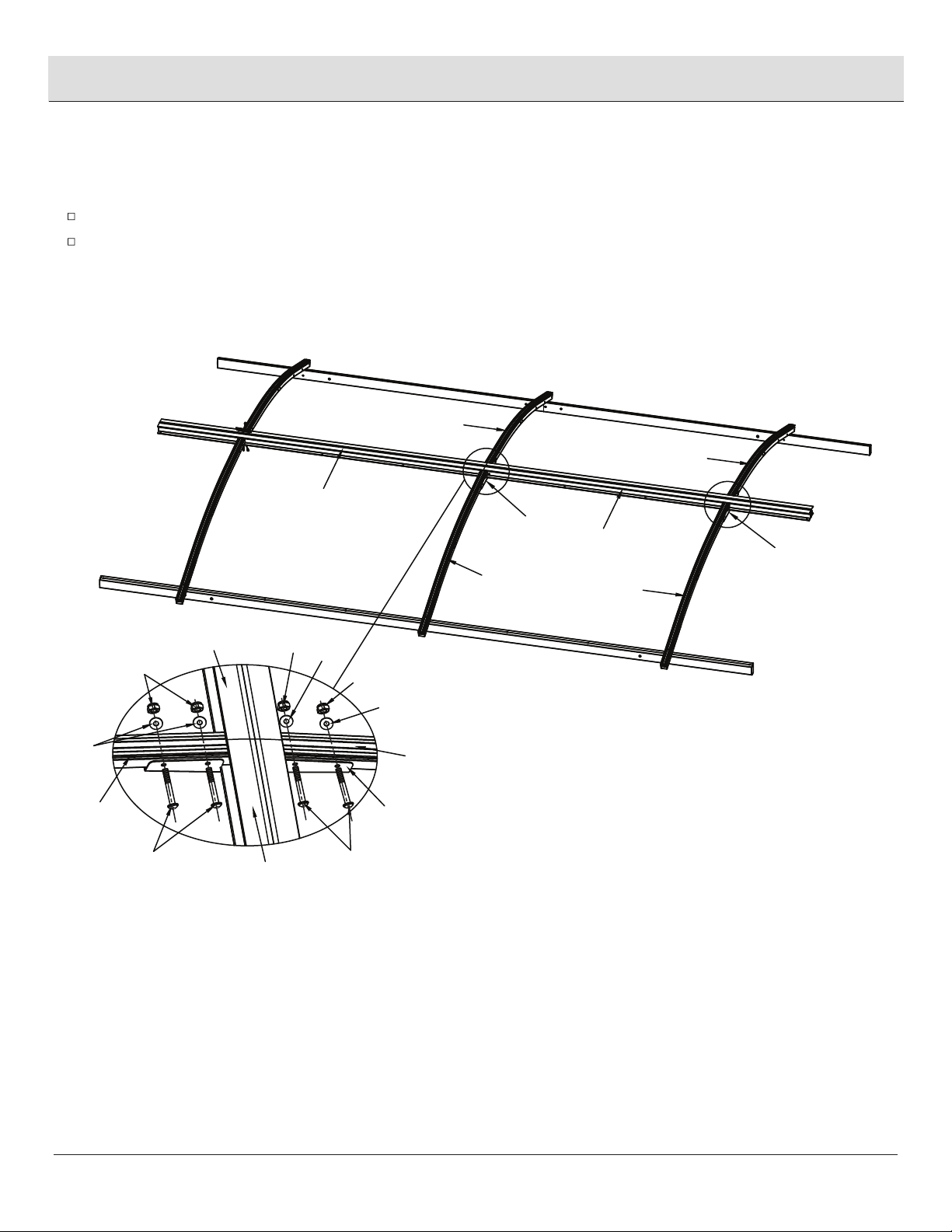

6
Put the top support part and induction mask (O1) under the top tubes A (D3). Join the plugs of the top support part and
induction mask (O1) and the light tube A (E1), as shown below.
Attach the top support part and induction mask (O1) to the top tubes A (D3) using M8X60 combination bolts (GG),
M8 washers (II) and M8 nuts (JJ), as shown below.
ATTACHING THE TOP SUPPORT PART AND INDUCTION MASK
TO THETOP TUBES A
GG
GG
JJ
JJ
II
II
II
JJ
JJ
II
E1
D3
D3
E1
D3
D3
E1
O1

Assembly (continued)
12
7
Attach the top tubes B (D4) to the assembled left beams (B1) and right beams (B2) using M6X65 combination bolts (DD).
Attach the top tubes B (D4) to the assembled light tube A (E1) and light tube B (E2) using M6X15 combination bolts (CC).
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE TOP TUBE B TO THE BEAMS AND THE LIGHT TUBES
CC
D4
D4
E1 & E2
B1 & B2
D4
DD
E1
E2
D4
D4
D4
D4
B1 B2
B1
B2
D4
D4
D4 D4

Assembly (continued)
13
Please contact [phone] for further assistance.
WWW.ROYALGARDEN.COM
8
Attach the side top tubes (D1 & D2) to the assembled left beams (B1) and right beams (B2) using M6X65 combination bolts (DD).
Attach the side top tubes (D1 & D2) to the assembled light tube A (E1) and light tube B (E2) using M6X15 combination bolts (CC).
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE SIDE TOP TUBES TOTHE BEAMS AND THE LIGHT TUBES
DD
D1&D2
B1 & B2
E1
E2
B2
B1
B2
D1
D2
D1
D2
D1
D2
B1
CC
E1&E2

Assembly (continued)
14
9ATTACHING THE TOP HORIZONTAL TUBES TO THE SIDE TOP TUBES
AND THE TOP TUBES
Attach the top horizontal tubes (F) to the side top tubes (D1 & D2) using M6X15 combination bolts (CC).
Attach the top horizontal tubes (F) to the top tubes (D3 & D4) using M6X15 combination bolts (CC).
Once all of the bolts are in place, fully tighten the bolts.
CC
F
CC
D1 & D2
CC
CC
D3 & D4
F
FFFFFFFF
FFFFFFFF
D2
D1
D3 D4 D4 D3
D4 D4 D3
D3
D3
D3
D4 D4
D4 D4
D1
D2

Assembly (continued)
15
Please contact [phone] for further assistance.
WWW.ROYALGARDEN.COM
10

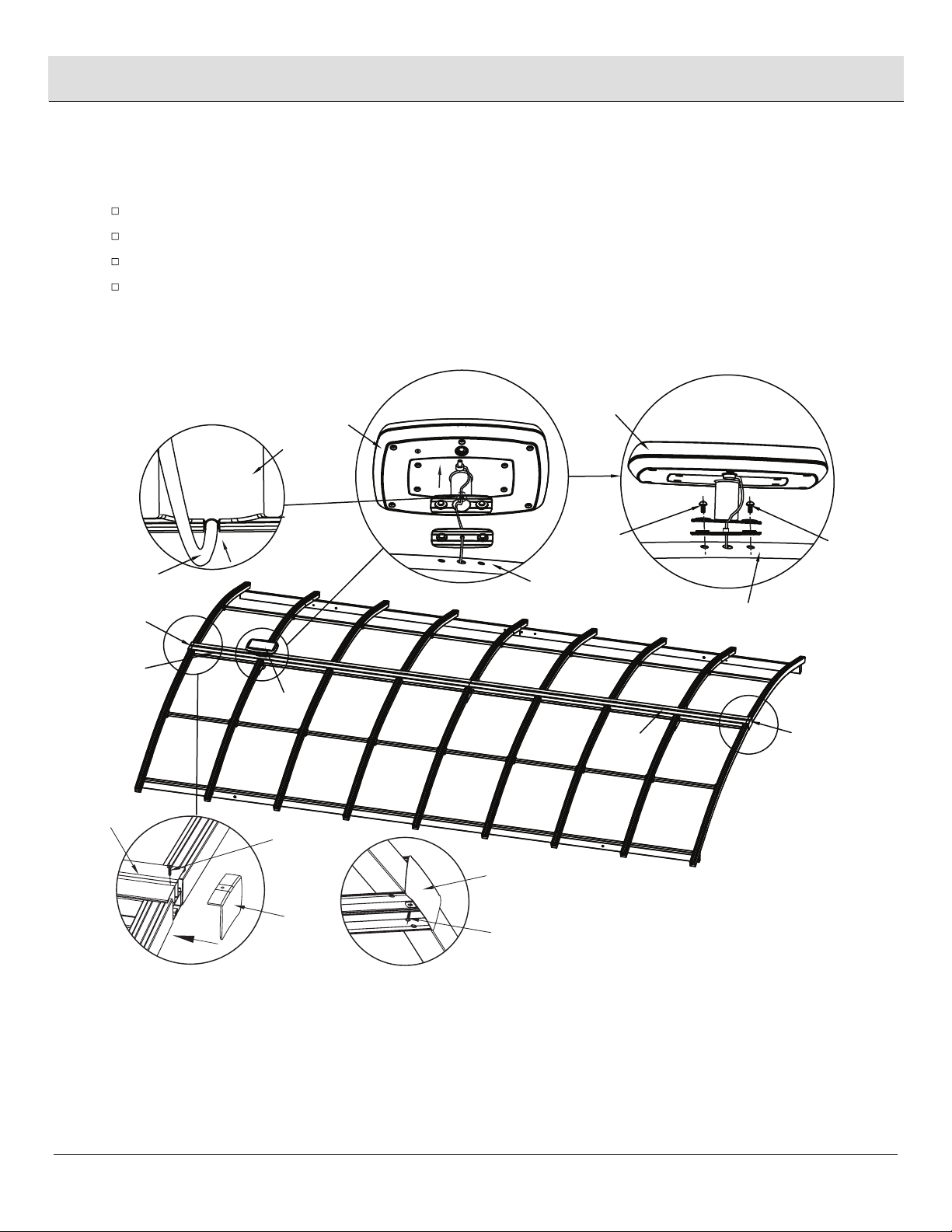

Attach the solar receiver (J) above the light tube A (E1), join the plugs of the light tube A (E1) to the solar receiver (J), as shown below.
Attach the solar receiver (J) to the light tube A (E1) using M6X15 combination bolts (CC), as shown below.
Attach the top tube cover plates (I) to both sides of the light tube A (E1) and the light tube B (E2), as shown below.
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE SOLAR RECEIVER
J
E1
J
E1
J
E1
CC
CC
J
E1
I
I
E2
E1 & E2
I
AA
I
AA

Assembly (continued)
16
11

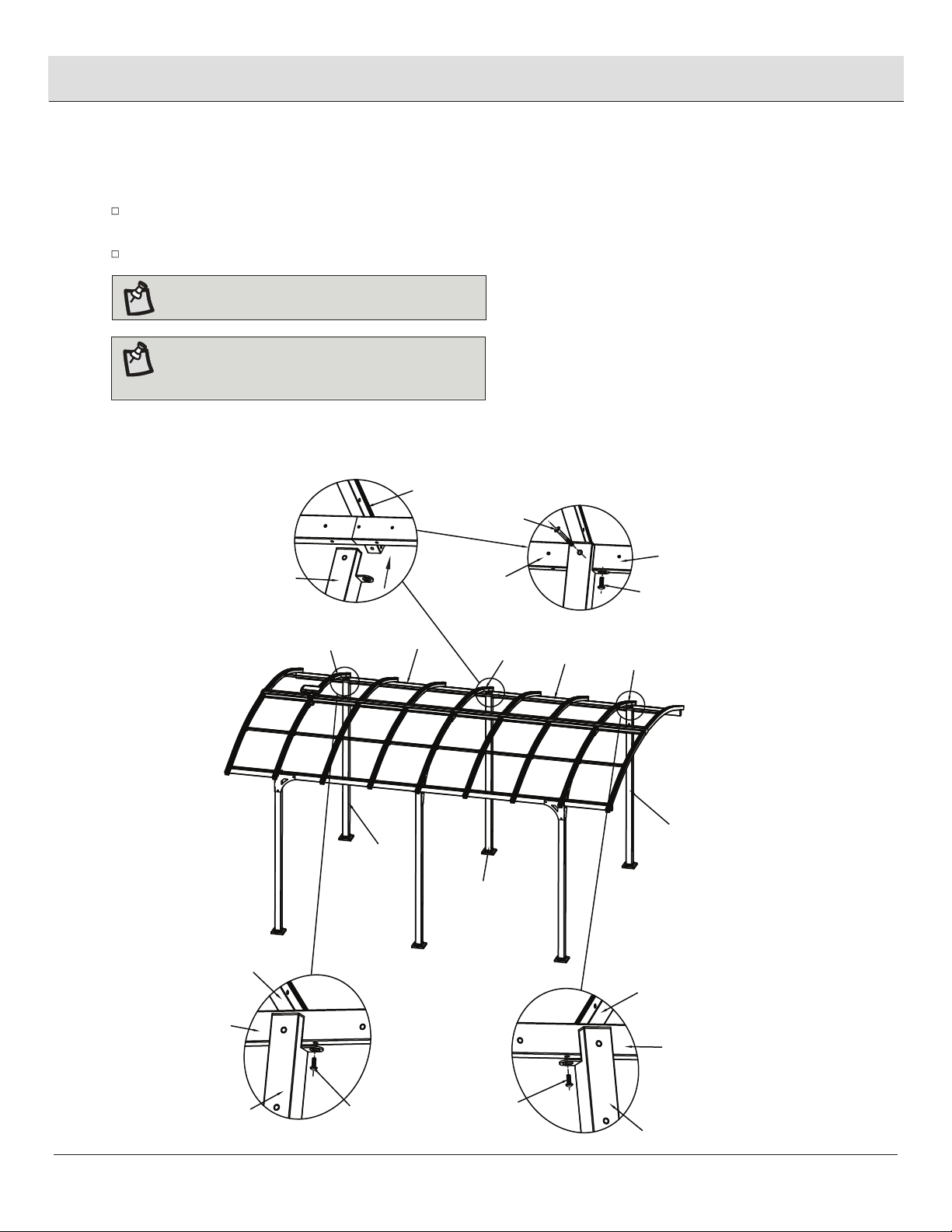

Attach the right pillar (A1) and the left pillar (A2) to the right beam (B2) and the left beam (B1) using M8X25
combination bolts (EE), as shown below.
Attach the middle pillar (A3) to the left beam (B1) and the right beam (B2) using M8X25 combination bolt (EE) and (FF),as shown below.
ATTACHING THE PILLARS
NOTE: Do not fullytighten the bolts byusing wrench (KK).
NOTE: More than oneperson is required to assemble
this step and suggest using a stepladder.
Note the direction of the pillars.
A1
B2
D3
EE
EE
A2
B1
D3
A3
EE
B2
B1
FF
D3
A2
A3 A1
D3 D3 D3
B1 B2

Assembly (continued)
17
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
12
Attach the support chip 1 (Q) to the right pillar (A1) and the left pillar (A2) using M8X90 combination bolt (HH), M8 washer (II)
and M8 nut (JJ); attach the support chip 1 (Q) to the left beam (B1) and the right beam (B2) using M8X90 combination bolt (HH),
M8X55 combination bolt (FF), M8 washers (II) and M8 nuts (JJ), as shown below.
Attach the support chip 2 (R) to the right pillar (A1) and the left pillar (A2) using M8X25 combination bolts (EE); attach the
support chip 2 (R) to the top tube A (D3) using M8X60 combination bolts (GG), M8 washers (II) and M8 nuts (JJ), as shown below.
Attach the support chip 2 (R) to the middle pillar (A3) using M8X25 combination bolts (EE); attach the support chip 2 (R) to the
top tube A (D3) using M8X60 combination bolts (GG), M8 washers (II) and M8 nuts (JJ), as shown below.
Once all of the bolts are in place, fully tighten the bolts.
ATTACHING THE SUPPORT CHIPS
EE
GG
GG
R
A1 & A2
II
JJ
JJ
II
D3
B2 & B1
JJ
HH
HH
Q
FF
II
II
II
JJ
A1 & A2
B2 & B1
R
GG
GG
D3
EE
A3
JJ
II
II
B1 B2
A2
A 3 A1
D 3 D 3 D 3
B2
B1
NOTE: More than one person is required to assemble
this step and suggest using a stepladder.

Assembly (continued)
18
13
Attach the right pillar (A1) and the left pillar (A2) to the left beam (B1) and the right beam (B2) using M8X25 combination bolts (EE),
as shown below.
Attach the middle pillar (A3) to the left beam (B1) and the right beam (B2) using M8X25 combination bolt (EE) and (FF), as shown below.
ATTACHING THE PILLARS
A 3
EE
B2
B1
FF
D3
A1
B2
D3
EE EE
A2
B1
D3
A3
A2
A1
D3 D3 D3
B2
B1
NOTE: Do not fullytighten the bolts byusing wrench (KK).
NOTE: More than oneperson is required to assemble
this step and suggest using a stepladder.
Note the direction of the pillars.

Assembly (continued)
19
Pleasecontact [phone] for further assistance.
WWW.ROYALGARDEN.COM
14 ATTACHING THE SUPPORT CHIPS
Attach the support chip 1 (Q) to the right pillar (A1) and the left pillar (A2) using M8X90 combination bolts (HH), M8 washers (II) and
M8 nut (JJ); attach the support chip 1 (Q) to the left beam (B1) and right beam (B2) using M8X90 combination bolt (HH),
M8 washer (II) and M8 nut (JJ), M8X55 combination bolt (FF), M8 washer (II) and M8 nut (JJ), as shown below.
Attach the support chip 2 (R) to the right pillar (A1) and left pillar (A2) using M8X25 combination bolts (EE); attach the support
chip 2 (R) to the top tube A (D3) using M8X60 combination bolts (GG), M8 washers (II) and M8 nuts (JJ), as shown below.
Attach the support chip 2 (R) to the middle pillars (A3) using M8X25 combination bolts (EE); attach the support chip 2 (R) to the
top tubes A (D3) using M8X60 combination bolts (GG), M8 washers (II) and M8 nuts (JJ), as shown below.
Once all of the bolts are in place, fully tighten the bolts.
Use glue (W) to paint on one side of the whole silicone sheet (K), and paste the other side on light tube A (E1) and light tube B (E2).
WK
R
GG
GG
D 3
EE
A3
JJ
II
II
B1 B2
EE
GG
GG
R
A2 & A1
II
JJ
JJ
II
D3
B1 & B2
JJ
HH
HH
Q
FF
II
II
II
JJ
A2 & A1
B1 & B2
A1
A3 A2
D 3
D 3
D 3
K
B1
B2
NOTE: More than one person is required to assemble
this step and suggest using a stepladder.

Assembly (continued)
20
15
Insert the sun board (V) through inclined side top tube A (D1), the side top tube B (D2), the top tubes A (D3),
the top tube B (D4), as shown below.
ATTACHING THE SUN BOARD
Exposer ce cote a l`exterieur
de l`unite face au soleil
Expose this side outside the
unit facing sun light
V
V
D3 & D4
D1 & D2
V
V
V
V
V
V
V
NOTE: More than one person is required to assemble
this step and suggest using a stepladder.
Note the direction of the pillars.
Tear off the thin film on sun board (V).
