Royal garden TM21PATHTRSS1 User manual

Fire Heater
Questions, problems, or missing parts?
Before returning to the store, call Customer Service.
1-866-988-3300
8 a.m. - 5 p.m., PST Monday - Friday
Assembly Instructions
Model No. TM21PATHTRSS1
Retain this manual for future use.

TM21PATHTRSS1
Contents
Safety Instructions
Parts List
Assembly
Operation
Cleaning & Maintenance
3
4
5
13
14
Troubleshooting 16
Service Parts 17
Warranty 18
IMPORTANT: RETAIN FOR FUTURE REFERENCE, AND READ CAREFULLY.

Safety Instructions
TM21PATHTRSS1
PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE ATTEMPTING TO
ASSEMBLE, OPERATE OR INSTALL THE PRODUCT.
1. The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1 /NFPA 54, Natural Gas and Propane Installation
Code, CSA B149.1, or Propane Storage and Handling Code,
B149.2.
Minimum clearance to the combustible materials is 3.67 ft.
(1100 mm).
2. Perform a leak test with a soapy solution:
To check gas connections.
After connecting a new cylinder.
Upon re-assembly after disassembly.
Please refer to the leak test procedure indicated in
this instruction manual on page 12.
Replace the hose assembly prior to the appliance being put
into operation if there is evidence of excessive abrasion or
wear, or if the hose is damaged. The pressure regulator and
hose assembly supplied with the appliance must be used.
The replacement hose assembly/ regulator shall be that
specified by the manufacturer.
3. If you do not feel the heater is on a stable surface, use a
ground screw to fix the base of the heater on the surface
where the heater is installed. Fix the base on an incline no
wider than 15 degrees.
4. Place the propane hose with regulator assembly out of
pathways where people may trip over it or in areas where
the hose will not be subjected to accidental damage.
5. Materials or items when stored under the heater will be
subjected to intense heat and could be seriously damaged.
6. Clothing or other flammable materials should not be hung on
the heater, or placed on, under or near the heater .
7. Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns
or clothing ignition.
8. Young children should be carefully supervised when they
are in the area of the heater.
9. Any guard or other protective device removed for servicing
the heater must be replaced prior to operating the heater.
10. Installation and repair should be done by qualified service
person. The heater should be inspected before use and at
least annually by a qualified service person.
11. More frequent cleaning may be required as necessary. It is
imperative that the control compartment, burners and
circulating air passageways of the heater be kept clean.
12. Keep the appliance area clear and free from combustible
materials, gasoline and other flammable vapors and liquids.
13. Do not obstruct the flow of combustion and ventilation air.
14. Disconnect the cylinder when the appliance is not in use.
15. Storage of an appliance indoors is permissible only if the
cylinder is disconnected and removed from the appliance.
16. Store the cylinder outdoors in a well-ventilated area (not in a
building, garage, or other enclosed area) out of the reach of
children.
17. The cylinder used must include a collar to protect the
cylinder valve.
18. Keep the ventilation opening(s) of the cylinder enclosure free
and clear from debris. Use this appliance in a well-ventilated
space only. Do not use it in a building, garage, or any other
enclosed area.
19. Use this appliance in outdoor areas described below:
With walls on all sides, but at leastone permanent
opening at ground level and no overhead cover.
Within a partial enclosure that includes overhead
cover and no more than two walls. These walls may
be parallel, or at right angles to each other.
Within a partial enclosure that includes overhead
cover and no more than two walls. The following
shall apply:
a One wall that is equivalent to at least 25%
of the total wall area is completely open.
b 30% or more in total of the remaining wall
area is open and unrestricted.
20. The LP-gas supply cylinder to be used must be
:
Constructed and marked in accordance with the
Specifications for LP-gas cylinders of the U.S.
Department of Transportation of Dangerous Goods
and Commission, CAN/CSA-B339, as applicable;
Provided with a listed overfilling prevention device;
and;
Provided with a cylinder connection device
compatible with the connection for the appliance.
Do not store a spare LP-gas cylinder under or near this
appliance.
23 Never fill the cylinder beyond 80 percent full.
Place the dust cap tightly on the cylinder valve outlet
whenever the cylinder is not in use. Install only the type of
dust cap on the cylinder valve that is provided with the
cylinder valve. Other types of caps or plugs may result in a
propane leak.
Inspect the visible portion of the hose before each use of the
appliance.
26 More frequent cleaning may be required as necessary. It is
imperative that the control compartment, burners and
circulating air passageways of the heater be kept clean.
Every part of the heater shall be secure against
displacement and shall be constructed to maintain a fixed
relationship between essential parts under normal and
reasonable conditions of handling and usage. Parts not
permanently secured shall be designed so they cannot be
incorrectly assembled and cannot be improperly located or
misaligned in removing or replacing during cleaning or other
servicing.
22.
.
24.
25.
.
27.

Safety Instructions (cont.)
TM21PATHTRSS1
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or re department.
WARNING:
Do not store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored in
the vicinity of this or any other appliance.
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this
equipment.
WARNING:
For outdoor use only.

Parts List
PLANNING ASSEMBLY

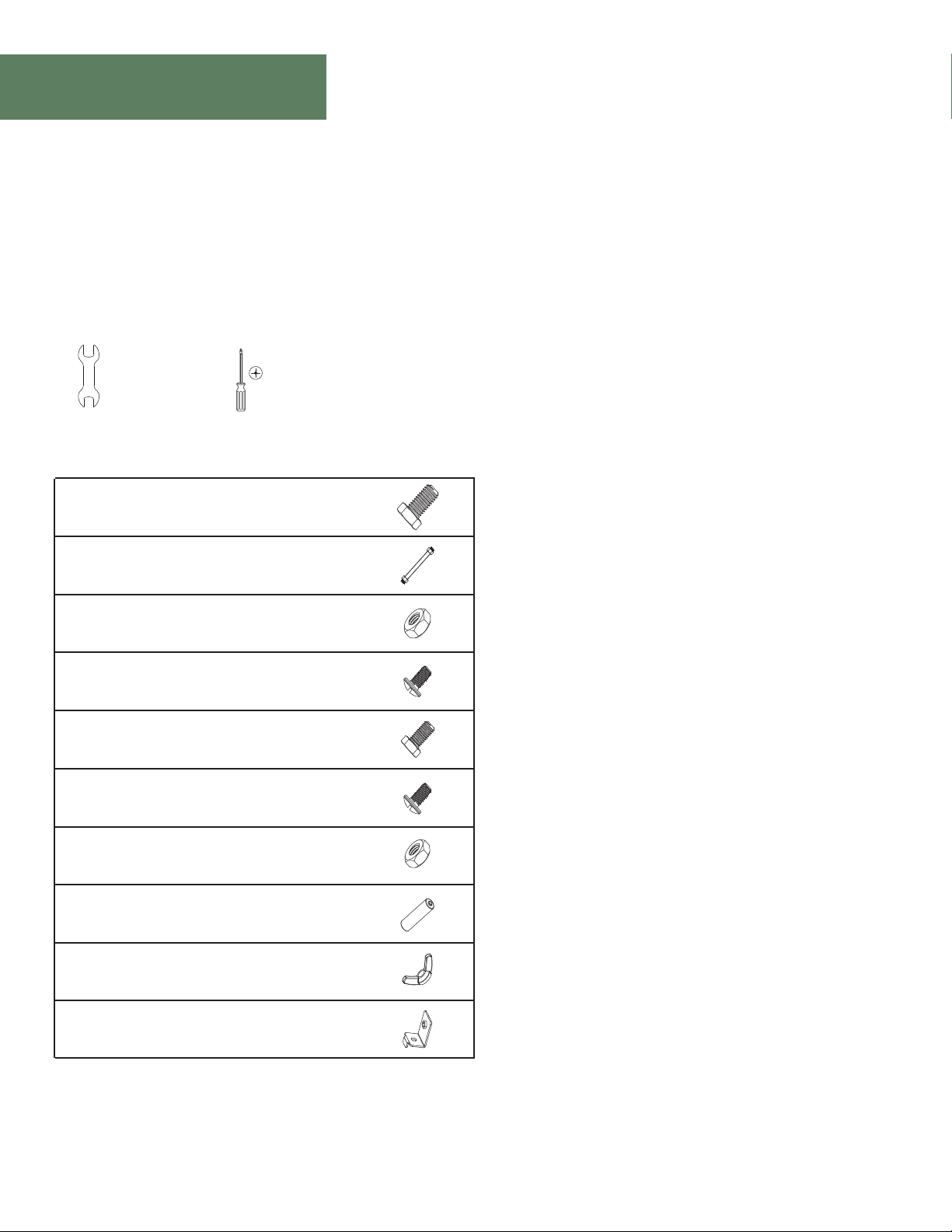

TOOLS REQUIRED
HARDWARE INCLUDED
Wrench Phillips screwdriver
Before beginning assembly of product, make sure all parts are present. Compare parts with the
Hardware Included and Package Contents lists. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement part.
NOTE: Estimated Assembly Time: 30 minutes.
AA
M8 x15mm Bolt - 2
BB
Reflector Spacer - 3
CC
M8 Nut - 2
DD
M5x8mm Bolt - 16
EE
M6x10mm Bolt - 4
FF
M5x8mm Silver Bolt - 12
GG
M5 Nut - 12
HH
AAA Battery - 1
II
Wing Nut - 3
JJ
Shroud Fix Bracket - 5
TM21PATHTRSS1

Parts List
A
PACKAGE CONTENTS
Top Dome - 1
C
Burner Assembly - 1
B
KD Dome - 4
D
Upper Pole - 1
F
Lower Pole Assembly - 1
E
Beauty Ring - 1
G
Cylinder Housing Assembly - 1
I
Wheel Assembly - 1
H
Base - 1
TM21PATHTRSS1
B
A
C
D
E
F
G
H
I

Assembly

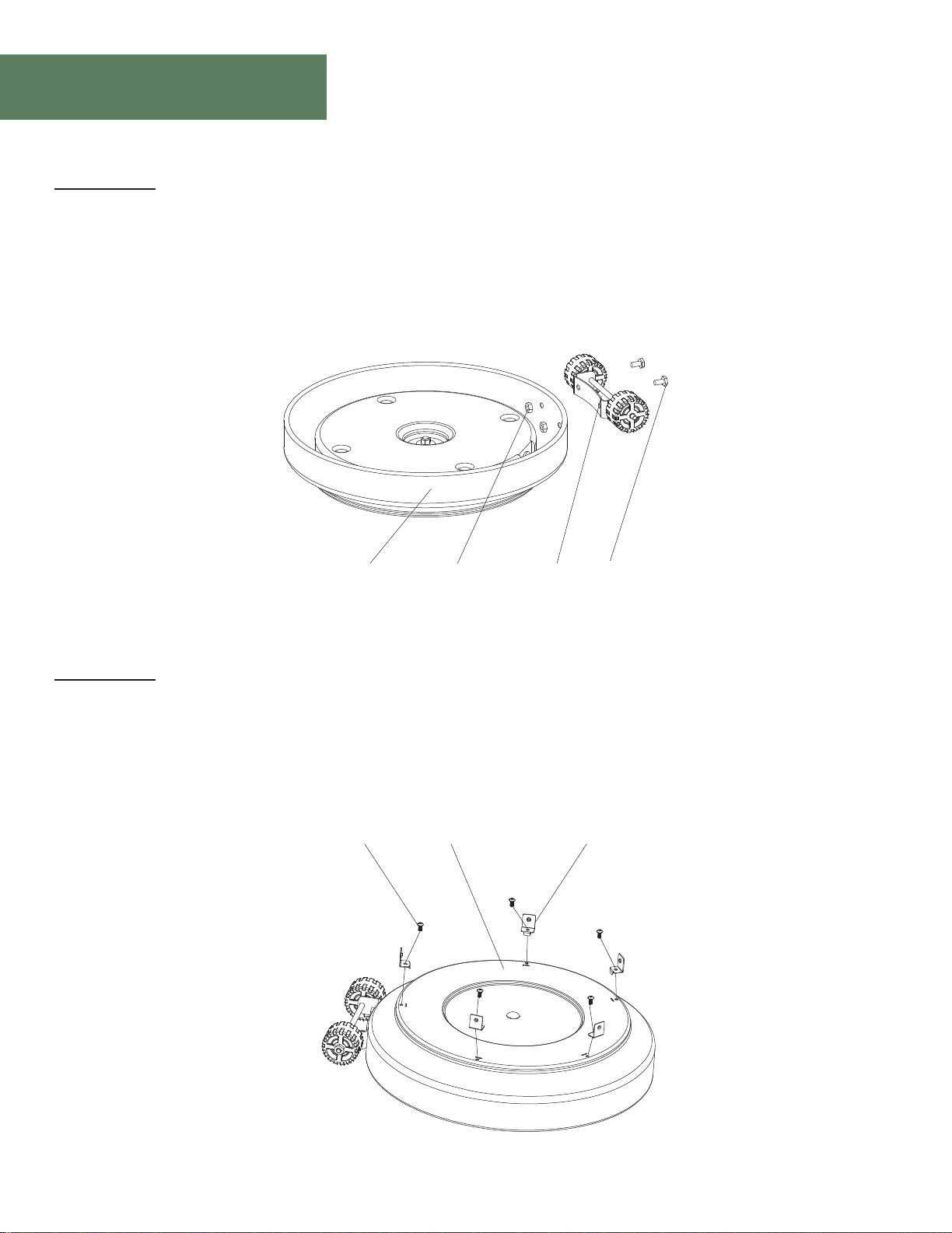

STEP 1
Requires: AA, CC, H, I
Assembling the Wheel Assembly
With the base (H) upside down, attach the wheel assembly (I) using two bolts (AA) and two
nuts (CC).
STEP 2
Requires: DD, JJ, H
Assembling the Shroud Fix Brackets
Turn the base (H) over and attach the shroud fix brackets (JJ) using five bolts (DD).
TM21PATHTRSS1
H
CC I A A
DD JJ
H

Assembling the Cylinder Housing
Assembly
STEP 3
Requires: DD, G, H, I
TM21PATHTRSS1
Attach the cylinder housing assembly (G) using five bolts (DD) through the shroud fix
brackets (JJ).
NOTE: The door on the cylinder assembly (G) should be on the opposite side of the wheel
assembly (I).
STEP 4
Requires: EE, E, F, G
Assembling the Pole
Attach the lower pole assembly (F) onto the cylinder housing assembly (G) using four bolts
(EE), and then put the beauty ring (E) through the lower pole on top of the cylinder housing
assembly (G).
Door
I G H DD
DOOR
J
Back
Back
E
EE
G
F

Assembling the Reflector Spacers
Assembly
STEP 5
Requires: BB, C
Screw three reflector spacers (BB) into the top of the burner assembly (C).
TM21PATHTRSS1
STEP 6
Requires: DD, C, D
Assembling the Burner Assembly
Insert the regulator and hose assembly into the upper pole (D).
Secure the burner assembly (C) onto the pole with three Bolts (DD).
Ensure they are fully tightened.
BB
C
D
C
DD

Installing the Upper Pole onto the Lower Pole
Assembly
STEP 7
Requires: DD, D, F
Insert the regulator and hose into the lower pole assembly (F).
Install the upper pole (D) onto the lower pole assembly (F) until the holes on the
upper pole (D) are aligned to the holes on top of the lower pole assembly (F).
Secure in place using three bolts (DD). Ensure they are fully tightened.
TM21PATHTRSS1
STEP 8
Requires: GG, FF, A, B
Assembling the KD and Top Dome
Attach the four KD domes (B) using four bolts (FF) and four nuts (GG). Then, complete the dome
assembly by attaching the top dome (A) to KD domes (B) with eight bolts (FF) and eight nuts (GG).
D
DD
F
GG
B
FF
GG
FF
A

Assembly
STEP 9
Requires: BB, II, C
Assembling the Dome Assembly
Attach the dome assembly to the burner assembly (C) by securing the wing nuts (II) to the
reflector spacers (BB).
TM21PATHTRSS1
STEP 10
Requires: C
Connecting the Cylinder
Connect the preassembled regulator assembly from the burner assembly (C) to a 20-lb. LP-gas
cylinder (sold separately). Line up threads on the cylinder fitting with those on the regulator and
rotate clockwise until tight.
HAND TIGHTEN ONLY. DO NOT USE ANY HAND TOOLS TO MAKE THIS CONNECTION.
Be careful not to cross threads when screwing in the fitting.
To disconnect the LP-gas cylinder, first make sure the cylinder valve is in the "OFF" position.
Then, turn the knob on the regulator assembly counterclockwise until it is loose.
WARNING: Before connecting, be sure there is no debris caught in the head of the LP-gas
cylinder regulator valve or in the head of the burner and burner ports.
II
C
BB
20 lbs
12.2 in.
20 lbs
17.9 in.

Securing the Cylinder
Assembly
STEP 11
Requires: G
TM21PATHTRSS1
Attach the strap inside of the cylinder housing assembly to secure the cylinder. Then, close the
door on the cylinder housing assembly (G) to complete installation.
STEP 12
Requires: HH, C
Installing the Battery
To install the battery (HH), unscrew the igniter cap preassembled to the burner assembly (C).
Insert the battery (HH) into the igniter, ensuring the positive "+" end faces outward. Then
replace the igniter cap.
G
CDD
Ignite r
Igniter C
Igniter
HH

Operation
TM21PATHTRSS1
CHECKING FOR LEAKS

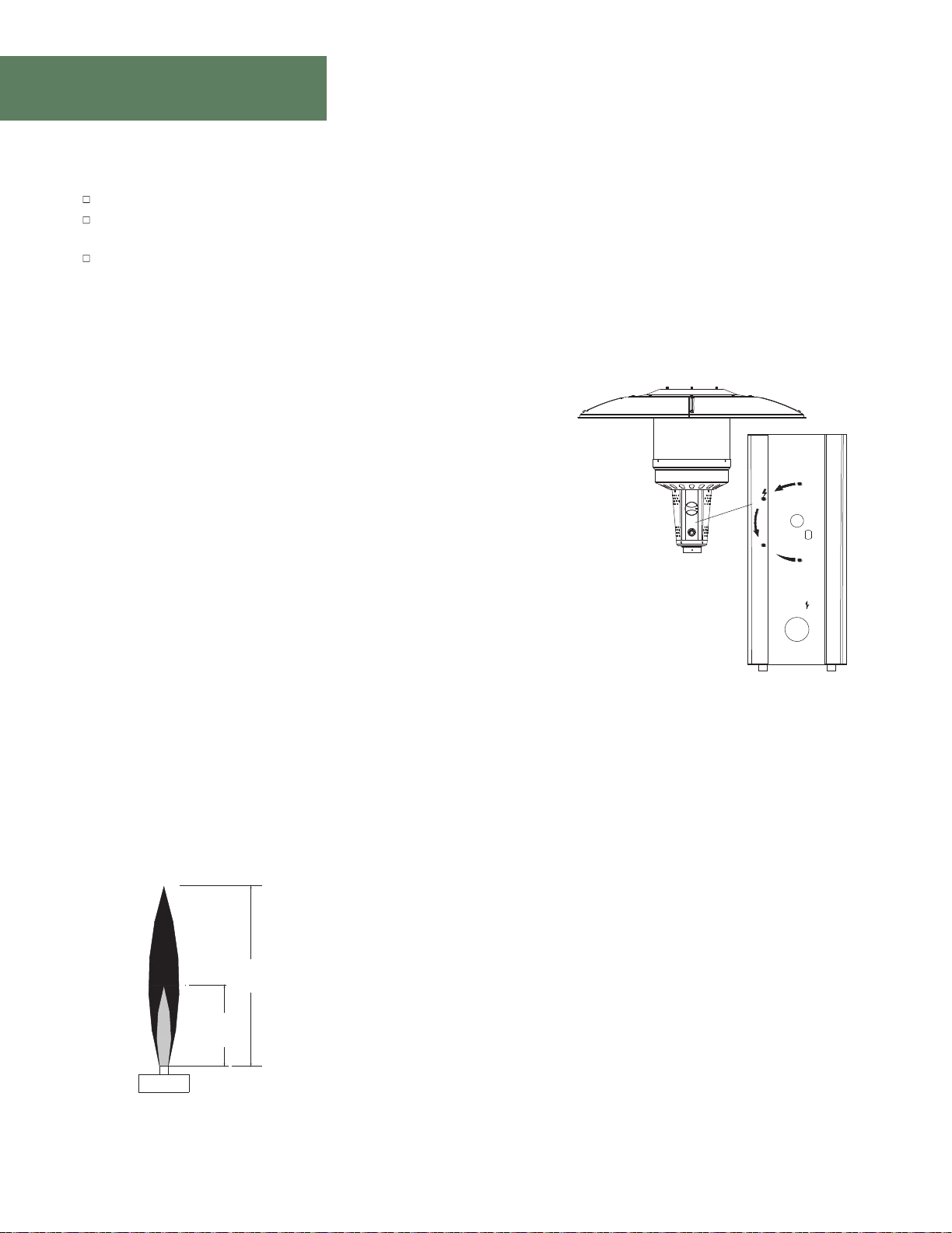

LIGHTING INSTRUCTIONS
FOR COMPLETE SHUTDOWN
Make leakage solution by mixing 1-part liquid dish soap and 3-parts water.
Spoon or brush several drops (or use squirt bottle) of the solution onto the gas hose/regulator and regulator/cylinder and hose
connections.
Turn on the gas cylinder valve. Inspect the connections and look for bubbles.
1. If no bubbles appear, the connection is safe.
2. If bubbles appear, there is leakage. Loosen and re-tighten this connection. If it still leaks, please call customer service.
1. Ensure that the LP gas tank valve is OFF.
2. Push the control knob in, turn to OFF, and wait 5 minutes for any gas to
clear.
3. Turn the LP tank valve ON.
4. Push the control knob in and slowly rotate to HIGH. This will activate the
built-in igniter and light the burner. Once the burner is lit, hold the control
knob in for 30 seconds and then release. If the burner fails to remain lit or
becomes extinguished, repeat step 4 before attempting to relight.
5. Turn the control knob from LOW to HIGH to the desired heat setting.
1. Please turn the knob to LOW first, then push and turn to OFF for complete
shut off.
2. Turn the LP gas tank valve OFF before removing the LP gas tank.
If you experience any ignition problem, turn off theheaterand gas supply, and consult “TROUBLESHOOTING” page.
Visually check the burner flame against the illustrations below:
Flame should be blue with slight yellow tips.
You should see a smaller flame in LOW position than seen on HIGH. Perform flame check prior to each use. If only low flame is
seen, refer to “Burner flame is low” on the “TROUBLESHOOTING” page.
push
OFF
PUSH
LOW
Igniter
HIGH
High
Low

Operation (cont.)
TM21PATHTRSS1
If you are unable to ignite the heater using the normal method, please use the ignition bar with a match to reach the burner for
ignition through the hole on the bottom of burner diffuser. Insert the match from the back side of the burner assembly which is
opposite of the control panel.
WARNING: If at any time you are unable to light the burner and
smell gas, wait 5 minutes to allow gas to dissipate before attempting
to light the heater.
WARNING: DO NOT touch or move the heater for at least 45
minutes after use. Allow the emitter and dome to cool before
touching.
CAUTION: Avoid inhaling fumes emitted from the heater’s rst
use. Smoke and odor from the burning of oils used in manufacturing
will appear. Both smoke and odor will dissipate after approximately
30 minutes. The heater should NOT produce thick black smoke.
Cleaning & Maintenance
Abrasive cleaners will damage this product.
NOTE: A slight pop is normal when burner is extinguished.
Never use oven cleaner to clean any part of the heater.
Do not clean any heater part in a self-cleaning oven. The extreme heat will damage the finish.
More frequent cleaning may be required as necessary. It is imperative that control compartment, burners and circulating air
passageways of the heater be kept clean.
Spiders and insects can create a dangerous condition that may damage heater or make it unsafe. Keep the burner area clean of
all spiders, webs or insects. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller
particles.
Inspect the heater before each use.
Have heater inspected annually and repairs should be made by a qualified service person.
Check heater immediately if any of the following conditions exist:
a. The smell of gas in conjunction with extreme yellow tipping of burner flames.
b. Heater does not reach proper temperature.
c. Heater’s glow is excessively uneven.
d. Burner makes popping noises during use.
Carbon deposits may create a fire hazard. Keep dome and emitter clean at all times.
Do not clean heater with combustible or corrosive cleaners. Use warm, soapy water.
This heater should be thoroughly cleaned on a regular basis.
After a period of storage and/or no use, check for leaks, burner obstructions and inspect for any abrasion, wear, and cuts to the
hose.

Cleaning & Maintenance
TM21PATHTRSS1
CLEANING
MAINTENANCE
STORAGE
Wipe surfaces clean with mild dish detergent or baking soda.
For stubborn surfaces use a citrus-based degreaser and a nylon scrubbing brush.
Rinse clean with water.
NOTE:
1. While cleaning the unit, be sure to keep the area around the burner and pilot assembly
dry at all times. Do not submerge the control valve assembly. If the gas control is
submerged in water, do NOT use it. It must be replaced.
2. Use high-quality automobile wax to help maintain the appearance of the heater. Apply to
exterior surfaces from the pole down. Do not apply to emitter screen or domes
Keep exterior surfaces clean.
Air flow must be unobstructed. Keep the controls, burner and circulating air passageways clean.
Signs of possible blockage include:
Gas odor with extreme yellow tipping of flame.
The heater does NOT reach the desired temperature.
The heater glow is excessively uneven.
The heater makes popping noises.
NOTE:
In a salt-air environment (such as near an ocean) corrosion occurs
more quickly than normal. Frequently check for corroded areas and
repair them promptly.
Between uses or during periods of extended inactivity:
Turn control knob to the "OFF" position.
Disconnect the LP cylinder and move to a secure, well-ventilated location outdoors.
Store the heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and
debris).
NOTE:
Never leave LP gas tank exposed to direct sunlight or excessive heat.
If desired, use cover(s) to protect the heater and help prevent buildup
in air passages.
CAUTION:
Wait until heater is cool before covering.

Troubleshooting
TM21PATHTRSS1
The burner does not
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
light.
1. The gas pressure is low.
2. The orifice is blocked.
3. The control knob is not in the “ON” position.
1. Turn the gas cylinder valve “OFF” and replace the
cylinder.
2. Clear the blockage.
3. Turn the control knob to the "ON" position.
The burner flame is
low.
1. The gas pressure is low.
2. The control knob is not positioned at “High”.
3. The burner jet is partially blocked.
4. Outdoor temperature is less than 40°F and tank
is less than 1/4 full.
5. The supply hose is bent or kinked.
1. Turn the gas cylinder valve “OFF” and replace the
cylinder.
2. Position the control knob to the "HIGH" position.
3. Clear blockage.
4. Use a full gas cylinder.
5. Straighten the hose.
There is carbon
build up.
Seasonal accumulation. Wipe off before lighting.
There is thick black
smoke.
There is blockage in the burner.
outside.
Remove blockage and clean the burner inside and

Service Parts
TM21PATHTRSS1
A
D
210H001
5206364
210H002
2413334
2406521
2409604
2420073
5007755
5007756
5207458
2409043
B E
C F
C1 G
C2 8736025
210H003
5212715
2404746
5212714
210H004
2414133
210H005
H
C3 I
4C J
retingI5C K
C6
7C
hctiwStliT8C
B
A
D
E
F
G
H
I
J
K
C1
C3
C4
C5
C6
C7
C8
C
C2
DESCRIPTION PART #PART DESCRIPTION PART #PART
Burner Assembly
Top Dome
KD Dome
Knob
Burner Chamber Assembly
Insulation Plate
Control Panel
Ignition Pin
Thermocouple
Upper Pole
Beauty Ring
Lower Pole Assembly
Cylinder Housing Assembly
Base
Wheel Assembly
Weight Plate
Hardware Pack

Warranty
Outdoor Furniture
IMPORTANT
If you have any problems with this product (missing or damaged parts, assembly issues, etc.),
PLEASE DO NOT RETURN TO THE RETAILER/STORE
from where you purchased the product.
Please call our Toll-Free Customer Service Hotline at:
1-866-988-3300
To expedite any future warranty claims, please retain the instruction sheet, warranty card and
receipt for future use.
Care and Maintenance
Store furniture in an upright position. Be careful to never allow water to build up in frames as this
will cause corrosion and freeze damage in cold climates. Wash all frames with a solution of mild
soap and water. Rinse with clean water and dry with a soft absorbent cloth towel. Frames can be
treated with a liquid wax for maximum protection against UV rays and/or salty, damp air. If your
set includes cushions, slings, and/or an umbrella they may be cleaned by hand with a solution of
soap and water with a clean water rinse. (Never machine wash cushions, slings or umbrella covers
as this will result in shrinkage or damage). After cleaning cushions tip on end and allow to drip
dry. (Never use a commercial or home dryer to tumble dry fabric goods). Do not use bleach or
solvents to clean any product! This will void the warranty.
TM21PATHTRSS1

Warranty
Outdoor Furniture
1-YEAR LIMITED WARRANTY PROGRAM
For a period of one (1) year after date of purchase, the Manufacturer will either repair or replace defective
components in accordance with this Limited Warranty. This warranty is between the Manufacturer and the
original purchaser and is valid only when accompanied by the original purchaser’s sales receipt showing
original date of purchase and location of purchase. Replacements under this warranty revert back to the
date of original purchase for future warranty.
warranty applies in normal residential use only and is not intended for commercial use. The Manufacturer
can make substitutions as required of materials, components, and sub-components of comparable value
and utility. This warranty is limited to product repair or replacement (to be determined solely by the
Manufacturer). Warranty return is limited to only the single affected component.
This limited warranty covers only manufacturing defects and does not cover normal wear and tear, damage
due to acts of nature (such as, but not limited to freezing or high winds), abuse or misuse, including
chemical damage from suntan oil or other chemicals, exposure to extreme heat or cold, abrasion or
excessive weight. This product is intended to be used in standard installations only. This warranty is void
if the product is not used for its intended purpose. The Manufacturer disclaims liability for any aspect of
installation and any inconvenience caused by a defective part of a component.
Certain items are not covered by this warranty. These include, but are not limited to the following:
1. Components subjected to abuse, including abuse intended to simulate failure.
2. Damages caused by retailer, shipper or installation crew (such as scratches, dents, tears, chips, etc.).
3. Any part which merely exhibits normal wear yet functions essentially as new, including chips, scratches or
stretching of materials and stitching.
4. Tears, punctures, scratches or any damage caused by improper installation or use.
5. Damage to frames/welds resulting from improper assembly or exposure to water and/or sub-freezing
temperatures is not covered. General frame rusting is not covered.
6. Fading and/or discoloration of fabrics/cushions/straps/wicker resulting from exposure to the elements,
7. Umbrella bases are not covered under any circumstances.
To make a claim, call the toll-free number below. Please have available a copy of the original sales receipt
along with a brief description of the problem. Please also provide your email address and daytime telephone
or cell phone number. All items may be charged actual freight costs plus $15 for handling. Repairs or
replacement will be made at the Manufacturer’s option. Sales and use taxes, plus shipping and handling
charges are the responsibility of the consumer.
THIS IS THE ENTIRE EXCLUSIVE EXPRESS LIMITED LIABILITY. THE MANUFACTURER NEITHER MAKES
THOSE OF RETAILING DEALERS. THIS EXCLUSIVE REMEDY IS LIMITED TO RECEIPT OF A CREDIT IN
CONNECTION WITH THE REPAIR OR REPLACEMENT OF ANY PRODUCT OR COMPONENT DEEMED
TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS AS STATED IN THIS WARRANTY. NEITHER
ARISING OUT OF ANY BREACH OF THIS WARRANTY OR NEGLIGENCE EVEN IF IT HAS BEEN ADVISED
ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES OTHER THAN THE WARRANTY DESCRIBED
OR FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY DISCLAIMED.
TM21PATHTRSS1
