Royal Well Chili Pepper RW2277 User manual

Chili Pepper
Montagehandleiding / Instructions de montage /
Montageanleitung / Manual
1
120 L x 138 W x 35/43 H cm RW2277
H
W
L
• Monteer de ramen
aan de nokbalk met
behulp van de
scharnieren
• Montez les fenêtres
à la poutre faîtière en
utilisant des charnières
• Mount the windows to
the ridge beam using
hinges
• Montieren Sie die Fen
ster in den Firstbalken
mit Scharnieren
3
• Monteer de
verbindingsbalk
in de nok
• Monter la
traverse dans les
chevrons
• Mount the cross
beam in the
rafters
• Montieren Sie
den Querbalken
in den Dach
sparren
2
• Monteer de zijpa
nelen aan de fron
ten, elke kant met 6
schroeven
• Fixez les panneaux
latéraux sur les
fronts, de chaque
côté avec six vis
• Attach the side
panels on the
fronts, each side
with six screws
• Bringen Sie die
Seitenteile an den
Fronten, jede Seite
mit 6 Schrauben
1
Nr. x
7 40
8 12
9 2
Nr. x
4 2
5 8
628
Nr. x
1 2
2 1
3 2
Assembly Instructions
Helpline Number
If you have any problems or queries with this product please call our helpline on
[phone] between the hours of 9am to 5.30pm Monday to Friday.
Gardman Limited, High Street, Moulton, Spalding, Lincolnshire PE12 6QD
08896
Wooden growhouse
Before You Start
Please check that all components are present and read through
these instructions carefully.
Assembly
1. Check all screws are tight in the ready-made frame sections
but avoid over-tightening.
2. Do not yet remove the protective covers on the
polycarbonate glazing: note the cover is on the outside of the
panels.
3. Assemble the back and side frames, and front braces (parts A,
C1, C2 & C3) using the large screws (H) and the pre-drilled
holes in the frame (See Fig 1).
4. Fix the base plates (G) on the underside of two corners as
required using screws (J).
5. Add the shelves (K) to the shelf supports.
6. Place the lid (B) in position so that the hinges are at the back
and are facing downwards. Line up the lid with the frame
sides and hold firmly whilst attaching the hinges to the back
panel (A) using screws (I) (see Fig 3).
7. To assemble the lid support arms:
a. Pass the washers over bolts (F) and insert the bolts, from
the outside, through the slots in the support arms and
into the pre-drilled holes in the sides (C). Screw in part
way to secure them (see Fig 5).
b. The wing bolt can be tightened when the lid is in the
required position.
8. Attach the doors (D) in the same way as the lid in point 6
above, lining up the doors with the frame and attaching with
screws (I) (see Fig 5).
9. Attach one door latch (P) to the centre of the top bar so that
it catches both doors and the other to the outside of one
door as shown.
10. To complete the assembly, peel off the protective sheet from
the polycarbonate panels and site the Growhouse in good
light but out of prolonged fierce sunlight. Use the corner base
plates to peg or bolt down the Growhouse if extra security
is required.
Care & maintenance
• Extra coatings of wood preservative will prolong the life of
the product but be sure to use one that is harmless to plants.
• Avoid constant contact with wet soil by mounting the frame
on bricks, slabs or wooden battens.
Parts & Fittings Supplied
M3.5x20
Assembly Instructions
Helpline Number
If you have any problems or queries with this product please call our helpline on
[phone] between the hours of 9am to 5.30pm Monday to Friday.
Gardman Limited, High Street, Moulton, Spalding, Lincolnshire PE12 6QD
08896
Wooden growhouse
Before You Start
Please check that all components are present and read through
these instructions carefully.
Assembly
1. Check all screws are tight in the ready-made frame sections
but avoid over-tightening.
2. Do not yet remove the protective covers on the
polycarbonate glazing: note the cover is on the outside of the
panels.
3. Assemble the back and side frames, and front braces (parts A,
C1, C2 & C3) using the large screws (H) and the pre-drilled
holes in the frame (See Fig 1).
4. Fix the base plates (G) on the underside of two corners as
required using screws (J).
5. Add the shelves (K) to the shelf supports.
6. Place the lid (B) in position so that the hinges are at the back
and are facing downwards. Line up the lid with the frame
sides and hold firmly whilst attaching the hinges to the back
panel (A) using screws (I) (see Fig 3).
7. To assemble the lid support arms:
a. Pass the washers over bolts (F) and insert the bolts, from
the outside, through the slots in the support arms and
into the pre-drilled holes in the sides (C). Screw in part
way to secure them (see Fig 5).
b. The wing bolt can be tightened when the lid is in the
required position.
8. Attach the doors (D) in the same way as the lid in point 6
above, lining up the doors with the frame and attaching with
screws (I) (see Fig 5).
9. Attach one door latch (P) to the centre of the top bar so that
it catches both doors and the other to the outside of one
door as shown.
10. To complete the assembly, peel off the protective sheet from
the polycarbonate panels and site the Growhouse in good
light but out of prolonged fierce sunlight. Use the corner base
plates to peg or bolt down the Growhouse if extra security
is required.
Care & maintenance
• Extra coatings of wood preservative will prolong the life of
the product but be sure to use one that is harmless to plants.
• Avoid constant contact with wet soil by mounting the frame
on bricks, slabs or wooden battens.
Parts & Fittings Supplied
M3.5x15
Assembly Instructions
Helpline Number
If you have any problems or queries with this product please call our helpline on
[phone] between the hours of 9am to 5.30pm Monday to Friday.
Gardman Limited, High Street, Moulton, Spalding, Lincolnshire PE12 6QD
08896
Wooden growhouse
Before You Start
Please check that all components are present and read through
these instructions carefully.
Assembly
1. Check all screws are tight in the ready-made frame sections
but avoid over-tightening.
2. Do not yet remove the protective covers on the
polycarbonate glazing: note the cover is on the outside of the
panels.
3. Assemble the back and side frames, and front braces (parts A,
C1, C2 & C3) using the large screws (H) and the pre-drilled
holes in the frame (See Fig 1).
4. Fix the base plates (G) on the underside of two corners as
required using screws (J).
5. Add the shelves (K) to the shelf supports.
6. Place the lid (B) in position so that the hinges are at the back
and are facing downwards. Line up the lid with the frame
sides and hold firmly whilst attaching the hinges to the back
panel (A) using screws (I) (see Fig 3).
7. To assemble the lid support arms:
a. Pass the washers over bolts (F) and insert the bolts, from
the outside, through the slots in the support arms and
into the pre-drilled holes in the sides (C). Screw in part
way to secure them (see Fig 5).
b. The wing bolt can be tightened when the lid is in the
required position.
8. Attach the doors (D) in the same way as the lid in point 6
above, lining up the doors with the frame and attaching with
screws (I) (see Fig 5).
9. Attach one door latch (P) to the centre of the top bar so that
it catches both doors and the other to the outside of one
door as shown.
10. To complete the assembly, peel off the protective sheet from
the polycarbonate panels and site the Growhouse in good
light but out of prolonged fierce sunlight. Use the corner base
plates to peg or bolt down the Growhouse if extra security
is required.
Care & maintenance
• Extra coatings of wood preservative will prolong the life of
the product but be sure to use one that is harmless to plants.
• Avoid constant contact with wet soil by mounting the frame
on bricks, slabs or wooden battens.
Parts & Fittings Supplied
M3.5x45
ONDERHOUDSADVIES & TIPS
1. Plaats de broeikas op 4 stelstenen, onder iedere hoek één.
Gebruik hiervoor bv klinkers of oude tegels.
2. Behandel de delen die in aanraking komen met aarde
met een beits voor tuinhout. Herhaal deze behandeling jaarlijks.
3. Bij harde wind dient het raam verzwaard te worden of
bevestigd te worden aan het frame.

2
www.royalwellkassen.nl
Montagehandleiding / Instructions de montage /
Montageanleitung / Manual

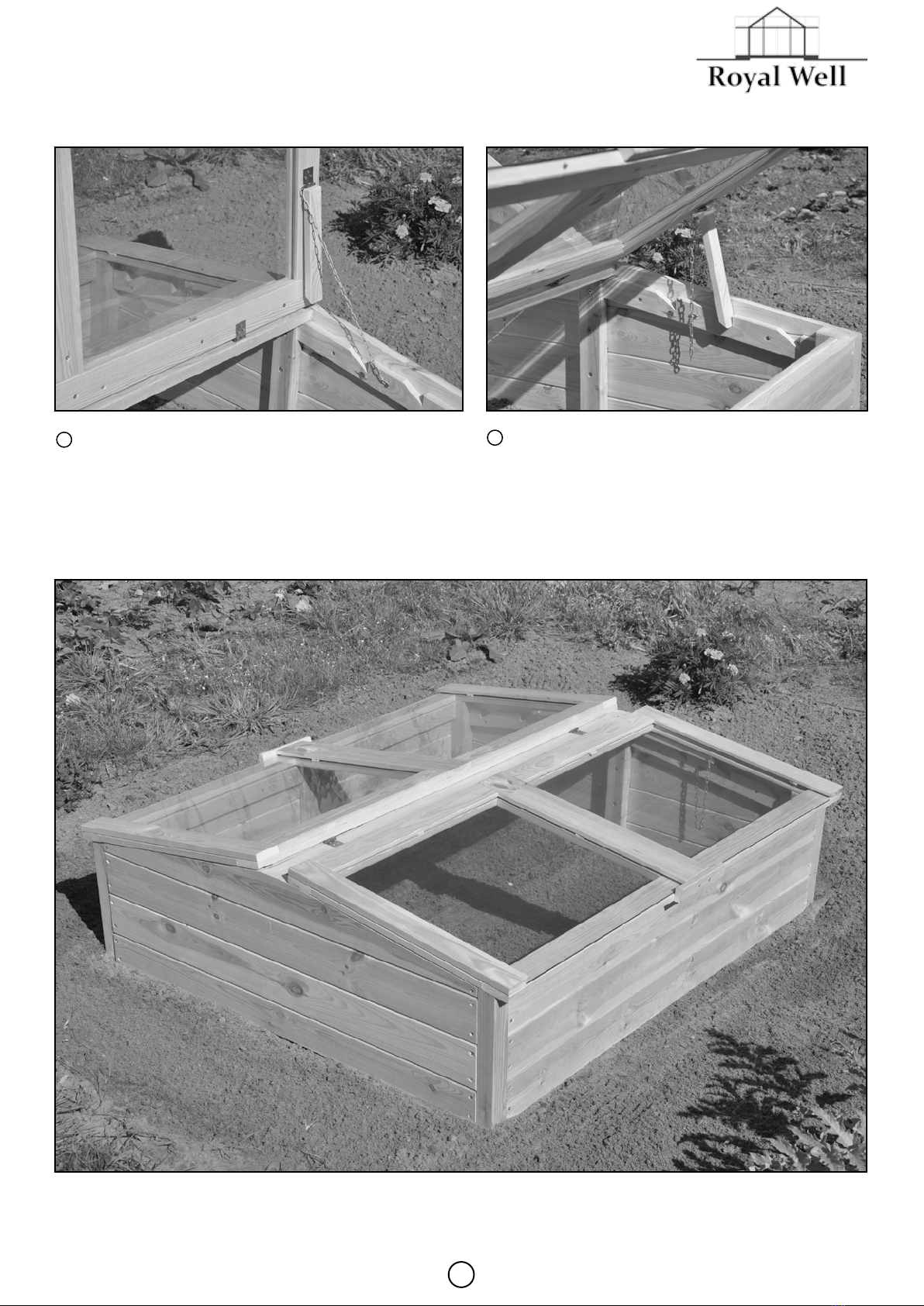

• Houten raamuitzetter met 3 standen
• Fenêtre en bois extension dans 3 positions
• Wooden window expander in 3 positions
• Hölzerne Fenster Expander in 3 Positionen
5
• Monteer de metalen ketting aan het raam en frame,
zodat het raam in de stand ‘open’ blijft staan.
• Monter la chaîne métallique pour châssis de fenêtre
de sorte que la fenêtre reste ouverte dans l’état.
• Mount the metal chain to the window frame so that
the window remains open in the state.
• Montieren Sie die Metall-Kette an den Fensterrahmen,
so dass das Fenster bleibt im Zustand offen.
4
