Royal Well Sweet Tomato User manual

Nr. x
H 8
I 6
J 8
Nr. x
D 1
E 2
F 2
G 2
Sweet Tomato
Nr. x
A 1
B 1
C1 1
C2 1
1
Assembly Instructions
Helpline Number
If you have any problems or queries with this product please call our helpline on
[phone] between the hours of 9am to 5.30pm Monday to Friday.
Gardman Limited, High Street, Moulton, Spalding, Lincolnshire PE12 6QD
08895
Wooden cold frame
Before You Start
Please check that all components are present and read through
these instructions carefully.
Assembly

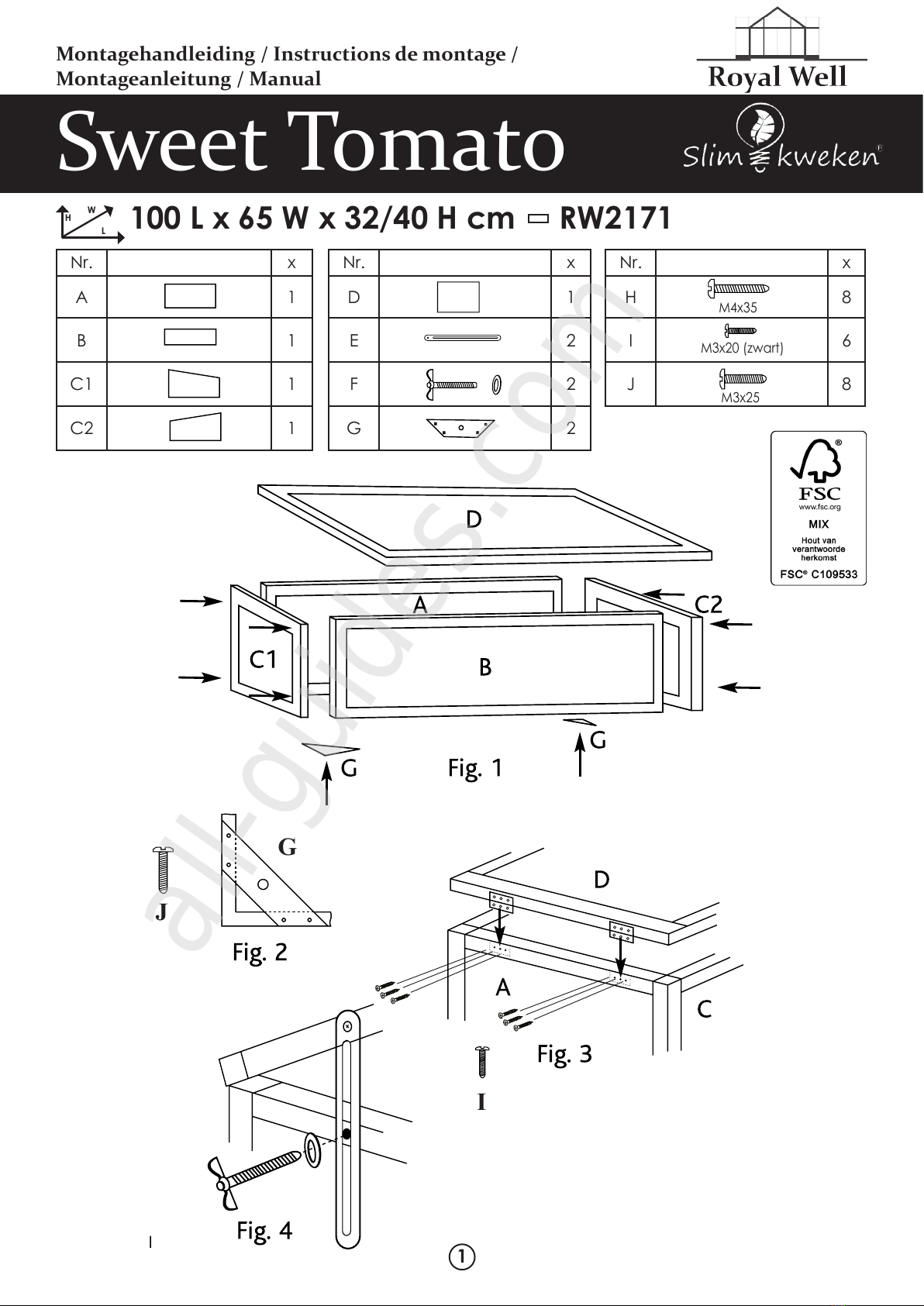

1. Check all screws are tight in the ready-made frame sections
but avoid over-tightening.
2. Do not yet remove the protective covers on the
polycarbonate glazing: note the cover is on the outside of
the panels.
3. Assemble the frame body (parts A, B, & C1 & C2) using the
large screws (H) and the pre-drilled holes in the frame.
(See Fig 1).
4. Fix the base plates (G) on the underside of two corners as
required, using screws (J).
5. Place the lid (D) in position so that the hinges are at the
back and are facing downwards. Line up the lid with the
frame sides and hold firmly whilst attaching the hinges to
the back panel (A) using screws (I). (See Fig 3).
6. To assemble the lid support arms:
a. Pass the washers over bolts (F) and insert the bolts, from
the outside, through the slots in the support arms and
into the pre-drilled holes in the sides (C1 & C2). Screw in
part way to secure it. (See Fig 4).
b. Tighten the wing bolt when the lid is in the required
position.
7. To complete the assembly, peel off the protective sheet
from the polycarbonate panels and site the cold frame in
good light but out of prolonged fierce sunlight. Use the
corner base plates to peg or bolt down the cold frame if
extra security is required.
Care & maintenance
• Extra coatings of wood preservative will prolong the life
of the product but be sure to use one that is harmless to
plants.
• Avoid constant contact with wet soil by mounting the
frame on bricks, slabs or wooden battens.
