INTRODUCTION:
Congratulations on purchasing your new CASARELAIS control module.
To ensure continued enjoyment of the product, please some evidence to note:
Check the packaging for optical transport damage, if any, please contact your dea-
ler or the transport company.
TECHNICAL DATA:
CO-CASARELAIS
Input voltage AC: 230V
Max. voltage: 250V AC / 28V DC
Powerfactor: 0,4
Max. power: 1500 VA (AC) / 165 W (DC)
Reserve: 0,15W
Terminals diameter: max. 1,5mm²
Frequency band: 2,4…2,483 Ghz
Max. transmission power: +4 dBm
Switching cycles: 50.000
Consumer: ohmic load
Temperature range: -20 C° to +50 C°
Certifi cates: CE, RoHs
Protection class: IP20
Dimensions: 143 x 38 x 27mm
Material: Polycarbonate
Max. housing temperature: +60C°
Storage temperature: -25C° to +75C°
PROGRAMMING NOTE:
- 2 potential-free contacts – connect external circuit
- Regard max. load per contact

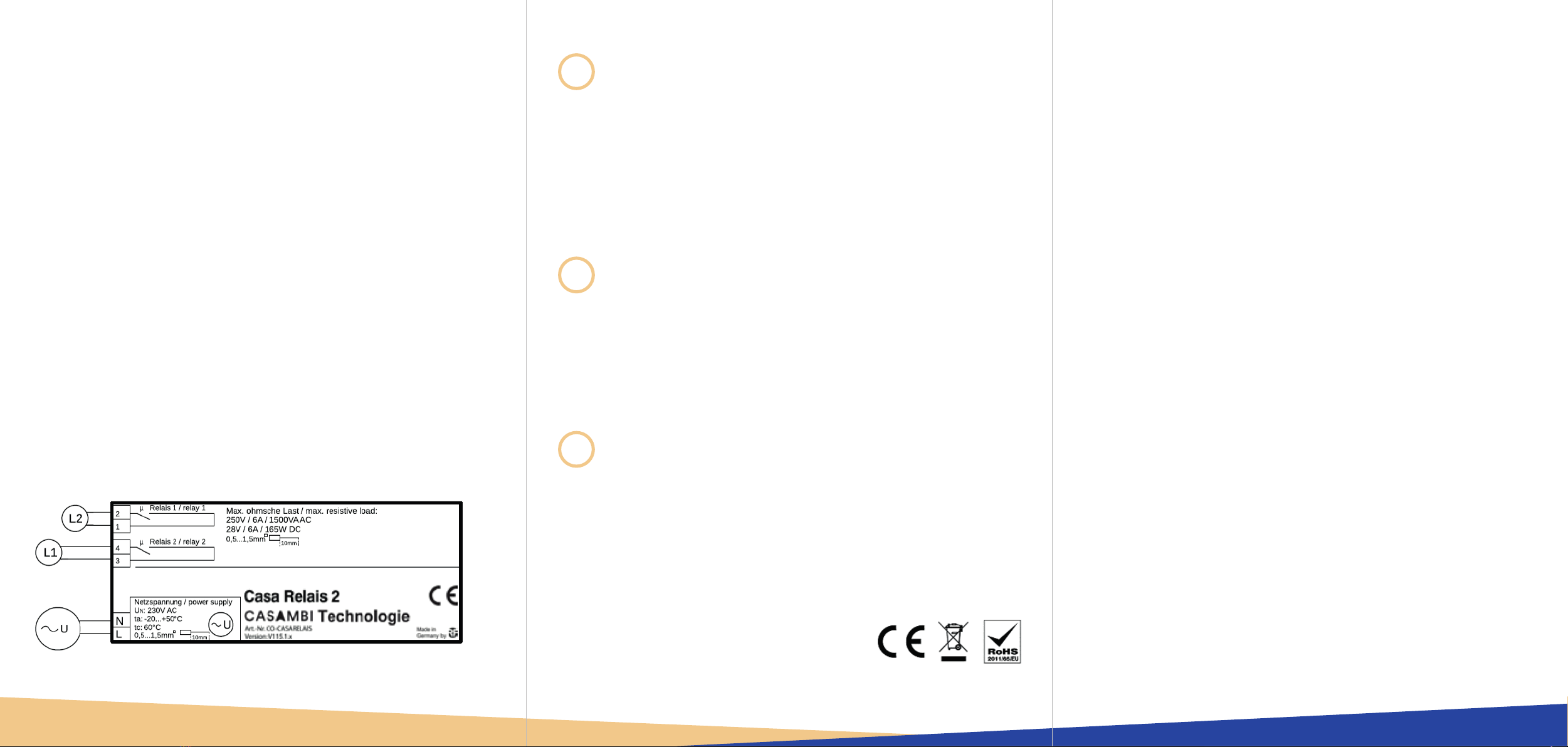

CONNECTION PLAN:
UNBOXING:
Take the product carefully out of the packaging and remove any transport protection
or protective fi lm. Before disposing of the packaging, please check that all parts of
the product have been removed. Check the packaging for completeness:
1x CO-CASARELAIS
Is everything complete? Then the assembly can begin...
1
INSTALLATION SITE:
The product is only to be used for indoor assembly.
Note that the electrical connection may only be carried out by a qualifi ed electrici-
an. For safe installation, the product may only be installed on a stable surface. No
installation on or near (50cm) fl ammable materials.
2
!
SAFETY NOTICE:
Work on electrical systems and electrical equipment may only be carried out by a qua-
lifi ed electrician. It is essential to disconnect the electrical line from the power supply
before starting installation.
DISPOSAL INFORMATION:
Do not dispose this product in household waste!
Products with the symbol WEEE, 2003/108 must
be disposed at the local electronic waste disposal!
If the housing is opened, the guarantee expires!
DESCRIPTION:
The CASARELAIS module has two independent potential-free contacts. The fi rm-
ware can easily be downloaded free of charge from the “Play Store” (Google Andro-
id) or from the “App Store” (Apple) using the CASAMBI app loaded and used. The
entire confi guration and settings takes place exclusively via the app.
You can obtain more information about the CASAMBI product range from our sales
team, who can also off er you complete solutions.
