Catalog #
Type
Project

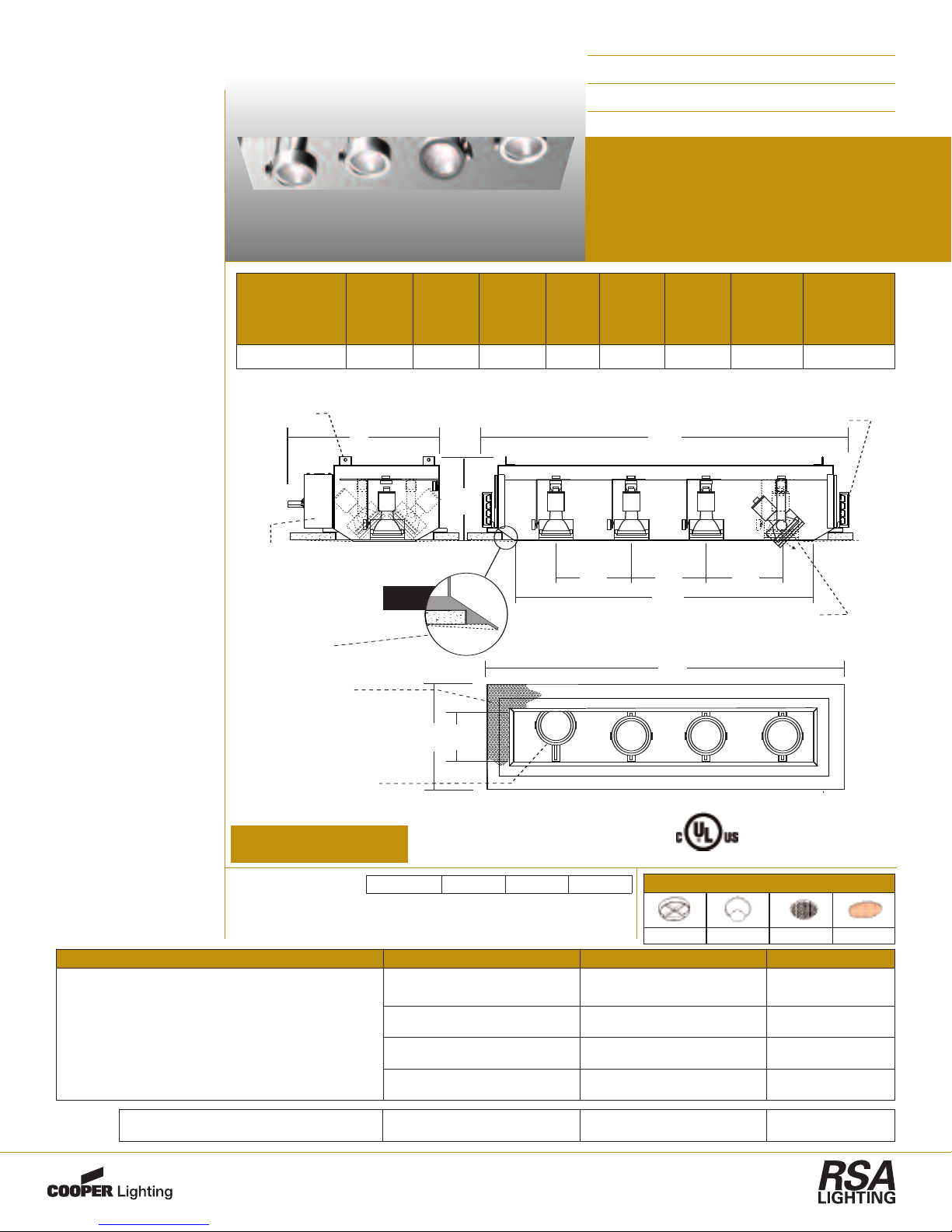

COMBOLIGHT®LV Series
FOUR (4) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
PAR20 Metal Halide
6.75"6.75"6.75"
A
B
C
ED
F
G
380º x 45º locking
angular adjustment

45º visual cut-off
Perforated mesh plaster 
frame adheres to ceiling 
compound for seamless 
trimless mounting.
Beveled housing interior and 
standard retractable yokes allow 
lamp holders to slide within the 
housing for added adjustability.
Trimless
Detail
Ceiling mudding 
compound is applied 
directly to the edge 
of the aperture. 
Tabs for aircraft 
cable suspension
above ceiling
Side mounted compartment
houses wiring, Aromat® 
electronic ballasts and 
thervmal protector. 
Accessible through 
fixture opening.
Butterfly Brackets
for Black Iron mounting
Other Adders
CC - Two Circuit
CP - Chicago Plenum
RECESSED PAR20MH
LV TRIMLESS
Cat. # / Description Interior Finish Lamp Wattage Voltage
LV240MH : 4Light Recessed Next Generation Trimless
Combo Fixture
PAR20MH
BK - Black 39 - 39 Watt PAR20MH 120 - 120 Volt
(Standard)
WH - White 277 - 277 Volt
S - Silver
PT - Custom (Specify)
LV240MH
SPECIFY -
Dimensions A
Housing
Length
B
Housing
Height
C
Aperture
Length
D
Aperture
Width
E
Plaster Frame
Width
F
Plaster Frame
Length
G
Above Ceiling
Width
Ceiling
Cut-Out
33.75” 7.09” 28.00” 5.30” 11.05” 33.75” 13.25” 31.20” x 8.50”
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
DESCRIPTION:
An adjustable PAR20MH fixture
suitable for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50” or
0.625” drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
4-PAR20MH lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
aroundfixture.Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Integral Aromat® electronic
metal halide ballsts. Junction box
is UL listed for through branch
wiring, (access above ceiling not
required) for 8 #12, 90°C supply
conductors or 60°C for end of run.
Ballasts and electrical accessible
through ceiling opening via
access door on housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
ORDERING EXAMPLE:
=One Light Trimless Recessed PAR20MH - White Interior - 39 watt lamps -
120 Volt
LV240MH WH 39 120
Includes Aromat® Electronic
Metal Halide Ballasts
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
