Rsrteng IPC-7600 Plus Series User manual
IP CAMERA TESTER
IPC-7600 Plus series
User Manual
(V01.00)
IPC-7600 Plus
IPC-7600C Plus
IPC-7600ADH Plus
IPC-7600CADH Plus
IPC-7600ADHS Plus
IPC-7600CADHS Plus
IPC-7600COTADHS Plus
IPC-7600CVTADHS Plus
IPC-7600COVTADHS Plus
Thank you for purchasing the Rsrteng IP camera tester. Please read the manual before using the
IP camera tester and use properly.
For using the IP camera tester safely, please first read the [Safety Information] carefully in the
manual.
The manual should be kept well in case of reference.
Keep the S/N label for after-sale service within warranty period. Product without S/N label will
be charged for repair service.
If there is any question or problem while using the IP camera tester, or damages occurred on the
product, please contact our technical Department.
IP CAMERA TESTER User Manual
Content
1. Safety information......................................................................................................................1
2. IP Camera Tester Introduction.................................................................................................2
2.1 General...................................................................................................................................2
2.2 Packing list.............................................................................................................................2
2.3 Function interface...................................................................................................................3
3. Operation....................................................................................................................................6
3.1 Installing the Battery...............................................................................................................6
3.2 Instrument connection ............................................................................................................7
3.2.1 IP camera connection......................................................................................................7
3.2.2 Analog camera connection..............................................................................................8
3.2.3 HD Coaxial camera connection.......................................................................................9
3.2.4 HDMI and VGA input (* Optional) ..............................................................................10
3.2.5 HDMI output.................................................................................................................10
3.3 OSD menu............................................................................................................................10
3.3.1 Drop-down Menu..........................................................................................................11
3.3.2 Short-cut menu..............................................................................................................12
3.3.3 Screen capture...............................................................................................................13
3.3.4 Link monitor .................................................................................................................13
3.3.5 TesterPlay .....................................................................................................................15
3.3.6 IP discovery ..................................................................................................................16
3.3.7 IPC Test pro..................................................................................................................17
3.3.8 Rapid ONVIF................................................................................................................18
3.3.9 Non-ONVIF..................................................................................................................31
3.3.10 HDMI and VGA ( *Optional ) ....................................................................................33
3.3.11 Analog camera test......................................................................................................37
3.3.12 Auto HD ( *Optional ).................................................................................................42
3.3.13 HD Coaxial & Analog level test (* Optional ).............................................................43
IP CAMERA TESTER User Manual
3.3.14 SDI Camera Test (*Optional ).....................................................................................45
3.3.15 CVI camera test (*Optional)........................................................................................45
3.3.16 TVI camera test (* Optional).......................................................................................52
3.3.17 AHD camera test (* Optional )....................................................................................53
3.3.18 NET TOOL PRO.........................................................................................................55
3.3.19 PoE power / DC12V 3A and DC 5V 2A USB power output.......................................62
3.3.20 DC 24V 2A power output............................................................................................63
3.3.21 Cable Test ...................................................................................................................64
3.3.22 RJ45 cable TDR test....................................................................................................65
3.3.23 Cable Tracer (*Optional )............................................................................................68
3.3.24 TDR cable test (*Optional) .........................................................................................69
3.3.25 PoE Voltage test..........................................................................................................72
3.3.26 12V power input test...................................................................................................73
3.3.27 Optical power meter (*Optional).................................................................................74
3.3.28 Visual Fault Locator (*Optional).................................................................................76
3.3.29 Audio Record..............................................................................................................77
3.3.30 Data monitor ...............................................................................................................77
3.3.31 Audio player................................................................................................................78
3.3.32 Media Player...............................................................................................................78
3.3.33 RTSP Player................................................................................................................79
3.3.34 Hik test tool.................................................................................................................80
3.3.35 Dahua test tool ............................................................................................................84
3.3.36 Update.........................................................................................................................89
3.3.37 Office..........................................................................................................................90
3.3.38 LED Flashlight............................................................................................................91
3.3.39 Browser.......................................................................................................................91
3.3.40 Notepad.......................................................................................................................92
3.3.41 Professional WIFI Analyzer........................................................................................93
IP CAMERA TESTER User Manual
3.3.42 System Setting.............................................................................................................94
3.3.43 File explorer................................................................................................................98
3.3.44 Audio test..................................................................................................................100
4. Specifications..........................................................................................................................100
4.1 General Specifications........................................................................................................100
4.2 Optical power meter specifications.....................................................................................104
4.3 Visual fault locator specifications.......................................................................................105
5 . Contact us..............................................................................................................................105
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.1.
1. Safety information
◆The Rsrteng tester is intended to use in compliance with the local rules of the electrical usage and
avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station
etc.
◆To prevent the functional decline or failure, the product should not be sprinkled or damped.
◆The exposed part of the tester should not be touched by the dust and liquid.
◆During transportation and use, it is highly recommended to avoid the violent collision and vibration
of the tester, lest damaging components and causing failure.
◆Don't leave the tester alone while charging and recharging. If the battery is found severely hot, the
tester should be powered off from the electric source at once. The tester should not be charged over 8
hours.
◆Don't use the tester where the humidity is high. Once the tester is damp, power off immediately and
move away other connected cables.
◆The tester should not be used in the environment with the flammable gas.
◆Do not disassemble the instrument since no component inside can be repaired by the user. If the
disassembly is necessary indeed, please contact with the technician of our company.
◆The instrument should not be used under the environment with strong electromagnetic interference.
◆Don't touch the tester with wet hands or waterish things.
◆Don't use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to remove,
the soft cloth with water or neutral detergent can be used. But the cloth should be tweaked
sufficiently.
Visual laser sources
When you turn on visual laser sources, please don't stare at it, or will damage to eyes
When not using it, please turn it off and cover the protective cap.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.2.
2. IP Camera Tester Introduction
2.1 General
The Rsrteng 7 inch touch screen IP camera monitor is designed for maintenance and installation of IP
cameras, analog cameras, 8MP TVI*, 8MP CVI*, 8MP AHD*, 8MP EX-SDI* cameras, as well as
testing 8K H.265 /4K H.264 camera via mainstream, The 1280x800 resolution enables it to display
network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and
analog PTZ control. The combination of touch screen and key buttons make the IP camera tester very
user-friendly.
The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING, and IP
address searching. You can use the blue cable tracer to locate individual connected cables from a bundle
of cables. Test LAN cable for proper connection termination. Other functions include providing 30W
PoE power to your camera, HDMI input* and output, VGA input*, testing IP and analog at the same
time, LED light, DC 12V 3A, DC 24V 2A, power output and much more. Its portability, user-friendly
design and many other functions make the IP tester an essential tool for all installers or technicians.
2.2 Packing list
1). Tester
2). Adaptor DC12V 2A
3). Cable tester (models without the letter “C”) or Cable tracer (models with the letter “C”)
4). Polymer lithium ion battery (7.4V DC, 7800mAh, 57.72Wh)
5). BNC cable
6). RS485 cable
7). SC, ST connector (Only for IPC-7600COTADHS/CVTADHS/COVTADHS Plus)
8). Output Power cable
9). Audio cable
10). TDR alligator clamp (Only for IPC-7600COTADHS/CVTADHS/COVTADHS Plus)
11). Safety cord
12). Tool bag
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.3.
2.3 Function interface
Note: "*" is an optional function, not all models support this function, and the models that support this
function are listed in parentheses.
1
The charge indicator: it lights red while the battery is being charged. As the charging is
complete, the indicator turns off automatically
2
The RS485 data received indicator: it lights red while the data is being received
3
The power indicator: it lights green while the tester is powered on by the adapter
4
Menu key
5
Confirm key
6
Return/Close : Return or cancel while setting parameters of the menu
7
Zoom in the image
8
LED light switch
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.5.
9
PSE power supply input interface/LAN test interface/RJ45 cable TDR test interface
10
PoE power supply output/LAN test interface/ RJ45 cable TDR test interface
11
LED lamp
12
USB 5V 2A power output, transmit data
13
Video image AHD/TVI/CVI signal input* (BNC interface, model only: IPC-7600ADH Plus,
IPC-7600CADH Plus, IPC-7600ADHS Plus, IPC-7600CADHS Plus, IPC-7600COTADHS
Plus, IPC-7600CVTADHS Plus, IPC-7600COVTADHS Plus)
14
SDI image input* (BNC interface, model only: IPC-7600ADHS Plus, IPC-7600CADHS
Plus, IPC-7600COTADHS Plus, IPC-7600CVTADHS Plus, IPC-7600COVTADHS Plus)
15
Visible red laser source emits interface* (model only: IPC-7600CVTADHS Plus,
IPC-7600COVTADHS Plus)
16
Optical power meter interface* (model only: IPC-7600COTADHS Plus,
IPC-7600COVTADHS Plus)
17
Power key, Press more than 2 seconds, turn on or off the device, short press to turn on or off
the menu display
18
HDMI input* (model only: IPC-7600ADH Plus, IPC-7600CADH Plus, IPC-7600ADHS
Plus, IPC-7600CADHS Plus, IPC-7600COTADHS Plus, IPC-7600CVTADHS Plus,
IPC-7600COVTADHS Plus)
19
DC12V 3A power output, for provisional DC power supply
20
DC12V 2A charging interface
21
DC 24V 2A power output
22
Cut-off button, when the instrument system is abnormal, press it to make the instrument
power off immediately. After restarting the instrument with the power key, it can be restored
to normal use
23
Audio input
24
Audio output and earphone interface
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.6.
25
RS485 Interface, RS485 communication for the PTZ.
26
TDR cable test--RJ45 interface* (model only: IPC-7600COTADHSPlus,
IPC-7600CVTADHS Plus, IPC-7600COVTADHS Plus)
27
UTP cable test port: cable tester port / Cable tracer port.
28
HDMI output port
29
TDR cable test--alligator clamp interface* (model only: IPC-7600COTADHSPlus,
IPC-7600CVTADHS Plus, IPC-7600COVTADHS Plus)
30
VGA input* (model only: IPC-7600ADH Plus, IPC-7600CADH Plus, IPC-7600ADHS Plus,
IPC-7600CADHS Plus, IPC-7600COTADHS Plus, IPC-7600CVTADHS Plus,
IPC-7600COVTADHS Plus)
31
TF card slot, support TF card up to 32G, include a 8GB TF card
3. Operation
3.1 Installing the Battery
The tester has built-in lithium ion polymer rechargeable battery. The battery cable inside battery
cabin should be disconnected for safety during transportation!
Prior to the use of the instrument, the battery cables inside the battery cabin should be well
connected. Usually it doesn't need to disconnect the cable at the normal use.
Pressing the key continuously can power on or off the tester.
Notice: Please use the original adaptor and connected cable of the device!
When the battery icon is full or the charge indicator turns off automatically, indicate the battery
charging is completed.
Notice: When the Charge Indicator turns off, the battery is approximately 90% charged.
The charging time can be extended for about 1 hour and the charging time within 12 hours will not
damage the battery.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.7.
Notice: Press the key several seconds to restore the default settings when the instrument
works abnormally.
Multi-meter: the red and black multi-meter pen must insert the corresponding port.
Warnings: Instrument communication port is not permitted access circuit voltage over 6V,
otherwise damage the tester.
3.2 Instrument connection
3.2.1 IP camera connection
Power an IP camera with an independent power supply, then connect the IP camera to the IPC tester's
LAN port, if the link indicator of the tester's LAN port is green and the data indicator flickers, it means
the IP camera and the IPC tester are communicating. If the two indicators don't flicker, check if the IP
camera is powered on or the network cable is not functioning properly.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.8.
Note: 1) If the IP camera requires PoE power, then connect the IP camera to the IP tester's LAN port .
The tester will supply PoE Power for the IP camera. Click the icon POE to turn the PoE Power off or
on.
2)If use the tester's menu to turn off the tester's PoE power supply, the PoE switch and the power
sourcing equipment are allowed to connect to the tester's PSE port, and the PoE power will be supplied
to the IP camera by the tester's LAN port. On this condition, the tester cannot receive data from IP
camera, but the computer connected to the PoE switch can receive the data via the the tester.
Warning: PoE switch or PSE power sourcing equipment only can be connected to tester "PSE
IN" port, otherwise will damage the tester.
3.2.2 Analog camera connection
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.9.
1) Connect the camera's video output to the IP tester's VIDEO IN. The image will display on the tester
after pushing the PTZ icon.
2) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface.(Note:
positive and negative connection of the cable)

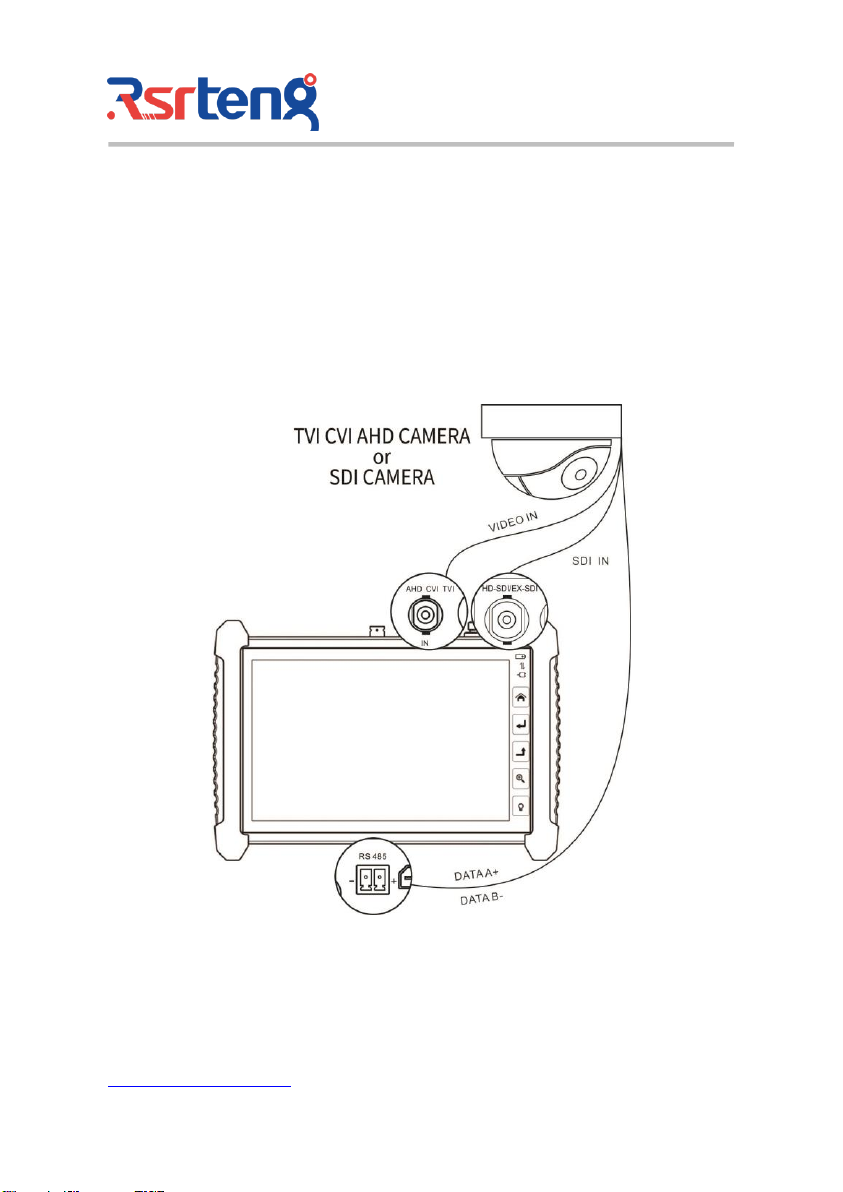

3.2.3 HD Coaxial camera connection
SDI*, CVI, TVI, AHD camera are classified as HD coaxial cameras. Hereby the following instruction
of how to connect SDI* camera to the tester is also applied to CVI, TVI, and AHD camera.
1) Connect the SDI camera's video output to the IP tester's "SDI IN" interface, the image will display on
the tester. The tester only come with SDI input interface. There is no SDI output interface.
2) Connect the SDI camera or the speed dome RS485 controller cable to the tester RS485 interface.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.10.
3.2.4 HDMI and VGA input (* Optional)
DVR or other device's HDMI/VGA out port connect to tester's HDMI/VGA in port, the meter will
display input image. HDMI supports resolutions up to 4K 3840x2160 30fps and VGA supports
resolutions up to 1280x1024 60fps.
Note: at this time, the tester is only used as a display screen, and cannot test and control DVR or
other types of output devices.
3.2.5 HDMI output
The built-in HDMI output port can output the tester's imege to other monitors. Resolutions up to 4K
3840x2160 60fps are supported.
3.3 OSD menu
Press the key 2 seconds to turn on
Press the key again to turn off
Short press the key to enter sleep mode, press it again to test.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.11.
If tester works abnormally and cannot be turned off, Press the key several seconds to turn off, the
tester reset.
3.3.1 Drop-down Menu
Slide at right top right corner twice to open shortcut menu. The shortcut menu includes PoE power
output, IP settings, Wi-Fi, HDMI IN, CVBS, Video OUT, LAN, Brightness, settings etc.
PoE OUT: Click PoE OUTPUT to quickly turn on and off LAN2/PoE power output.
PING: Test the target IP address network condition.
FILE EXPLIRER: Quick access to file browser.
VOLUME: Adjust the speaker volume of the tester
Light: Turn On/Off the flashlight.
Auto HD: Automatically recognize type of HD input signal
HDMI IN: Click HDMI IN to enter, in HDMI IN mode, It can converter test from analog to digital
with dual test window IP &HDMI IN or Analog & HDMI in.
IP Setting: Enter IP Settings interface.
LAN INFO: Display network port or WIFI connection real-time upload and download speeds and other
network parameters.
TOUCH POINT: Display contact point place.
NETWORK SPEED: Turn on WLAN net and displays current WLAN status.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.12.
POWER OFF: Turn off the meter.
icon: Quickly open the tester's settings page.
3.3.2 Short-cut menu
You can call short-cut menu by press tester's "menu" key, you can self- define short-cut menu.
Press the key , you can turn on it, and switch functions, then press to enter app, tap other
area on the screen, to exit the menu.
You can long press any app in the all applications list, it will auto move to shortcut menu. If delete any
app in the shortcut menu, please select a app and press several seconds, it will be deleted.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.13.
3.3.3 Screen capture
Long press the key "enter”, can capture screen interface and save it in any time.
You can go file management to view "File Explorer——BROWSE——Pics".
3.3.4 Link monitor
Tap icon "Link Monitoring" at left corner on the screen to enter.
It can detect instrument port rate 10/100/1000M, signal quality detection, upload and download speed,
etc. in real time. It can be used to detect whether the network video access bandwidth of devices such as
NVR is normal.
IP CAMERA TESTER User Manual
WWW.RSRTENG.COM
Page.15.
3.3.5 TesterPlay
Mobile phone projection (only supports phones with Android system)
When using local projection, the meter creates a WIFI hotspot, the phone connects to the meter hotspot,
or the meter and the phone connect to the same WIFI network. When using Internet projection, the
meter and phone is connected to the Internet.
Click the system setting icon on the main interface, and click the "TesterPlay"app. Click "Start", the
meter generates RTSP address, and after installing the client software on the mobile phone, you can
watch the real-time projection from the tester, and you also can control the meter remotely.
Turn on the voice intercom，you can carry out the voice intercom on the mobile phone and tester.
Note: Please turn on the voice intercom before connecting to the mobile app, otherwise the intercom
may be abnormal. If the intercom is abnormal or cannot be intercom, reconnect the mobile app.
Install the "Remote Control" APP on the Android phone, open it and click "Local projection/Remote
projection". At this time, the mobile phone will display the real-time screen projection of the Tester, and
you can touch the screen to control the Tester. (If the screen is not displayed, please quickly slide the
left menu of the Tester interface system settings or switch the Tester interface)
This manual suits for next models
9
Table of contents
Other Rsrteng Test Equipment manuals
