RTS KP 32 CLD User manual

F.01U.193.294 Rev. 10 JANUARY/2012
CLD Color Keypanel Family
User Manual
up to and including version 1.3.1
KP 32 CLD
DKP 16 CLD
EKP 32 CLD

Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
2 KP32CLD
PROPRIETARY NOTICE
The product information and design disclosed herein were origi-
nated by and are the property of Bosch Security Systems, Inc.
Bosch reserves all patent, proprietary design, manufacturing, repro-
duction, use and sales rights thereto, and to any article disclosed
therein, except to the extent rights are expressly granted to others.
COPYRIGHT NOTICE
Copyright 2011 by Bosch Security Systems, Inc. All rights
reserved. Reproduction, in whole or in part, without prior written
permission from Bosch is prohibited.
*All other trademarks are property of their respective owners.
WARRANTY AND SERVICE INFORMATION
For warranty and service information, refer to the appropriate web
site below:
RTS ............................................... www.rtsintercoms.com/warranty
RTSTW ..................................................... www.rtstw.com/warranty
AudioCom................................. www.telexaudiocom.com/warranty
RadioCom .................................. www.telexradiocom.com/warranty
Headsets ................................ www.intercomheadsets.com/warranty
CUSTOMER SUPPORT
Technical questions should be directed to:
Customer Service Department
Bosch Security Systems, Inc.
12000 Portland Avenue South
Burnsville, MN 55337 USA
Telephone: [phone]
Fax: [phone]
[email protected]
TECHNICAL QUESTIONS EMEA
Bosch Security Systems Technical Support EMEA
http://www.rtsintercoms.com/contact_main.php
DISCLAIMER
The manufacturer of the equipment described herein makes
no expressed or implied warranty with respect to anything
contained in this manual and shall not be held liable for any
implied warranties of fitness for a particular application or
for any indirect, special, or consequential damages. The
information contained herein is subject to change without
prior notice and shall not be construed as an expressed or
implied commitment on the part of the manufacturer.

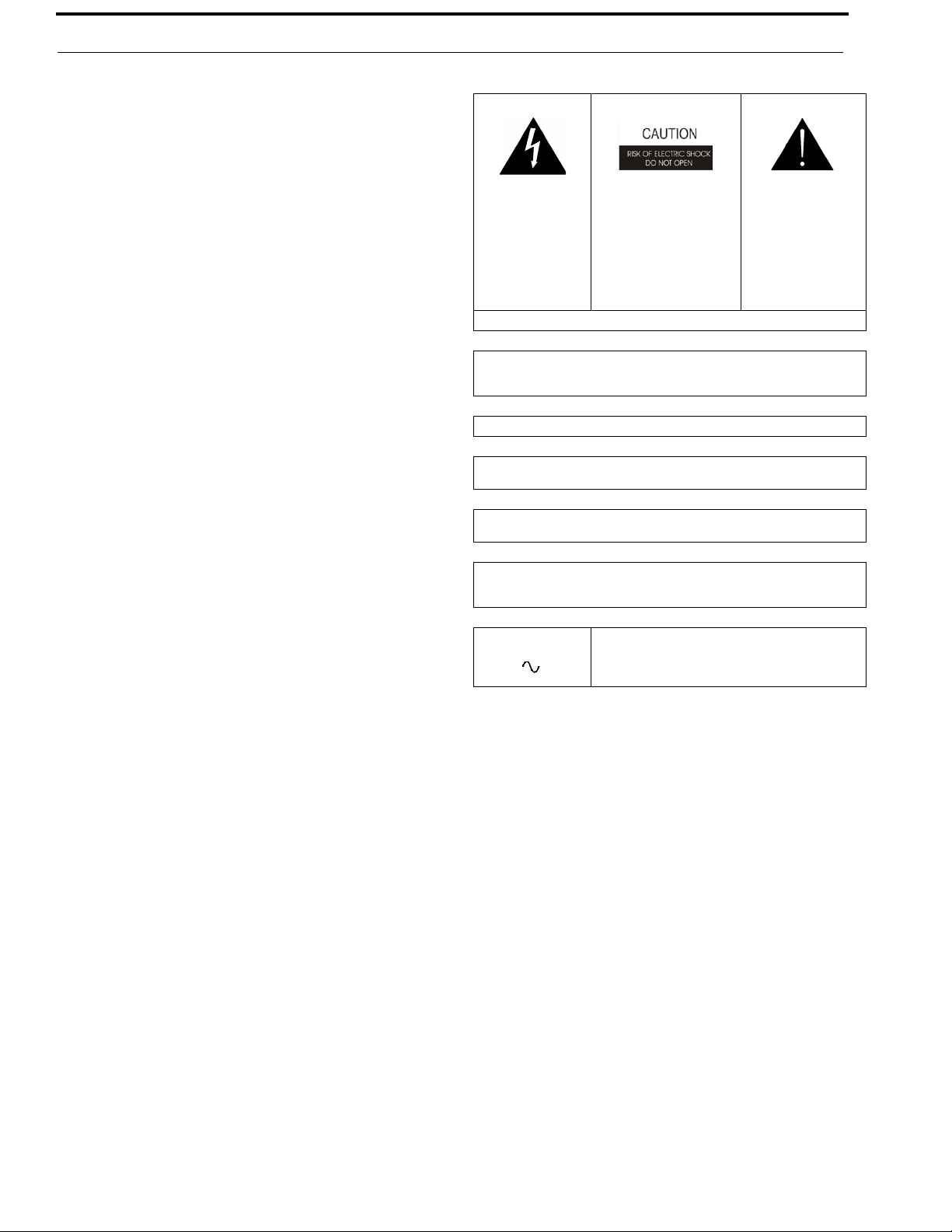

THE LIGHTNING
FLASH AND
ARROWHEAD
WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
“DANGEROUS
VOLTAGE” INSIDE
THE PRODUCT.
CAUTION: TO REDUCE
THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE
COVER. NO USER-
SERVICABLE PARTS
INSIDE. REFER
SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
SEE MARKING ON BOTTOM/BACK OF PRODUCT.
WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPERABLE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF
THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPRATUS TO RAIN OR MOISTURE.
WARNING: TO PREVENT INJURY, THIS APPARATUS MUST BE SECURELY
ATTACHED TO THE FLOOR/WALL/RACK IN ACCORDANCE WITH THE
INSTALLATION INSTRUCTIONS.
This product is AC only.

Bosch Security Systems, Inc. User Manual
KP32CLD 3
F.01U.193.294 Rev. 10
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
4 KP32CLD

Table
of
Contents
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
INTRODUCTION ......................................................................................................................... 5
Features ....................................................................................................................................................5
Specifications ...........................................................................................................................................6

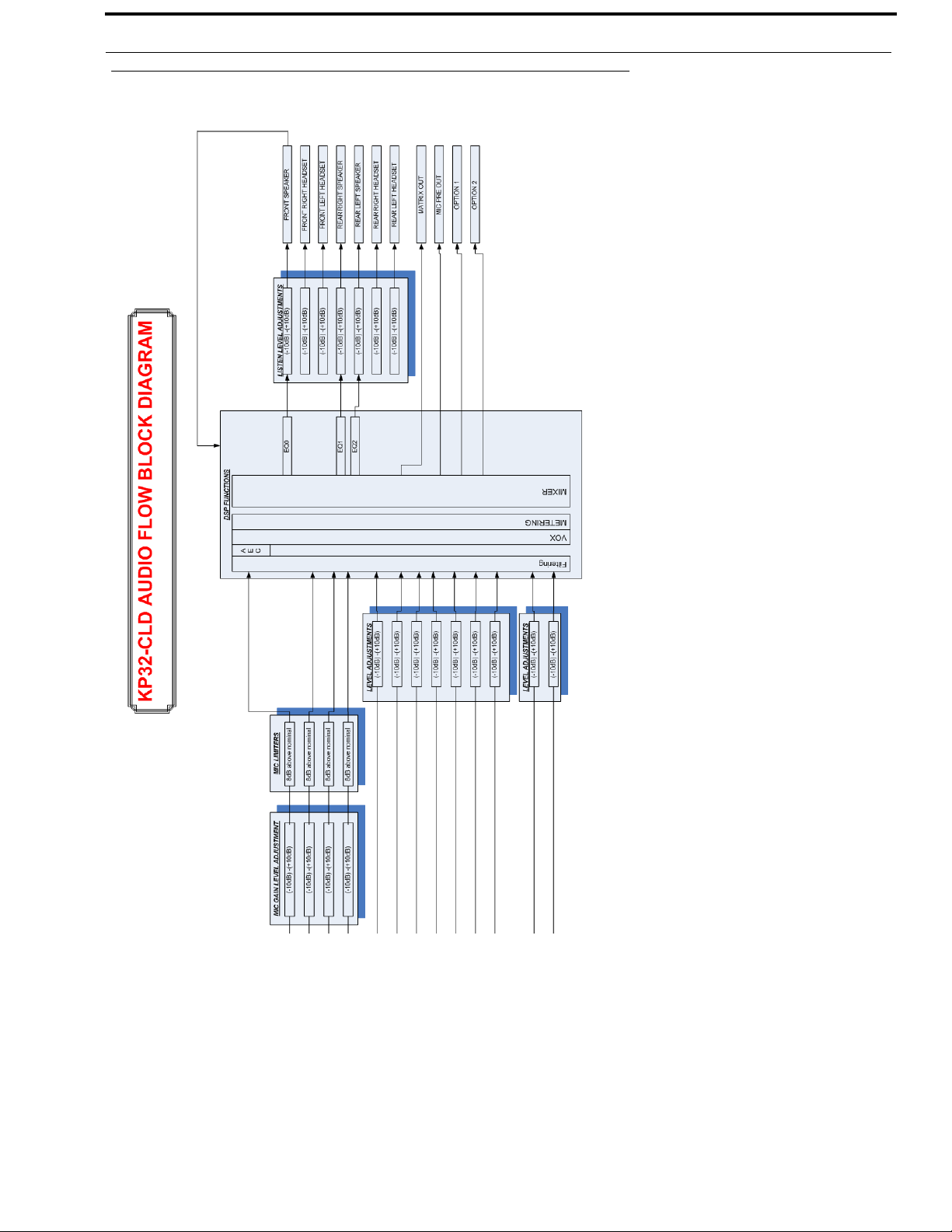

KP 32 CLD Block Diagram .....................................................................................................................7

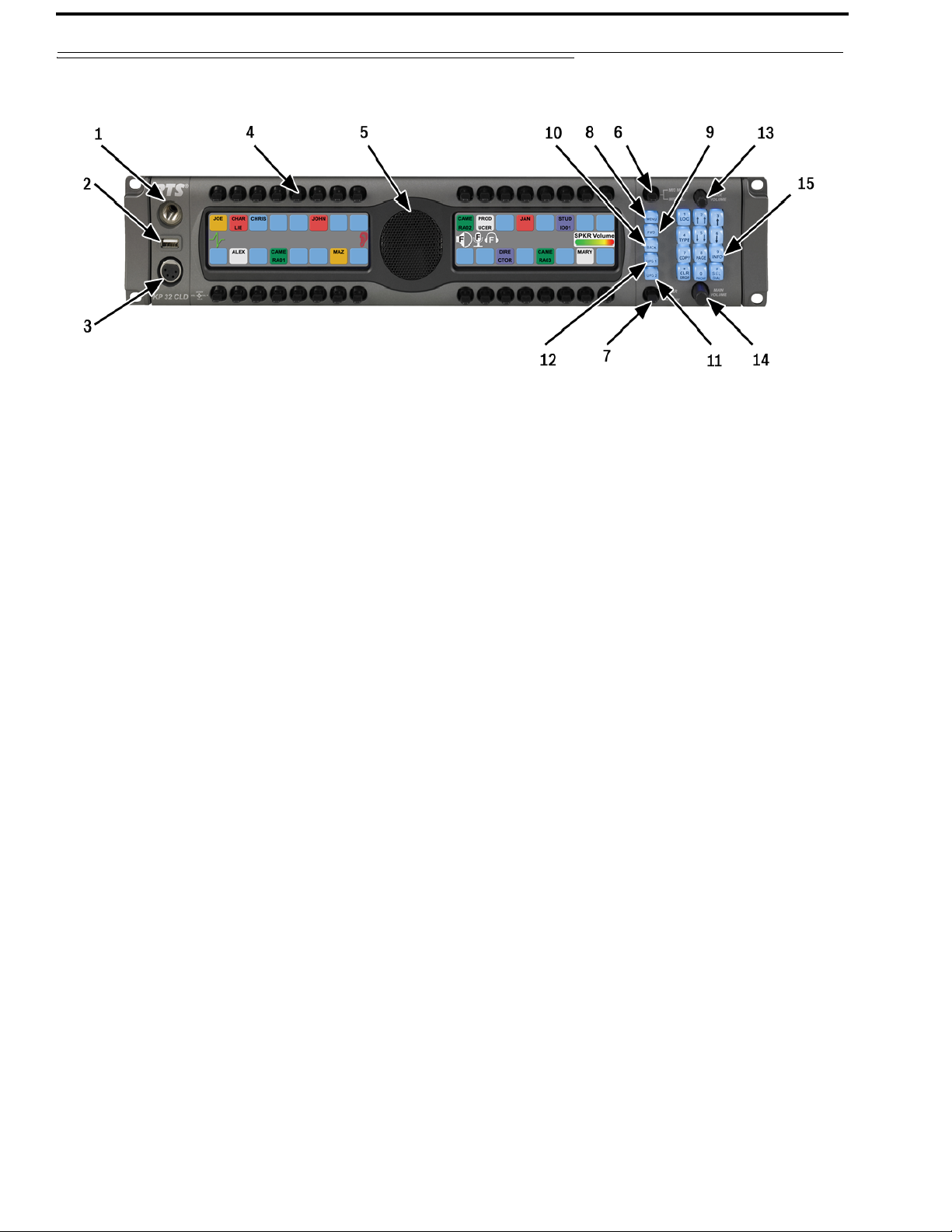

Reference View - KP 32 CLD ................................................................................................................8
Front Panel Descriptions ..................................................................................................................................... 8
Rear Panel Descriptions ....................................................................................................................................... 9
Optional RVON-2 CLD Module ......................................................................................................................... 9

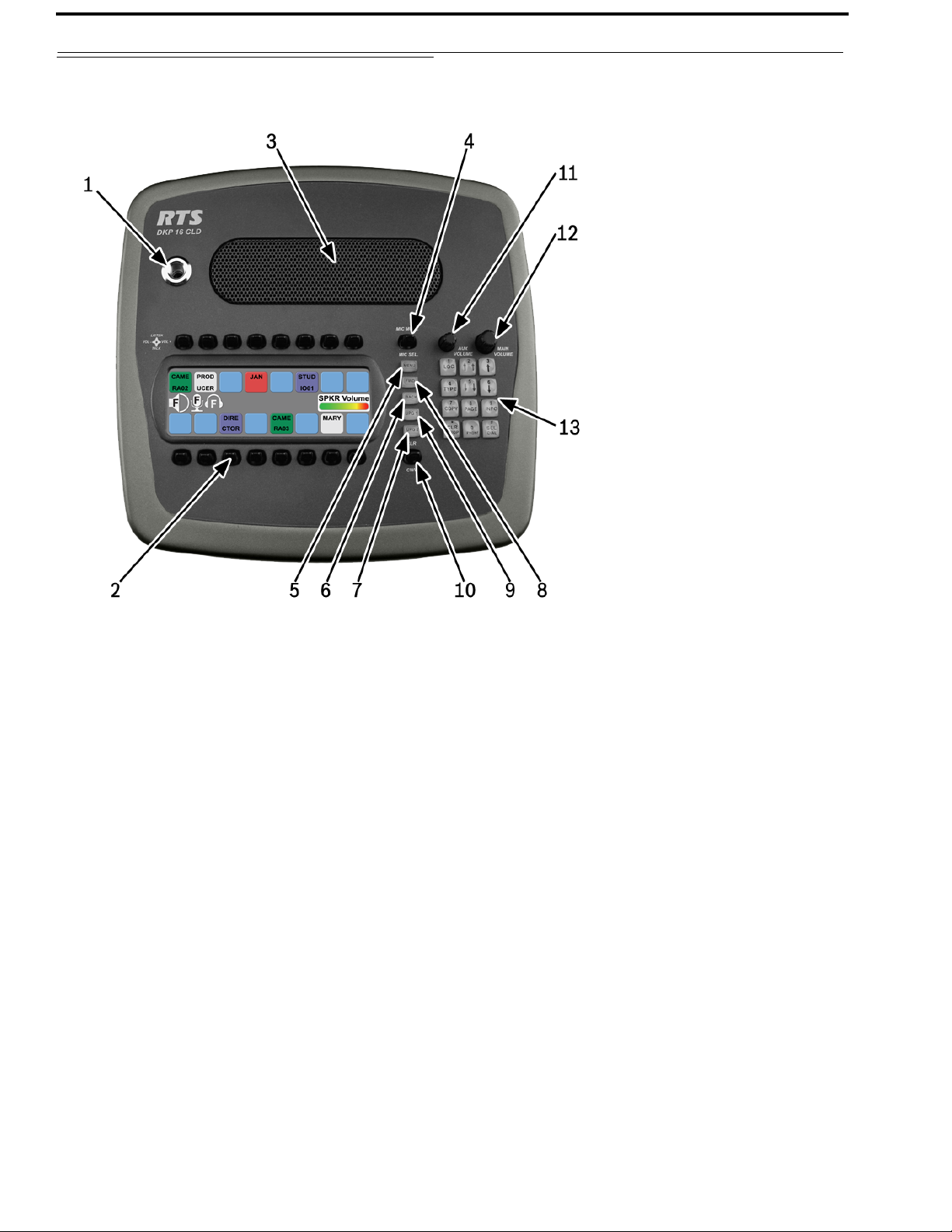

Reference View DKP 16 CLD ..............................................................................................................10
Front Panel Descriptions ................................................................................................................................... 10

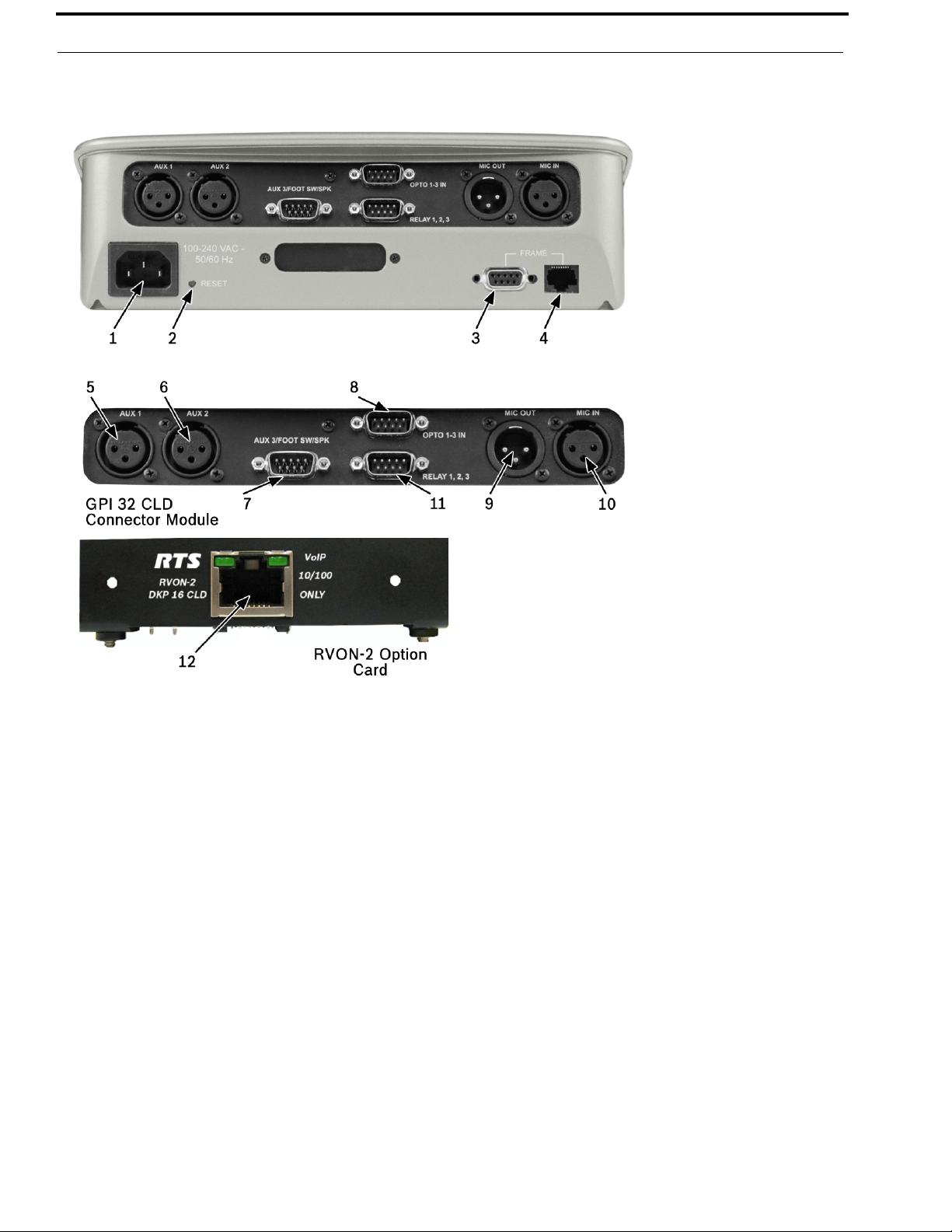

Rear Panel Descriptions ..................................................................................................................................... 12
Optional GPI 32 CLD Connector Module ......................................................................................................... 12
Optional RVON-2 CLD Module ....................................................................................................................... 12
Connector Pinouts ..................................................................................................................................13
Accessing the Switch Bank ....................................................................................................................16

INSTALLATION ........................................................................................................................ 19
Requirements .........................................................................................................................................19
KP 32 CLD Installation ..........................................................................................................................20
Power Up ................................................................................................................................................20
Address Setting ......................................................................................................................................21
General Information .......................................................................................................................................... 21
Connections ............................................................................................................................................22
Frame Connector ............................................................................................................................................... 22
Headset Connector ............................................................................................................................................. 22
Panel Microphone Connector ............................................................................................................................ 22
Footswitch Connector ........................................................................................................................................ 22

BASIC OPERATION .................................................................................................................. 23
Intercom Keys and Displays ..................................................................................................................23
Color Display Descriptions for Intercom Keys ................................................................................................. 23
Display Icons ..................................................................................................................................................... 24
Default Keypad ......................................................................................................................................27
Default Keypad .................................................................................................................................................. 28
INFO button (not available in Japanese Mode) .....................................................................................30
Intercom Key Operation .........................................................................................................................31
Basic Intercom Key Operation ..........................................................................................................................31
Talk/Listen Indicator .........................................................................................................................................31

Bosch Security Systems, Inc. User Manual
2 KP32CLD
Rev. 10
F.01U.193.294
Key Gain Adjustment ............................................................................................................................32
Listen Volume Adjustments ..................................................................................................................33
Aux Volume Adjustments .....................................................................................................................34
Operation of Intercom Keys with Auto Functions .................................................................................36
Operation of Intercom Keys with Options .............................................................................................36
Group Option Keys ........................................................................................................................................... 36
Solo Key ............................................................................................................................................................ 36
Operation of Intercom Talk Keys with the Speaker DIM Setting .........................................................36
Operation of Intercom Keys assigned to TIF Ports ...............................................................................37
User Quick Select Scrolling ...................................................................................................................37
Call Waiting Operation ..........................................................................................................................38
Graphical Call Waiting Window ...........................................................................................................39
Graphical Call Waiting Window Operation ...................................................................................................... 39
Display or Hide the CWW ............................................................................................................................. 40
Incoming Calls ............................................................................................................................................... 40
Clearing the CWW List .................................................................................................................................. 41
Mute the Microphone/Speaker ...............................................................................................................41
Mic Select ..............................................................................................................................................42
User Programmable Keys ......................................................................................................................44
Keypanel Color Window .......................................................................................................................45
Function Types Page ......................................................................................................................................... 46
Select Intercom Drop Down Menu ................................................................................................................ 46
Apply Button .................................................................................................................................................. 46
Clear Button ................................................................................................................................................... 46
Function Type Column .................................................................................................................................. 47
Color Column ................................................................................................................................................. 47
Show Default Colors Check Box ................................................................................................................... 47
Key Assignment Page ....................................................................................................................................... 48
Select Function Type Drop Down Menu ....................................................................................................... 48
Apply Button .................................................................................................................................................. 49
Clear Button ................................................................................................................................................... 49
Function Number Column .............................................................................................................................. 50
Color Column ................................................................................................................................................. 50
Show Default Colors Check Box ................................................................................................................... 50
Assignment Groups Page .................................................................................................................................. 50
Select Assignment Group Drop Down Menu ................................................................................................ 50
Apply Button .................................................................................................................................................. 51
Clear Button ................................................................................................................................................... 51
Assignment Group Member Column ............................................................................................................. 51
Color Column ................................................................................................................................................. 51
Miscellaneous Colors Page ............................................................................................................................... 52
Apply Button .................................................................................................................................................. 53
Clear Button ................................................................................................................................................... 53
Item Column ................................................................................................................................................... 53
Color Column ................................................................................................................................................. 53
Show Default Colors Check Box ................................................................................................................... 53

FIRMWARE DOWNLOAD .......................................................................................................55
Download Firmware to the Color Keypanel Family From AZedit .......................................................55
Download Firmware Using the BLR Function ......................................................................................59
Run The Boot Loader ........................................................................................................................................ 59

Bosch Security Systems, Inc. User Manual Rev. 10
3 KP32CLD
F.01U.193.294
Enable The Boot Loader On The Keypanel (v 1.1.0 and later) ........................................................................ 62

KP 32 CLD MENU SYSTEM .....................................................................................................63
Main Menu Access ................................................................................................................................63
Menu System, Audio Options ................................................................................................................64
Audio Options Menu, Dim ................................................................................................................................ 65
Audio Options Menu, DSP Funcs ..................................................................................................................... 66
Equalization ................................................................................................................................................... 66
Filters ............................................................................................................................................................. 70
Gating ............................................................................................................................................................. 72
Metering ......................................................................................................................................................... 73
Mixing ............................................................................................................................................................ 75
Audio Options Menu, Headset Mic ................................................................................................................... 77
Audio Options Menu, Headset Spkr ................................................................................................................. 80
Audio Options Menu, Key Volumes ................................................................................................................. 82
Audio Options Menu, LCP 16 CLD .................................................................................................................. 83
Audio Options Menu, Matrix Out ..................................................................................................................... 84
Audio Options Menu, Max Volume .................................................................................................................. 85
Audio Options Menu, Mic Gain ........................................................................................................................ 85
Audio Options Menu, Min Volume .................................................................................................................. 87
Audio Options Menu, Outp Level ..................................................................................................................... 88
Audio Options Menu, Panel Mic ....................................................................................................................... 89
Audio Options Menu, Preamp Out .................................................................................................................... 90
Audio Options Menu, Sidetone ......................................................................................................................... 90
Audio Options Menu, Speaker .......................................................................................................................... 92
Audio Options Menu, Tone Gen ....................................................................................................................... 93
Menu System, Display ...........................................................................................................................95
Display Menu, Assign Type .............................................................................................................................. 96
Display Menu, Auto Dial .................................................................................................................................. 97
Display Menu, Chans On .................................................................................................................................. 97
Display Menu, Chime ....................................................................................................................................... 98
Display Menu, Exclusive .................................................................................................................................. 98
Display Menu, Key Groups ............................................................................................................................... 99
Display Menu, Key List .................................................................................................................................... 99
Display Menu, LCP 16 CLD ........................................................................................................................... 100
Display Menu, Level 2 .................................................................................................................................... 100
Display Menu, Listen ...................................................................................................................................... 100
Display Menu, Matrix ..................................................................................................................................... 101
Display Menu, Panel ID .................................................................................................................................. 102
Display Menu, Solo ......................................................................................................................................... 102
Display Menu, Version ................................................................................................................................... 103
Menu System, Key Assign Menu ........................................................................................................104
Key Assign Menu, Matrix (Trunked System Only) ........................................................................................ 105
Key Assign Menu, Pt-to-Pt ............................................................................................................................. 106
Key Assign Menu, Party Line ......................................................................................................................... 107
Key Assign Menu, IFB .................................................................................................................................... 107
Key Assign Menu, Spcl List ........................................................................................................................... 108
Key Assign Menu, Sys Relay .......................................................................................................................... 109
Key Assign Menu, Camera ISO ...................................................................................................................... 110
Key Assign Menu, UPL .................................................................................................................................. 110
Key Assign Menu, IFB SL .............................................................................................................................. 111

Bosch Security Systems, Inc. User Manual
4 KP32CLD
Rev. 10
F.01U.193.294
Key Assign Menu, Auto Func ......................................................................................................................... 112
Menu System, Key Options Menu .......................................................................................................113
Key Options Menu, Auto Dial ........................................................................................................................ 113
Key Options Menu, Chime .............................................................................................................................. 115
Key Options Menu, Clear ................................................................................................................................ 117
Key Options Menu, Exclusive ......................................................................................................................... 117
Key Options Menu, Key Groups ..................................................................................................................... 118
Key Options Menu, Latching .......................................................................................................................... 119
Key Options Menu, Solo ................................................................................................................................. 120
Key Options Menu, Tallies ............................................................................................................................. 121
Menu System, RVON Offers (Only available with the RVON-2 option card installed) ....................122
RVON-2 Option Card Matrix Connection ...................................................................................................... 122
RVON-2 Option Card Matrix Port Configuration .......................................................................................... 122
RVON-2 Option Card Aux Port Configuration .............................................................................................. 124
Menu System, Save Config .................................................................................................................125
Menu System, Service .........................................................................................................................126
Service Menu, Alphas ..................................................................................................................................... 127
Service Menu, Aux/Mtx Inputs ....................................................................................................................... 128
Service Menu, Baud Rate ................................................................................................................................ 129
Service Menu, Display Dim ............................................................................................................................ 130
Service Menu, Footswitch ............................................................................................................................... 131
Service Menu, Key View ...............................................................................................................................‘132
Service Menu, Keypad .................................................................................................................................... 133
Keypad Sequence ......................................................................................................................................... 133
Backlight ...................................................................................................................................................... 134
Service Menu, Local GPIO ............................................................................................................................. 134
Service Menu, Reset Cfg ................................................................................................................................. 137
Service Menu, RVON Setup ........................................................................................................................... 137
Service Menu, Scr Saver ................................................................................................................................. 140
Service Menu, Set Address ............................................................................................................................. 142
Service Menu, Snoop Tally ............................................................................................................................. 143
Service Menu, Test Panel ................................................................................................................................ 144

TELEPHONE OPERATION ...................................................................................................147
Receiving A Phone Call .......................................................................................................................147
Dialing and Hanging Up Using KP 32 CLD ....................................................................................... 147
Manual Dial ..................................................................................................................................................... 147
Keypanel Hang Up .......................................................................................................................................... 148
Auto Dial ......................................................................................................................................................... 150
Centralized Auto Dials .........................................................................................................................151
Centralized Auto Dial from the KP 32 CLD ................................................................................................... 151

KP 32 CLD KEYPAD QUICK REFERENCE .........................................................................155
Keypad Sequence Introduction ............................................................................................................155

KEYPANEL MENU QUICK REFERENCE ...........................................................................161
KP 32 CLD System Menu - with 
GPIO Option Card And
RVON-2 Option Card ..........................................................................................................................161
KP 32 CLD System Menu - no Option Cards .....................................................................................169

Bosch Security Systems, Inc. User Manual Rev. 10
5 KP32CLD
F.01U.193.294

BOOT LOADER RESET .......................................................................................................... 175
Boot Loader Reset - BLR Button ........................................................................................................175
Run The Boot Loader ...................................................................................................................................... 175
Enable The Boot Loader On The Keypanel (v 1.1.0 and later) ...................................................................... 179

EKP 32 CLD – 90007876000 .................................................................................................... 181
Introduction ..........................................................................................................................................181
Specifications .......................................................................................................................................181
EKP 32 CLD Expansion Panel Reference View .................................................................................182
Expansion Panel Cabling Reference ....................................................................................................183

RVON-2 FOR KP CLD ............................................................................................................. 185
General Description of the RVON-2 Voice-over Network Card ........................................................185
Features ................................................................................................................................................186
Specifications .......................................................................................................................................186
Default Addresses for the RVON Product Line ..................................................................................187
Dip Switches ........................................................................................................................................187
Firmware Compatibility Requirements for the RVON-2 Card ...........................................................188
Installation of the RVON-2 Card .........................................................................................................188
KP 32 CLD ...................................................................................................................................................... 188
DKP 16 CLD ................................................................................................................................................... 191
Addresses and the RVON-2 .................................................................................................................195
Configure the RVON-2 from the KP CLD ..........................................................................................195
Set the IP Address from the Service Level Menu ......................................................................................................... 195
Menu System, RVON Offers (Only available with the RVON-2 option card installed) ....................197
RVON-2 Option Card Matrix Connection ...................................................................................................... 197
RVON-2 Option Card Matrix Port Configuration .......................................................................................... 197
RVON-2 Option Card Aux Port Configuration .............................................................................................. 198
Configure a RVON card in the Frame using AZedit to contact the RVON-2 .....................................200
Download RVON-2 Firmware Through AZedit .................................................................................201
RVON Serial and Telnet Commands ...................................................................................................203
Setup ................................................................................................................................................................ 203
How to Configure the RVON-2 using Telnet ......................................................................................203

JAPANESE MODE – KATAKANA AND KANJI................................................................... 207
Quick Assign ........................................................................................................................................208
Quick Assign Auto-Functions ......................................................................................................................... 209
Lock (Button Lock) .............................................................................................................................210
Group Call ............................................................................................................................................210
Tallies ...................................................................................................................................................211
Latching ...............................................................................................................................................212

LCP 16 CLD ..............................................................................................................................215
Quick Reference Menu Structure ........................................................................................................215
Introduction ..........................................................................................................................................216
LCP 16 Operation ............................................................................................................................................ 217


Bosch Security Systems, Inc. User Manual
6 KP32CLD
Rev. 10
F.01U.193.294
CYRILLIC SUPPORT ..............................................................................................................219
AZedit and Cyrillic Support ................................................................................................................219

List
of
Figures
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
FIGURE 1. KP 32 CLD Block Diagram ............................................................................................ 5
FIGURE 2. KP 32 CLD Front Panel .................................................................................................. 6
FIGURE 3. KP 32 CLD Back Panel and GPI 32 CLD Option Card ................................................. 7
FIGURE 4. DKP 16 CLD - Top View ............................................................................................... 8
FIGURE 5. DKP 16 CLD Front, Right and Left Side Views ............................................................ 9
FIGURE 6. DKP 16 CLD Back View .............................................................................................. 10
FIGURE 7. RTS Standard Cable (USOC). ...................................................................................... 16
FIGURE 8. Standard CAT-5 Cable using pin 1 and pin 2 for RS485 functionality (568A). .......... 16
FIGURE 9. Standard CAT-5 Cable using pin 7 and pin 8 for RS485 functionality (568B). ........... 16
FIGURE 10. KP 32 CLD Installation ................................................................................................ 18
FIGURE 11. KP 32 CLD Key Position Explanation ......................................................................... 29
FIGURE 12. Talk/Listen Indicators ................................................................................................... 29
FIGURE 13. Graphical Call Waiting Window .................................................................................. 37
FIGURE 14. Graphical Call Waiting Window Highlighted Call ....................................................... 38
FIGURE 15. All Muted Display Icons ............................................................................................... 39
FIGURE 16. Keypanel Colors Window ............................................................................................. 43
FIGURE 17. Function Type and Color Columns ............................................................................... 45
FIGURE 18. Key Assignments Page ................................................................................................. 46
FIGURE 19. Function Number and Color Columns .......................................................................... 47
FIGURE 20. Assignments Groups Page ............................................................................................ 48
FIGURE 21. Miscellaneous Colors Page ...........................................................................................50
FIGURE 22. Main Audio Options Menu ........................................................................................... 63
FIGURE 23. Frequency Response - Preset 1 (20Hz to 300Hz) ......................................................... 65
FIGURE 24. Frequency Response - Preset 2 (300Hz to 900Hz) ....................................................... 65
FIGURE 25. Frequency Response - Preset 3 (900Hz to 2100Hz) ..................................................... 66
FIGURE 26. Frequency Response - Preset 4 (2100Hz to 4500Hz) ................................................... 66
FIGURE 27. Frequency Response - Preset 5 (4500Hz to 24,000Hz ................................................. 67
FIGURE 28. Metering Explanation .................................................................................................... 71
FIGURE 29. Metering Bands display ................................................................................................ 72
FIGURE 30. Main Display Menu ...................................................................................................... 93
FIGURE 31. Main Key Assign Menu .............................................................................................. 102
FIGURE 32. Auto Functions............................................................................................................ 110
FIGURE 33. Main Key Option Menu .............................................................................................. 111
FIGURE 34. Key Options Menu - Tallies Menu ............................................................................. 119
FIGURE 35. RVON Offers Top Level Menu Option ...................................................................... 120
FIGURE 36. Save Config Menu Option .......................................................................................... 123
FIGURE 37. Main Service Menu ..................................................................................................... 124
FIGURE 38. Service Menu - Keypad Options ................................................................................. 131

Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
2 KP32CLD
FIGURE 39. Service Menu - Screen Saver Options ....................................................................... 138
FIGURE 40. Service Menu, Test Panel ........................................................................................... 142
FIGURE 41. EKP CLD Expansion Panel Reference View - Front and Rear ................................. 180
FIGURE 42. Expansion Panel Cabling ........................................................................................... 181
FIGURE 43. RVON Offers Top Level Menu Option ..................................................................... 195
FIGURE 44. Booting up in Kanji .................................................................................................... 205
FIGURE 45. LCP 16 CLD Menu Structure on the KP 32 CLD ..................................................... 213
FIGURE 46. LCP 16 CLD Front Panel ........................................................................................... 214
FIGURE 47. Hardware Setup for a KP 32 CLD and 2 LCP 16 CLD ............................................. 214

Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
CHAPTER 1
Introduction
The revolutionary CLD family of keypanels from RTS introduces several new features designed to enhance capability and
ease of use. The intuitive graphic interface is housed inside two (2) full-color 4.9” LCD displays. The front panel also features
conveniences such as two (2) user-programmable buttons, one-touch listen volume adjustment on each of the 32 new
multifunction user keys, and a backlit keypad. In addition, the CLD units can be ordered with the new, more intuitive CLD key
sequences, or the classic key sequences. Like all RTS products, the CLD family of keypanels are designed with expansion in
mind. The USB port and modular panel allow for future upgrades to keep the CLD units on the forefront of technology for
years to come.
Features
Full-Color LCD Displays
The new color displays host to a rich and intuitive graphic user interface that indicates
different keypanel functions in different colors.
Modern, Modular Design
Flat front panel is ergonomically designed to fit easily into any control room or truck
application. The back panel is optimized for future expansion.
Multi-Directional Keys
32, multi-directional keys used for talk, listen, and emulation of traditional level control
functions.
Future Expansion
Designed to allow for an expansion panel and optional connections to the matrix through
current and future standard transmission formats.
Enhanced Features
KP 32 CLD allows up to six (6) auxiliary inputs, three (3) relays, independent digital gain
control for microphone sources, configurable audio routing and much more, through the use
of an option board.
DSP Processing Acoustic Echo Cancellation, Equalization, Mixing, Filtering and Metering are available.
USB For future expansion and other planned interface features.
User-Programmable Buttons
Two (2) user-programmable buttons (UPG-1 and -2) provide custom shortcuts to various
menu functions.
GPI Option Board Available
The GPI 32 CLD provides additional connectors for relay, headset, footswitch/speaker, mic
In/Out, auxiliary, and other functions.
RVON-2 Option Card Available The RVON-2 Option card provides up to two (2) additional full-duplex audio channels that
can be mixed with audio in the CLD keypanels.

4 Introduction KP32CLD
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
Specifications
LCD Display
Size
4.9” LCD
Resolution:
320 x 96 (RGB)
Input Sources
Panel Microphone / GPIO MIC IN
Electric Microphone Input Level
Nominal Level
-42.5dBu
Maximum Level
-22.5dBu
Impedance
1 to 10k
Headset
Dynamic Microphone Input Level
Nominal Level
-50dBu
Maximum Level
-30dBu
Impedance
£600 
Electric Microphone Input Level
Nominal Level
-42.5dBu
Maximum Level
-22.5dBu
Impedance
1 to 10k
Keypanel Input
Nominal Input Level
8dBu
Maximum Input Level
20dBu
Auxiliary Input
Nominal Input Level
8dBu
Maximum Input Level
20dBu
Output Sources
Keypanel Output
Nominal Input Levels
8dBu
Maximum Input Level
20dBu
Frequency Response
100 - 15kHz ±2dB
MIC OUT
Nominal Input Level
8dBu
Maximum Input Level
20dBu
Frequency Response
100 - 15kHz ±2dB
Headphone Speaker
Power
80mW into 600
Impedance
Š8
Panel Speaker
Frequency Response
250 - 15kHz ±2dB
Sensitivity, dB/W/dB
84
Power
4W, 8
Tone Generator
Output Level
8dBu
Output Frequency
500Hz or 1kHz
General IO
1-4 Relay Outputs
1-2 Open Collectors
1-4 Opto-Isolators
Connectorsa
Panel Microphone 1/4” Jack (see “1 1/4” Stereo Jack (Panel Mic)” on
page 11 for pinouts).
Panel Headset 4-, 5-, 6-pin Female XLR (see “4-, 5-, 6-, 7-pin
XLR(Female) Headset” on page 11 for pinouts).
USB USB Type A
Keypanel Audio 
Input / Output
DB-9, RJ-45 (Supports RTS RJ-11 cabling or
Standard Cat5 cabling) See “RJ-45 Frame (RTS
RJ11 Cable)” and “DB-9 (male) Frame” on
page 12 for pinouts.
Expansion RJ-45 (see “RJ-45 EXP (expansion)” on page 13
for pinouts).
GPIO MIC OUT Male XLR-3 (see “XLR-3(male) - Mic OUT” on
page 12 for pinouts).
GPIO MIC IN Female XLR-3 (see “XLR-3(female) - Mic IN” on
page 12 for pinouts).
GPIO Aux 1-2 Female XLR-3 (see “XLR-3(female) - AUX 1 &
2” on page 12 for pinouts).
GPIO Aux 3-6 DB-15 (see “DB-15 (male) Aux 3, Aux 4, Aux 5,
Aux 6” on page 11 for pinouts).
GPIO Headset DB-9 (see “DB-9 (male) Headset” on page 12 for
pinouts).
GPIO Relays 1-4 DB-9 (see “DB-9 Relay 1, 2, 3, 4” on page 11 for
pinouts).
GPIO Open Collector
1-2 DB-9 (see “DB-9 (male) Open Collector (1-2)” on page 11 for pinouts).
GPIO Opto-Isolators
1-4 DB-9 (see “DB-9 (male) Opto-Isolator (1-4)” on page 11 for pinouts).
General
KP 32 CLD
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Temperature
-15° C to 50°C (5°F to 122°F)
Dimensions
17.55”L x 3.47”H x 3.25”D (445.77mm x 88.138mm x 82.55mm)
Weight
6.00lbs (2.72kg) (no option cards installed)
6.32lbs (2.86kg) (GPIO option card installed)
Power Consumption
@ 120
VAC @ 220 VAC
No Options 40 50
GPIO Option 63 85
RVON Option 69 58
GPIO and RVON 46 88
Input Power
100~240VAC, 50-60Hz
DKP 16 CLD
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Operating Temperature
-15° C to 50°C (5°F to 122°F)
Dimensions
3.2”H x 10.1”W x 9.2”D (81.28mm x 256.54mm x 233.68mm)
Weight
3.78lbs (1.71kg) (no option cards installed)
4 lbs (1.81kg) (GPIO option card installed)
Power Consumption
@ 120
VAC @ 220 VAC
No Options 36 45
GPIO Option 73 89
RVON Option 45 54
GPIO and RVON 77 95
Input Power
100~240VAC, 50-60Hz
a. See the DKP 16 CLD Reference View on page 10 or the EKP 32 CLD Reference
View on page 180 for the connectors associated with each device.

KP32CLD Introduction 5
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
KP 32 CLD Block Diagram
FIGURE 1. KP 32 CLD Block Diagram

6 Introduction KP32CLD
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
Reference View - KP 32 CLD
Front Panel Descriptions
1. 1 1/4” Stereo Jack - Panel Mic
2. USB Connector - Power-enabled USB connector. Can be used to charge a cell phone or download/upload data to or
from the keypanel.
3. 4- or 5-pin XLR(female) - Headset only connection.
6- or 7-pin XLR (female) - Headset and Footswitch connection.
4. Keypanel Keys - Press down to talk, press up to listen. For more information, see “Basic Intercom Key Operation”
on page 29.
5. Panel Speaker - For more information, see “Mute the Microphone/Speaker” on page 39.
6. Mic Mute / Mic Sel - When the key is pressed up, all active mics are muted. When the key is pressed down, the focus
switches between the selected headset or panel mic.
NOTE: Panel Mic indicates front or rear panel mic. Or, it indicates the front or rear headset speaker. The
configuration of this feature is dependent upon the Audio Out configuration (see “Audio Options Menu,
Speaker” on page 90).
7. CLR/CWW Key - Clears the panel menu or answers the call waiting window.
8. Menu button - For detailed explanation, see “KP 32 CLD Menu System” on page 61.
9. FWD button - Allows you to go forward in the menu structure.
10. BACK button - Allows you to go backward in the menu structure.
11. UPG 1 button - Assigns any function from the menu structure to this key.
12. UPG 2 button - Assigns any function from the menu structure to this key.
13. Aux Volume - Adjusts the volume of the Aux 1 through Aux 6 connections, the Matrix connections, RVON Ch 1,
and RVON Ch 2 from the option card. The range for this feature is Mute, -48dB to 10dB.
NOTE: When RVON Ch1 is configured for Matrix, it does not appear under the Aux Volume menu selections, rather
as a Matrix connection.
14. Main Volume - Adjusts the volume for the front speaker, rear speaker, front headset and rear headset.
15. Keypad - Navigates through the KP 32 CLD menu structure and configure keypanel features as well as utilize the
TIF dial-out features.
FIGURE 2. KP 32 CLD Front Panel

KP32CLD Introduction 7
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
Rear Panel Descriptions
1. AC Power Connector
2. DB-9 (female) Connector - Frame
3. RJ-45 Connector - Frame
4. RJ-45 Connector - Expansion
5. RJ-45 Connector - LCP (for future expansion)
6. Boot Loader Reset - For more information, see
“Download Firmware Using the BLR Function” on
page 57.
7. DB-9 (male) Connector - Footswitch/Speaker
8. XLR-3 (female) Connector - Aux 1
9. XLR-3 (female) Connector - Aux 2
10. XLR-3 (female) Connector - Mic IN
11. XLR-3 (male) Connector - Mic OUT
Optional RVON-2 CLD Module
12. Ethernet RJ-45 connector -RVON-2 Matrix
Connection
FIGURE 3. KP 32 CLD Back Panel and GPI 32 CLD Option Card

8 Introduction KP32CLD
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
Reference View DKP 16 CLD
Front Panel Descriptions
1. 1 1/4” Stereo Jack - Panel Mic
2. Keypanel Keys - Press down to talk, press up to listen.
For more information, see “Basic Intercom Key
Operation” on page 29
3. Panel Speaker - For more information, see “Mute the
Microphone/Speaker” on page 39
4. Mic Mute / Mic Sel - When the key is pressed up, all
active mics are muted. When the key is pressed down the
focus switches between the selected headset or panel mic.
NOTE: Panel Mic indicates front or rear panel
mic. Or, it indicates the front or rear
headset speaker. The configuration of this
feature is dependent upon the Audio Out
configuration (see “Audio Options Menu,
Speaker” on page 90).
5. Menu button - For detailed explanation, see “KP 32
CLD Menu System” on page 61.
6. FWD button - Allows you to go forward in the menu
structure.
7. BACK button - Allows you to go backward in the menu
structure.
8. UPG 1 button - User can assign any function from the
menu structure to this key.
9. UPG 2 button - User can assign any function from the
menu structure to this key.
10. CLR/CWW Key - Clears the panel menu or answers the
call waiting window.
11. Aux Volume - The Aux volume adjusts the volume of the
Aux 1 through Aux 6 connections, the Matrix
connections, RVON Ch 1, and RVON Ch 2 from the
option card (future). The range for this feature is Mute,

-48dB to 10dB.
NOTE: When RVON Ch1 is configured for
Matrix, it does not appear under the Aux
Volume menu selections, rather as a
Matrix connection.
12. Main Volume - The main volume adjusts the volume for
the front speaker, rear speaker, front headset and rear
headset.
13. Keypad - The keypanel keypad is used to navigate
through the KP 32 CLD menu structure and configure
keypanel features as well as utilize the TIF dial-out
features.
FIGURE 4. DKP 16 CLD - Top View

KP32CLD Introduction 9
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
1. USB - Power-enabled USB connector. Can be used to charge a cell phone or download/upload data to or from the
keypanel.
2. 4-, 5-pin XLR(female) – Headset
6-, 7-pin XLR(female) – Headset and Footswitch connection.
3. 4-, 5-pin XLR(female) – Headset
6-, 7-pin XLR(female) – Headset and Footswitch connection.
FIGURE 5. DKP 16 CLD Front, Right and Left Side Views

10 Introduction KP32CLD
Bosch Security Systems, Inc. User Manual F.01U.193.294 Rev. 10
Rear Panel Descriptions
1. AC/Power
2. Boot Loader Reset - For more information, see
“Download Firmware Using the BLR Function” on
page 57.
3. DB-9 (female) Connector - Frame
4. RJ-45 Connector - Frame
Optional GPI 32 CLD Connector Module
5. XLR-3 (female) Connector - Aux 1
6. XLR-3 (female) Connector - Aux 2
7. DB-9 (male) Connector - Aux 3, Footswitch and
Speaker
8. DB-9 (male) Connector - Opto 1-3 IN
9. XLR-3 (male) Connector - Mic OUT
10. XLR-3 (female) Connector - Mic IN
11. DB-9 (male) Connector - Relay 1, 2, 3
Optional RVON-2 CLD Module
12. Ethernet RJ-45 connector – RVON-2 Matrix
Connection
FIGURE 6. DKP 16 CLD Back View
