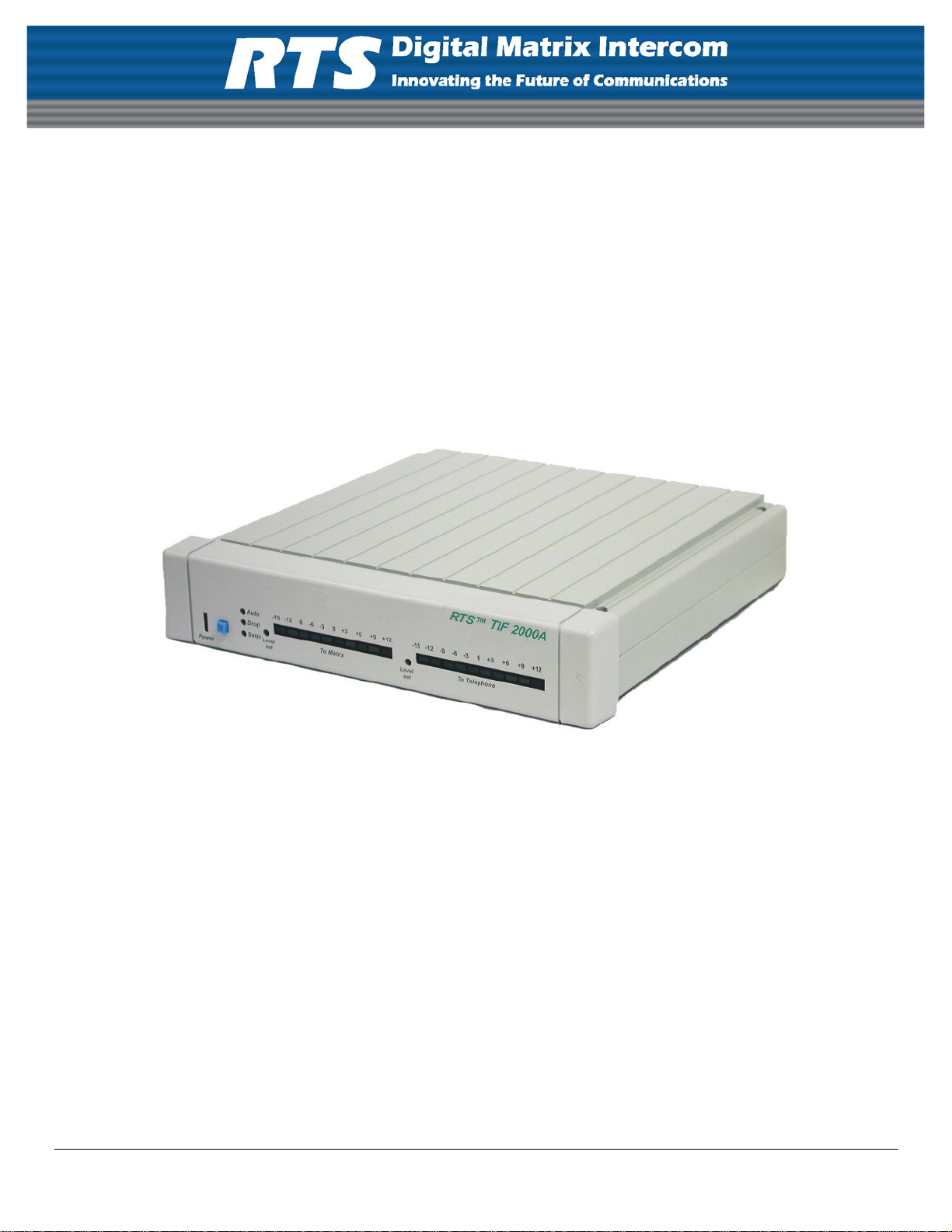

RTS TIF-2000A User manual

Model TIF 2000A
Digital Hybrid Telephone Line Interface
9350-7823-000 Rev E SEPT/2009

PROPRIETARY NOTICE
The product information and design disclosed herein were originated by
and are the property of Bosch Security Systems, Inc. Bosch reserves all
patent, proprietary design, manufacturing, reproduction, use and sales
rights thereto, and to any article disclosed therein, except to the extent
rights are expressly granted to others.
COPYRIGHT NOTICE
Copyright 2009 by Bosch Security Systems, Inc. All rights reserved.
Reproduction, in whole or in part, without prior written permission from
Bosch is prohibited.
WARRANTY NOTICE
See the enclosed warranty card for further details.
CUSTOMER SUPPORT
Technical questions should be directed to:
Customer Service Department
Bosch Security Systems, Inc.
12000 Portland Avenue South
Burnsville, MN 55337 USA
Telephone: [phone]
Fax: [phone]
[email protected]
RETURN SHIPPING INSTRUCTIONS
Customer Service Department
Bosch Security Systems, Inc. (Lincoln, NE)
Telephone: [phone]
Fax: [phone]
Factory Service: 800-553-5992
Please include a note in the box which supplies the company name,
address, phone number, a person to contact regarding the repair, the type
and quantity of equipment, a description of the problem and the serial
number(s).
SHIPPING TO THE MANUFACTURER
All shipments of product should be made via UPS Ground, prepaid (you
may request from Factory Service a different shipment method). Any
shipment upgrades will be paid by the customer. The equipment should
be shipped in the original packing carton. If the original carton is not
available, use any suitable container that is rigid and of adequate size. If
a substitute container is used, the equipment should be wrapped in paper
and surrounded with at least four (4) inches of excelsior or similar
shock-absorbing material. All shipments must be sent to the following
address and must include the Proof of Purchase for warranty repair.
Upon completion of any repair the equipment will be returned via
United Parcel Service or specified shipper, collect.
Factory Service Department
Bosch Security Systems, Inc.
8601 East Cornhusker Hwy.
Lincoln, NE 68507 U.S.A.
Attn: Service
This package should include the following:
1 TIF2000A Final Assembly 9010-7823-000
1 Power Supply 532026-000
1 IEC Power Cord 550006-100
1 User Manual 9350-7823-000
1Software Diska
a. Software disk contains country specific telephone system configuration files.
9015-7674-100
1 Warranty Card 38110-387

Table
of
Contents
INTRODUCTION AND DESCRIPTION ...................................................................................................3
Description ................................................................................................................................................................3
FRONT AND REAR PANEL FEATURES .........................................................................................................................................4
Specifications .............................................................................................................................................................4
INSTALLATION AND OPERATION ........................................................................................................ 5
Installation .................................................................................................................................................................5
REAR PANEL DIP SWITCH (S201) .............................................................................................................................................5
Auto-Answer ........................................................................................................................................................................5
Generate Ring Signal ...........................................................................................................................................................5
Password Required ..............................................................................................................................................................5
Intercom Port Address .........................................................................................................................................................5
Full Duplex Mode ................................................................................................................................................................6
INTERNAL DIP SWITCH (S202) .................................................................................................................................................8
Ring Count ...........................................................................................................................................................................8
DTMF or Pulse Dial Selection .............................................................................................................................................9
Point-to-Point Seize ...........................................................................................................................................................10
One Touch Dial ..................................................................................................................................................................10
Fast Seize ...........................................................................................................................................................................10
DSP Full or Half Duplex Selection ....................................................................................................................................10
Audio Ducking ...................................................................................................................................................................10
INTERNAL DIP SWITCH (S203) ...............................................................................................................................................10
RACK MOUNTING ....................................................................................................................................................................11
CONNECTIONS ........................................................................................................................................................................11
Intercom .............................................................................................................................................................................11
Power Supply .....................................................................................................................................................................12
SETTING AUDIO LEVELS ..........................................................................................................................................................13
Setting Audio Levels To Intercom Matrix .........................................................................................................................13
Setting Audio Levels to Telephone Lines ..........................................................................................................................14
CONFIGURING FOR COUNTRY’STELEPHONE SYSTEM ..............................................................................................................14
Operation .................................................................................................................................................................15
OPERATION FROM AKEYPANEL ..............................................................................................................................................15
PROGRAMMING AKEY TO USE THE TIF-2000A ......................................................................................................................15
DIALING ACALL .....................................................................................................................................................................16
HANGING UP..........................................................................................................................................................................16
RE-DIALING THE LAST NUMBER ..............................................................................................................................................17
DIALING ASPEED DIAL NUMBER ............................................................................................................................................17
STORING ASPEED DIAL NUMBER ............................................................................................................................................17
ANSWERING ACALL ................................................................................................................................................................17
TIF-2000A System Setup To Receive Calls .............................................................................................................18

AUTO-ANSWER MODE .............................................................................................................................................................18
MANUAL ANSWER MODE ........................................................................................................................................................18
Using the TIF-2000A From the Telephone .......................................................................................................................19
DTMF CODES ........................................................................................................................................................................19
TELEPHONE INTERFACE REQUIREMENTS FORM
OCTOBER 2008 .......................................................................................................................................................................21

3
CHAPTER 1
Introduction and Description
This manual describes the installation, programming, and operating procedures for the RTS Model TIF2000A Digital Hybrid
Telephone Line Interface. Since TIF2000A functions as a keypanel, the user may also need to refer to the manuals and/or the
AZedit online help files for information on configuring certain features.
NOTE: Be sure to review any recently added supplemental information before proceeding. Supplements are placed at the
back of the manual.
Description
The TIF2000A is a single line digital hybrid telephone line interface designed to be compatible with ADAM, ADAM CS,
Zeus, and CS9000 series intercom systems. It provides bi-directional communication between the intercom matrix and a
standard DTMF capable telephone line. It allows the phone to access all crosspoints of the matrix, as well as dynamic party
lines, IFB circuits, and other forms of communications. The 1RU high by 1/2 wide rack-mountable (via an optional kit)
TIF2000A provides a transparent line to the telephone system enabling full dial-out capability from any designated keypanel
with keypad. The TIF2000A has full dial-in capability giving the caller a keypanel on the system via commands from the
DTMF pad on their telephone. Since the TIF2000A appears to the matrix as any other keypanel would, the only limitation on
the number of units in the system is the same as for other keypanels.

4
Front and Rear Panel Features
Specifications

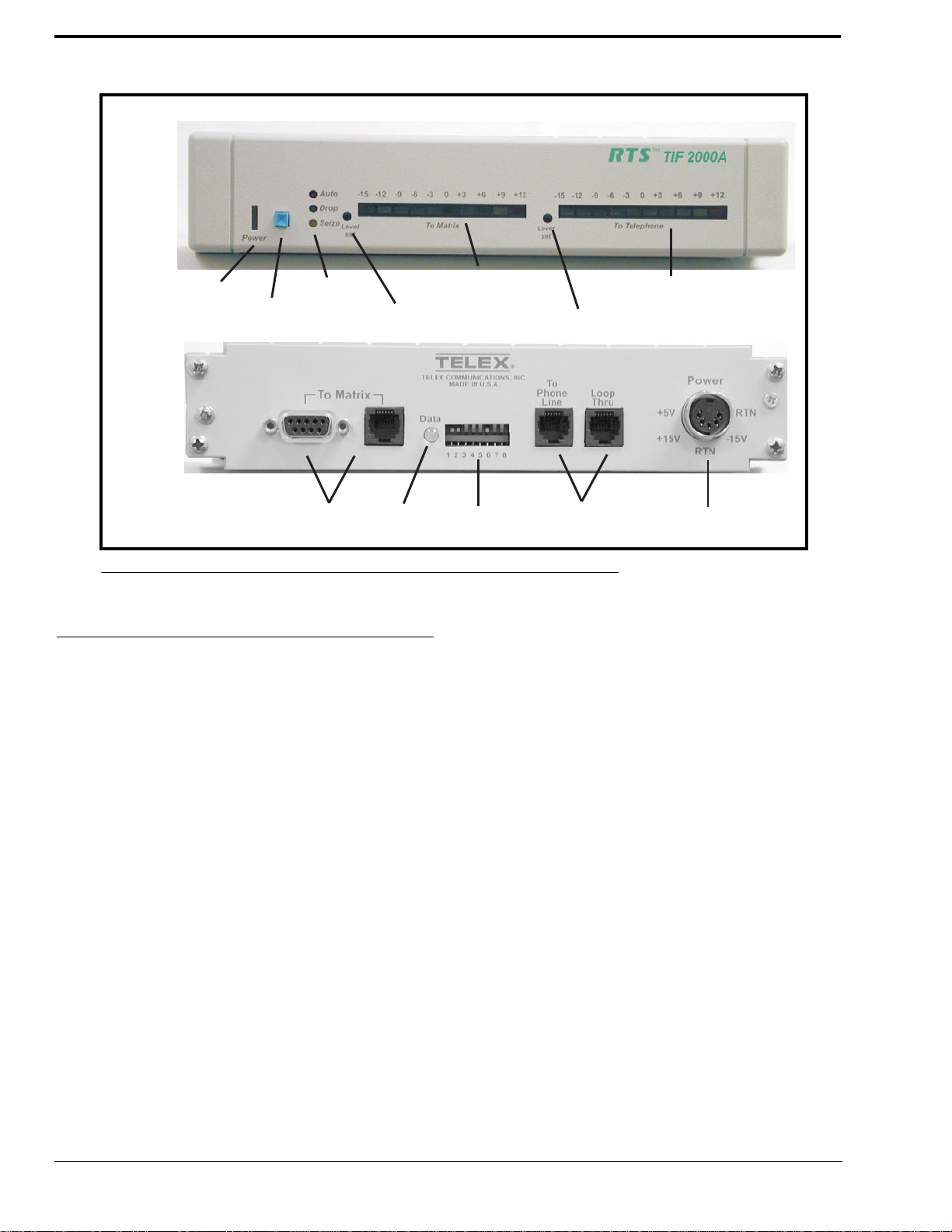

FIGURE 1. TIF2000A Reference View
Power
Indicator Seizes &
Drops Line
Line Mode
Indicator Audio to Matrix
Level Adjustment
Audio to Matrix
Level Meter
Audio to Telephone Line
Level Adjustment
Audio to Telephone Line
Level Meter
Power
Telephone Line
Connections
Address &
Configuration
Data
Present
Intercom Matrix
Connections
Matrix Input/Output:
0 dBu to ±20 dBu
Telephone Input/Output:
-30 dBu to +6 dBu
Noise (200 Hz to 3.8 kHz):
-40 dBu or less
Harmonic Distortion (300 Hz to 3.8 kHz):
Intercom Side: -30 dBu or less
Telephone Side: -25 dBu or less
Frequency Response:
300 Hz to 3.8 kHz +0 dB, -6 dB
Matrix Connectors:
DE-9S Female
RJ-12 Female
Telephone Line Connector:
RJ11 Female
Telephone Loop-Thru Connector:
RJ11 Female
Power Requirements:
100-240 VAC, 50/60 Hz, 1A
Environmental:
Operating Temperature - 0°C to 50°C
Storage Temperature - -20°C to 75°C
Humidity (Operating and Storage) - 0-95%, non-
condensing
Dimensions:
1.72” (44mm) H x 8.19” (208mm) W x 8” (203mm) D
Finish:
Thermoplastic front panel, aluminum case and rear
panel, light gray finish
Approvals:
CE, FCC
Specifications subject to change without notice!

5
CHAPTER 2
Installation and Operation
Installation
Rear Panel DIP Switch (S201)
The rear panel DIP switch contains switches to configure the most often change options. These include:
•auto-answer ON/OFF
•ring signal ON/OFF
•password ON/OFF
•intercom port address
•full-duplex mode
Auto-Answer
Turning ON the auto-answer option will set the unit to answer the phone automatically when it rings. The number of rings
required before it answers is determined by the setting of internal DIP switch S202. If auto-answer is turned OFF, the line will
ring until someone at a keypanel answers the call or until the Select button on the TIF2000A’s front panel is pressed. To turn
ON auto-answer, place switch 1 in the down position. To turn OFF auto-answer, place switch 1 in the up position.
Generate Ring Signal
Turning ON the generate ring signal option sets the unit so that when the phone line is ringing, keypanels that are configured to
receive ring signals will produce an audible ring. To turn ON the ring signal, place switch 2 in the down position. To turn OFF
the ring signal, place switch 2 in the up position.
Password Required
Turning ON the password required option sets the unit so that when a call is automatically answered, the user must enter a
password via DTMF before the unit will allow communications. The password numeric sequence and length are determined
by the settings of intercom DIP switch S203. To turn ON the password required option, place switch 3 in the down position. To
turn OFF the password required options, place switch 3 in the up position.
Intercom Port Address
Switches 4 to 7 determine the address of the unit. The port address is expressed in binary with switch 4 being the least
significant bit (LSB) and switch 7 being the most significant bit (MSB). To turn ON (set bit to 1), place the desired switch in
the down position. To turn OFF (set bit to 0), place the desired switch in the up position. ADAM, ADAM CS, and Zeus units

6
use a 1-8 address scheme for their ports (e.g., ports 1-8 have addresses 1-8, ports 9-16 have addresses 1-8, etc.). CS-9xxx
systems use a 1-10 scheme for port addresses (e.g., ports 1-10 have addresses 1-10, ports 11-20 have addresses 1-10, etc.).
To set the address for ADAM, ADAM CS, or Zeus systems, do the following:
1. Determine the port number that will be used for the TIF2000A.
2. Locate the port number and its corresponding address in Table 1 on page 7.
3. Determine the DIP switch settings by looking up the address determined in the previous step in Table 2 on page 8.
4. Set the DIP switches on the back of the unit.
To set the address for the CS9xxx systems, do the following:
1. Determine the intercom port (audio channel number) that will be used for the TIF2000A.
For the port numbers ending in 1 through 9, the address is the last digit of the port number. If the last digit is zero (0),
use 10 as the address number.
2. Determine the DIP switch settings by looking up the address in Table 2 on page 8.
3. Set the DIP switches on the back of the unit.
Full Duplex Mode
Switch 8 (S201) controls the method by which full-duplex operation is implemented in the unit. This switch only works if full-
duplex mode is set via internal DIP switch S202, switch 7. (Factory default setting for switch 7 is OFF, Full-Duplex Mode.) If
switch 8 is in the up position, then the unit will be forced into full-duplex mode all the time. If switch 8 is in the down position,
then the unit will be forced into full-duplex mode only when audio is present.
When using full-duplex mode, users may hear an increased amount of echo on the line. This may be more pronounced when
the TIF2000A is forced into full-duplex mode all of the time (switch 8 up) rather than only when audio is present (switch 8
down).

7
TABLE 1. Correspondence between address numbers and intercom port numbers for ADAM, ADAM CS, and Zeus systems
Address Card Numbers (bold headings) and Port Numbers
Cards 1 - 25
1234567891011 12 13 14 15 16 17 18 19 20 21 22 23 24 25
1 1 9 17 25 33 41 49 57 65 73 81 89 97 105 113 121 129 137 145 153 161 169 177 185 193
2 2 10 18 26 34 42 50 58 66 74 82 90 98 106 114 122 130 138 146 154 162 170 178 186 194
3 3 11 19 27 35 43 51 59 67 75 83 91 99 107 115 123 131 139 147 155 163 171 179 187 195
4 4 12 20 28 36 44 52 60 68 76 84 92 100 108 116 124 132 140 148 156 164 172 180 188 196
5 5 13 21 29 37 45 53 61 69 77 85 93 101 109 117 125 133 141 149 157 165 173 181 189 197
6 6 14 22 30 38 46 54 62 70 78 86 94 102 110 118 126 134 142 150 158 166 174 182 190 198
7 7 15 23 31 39 47 55 63 71 79 87 95 103 111 119 127 135 143 151 159 167 175 183 191 199
8 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128 136 144 152 160 168 176 184 192 200
Cards 26 - 50
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
1 201 209 217 225 233 241 249 257 265 273 281 289 297 305 313 321 329 337 345 353 361 369 377 385 393
2 202 210 218 226 234 242 250 258 266 274 282 290 298 306 314 322 330 338 346 354 362 370 378 386 394
3 203 211 219 227 235 243 251 259 267 275 283 291 299 307 315 323 331 339 347 355 363 371 379 387 395
4 204 212 220 228 236 244 252 260 268 276 284 292 300 308 316 324 332 340 348 356 364 372 380 388 396
5 205 213 221 229 237 245 253 261 269 277 285 293 301 309 317 325 333 341 349 357 365 373 381 389 397
6 206 214 222 230 238 246 254 262 270 278 286 294 302 310 318 326 334 342 350 358 366 374 382 390 398
7 207 215 223 231 239 247 255 263 271 279 287 295 303 311 319 327 335 343 351 359 367 375 383 391 399
8 208 216 224 232 240 248 256 264 272 280 288 296 304 312 320 328 336 344 352 360 368 376 384 392 400
Cards 51 - 75
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
1 401 409 417 425 433 441 449 457 465 473 481 489 497 505 513 521 529 537 545 553 561 569 577 585 593
2 402 410 418 426 434 442 450 458 466 474 482 490 498 506 514 522 530 538 546 554 562 570 578 586 594
3 403 411 419 427 435 443 451 459 467 475 483 491 499 507 515 523 531 539 547 555 563 571 579 587 595
4 404 412 420 428 436 444 452 460 468 476 484 492 500 508 516 524 532 540 548 556 564 572 580 588 596
5 405 413 421 429 437 445 453 461 469 477 485 493 501 509 517 525 533 541 549 557 565 573 581 589 597
6 406 414 422 430 438 446 454 462 470 478 486 494 502 510 518 526 534 542 550 558 566 574 582 590 598
7 407 415 423 431 439 447 455 463 471 479 487 495 503 511 519 527 535 543 551 559 567 575 583 591 599
8 408 416 424 432 440 448 456 464 472 480 488 496 504 512 520 528 536 544 552 560 568 576 584 592 600
Cards 76 - 100
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
1 601 609 617 625 633 641 649 657 665 673 681 689 697 705 713 721 729 737 745 753 761 769 777 785 793
2 602 610 618 626 634 642 650 658 666 674 682 690 698 706 714 722 730 738 746 754 762 770 778 786 794
3 603 611 619 627 635 643 651 659 667 675 683 691 699 707 715 723 731 739 747 755 763 771 779 787 795
4 604 612 620 628 636 644 652 660 668 676 684 692 700 708 716 724 732 740 748 756 764 772 780 788 796
5 605 613 621 629 637 645 653 661 669 677 685 693 701 709 717 725 733 741 749 757 765 773 781 789 797
6 606 614 622 630 638 646 654 662 670 678 686 694 702 710 718 726 734 742 750 758 766 774 782 790 798
7 607 615 623 631 639 647 655 663 671 679 687 695 703 711 719 727 735 743 751 759 767 775 783 791 799
8 608 616 624 632 640 648 656 664 672 680 688 696 704 712 720 728 736 744 752 760 768 776 784 792 800

8
Internal DIP Switch (S202)

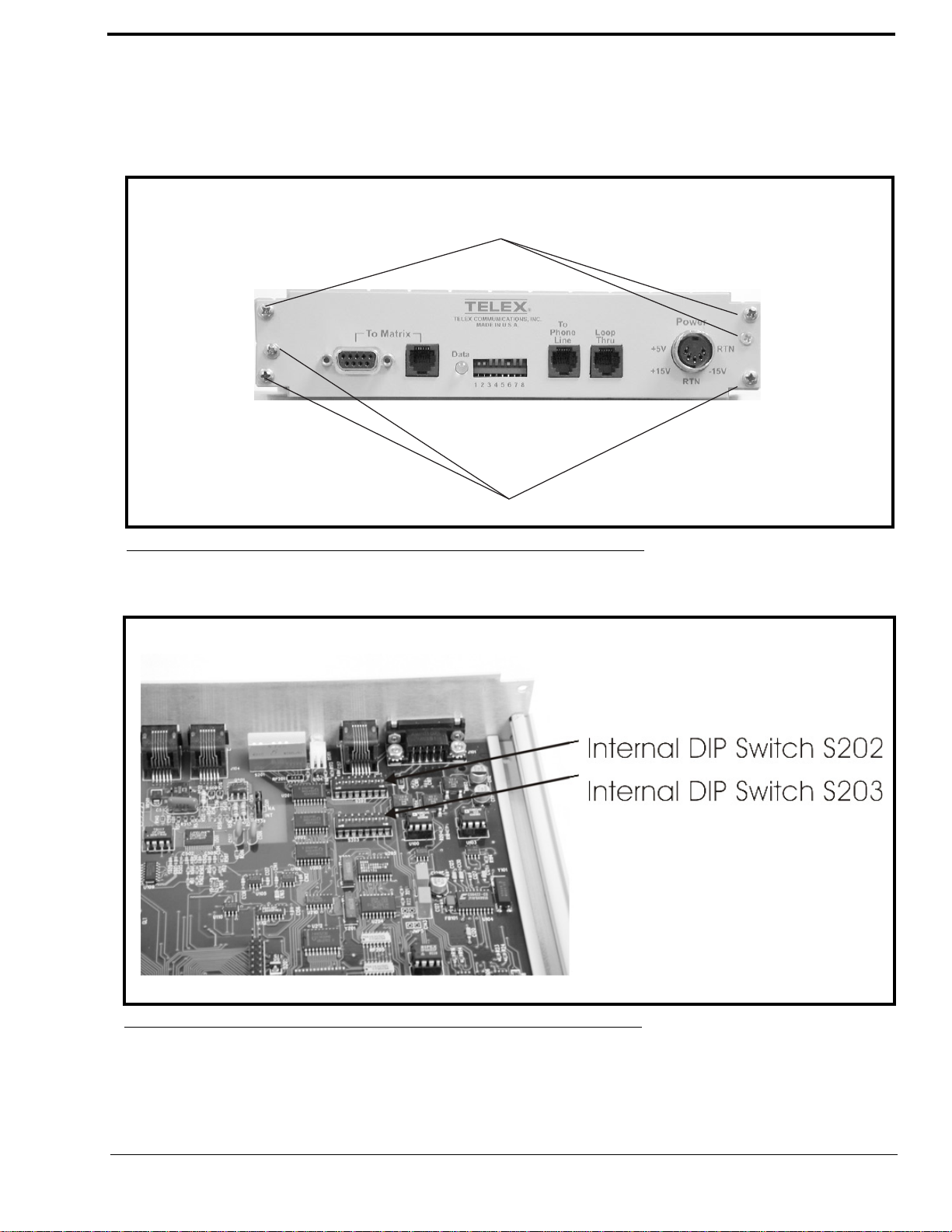

Internal DIP switch (see Figure 3 on page 8) is accessed by removing the top cover. To remove the top cover, remove and
loosen the screws, as indicated in Figure 2. Remove the cover by lifting up on the back portion of the cover. To reinstall the
cover, place the front portion into the grooves on the bottom cover and slide the cover toward the front of the unit while
lowering the back of the cover. Replace and tighten the screws that were removed or loosened as indicated in Figure 2 on
page 9.
Ring Count
Switches 1 and 2 determine the number of rings before the unit answers. Note, the ring count is approximate. These switches
have no effect unless switch 1 on the rear panel DIP switch bank is in the down position. To set the ring count, see Table 3 on
page 10.
TABLE 2. Address DIP Switch Settings
Logical
Keypanel
Number
DIP Switch Settings
SW4 SW5 SW6 SW7
1 DOWNUPUPUP
2 UP DOWN UP UP
3 DOWN DOWN UP UP
4 UPUPDOWNUP
5 DOWN UP DOWN UP
6 UP DOWN DOWN UP
7 DOWN DOWN DOWN UP
8 UPUPUPDOWN
9DOWN UP UP DOWN
10 UP DOWN UP DOWN
NOTE: Shaded area is for CS9xxx system address only.
