Ruck PODOLOGECO User manual

Operating Instructions | Rev. 05 | Print | REF 8013302
PODOLOGECO
PODOLOGONE
for cosmetic use
for cosmetic use
EN

2|
Operating Instructions | Rev. 05 | Print | REF 8013302
Copyright
© 2017 HELLMUT RUCK GmbH. All rights reserved. This document must not be copied,
edited, reproduced or translated without the prior written permission of HELLMUT RUCK
GmbH.
HELLMUT RUCK GmbH | Daimlerstraße 23 | D - 75305 Neuenbürg
web www.hellmut-ruck.de | tel. [phone] | fax [phone]
¡Diese Gebrauchsanweisung können Sie in weiteren Sprachen unter nachfolgendem Link herunterladen oder telefonisch anfordern.
¡Tämän käyttöohjeen voitte ladata useilla eri kielillä seuraavasta linkistä tai pyytää tietoja puhelimitse.
¡Puede descargar este manual en diferentes idiomas en el siguiente enlace o bien solicitarlo por teléfono.
¡Instrukcje te mogą być pobierane w innych językach pod poniższym linkiem lub telefonicznie
¡Tento návod je také k dispozici v jiných jazycích. Použijte prosím následující odkaz ke stažení návodu nebo si je vyžádejte telefonicky.
¡Šo lietošanas instrukciju citās valodās iespējams lejuplādēt zemāk norādītajā saitē vai pieprasīt telefoniski.
¡This manual is also available in other languages. Please use the following link to download the manual or request it on the phone.
¡Questo manuale è disponibile anche in altre lingua. Lo si può scaricare utilizzando il seguente link o richiederlo per telefono.
¡此說明書另有提供其他國家語言，請點擊此連結下載檔案，或透過電話詢問下載亦可。
¡Navodila za uporabo lahko v številnih jezikih pridobite na sledeči povezavi ali naročite prek telefona
¡Acest manual este disponibil si in alte versiuni de limba. Accesati link-ul urmator pentru a descarca manualul sau il puteti solicita telefonic.
¡Вы можете загрузить руководства по эксплуатации на других языках кликнув на ссылку или запросив по телефону.
¡Τις οδηγίες χρήσεως μπορείτε να τις βρείτε και σε άλλες γλώσσες, πατώντας στο παρακάτω link για να τις κατεβάσετε ή να τις ζητήσετε τηλεφωνικώς.
¡U kunt de gebruiksaanwijzing in diverse talen downloaden onder de volgende link. Ook kunt u deze telefonisch aanvragen.
¡Ce manuel d‘utilisation est disponible aussi en autre langues. Veuillez utiliser le lien suivant pour le télécharger ou demandez-le par téléphone.
¡Bu kullanım kılavuzunu farklı dillerdede aşağıdaki bağlantıdan indirebilir yada telefon ile istiyebilirsiniz.
¡Atsisiųskite instrukcija lietuvių kalbą paspaudę šią nuorodą, arba paskambinę telefonu.
¡A használati útmutatót magyar nyelven a következő linkről tudja tölteni, vagy kérheti telefonon.
¡.תוכל להוריד את הוראות ההפעלה בשפות נוספות בלינק הבא או לבקש אותן בטלפון
¡여러 언어로 된 본 사용설명서를 다음 링크에서 다운로드하시거나 전화로 요청하실 수 있습니다.
¡Hægt er að sækja þessar notkunarleiðbeiningar á öðrum tungumálum með eftirfarandi tengli eða panta þær símleiðis
¡Ezen kezelési útmutató további nyelveken a következő linken keresztül tölthető le, vagy telefonon megkérhető
¡ この取扱説明書はその他の言語でも以下のリンクでダウンロードしていただくことが可能です。またはお電 話でお問い合わせいただければご案
内申し上げます。
¡Denne brugsanvisning kan du downloade på flere sprog på efterfølgende link eller bestille telefonisk
¡Denna bruksanvisning på andra språk kan du antingen ladda ned från följande länk eller beställa på telefon
¡Цю інструкцію по експлуатації на інших мовах ви можете завантажити за нижчевказаним посиланням на сайт або запросити по телефону
1. www.hellmut-ruck.de
2. 11011
3. DOWNLOADS 11011 11011_Gebrauchsanweisung_PODOLOG_ECO_ONE_DE.pdf
11011_Gebrauchsanweisung_PODOLOG_ECO_ONE_DE.pdf
PODOLOGECO /// PODOLOGONE

3
|
Operating Instructions | Rev. 05 | Print | REF 8013302
Dear Customer,
Thank you for choosing a PODOLOG ECO or PODOLOG ONE. This high-quality product from
RUCK will provide optimum support for your day-to-day work, whether based in a practice or
on the move.
Backed by our name and our two-year guarantee, you can be assured of many years of enjoy-
able and problem-free operation.
Please take some time to read through these operating instructions carefully before setting up
the system. These constitute part of the device, help you avoid possible operational errors and
should be kept in proximity to the device.
We wish you much success and enjoyment in the use of this product.
Kind regards, HELLMUT RUCK GmbH

4|
Operating Instructions | Rev. 05 | Print | REF 8013302
GENERAL INFORMATION, SCOPE OF DELIVERY
DECLARATION RELATING TO THESE OPERATING INSTRUCTIONS
Hellmut Ruck GmbH reserves all rights to modify and supplement these operating instructions.
Hellmut Ruck GmbH has taken great care to keep these instructions free of inaccuracies and
omissions. Please contact us if you find mistakes or inaccuracies. However, Hellmut Ruck
GmbH assumes no liability for mistakes in these operating instructions or consequential dam-
age resulting from the provision of these operating instructions or their application when using
the product.
These operating instructions must not be disseminated or supplemented without the express
approval of Hellmut Ruck GmbH.
SYMBOLS USED
This symbol identifies a potential point of danger for people or for the device
itself. It must be taken note of.
This symbol identifies useful advice. Additional information about the product
and how to use it is provided here.
SCOPE OF DELIVERY
Please take some time to read through these operating instructions carefully before using the
PODOLOG ECO / ONE for the first time. Please check that the delivery is complete.
The scope of delivery includes the following items:
PODOLOG ECO / ONE controller
Handpiece with hose and drawer
1 Dust filter bag
1 Set of operating instructions
1 Device logbook
1 Cleaning tool
1 Handpiece holder
PACKAGING
The packaging has been designed to protect the device while in transit. The materials used
have been selected with due regard to environmental issues and with recycling in mind. Please
keep the packaging (box, plastic bag, PU foam parts) to use for returning the device in case of
any maintenance work.

5
|
Operating Instructions | Rev. 05 | Print | REF 8013302
PODOLOGECO
230 V variant
Item no. 11011
115 V variant
Item no. 11021
PODOLOGONE
230 V variant
Item no. 11012
115 V variant
Item no. 11022
PODOLOGECO /// PODOLOGONE
These operating instructions apply to the foot care systems PODOLOG ECO (item no. 11011)
and PODOLOG ONE (item no. 11012), referred to in the descriptions that follow as the
PODOLOG ECO / ONE.

6|
Operating Instructions | Rev. 05 | Print | REF 8013302
1. DESCRIPTION OF THE DEVICE 8
1.1 EXPLANATION OF THE SYMBOLS USED 10
1.2 DISPLAY WARNINGS 10
1.3 PACKAGING 10
1.4 RECYCLING 10
2. INTENDED USAGE 11
2.1 OPERATOR REQUIREMENTS 11
2.2 OPERATOR AND CLIENT SAFETY 11
3. OPERATOR AND CLIENT SAFETY 12
3.1 OPERATOR REQUIREMENTS 12
3.2 OPERATOR AND CLIENT SAFETY 12
3.3 POTENTIAL RISKS FOR THE CLIENT 13
3.3.1 HAZARDS CAUSED BY REMOVED MATERIAL 13
3.3.2 ALLERGY RISK 13
3.3.3 HAZARDS CAUSED BY MOVING PARTS 13
3.4 POTENTIAL RISKS FOR THE USER 14
3.4.1 HAZARDS CAUSED BY REMOVED MATERIAL 14
3.4.2 ALLERGY RISK 14
3.4.3 HAZARDS CAUSED BY MOVING PARTS 14
4. FIRST-TIME USE 15
4.1 TECHNICAL SAFETY 15
5. OPERATION 17
5.1 PREPARATIONS FOR OPERATION 18
5.1.1 INSERTING A ROTARY TOOL 19
5.1.2 SWITCHING ON THE PODOLOG ECO / ONE 19
5.1.3 SWITCHING ON THE HANDPIECE 22
5.1.4 SWITCHING OFF THE HANDPIECE 22
5.1.5 SWITCHING OFF THE PODOLOG ECO / ONE 23
5.2 SETTINGS 23
5.2.1 HANDPIECE MOTOR SPEED 23
5.2.2 RIGHT-HAND/LEFT-HAND DIRECTION OF ROTATION 24
5.2.3 CHANGING THE ROTATION DIRECTION 25
5.2.4 SELECTING THE EXTRACTION POWER LEVEL 25
5.2.5 SAVING SETTINGS 25
CONTENTS

7
|
Operating Instructions | Rev. 05 | Print | REF 8013302
5.3 CHANGING TOOLS 27
5.4 ERGONOMIC HOLDING POSITION OF THE HANDPIECE 27
5.4.1 PEN GRIP 27
5.4.2 OVERHAND GRIP 27
5.5 INFO MENU 28
5.5.1 CHANGING THE FILTER 28
5.5.2 DISPLAYING THE NEXT SERVICE DATE 29
5.5.3 ACTIVATING THE SERVICE REMINDER 29
6. SERVICE REMINDER AND CLEANING 30
6.1 MAINTENANCE 30
6.2 CHANGING THE FILTER 31
6.2.1 CHANGING THE DUST FILTER BAG 31
6.2.2 WHERE CAN YOU GET REPLACEMENT DUST FILTER BAGS? 33
6.3 CLEANING THE MOTOR UNIT 33
6.3.1 CLEANING THE MOTOR UNIT 34
6.4 CLEANING AND DISINFECTING THE CONTROLLER 36
7. ACCESSORIES AND SPARE PARTS 37
7.1 TOOLS 37
7.2 DUST FILTER BAGS 37
7.3 FOOT CONTROLLER 37
8. TECHNICAL DATA 38
8.1 AMBIENT CONDITIONS 39
9. GUARANTEE 40
10. DISPOSAL 40
CONTENTS

8|
Operating Instructions | Rev. 05 | Print | REF 8013302

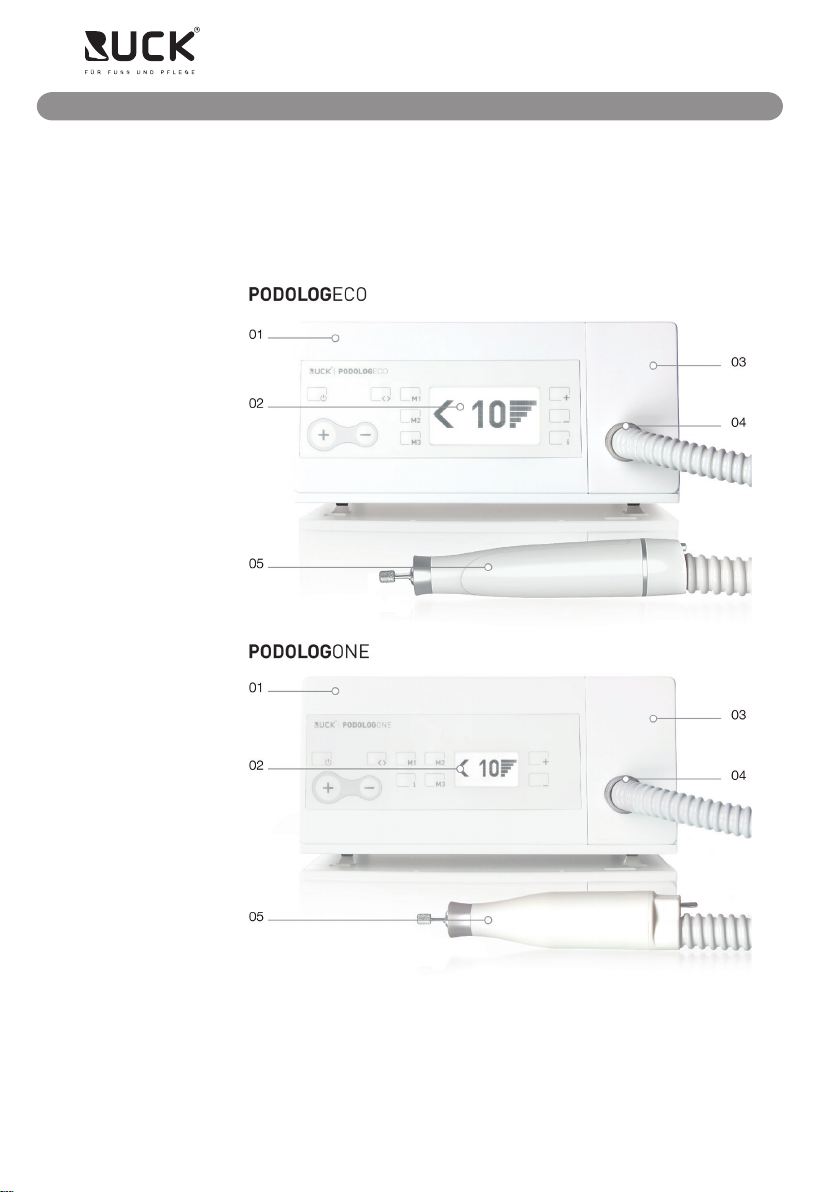

1. DESCRIPTION OF THE DEVICE
01 Controller
02 Display
03 Dust filter bag drawer
04 Hose connector
05 Handpiece
PRODUCT DESCRIPTION

9
|
Operating Instructions | Rev. 05 | Print | REF 8013302

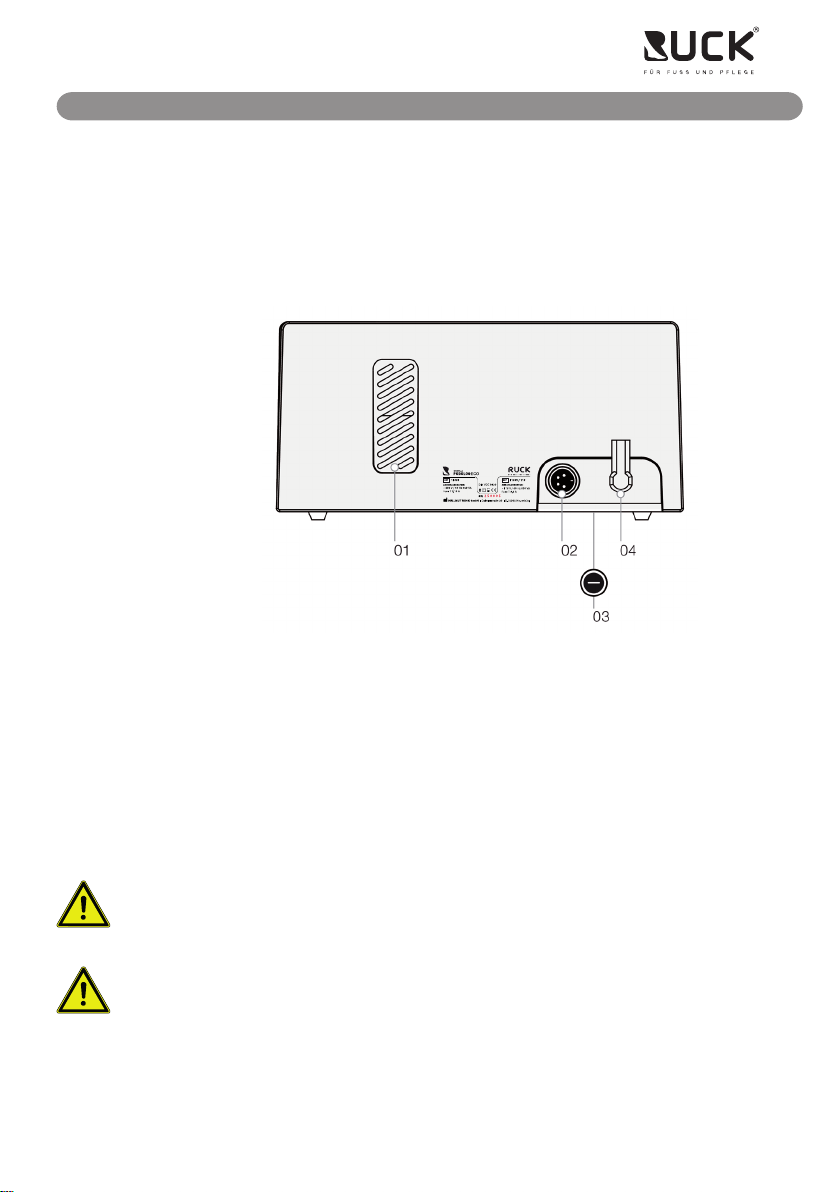

PRODUCT DESCRIPTION
PODOLOGECO /// PODOLOGONE
01 Ventilation slots
02 Foot switch connection
03 Device lock on base
04 Power cable
If the power cable is damaged, the device must be disconnected from the mains
and may not be used any more.
A damaged power cable may only be replaced by an authorised specialist.

10 |
Operating Instructions | Rev. 05 | Print | REF 8013302
PRODUCT DESCRIPTION
10
1.1.3 DISPLAYWARNHINWEISE
„HANDSTÜCK BLOCKIERT!“ -Beim Blockieren
des Handstückes wird nach ca. 5 Sek. die Mo-
tordrehzahl sowie die Saugturbine abgeschaltet.
Nach ca. 10 Sek. verschwindet diese Displayan-
zeige und die Handstückdrehzahl kann neu
eingestellt werden.
„ABSAUGUNG ÜBERHITZT“ -Nach Überschrei-
ten der Lufttemperatur im Saugturbinengehäuse
wird die Saugturbine sowie das Handstück abge-
schaltet. Nach dem Absenken der Temperatur
um ca. 10…15 °C verschwindet diese Displayan-
zeige und die Handstückdrehzahl kann neu
eingestellt werden.
1.2 LIEFERUMFANG
Bevor Sie den PODOLOG ECO / ONE in Betrieb nehmen, lesen Sie bit-
te die vorliegende Gebrauchsanweisung. Bitte prüfen Sie die Lieferung
auf Vollständigkeit.
Zum Lieferumfang gehören:
PODOLOG ECO / ONE Steuergerät
Handstück mit Schlauch und Schublade
1 Staubfilterbeutel
1 Gebrauchsanweisung
1 Gerätepass
1 Reinigungswerkzeug
1 Handstückauflage

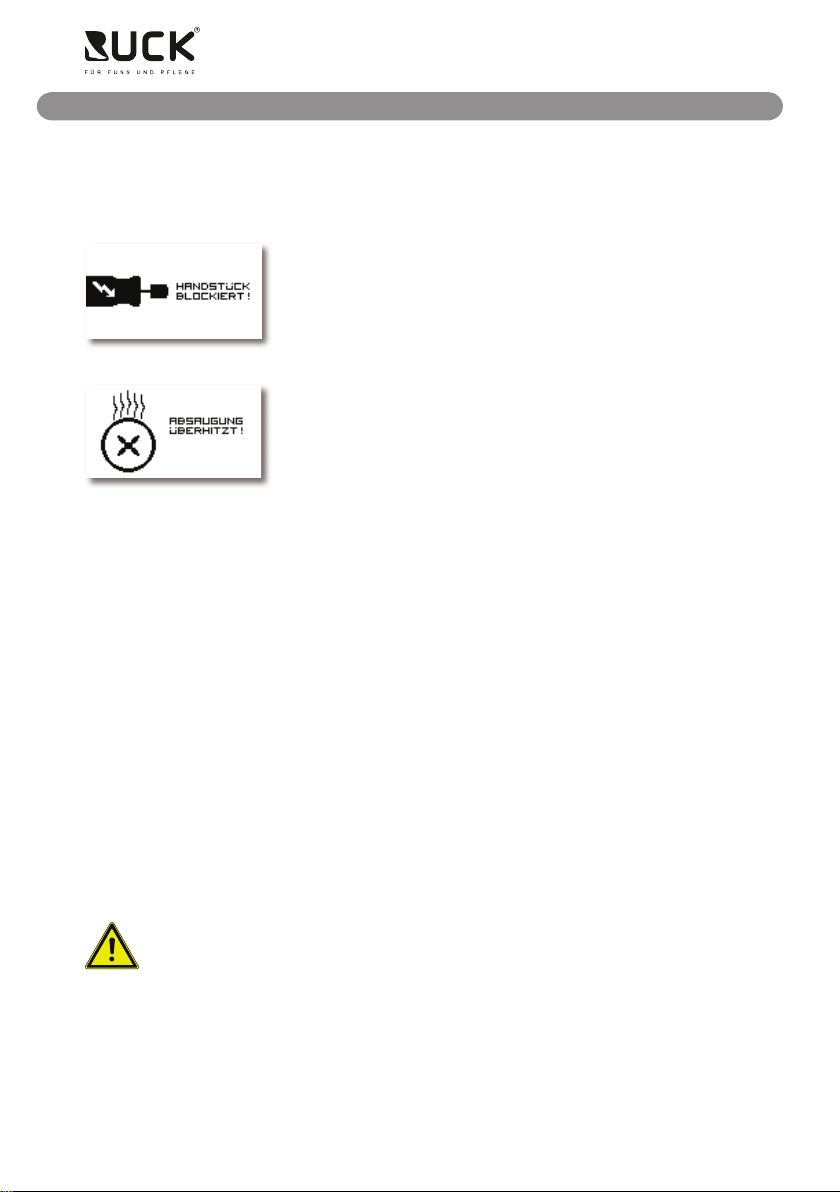

1.2 DISPLAY WARNINGS
"HANDPIECE BLOCKED!" - If the handpiece is blocked, the motor
speed and suction turbine are switched off after about 5 seconds.
This display message disappears after about 10 seconds, after
which the handpiece speed can be reset.
"EXTRACTION OVERHEATING" - If the permissible air temperature
in the suction turbine housing is exceeded, the suction turbine and
handpiece are switched off. Once the temperature has fallen by
around 10 - 15 °C, this display message disappears and the hand-
piece speed can be reset.
1.3 PACKAGING
The packaging has been designed to protect the device while in transit. The packaging mate-
rials used have been selected with due regard for environmental issues and can be recycled.
Please keep the packaging (box, plastic bag, PU foam parts) to use for returning the device in
case of any maintenance work.
1.4 RECYCLING
Old equipment must be disposed of as electronic waste and should not be treated as domestic
waste. Full dust bags can be disposed of with general rubbish.
Please make sure you follow any local guidelines in this respect.
Special country-specific requirements should also be taken into account.

11
|
Operating Instructions | Rev. 05 | Print | REF 8013302
2. INTENDED USAGE
The PODOLOG ECO and PODOLOG ONE foot care systems operate rotating tools such as
cutters and grinders for the removal of hard skin, calluses, nails, etc. from feet and hands. The
device is intended for use in the following fields of activity: Foot care, nail design, cosmetic
treatments, wellness.
Any other usage is undertaken at your own risk and could be dangerous. Improper usage of
the device can lead to personal and material damage.
The manufacturer cannot be held responsible for any damage caused by improper or incorrect
usage of the equipment.
All rights under the terms of the guarantee are rendered null and void by any improper usage
or if the device is opened!
No changes or modifications may be made to the device or its accessories. Should a
repair be required, the necessary safety checks must be repeated.
The foot care systemsmust not be used for podiatry/medical purposes.
2.1 OPERATOR REQUIREMENTS
The foot care system should only be used by pedicurists, cosmeticians, nail designers and
other non-medical professionals, who are aware of how the system operates and have received
the necessary training.
2.2 OPERATOR AND CLIENT SAFETY
— Only use high-quality rotary tools in accordance with DIN EN ISO1797-1 which have
a standardised shaft diameter of 2.35 mm, cylindrical, Type 2.
— Please take note of their instructions for use and the maximum speeds in accordance
with the manufacturer’s specifications for rotary tools as well as information concern-
ing cleaning, disinfecting and sterilisation. You will find additional information in the
current catalogue from HELLMUT RUCK GmbH, in the section "Rotary instruments".
— Operators should not come into contact with the foot controller connection and the
client at the same time.
PRODUCT DESCRIPTION

12 |
Operating Instructions | Rev. 05 | Print | REF 8013302
— Operators must wear eye, mouth and nose protectors and gloves while using the
equipment.
— During treatment, the operator must ensure that hair or loose items such as towels,
tamponades, etc. cannot get into the area of the rotary tools.
— The tools must be disinfected, cleaned and if necessary sterilised after each usage
or change of client, in order to avoid the possible transfer of germs from one client to
another.
You will find suitable products in our catalogue under the section "Hygiene".
— All surfaces of the handpiece and equipment that may have become contaminated
must be disinfected and cleaned. Under no circumstances should any fluids get into
the handpiece as this may cause damage to the device.
3. OPERATOR AND CLIENT SAFETY
The likelihood of any person-related risk can be restricted to a very few points by the profes-
sional and proper usage of the PODOLOG ECO / ONE.
3.1 OPERATOR REQUIREMENTS
The PODOLOG ECO / ONE foot care system should only be used by podiatrists, pedicurists,
cosmeticians, nail designers, doctors or other related professionals, who are aware of how the
system operates and have received the necessary training.
3.2 OPERATOR AND CLIENT SAFETY
To protect users, clients and third parties, the following must be observed:
— Only high-quality rotary tools in accordance with DIN EN ISO 1797-1, which have a
standardised shaft diameter of 2.35mm, cylindrical, Type 2, may be used. For the
rotary tools used, the manufacturer’s instructions relating to maximum speed and
preparation (cleaning, disinfection and sterilisation) must be followed. You will find
additional information in the current catalogue from HELLMUT RUCK GmbH, in the
section "Rotary instruments".
— Operating staff must wear protective goggles and mouth and nose protection while
using the equipment. Long hair must be tied back or protected by a hairnet.
PRODUCT DESCRIPTION

13
|
Operating Instructions | Rev. 05 | Print | REF 8013302
— During the treatment, ensure that no objects that could become caught in the rotating parts
can enter the treatment area.
3.3 POTENTIAL RISKS FOR THE CLIENT
The extraction of potentially pathogenic dust significantly reduces the risks caused by transfer-
able germs (micro-organisms). Regular, complete and accurate anamnesis can help to identify
potential risks of infection.
The risk to clients through inhalation is reduced to a minimum and the treatment of clients with
low levels of immunity can be responsibly undertaken. Nevertheless, the practitioner should
still always wear mouth and nose protectors as well as safety gloves while carrying out the
treatment.
If any germ-intensive work has been carried out, disinfected and sterilised tools must
be used during the next work process, to treat any unaffected areas of skin or nail.
3.3.1 HAZARDS CAUSED BY REMOVED MATERIAL
The hazard level caused by removed particles (nail splinters or parts of the coarse surface) is
low because there is a sufficient distance from the treatment area.
The efficient suction technology of the PODOLOG ECO / ONE minimises the risk of inhaling
dust which may potentially contain pathogens. The risk of infection can be further reduced by
practising thorough antiseptic skin hygiene prior to the treatment.
3.3.2 ALLERGY RISK
Since the client does not generally come into contact with the surfaces of the PODOLOG ECO
/ ONE, the only potential cause of an allergic reaction is parts of the rotary tools. However, due
to the very short contact times (less than 30 minutes), this risk is minimal.
3.3.3 HAZARDS CAUSED BY MOVING PARTS
High speeds and pressure may cause an undesired level of heat to develop in the treatment
area. In the worst case scenario, the affected tissue may be damaged by the heat produced.
PRODUCT DESCRIPTION

14 |
Operating Instructions | Rev. 05 | Print | REF 8013302
PRODUCT DESCRIPTION
Sudden movements by the client or a lack of attention on the part of the user may result in un-
intentional penetration of the skin. However, if the equipment is used properly and the process
is constantly visually monitored, this risk is low.
Warning! Penetration of the skin must be avoided!
3.4 POTENTIAL RISKS FOR THE USER
The extraction of potentially pathogenic dust significantly reduces the risks caused by transfer-
able germs (micro-organisms).
Risks to the operator through inhalation are kept to a minimum.
For reasons of hygiene we recommend wearing face/mouth protection.
3.4.1 HAZARDS CAUSED BY REMOVED MATERIAL
Removed particles (nail splinters, parts of the treated surface) and dusts present a hazard due
to their proximity to the treatment area.
To minimise the risk, the user must wear goggles and mouth and nose protection during the
treatment.
3.4.2 ALLERGY RISK
It is possible, but extremely unlikely, that allergic reactions to the material of the handpiece may
occur. For hygiene reasons we would also recommend that disposable gloves be worn.
3.4.3 HAZARDS CAUSED BY MOVING PARTS
Hair, jewellery and clothing may get caught in rotating parts. To avoid injury, long hair should
be tied back or protected by a hairnet. In the interests of hygiene, jewellery should not be worn.
The user should wear clothes that cannot get caught in the tool.

15
|
Operating Instructions | Rev. 05 | Print | REF 8013302
4. FIRST-TIME USE
4.1 TECHNICAL SAFETY
— Before using the device for the first time, you should ensure that the mains power
characteristics match the values quoted on the rating plate.
— Make sure the controller is located on a flat, stable surface.
— The ventilation slots in the device must be kept uncovered at all times.
— Avoid damaging the mains cable through squashing, bending or rubbing against
sharp edges.
— Don’t introduce any fluids into the unit.
— Protect the device from all types of moisture that could find its way inside the housing.
There is a danger of electrical shock if there is dampness in the device!
— Switch the device off before maintenance and cleaning and unplug it from the mains
power.
— Never immerse the device in water or other fluids.
— Remove the plug from the mains immediately, if the device is damaged or if it starts to
function incorrectly.
— Repairs should only be carried out by qualified repair technicians.
— If the device is opened, all rights under the terms of the guarantee are void!
— All tools used must comply with DIN EN ISO 1797-1 in order to guarantee safe opera-
tion. Please see also Chapter 2.2, Operator and Client Safety, page 12.
— Do not store the PODOLOG ECO / ONE directly next to or with other devices. Should
this be necessary, please make sure that all intended functions of the PODOLOG
ECO / ONE work properly.
PRODUCT DESCRIPTION

16 |
Operating Instructions | Rev. 05 | Print | REF 8013302
The use of other equipment than that prescribed may result in increased emissions or
reduced immunity to interference.
Risk of strangulation from handpiece hose and power cable. Keep children away from
the device.
Risk of swallowing in the case of required accessories (small parts), e.g. cutters
Keep children away from the device.
Use the supplied packaging to protect the device against mechanical damage and
damp when transporting it between deployments.
When using the device in domestic premises, there can be a risk resulting from power
cables that have been damaged by animals, for example.
Please check the mains power connection regularly for signs of damage and if any are
found, disconnect the device from the mains.
When using the device in domestic premises, there can be a risk that the device may
be tampered with by children. Keep children away from the device.
Protect the device against pest infestation through regular checks and cleaning.
The instructions regarding operation and transport of the device must be adhered to.
Please ensure that you have easy access to the mains plug at all times so that the
device can be unplugged from the mains without difficulty. The mains plug represents
the separator to the mains power supply.
PRODUCT DESCRIPTION

17
|
Operating Instructions | Rev. 05 | Print | REF 8013302
5. OPERATION
PRODUCT DESCRIPTION

22
−Prüfen Sie, ob der beiliegende Filterbeutel eingelegt ist. Falls das
nicht der Fall ist, stecken Sie den Filterbeutel auf die Hülse, siehe
dazu Seite 35.
−Schließen Sie die Schublade durch Hineinschieben.
−Schalten Sie das Gerät an der Standby-Taste ein.
= Standby-Taste ein/aus
18 |
Operating Instructions | Rev. 05 | Print | REF 8013302

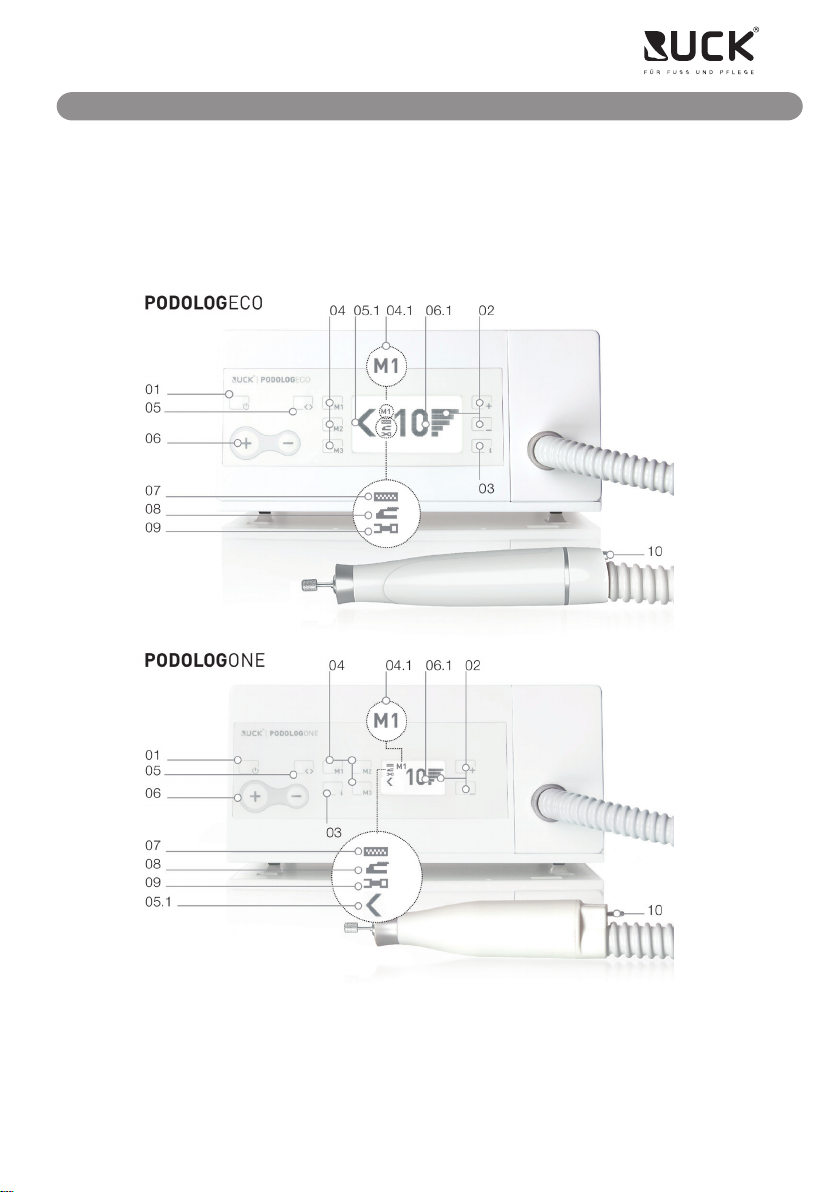

01 Standby button Press this button to activate/deactivate the standby mode
02 Setting for Increase [+] or decrease [-] the extraction power.
extraction power The power level is shown in the display.
03 Info menu [ i ] Through this menu, you can, for example, activate the handpiece
cleaning process or check when the next filter change or service is
due. Press and hold the button for 5 seconds to change basic set-
tings, e.g. language.
04 Buttons for saving Three different combinations of rotational speed, rotation direction
user settings and extraction power can be saved. The memory is shown in the
display (04.1). [M1] [M2] are needed for the filter change.
05 Right-hand/left-hand Sets the rotational direction of the tool.
06 Speed controller This is used to set the rotational speed in steps of 1000 rpm. The
current speed is shown in the display (06.1). If the speed controller is
removed, all buttons are disabled.
07 Filter bag change The icon appears as a reminder that a filter bag change is due.
08 Foot switch The icon appears if an optional foot switch is connected.
09 Service The icon appears as a reminder that a service is due.
10 On/off switch Switches the device on/off for treatment
5.1 PREPARATIONS FOR OPERATION
— Open the dust filter bag drawer by pulling on the hose connector.
— Please check if the supplied filter bag has been inserted. If this is not the case, connect
the bag to the sleeve at the end of the tool hose. Please refer to page 35.
— Close the drawer by sliding it in.
— Switch the device on using the standby button.
= Standby button on/off
PRODUCT DESCRIPTION

19
|
Operating Instructions | Rev. 05 | Print | REF 8013302
Always work with a dust filter bag fitted.
The filter bag drawer must always be closed when the unit is in operation.
The PODOLOG ECO / ONE switches off if the drawer is opened.
5.1.1 INSERTING A ROTARY TOOL
Insert the rotary tool (grinder/cutter) that you need for your work in the opening of the hand-
piece.
The tool only has to
be inserted
(quick-action chuck).
The tool shaft must be fully inserted!
Ensure that the tool shaft is not bent, as this may cause an imbalance which may dam-
age the handpiece and impair the tool hold.
5.1.2 SWITCHING ON THE PODOLOG ECO / ONE
Press the standby button. The PODOLOG ECO / ONE is now switched on and ready to use.
23
Arbeiten Sie auf keinen Fall ohne Staubfilterbeutel.
Die Staubfilterbeutelschublade muss beim Betrieb immer ge-
schlossen sein. Der
PODOLOG ECO / ONE schaltet sich beim
Öffnen der Schublade aus.
5.1.1 ROTIERENDES WERKZEUG EINSETZEN
Stecken Sie das für Ihre Arbeit benötigte rotierende Werkzeug (Schlei-
fer/Fräser) in die Öffnung des Handstücks.
Das Werkzeug muss nur
eingesteckt werden
(Schnellspannfutter).
Der Schaft des Werkzeugs muss vollständig eingeführt
werden!
Achten Sie darauf, dass der Schaft des Werkzeugs nicht ver-
bogen ist, da ansonsten eine Unwucht entstehen kann,die
das Handstück beschädigen und den Halt des Werkzeuges
beeinträchtigen kann.
5.1.2 PODOLOG ECO / ONE EINSCHALTEN
Tippen Sie die Standby-Taste an. Der PODOLOG ECO / ONE ist jetzt
eingeschaltet und betriebsbereit.
23
Arbeiten Sie auf keinen Fall ohne Staubfilterbeutel.
Die Staubfilterbeutelschublade muss beim Betrieb immer ge-
schlossen sein. Der
PODOLOG ECO / ONE schaltet sich beim
Öffnen der Schublade aus.
5.1.1 ROTIERENDES WERKZEUG EINSETZEN
Stecken Sie das für Ihre Arbeit benötigte rotierende Werkzeug (Schlei-
fer/Fräser) in die Öffnung des Handstücks.
Das Werkzeug muss nur
eingesteckt werden
(Schnellspannfutter).
Der Schaft des Werkzeugs muss vollständig eingeführt
werden!
Achten Sie darauf, dass der Schaft des Werkzeugs nicht ver-
bogen ist, da ansonsten eine Unwucht entstehen kann,die
das Handstück beschädigen und den Halt des Werkzeuges
beeinträchtigen kann.
5.1.2 PODOLOG ECO / ONE EINSCHALTEN
Tippen Sie die Standby-Taste an. Der PODOLOG ECO / ONE ist jetzt
eingeschaltet und betriebsbereit.
PRODUCT DESCRIPTION

20 |
Operating Instructions | Rev. 05 | Print | REF 8013302
The first time it is switched on, the PODOLOG ECO / ONE is set to your language and your area
of activity. Additionally, you can activate the service reminder function so that you are reminded
in time when the next service is due. Please refer to Chapter 6, MAINTENANCE AND CLEAN-
ING. You are guided through the Start menu, step by step. At the end, confirm your inputs with
the [M1] button.
Display message the first time the PODOLOG ECO / ONE is used:
24
Beim ersten Einschalten wird der PODOLOG ECO / ONE auf Ihre Spra-
che und Ihr Tätigkeitsfeld eingestellt. Zusätzlich können Sie die
Wartungserinnerung aktivieren, die Sie bequem an die nächste fällige
Wartung erinnert.Vergleichen Sie dazu auch 6. WARTUNG UND
REINIGUNG. Sie werden Schritt für Schritt durch dass Startmenü ge-
führt. Am Ende bestätigen Sie Ihre Eingabemit der [M1] – Taste.

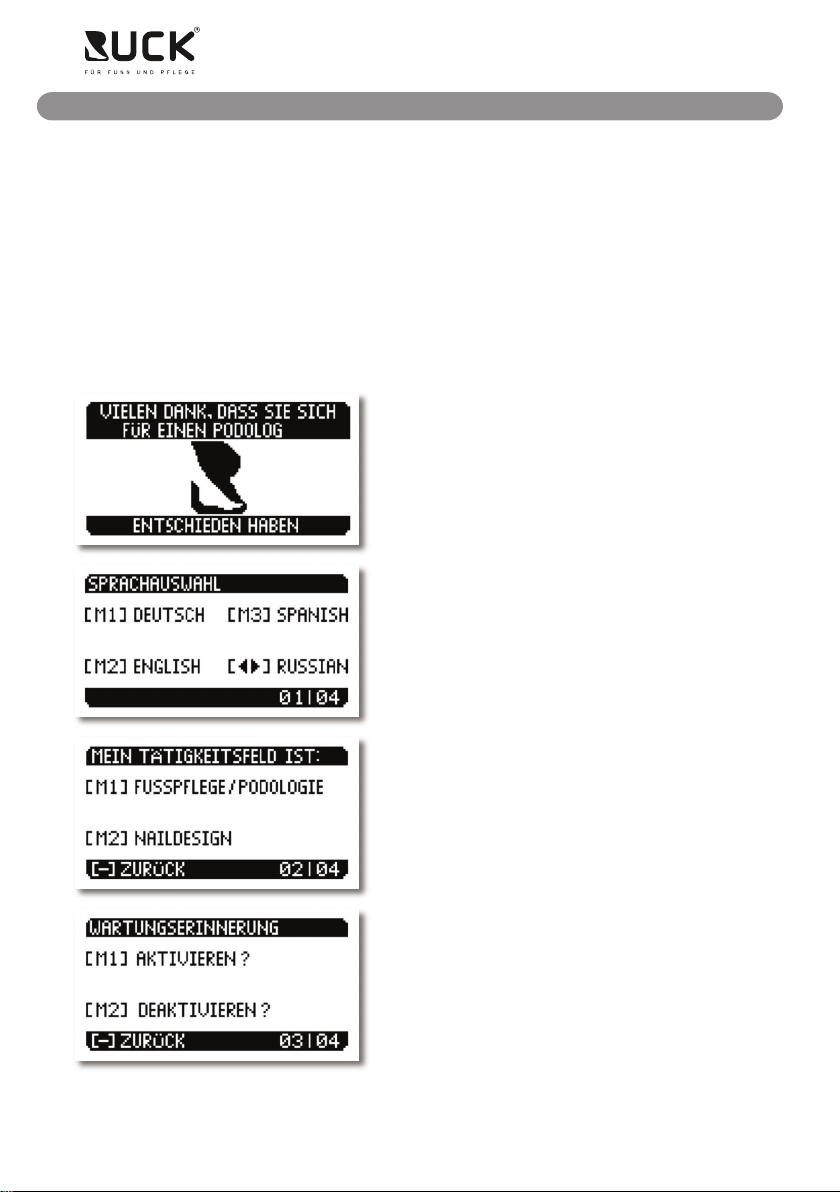

Displayanzeige beim ersten Gebrauch des PODOLOG ECO / ONE:
PRODUCT DESCRIPTION
THANK YOU FOR CHOOSING A PODOLOG
LANGUAGE SELECTION
01 / 04
MY FIELD OF ACTIVITY IS:
[M1] FOOTCARE/CHIROPODY
[M2] NAIL DESIGN
[–] BACK 02 / 04
SERVICE REMINDER
[M1] ACTIVATE
[M2]DEACTIVATE
[–] BACK 03 / 04
