Rugged CCTV Ruff Ride User manual

USER MANUAL
HD Portable All-Condition Rugged PTZ Camera
(IR and White Light Versions)

Safety Notes
Thank You for Choosing Our HD Portable All-Condition Rugged PTZ Camera!
When you open the box:
1.Check that the packing and the contents are not visibly damaged. Contact the retailer
immediately if any parts are either missing or damaged.
2.Make sure if the contents are all included as per the packing list.
3.Do not attempt to use the device with missing or damaged parts. Send the product back in its
original packing if it is damaged.
[Note] The information contained in the document is subject to change without notice.

Table of Contents
Safety Notes..................................................................................................... 1
About The Product.......................................................................................... 2
Features ......................................................................................................... 2
Functions........................................................................................................ 3
Technical Data ............................................................................................... 6
Preparation ...................................................................................................... 8
Dip Switch ...................................................................................................... 8
Initial Power On Test...................................................................................... 9
Installation Place.......................................................................................... 10
Installation ..................................................................................................... 11
Fixed Mounts................................................................................................ 11
Installation .................................................................................................... 12
Camera Cable Package............................................................................... 13
MENU SETTINGS........................................................................................... 15
Menu Configuration...................................................................................... 15
Menu Explanation.........................................................................................16
Operation ....................................................................................................... 23
Special Control Panel Commands...............................................................23
Operation......................................................................................................24
Trouble Shooting .......................................................................................... 27
Annex: Dip Switch –Camera Address........................................................ 28

1
Safety Notes --- Important!!!
The following important notes must be followed carefully to run the camera and respective
accessories in total safety. The camera and relative accessories are called video system in this
section.
Before installing the camera, please read this manual carefully; when installing please follow
instructions of installation indicated in this manual. Please keep this manual for future use.
The following installation should be performed by qualified service personnel or system installers
in accordance with all local rules.
Before powering on the camera, please check the power voltage carefully. Make sure that you
are using the right power source.
Please put the power cable, video cable and control cable in safe place.
Do not operate the camera beyond the specified temperature and humidity. The camera’s working
temperature range is between -45℃~+65℃. The ambient humidity range is less than 95﹪.
When transporting, avoid violent shake or force to the camera.
To prevent electric shock, do not remove screws or covers of the camera. There are no
self-serviceable parts inside. Refer to qualified service personnel for servicing.
Video cable and RS485 cable should be far away from other cables. Shielded and independent
wiring is necessary for video and control cables.
Never aim the lens of the camera at the sun or other extremely bright objects. Otherwise, it may
cause damage.
When cleaning the camera, please use soft cloth. If the camera is very dirty, wipe it off gently
with a soft cloth moistened with a weak solution of water and a neutral kitchen detergent. Wring
all liquid from the cloth before wiping the camera, then wipe off all remaining dirt with a soft, dry
cloth. Use lens cleaning paper to clean the lens.
Do not move the camera module manually. In doing so would result in malfunction of the camera.
Do not hold the camera module when carrying the video camera.
Make sure the camera is far away from area where radiation, X-rays, strong electric waves, or
magnetism is generated.

2
About The Product

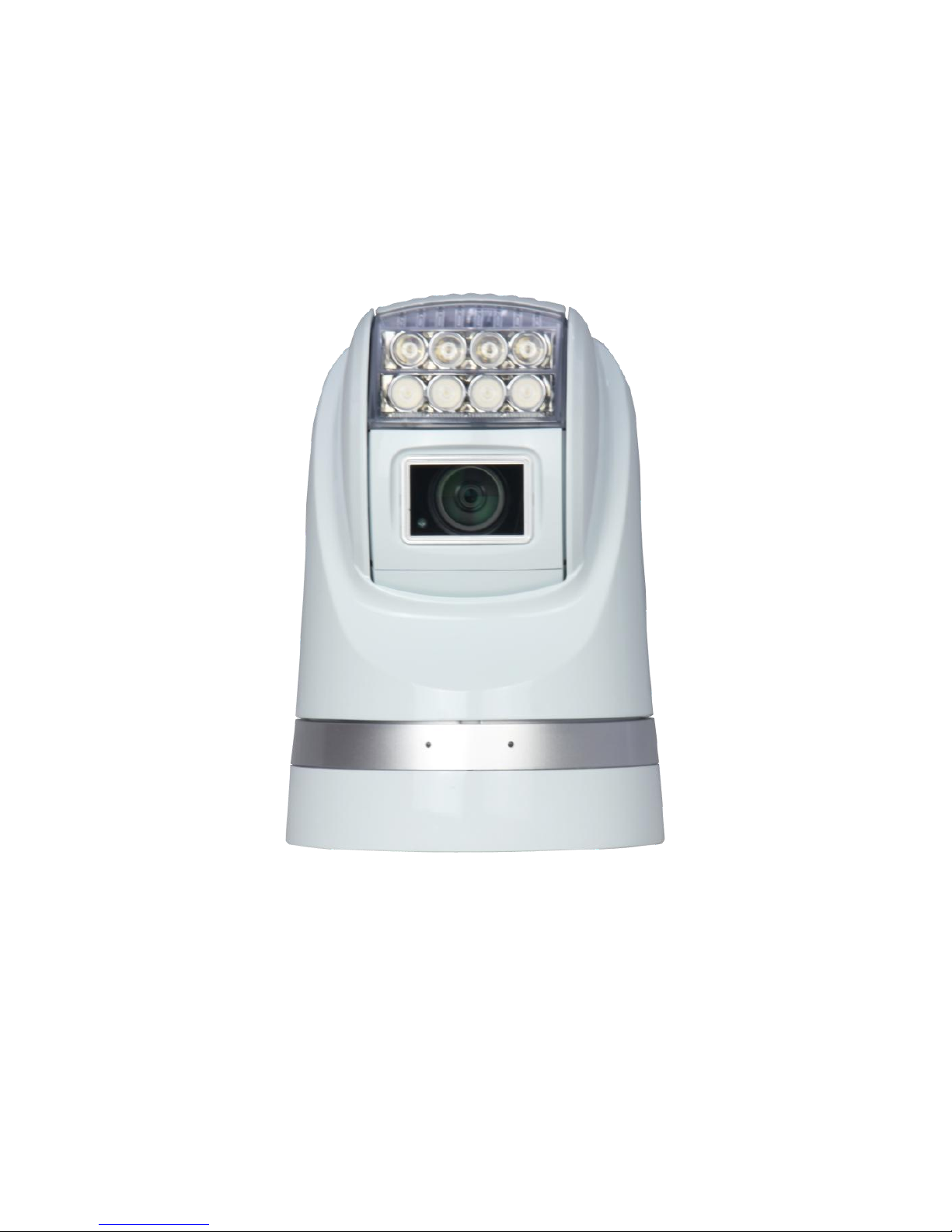

PAHC series camera is designed for fixed and mobile video surveillance applications, such as
marine, law enforcement, army, border patrol, airport, oilfield etc.
It consists of: high resolution zoom module, powerful IR or white lighting module, precise PTZ
system, optional damping systems.
Aux Lighting System
Powerful IR lighting or white lighting systems with ranges up to 120 meters. It ensures clear view of
details in distance up to 120 meter under total dark environments.
Full Aluminum PTZ Case
The case with high strength is full weather proof, suitable for various tough applications such as
rugged roads, sea, storm weather etc.
New Drive Mechanism
The PTZ camera employs new drive system with high precision and higher holding torque. It does
not generate offset during positioning of Pan and Tilt.
Easy Installation Mounts
The new vacuum and magnetic vacuum can easily fix the PTZ camera firmly onto a metal surface.
Meanwhile user can easily carry the PTZ camera with the handle at the back side.
Features
Supports 1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25 and SD
video formats;
Aluminum PTZ case with high strength, full weather proof;
IP index up to IP67;
Optional damping system, for tough applications;
Powerful IR lighting module, range up to 120 meters, auto adjust with zooms (for IR Version
only);
Powerful aux white lighting system, range up to 120 meters (for White Light Version only);
Hidden seamless window wiper with adjustable speed;

About The Product
3
New design of drive system, PTZ positioning precision up to +/-0.05°;
Camera address easily changeable via software;
Baud rate, protocol self-adaptive;
Digital image stabilization;
Image flip for stand / ceiling mount;
Video freeze;
20X optical zoom;
Wide Dynamic Range (WDR);
Day/night (ICR);
10.8~28V voltage input;
Auto power-off with low power supply;
Auto flip;
OSD.
Functions
Soft Address
The camera address can be programmed with a preset command, and the user does not need to
dismount the camera from field or do any screw work.
Self-Adaption of Baud Rate and Protocol
The camera can automatically identify the protocol and baud rate of the controller and adapt the
camera setting accordingly, with no manual DIP Switch involved.
Day/Night Function
The IR cut filter of camera module inside the camera can be removed by sending special command,
so that the camera can change from color to mono.

About The Product
4
Save/Call Preset
Preset function is that dome saves current horizontal angle and title angle of pan/tilt, zoom and
position parameters into memory. When necessary dome calls these parameters and adjusts
Pan/Tilt and camera to that position. User can save and call presets easily and promptly by using
keyboard controller or infrared controller. The camera supports up to 256 presets.
Zoom control
User can adjust zoom wide or tele by controller and get desired image.
Focus control
System defaults Auto Focus mode, that is, the lens and camera will automatically adjust the focus
to get the best image.
Focus can also be controlled manually from the controller if required. Press Focus Near or Focus
Far key to manually focus. Focus can be manual via keyboard or other controller, please refer to
control keyboard or other controller operation manual for detailed operation.
The camera will NOT auto focus in the following status.
Target is not in the center of image.
Targets are in near and far at the same time.
Target is of strong light object. Such as spotlight etc.
Target is behind the glass with water drop or dust.
Target moves too fast.
Large area target such as wall.
Target is too dark or vague.
IRIS control
System defaults Auto IRIS. Camera can adjust immediately according to the alteration of back
ground illumination so that a lightness steady image can be achieved.
You may adjust IRIS by controller to get required image brightness, and call back Auto IRIS by
controlling the joystick.

About The Product
5
Auto White Balance
Camera can automatically adjust white balance (WB) according to the alteration of background
lightness to give a true color image.
Back Light Compensation (BLC)
If a bright backlight presents, the subjects in the picture may appear dark or as a silhouette.
Backlight compensation enhances objects in the center of the picture. The camera uses the center
of the picture to adjust the IRIS. If there is a bright light source outside this area, it will wash out to
white. The camera will adjust the IRIS so that the object in the sensitive area is properly exposed.
Auto Cruise
The preset position is programmed to be recalled in sequence. This feature is called auto cruise.
Auto, Random and Frame Scan
Auto Scan: Make the camera scan 360°ranging from the current position.
Random Scan: Make the camera scan 360ºranging from the current position, pause at every 108 º.
Frame Scan: Make the camera scan between two set positions.
Image Flip
Enable you to view image easily when PTZ is either installed upside down or upright.
Auto Flip
When the camera tilts downward and goes just beyond the vertical angle, the camera rotates 180º.
When the camera rotates (flips), the camera starts moving upward as you continue to hold joystick
in the down position. Once you let go of the joystick after the dome rotates, joystick control returns
to normal operation. The auto-flip feature is useful for following a person who passes directly
beneath the camera.
[Note] For Frame Scan: The zoom at two limits shall be programmed the same.

About The Product
6
Technical Data
Camera
Image Sensor
1/2.8 type solid state Progressive
Scan CMOS
1/2.8”SONY EX-View HAD CCD
Effective Pixel
1920(H)×1080(V)
Video Format
HD:1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,
720p/25
SD: PAL/NTSC
Video System
PAL/NTSC
Optical Zoom
20X
Digital Zoom
-
12X
Min Illumination
0.4Lux (Lights Off)
0.04Lux (Lights On)
0.5Lux (Lights Off)
0.095Lux (Lights On)
White Balance
Auto
Focus
Auto/Manual
Exposure
Auto/Manual
S/N Ratio
Not less than 50DB
BLC
On/Off
WDR
Yes
Image Stabilization
On/Off
Digital Noise Reduction
1~3 Steps, OFF
1~5 Steps, OFF
Day/Night
Auto(only for IR version)/Manual
Lens
f=4.7mm~94mm
F1.6 to F3.5
View Angle
55.2°(wide) to 2.9°(tele)
55.4°(wide) to 2.9°(tele)
PTZ
Pan Range
360°continuous
Pan Speed
0.04°-90°/s, adjustable
Tilt Range
-15°~90°with auto flip
Tilt Speed
0.3°~60°/s adjustable
Preset Speed
Pan: 120°/s; Tilt: 90°/s
Preset
256
Preset Precision
±0.05°
Light (for IR Version)
IR Wave Length
850nm/940nm
IR Range
120m/60m
IR Switch
Auto/Manual
Light (for White Light Version)
Color Temperature
6500K

About The Product
7
Range
120m
Switch
Manual
General
Comm. Interface
RS-485
OSD Language
English
Protocol
PELCO-P / PELCO-D(self-adaptive)
Baud Rate
2400bps, 4800bps, 9600bps, 19200bps (self-adaptive)
Address
0-255
Voltage
DC 10.8-28V
Power
12W (Standby)
55W (Defogger and lights on)
Working Temperature
-45℃~+65℃
IP Index
IP67, TVS
Dimensions
Standard: Φ190(mm)×275(mm)
With Damper: Φ190(mm)×300(mm)
Weight
Standard: 4.9kg
Optional: 5.65kg (with damper)
Table 1: Technical Data
[Note] The specifications are subject to change without notice.

8
Preparation
This section contains detailed instructions for installing the camera. These instructions assume that
the installer has a good knowledge of installation techniques and is capable of adopting safe
installation methods.
Dip Switch
The factory default is:
Camera Address
Protocol
Baud Rate
1
Pelco D
9600bps
The camera can detect and auto program its protocol (Pelco D, Pelco P) as well as baud rate
(2400bps, 4800bps, 9600bps, 19200bps) as per the whole video system.
Only the camera address setting is necessary. There are two ways to program camera address:
Soft address: via special preset functions (see Section 5.1 Special Control Panel Commands);
DIP Switch: The switches to configure these settings are located on the main board inside the
camera. See Fig. 1: DIP Switch.
Fig. 1: DIP Switch
The setting list of the camera address is enclosed in Annex.
[Note] The camera shall be rebooted after the switches are programmed.

9
Preparation
Initial Power On Test
To ensure the camera works well after installation, please power on it for an initial test with the
following steps:
1. Connect the camera with correct power supply;
2. Connect control cable, video cable;
3. Power on the camera;

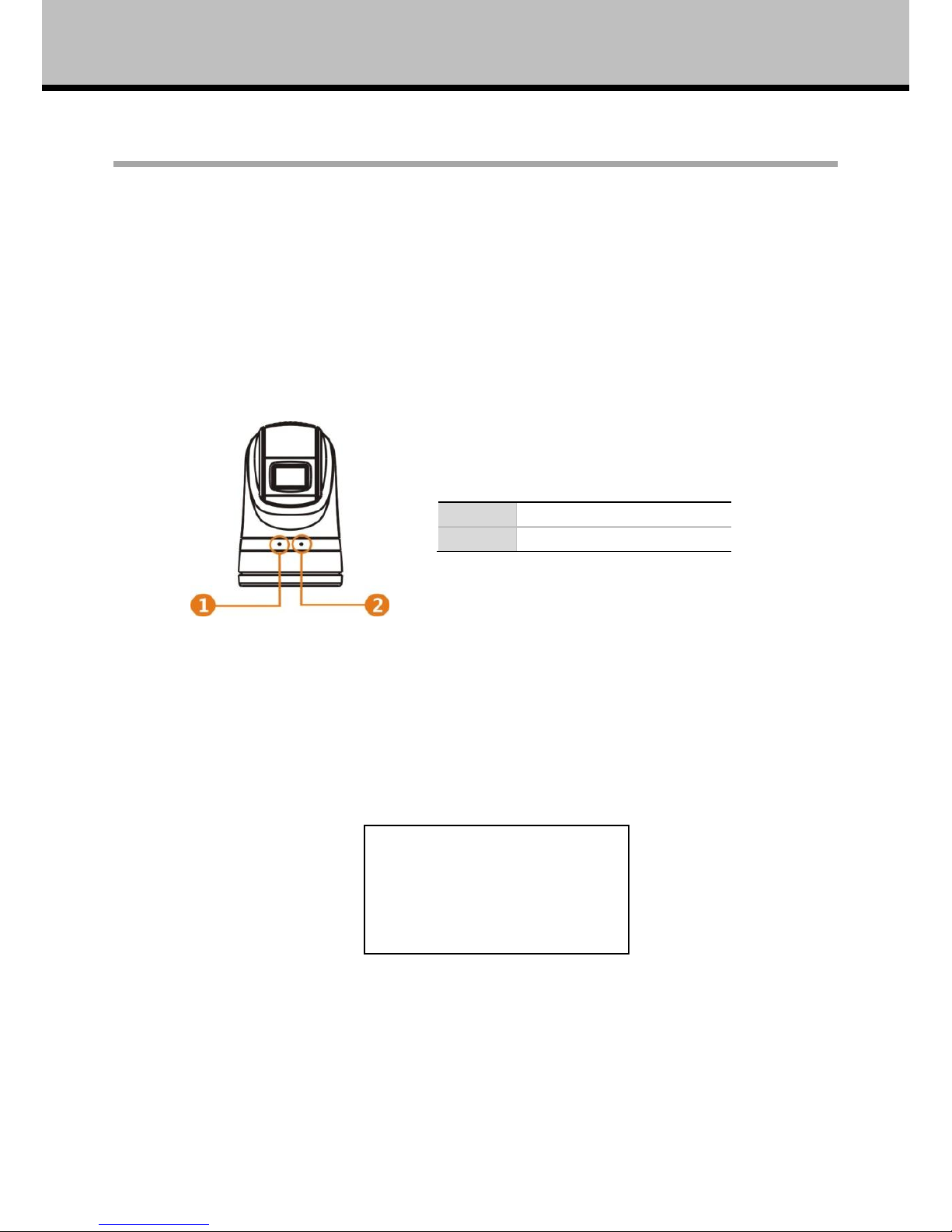

When the camera is powered on, the LED indicators at the front will be on.
1
Power (Constantly On)
2
Data (Flashing)
Fig. 2: LED Indicators
The camera will run a calibration procedure on power up and show the following messages on
screen.
Fig. 3: On Screen Messages at Power Up
If the camera fails at initialization, the following message will show on screen.
DOME ID：001
PROTOCOL：PELCO-D/P
BAUD：9600
SOFTWARE VER：1.0.0

Preparation
10
Please refer to the following code to check the failures:
PAN FAIL
Failure of pan initialization
TILT FAIL
Failure of tilt initialization
CAM FAIL
Failure of block camera initialization
P/T FAIL
Failure of pan and tilt initializations
T/Z FAIL
Failure of tilt and block camera initializations
P/T/Z FAIL
Failure of pan, tilt and block camera initializations
Installation Place
Make sure the installation place has enough space, support strength to install the whole PTZ
camera and its accessories.
[Note] In case of P/T failure:
If the ambient temperature is below 5℃, the heater will be turned on automatically
and the PTZ camera will do the initialization again.
If the ambient temperature is above 5℃, please reboot the PTZ camera.
DOME ID：001
PROTOCOL：PELCO-D/P
BAUD：9600
SOFTWARE VER：1.0.0
CAM FAIL

11
Installation
Fixed Mounts
The fixed mount provides damping system as optional.
Fig. 4: Fixed Mounts (with and w/o damping system)

Installation
12
Installation

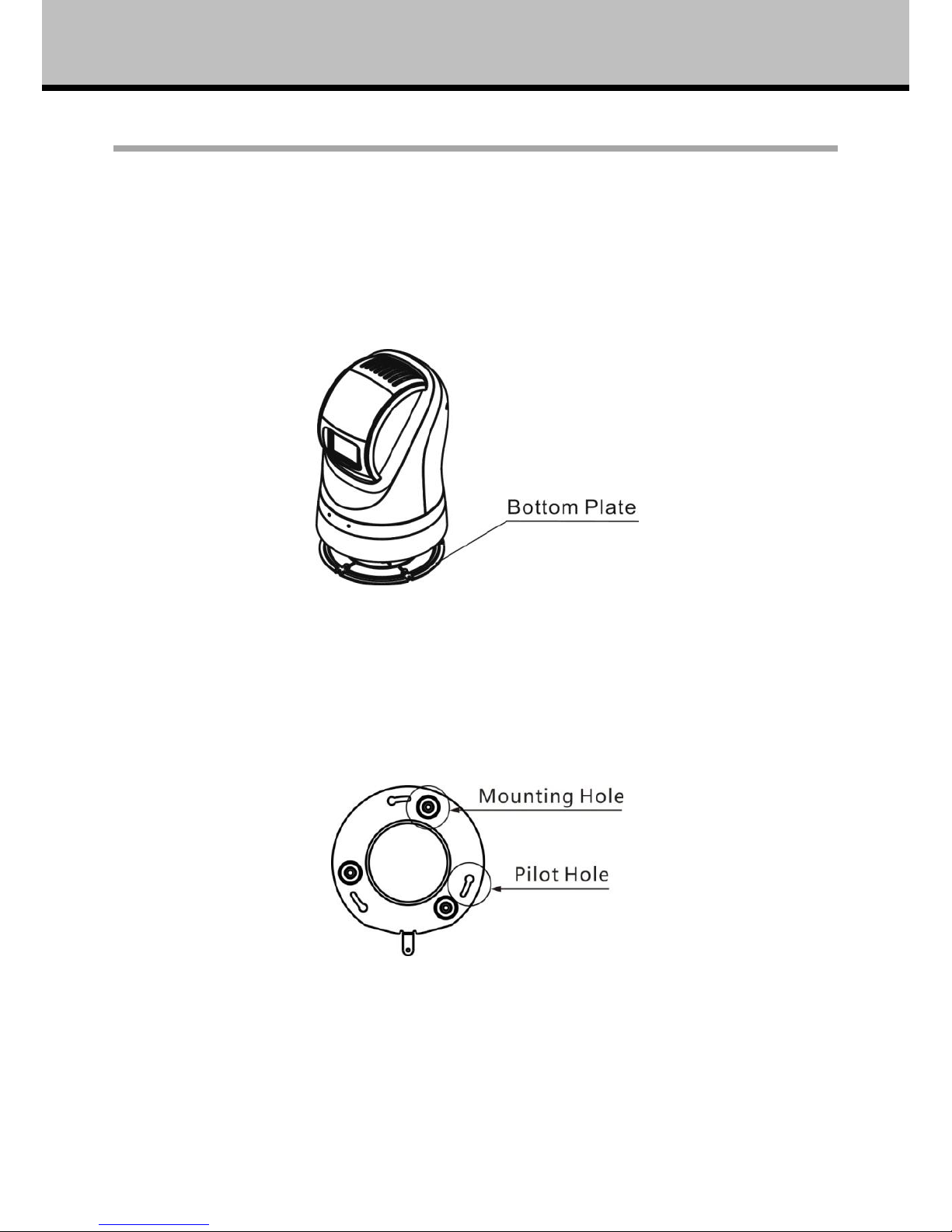

To set the baud rate, protocol and camera’s hard address:
1. Remove the PTZ bottom plate;
2. Set DIP Switch for baud rate, protocol and camera address;
3. Fix the bottom plate. Make sure the sealing is well installed.
Fig. 5: Bottom Plate
4. Take the installation plate out of packing and fix it to the target place as per the plate
dimensions with correct screws.
Fig. 6: Installation Plate

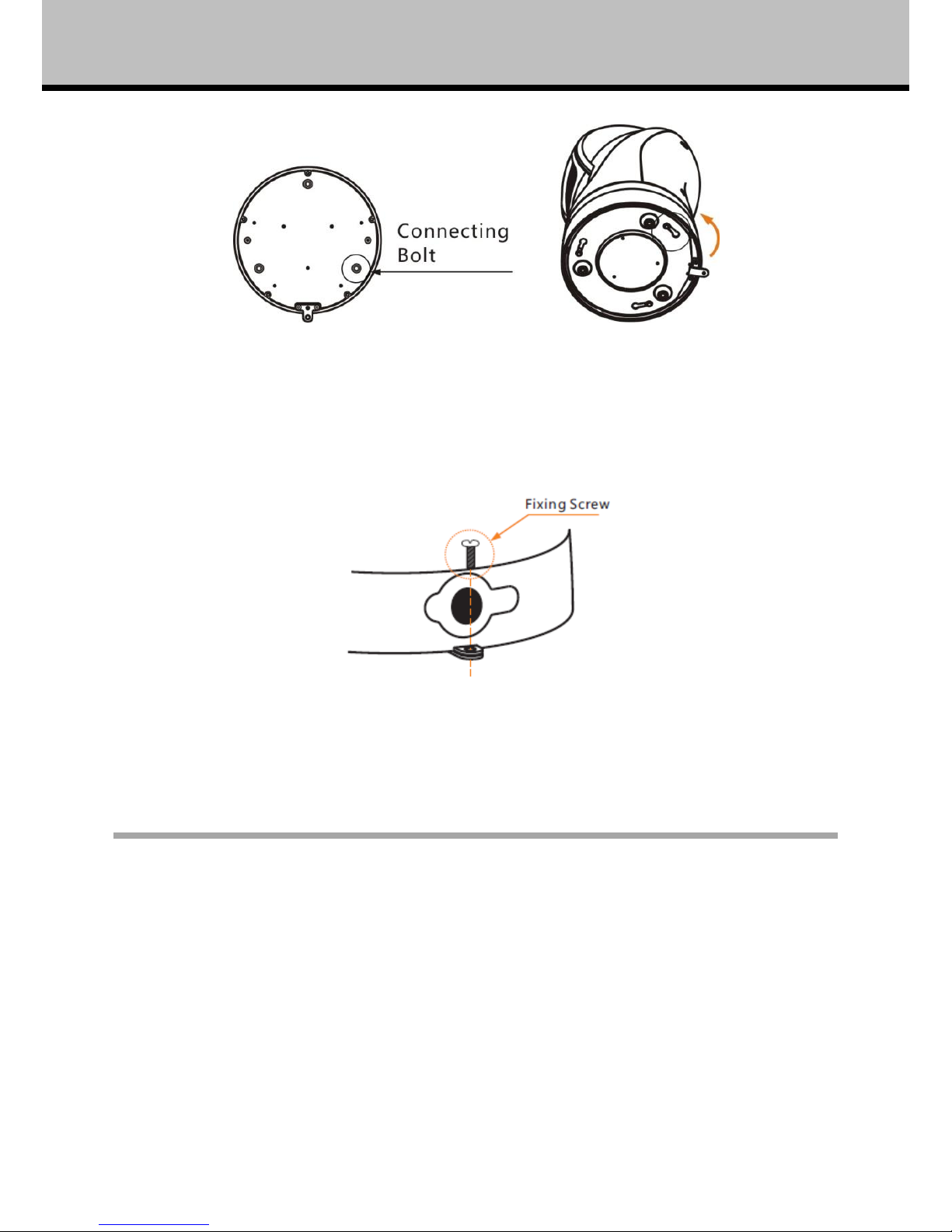

5. Put the camera onto the installation plate. Make sure three installation bolts are in position with
the fixing holes on the plate. Rotate the camera clockwise.
6.

13
Installation
Fig. 7: Mount the Installation Plate
7. Fix the camera to the installation plate with a screw.
Fig. 8: Fix the Installation Plate
Camera Cable Package
Connect the cable with the right pins as per following pictures.

Installation
14
Fig. 9: Cable Package
6Pin Cable: Pin Definition
1
Video +
2
Power -
3
Power +
4
RS485 -
5
RS485 +
6
Video -
There are two red marks each on the plug and socket. Please match them during plugging.
[Note] Please make sure the camera is working with a right power supply. Wrong cable
connection may cause damage to the device.

15
MENU SETTINGS
Menu Configuration
<VIDEO>
Refer to
FORMAT
1080i50, 1080i60, 1080p25, 1080p30,
720p50, 720p60, 720p25, 720p30
Page 17
WIDE DYNAMIC
ON, OFF, AUTO
DNR
1, 2, 3, 4, 5, OFF
FOCUS
MANUAL , AUTO
FREEZE
ON, OFF
DIGI ZOOM
ON, OFF
DIS
ON, OFF
EXPOSURE…
<PAN TILT>
Refer to
Page 19
LIGHT
ON, OFF
WIPER
OFF, NORMAL, FAST
DAY/NIGHT
AUTO, DAY, NIGHT
PRESET…
CRUISE…
FRAME SCAN…
RANDAM SCAN INTERVAL/S
4, 5, 6, 7, 8, 9, 10, 11, 12, 13
POWER UP ACTION
PRESET 1~9, NONE, HOME
PAN/TILT SPEED
1, 2, 3
<SYSTEM>
Refer to
Page 21
ADDRESS
0~255
PROTOCOL PELCO-D/P
BAUD RATE 9600
VIDEO FORMAT 1080i50
MOUNT MODE STAND
DISPLAY INFO
ON, OFF
SOFTWARE VER V1.0.0
<REBOOT> Refer to page 22
<RESTORE FACTORY DEFAULTS> Refer to page 22

16
Menu settings
Menu Explanation
Main Menu
Press MENU button to enter / exit menu.
❶Menu Title
It displays currently selected menu entries.
❷Menu Entries
It displays options under current menu title.
Press or button to select among menu options, once font of options turned from white
color to yellow color, it indicates the menu has been elected, press OK button to get into this
menu.
<MENU>
VIDEO
PAN TILT
SYSTEM
REBOOT
RESTORE DEFAULTS
❶
❷
