Rungu Electric Juggernaut User manual

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 1
rungu®electric juggernaut
owners manual
Congratulations on purchasing the Electric Juggernaut
1
! Before you ride and make new tracks, please
read the following instructions carefully. The team at Standard Bearer Machines, LLC has partnered with
Hi-Power Cycles, LLC to provide you with an off-road electric trike with more than 2,000 Watts of power.
There are references throughout this document to Hi-Power Cycles. In case of trouble, contact Rungu
Support, first.
WARNING: The Electric Juggernaut is designated for OFF-ROAD use only
(Mandated by federal law due to the 750W/20 MPH limit in the US. Please check with your government
to ensure you follow all local laws and ordinances). Standard Bearer Machines and Hi-Power Cycles are
not liable for those who choose not to follow their local laws.
Standard Bearer Machines and Hi-Power Cycles will not be held responsible for people who choose to
disregard the law!
IMPORTANT- Standard Bearer Machines and Hi-Power Cycles will not be liable for any damage or injury
that may occur due to operation of our kits or bicycles. By using the Electric Juggernaut, you are
agreeing to Standard Bearer Machines Terms and Conditions and the warnings and conditions of the
Generic Bike Manual which are included with other files in the USB key accompanying the Electric
Juggernaut.
1
As the owner, you agree and are bound by all sales and transfer conditions as defined in “SBM Rungu Sales Terms
and Conditions US 2017a” or “SBM Rungu Sales Terms and Conditions US 2017 –Demo Model.” Copies of these
documents are available on the USB drive that ships with the product or upon request by e-mailing
[email protected].

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 2
Contents
Parts identification........................................................................................................................................ 3
Unpacking and Assembly Instructions..........................................................................................................5
Tools required........................................................................................................................................... 5
Unpacking and Assembly Instructions......................................................................................................6
Additional assembly instructions............................................................................................................14
Cautions and Safety ....................................................................................................................................16
General Cautions and Warnings .............................................................................................................16
Battery Safety (Brief Overview) ..............................................................................................................17
Battery Safety Precautions......................................................................................................................18
Catastrophic Battery Failure ...............................................................................................................18
Battery Safety (In Depth) ....................................................................................................................19
Response Procedure ...........................................................................................................................20
How to Use Your New Rungu Trike............................................................................................................. 21
How to Charge Your Battery ...................................................................................................................21
Before Riding your Electric Juggernaut...................................................................................................23
Riding the Electric Juggernaut ................................................................................................................ 24
Electric Juggernaut Operation Cautions .............................................................................................24
Using the Optional Front Suspension .................................................................................................26
Using the parking brake switch............................................................................................................... 26
Riding Safety .......................................................................................................................................27
Battery Care ............................................................................................................................................ 28
Long Term Storage..................................................................................................................................28
Prolonging the Life of your Battery.........................................................................................................28
Trike Storage and Charging.....................................................................................................................29
Getting the Stated Range out of Your System ........................................................................................30
Using your E-Bike Computer .......................................................................................................................31
Electric Juggernaut Computer System Settings ......................................................................................31
Recommended settings for Electric Juggernaut (2000w system)...........................................................31
Troubleshooting..........................................................................................................................................32
Getting more information...........................................................................................................................33

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 3
Parts identification

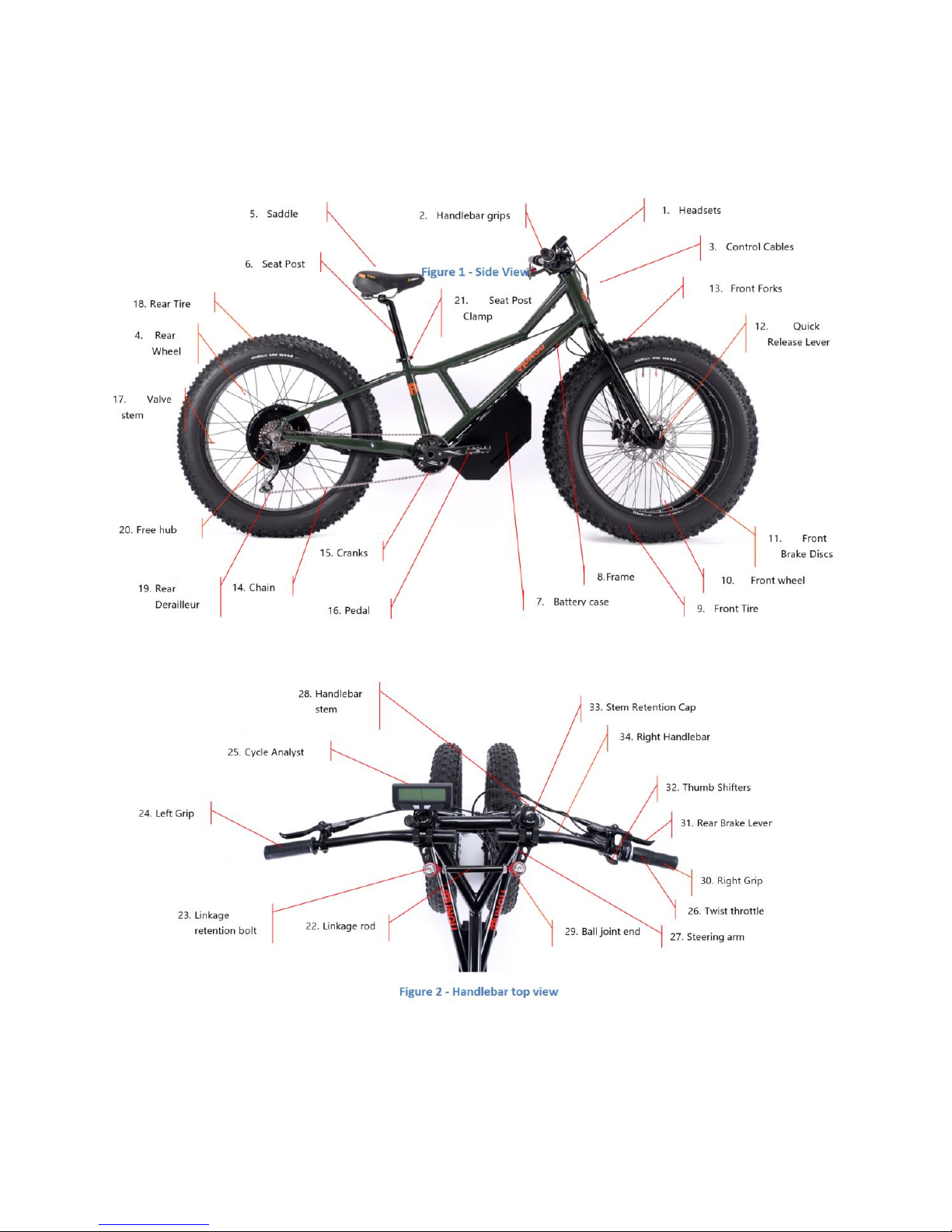

The following images show the names of various components on the Electric Juggernaut

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 4

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 5
Unpacking and Assembly Instructions
Warning: Failure to follow instructions may lead to incomplete or faulty assembly that can result in
accidental rider injury or death.
Before you ride and make new tracks, please follow the assembly instructions carefully. The team at
Standard Bearer Machines recommends that you have the assembly performed by a qualified bike
mechanic.
Tools required
•5mm Hex wrench
•6mm Hex wrench
•Tire inflation pump (presta valve)
•Wire cutters or scissors to remove packing material

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 6
Unpacking and Assembly Instructions
Warning: Failure to follow these instructions may lead to incomplete or faulty assembly that can
result in accidental rider injury or death.
1. The trike comes in a cardboard carton. After you have removed the binding straps and tape
from the top cover, remove the top cover on the front of the trike. If you intend to ship or
return the trike, please keep all packing materials.
2. Remove the accessory box containing Quick Release Skewers, AC battery charger, tools, USB
document drive, keys and pedals.
3. Lift the frame and attached components from the carton.
CAUTION: THE ELECTRIC JUGGERNAUT WEIGHS 90 LBS (41 KG) USE TWO (2) PEOPLE TO
REMOVE THE TRIKE FROM THE PACKAGING TO AVOID INJURY

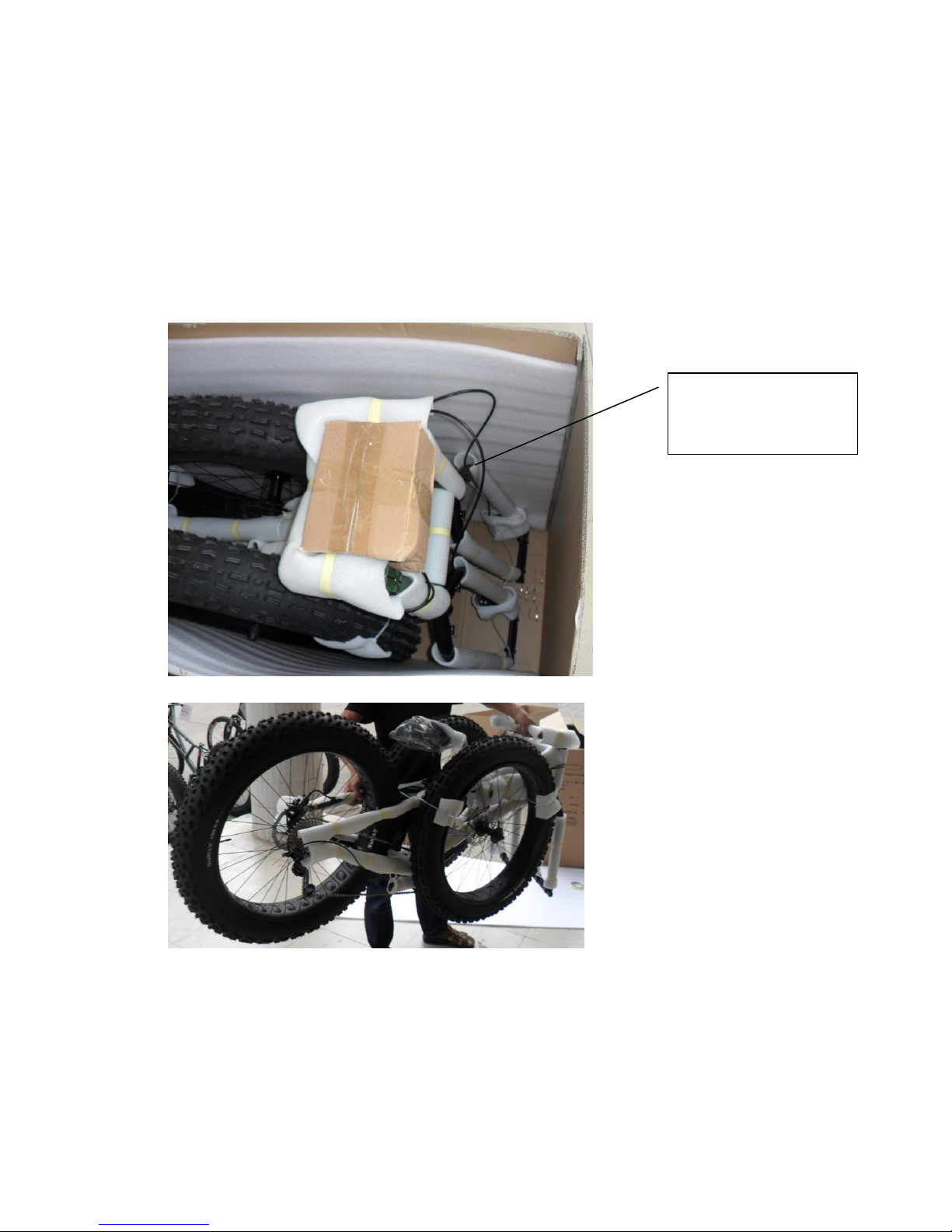

Accessory Box. May be
located elsewhere
inside the carton

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 7
4. Disconnect the front wheels from the frame packaging and remove the protective packaging
from the forks.
5. Open the accessory box to remove the two quick release skewers from the packaging.
6. Select which wheel will be the right-side wheel and the left-side wheel. Unscrew the retention
nut from one of the quick-release skewers and insert the skewer into the left wheel from the
side of the brake disc as shown below.
7. Replace the retention nut as shown below.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 8
9. Mount the wheel to the left fork as shown in the two pictures below. For the Juggernaut, insert
the wheel into the fork at an angle to clear the tire width as pictured.
10. Tighten and close the quick-release once the wheel is mounted in the fork.
Warning: make sure to tighten the quick-release in the fork so that it cannot fall out of the
fork; failure to adequately tighten the quick-release can result in accidental rider injury or
death.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 9
11. Place the trike aside while performing the next two assembly steps.

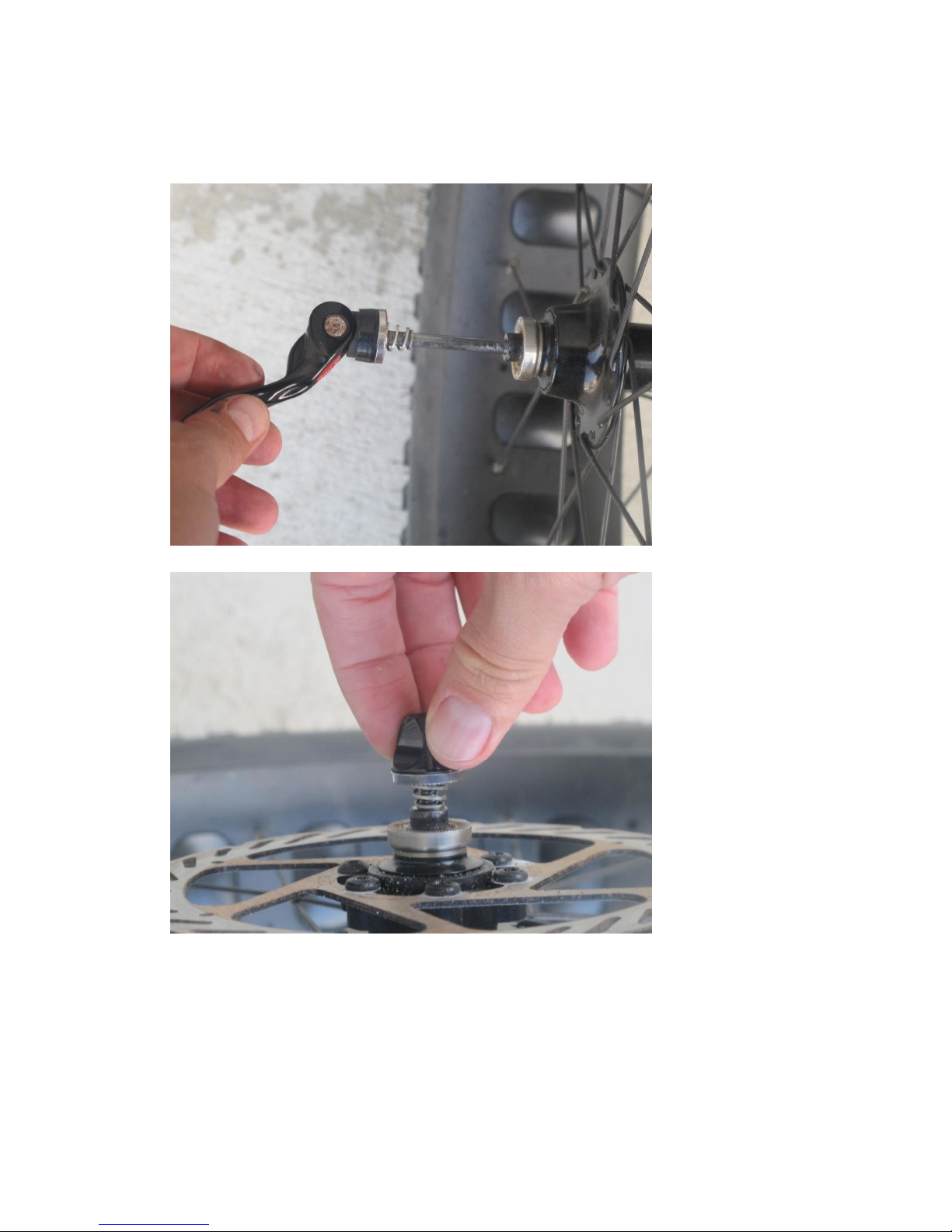

12. Unscrew the retention nut from one of the quick-release skewers and insert the skewer into the
right wheel from the side opposite to the brake disc, as shown below.
13. Replace the retention nut.
14. Mount the wheel to the right fork.
15. Tighten and close the quick-release once the wheel is mounted in the fork.
Warning: make sure to tighten the quick-release in the fork so that it cannot fall out of the
fork; failure to adequately tighten the quick-release can result in accidental rider injury or
death.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 10
16. On a level surface, stand the trike upright and remove the packaging from the front steering
assembly, then remove the handlebars from the frame and packaging.
17. Use the 5mm hex wrench to loosen the handlebar retention screws as shown below
18. Insert the right and left handlebars into the stems. Rotate the handlebars vertically to ensure
the best fit for you.
19. FOR STANDARD (NON SUSPENSION) FORKS: When you have found the best fit for each
handlebar, ensure that the inside end of each handlebar extends up to 30mm as depicted below
and then tighten all four retention screws. Use a pattern of tightening the upper screw and then
bottom screw instead of tightening both top screws and then the bottom screws.

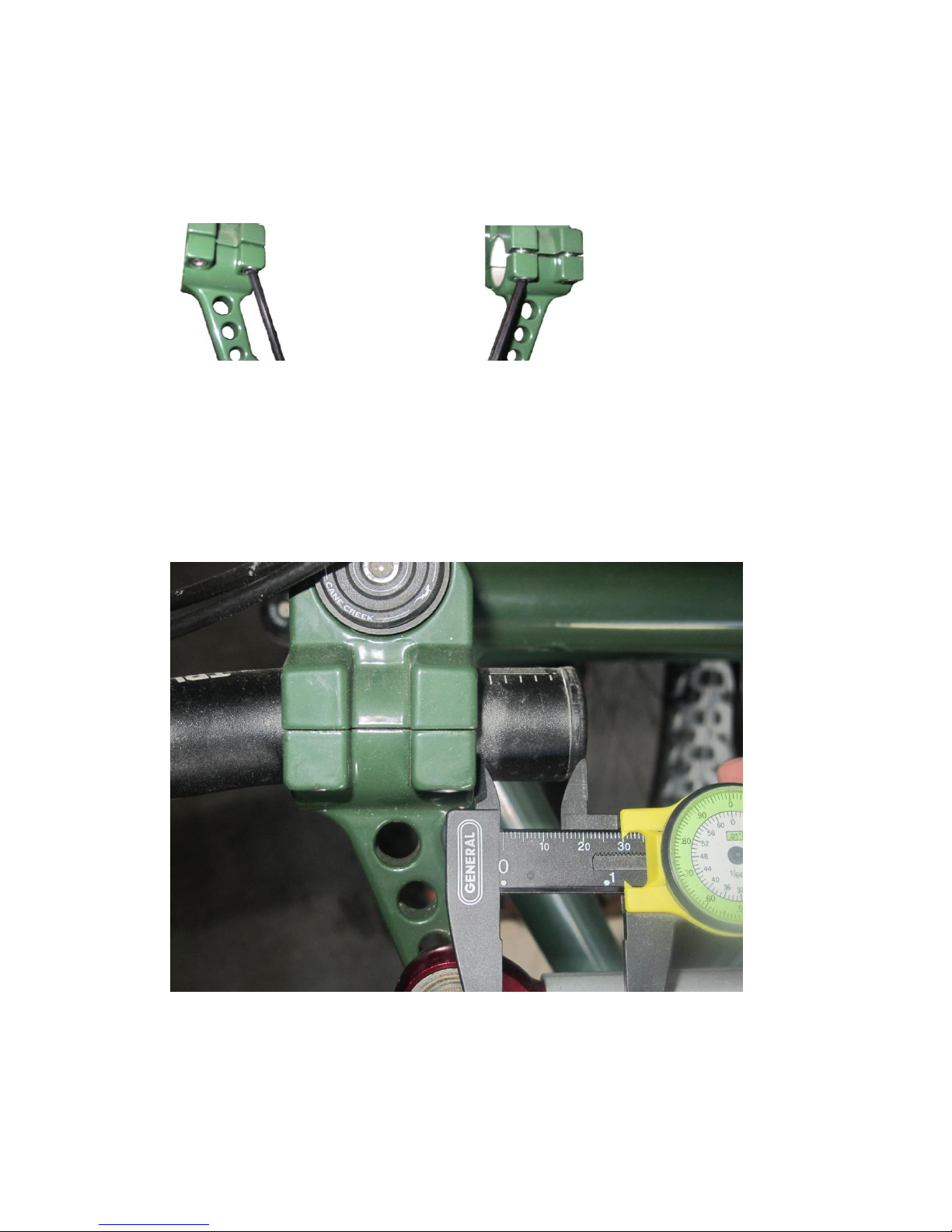

20. FOR OPTIONAL SUSPENSION FORKS: When you have found the best fit for each handlebar,
ensure that the inside end of each handlebar extends up to 45 mm as depicted below and then
tighten all four retention screws. Use a pattern of tightening the upper screw and then bottom
screw instead of tightening both top screws and then the bottom screws.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 11

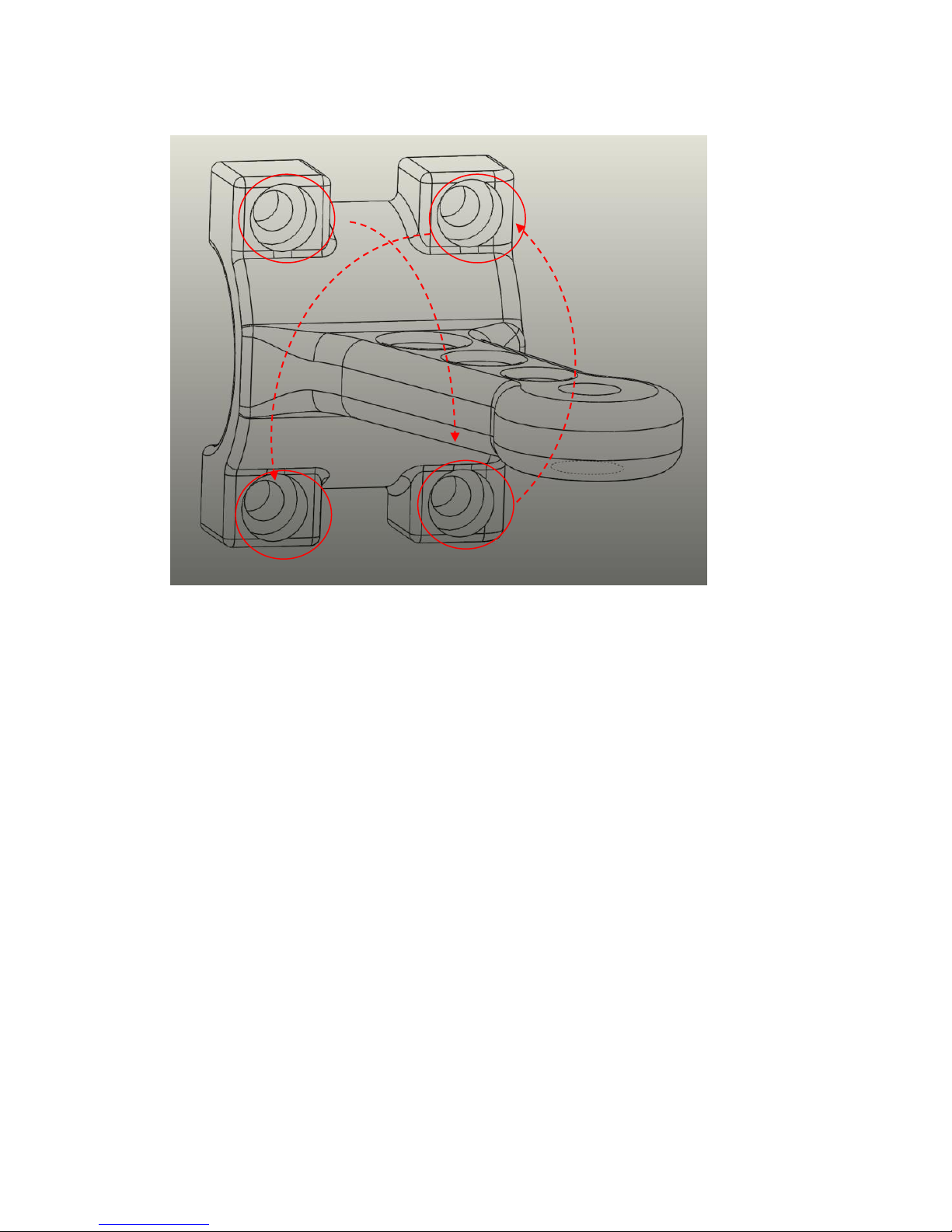

21. Use the pattern shown below to tighten the handlebar clamp screws.
Warning: Tightening handlebar clamp bolts beyond 6Nm (53 in lbs.) or failing to align the bolts
with the threads in the stem may strip threads in stem leading to insufficient tightening of the
handlebar. Failure to tighten handlebar sufficiently may result in unexpected handlebar
rotation that can result in accidental rider injury or death.
22. Remove the remainder of the packing materials.
1
2
4
3

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 12
24. Install the left pedal first –the left pedal is marked with an “L” as shown below.

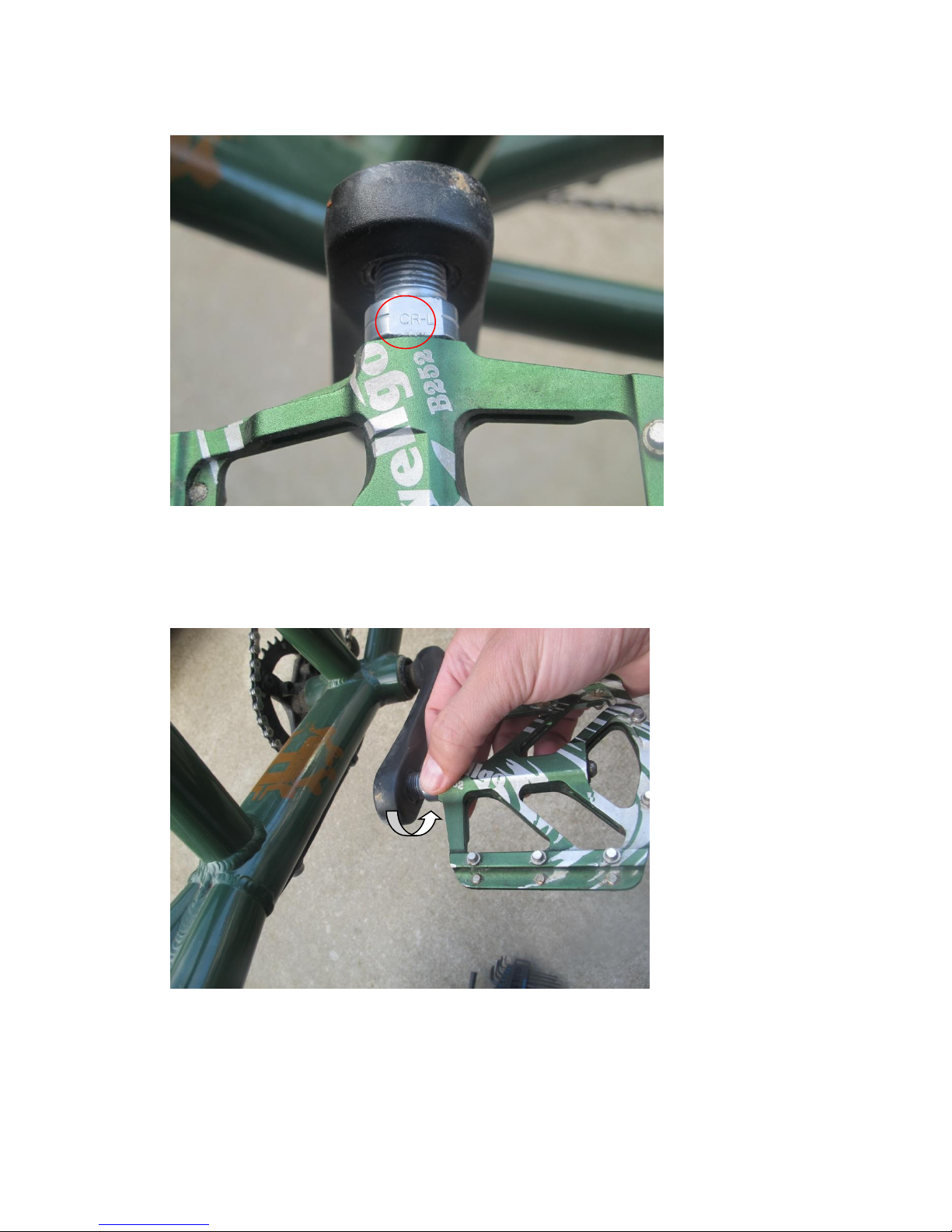

25. The left pedal is threaded backwards, so thread the shaft into the crank arm in a
counterclockwise motion as depicted below.
Caution: Do not force the threading of the pedal onto the crankset. Warranty does not cover
replacement cranks for stripped threads.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 13
26. Use a 6mm Hex wrench to tighten the pedal.
27. Install the right pedal and finger tighten the pedal clockwise –the right pedal is marked with an
“R” as shown below.
Caution: Do not force the threading of the pedal onto the crankset. Warranty does not cover
replacement cranks for stripped threads.
28. Use a 6mm Hex wrench to tighten the pedal.
29. Inflate the Fat Tires between 10 and 15 PSI (69 to 104 KPa); inflate the 29 in. (700c) tires
between 35 and 55 PSI (241 KPa to 379 KPa) before riding (KILIMANJARO ONLY).

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 14
Additional assembly instructions
Install the Cycle Analyst on the left stem. Carefully unpack the Cycle Analyst from wrapping and follow
the instructions to mount it to the left stem. Tool required –5mm Hex wrench.

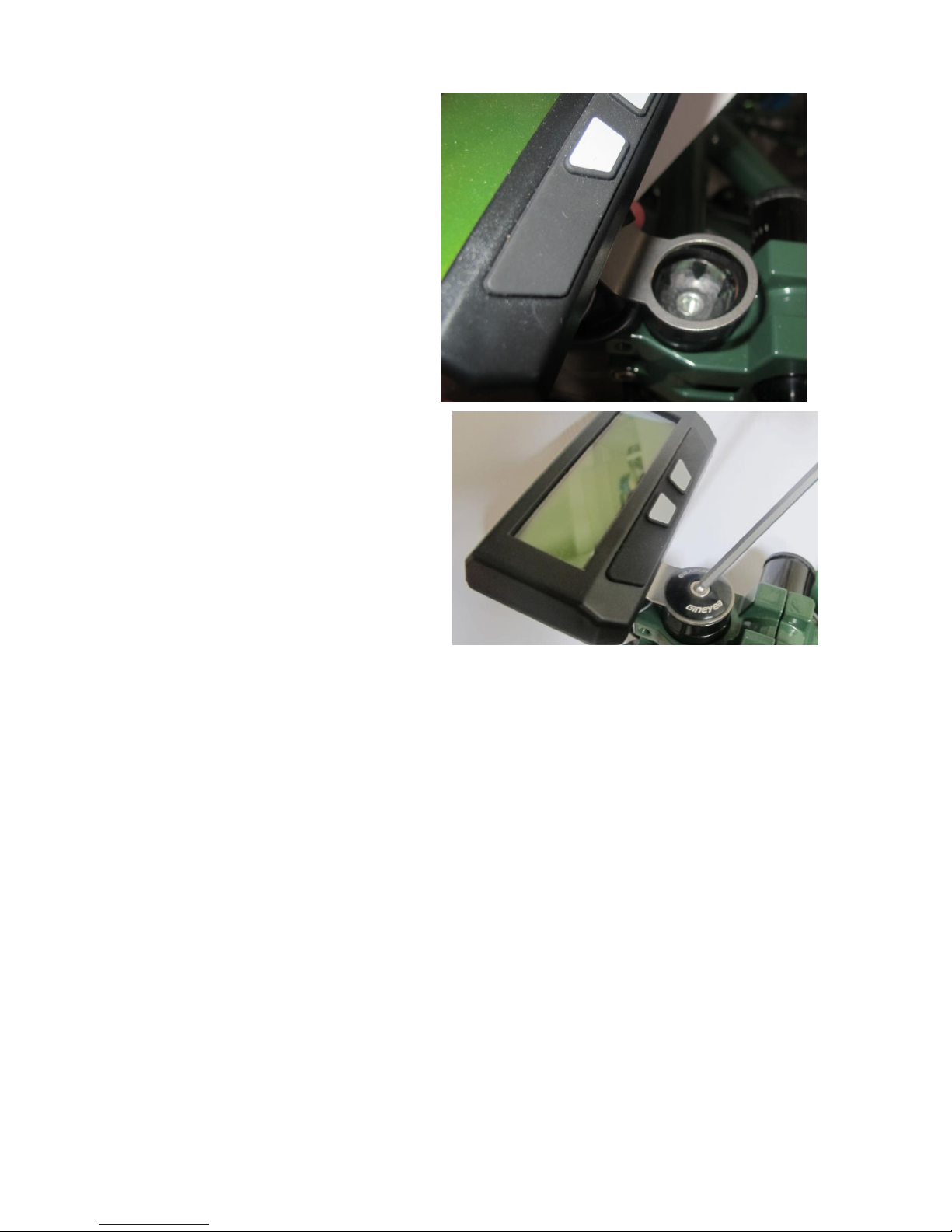

1. Remove the protective rubber
cover to expose the bolt head.
2. Unscrew the retention bolt.
3. Remove the stem retainer.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 15
4. Place the mounting ring of the
Cycle analyst onto the top of the
stem spacer.
5. Replace the stem retainer on top
of the mounting ring. Fasten the
retainer with retention bolt.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 16
Cautions and Safety
General Cautions and Warnings
The Electric Juggernaut is an electric tricycle that you can ride like a bicycle with the added benefit of
more stability on soft ground.
Refer to the All Purpose Bicycle Manual available on the Rungu USB drive that ships with the Electric
Juggernaut to new customers or online at this link
2
.
WARNING: Being a tricycle, the Electric Juggernaut has a tie-rod that connects the two
front forks. DO NOT USE the tie-rod to lift the trike. The steering uses the tie rod as a hard stop so the
forks don’t rub against the front wheels. Grasping the tie rod when lifting WILL RESULT IN A PINCH TO
THE HAND AND FINGERS THAT MAY LEAD TO HAND OR FINGER INJURY. ONLY GRASP PARTS OF THE
FRAME OR SADDLE TO LIFT THE TRIKE.
2
http://riderungu.com/riderungu/wp-content/uploads/2016/08/Generic-Bike-Manual.pdf

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 17
Battery Safety (Brief Overview)
NOTE: If you ever suspect a battery problem, please contact Rungu Support immediately by email or
phone so we can go through the appropriate steps/procedures to make sure everything is okay with
the battery system.
At Standard Bearer Machines, safety is our number one concern. Standard Bearer Machines wants our
customers to enjoy an excellent product that will give those customers years of trouble-free operation.
As much effort as Standard Bearer Machines partner, Hi Power Cycles, makes to minimize the risk of
these state-of-the-art batteries, there are always safety concerns when it comes to Lithium batteries
that we want our customers to be aware of. All the new portable electronics, including cell phones and
laptops, contain lithium batteries which have the same chemical properties, although bike batteries are
on a much bigger scale. Hi Power Cycles makes every effort to have the highest quality battery cells and
best battery protection (called a BMS or Battery Management
System) to minimize any risk associated with these high-power
batteries.
Hi Power Cycles has gone through extensive research and testing
to get the best electric bike batteries in the world. The battery
chemistry is the same that large car manufacturers (such as
Nissan) use in their vehicles. This state-of-the-art battery
chemistry is called Lithium Nickel Manganese Cobalt
(LiNiMnCoO2) or NMC for short. Hi Power Cycles feels that this is
the best overall combination of power, safety, performance, and
life span compared to the other options available.
Due to the nature of lithium cells, which have a lot of energy stored in a small package, there is always a
possibility this energy can be suddenly released and can cause fire and/or serious injury if not taken care
of immediately. With a state-of-the-art Battery Management System that is found on all of our battery
packs, the cells and pack are protected from failure. The only time a pack will fail will be a result of a
BMS failure and attempting to charge, short circuit, over discharge, or somehow puncture the battery
pack.
The main cause of failure in lithium batteries occurs during the charging portion, when cells can be
overcharged. This is the number one failure and can lead to batteries which vent and eventually release
all their energy at once (or can even cause the battery pack to ignite on fire). Due to a BMS failure, cells
can get out of balance and certain cells may become overcharged as a result. Therefore Hi Power Cycles
always recommends monitoring the charging process in the extremely rare event something should
happen.
Caution: Charging on a concrete floor, such as in a garage, away from debris and material is always
recommended as a safety precaution.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 18
Battery Safety Precautions
Hi Power Cycles recommends keeping the following immediately accessible where you charge your bike
•Class D Fire Extinguisher: can be used in the event of a lithium fire
•ABC Fire Extinguisher: If you cannot get a Class D, this will do the job by preventing other
materials around the ruptured battery from catching on fire.
If your charger typically takes 4 hours to charge your battery, but it seems to be taking longer, unplug
the battery and investigate. If you suspect a bad BMS, smell the top of the battery. If there is a burnt
smell, it is a failed BMS and stop charging immediately. If nothing is wrong, it is okay to continue
charging as the battery is simply balancing while it is charging and it may take longer than normal.
If, for whatever reason, your bike suddenly has a loss of power and you are not getting the same
performance, STOP IMMEDIATELY. Turn the bike off and inspect your battery system. Check for a burnt
smell and inspect there are no melted or shorted wires. This would be indicative of a shorted or failed
BMS which you will need to contact us directly to take care of.
If you notice that your battery system has a puffed, damaged, or leaking cell, contact Rungu Support
immediately and we will walk you through the appropriate steps to take in this instance.
Catastrophic Battery Failure
Although extremely rare, all lithium batteries are capable of catastrophic failure if mishandled or
treated. The following are guidelines for a battery pack failure. Great caution needs to be exercised
during a catastrophic battery failure.
Warning As soon as a problem is detected (battery is hissing, you smell a burning smell, it is billowing
smoke etc), take battery system or bike outside immediately, away from all structures and people,
preferably on concrete (like a driveway).
Observe the battery pack from a safe distance to see if it is a pertinent problem that needs to be
addressed immediately. Monitor the battery pack until the cells drop below critical temperature and
start to cool off. Contact local authorities if necessary!

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 19
Battery Safety (In Depth)
Main reasons a battery pack will fail:
•Short-circuit
•Charging
•Forced over-discharge
•Excessive heat or incineration
•Crush, puncture, or disassembly
While Hi Power Cycles have designed their cells and batteries to be tolerant of adverse conditions, these
very active chemical systems have limitations. Certain hazards are associated with exposure to heat and
its subsequent effects on sealed cells. These hazards include the potential for cell venting, explosion,
and/or fires. The initial source of heat can be external (welding, soldering, etc.) or internal such as
heating caused by short circuiting, excessive running currents for prolonged periods of time, forced
over-discharge, charging, or excessive mechanical abuse. Specifically, mechanical abuse in the form of
excessive shock or vibration can result in case deformation, crushing, and damage to the electrode
materials.
Warning: Not guarding against these conditions may result in a hot cell or a battery pack that could
vent or explode.
The intent of this section is to provide a general knowledge of how to handle cells and batteries that
have been subject to these adverse conditions. This document will focus on the following:
•Hot cells
•Leaking or venting cells
•Cells that have exploded
•Fires involving lithium batteries
•The guidelines in this document are minimum recommendations.
Only trained and equipped emergency responders shall be allowed to respond to a vented cell incident.
Consult federal, state, and local regulations for emergency response regulations.
Hot Cells
A hot cell is a condition that arises due to a short circuit of the cell or battery, either internal or external.
The cell/battery temperature rises as the event continues which can lead to the cell reaching critical
temperature and the potential to vent or explode.
Vented Cells
It is unlikely that any lithium battery would explode. These events are rare and are usually the result of
an abusive condition or misuse that raises the cell temperature above its critical point.

V2.2 RUNGU Electric Juggernaut User Manual –2017 model year
Copyright 2017 Standard Bearer Machines, LLC 20
In the event of a lithium battery explosion, a room can quickly fill with a dense white smoke that can
cause severe irritation to the respiratory tract, eyes, and skin. Precaution must be taken to limit
exposure to these fumes.
Response Procedure
•Monitor the temperature from a safe distance using a non-contact thermometer or thermal
imager
•If temperature monitoring equipment is not available, keep the area evacuated and secure and
do not handle the cell/battery for at least 24-hours
•If the battery cools, continue to monitor until it reaches ambient temperature
•Remove the battery from the area once it is cool
•Dispose of the cell in accordance with waste or recycling protocols
•For more information on Lithium batteries, please visit Battery University as a source of
knowledge
