LED 250W Module Zoom Moving Head 3-in-1
User Manual

2
1SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes,
do not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell or smell may arise. This is a normal process
and does not necessary mean that the device is defective, it should decrease gradually.
Please don’t project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance
with wall for smooth air flow, so there should be no shelter for fans and ventilation for
heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer of his service agent or a similar qualified person in order
to avoid a hazard.

3
2UNPACKING
Thank you for choosing our LED 250W moving head light. For your own safety, please
read this manual before installing the device. This manual covers the important
information on installation and applications. Please install and operate the fixture with
following instructions. Meanwhile, please keep this manual well for future needs.
The LED 250W is made of a new type of high temperature strength of engineering
plastic and cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol. It’s available independently controlled and linkable with each other
for operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
The 250W Moving head light which features high brightness and stability. Please
carefully unpack it when you receive the fixture and check whether it is damaged during

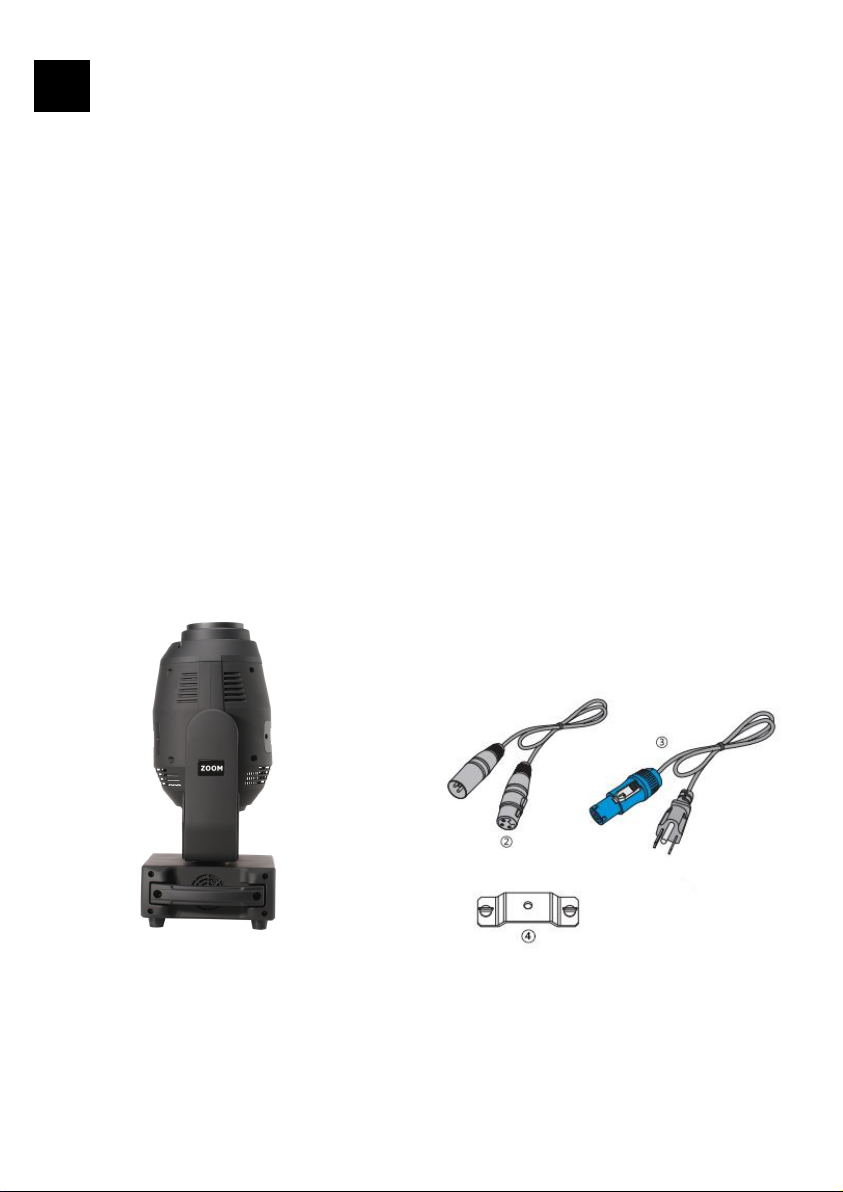

the transportation. And please check whether the following items are included inside
the box:

4
3FEATURES & SPECIFICATIONS
Features
·250W LED Module
·50,000 hours lifespan and low power consumption
·Zoom angle 4°~30°, focus function
·High light output,24000LUX@5M at White light zoom in,
·1200LUX@5M at White light zoom out
·Temperature protect function, when the internal Temperature is up to 40° then the
fans begin to work, when the internal temperature is up to 70°and the brightness
reduce half.
·Color Wheel: 7 colors +white, color fine tuning, rotation with variable direction and
speed
·1 Rotation Gobo Wheel: 7 gobos + white, wheel rotation and shake
·1 Static Gobo Wheel: 8 gobos + white, wheel rotation and shake
·Prism: 8-facet Prism, bi-directional rotatable at variable speeds
·Frost effect
·High speed strobe effect with 1-25 flashers per second
·Internal program available
·16/18 DMX Channels USITT DMX-512
·DMX 512, master-slave and sound activated controllable or auto operation
·Colorful LCD display
·Efficient low noise fan cooling system
·PowerCon IN/OUT
·3-pin & 5-pin XLR connectors IN/OUT

5
·Two 1/4 turn fastening Omega Clamps
·IP 20 protection rating
Specifications
Input Voltage: AC90-260V 50/60Hz
Light Source: 250W LED Module
Control Signal: DMX 512, master-slave and sound activated or auto operation
Control Channel: 16/18 DMX Channels USITT DMX-512
Power Consumption: 350W
Dimensions: 320(L)*220(W)*480(H)mm
Packing size: 365(L)*280(W)*600(H)mm
Net Weight: 13.50kg,Gross Weight: 16.50kg
4PHOTOMETRIC DATA

6
5OPERATION INSTRUCTIONS
∙ The moving head is for spot effect for on-site decoration purpose.
∙ Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes.
So make sure to operate the fixture until it is in normal temperature.
∙ This light should be keep away from strong shaking during any transportation or
movement.
∙ Don’t pull up the light by only the head, or it might cause damages to the
mechanical parts.
∙ Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronics shock to the people.
∙ Make sure the installation place is in good safety condition before installing the
fixture.
∙ Make sure to put the safety chain and check whether the screws are screwed
properly when installing the fixture.
∙ Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
∙ Make sure the fixture is operated by qualified personnel who know the fixture
before using.
∙ Keep the original packages if any second shipments is needed.
∙ Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
∙ It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.

7
6INSTALLATIONS
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold
a minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the
fixture.
From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture
is kept at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp fails.
Mounting points: Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine knowledge of the installation
material being used, and periodic safety inspection of all installation material and the
fixture. If you lack these qualifications, do not attempt the installation yourself. Improper
installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting: The LED moving head provides a unique mounting bracket
assembly that integrates the bottom of the base, and the safety cable rigging point in
one unit (see the illustration below). When mounting this fixture to truss be sure to
secure an appropriately rated clamp to the included omega bracket using a M10 screw
fitted through the center hole of the “omega bracket”. As an added safety measure be

8
sure to attached at least one properly rated safety cable to the fixture using on of the
safety cable rigging point integrated in the base assembly.
Regardless of the rigging option you choose for your LED moving head, always be sure
to secure your fixture with a safety cable. The fixture providers a built-in rigging point for
a safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.

9
7DMX-512 CONTROL CONNECTIONS
Connect the provided XLR cable to the female 3-pin XLR & 5-pin XLR output of your
controller and the other side to the male 3-pin XLR & 5-pin XLR input of the moving
head. You can chain multiple moving head together through serial linking. The cable
needed should be two core, screened cable with XLR input and output connectors.

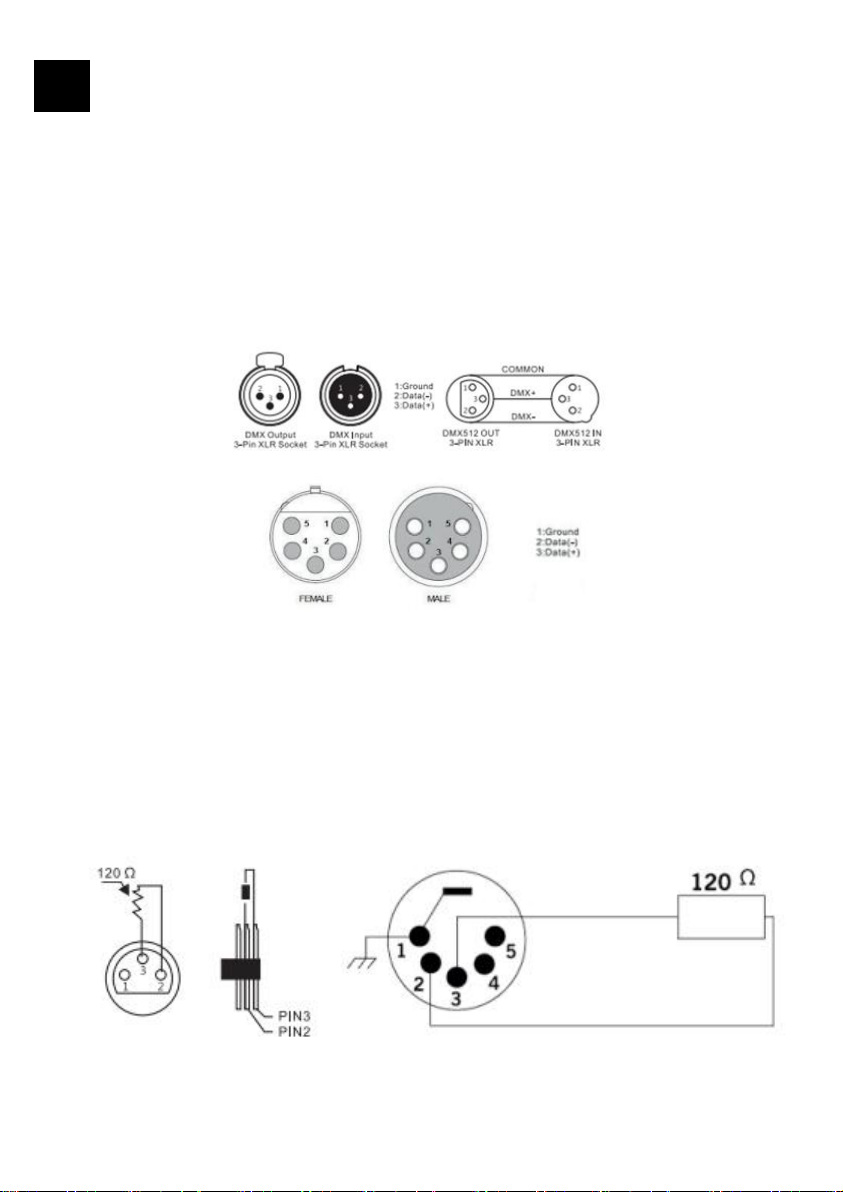

Please refer to the diagram below.
For installations where the DMX cable has to run a long distance or is in an electrically
noisy enviroment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3, which is then plugged into the output XLR socket of the last
fixture in the chain. Please see illustrations below.
.

10
8MENU OPERATIONS
MENU
Address Set [Set Address Numbers]
[DMX]
Run Mode [AUTO] Auto 1- Auto 2
[SOUND]
[MANUAL] Manual Test Function and Operation
Pan reverse
Tilt reverse
Display
Screen Reverse
Setup [Advanced Setting] Channel (16/18CH Select)
Sensitivity (01-100)
Motor zero
Reset
Factory Set
Ver V1
System Information DMX Address
Temperature

11
9DMX CHANNELS
18/16 channel mode sheet
18CH
16CH
Function
Channel
Value
Description
CH1
CH1
Pan
0-255
0-540°
CH2
Pan fine
0-255
Pan Fine
CH3
CH2
Tilt
0-255
0-270°
CH4
Tilt Fine
0-255
Tilt Fine
CH5
CH3
X, Y speed
0-255
From fast to slow
CH6
CH4
LED
Dimmer
0-255
From dark to bright
CH7
CH5
LED Strobe
0-7
Turn on
8-250
Strobe from slow to fast
251-255
Turn on
CH8
CH6
7 color +
White
0-15
White Lighting
16-31
Color 1
32-47
Color 2
48-63
Color 3
64-79
Color 4
80-95
Color 5
96-111
Color 6
112-127
Color 7
128-191
CW from slow to fast
192-255
CCW from slow to fast
CH9
CH7
Color effect
0-10
No function
11-209
Color fine tuning

12
210-255
Color shake from fast to slow
CH10
CH8
Static gobo
wheel
0-6
open
7-13
Gobo1
14-20
Gobo2
21-27
Gobo3
28-34
Gobo4
35-41
Gobo5
42-48
Gobo6
49-55
Gobo7
56-63
Gobo 8
64-70
Gobo 8 shake
71-77
Gobo 7 shake
78-84
Gobo 6 shake
85-91
Gobo 5 shake
92-98
Gobo 4 shake
99-105
Gobo 3 shake
106-112
Gobo 2 shake
113-119
Gobo 1 shake
120-127
open
128-191
Gobo rotate CW from slow to fast
192-255
Gobo rotate CCW from slow to fast
CH11
CH9
7 rotation
gobos
+White
0-15
open
16-31
Gobo1
32-47
Gobo2
48-63
Gobo3
64-79
Gobo4
80-95
Gobo5
96-111
Gobo6

13
112-127
Gobo7
128-191
Gobo Rotate CW from slow to fast
192-255
Gobo Rotate CCW from slow to fast
CH12
CH10
Gobo
Rotation
0-15
open
16-95
Gobo Fine 0-250
96-135
Gobo Rotating 0-90
136-155
Gobo Rotating 0-250
156-175
Gobo Rotating 0-360
176-215
Gobo self-rotating CW from slow to
fast
216-255
Gobo self-rotating CCW rotating from
slow to fast
CH13
CH11
Focus
0-255
Gobo hazy to clear
CH14
CH12
ZOOM
0-255
Angle from narrow to wider
CH15
CH13
Prism
0-63
Open
64-255
Prism In
CH16
CH14
Prism
Rotation
0-15
open
16-95
Prism Fine 0-250
96-135
Prism Rotating 0-90
136-155
Prism Rotating 0-250
156-175
Prism Rotating 0-360
176-215
Prism self-rotating CW from slow to
fast
216-255
Prism self-rotating CCW rotating from
slow to fast
CH17
CH15
Frost
0-63
open
64-255
Frost effect
CH18
CH16
self-setting
Program
0-7
No action
8-131
Auto mode

14
132-249
Soud mode
250-253
Reset
254-255
No action
10 MAINTENANCE AND CLEANING
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and
must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and
installation
spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not rotate
with
unbalances.
4) The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be adhered
by a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning
to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the lights due to
accumulation of dust.

15
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that the
circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use
alcohol solvents.
There are no serviceable parts inside the device. Please refer to the instructions under
“Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
Table of contents
Other Rushstage Lighting Equipment manuals
Popular Lighting Equipment manuals by other brands

Qazqa
Qazqa Bliss Vefa FL instruction manual

Rittal
Rittal SZ 4138.240 Assembly and operating instructions

BoomToneDJ
BoomToneDJ Froggy LED RGBW user manual

Hubbell
Hubbell KIM LIGHTING VRB1 installation instructions

Malmbergs
Malmbergs 75 707 75-76 instruction manual

Traxon
Traxon Allegro Media Tube Lite installation guide

KAM
KAM Laser Tri260 SD FScan instruction manual

LSC
LSC Atom 12/24 Operator's manual

Whelen Engineering Company
Whelen Engineering Company 900 Series installation guide

Aqua
Aqua F-203 Manual Installation

Velleman
Velleman ROUTE 66 quick start guide

Hikariya Lighting
Hikariya Lighting HL-LBDC-3 Handling manual
