RVE Merak E750 EVO User manual

Instruction Manual
SPECIFICATION /
规格表
Battery 电池: 12S (6S x 2) 4000~6000mAh
ESC 电调: 130A+ (12S)
Motor 马达: 470~510KV (12S)
Description / 产品名称 天璇星 E750 EVO
电动无刷马达
无副翼控制系统
Item No. / 产品编号
Power / 动力
Rotor Head / 主旋翼头型式
Length / 总长度(含头罩）
Width / 总宽度
Height / 总高度
Main Gear / Pinion 主齿轮 / 马达驱动齿轮
Gear Ratio (E:M:T) / 齿轮比
Full Equipped Weight
全备重量
Recommended of servo specifications
建议使用舵机规格 标准尺寸舵机
Recommended Power Configuration
动力搭配建议
Standard Servo
4800 g (12S 4400mAh)
(169 oz)
MK75200
Electric Motor
Flybarless
1580 mm / (62.20" )
190 mm / ( 7.48" )
366 mm / ( 14.41" )
745 mm / ( 29.33" )
1680 mm / ( 66.14" )
105 mm / ( 4.13" )
289 mm / ( 11.38" )
115 T Main Gear / 13T Pinion Gear
8.85 : 1 : 5.15
Main Rotor (Req’d)
主旋翼
Length /长度
Diameter / 旋翼直径
Length / 长度
Diameter / 回转直径
Tail Rotor (Req’d)
尾旋翼
天璇星EVO
组装说明书
MERAK EVO
E750
Merak E750 EVO

尾前传动齿轮组、电机安装座组装
简介与警告
倾斜盘控制摇臂组装
尾拉杆转换摇臂组装
侧板组装
内侧板零件组装
电池滑轨安装
脚架安装、电调板安装
前设备安装架组装
主齿轮组装、尾传动大齿组装
尾前传动同步带轮组总装
主轴和主齿轮组装
倾斜盘 ,相位臂 桨夹组装
尾皮带轮、尾波箱组装
旋翼头组装
尾双推控制组件组装
尾桨夹安装
尾撑组组装
舵机摇臂组装
Flight Safety Checklist /
AMA Information /
Intro & Caution /
飞行前安全确认工作项目
Post Flight Inspection / 飞行结束安全检查事项
Caution / 注意事项
特别注意事项
2
2
3
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Other Item Required / 其它需求设备配件
Tools Required For Assembly / 组装工具需求
组装
目录
4
4
5
3
说明书使用说明A Guide to the Instruction Manual /
Front transmission gear set & motor mount assembly /
Swashplate Control Arms Set Assembly /
Tail Pitch Control Lever Assembly /

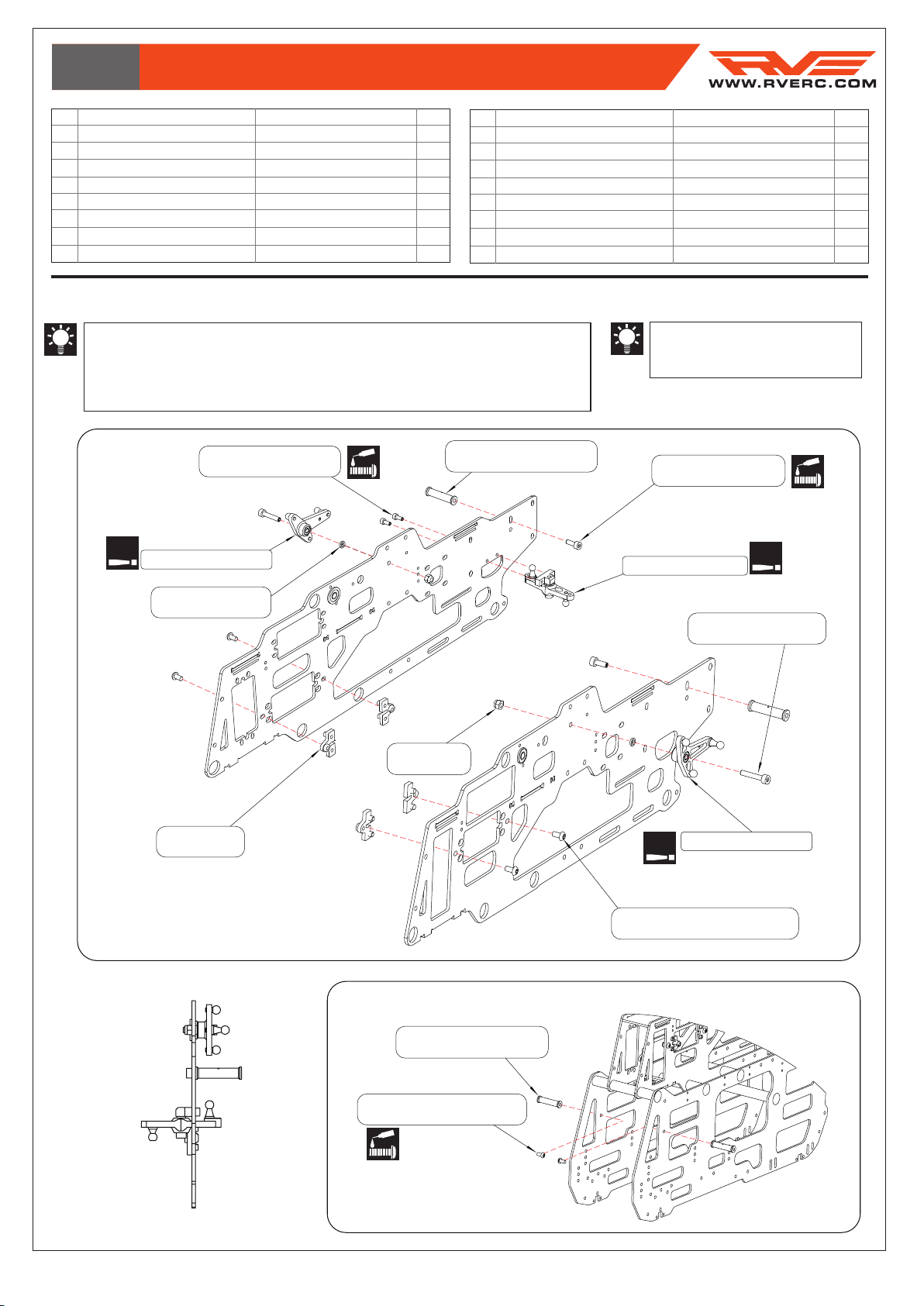

Main Frame Assembly /
Main Frame Assembly /
Battery Tray Rail Assembly /

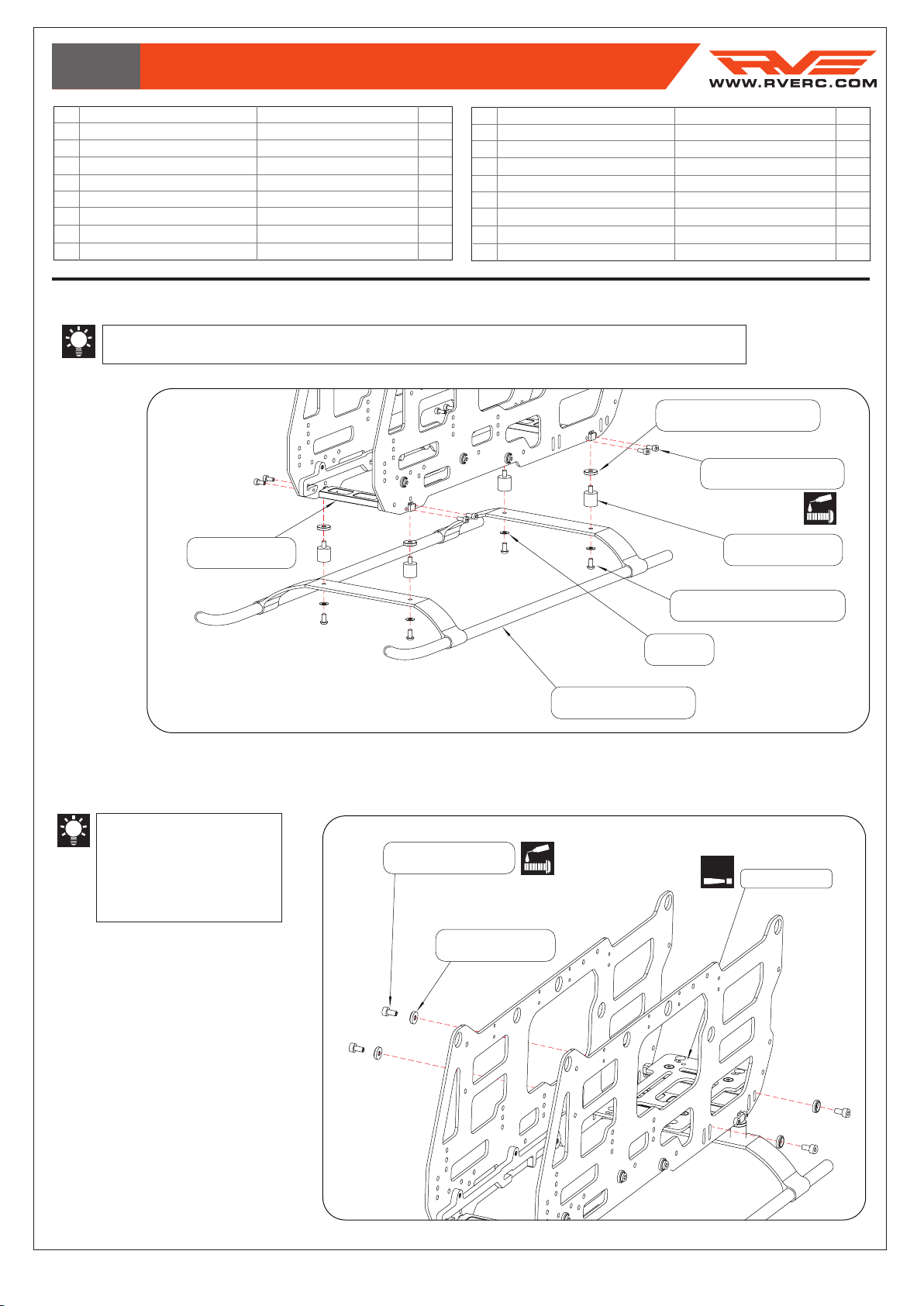

Landing Skid Assembly &ESC Mount Assembly /

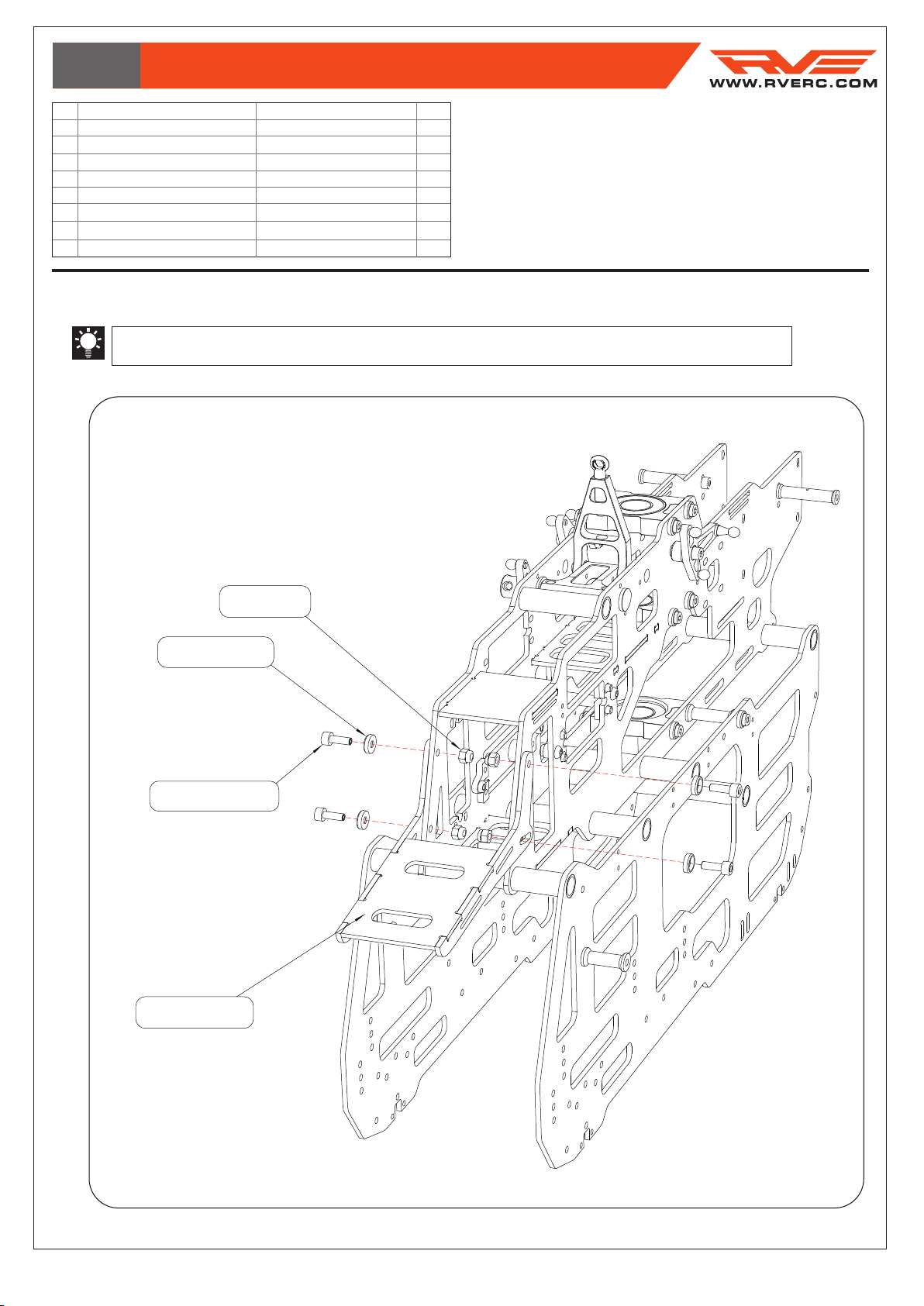

Electronic Device Mount Plate Assembly /
Tail Drive Gear & Main Gear Set assembly /
Counter Gear Assembly /
Main gear and main shaft Assembly /

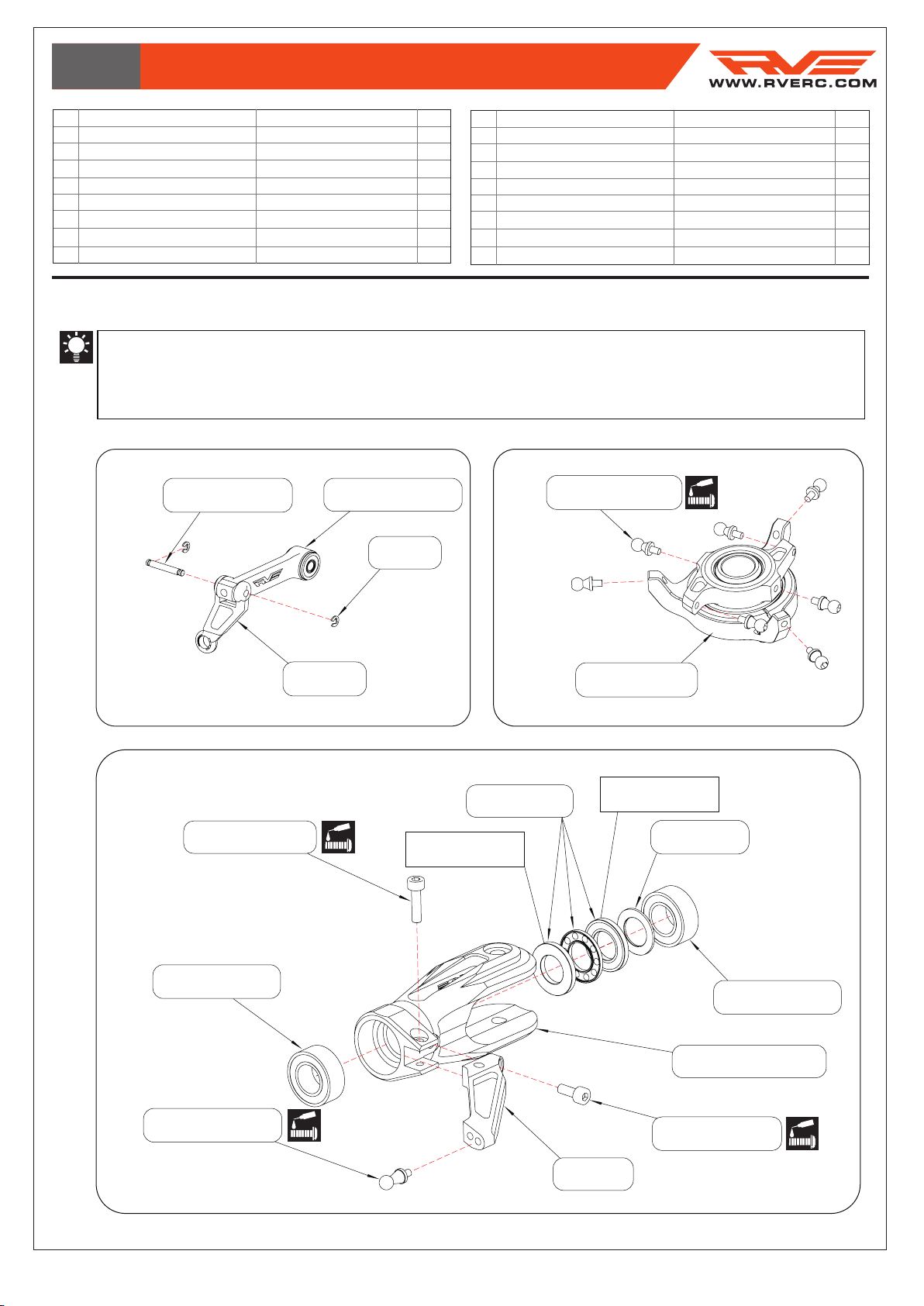

Swashplate ,FBL Washout block and rotor grip Assembly /

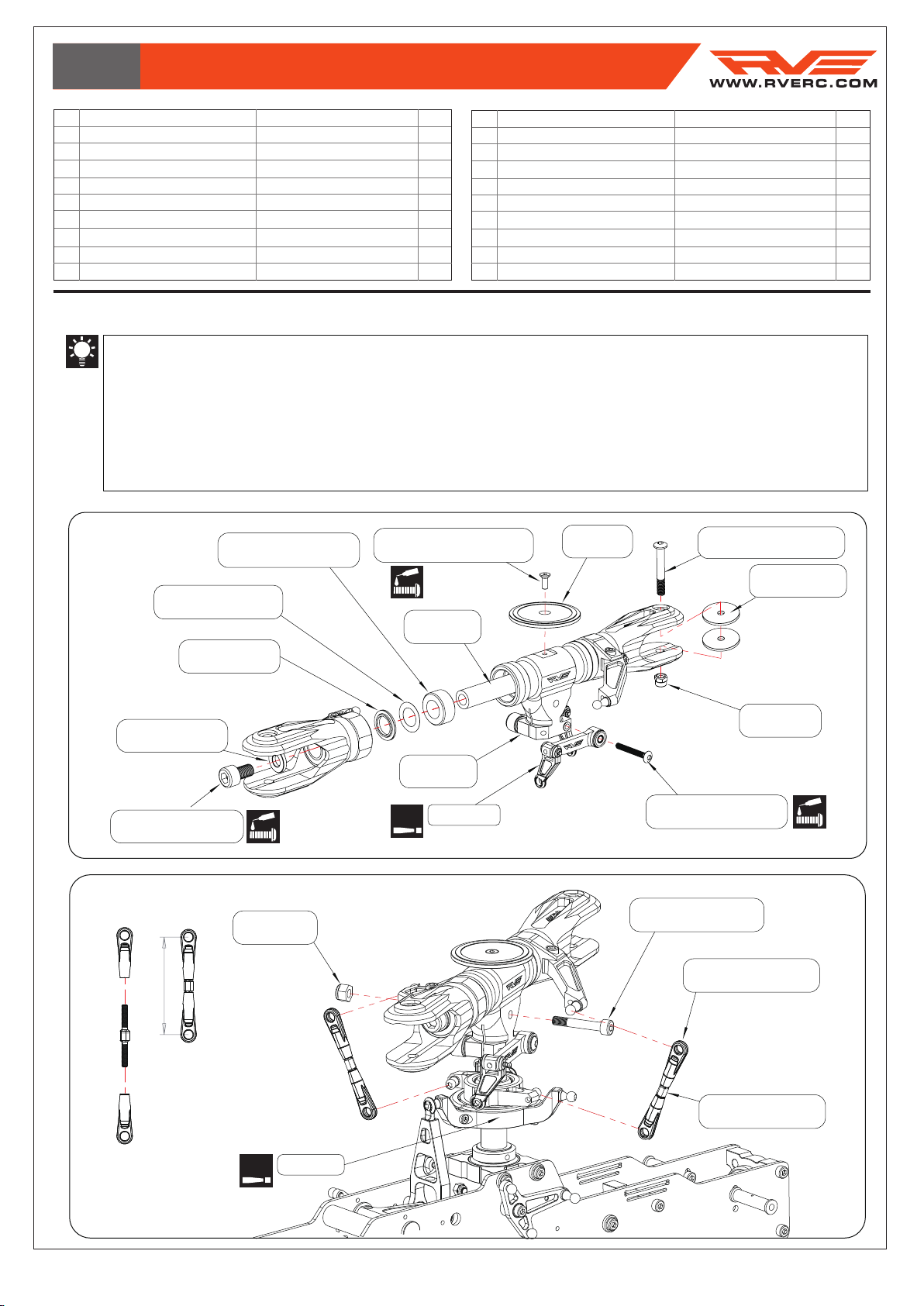

Main rotor head Assembly /
Tail Gear Box assembly /
Tail Pitch Control System assembly /
Tail Rotor Grip assembly /
Tail Boom Support assembly /
Servo horn Installation /
舵机安装
尾舵机拉杆组装
24
26
Servo Installation /
Tail Pitch Control Linkage assembly /
电池、电调安装板组装
8
Battery Tray and ESC Mount Plate Assembly /
电机固定座总装
15
Motor Mount Assembly /
舵机拉杆组装Servo linkage rod installation /
25
控制摇臂、拉杆调整注意事项Swash Lever Neutral Position Setting /
27
爆炸图检索Exploded View /
28-39

-2-
INTRODUCTION / 简介
Thank you for purchasing the RVE RC radio control helicopter. This new helicopter is the latest innovation by
RVE RC. It has the perfect combination of flying stability and the agility for F3C flying. This helicopter is an
excellent choice for flying enthusiasts like you. For convenient assembly and safe operation of the helicopter,
please read the instructions carefully. Retain the user manual in case you need it for any information or reference.
CAUTION / 警告
1. R/C models are not toys. This product is a high-precision flying machine. Possibilities of unexpected
crashes may occur due to electronic interference, incorrect operation, or poor mechanical maintenance.
Although it is a R/C model helicopter, the rotor blades rotate at high speeds, which may cause serious
damage, injury, or death if the model hits people or property. Therefore, extreme caution must be
exercised during operation.
2. RVE RC ensures parts packaged in this product are of the highest quality. However, after assembly
and usage, parts damaged due to wear or misuse will not be replaced under any circumstances. If you
have any questions regarding its operation and repair, RVE RC service agents are able to
provide free technical guidance.
3. This product is only recommended for users ages 16 and up. Because flying a R/C helicopter is difficult,
beginners must receive guidance and supervision from experienced pilots to minimize unexpected danger.
Practice in spacious areas, far away from obstacles such as buildings, trees, electrical towers, or crowds.
4. To decrease the cost of repair and maintenance for beginners, it is recommended to fly the helicopter
with a practice rack and to learn basic flying skills with a computer R/C flying simulator. (Crashes in
simulators are free to repair!)
1.本项遥控直升机产品并不是玩具，它是一项结构精密、高专业度模型产品，如未经正确组装与操控，将可能对
操控者或其他人造成身体伤害。使用者必须了解，若未确实进行飞行前安全检查或操控不当而造成人员受伤或
物体损坏，使用者必须负起法律责任。
2.本产品由高品质零组件组成，RVERC对于安装过程、使用过后..等人为因素造成损坏事件不负赔偿之责。
如您需要本产品相关组装、调整或其他协助，可与威翼各地经销商联系。
3.本项产品禁止十六岁以下青少年与孩童使用。强烈建议初学者应取得技术支援后再进行飞行，以避免危险发生。
请于空旷地区操控本产品，并避免于建筑物、树木、电塔..等障碍物区域飞行。
4.建议初学者可安装练习架或透过电脑模拟软体练习，可达到实际练习效果与符合经济效益。
AMA INFORMATION / 特别注意事项
Operating a model helicopter requires a high degree of responsibility and skill. If you are a newcomer to the
hobby, it is best to seek help and guidance from accomplished model helicopter pilots. This will greatly
speed up the learning process and have you flying successfully in a reasonable amount of time. We also
would strongly urge you to join the Academy of Model Aeronautics, if you are in States. The AMA is a
non-profit organization that provides its members with a liability insurance plan as well as monthly magazine
entitled Model Aviation. All AMA charter aircraft clubs require all pilots to hold a current AMA sporting
license prior to operation of their models at club fields. For further information, contact the AMA at:
Academy of Model Aeronautics
5151 East Memorial Drive
Muncie, IN 47302
[phone]
http://www.modelaircraft.org
操控遥控直升机对于飞行安全要求极高，需要高度的负责任态度配合，以及较高的操控技巧。如果您是一位初学者，
建议您必须向当地专业模型经销商，或是遥控直升机相关组织以及经验丰富的玩家寻求相关协助，以获得您所需要的
讯息以及专业知识。如此可有效协助您缩短学习的时间，更容易学会遥控直升机的组装、设定与操控技巧。
同时我们也强烈建议您加入中国航空运动协会会员，以合法合规的参与航空模型飞行运动。
如何参加中国航空运动协会，请参考以下网址了解详情：www.asfc.org.cn
感谢您购买威翼遥控直升机产品，本项产品为威翼全新开发机种，兼具高控制精度与F3C飞行特性，是热衷遥控直
升机的您不可错过的选择。请于使用本产品前详尽阅读使用手册，以利于组装工作顺畅进行与安全操控本产品。
请妥善保存使用说明书，以利后续调整与维修参考用途。

-3-
FLIGHT SAFETY CHECKLIST /飞行前安全确认工作项目
POST FLIGHT INSPECTION / 飞行结束安全检查事项
CAUTION
/ 注意事项
1. Make sure that the transmitter battery is fully charged before flying.
2. Make sure all control surfaces are operated properly before flying.
3. Do a range check of the radio before the first flight. The electronic equipment must operate properly
at a range of at least 5 meters (18 ft) even with the transmitter antenna collapsed.
4. Make sure there are no other pilots using the same radio frequency with yours and that there are no
other radio interference on your frequency.
5. Be sure to turn on the transmitter first with the throttle stick in the idle position. Plug the battery into
the ESC last.
6. The main rotor and the tail rotor spin at very high RPM. Make sure nothing can come in contact with
the rotor blades during flight.
7. Always maintain a safe distance from the helicopter during flight.
8. Never fly the helicopter in the rain or in excessive wind conditions.
9. Always operate and fly the helicopter in a safe and responsible manner.
10. Never fly the helicopter over other pilots, spectators, cars or anything that could result in injury or property damage.
1. 确认接收机与发射机电池，均已确实充电完成。
2. 确认所有操控介面运作顺畅。
3. 确认无其他无线电波干扰，且不与其他同好同时使用相同频率。
4. 确实将油门摇杆放置于低速，再将发射机电源开启，然后再将电池接上。
5. 确认遥控器发射器与接收机工作正常，将机体放至于距离5公尺外，确认遥控器是否正常，机体控制动作是否正确。
6. 主旋翼与尾旋翼转速相当高，运转时须避免任何障碍物与旋翼接触。
7. 飞行时，需与遥控直升机保持安全距离。
8. 勿于下雨天或是强风的状态下操控遥控直升机。
9. 请以安全为第一考量，并以高度负责任的态度参与遥控直升机活动。
10. 禁止于人群、车辆..或任何其他障碍物上方飞行遥控直升机，避免意外发生。
1. Inspect the model thoroughly to insure no parts have come loose or become damaged during the flight
and landing. Replace damaged parts and tighten loose screws before flying again.
2. Clean the helicopter body.
3. Lubricate all moving parts to ensure smooth operation for the next flying.
4. Replace any worn ball links and damaged bearings.
5. Store the model in a cool, dry place. Avoid putting it under direct sunlight or near a source of heat.
Following these simple rules will allow you to enjoy the thrill of model helicopter flying for many years.
1. 飞行结束后确认机体所有的零件与螺丝是否有损坏或松动，更换损坏零件与确实固定松动的螺丝。
2. 机体清洁干净。
3. 检查所有活动零组件是否运作顺畅，以利下次飞行。
4. 更换所有松动的连杆、接头，以及损坏的轴承。
5. 将机体存放于阴凉通风处，避免机体放置于阳光直射处或接近热源。
确实执行上述几项简单的步骤，将可确保您的爱机维持数年的寿命！
When the model has crashed, inspect rotor shaft and the blade spindle to make sure they are
not bent. If any item is damaged, it must be replaced with a new part to ensure safe operation. Do not
glue any broken or damaged plastic parts. Do not repair broken rotor blades.
Always inspect the following items:
Gears, Ball links, Link rods, Bearings, Main shaft, Spindle, Tail boom and support, Fins, Tail rotor
shaft, Main blades, Tail blades, the Motor, the Speed control and the Battery.
机体一旦发生坠落事件，请确实检查平衡杆、主轴、横轴是否有弯曲变形，如果有任何的损坏，请立即更换原厂新
的零组件，确认机体操作安全！切勿使用任何接着剂尝试黏合塑胶零件；请勿使用修复过的主旋翼。
发生机体坠落事件后，请确实检查下列项目：
齿轮组、球头连杆、连杆头、轴承、主轴、横轴、尾轴、平衡杆、平衡片、尾管、尾管支撑架、垂直与水平尾翼、
尾驱动轮、主旋翼、尾旋翼、马达、速控器、电池。

-4-
Screw Driver
各种规格的螺丝刀
7mm
5.5mm
7mm
8mm
Hobby Knife
美工刀
C.A Glue
502快干胶
Grease
润滑油
Epoxy
环氧树脂
Hex Wrench
六角板手
Threadlocker
螺丝防松胶
Needle Nose Pliers
尖嘴钳
Wrench
开口板手
5.5mm
Ball Link Pliers
连杆钳
Nipper
斜口钳
Scissors
剪刀
Metric 4-way Wrench
十字套筒板手
5.5mm
7mm
8mm
10mm
Socket Drivers
套筒螺丝刀
TOOLS REQUIRED FOR ASSEMBLY /
需要准备的工具
RADIO SET / 遥控器系统
POWER SYSTEM / 动力系统
OTHER ITEMS REQUIRED / 其它需求设备配件
发射机（需具备直升机控制功能
的6通道以上遥控器）
Transmitter (helicopter type
only, 6 or more channels)
Electric Brushless Motor
无刷马达
Electronic Speed Controller
电调
12S Li-Po Battery Pack
锂电池组
Foam
双面胶带
Receiver
接收机
Standard Servos
(For Swashplate)
(For Tail Gyro)
中型舵机倾斜盘用
Standard Servo
标准舵机尾舵用
Rx Battery
接收机电池
3-AXIS Gyro
3轴陀螺仪
Switch Harness
电源开关组

B
PA Previously assembled
Assembly Tips
先前组装完成组件
組裝提示
A
显示组立步骤及需要组装的零件顺序
请比对零件名称和零件数量
请参照组装说明符号，可有效协助组装过程对于各部位零组件的操作
C
需要涂专用润滑油脂
Apply Grease
确认组件顺畅度
Apply C.A Glue
使用速干胶
Assemble as many times as specified
依指示组装所需数量
Assemble left and right side the same way
左右侧组件相同
Apply Epoxy Glue
使用环氧树脂AB胶
Not Includ Must be purchased separately
套件不包含需另购
Ensure smooth, non-binding movement when assembling
Apply threadlocker
使用螺丝防鬆胶
CA CA GLUE /
AB EPOXY GLUE /
速干胶
环氧树脂AB胶
T22 (#262) THREADLOCKER / 螺丝防松胶
A B
A B
请依组装步骤图示，使用防松胶、接着剂或AB胶环氧树脂。
The parts in the KIT are packed according to each major assembly steps. The part number and quantity are always
shown in the table on each page. As good practice, only open up the bag that you need for the paticular assembly.
零件均依照组装步骤包装，请依照组装顺序，逐一开启零件包，避免零件遗失。
Note / 注意
Assembly drawings will contain icons that indicate use of
Threadlocker or CA glue as needed.
Examples of the icons are as right shown:
图示范例如右：
A:Indicates the assembly step number and the parts bags that
are to be assembled.
B:Displays actual size drawings, and part quantities used.
C:
This instruction manual uses several symbols. Pay careful
attention to them during construction. Details are given at
the bottom of each page.
A:
B:
C:
A GUIDE TO THE INSTRUCTION MANUAL / 说明书使用说明
SYMBOLS USED THROUGHOUT THE MANUAL / 符号说明
Example 说明范例
-5-

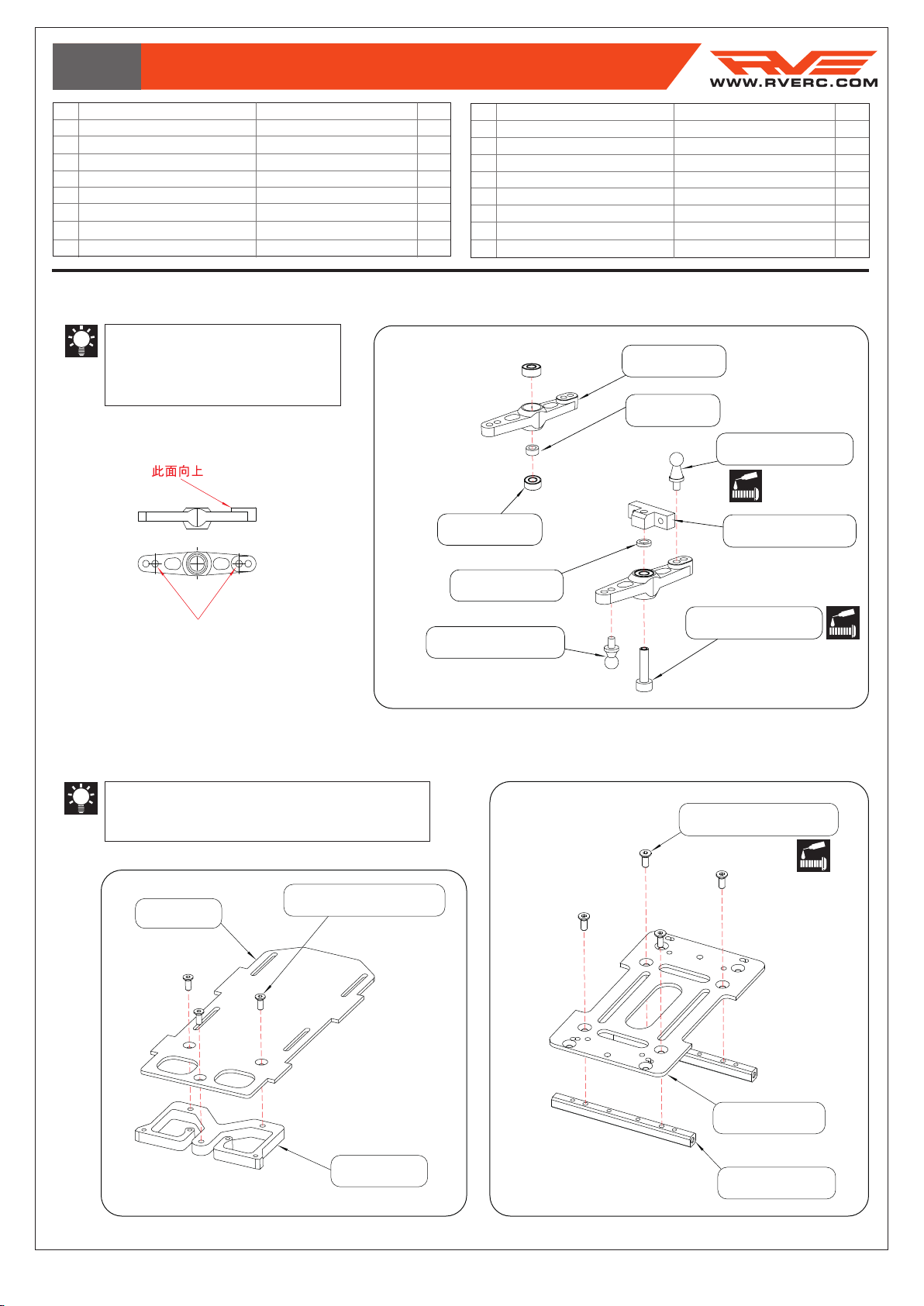

Tail Belt Tenssion Pulley assembly /
ESC Mount Assembly /
尾皮带压带轮組裝
电调固定座组装
Step 1-1
1-2
Belt Pully Mount
Collar 3X5X2.3
Stainless Steel Pin 3x16
No.
1
2
3
4
5
QtyParts Description 零件名称
2
3
1
4
2
d3xD7xW3
Bearing d3xD7xW3
Belt guide pulley
WWW.RVERC.COM
1-1 皮带压带轮组装
1-2 电调固定座组装
沉头内六角螺丝 M3X8
内侧板支撑柱L32
电调安装板
Tail Belt Tenssion Pulley assembly
ESC Mount assembly
Apply a little green bearing glue to the outer wall of the bearing.
If the bearing is loose during installation.
轴承
皮带导向轮
皮带导向轮轴销
垫圈3X5X2.3
皮带导向轮安装座
如果轴承安装时较松，请在轴承外壁涂少许绿色轴承胶。
ESC Mounting Plate
Fream Spacer
Flat Socket Screw, M3x10
No.
1
2
3
QtyParts Description 零件名称
1
2
4
平头内六角螺丝M3x8
内侧板支撑柱 L32
电调安装板
垫圈3X5X2.3
皮带导向轮轴销
3x7x3 轴承
皮带导向轮
皮带导向轮安装座
2X
2X
2X
垫圈3X5X2.3
皮带导向轮
皮带张紧器安装座
半圆头内六角螺丝M3X14
皮带张紧器
张紧器扭簧
3x7x3 轴承
垫圈3X4.2X1
2X
2X
4X
2X
皮带张紧器组
皮带压带轮组
6
7
8
皮带张紧器安装座
皮带张紧器
张紧器扭簧
垫圈3X4.2X1
半圆头内六角螺丝M3X14
9
10
1
1
1
1
2
法兰轴承3x7x3
2X
法兰轴承 d3xD7xW3
11 2
Collar 3x4.2x1
Button Head Socket Screw M3x14 Flange Bearing 3x7x3
Belt tensioner mount
Belt tensioner
Tensioner torsion spring

-6-
Step 1-1
No.
1
2
3
4
5
6
QtyParts Description 零件名称
杯头内六角螺丝 M3X8



1-1 尾前传动齿轮组组装 Front transmission gear set assembly
Motor mount assembly
尾前传动齿轴承座
尾前传动皮带轮 20T
尾前传动小齿轮 13T
铝合金垫片 M3
内六角顶丝 M3X3
尾前传动齿轮组、电机安装座组裝
Front transmission gear set and motor mount assembly
Flat Head Socket Screw, M3x8
2
1
1
1
2
1
1-2 电机安装座组装
请把电机安装座和电机齿螺母安装好
后再紧固电机齿固定螺丝。
杯头内六角螺丝 M3x8
铝合金垫片 M3
尾前传动皮带轮20T
尾传动小齿13T
尾前传动齿轴承座
内六角顶丝 M3x3
No.
1
2
3
4
5
Qty
Parts Description 零件名称
13T电机齿轮
电机齿螺帽
内六角顶丝 M4X4
半圆头内六角螺丝 M4X8
1
1
1
2
2
13T电机齿
内六角顶丝 M4x4
电机安装座
电机齿螺帽
半圆头内六角螺丝 M4x8
电机安装座
2X
2X
2X
2X
Tail drive bearing block
Tail drive Pulley 20T
Tail drive Counter Gear 13T
M3 Aluminum Washer
Set Screw M3X3
Pinion Gear 13T
Pinion Gear Nut
Motor Mount Block
Button Head Socket Screw M4x8
Set Screw M4X4
另购
Not Includ
注意轴承座安装方向,有倒角的面都朝
向同步带轮。



Tail drive bearing block
Tail drive Pulley 20T
Tail drive Counter Gear 13T
M3 Aluminum Washer
Set Screw M3x3
Flat Head Socket Screw, M3x8
Pinion Gear 13T
Pinion Gear Nut
Motor Mount Block
Button Head Socket Screw M4x8
Set Screw M4x4

-7-
Step 1-3
No.
1
2
3
4
5
6
Qty
Parts Description 零件名称
半圆头内六角螺丝 M3x8
1-3 倾斜盘控制摇臂组装 Swashplate control arms set assembly
A型摇臂
A型摇臂基座
A型摇臂轴套
球头扣
4X8X3轴承
/ Swashplate Control Arms Set Assembly倾斜盘控制摇臂组装
1
1
2
1
2
2
球头扣
十字螺丝M2.3x11
No.
9
10
11
12
13
14
8
Qty
Parts Description 零件名称
升降舵摇臂
倾斜盘控制摇臂L
1
1
1
2
4
A型摇臂基座
倾斜盘控制摇臂R
A型摇臂
半圆头内六角螺丝 M3x8
A型摇臂轴套
4x8x3轴承
升降舵摇臂
倾斜盘控制摇臂R
3x3x7.5MM球头
铜套3x5x2.3
3x3x2.5MM球头
3x7x3轴承
2X
2X
2X
6X
6X
4X
6X
4X
倾斜盘控制摇臂L
十字螺丝 M2.3x11 1
铜套3x5x2.3
3x7x3轴承
3x3x2.5MM球头
3x3x7.5MM球头 2
6
2X
2X
2X
2X
安装前请把球头扣从底端切除2MM。
倾斜盘控制摇臂有左右之分，安装时请注意。
Elevator A Arm
Elevator A Arm Lever
Elevator A arm Collar Collar 3x5x2.3
Elevator push-pull arm
Aileron lever L
Aileron lever R
Ball Link
Ball Bearing 4x8x3
Ball Bearing 3x7x3
Linkage Ball 3x3x2.5mm
Linkage Ball 3x3x7.5mmButton Head Socket Screw M3x8
Phillips Screw M2.3x11
7
Please cut off the ball link 2MM from
the bottom before installation.
The swashplate control arm is divided into left and right,
please pay attention when installing.
R
L
Elevator A Arm
Elevator A Arm Lever Elevator A arm Collar
Ball Link
Ball Bearing 4x8x3
Button Head Socket Screw M3x8
Phillips Screw M2.3x11
Elevator push-pull arm
Aileron lever L
Aileron lever R
Collar 3x5x2.3
铜套3x5x2.3
Collar 3x5x2.3
Ball Bearing 3x7x3
Linkage Ball 3x3x2.5mm
3x3x2.5MM球头
Linkage Ball 3x3x2.5mm
Linkage Ball 3x3x7.5mm
3x3x7.5MM球头
Linkage Ball 3x3x7.5mm
3x7x3轴承
Ball Bearing 3x7x3
3x3x2.5MM球头
Linkage Ball 3x3x2.5mm
Large angle
Small angle

-8-
Step 1-4
No.
1
2
3
4
5
6
QtyParts Description 零件名称
铜套3x5x2.3
1-4 尾拉杆转换摇臂组装 Tail Pitch Control Lever Assembly
尾拉杆转换摇臂
T型座
球头3x3x5.5MM
球头3x3x7.5MM
3x7x3轴承
1
1
1
1
2
1
电调安装板
电池安装板
1
1
1
2
4
电池板卡扣
铜垫片3x4.5x0.7 1
外侧板支撑柱L76
沉头内六角螺丝M3x6
沉头内六角螺丝M3x8 3
尾拉杆转换摇臂
铜套 3x5x2.3
轴承 3x7x3
杯头内六角螺丝M3x14
球头3x3x7.5MM
球头3x3x5.5MM
铜垫片3x4.5x0.7
T型座
电池安装板
沉头内六角螺丝M3x6
电调安装板
电池板卡扣 外侧板支撑柱L76
沉头内六角螺丝M3x8
No.
1
2
3
4
5
6
QtyParts Description 零件名称
1-5 电池、电调安装板组装 Battery Tray and ESC Mount Plate Assembly
杯头内六角螺丝M3x14 1
电池板卡扣为POM材质，锁紧螺丝时请勿过度用力。
如果轴承安装孔较松，请在轴承上涂少许
绿色轴承胶后装入。
Step 1-5
使用内侧孔位
2X
4X
3X
Tail control lever
Tail control lever T mount
Linkage Ball 3x3x5.5mm
Linkage Ball 3x3x7.5mm
Ball Bearing 3x7x3
Collar 3x5x2.3
Washer 3x4.5x0.7
Socket Screw M3x14
ESC Mounting Plate
Battery Tray
Battery Tray Clip
Frame Spacer L=76
Flat Head Socket Screw M3x6
Flat Head Socket Screw M3x8
Apply a little green bearing glue to the
outer wall of the bearing.
If the bearing is loose during installation.
The battery tray clip is made of POM material.
Do not use excessive force when tightening the screws.
4X
7
8
/ Tail Pitch Control Lever Assembly尾拉杆转换摇臂组装
/ Battery Tray and ESC Mount Plate Assembly电池、电调安装板组装
UP
Tail control lever
Tail control lever T mount
Linkage Ball 3x3x5.5mm
Linkage Ball 3x3x7.5mm
Ball Bearing 3x7x3
Collar 3x5x2.3
Washer 3x4.5x0.7
Socket Screw M3x14
ESC Mounting Plate
Battery Tray
Battery Tray Clip
Frame Spacer L=76
Flat Head Socket Screw M3x6
Flat Head Socket Screw M3x8

No.
1
2
3
4
5
6
Qty
Parts Description 零件名称
半圆头内六角螺丝M2.5x5
2-1 侧板组装 Main Frame Assembly
头罩固定柱L17
头罩固定柱L26
舵机固定座A
杯头内六角螺丝M3x8
杯头内六角螺丝M3x15
2
2
4
2
2
2
铜垫片 3x4.5x0.7
2
4
No.
9
QtyParts Description 零件名称
杯头内六角螺丝M2.5x6
2
如果您选择安装RVE复材机壳，下侧板用L26长度安装柱，上侧板用L17安装柱。如您选择安
装未来机壳，需要安装机壳附带的专用安装柱。
2X
2X
4X
2X
4X
2X
2X
2X
2X
头罩固定柱L26
杯头内六角螺丝M2.5x6 杯头内六角螺丝M3x8
尾拉杆转换摇臂组件
杯头内六角螺丝M3x15
倾斜盘控制摇臂R组件
铜垫片 3x4.5x0.7
舵机固定座A
M3自锁螺帽
倾斜盘控制摇臂L组件
半圆头内六角螺丝M2.5x5
半圆头内六角螺丝M3x6
2X 头罩固定柱L17
注意尾拉杆转换摇臂安装方向。
M3自锁螺帽
PA
PA
PA
Canopy Retaining Post L=17
Canopy Retaining Post L=26
Servo Mount A
Socket Screw M3x8
Socket Screw M3x15
Socket Screw M2.5x6
Nylon Nut M3
Button Head Socket Screw M2.5x5
Washer 3x4.5x0.7
If you choose to install the RVE composite body, the lower side frame uses the L26 length
retaining post, the upper side frame uses L17 retaining post.For installing the Future body
you need to use the stand-offs supplied with the Future body kit.
Pay attention to the tail pitch control
lever installation direction.
7
8
半圆头内六角螺丝M3x6
Button Head Socket Screw M3x6
10 2
/ Main Frame AssemblyStep 2-1 侧板组装
-9-
Canopy Retaining Post L=17
Canopy Retaining Post L=26
Servo Mount A
Socket Screw M3x8
Socket Screw M3x15
Socket Screw M2.5x6
Button Head Socket Screw M2.5x5
Nylon Nut M3
Washer 3x4.5x0.7
Button Head Socket Screw M3x6

No.
1
2
3
4
5
6
Qty
Parts Description 零件名称
铝合金垫片M3
2-2 内侧板零件组装 Main Frame Assembly
主轴轴承座
外侧板支撑柱L20
升降A臂内轴
杯头内六角螺丝M3x8
杯头内六角螺丝M3x30
3
2
1
10
2
4
12
内六角顶丝M4x4
轴承座安装需要尽量同心。安装时请先装入主轴，然后依次逐步拧紧轴承座固定螺丝并检查主轴顺畅度。与A型摇臂组件装配的内六角顶丝
需要固定在升降A臂内轴的平槽上。
The bearing block installation needs to be as concentric as possible. Move the main shaft up and down to check if the bearing blocks are
installed centered.When installing, please install the main shaft first, and then tighten the fixing screws of the bearing blocks step by step.
The M4x4 set screw assembled with the A-type rocker arm assembly needs to be fixed on the flat groove of the inner shaft of the
lifting A-arm.
Before fixing the elevator control arm, please insert two positioning
pins (7-6) into the frame to determine the angle, and then tighten
the set screws.
Step 2-2 内侧板零件组装 / Main Frame Assembly
3X
升降舵摇臂固定前请先用两支定位销（7-6）插入侧板来确定角度，
然后再锁紧顶丝。
主轴轴承座
4X 内六角顶丝M4x4
12X 铝合金垫片M3
升降舵摇臂组
A型摇臂组件
2X 杯头内六角螺丝M3x30
10X 杯头内六角螺丝M3x8
升降A臂内轴
外侧板支撑柱L20
轴承面向上
轴承面向下
2X
PA
PA
Main Shaft Bearing Block
Out Side Frame Spacer L=20
Elevator A Arm Lever Shaft
Socket Screw M3x8
Socket Screw M3x30
Set Screw M4x4
M3 Aluminum Washer
Bearing Suface Up
Bearing Suface Down
7
-10-
Main Shaft Bearing Block
Out Side Frame Spacer
Elevator A Arm Lever Shaft
Socket Screw M3x8
Socket Screw M3x30
Set Screw M4x4
M3 Aluminum Washer

-11-
No.
1
2
3
Qty
Parts Description 零件名称

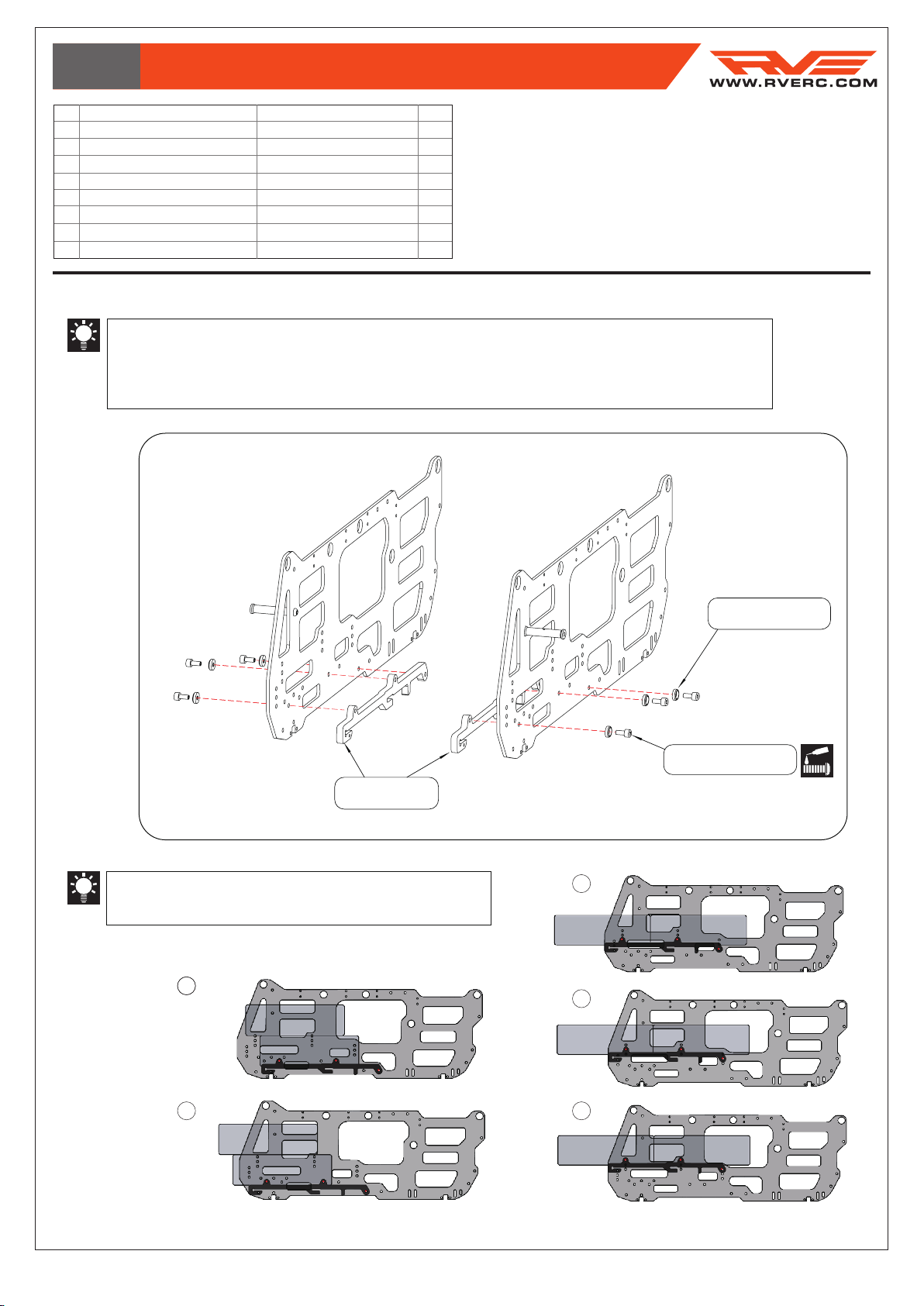

2-3 电池滑轨安装 Battery Tray Rail Assembly
EVO电池滑轨
铝合金垫片M3
杯头内六角螺丝M3x6
2
6
6
Step 2-3 电池滑轨安装 / Battery Tray Rail Assembly
高重心可以让直升机更跟手。长条电池提供三种重心位置可选择（C/D/E)，电池安装越靠上直升机越灵活。
2X 电池滑轨(EVO)
低重心可以让直升机更稳定，提供两种安装位置可调节重心(A/B)。
长条电池安装方式需配合EVO加长电池板使用，零件编号：MK75233
6X 铝合金垫片M3
6X 杯头内六角螺丝M3x6
Battery Tray Rail (EVO)
Socket Screw M3x6
M3 Aluminum Washer
The high CG can make the helicopter more follow-up. The long battery tray provideds three options for the CG position,
and more higher the battery position, more flexible the helicopter.(C/D/E)
The low CG can make the helicopter more stable, and two installation positions are provided to adjust the CG.(A/B)
The long battery installation method needs to be used with EVO
extended battery tray, the part number :MK75233 (optional part)
Battery Tray Rail
M3 Aluminum Washer
Socket Screw M3x6
A
B
A
C
D
E

-12-
No.
1
2
3
4
5
6
QtyParts Description 零件名称
2-4 脚架安装 Landing Skid Assembly
ESC Mount Assembly
脚架减震柱
脚架安装座
杯头内六角螺丝M2.5x6
4
2
4
8
4
4
4
4
1
2
QtyParts Description 零件名称
Step 2-4 脚架安装 / Landing Skid Assembly
/ ESC Mount Assembly
脚架减震柱和半圆头内六角螺丝（M3X6）尽量少用或者不用螺丝胶，过多的螺丝胶会造成脚架减震柱无法正常拆卸。
4X 脚架减震柱
电调安装板有前后两个安装位可
选，并且高低可调整。
电调板安装
Step 2-5
2-5 电调板安装
杯头内六角螺丝M2.5x6
矮身铝合金脚架
减震柱垫片 M3x10x2
4X
4X 半圆头内六角螺丝M3x6
4X M3垫片
2X 脚架安装座
8X
4X
电调安装板组
杯头内六角螺丝M3x8
铝合金垫片M3
4X
减震柱垫片M3x10x2
矮身铝合金脚架 1
半圆头内六角螺丝M3x6
M3垫片
7
杯头内六角螺丝M3x8
铝合金垫片M3
PA
Landing Skid Damper
Landing Skid Mount
Skid Damper Washer M3x10x2
M3 Washer
Low Profile aluminum Skid
Socket Screw M2.5x6
Socket Screw M3x8
Button Head Socket Screw M3x6
M3 Aluminum Washer
Do not use too much threadlocker for Landing Skid damper screw.
The ESC mounting plate has
two optional front and rear
mounting positions, and the
height can be adjusted.
No.
Landing Skid Damper
Landing Skid Mount
Skid Damper Washer M3x10x2
Low Profile aluminum Skid
Socket Screw M2.5x6
Button Head Socket Screw M3x6
M3 Washer
M3 Aluminum Washer
Socket Screw M3x8

-13-
No.
1
2
3
4
Qty
Parts Description 零件名称
2-6 前设备安装架组装 Electronic Device Mount Plate Assembly
前设备安装架
杯头内六角螺丝M3x8
1
4
4
Step 2-6 前设备安装架组装 / Electronic Device Mount Plate Assembly
前设备安装板并不是必需品，可根据情况选择是否安装。
4
铝合金垫片M3
M3自锁螺母
M3自锁螺母
4X
铝合金垫片M3
杯头内六角螺丝M3x8
前设备安装架
4X
4X
M3 Aluminum Washer
Nylon Nut M3
Socket Screw M3x8
Receiver Mount Plate
The front device mounting plate does not need be installed, you can choose whether to install it according to your needs.
Receiver Mount Plate
Socket Screw M3x8
Nylon Nut M3
M3 Aluminum Washer

-14-
No.
1
2
3
4
5
QtyParts Description 零件名称
3-1 主齿轮组装 Main Gear Set assembly
Tail Drive Gear assembly
主齿轮115T
主齿轮固定环
杯头内六角螺丝M2.5x6
1
1
1
10
1
1
No.
1
2
3
QtyParts Description 零件名称
Step 3-1 主齿轮组装 / Main Gear Set assembly
请按照交叉固定的方式，分多次均匀拧紧主
齿轮固定螺丝！
齿轮固定螺丝请按照交叉固定的方式，分多
次均匀拧紧尾传动大齿固定螺丝！
尾传动大齿组装 / Tail Drive Gear
3-2 尾传动大齿组装
单向轴承座
单向轴承内套 1
尾传动主齿中心座
67T尾传动主齿轮
5X 沉头十字螺丝M3x6
67T尾传动主齿轮
尾传动主齿中心座
沉头十字螺丝M3x6 5
为了保证主齿轮同心度，单向轴承座和主齿
轮之间是过盈配合。如配合较紧时，可以用
热风枪加热主齿轮到50℃左右即可轻松装入！
杯头内六角螺丝M2.5x6
10X
主齿轮固定环
主齿轮
单向轴承座
单向轴承内套
Main Gear 115T Tail Drive Gear 67T
Tail Drive Gear Housing
Main Gear Core
One Way Clutch Housing
One Way Bearing Shaft
Socket Screw M2.5x6
Flat Head Phillips Screw M3x6
The hole of the main gear must be aligned
with the screw hole of the one-way bearing
housing. As shown in the figure tighten the
screws in order diagonally, and do not over
tighten the screws.
In order to ensure the concentricity of the
main gear, there is an interference fit
between the one-way bearing housing and
the main gear. If the assembly is tight, you
can use a hair dryer to heat the main gear
to about 50°C. Easy to load!
The hole of the second gear must be
aligned with the screw hole of the one-way
bearing housing. As shown in the figure
tighten the screws in order diagonally, and
do not over tighten the screws.
Step 3-2
Socket Screw M2.5x6
Main Gear Core
Main Gear 115T
One Way Clutch Housing
One Way Bearing Shaft
Flat Head Phillips Screw M3x6
Tail Drive Gear 67T
Tail Drive Gear Housing

-15-
No.
1
2
3
4
5
6
Qty
Parts Description 零件名称
25mm尾管 L890
E750尾传动皮带
1
1
2
2
10
4
No.
9
10
11
QtyParts Description 零件名称
Step 3-3 尾前传动同步带轮组总装 / Counter Gear Assembly
Counter Gear Assembly
/ Motor Mount Assembly
Motor Mount Assembly
电机安装组和尾同步带轮安装组的固定螺丝先不要拧紧，安装好主齿轮组以后我们需要先调整齿轮配合间隙然后才能拧紧。
电机固定座总装
3-4
25MM尾管管夹
7
杯头内六角螺丝M3x10
杯头内六角螺丝M3x8
杯头内六角螺丝M3x40 4
将尾前传动同步带轮组安装到侧板之前请先把尾传动皮带装入！
杯头内六角螺丝M3x10
4X
电机固定加长片(短)
2X
M3铝合金垫片
4X
M3自锁螺丝帽
4X
25MM尾管管夹
2X
尾管L890 杯头内六角螺丝M3x40
4X
尾传动皮带
尾传动同步带轮组件
电机座安装组
杯头内六角螺丝M3x8
8X
电机固定加强片(长)
2X
半圆头内六角螺丝M4x10
4X
尾管装入后请先不要拧紧尾管管夹螺丝，待尾波箱安装好以后需要调整皮带松紧。
电机固定加强片(短)
电机固定加强片(长) 2
M3铝合金垫片 4
8半圆头内六角螺丝M4x10 4
M3自锁螺丝帽 4
3-3 尾前传动同步带轮组总装
PA
PA
Do not tighten the screws of the motor mount and the counter gear mount set. After the main gearset is installed,
the gear matching clearance needs to be adjusted.
Please install the tail drive belt before installing the counter gear mount set to the main frame!
After the tail boom is installed, please do not tighten the tail boom clamp screws. You need to adjust the belt tightness
after the tail gear box is installed.
3-4 电机固定座总装
Button Head Socket Screw M4x10
Tail Boom L890
Tail Drive Belt
Tail Boom Clip Mount （25mm）
Metal motor mounting plate（B）
Metal motor mounting plate（A）
Socket Screw M3x8
Socket Screw M3x10
Socket Screw M3x40
Tail Boom
Tail Drive Belt
Tail Boom Clip Mount
Metal motor mounting plate（B）
Metal motor mounting plate（A）
M3 Aluminum Washer
Nylon Nut M3
M3 Aluminum Washer
Nylon Nut M3
Button Head Socket Screw M4x10
Socket Screw M3x8
Socket Screw M3x10
Socket Screw M3x40

-16-
No.
1
2
3
4
5
6
QtyParts Description 零件名称
主轴
主轴定位环
杯头内六角螺丝M4x25
1
1
1
1
1
Step 3-5 主轴和主齿轮组装
主轴螺丝垫片
主轴固定螺丝M8x10 1
7
自锁螺母M4
内六角顶丝M3x3 2
Step 3-6
3-5 3-6 主轴和主齿轮组装
主轴定位环
自锁螺母M4
主轴螺丝垫片
主轴固定螺丝M8x10
杯头内六角螺丝M4x25
主轴
内六角顶丝M3x3
此处需要先把主齿轮和主轴用M4x25螺丝固定好，把M8x10
主轴固定螺丝也拧紧。在向上提拉主轴的同时下压主轴定
位环，最后在锁紧M3x3顶丝。上下提拉主轴无间隙即为安
装正确。
主齿轮安装好以后，需要调整尾传动大齿与小齿
的间隙；还需要调整主齿轮与电机齿的间隙。间
隙过小会带来较大的噪音和震动，还会加速齿轮
的磨损。间隙过大比较容易出现扫齿现象。建议
齿轮间隙为0.1-0.2MM之间。
2X
After the main gear is installed, it is necessary
to adjust the main gear and the tail drive gear
for clearance. The gap between the main gear
and the motor pinion gear also needs to be
adjusted. The gap too small will bring greater
noise and vibration, and will accelerate the
wear of gears. If the gap is too large, the
phenomenon of tooth sweeping is more likely
to occur. The recommended gear clearance is
between 0.1-0.2MM.
Here you need to use M4x25 screws for the main gear
and the main shaft After fixing it, tighten the M8x10
screw.Then pull up the main shaft while the main shaft
stopper moves downwards press, and finally tighten the
M3x3 set screws. Check if there is axial play on the
mainshaft by moving up and down. If so remove play.
/ Main gear and main shaft Assembly
Main Gear and main shaft assembly
Main Shaft
Mast Stopper
Mast Washer
Mast Bolt M8x10
Nylon Nut M4
Set Screw M3x3
Socket Screw M4x25
Main Shaft
Mast Stopper
Mast Washer
Mast Bolt M8x10
Socket Screw M4x25
Nylon Nut M4
Set Screw M3x3

-17-
No.
1
2
3
4
5
6
QtyParts Description 零件名称
主旋翼夹
桨夹摇臂
相位臂
2
2
2
2
2
No. Qty
Parts Description 零件名称
Step 4-1 倾斜盘 ,相位臂 桨夹组装
桨夹垫片
桨夹推力轴承 2
7
牛角摇臂
相位臂轴销2x14MM 2
4-1 倾斜盘、相位臂、桨夹组装
3x3x5.5MM球头
7X
相位臂
2X
E型卡 M2
4X
倾斜盘
牛角摇臂
相位臂轴销2x14MM
2X
杯头内六角螺丝M3x12
2X
4X
3x3x7.5MM球头
2X
桨夹摇臂
2X
杯头内六角螺丝M3x8
2X
主旋翼夹
2X
轴承10x19x7
4X
桨夹轴承垫片
2X
注意！【内孔小】
注意！【内孔大】
主桨夹推力轴承
2X
桨夹推力轴承已经加润滑脂安装完毕，无须拆开重新组装。相位臂上的M3顶丝是选装件，新机没有磨损出虚位的情况下不需要安装。如果轴承安装时较松，请
在轴承外壁涂少许绿色轴承胶。请按照图示的内孔大小正确安装推力轴承。
E型卡 M2 4
1
4
7
2
2
8
9
10
11
12
13
14
倾斜盘
轴承 10x19x7
3x3x5.5MM球头
3x3x7.5MM球头
杯头内六角螺丝M3x8
杯头内六角螺丝M3x12 2
2X
The thrust bearing of the rotor grip has been greased and installed, so there is no need to disassemble and reassemble.The M3 set screw on the FBL
washout arm is an optional part, and it does not need to be installed if the new machine is not worn out.Apply a little green bearing glue to the outer wall of the
bearing. If the bearing is loose during installation.install the thrust bearing larger and smaller inner hloes properly like shown in the drawing!
Swashplate ,FBL Washout block and rotor grip Assembly
Swashplate, FBL washout block, rotor grip assembly
Main Blade Holder Assemely
Fbl Pitch Arm
Grip Spacer
Thrust Bearing
Fbl Washout Arm Assemb
Washout Link
Washout Link Pin Sets
M2 E-Clip
Swash Plate Assembly
Bearing Shield 10x19x7
Linkage Ball 3x3x5.5mm
Linkage Ball 3x3x7.5mm
Socket Screw M3x8
Socket Screw M3x12
Main Blade Holder Assemely
Fbl Pitch Arm
Grip Spacer
Thrust Bearing
Fbl Washout Arm Assemb
Washout Link
Washout Link Pin Sets
M2 E-Clip
Swash Plate Assembly
Bearing Shield 10x19x7
Linkage Ball 3x3x5.5mm
Linkage Ball 3x3x7.5mm
轴承10x19x7
Bearing Shield 10x19x7
Socket Screw M3x8
Socket Screw M3x12
Large inner hole
Small inner hole

No.
1
2
3
4
5
6
Qty
Parts Description 零件名称
旋翼头中联
横轴
刹车盘
1
1
1
2
No. QtyParts Description 零件名称
Step 4-2 旋翼头组装
7
旋翼头减震胶
旋翼头台阶垫片 2
旋翼头间隙调整垫片 2
4
2
2
2
1
8
10
11
12
13
14
15
加强型球头扣
钛合金旋翼头拉杆
横轴螺丝M6x10
横轴螺丝垫片M6
沉头内六角螺丝M3x8
杯头内六角螺丝M4x25 1
49mm
沉头内六角螺丝M3x8
半圆头内六角螺丝M3x22
2X
刹车盘
旋翼头减震胶
旋翼头间隙调整垫片
旋翼头台阶垫片
横轴螺丝M6x10
横轴螺丝垫片M6
相位摇臂组
旋翼头中联
横轴
2X
2X
2X
2X
4-2 旋翼头组装
如果旋翼头组安装完毕，桨夹左右有间隙，请选择加装合适厚度的间隙调整垫片。
钛合金旋翼头拉杆为正反丝拉杆，六角头有开槽的一端为反牙螺纹。
旋翼头减震胶安装时需要涂硅脂润滑油！
相位摇臂固定螺丝需要将旋翼头安装到主轴以后再锁紧。
2X
半圆头内六角螺丝M3x22
自锁螺母M4 1
2
PA
If the rotor head assembly is installed and there is a gap between the center hub and rotor grip, please choose to install the rotor grip
shim of appropriate thickness.
The FBL washout arm fixing screws need to be installed on the main shaft before tightening the rotor head.
It is necessary to apply silicone grease when installing the rotor head damper.
The titanium rotor head linkage rods hare left and right thread. and the slotted end of the hexagonal head is the left thread.
/ Main rotor head Assembly
Main rotor head assembly
Center Hu
Spindle Shaf
Head Butto
Damper Rubber 90°(Φ10)
Grip Spacer
Clearance Adjust Shim
Enhanced Universal Link
Fbl Threaded Rod L30
Socket Head Bolt M6x10
Flat Head Socket Screw M3x8
Socket Screw M4x25
Nylon Nut M4
Button Cap Bolt M3x22
Cap Bolt Holder M6
HG Main Blade Bolt Set M5 主旋翼螺丝 2
16
自锁螺帽M5
主旋翼螺丝
自锁螺母M5Nylon Nut M5
17 2
9Rotor Spacer T2 主旋翼垫片（2mm） 4
主旋翼垫片
自锁螺母M4
杯头内六角螺丝M4x25
加强型球头扣
钛合金旋翼头拉杆
4X
倾斜盘组
2X
PA
Center Hu
Spindle Shaf
Head Butto
Damper Rubber 90°(Φ10)
Grip Spacer
Clearance Adjust Shim
Enhanced Universal Link
Fbl Threaded Rod L30
4X
Socket Head Bolt M6x10
Cap Bolt Holder M6
Flat Head Socket Screw M3x8
Socket Screw M4x25
Button Cap Bolt M3x22
Nylon Nut M4
HG Main Blade Bolt Set M5
2X
Nylon Nut M5
-18-
Rotor Spacer T2

-19-
No.
1
2
3
4
5
6
Qty
Parts Description 零件名称
尾后皮带轮20T
尾轴
1
1
1
1
No. QtyParts Description 零件名称
Step 5-1 尾皮带轮/尾波箱组装
25MM碳纤尾管
25MM尾撑管夹 1
7
E750尾传皮带
尾波箱轴承座 L 1
尾波箱轴承座 R 1
1
1
2
1
8
9
10
11
12
13
尾波箱支撑柱
尾波箱安装座
内六角顶丝M4x4
内六角顶丝M3x3
内六角顶丝M4x4
2X
尾后皮带轮20T
尾轴
25mm碳纤尾管
25mm尾撑管夹
内六角顶丝 M3x3
尾波箱安装座管夹
4X
杯头内六角螺丝 M3x8
尾波箱安装座
尾波箱轴承座 R
尾波箱轴承座 L
尾波箱支撑柱
尾皮带轮组装件
半圆内六角螺丝 M3x6
E750尾传动皮带
尾波箱安装座管夹的M3x8螺丝，需要先调整主轴与尾轴夹角呈90°时再固定。M3X3内六角顶丝是直接压在碳纤维管上，请勿用力紧固。
组装好尾波箱后，如尾轴左右有间隙，可使用附带的垫片调整。
主旋翼顺时针运转时，从右侧观察尾轴旋转方向应该是逆时针。如旋转方向有误，请调整皮带扭曲方向。
半圆头内六角螺丝M3x6
杯头内六角螺丝M3x8 1
4
5-1 尾皮带轮组装 尾波箱组装
PA
After checked the angle between the main shaft and the tail shaft is adjusted to 90 °. Then tighten the M3x8 screw of the
vertical fin bracket. The M3 set screw is directly pressed on the tail pipe,please do not tighten it firmly.
After assembling the tail gear box, if there is a gap between the left and right tail shaft, you can use the attached shim to adjust.
When the main rotor rotates clockwise, the direction of the tail shaft should be rotates counterclockwise when viewed
from the right side. If the direction is wrong, please adjust the direction of the belt direction.
/ Tail Gear Box assembly
Tail gear box assembly
Tail Drive Pulley
Tail Drive Shaft
Tail Boom （25mm）
Tail Boom Support Bracket（25mm）
Tail Drive Belt
Tail Gear Bearing Case L
Tail Gear Bearing Case R
Tail Housing Spacer
Tail Unit Housing
Set Screw M4x4
Set Screw M3x3
Button Head Socket Screw M3x6
Socket Screw M3x8
Tail Drive Pulley
Tail Drive Shaft
Set Screw M4x4
Set Screw M3x3 Tail Boom Support Bracket Tail Boom
Tail Unit Housing
Tail Housing Spacer
Tail Drive Belt
Tail Gear Bearing Case L
Tail Gear Bearing Case R
Button Head Socket Screw M3x6
Socket Screw M3x8
14
尾波箱安装座管夹Tail Gear Holder (25mm) 1
Tail Gear Holder (25mm)
