Ryobi P785 User manual

OPERATOR’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL OPERADOR
18 VOLT HYBRID LED
CABLE LIGHT
LUMIÈRES SUR CORDON À
DEL HYBRIDE DE 18 V
LUZ LED CON CABLE HÍBRIDA
DE 18 V
P785
WARNING: To reduce the
risk of injury, the user must read and
understand the operator’s manual
before using this product.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
ADVERTENCIA: Para
reducir el riesgo de lesiones, el usuario
debe leer y comprender el manual del
operador antes de usar este producto.
AVERTISSEMENT : Pour
réduire les risques de blessures,
l’utilisateur doit lire et veiller à bien
comprendrelemanueld’utilisationavant
d’employer ce produit.
GUARDE ESTE MANUAL
PARA FUTURAS CONSULTAS
TABLE OF CONTENTS
****************
Important Safety Instructions.............2
Cable light safety warnings .............3-4
Electrical.............................................4
Symbols..............................................5
Features..............................................6
Assembly............................................6
Operation.........................................6-7
Maintenance.......................................8
Illustrations ....................................9-10
Parts Ordering / Service..... Back Page
TABLE DES MATIÈRES
****************
Instructions importantes
concernant la sécurité .......................2
Avertissements de sécurité
relatifs lumières sur cordon.............3-4
Caractéristiques électriques...............4
Symboles............................................5
Caractéristiques .................................6
Assemblage........................................6
Utilisation.........................................6-7
Entretien .............................................8
Illustrations ....................................9-10
Commande de pièces /
réparation..........................Page arrière
ÍNDICE DE CONTENIDO
****************
Instrucciones de seguridad
importantes........................................2
Advertencias de seguridad para
luz con cable...................................3-4
Aspectos eléctricos............................4
Símbolos ............................................5
Características ...................................6
Armado...............................................6
Funcionamiento...............................6-7
Mantenimiento....................................8
Ilustraciones ..................................9-10
Pedidos de piezas /
servicio.......................... Pág. posterior
CONSERVER CE MANUEL
POUR FUTURE RÉFÉRENCE

2 – English
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
READ AND SAVE THESE INSTRUCTIONS. Failure to
follow all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
Save all warnings and instructions for future reference. The
term“product”in thewarningsrefersto yourmains-operated
(corded) product or battery-operated (cordless) product.
WORK AREA SAFETY
For light duty in normally dry locations.
Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
Do not operate products in explosive atmospheres,
such as in the presence of flammable liquids, gases,
or dust. products create sparks which may ignite the
dust or fumes.
Keep children and bystanders away while operating
a product. Distractions can cause you to lose control.
ELECTRICAL SAFETY
A battery operated product with integral batteries or
a separate battery pack must be recharged only with
the specified charger for the battery. A charger that
may be suitable for one type of battery may create a risk
of fire when used with another battery.
Use battery only with charger listed. For use with 18V
lithium-ion battery packs, see tool/appliance/battery
pack/charger correlation supplement 987000-432.
When using a power cord, protect the power cord
from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit
from the product.
Do not expose products to rain or wet conditions.
Water entering a product will increase the risk of electric
shock.
Only hang or mount cable light in an area where no
electrical wires, utility cables, pipes, or other obstruc-
tions are located to avoid risk of electrocution or
electric shock.
Unplug this product during lightning storms or when
not in use.
PERSONAL SAFETY
Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enable better
control of the product in unexpected situations.
Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of the
product in unexpected situations.
CABLE LIGHT USE AND CARE
Do not use product if switch does not turn it on or
off. A product that cannot be controlled with the switch
is dangerous and must be repaired.
Disconnect battery pack or extension cord from
product before making any adjustments, changing
accessories, or storing the product. Such preventive
safety measures reduce the risk of starting the product
accidentally.
Keep the product and its handle dry, clean and free
from oil and grease. Always use a clean cloth when
cleaning. Never use brake fluids, gasoline, petroleum-
based products, or any strong solvents to clean your
product. Following this rule will reduce the risk of loss of
control and deterioration of the enclosure plastic.
To reduce the risk of electric shock, do not use this
light near water, especially when it is powered by the
power cord.
Clean only with dry cloth.
Do not operate near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
BATTERY TOOL USE AND CARE
Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
Use products only with specifically designated battery
packs. Use of any other battery packs may create a risk
of injury and fire.
When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes, ad-
ditionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.

3 – English
IMPORTANT SAFETY INSTRUCTIONS
CABLE LIGHT SAFETY WARNINGS
Know your product. Read operator’s manual carefully.
Learn its applications and limitations, as well as the
specific potential hazards related to this product.
Following this rule will reduce the risk of electric shock,
fire, or serious injury.
Do not permit children to use cable light. It is not a toy.
Carefully position the power cord during use. A power
cord in your walking path can be a tripping hazard.
Do not place hands or fingers between adjustable
head and wire bail when positioning cable light to
avoid possible pinching.
Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards when
not using your battery tool or when changing accessories.
Following this rule will reduce the risk of electric shock,
fire, or serious personal injury.
Do not place the product or their batteries near fire or
heat. This will reduce the risk of explosion and possibly
injury.
Do not crush, drop or damage battery pack. Do not
use a battery pack or charger that has been dropped
or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged
battery immediately.
Batteries can explode in the presence of a source
of ignition, such as a pilot light. To reduce the risk of
serious personal injury, never use any cordless product
in the presence of open flame. An exploded battery can
propel debris and chemicals. If exposed, flush with water
immediately.
Do not charge product battery in a damp or wet
location. Following this rule will reduce the risk of electric
shock.
For best results, your battery should be charged in a
location where the temperature is more than 50°F but
less than 100°F. Do not store outside or in vehicles.
Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with your skin, wash immediately with soap and water.
If liquid gets into your eyes, flush them with clean
water for at least 10 minutes, then seek immediate
medical attention. Following this rule will reduce the risk
of serious personal injury.
Do not incinerate the battery even if it is severely
damaged. The batteries can explode in a fire.
To reduce the risk of fire or electric shock, do not use
this product with any solid-state speed control device.
To reduce the risk of personal injury and electric
shock, the product should not be played with or
placed where small children can reach it.
To reduce the risk of electric shock, do not expose to
water or rain.
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also
to prevent misuse of the product and possible injury.
SERVICE
Product service must be performed only by qualified
repair personnel. Service or maintenance performed by
unqualified personnel may result in a risk of injury.
When servicing the product, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of unauthorized
parts or failure to follow Maintenance Instructions may
create a risk of shock or injury.

4 – English
ELECTRICAL
EXTENSION CORDS
When using a product at a considerable distance from a
power source, be sure to use an extension cord that has
the capacity to handle the current the product will draw. An
undersized cord will cause a drop in line voltage, resulting in
overheating and loss of power. Use the chart to determine
the minimum wire size required in an extension cord. Only
round jacketed cords listed by Underwriter’s Laboratories
(UL) should be used.
Whenusing thisproductoutdoors,use anextension cordthat
is designed for outside use. This type of cord is designated
with “WA” or “W” on the cord’s jacket.
Before using any extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
**Ampere rating (on product data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0
Cord Length Wire Size (A.W.G.)
25´ 16 16 16 16 14 14
50´ 16 16 16 14 14 12
100´ 16 16 14 12 10 —
**Used on 12 gauge - 20 amp circuit
NOTE: AWG = American Wire Gauge
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on lumber,
tools, or other obstructions while you are working with
this product. Failure to do so can result in serious
personal injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use a product with a damaged
cord since touching the damaged area could cause
electrical shock resulting in serious injury.
DOUBLE INSULATION
Double insulation is a concept in safety in electric products,
which eliminates the need for the usual three-wire grounded
power cord. All exposed metal parts are isolated from the
internal metalcomponents with protectinginsulation.Double
insulated products do not need to be grounded.
WARNING:
The double insulated system is intended to protect the
user from shock resulting from a break in the product’s
internal wiring. Observe all normal safety precautions to
avoid electrical shock.
NOTE: Servicing of a product with double insulation requires
extreme care and knowledge of the system and should
be performed only by a qualified service technician. For
service, we suggest you return the product to your nearest
authorized service center for repair. Always use original
factory replacement parts when servicing.
ELECTRICAL CONNECTION
This is a hybrid product capable of operating on alternating
current (AC) through an extension cord or direct current (DC)
through a battery pack. If the product does not operate when
an extension cord or battery pack is installed, double-check
the power supply.
To use alternating current, connect the product to a power
supply that is 120 volts, AC only (normal household
current), 60 Hz.
To use direct current, install a manufacturer-
recommended 18 volt battery pack only.
NOTE: Do not operate this product on direct current
through an extension cord. Doing so would cause a
substantial voltage drop, which will cause a loss of power
and could cause the product to overheat.

5 – English

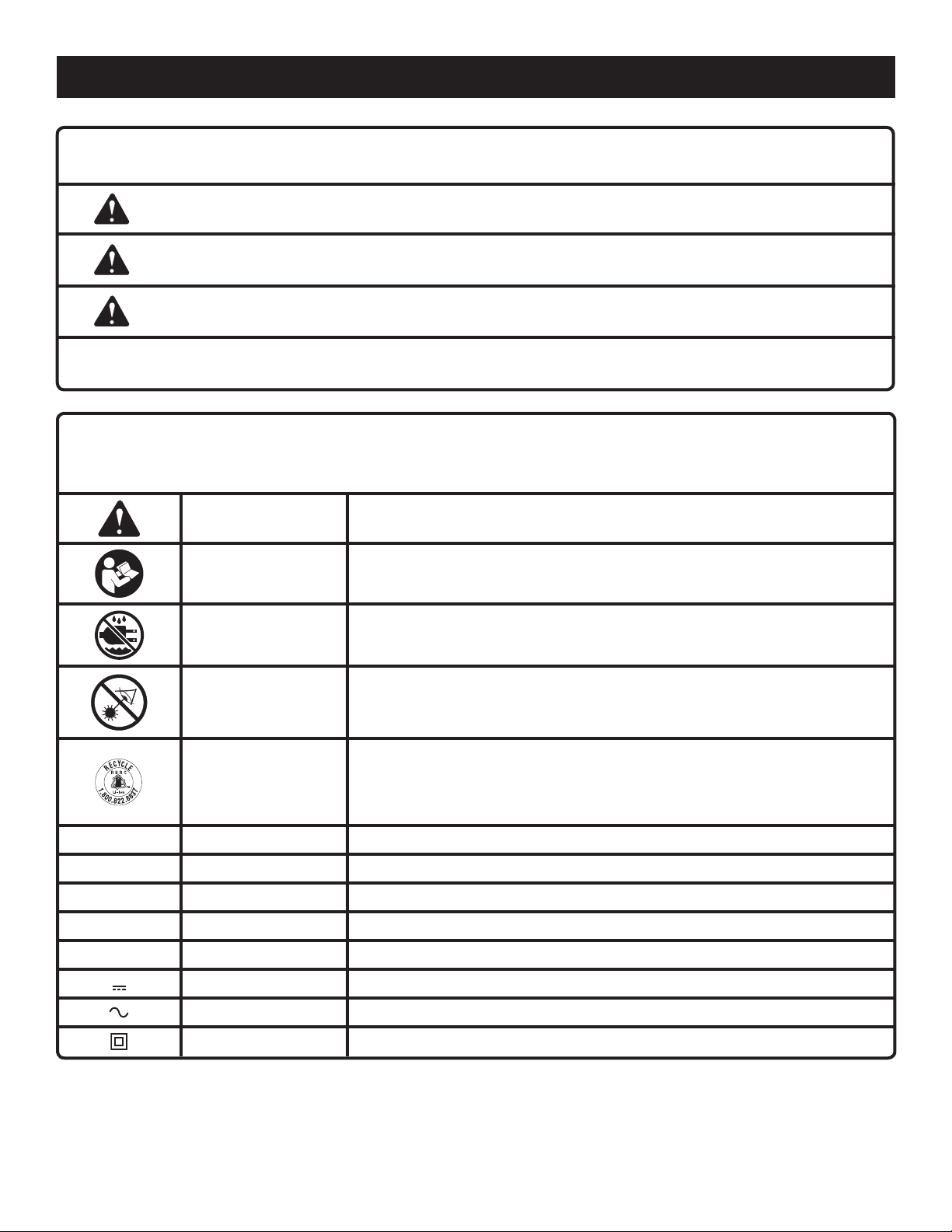

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Read Operator’s
Manual
To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Wet Conditions
Alert Do not expose to rain or use in damp locations.
Extremely Bright
Light
This product uses extremely bright LEDs. To avoid serious eye injury, do not
shine into eyes or face.
Recycle Symbol
This product uses lithium-ion (Li-ion) batteries. Local, state or federal laws
may prohibit disposal of batteries in ordinary trash. Consult your local waste
authorityfor informationregarding available recyclingand/ordisposal options.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Direct Current Type or a characteristic of current
Alternating Current Type of current
Class II Tool Double-insulated construction
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates a hazardous situation, which, if not avoided, will result in death or serious
injury.
WARNING: Indicates a hazardous situation, which, if not avoided, could result in death or seri-
ous injury.
CAUTION: Indicates a hazardous situation, that, if not avoided, may result in minor or moder-
ate injury.
NOTICE:(Without Safety Alert Symbol) Indicates information considered important, but not
related to a potential injury (e.g. messages relating to property damage).
