Ryobi XWL-1800 Operation manual

XWL-1800
09-16

1
* Battery pack (5) not included
5
7
3
44
6
1
2
21

2
3 4
1 2
Spring washer
Flat washer
4
1
4
3
6
7
5

THANK YOU FOR BUYING A RYOBI PRODUCT.
To ensure your safety and satisfaction, carefully read
through this OWNER’S MANUAL before using the
product.
3
General Safety Rules
SAVE THESE INSTRUCTIONS
WARNING! Read all instructions Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury.
The term “power tool” in all of the warnings listed below refers
to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area
a) Keep work area clean and well lit. Cluttered and dark
areas invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock
b) Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye rotection.
Safety equipment such as dust mask, non-skid safety
shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch is in the
off-position before plugging in.Carrying power tools
with your finger on the switch or plugging in power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f ) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair, clothing and gloves away from moving
parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of these devices can
reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tools
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f ) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
g) Use the power tool, accessories and tool bits etc., in
accordance with these instructions and in the manner
intended for the particular type of power tool, taking
into account the working conditions and the work to be
performed. Use of the power tool for operations different
from intended could result in a hazardous situation.
5) Battery tool use and care
a) Ensure the switch is in the off position before inserting
battery pack. Inserting the battery pack into power tools
that have the switch on invites accidents.
b) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
c) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
d) When battery pack is not in use, keep it away from
other metal objects like paper clips, keys, nails, screws,
or other metal objects that can make a connection from
one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
e) Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
5) Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
(PJ27)

4
To install battery pack (5), set the On/Off switch (6) in “O”
position. Align the body with the groove in the battery pack
and push in the direction of the arrow until the battery pack is
secured on the tool.
To remove the battery pack from the tool, push the battery clip
(7) on and remove the battery pack in the direction of the
arrow.
Always remove battery pack from your tool when you are
assembling parts, making adjustments, cleaning, or when not
in use. Removing battery pack will prevent accidental starting
that could cause serious personal injury.
This tool is equipped with an On/Off switch (6) with 3 positions
( I, II & O) located on the back side of the tool. The work light
provides two levels of brightness. When the On/Off switch is
set in position “I” the work light provides 900lm(Lumen), when
set in position “II” it provides 1800lm(Lumen).
In position “O”, it’s switched off.
・Do not stare directly at the light beam.
・Never aim the beam at any person or an object other than
the work piece.
・Do not deliberately aim the beam at personnel and ensure
that it is not directed towards the eye of a person for longer
than 0.25s.

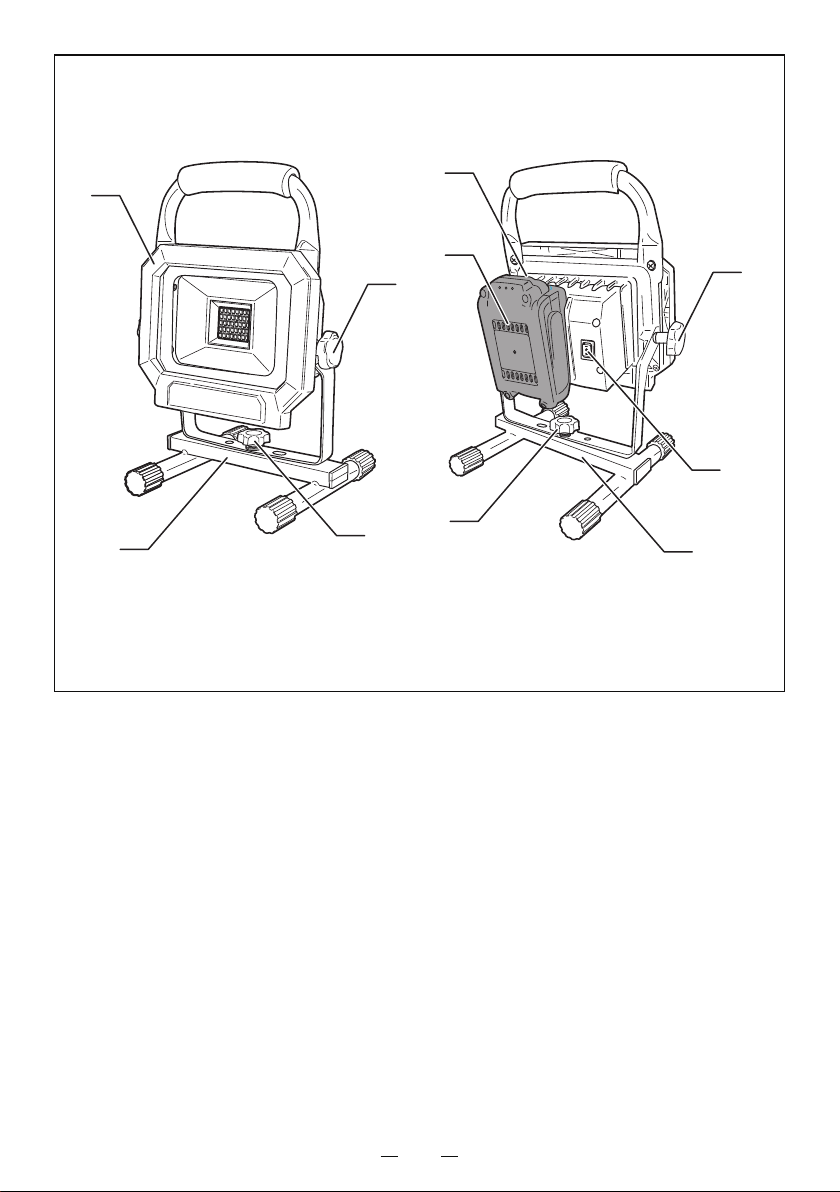

1. Stand
2. Locking knob for stand
3. Work light head
4. Side locking knob
5. Battery pack (Not included)
6. On/Off switch
7. Battery clip
1. Make sure that the tool is only connected to the voltage
marked on the name plate.
2. Never use the tool if its cover or any bolts are missing. If
the cover or bolts have been removed, replace them
prior to use.
Maintain all parts in good working order.
3. Always secure the tool when working in elevated
positions.
4. ACCESSORIES: The use of accessories or attachments
other than those recommended in this manual might
present a hazard.
5. REPLACEMENT PARTS: When servicing use only
identical replacement parts.
1. Be aware that since this tool does not have to be plugged
into an electrical outlet, it is always in operating condition.
2. First, charge the battery.
3. Be sure the battery holder is securely snapped in place.
4. This is not a toy; children should not be permitted to use
it.
5. When operating at high places, be aware of things below
you.
6. This is a DIY product, all electronic parts are already
preassembled. Any intention to open or change the work
light design is prohibited unless performed by a
professional electrician.
7. Do not attempt to replace or change the diode lights.
8. In the unlikely event the protective glass is cracked or
broken, it must immediately be replaced before the work
light may be used again. Only replace the protective
glass with an original one by authorized service center.
INSTRUCTIONS FOR SAFE HANDLING
CORDLESS WORK LIGHT SAFETY
PRECAUTIONS
Li-ion batteries must be recycled.
Take the battery to the shop from which it was purchased as
soon as the post-charging battery life becomes too short for
practical use.
Do not discard the exhausted battery.
DISPOSAL OF THE EXHAUSTED BATTERY
DESCRIPTION
Voltage .........................................................................18V
Output power .............................................................. 20W
Brightness ........................................................900/1800lm
Color temperature……………………………………..6,500K
LED type………………………………………………..…SMD
Net weight (not incl. battery pack) ....……..….........…1.5kg
SPECIFICATIONS
COMPATIBLE BATTERY PACK AND CHARGER

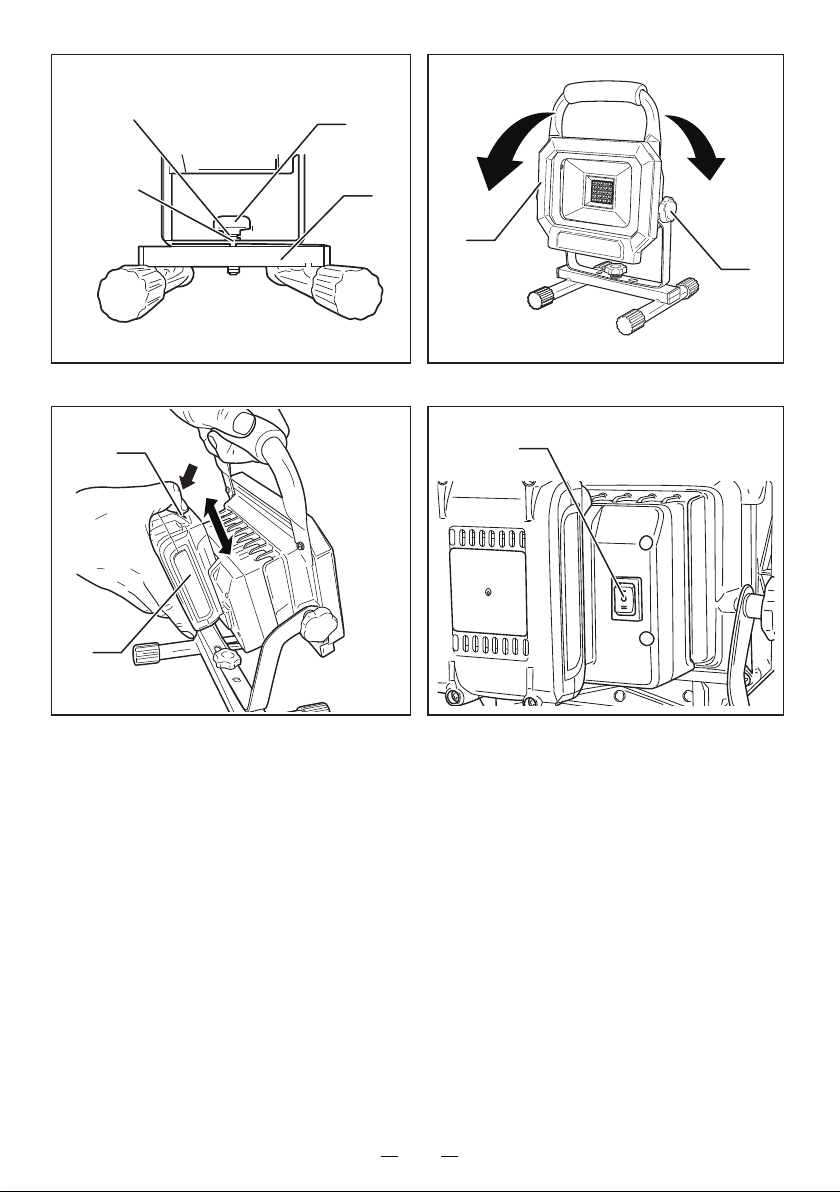

ATTACHING THE WORK LIGHT TO THE STAND
(Fig. 1)
ADJUSTING THE WORK LIGHT DIRECTION
(Fig. 2)
INSTALLING AND REMOVING BATTERY PACK
(Fig. 3)
SWITCH (Fig. 4)
WARNING!
1. Place the stand (1) on a flat surface.
2. Use the locking knob for stand (2), flat washer and spring
washer to secure the bracket on the bottom of the stand.
3. Turn the bracket to a suitable direction and tighten the
locking knob for stand firmly.
The work light head can be tilted vertically up to 30° down
or 90° up.
To adjust the direction of the light beam, loosen the side
locking knobs (4) on either side of the work light. Adjust the
work light head (3) to the desired position, and retighten both
knobs.
BATTERY PACK (not included) ...... XB-1500, XB-3000
CHARGER (not included) ............... XPP-2700

5
MAINTENANCE
To ensure safety and reliability, all repairs should be
performed by an AUTHORIZED SERVICE CENTER or
other QUALIFIED SERVICE ORGANIZATION.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING!
After use, check the tool to make sure that it is in top
condition. It is recommended that you take this tool to a
RYOBI Authorized Service Center for a thorough cleaning
and lubrication at least once a year.
DO NOT MAKE ANY ADJUSTMENTS WHILE THE
MOTOR IS IN MOTION.
ALWAYS DISCONNECT THE POWER CORD FROM THE
RECEPTACLE BEFORE CHANGING REMOVABLE OR
EXPENDABLE PARTS (BLADE, BIT, SANDING PAPER
ETC.), LUBRICATING OR WORKING ON THE UNIT.

6
NOTE

RYOBI POWER EQUIPMENT
WARRANTY
Subject to the warranty conditions below, this
RYOBI tool (hereinafter called “the Product”),
is warranted by Ryobi (herein called “the
Company”) to be free from defects in material
or workmanship for a period of 24 months
from the date of original purchase covering
both parts and labour. Under the terms of
this warranty, the repair or replacement of
any part shall be the opinion of the Company
or its authorised agent. Should service
become necessary during the warranty
period, the owner should contact the
authorised Ryobi retailer from whom the
product was purchased, or the nearest
Company branch office. In order to obtain
warranty service, the owner must include the
Sales Docket and Warranty Certificate to
confirm date of purchase. This Product is
sold by the dealer or agent as principal and
the dealer has no authority from the Company
to give any additional warranty or guarantee
on the Company’s behalf except as herein
contained or herein referred to.
Warranty Conditions
This warranty only applies provided that the
Product has been used in accordance with
the manufacturer's recommendations under
normal use and reasonable care (in the
opinion of the Company) and such warranty
does not cover consumable components,
damage, malfunction or failure resulting from
misuse, neglect, abuse, or used for a purpose
for which it was not designed, or is not suited
and no repairs, alterations or modifications
have been attempted by other than an
Authorised Service Agent. This guarantee
will not apply if the tool is damaged by
accident or if repairs arise from normal wear
and tear.
Accessories such as bits,blades, sanding
discs, cutting lines, etc., are excluded from
this guarantee. Normal consumable parts,
such as carbon brushes, bearings, chucks,
cord assembly’s, spark plugs, recoil pulleys
and bump head assembly’s are specifically
excluded from this guarantee.
The Company accepts no additional liability
pursuant to this warranty for the costs of
traveling or transportation of the Product or
parts to and from the sevice dealer or agent
-which costs are not included in the warranty.
Nothing herein shall have the effect of
excluding, restricting or modifying any
conditions, warranty, right or liability imposed,
to the extent only that such exclusion,
restriction or modification would render any
term herein void.
THIS WARRANTY FORM
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES.
For your record and to assist in establishing date of purchase (necessary for in-warranty service), please
keep your purchase docket and this form, completed with the following particulars.
PURCHASED FROM:.........................................................................................................
ADDRESS OF DEALER:....................................................................................................
DATE:......................... MODEL NO................................ SERIAL NO.................................
Present this form with your Purchase Docket when Warranty Service is required.
STEVENS & CO (Pty) Ltd
604, 16th Street, Randjespark
Midrand, South Africa
Tel: [phone]
Fax: [phone]
email: [email protected]
P O Box 4059
HALFWAY HOUSE
1685, South Africa
