Ryobi ELS-52 User manual

1500W ELECTRIC LOG SPLITTER
OPERATOR’S MANUAL (Original Instructions)
ELS52
WARNING:
It is essential that you read the instructions in this manual before operating
this machine.

14

5
GENERAL SAFETY RULES
tools should be disconnected from power source.
n AVOID ACCIDENTAL STARTING. Be sure switch is off
when plugging in any tool.
n USE RECOMMENDED ACCESSORIES. Consult the
operator’s manual for recommended accessories. The
use of improper accessories may result in injury.
n NEVER STAND ON TOOL. Serious injury could occur if
the tool is tipped.
n CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of
parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged must
be properly repaired or replaced by an authorised service
centre to avoid risk of personal injury.
n NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
THE POWER OFF. Don't leave tool until it comes to a
complete stop.
n PROTECT YOUR LUNGS. Wear a face or dust mask if
the cutting operation is dusty.
n PROTECT YOUR HEARING. Wear hearing protection
during extended periods of operation.
n DO NOT ABUSE CORD. Never carry tool by the cord
or pull on the cord to disconnect from receptacle. Keep
cord from heat, oil, and sharp edges.
n USE OUTDOOR EXTENSION CORDS. When tool
is used outdoors, use only extension cords with
approved ground connection that are intended for use
outdoors and so marked.
n NEVER USE IN AN EXPLOSIVE ATMOSPHERE.
Normal sparking of the motor could ignite fumes.
n INSPECT TOOL CORDS PERIODICALLY. If damaged,
have repaired by a qualied service technician at
an authorised service facility. Repair or replace a damaged
or worn cord immediately. Stay constantly aware of cord
location.
n INSPECT EXTENSION CORDS PERIODICALLY and
replace if damaged.
n KEEP TOOL DRY, CLEAN, AND FREE FROM OIL AND
GREASE. Always use a clean cloth when cleaning. Never
use brake uids, gasoline, petroleum-based products, or
any solvents to clean tool.
n STAY ALERT AND EXERCISE CONTROL. Watch what
you are doing and use common sense. Do not operate
tool when you are tired. Do not rush.
n DO NOT USE TOOL IF SWITCH DOES NOT TURN IT
ON AND OFF. Have defective switches replaced by an
authorised service centre.
n DO NOT OPERATE A TOOL WHILE UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
n ALWAYS carry the tool only by the carrying handle.
n USE ONLY RECOMMENDED ACCESSORIES listed in
this manual or addendums. Use of accessories that are not
listed may cause the risk of personal injury. Instructions for
safe use of accessories are included with the accessory.
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below, may result in electric shock,
re and/or serious personal injury.
READ ALL INSTRUCTIONS
n KNOW YOUR POWER TOOL. Read the operator’s
manual carefully. Learn the applications and limitations as
well as the specic potential hazards related to this tool.
n GUARD AGAINST ELECTRICAL SHOCK BY
PREVENTING BODY CONTACT WITH GROUNDED
SURFACES. For example: pipes, radiators, ranges,
refrigerator enclosures.
n KEEP GUARDS IN PLACE and in good working order.
n REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it on.
n KEEP WORK AREA CLEAN. Cluttered areas and benches
invite accidents. DO NOT leave tools or pieces of wood
on the tool while it is in operation.
n DO NOT USE IN DANGEROUS ENVIRONMENTS. Do
not use power tools in damp or wet locations or expose
to rain. Keep the work area well lit.
n KEEP CHILDREN AND BYSTANDERS AWAY. All
bystanders should wear safety glasses and be kept a safe
distance from work area. Do not let bystanders contact
tool or extension cord while the unit is in operation.
n Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
n DON’T FORCE THE TOOL. It will do the job better and
safer at the rate for which it was designed.
n USE THE RIGHT TOOL. Do not force the tool or
attachment to do a job for which it was not designed.
n USE THE PROPER EXTENSION CORD. Make sure
your extension cord is in good condition. Use only a
cord heavy enough to carry the current your product
will draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
n DRESS PROPERLY. Do not wear loose clothing,
neckties, or jewelry that can get caught and draw
you into moving parts. Rubber gloves and nonskid
footwear are recommended when working outdoors.
Also wear protective hair covering to contain long hair.
n ALWAYS WEAR SAFETY GLASSES WITH SIDE
SHIELDS THAT COMPLY WITH STANDARDS.
Everyday eyeglasses have only impact-resistant lenses,
they are NOT safety glasses.
n DO NOT OVERREACH. Keep proper footing and balance
at all times.
n MAINTAIN TOOLS WITH CARE. Keep tools sharp and
clean for better and safer performance. Follow instructions
for lubricating and changing accessories.
n DISCONNECT TOOLS. When not in use, before
servicing, or when changing attachments etc., all
ENGLISH (Original Instructions)

6
n TOOL SERVICE MUST BE PERFORMED ONLY
BY QUALIFIED REPAIR PERSONNEL. Service or
maintenance performed by unqualied personal could
result in a risk of injury.
n WHEN SERVICING use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
n ALWAYS STAY ALERT! Do not allow familiarity (gained
from frequent use of your tool) to cause a careless
mistake. ALWAYS REMEMBER that a careless fraction
of a second is sufcient to inict severe injury.
n MAKE SURE THE WORK AREA HAS AMPLE LIGHTING
to see the work and that no obstructions will interfere with
safe operation BEFORE performing any work using your
tool.
n ALWAYS TURN OFF THE TOOL before disconnecting it
to avoid accidental starting when reconnecting to power
supply. NEVER leave the tool unattended while connected
to a power source.
n DO NOT OPERATE IN POOR LIGHTING. Use the unit
only in daylight or good articial light.
n KEEP ALL BYSTANDERS especially children and pets,
at least 3m from the operating area.
n PULL THE PLUG OUT IMMEDIATELY if the mains or
extension lead is damaged or severed.
nDO NOT ALLOW anyone to operate the log splitter who
has not read the operator’s manual or has not been
instructed on the safe use of the splitter.
nNEVER ALLOW CHILDREN OR UNTRAINED ADULTS
TO OPERATE THIS MACHINE.
nIF SOMEONE is helping load logs to be split, DO NOT
start the machine until that person is clear of the area.
nNEVER ALLOW ANYONE TO RIDE ON THE
MACHINE
.
nNEVER TRANSPORT ANYTHING OR ANYONE ON THE
LOG SPLITTER.
nHIGH FLUID PRESSURES ARE DEVELOPED IN
HYDRAULIC LOG SPLITTERS. Pressurized hydraulic
uid escaping through a pin hole opening can puncture
skin and cause severe blood poisoning. Heed the
following instructions at all times:
a) Do not operate the machine with frayed, kinked,
cracked, or damaged hoses, ttings, or tubing.
b) Stop the engine and relieve hydraulic system pressure
before changing or adjusting ttings, hoses, tubing,
or other system components.
c) Do not adjust the pressure settings of the pump or value.
d) Never use your hand. Leaks can be located by
passing cardboard or wood over the suspected area.
Look for discoloration. If injured by escaping uid,
see a doctor at once. Serious infection or reaction can
develop if proper medical treatment is not adminis-
tered immediately.
nKEEP THE OPERATOR ZONE and adjacent area clear
for safe, secure footing.
n
LOG SPLITTERS SHOULD BE USED ONLY for splitting
wood. DO NOT use for other purposes unless the
manufacturer provides attachments and instructions.
nMAKE SURE THE LOG SPLITTER is on a level surface.
Block the splitter as required to prevent unintended
movement.
nALWAYS OPERATE the splitter from the indicated
operator zone.
nLOGS TO BE SPLIT ON RAM-TYPE UNITS should be
cut as squarely as possible.
nTHE MACHINE OWNER should instruct anyone assisting
him or her in safe log splitting operation.
nALWAYS operate the log splitter with all safety equipment
in place and all controls properly adjusted for safe
operation.
nALWAYS operate the log splitter at the recommended
speed.
nWHEN LOADING a ram-type log splitter, place your
hands on the sides of the log not at the ends. NEVER
place your hands or any part of your body between a log
and any part of the log splitter.
nON RAM-TYPE log splitters, NEVER attempt to split
more than one (1) log at a time unless the ram has been
fully extended and a second log is needed to complete
the separation of the rst log.
nON RAM-TYPE log splitters on which the logs are not
square, the longest portion of the log should be rotated
down and the most square end placed against the ram.
nCLEAR DEBRIS from moving parts but only when the
power source is shut off.
nUSE ONLY YOUR HAND TO OPERATE THE LOG
SPLITTER CONTROLS.
nALWAYS UNPLUG FROM THE POWER SOURCE while
repairing or adjusting the splitter .
nCIRCUIT CAPACITY AND FUSES:
a) Use only an electrical circuit having adequate capacity.
b) “Blowing” a fuse or tripping a circuit breaker is usually
a warning that you are overloading the machine or
have too many devices taking power from the circuit,
or both. Do not install a higher capacity fuse!
nLEARN AND UNDERSTAND all controls and the proper
use of the equipment.
nSAVE THESE INSTRUCTIONS. Refer to them frequently
and use to instruct other users. If you loan someone this
tool, loan them these instructions also.
GENERAL SAFETY RULES
SPECIFIC SAFETY RULES
WARNING!
“Danger! Keep clear of moving parts!”
“To be operated by one person only!”
ENGLISH (Original Instructions)

7
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpreta-
tion of these symbols will allow you to operate the tool better and safer.
Read The Operator’s Manual
Safety Alert
SYMBOL NAME DESIGNATION/EXPLANATION
Do not expose to rain or use in damp locations.
To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields
and a full face shield when operating this product.
Precautions that involve your safety.
Wet Conditions Alert
Always wear nonslip, heavy-duty protective gloves when
operating this product.
Wear Gloves
Wear Safety Footwear Always wear nonslip safety footwear when operating this product.
Always keep bystanders at least 10 ft. (3 m) away.Keep Bystanders Away
Keep Hands Away Always keep hands away from the wedge and the ram.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
SYMBOLS
ENGLISH (Original Instructions)

8
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding
provides a path of least resistance for electric current. To
reduce the risk of electric shock, this tool is equipped with
an electric cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into a
matching outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not t the outlet,
have the proper outlet installed by a qualied electrician.
Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. The conductor with
insulation having an outer surface that is green with or without
yellow stripes is the equipment-grounding conductor. If repair
or replacement of the electric cord or plug is necessary, do
not connect the equipment-grounding conductor to a live
terminal.
Check with a qualied electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the tool is properly grounded.
Repair or replace a damaged or worn cord immediately.
EXTENSION CORDS
When using a power tool at a considerable distance from the
power source, use an extension cord heavy enough to carry
the current that the tool will draw. An undersized extension
cord will cause a drop in line voltage, resulting in a loss of
power and causing the motor to overheat.
When working with the tool outdoors, use an extension cord
that is designed for outside use.
Before using an extension cord, inspect it for loose or
exposed wires and cut or worn insulation.
WARNING:
Keep the extension cord clear of the working area.
Position the cord so that it will not get caught on timber,
tools or other obstructions while you are working with a
power tool. Failure to do so can result in serious personal
injury.
WARNING:
Check extension cords before each use. If damaged
replace immediately. Never use tool with a damaged cord
since touching the damaged area could cause electrical
shock resulting in serious injury.
ELECTRICAL CONNECTION
This tool is powered by a precision built electric motor. It
should be connected to a power supply that is 230 volts,
50 Hz, AC only (normal household current). Do not operate
this tool on direct current (DC). A substantial voltage drop
will cause a loss of power and the motor will overheat. If
the product does not operate when plugged into an outlet,
double check the power supply.
Connect the main leads to a standard 230V±10%
(50Hz±1%Hz) electrical supply which has protection devices
of under-voltage, over-voltage, over-current as well as a
residual current device (RCD) which maximum residual current
rated at 0.03A, the main connection must have maximum
10A time-lag fuse.
SERVICE
Servicing requires extreme care and knowledge and should
be performed only by a qualied service technician. For
service we suggest you return the product to your nearest
AUTHORISED SERVICE CENTRE for repair. When servicing,
use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use
this product until you read thoroughly and understand
completely the operator’s manual. Save this operator’s
manual and review frequently for continuing safe operation
and instructing others who may use this product.
SYMBOLS
ELECTRICAL
ENGLISH (Original Instructions)

9

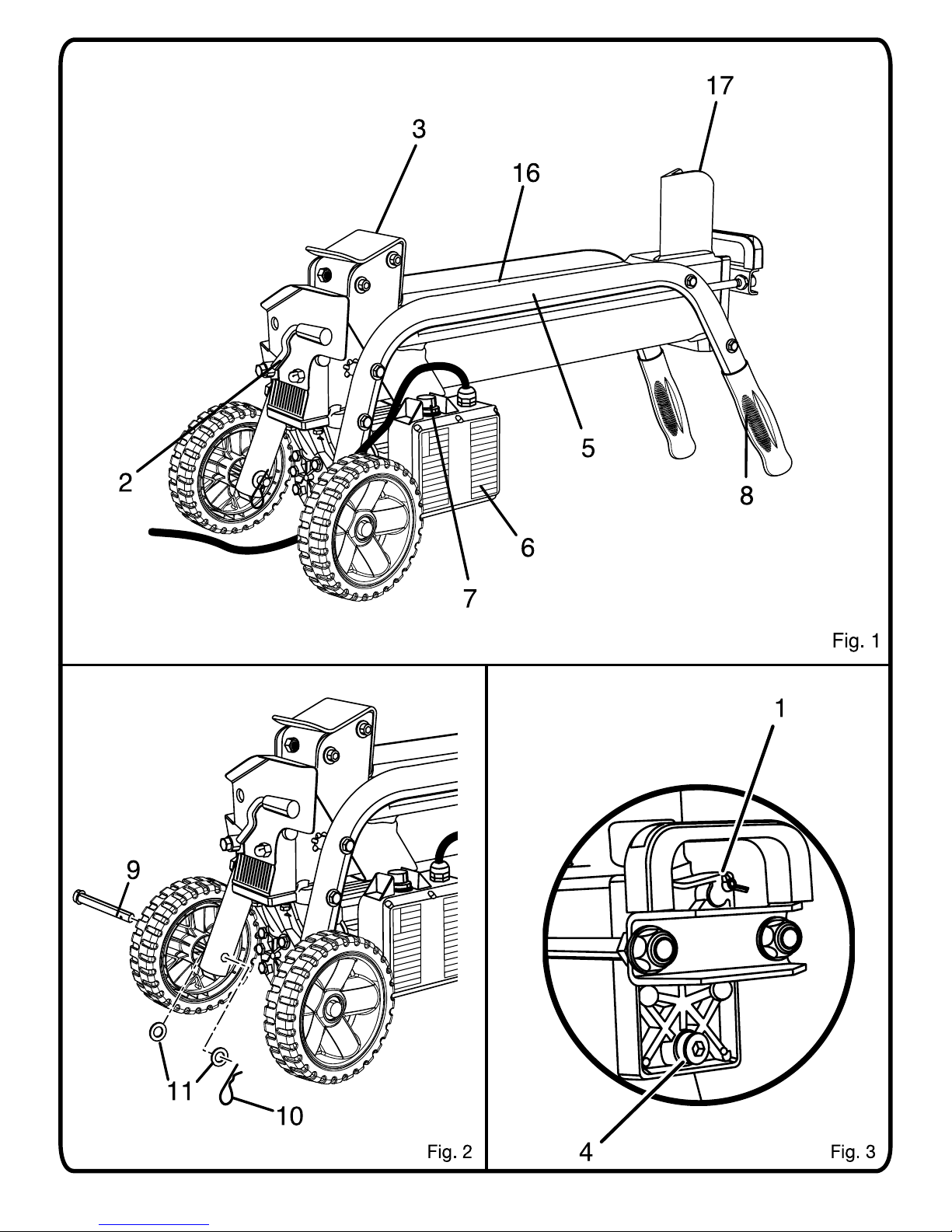

KNOW YOUR LOG SPLITTER( Fig.1)
Before attempting to use this product, familiarise yourself
with all operating features and safety rules.
BLEED SCREW
Loosen the bleed screw (1) to ensure the smooth ow of air
in and out of the oil tank.
HYDRAULIC CONTROL LEVER
Push down on the hydraulic control lever (2) and the ram(3)
starts pushing the log into the wedge (17).
LIFT HANDLE
The lift handle (8) makes rolling the log splitter from one
location to another simple and easy.
RESET/OVERLOAD BUTTON
If the motor is overloaded the machine will shut off. Remove
the load and push the reset/overload button (15) to restart
the machine.
OIL DRAIN BOLT WITH DIPSTICK
Oil drain bolt with dipstick (4) makes checking and changing
hydraulic oil easy.
SIDE SUPPORTS
Side supports (5) on each side of the work table (16) keep
logs resting securely on the log splitter.
WORK TABLE
Provides surface to support log prior to splitting operation.
UNPACKING
nCarefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list
are included.
nInspect the tool carefully to make sure no breakage or
damage occurred during shipping.
nDo not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
WARNING:
If any parts are missing do not operate this tool until the
missing parts are replaced. Failure to do so could result
in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
alteration or modication is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
9. Axle
10.Hitch pin
11.Washer
12.Dip stick
13.Level indicator marks
14.Wood wedge
15.Reset button
16.Work table
17.Wedge
PRODUCT SPECIFICATIONS
Maximum Hydraulic Cylinder Pressure ...................16 MPa
Force .......................................................................... 4tons
Oil Capacity ................................................................. 3.5 L
Voltage ........................................................... 230 V~50 Hz
In Put Power ............................................................1500 W
No Load Speed ..........................................2970±10% rpm
Measured sound power level ....................... LWA 80.8 dB(A)
KWA 3.0 dB(A)
Measured sound pressure level ....................LPA 68.6 dB(A)
KPA 3.0 dB(A)
Net Weight ..................................................................49 Kg
Log Capacity Diameter, maximum .......................... 250mm
Log Capacity Diameter, minimum ........................... 100mm
Log Capacity Length ............................................... 520mm
Vibration ..................................................................2.5m/s2
DESCRIPTION
1. Bleed screw
2. Hydraulic control lever
3. Ram
4. Oil drain bolt with dipstick
5. Side supports
6. Push button box
7. On / Off switch
8. Lift handle
PACKING LIST
1 x Log splitter
1 x Manual
2 x Wheel
2 x Axle
4 x Washer
2 x Hitch pin
FEATURES
ASSEMBLY
ENGLISH (Original Instructions)

10
WARNING:
Do not allow familiarity with tools to make you careless.
Remember that a careless fraction of a second is
sufcient to inict serious injury.
WARNING:
Always wear safety goggles or safety glasses with
side shields when operating this tool. Failure to do so
could result in objects being thrown into your eyes
resulting in possible serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this tool. The use
of attachments or accessories not recommended can
result in serious personal injury.
BEFORE USING THE LOG SPLITTER (See Fig 3-4)
Never operate the log splitter until the bleed screw (1) has
been slightly loosened (one to two full turns). Air ow through
the bleed screw should be detectable once the log splitter
is started. If no air ow is detected, loosen the screw until
the air ow can be felt.
Air must ow in and out of the oil tank during operation to
prevent the seals in the hydraulic system from rupturing.
This tool is designed for home use only. Never split logs larger
than 25cm. diameter or 52cm. long. Some types of wood
are harder to split than others. If the log splitter is having
trouble splitting a log, never continue to try for longer than
ve seconds.
Always check the oil level before you start the log splitter.
To check the oil level:
nUnplug the log splitter.

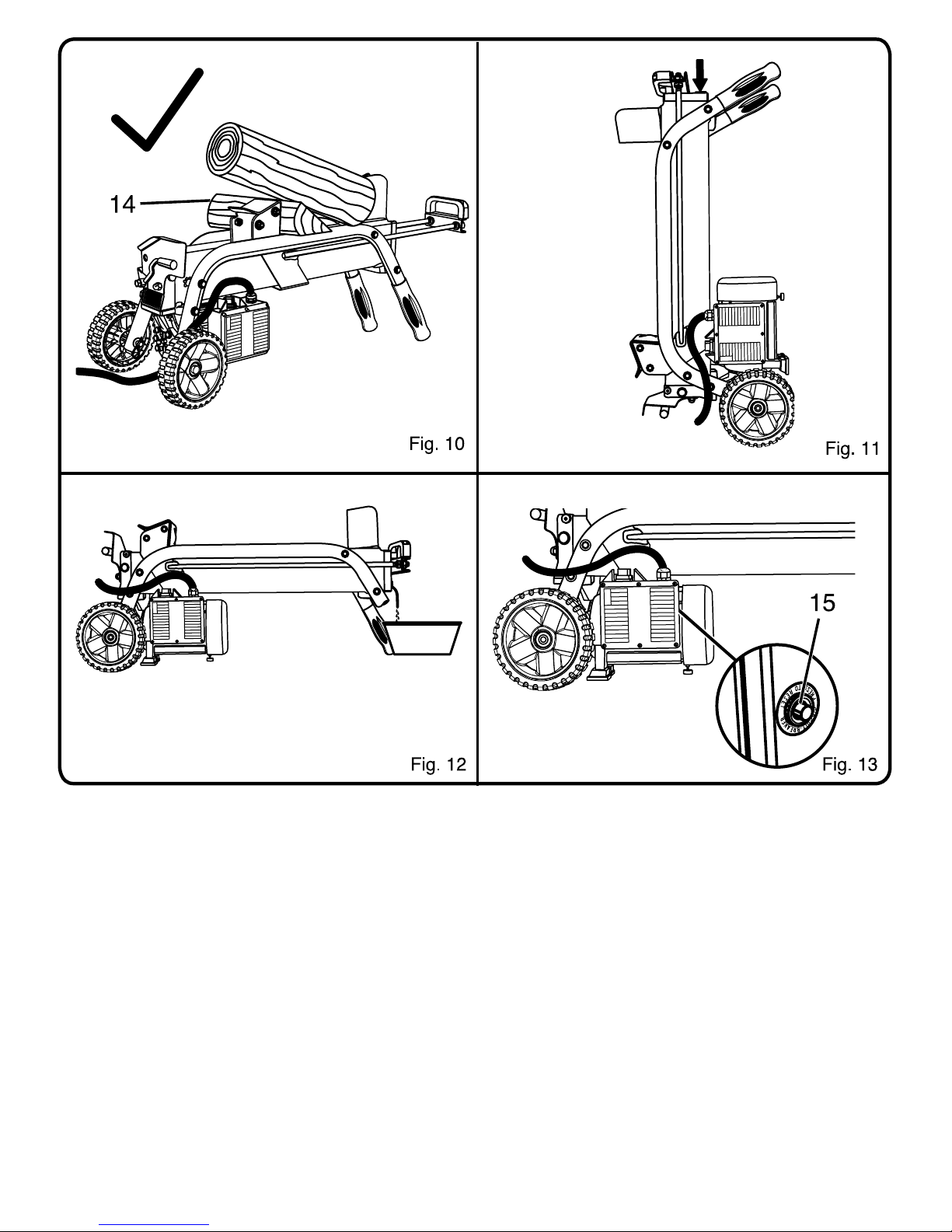

nUsing the lift handle (8), stand the log splitter on the end
with the wheels (see g.11).
nUsing an 8 mm hex key, remove the oil drain bolt and
wipe the dipstick clean.
nWipe the dipstick clean then reinsert it back into the oil
tank.
nRemove the dipstick (12) and check to see if the oil level
is between the rst and second groove on the dipstick
(Fig.4).
nIf there is not enough oil in the oil tank, add oil until the
proper level is reached.
nIf there is the proper amount of oil in the oil tank, wipe the
dipstick clean then replace it in the oil tank and tighten
the oil drain bolt securely.
NOTE: See “Replacing Hydraulic Oil” in the Maintenance
section for recommended oil or equivalents.
STARTING THE LOG SPLITTER (See Fig 5 - 6).
nOperator should be positioned at the rear of the log splitter
as shown in gure (6).
nPlace the left hand on the hydraulic control lever (2) and
the right hand on the on/off switch (7).
nPush down and hold the on/off switch.
nWhile continuing to hold down the on/off switch, push
down and hold the hydraulic control lever.
NOTE: Both hands are required to start this product. The
combination of both steps starts the ram which pushes
the log into the wedge.
nTo stop the splitter, release both controls to return the
ram to the starting position.
NOTE: If only one hand is removed from either the switch
or the lever, the log splitter will freeze in place. When both
the switch and the lever are released, the ram will return to
the starting position.
nLocate the axle (9) assembly; remove the hitch pin (10)
from the axle.
nLift the machine slightly and slip the axle into the wheel
hole.
nNext, slide the washer (11) onto the axle. Still lifting the
machine, slide the axle/wheel/washer combination into
the wheel mounting hole in the machine base as shown
in g 2.
nSlide the washer onto the axle. Push the hitch pin into
the hole on the end of the axle to secure the wheel
assembly.
NOTE: The hitch pin should be pushed into the axle until
the centre of the pin rests on top of the axle.
nRepeat with the second wheel assembly.
ASSEMBLING THE WHEELS (Fig 2.)
To attach the wheels to the base:
WARNING:
Failure to loosen the bleed screw prior to operation
of this product may cause the seals in the hydraulic
system to blow out. Blown seals could cause permanent
damage to the log splitter.
ASSEMBLY
OPERATION
ENGLISH (Original Instructions)

11
WARNING:
When servicing, use only identical Ryobi replacement
parts. Use of any other parts may create a hazard or
cause product damage.
WARNING:
Always wear safety goggles or safety glasses with side
shields during power tool operation or when blowing
dust. If operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use. Use
clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
Do not at any time let brake uids, gasoline, petroleum-
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal injury.
LUBRICATION
All of the bearings in this tool are lubricated with a sufcient
amount of high grade lubricant for the life of the unit under
normal operating conditions. Therefore, no further lubrication
is required.
REPLACING HYDRAULIC OIL (See Fig.11-12)
When new your Ryobi log splitter is supplied with the
correct amount of hydraulic oil. The hydraulic oil in the
log splitter needs to be changed every 150 hours of use.
The recommended grade of hydraulic oil is 22 weight. For
extreme cold environments use 32 weight oil. The unit will
carry approximately 3.5l of oil when fully emptied. (Use the
dipstick for correct ll).
nUnplug the log splitter.
nPosition the log splitter so that the motor end is slightly
higher than the oil drain plug. (Fig.12)
nUsing an 8 mm hex key, remove the oil drain bolt.
nDrain the hydraulic oil from the oil tank into a four litre
capacity container.
nOnce the oil has drained from the oil tank, turn the log
splitter on the end with the wheels. (Fig.11)
nRell the oil tank with fresh hydraulic oil (3.5L).
nPlace the cleaned dipstick into the oil tank. Remove and
check the oil level.
NOTE: The oil level should be between the two oil lines
around the bottom of the dipstick as shown in gure 4.
nReplace oil drain bolt. Tighten securely.
nDispose old oil at an oil recycling centre.
SHARPENING THE WEDGE
After using the log splitter for some time, it may be necessary
to sharpen the wedge. Using a ne-toothed le, smooth any
burrs or crushed areas along the cutting edge.
SPLITTING LOGS (See Fig.7 - 8).
Always place logs lengthwise on the work table and resting
rmly on the side supports. Place logs at and in the direction
of the grain. Never angle the log to split it or place the log
crosswise on the splitter. Never split more than one log at
a time.
CAUTION:
Never keep pressure on the wood by trying to force the
log splitter for more than ve seconds. After ve seconds,
the oil will heat and can damage the tool.
nPlace log lengthwise and lying at on the work table.
NOTE: If the log is small, place it against the wedge before
starting the splitter.
nUsing the right hand, push down and hold the on/off
switch.
nPush down and hold the hydraulic control lever with
the left hand. With both the lever and the on/off switch
activated, the ram will push the log into the wedge and
split the wood.
nOnce the log is split, release both controls to return the
ram to the starting position.
FREEING A JAMMED LOG (See Fig.9 - 10.)
nRelease both controls.
nAfter the ram is back at the starting position, insert a
wood wedge under the jammed log.
nStart the log splitter to push the wood wedge (14)
completely under the jammed log.
nIf the log is still jammed, repeat the above steps as
needed using a thicker angled wood wedge until the log
is completely freed.
NOTE: Never try to knock the jammed log off the splitter.
Doing so may damage the tool or may cause the log to y
up and hit someone causing injury.
OPERATION
MAINTENANCE
ENGLISH (Original Instructions)

12
PROBLEM POSSIBLE CAUSE SOLUTION
Motor fails to start
Won’t split logs
Log mover jerks and vibrates
Oil leaks around cylinder ram or
from other points
1. Overload Protection Device
is engaged to protect the log
splitter from being damaged.
1. Log is improperly positioned.
2. The size or hardness of the log
exceeds the machine’s capacity.
3. Wedge cutting edge is blunt.
4. Oil leaks.
5. Unauthorised adjustment was
made on the Maximum Pressure
Limiting Screw. Lower maximum
pressure rating was set.
1. Lack of hydraulic oil and
excessive air in the hydraulic
system.
1. Air sealed in hydraulic system
while operating.
2. Bleed screw is not tightened
before moving the log splitter.
3. Oil drain bolt is not tight.
4. Hydraulic control valve assembly
and/or seal(s) are worn.
1. Push reset button (15).
1. Refer to Operation section for log
loading.
2. Reduce the log size before splitting.
3. Refer to “Sharpening Wedge” in the
Maintenance section.
4. Locate leak(s). Contact the dealer.
5. Contact authorised service centre.
1. Check oil level for possible oil
relling. Contact the dealer.
1. Loosen bleed screw by 3-4 rotations
before operating the log splitter.
2. Tighten the bleed screw before
moving the log splitter.
3. Tighten the oil drain bolt.
4. Contact the dealer.
See g 13
TROUBLESHOOTING
ENGLISH (Original Instructions)

LIMITED WARRANT
TTI warrants this outdoor product to be free of defects in material and workmanship for 24 months from the date of purchase by the
original purchaser, subject to the limitations below. Please keep your invoice as proof of date of purchase.
This warranty is only applicable where the product is used for personal and non-commercial purposes. This warranty does not
cover damage or liability caused by / due to misuse, abuse, accidental or intentional acts by user, improper handling, unreasonable
use, negligence, failure by end user to follow operating procedures outlined in the user’s manual, attempted repair by non-qualified
professional, unauthorized repair, modification, or use of accessories and/or attachments not specifically recommended by authorized
party. Please see your local dealer for list of authorized service centers in your area.
This warranty does not cover belts, brushes, bags, bulbs or any part which ordinary wear and tear results in required replacement
during warranty period. This warranty does not cover transportation cost or consumable items such as fuses and batteries.
This limited warranty is void if the product’s original identification (trade mark, serial number, etc.) markings have been defaced, altered
or removed or if product is not purchased from an authorized reseller or if product is sold AS IS and / or WITH ALL FAULTS.
Where permitted, the provisions of this limited warranty are in lieu of any other written warranty, whether express or implied, written or
oral, including any warranty of MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL WE BE
LIABLE FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES. OUR MAXIMUM LIABILITY SHALL NOT
EXCEED THE ACTUAL PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.
This warranty is applicable only in the European Union, Australia, and New Zealand. Outside these areas, please contact your
authorized Homelite dealer to determine if another warranty applies.

TECHTRONIC INDUSTRIES EMEA
Medina House, Field House Lane,
Marlow, Bucks
SL7 1TB - United Kingdom
RYOBI TECHNOLOGIES (UK) LIMITED
Medina House, Field House Lane,
Marlow, Bucks
SL7 1TB - United Kingdom
Tel: + 44 (0) 1628 894400
Fax: + 44 (0) 1628 894401
Technical Helpline : + 44 (0) 800 389 0305
