Ryobi RPW130XRB User manual

RBC36X26E
RBC36X26E
ORIGINAL INSTRUCTIONS
High Pressure
Cleaner
RPW130XRB
RPW130XRBB

Important!
It is essential that you read the instructions in this manual before assembling,
maintaining, and operating the product.
Subject to technical modification.

1
Safety, performance, and dependability have
been given top priority in the design of your
electric high pressure cleaner.
INTENDED USE
The electric high pressure cleaner is intended
only for outdoor use. For safety reasons,
the product must be adequately controlled
by using two-handed operation. It should be
used in well-illuminated conditions.
The product is designed for home or domestic
use. It is intended to clean machines, vehicles,
buildings, oors, tools, facades, terraces,
oors, and concrete walkways by removal of
stubborn dirt using clean water with or without
cleaning detergent.
The product can be used with turbo nozzle,
spray nozzle, wash brush, and surface
cleaner. The turbo nozzle is used for normal
cleaning. The spray nozzle is used for
cleaning surfaces that require spraying or with
the use of detergent. The wash brush is used
for effective cleaning of cars, bikes, or other
items that require spraying or with the use
of detergent. The surface cleaner is used for
cleaning and brushing surfaces.
Do not use the product for any other purpose.
WARNING
The product is designed for use with a neutral
cleaning agent supplied or recommended by
the manufacturer. The use of other cleaning
agents or chemicals may adversely affect
the safety of the product.
GENERAL SAFETY WARNINGS
WARNING
Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric shock,
re, and/or serious injury.
■The product is not intended for use by
children or persons with reduced physical,
sensory, or mental capabilities, or lack
of experience and knowledge. Children
should be adequately supervised to ensure
they do not play with the product.
■Wear a complete personal protective
equipment when operating the product,
such as boots, safety gloves, safety
helmets with visor, and hearing protection.
Use high-impact visors only with liquid
splash protection.
CAUTION
The product must not be used on the
drinking water supply without a backow
preventer being installed that corresponds to
EN 12729 Type BA. Water owing through
a backow preventer is considered non-
drinkable. Always observe the regulations
of your local water utility company when
connecting the product to a water supply
line.
WARNING
Do not use the product when people are
within range, unless they wear protective
clothing.
To reduce the risk of injury, keep children and
visitors away. All visitors should wear safety
glasses and be kept at a safe distance from
the work area.
■Inspect the safety devices, such as safety
valves, flow switches, and pressure
switches to check if they are in good
working condition. Make sure all safety
devices are operating properly before each
use:
●On/Off switch
–The on/off switch prevents
unintentional operation of the
product.
●Trigger handle lock
–The trigger handle lock locks the
trigger and prevents unintentional
opening of the high-pressure jet.
●Overflow valve with pressure switch
–The overflow valve prevents the
permissible working pressure from
being exceeded. If the lever on the
trigger gun is released, the pressure
switch turns off the pump and the
high-pressure jet stops. If the lever is
pulled, the pump turns on again.
●Motor protection switch
–The motor protection switch
switches off the device if the power
consumption is high.
■Do not use the product if the important
parts are damaged, such as safety devices,

2
high-pressure hoses, or trigger gun.
■Exercise caution when opening the trigger.
Hold the handle firmly with two hands to
avoid injury when the handle kicks back.
WARNING
During use of high pressure cleaners,
aerosols may be formed. Inhalation of
aerosols can be hazardous to health.
WARNING
Depending on the application, shielded
nozzles can be used for high-pressure
cleaning, which will reduce the emission
of hydrous aerosols. However, not all
applications allow the use of such a device.
If shielded nozzles are not applicable for the
protection against aerosols, a respiratory
mask of class FFP 2 or equivalent may
be needed, depending on the cleaning
environment.
■Always stop the product when you leave it
unattended.
■High-pressure jet is dangerous if misused.
Do not direct the jet to people, live electrical
equipment, or the product itself.
■To avoid a risk of explosion, do not spray
flammable liquids.
■Do not direct the jet against yourself or
others in order to clean clothes or footwear.
■Do not use the product to clean electronic
devices, clothes, or footwear.
■High-pressure hoses, fittings, and couplings
are important for the safety of the product.
Use only hoses, fittings, and couplings
recommended by the manufacturer.
ELECTRICAL SAFETY WARNINGS
■The plug must match the outlet. Never
modify the plug in any way. Unmodified
plugs and matching outlets reduces the
risk of electric shock.
■Do not use the product if the power cord
or other important parts, such as safety
devices, are damaged.
■Check the power cord and the extension
cord for damage before each use. If
the power cord or the extension cord
is damaged, it must be replaced by the
manufacturer, its service agent, or similarly
qualified persons in order to avoid a hazard.
■Keep the power cord away from heat, oil,
and sharp edges.
■Never touch the mains plug and the socket
with wet hands.
■Inadequate extension cords can be
dangerous. If an extension cord is used,
it shall be suitable for outdoor use, and
the connection has to be kept dry and off
the ground. Use a cord wheel to keep the
socket at least 60 mm above the ground.
■The electric supply connection must
be made by a qualified electrician and
must comply with IEC 60364-1. It is
recommended that the electric supply to
the product should include either a residual
current device that interrupts the supply if
the leakage current to earth exceeds 30
mA for 30 ms or a device that proves the
earth circuit.
ADDITIONAL SAFETY WARNINGS
■Some regions have regulations that restrict
the use of the product in some operations.
Check with your local authority for advice.
■Before each use, check for damage.
A damaged high-pressure hose must
be replaced immediately. Ensure all
connections, such as high-pressure hose
and nozzle, are secure. Unwind the hose
properly so they may not get twisted or
kinked.
■Do not allow children or untrained
individuals to use the product.
■Before starting any cleaning operation,
close doors and windows. Clear the area
to be cleaned of debris, toys, outdoor
furniture, or other objects that could create
a hazard.
■Never pick up or carry the product while the
motor is running.
■Do not use the product in temperatures
below 0°C.
■Do not use acids, alkalines, solvents,
flammable material, bleaches, or industrial
grade solutions in the product. These
products can cause physical injuries to the
operator and irreversible damage to the
product.
■Always operate the product on a level
surface.

3
WARNING
High-pressure jet can be dangerous if
subject to misuse. The jet must not be
directed to people, animals, electrical
devices, or the product itself.
■Hold the trigger handle securely with both
hands. Expect the handle to move when
the trigger is pulled due to reaction forces.
Failure to do so could cause loss of control
and injury to yourself and others.
■Make sure that the air in the hose and pump
is released before you turn on the product.
To remove the air in the hose and pump,
connect the water supply to the pump
using a garden hose, connect the trigger
handle to pump using the high-pressure
hose, disengage the trigger handle lock,
and press the trigger until there is a steady
flow.
■Exercise caution to avoid slipping or falling.
■Keep firm footing and balance. Do not
overreach. Overreaching can result in loss
of balance.
■Use only accessories that are
recommended by the manufacturer. The
use of improper accessories may cause
injury.
■Never leave the product running
unattended. Turn off the product. Do
not leave the product until it comes to a
complete stop.
■Be familiar with the controls. Know how to
stop the product and bleed the pressure
quickly.
■Stay alert and exercise control. Watch what
you are doing and use common sense.
■Do not use the product while tired, ill, or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating the product may result in serious
personal injury.
■Do not use the product if the switch does not
turn it on and off. Any product that cannot
be controlled with a switch is dangerous
and must be repaired.
■Keep a minimum distance of 30 cm when
cleaning vehicles. The high-pressure jet
may damage or burst vehicle tires and/or
tire valves.
■Use a garden hose with a maximum length
of 15 m and minimum diameter of 18 mm
(3/4 in.).
■Before each use, ensure that the accessory
is securely attached to the trigger gun.
OVERLOAD PROTECTION
The product has an overload protection device
that is activated when overheating or when a
current spike occurs, automatically shutting
down power within the product. To resume
operation, disconnect the product from the
power supply, wait for about 15 minutes and
reconnect the product to the power supply.
TRANSPORTATION AND STORAGE
CAUTION
Mind the weight of the product when
selecting the storage location and during
transportation to prevent accidents or
injuries.
■Stop the product, disconnect from the
power supply, and allow the product to cool
down. Disconnect the product from the
water supply before storing or transporting.
Never place the product in any position
other than upright.
■Remove water from all hoses and the
pump, and empty the detergent tank before
storing the product.
■Clean all foreign materials from the product.
Store it in a cool, frost-free, dry, and well-
ventilated place that is inaccessible to
children. Keep the product away from
corrosive agents such as garden chemicals
and de-icing salts. Do not store the product
outdoors.
■For transportation in a vehicle, secure the
product against movement or falling to
prevent injury to persons or damage to the
product.
WARNING
Store the product indoor only. Storing in
an area with temperature below 0°C will
damage the product.

4
MAINTENANCE
WARNING
Use only original manufacturer’s
replacement parts, accessories, and
attachments. Failure to do so can cause
possible injury, can contribute to poor
performance, and may void your warranty.
WARNING
Servicing requires extreme care and
knowledge and should be performed only
by a qualied service technician. Have the
product serviced by an authorised service
centre only. When servicing, use only
original replacement parts.
■Stop the product, disconnect from the
power supply, and allow the product to cool
down. Disconnect the product from the
water supply:
●before cleaning the product
●before maintaining the product
●before replacing spare parts
■You may make adjustments or repairs
described in this manual. For other repairs,
contact an authorised service centre.
■Regularly inspect and maintain the high
pressure cleaner for safe operation. RYOBI
recommends inspecting the product every
6 months.
■Check all nuts, bolts, and screws at frequent
intervals for proper tightness to ensure the
product is in safe working condition. Any
part that is damaged should be properly
repaired or replaced by an authorised
service centre.
RESIDUAL RISKS
Even when the product is used as prescribed,
it is still impossible to completely eliminate
certain residual risk factors. The following
hazards may arise during use and the
operator should pay special attention to avoid
the following:
■injury caused by vibration
–Hold the product by the designated
handles and restrict working time and
exposure.
■injury caused by flying debris
–Wear eye protection at all times.
■injury caused by exposure to noise
–Wear hearing protection and limit
exposure.
RISK REDUCTION
It has been reported that vibrations from
handheld tools may contribute to a condition
called Raynaud’s Syndrome. Symptoms may
include tingling, numbness, and blanching of
the ngers, usually apparent upon exposure
to cold. Hereditary factors, exposure to cold
and dampness, diet, smoking, and work
practices are all thought to contribute to the
development of these symptoms. There are
measures that can be taken by the operator to
possibly reduce the effects of vibration:
■Keep your body warm in cold weather.
When operating the product, wear gloves
to keep the hands and wrists warm. It is
reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to
increase blood circulation.
■Take frequent work breaks. Limit the
amount of exposure per day.
If you experience any of the symptoms of this
condition, immediately discontinue use and
see your physician.
WARNING
Injuries may be caused, or aggravated, by
prolonged use of a tool. When using any
tool for prolonged periods, ensure to take
regular breaks.
KNOW YOUR PRODUCT
See page 7.
1. Handle
2. Hose rotating handle
3. High-pressure hose
4. On/off switch
5. Power cord holder
6. Power cord
7. Wheel
8. Soap tank
9. Turbo lance
10. Surface cleaner
11. Rotary brush
12. Multi-purpose brush
13. Nozzle cleaning tool
14. Water inlet filter
15. Water inlet port
16. Water outlet port
17. Vario lance

5
18. Trigger handle holder
19. Trigger gun inlet
20. Trigger
21. Trigger handle lock
NOTE: If using detergent, refer to the Material
Safety Data Sheet of the detergent.

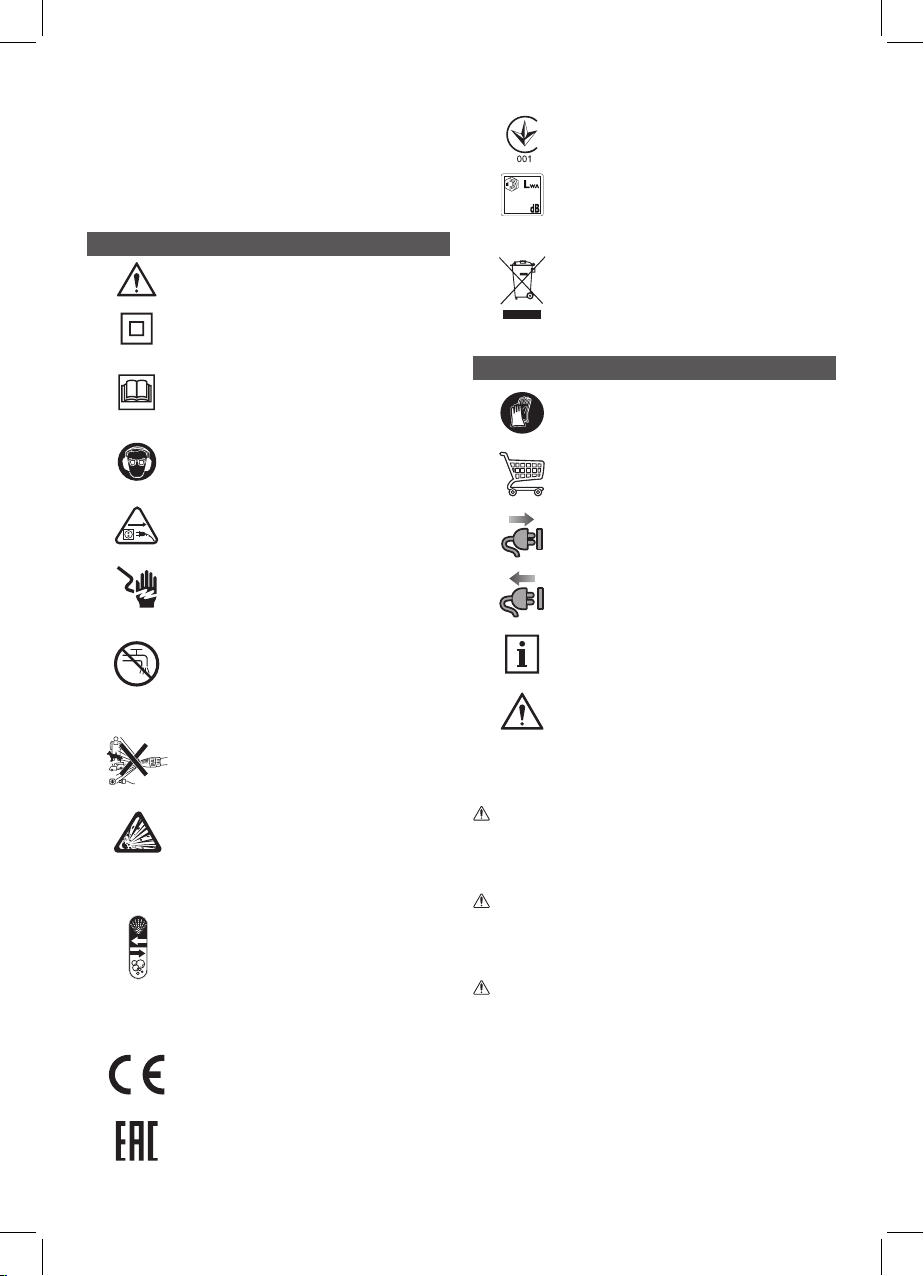

SYMBOLS ON THE PRODUCT
Warning
Class II tool, double insulation
To reduce the risk of injury, the
user must read and understand
operator’s manual before using
this product.
Wear eye and hearing
protection.
Remove plug from the mains
immediately if cable is damaged
or cut.
Electrical shock hazard
The product is not suitable
for connection to the drinking
water mains without backow
preventer.
Never point the spray wand to
people, animals, the body of the
product, power supply, or any
electric appliances.
Burst hazard
Turn the bottom portion of the
nozzle to the left to increase
water pressure, or to the right to
decrease water pressure.
Turn the bottom portion of the
nozzle all the way to the right to
activate low pressure mode for
foaming/detergent.
Conforms to all regulatory
standards in the country in
the EU where the product is
purchased.
EurAsian Conformity Mark
Ukrainian mark of conformity
95
Guaranteed sound power level
Waste electrical products
should not be disposed of
with household waste. Please
recycle where facilities exist.
Check with your local authority
or retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Wear non-slip, heavy-duty,
protective gloves when
handling.
Parts or accessories sold
separately
Connect to power outlet.
Disconnect from power outlet.
Note
Warning
The following signal words and meanings
are intended to explain the levels of risk
associated with this product.
DANGER
Indicates an imminently hazardous
situation, which, if not avoided, will result in
death or serious injury.
WARNING
Indicates a potentially hazardous situation,
which, if not avoided, could result in death
or serious injury.
CAUTION
Indicates a potentially hazardous situation,
which, if not avoided, may result in minor or
moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in
property damage.

6

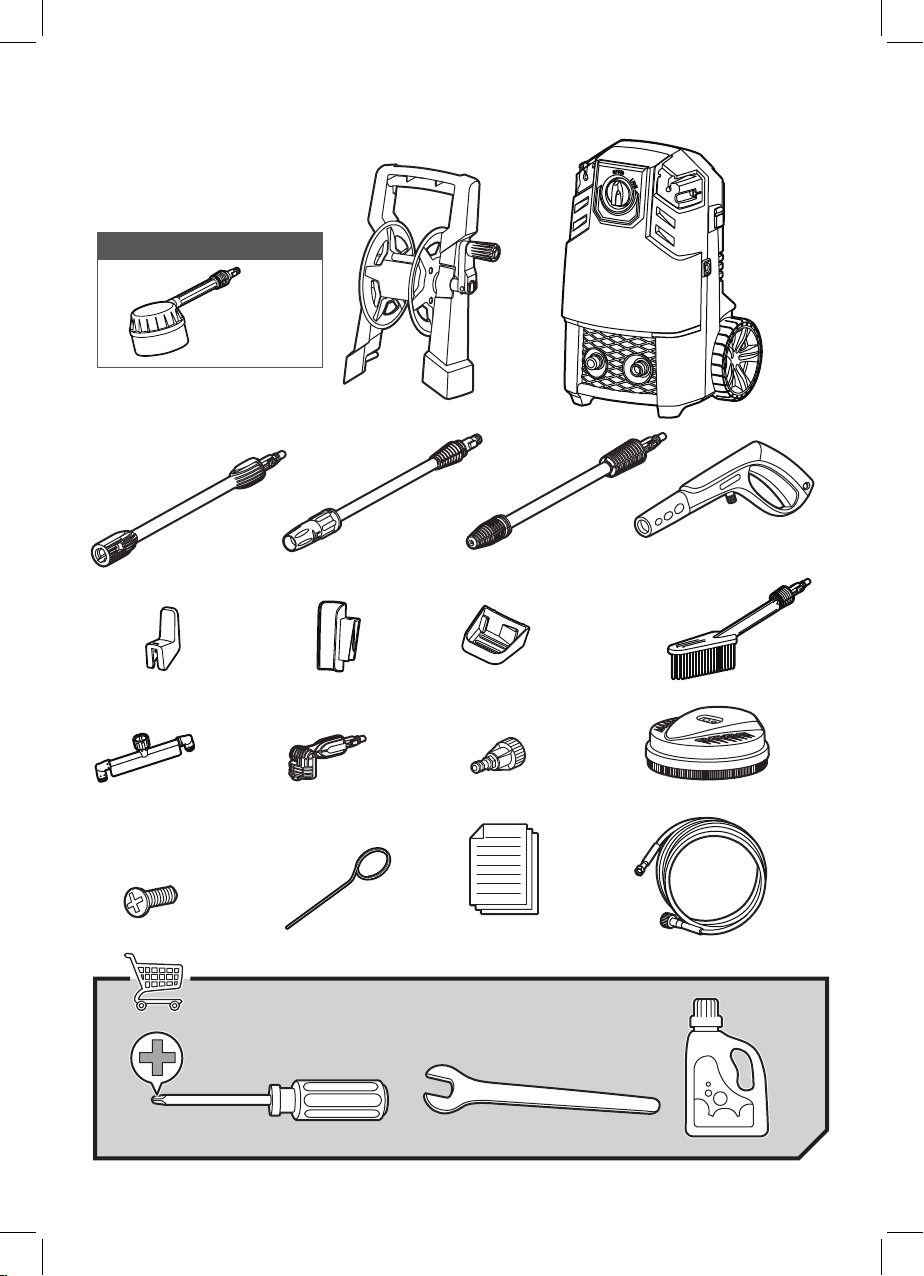

x 1
x 1
x 1
x 1
x 1 x 1 x 1
x 1
x 1 x 1 x 1
x 1
x 2
x 1
x 1
x 1
x 1 x 1
RPW130XRBB
x 1

7
10
15
16
914 13 12
8
2
1
3
4
6
18
17
5
7
20
19
21
11

8

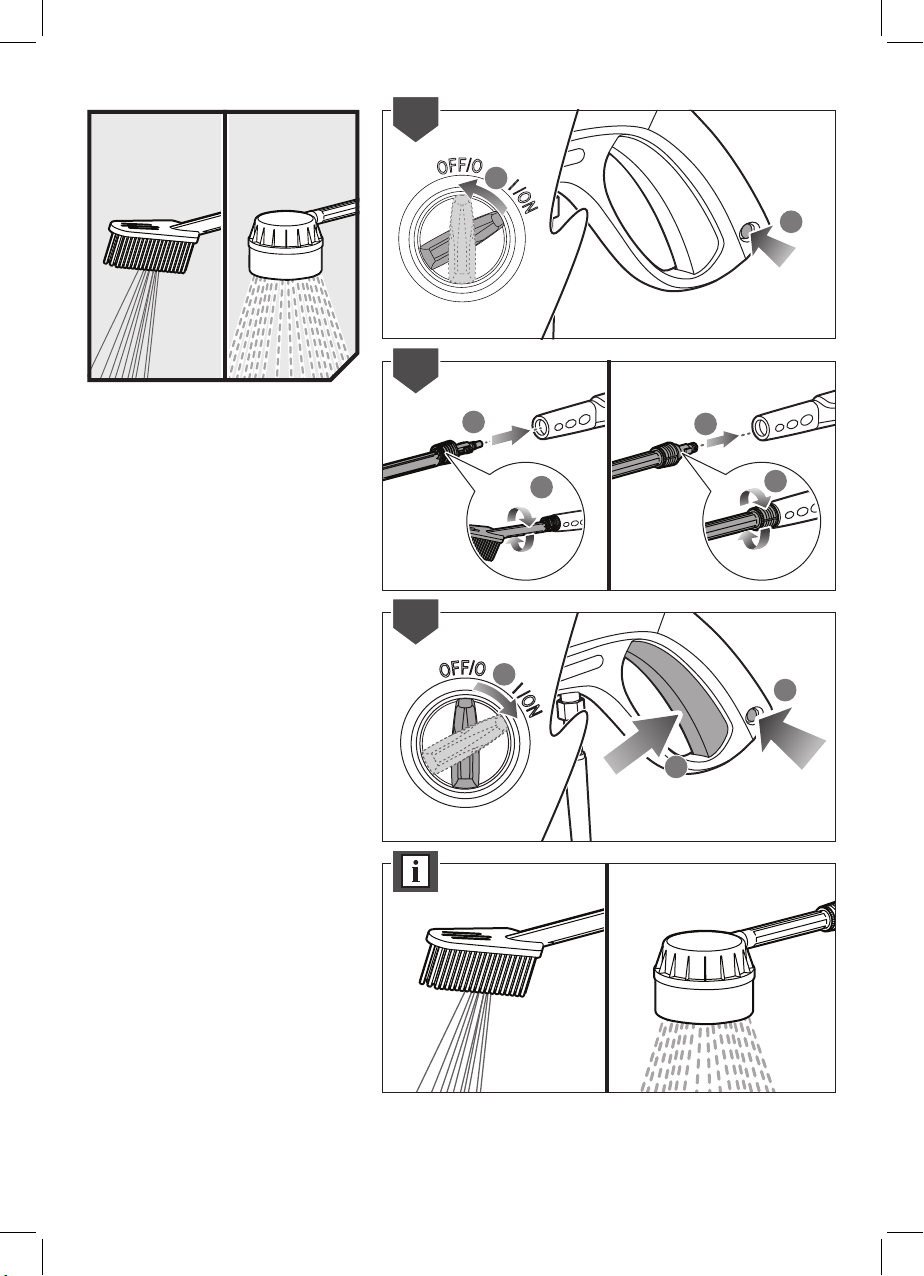

1 2
1
2
10
1
2
3
9

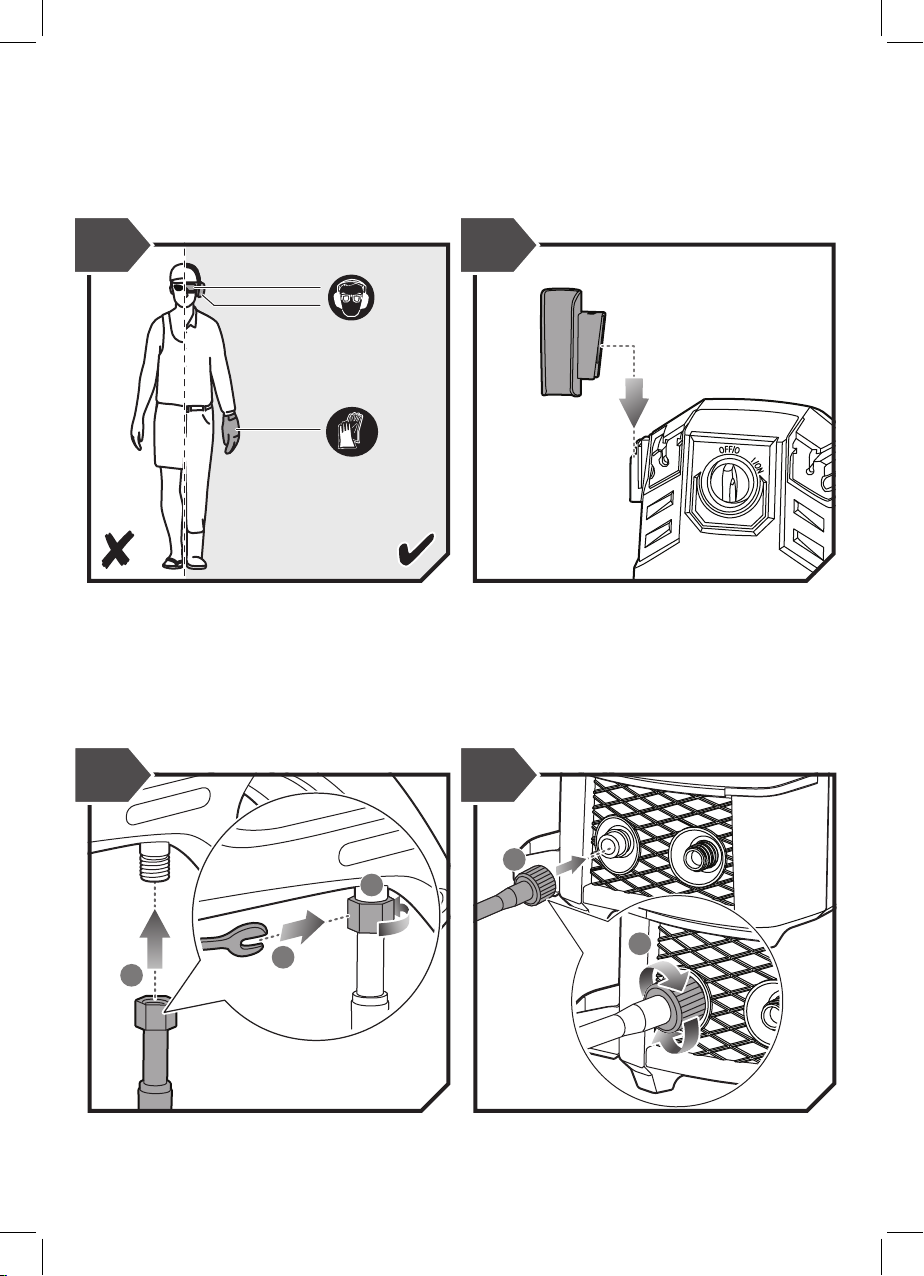

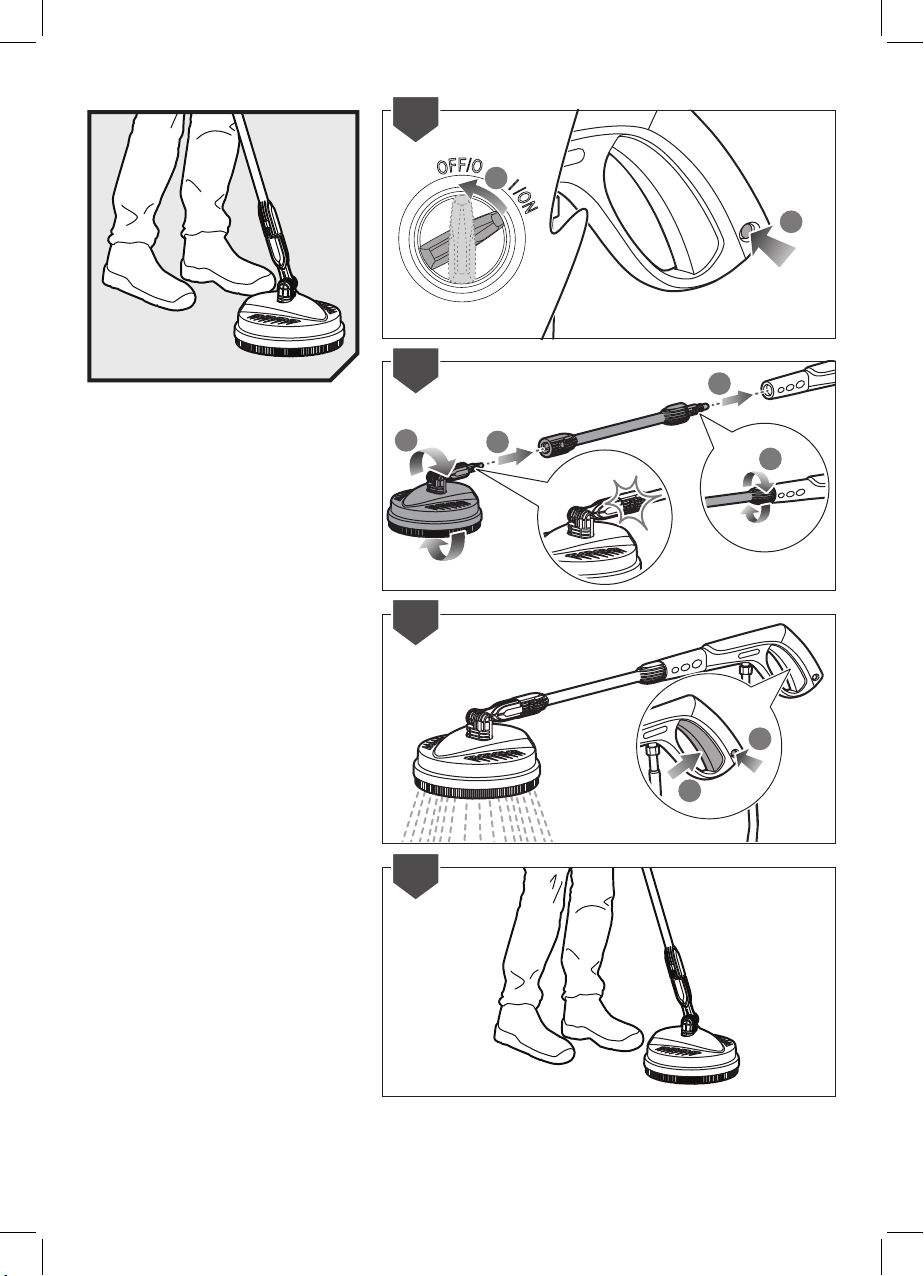

1
2
5
30 sec
1
2
13 14
43
12
1
2
11
1
2
6 7
15 16
9
1
2
3
8
21
17

10

11

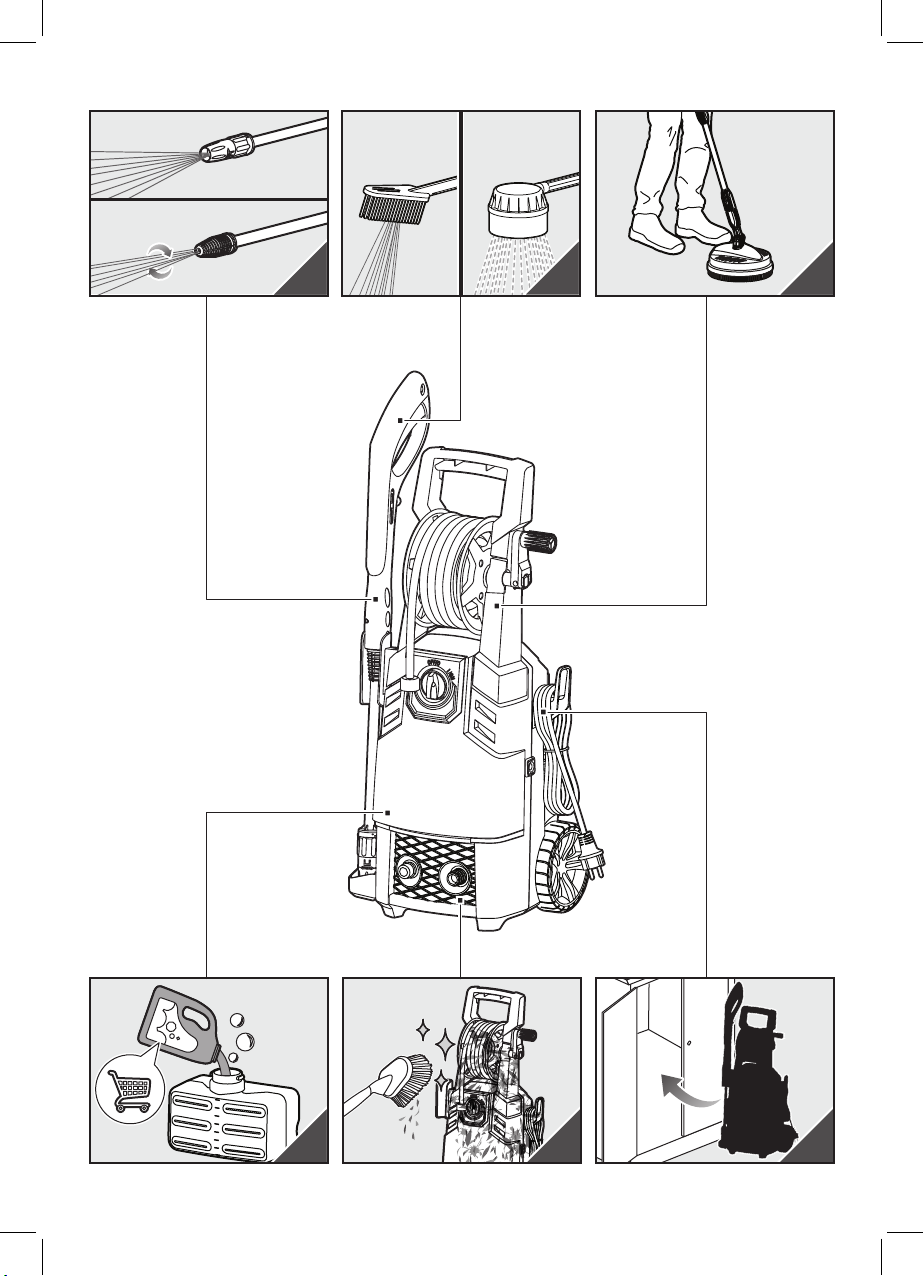

p.12 p.14 p.15
p.19p.16 p.18

12

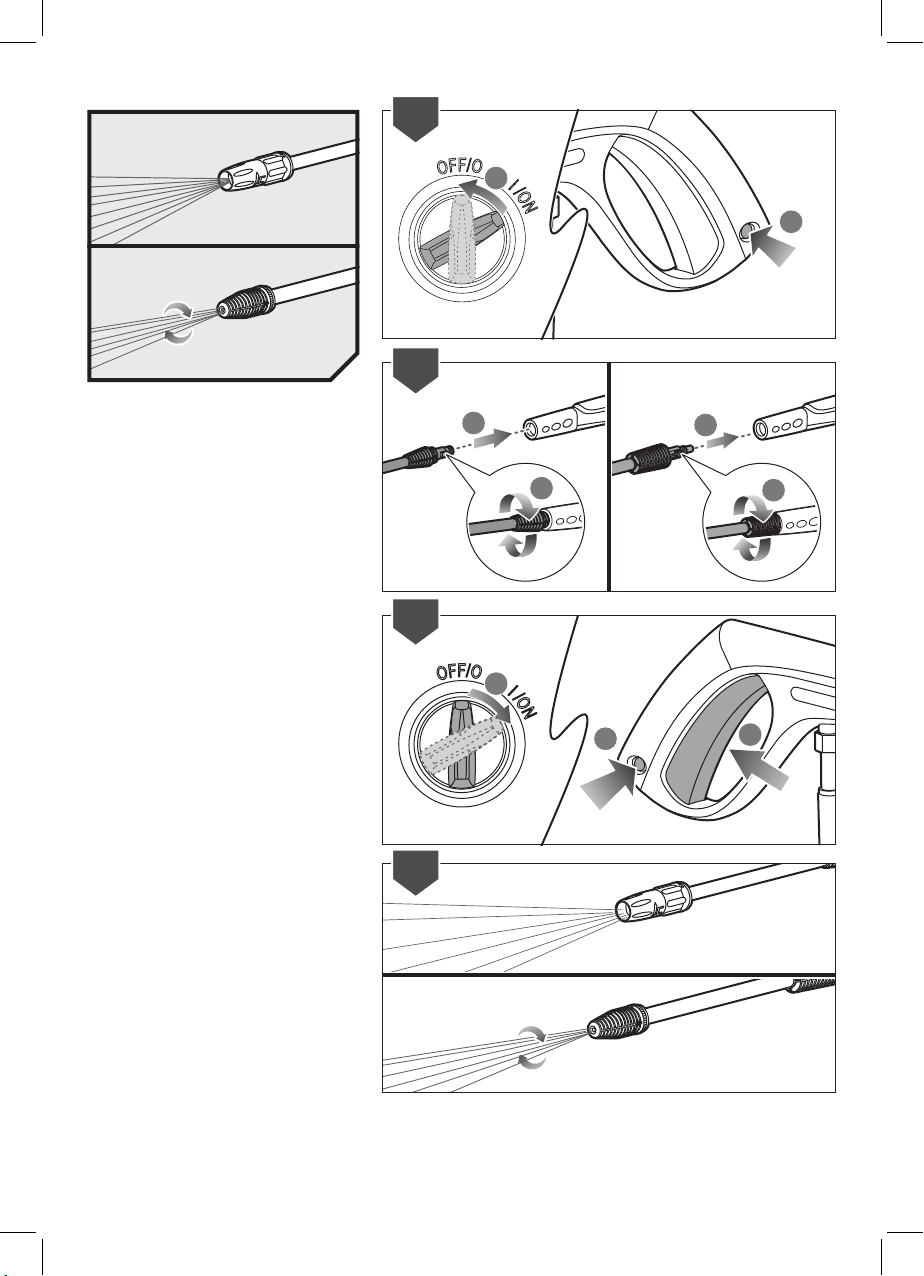

1
2
1
2
1
2
1
23
1
2
4
3

13

14
1
2
12
3
1
2
1
2
1
2
3

15
1
2
3
4
1
2
2
3
1
2
1
4

16
23
1
1
2
2
1
1
2
3
4

17

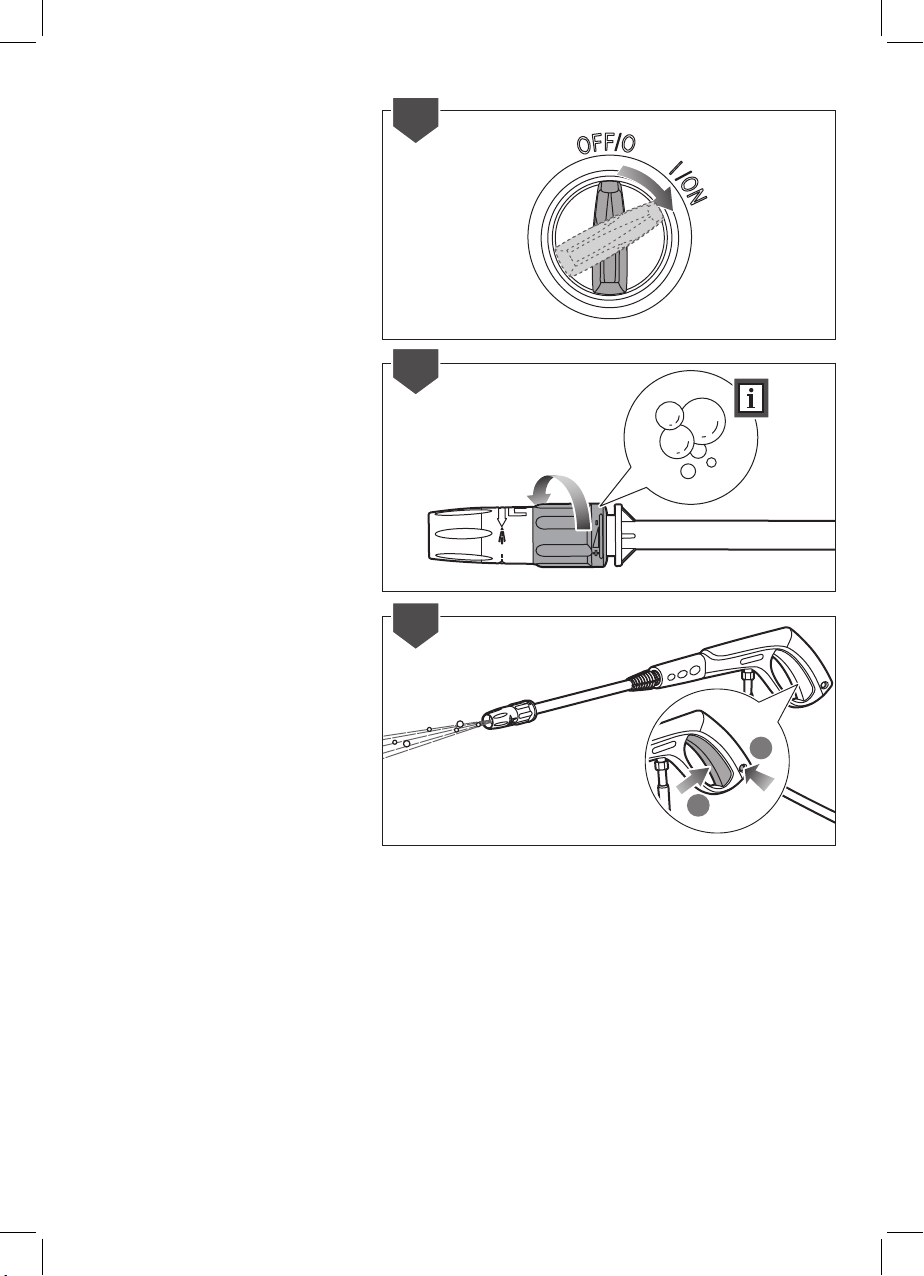

1
2
7
6
5

18
2
1
1
2
