Ryobi R18MS184 User manual

ORIGINAL INSTRUCTIONS
Mitre Saw
R18MS184

Important!
It is essential that you read the instructions in this manual before assembling,
operating and maintaining the product.
Subject to technical modification.

Safety, performance, and dependability have been given
top priority in the design of your mitre saw.
INTENDED USE
The mitre saw is intended for sawing solid and bonded
wood, materials similar to wood, with or without glued
veneer and plastics.
The mitre saw is intended to be used only by adult operators
who have read the instruction manual and understand the
risks and hazards.
7KH PLWUH VDZ LV GHVLJQHG WR EH ¿[HG DW WKH EDVH WR D
VROLG EHQFK WRS ,I WKH EDVH LV QRW VHFXUHO\ ¿[HG WKH
whole machine may move during cutting operations, which
increases the possibility of serious personal injury.
The mitre saw is designed to make bevel and mitre cuts.
The capacities for the various cuts are provided in the
SURGXFWVSHFL¿FDWLRQVLQWKLVPDQXDO
7KHPLWUHVDZLVWREHXVHGLQGU\FRQGLWLRQVZLWKH[FHOOHQW
ambient lighting and adequate ventilation.
The mitre saw is intended for consumer use and should
only be used as described above and is not intended for
any other purpose.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings, instructions, illustrations
and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
HOHFWULFVKRFN¿UHDQGRUVHULRXVLQMXU\
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
WORK AREA SAFETY
ŶKeep work area clean and well lit. Cluttered or dark
areas invite accidents.
ŶDo not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
ŶKeep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
ŶPower tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
ŶAvoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
ŶDo not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
ŶDo not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
ŶWhen operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
ŶIf operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
ŶStay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
ŶUse personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
ŶPrevent unintentional starting. Ensure the switch
is in the off -position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
ŶRemove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
ŶDo not overreach. Keep proper footing and balance
at all times. This enables better control of the power
WRROLQXQH[SHFWHGVLWXDWLRQV
ŶDress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can
be caught in moving parts.
ŶIf devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
ŶDo not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
ŶDo not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
ŶDo not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
1

with the switch is dangerous and must be repaired.
ŶDisconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
ŶStore idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
ŶMaintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools.
ŶKeep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
ŶUse the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
ŶKeep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
FRQWURORIWKHWRROLQXQH[SHFWHGVLWXDWLRQV
BATTERY TOOL USE AND CARE
ŶRecharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
ŶUse power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
ŶWhen battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
ŶUnder abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
ŶDo not use a battery pack or tool that is damaged or
modified.'DPDJHGRUPRGLILHGEDWWHULHVPD\H[KLELW
XQSUHGLFWDEOH EHKDYLRXU UHVXOWLQJ LQ ILUH H[SORVLRQ RU
risk of injury.
ŶDo not expose a battery pack or tool to fire
or excessive temperature. ([SRVXUH WR ILUH RU
WHPSHUDWXUHDERYH&PD\FDXVHH[SORVLRQ
ŶFollow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified
range may damage the battery and increase the risk
of fire.
SERVICE
ŶHave your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
ŶNever service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SAFETY INSTRUCTIONS FOR MITRE SAWS
ŶMitre saws are intended to cut wood or wood-like
products, they cannot be used with abrasive cut-
off wheels for cutting ferrous material such as bars,
rods, studs, etc. Abrasive dust causes moving parts
such as the lower guard to jam. Sparks from abrasive
cutting will burn the lower guard, the kerf insert and
other plastic parts.
ŶUse clamps to support the workpiece whenever
possible. If supporting the workpiece by hand, you
must always keep your hand at least 100 mm from
either side of the saw blade. Do not use this saw to
cut pieces that are too small to be securely clamped
or held by hand. If your hand is placed too close to
the saw blade, there is an increased risk of injury from
blade contact.
ŶThe workpiece must be stationary and clamped or
held against both the fence and the table. Do not
feed the workpiece into the blade or cut “freehand”
in any way. Unrestrained or moving workpieces could
be thrown at high speeds, causing injury.
ŶPush the saw through the workpiece. Do not pull the
saw through the workpiece. To make a cut, raise the
saw head and pull it out over the workpiece without
cutting, start the motor, press the saw head down
and push the saw through the workpiece. Cutting on
the pull stroke is likely to cause the saw blade to climb
on top of the workpiece and violently throw the blade
assembly towards the operator.
ŶNever cross your hand over the intended line of
cutting either in front or behind the saw blade.
Supporting the workpiece “cross handed” i.e. holding
the workpiece to the right of the saw blade with your left
hand or vice versa is very dangerous.
ŶDo not reach behind the fence with either hand
closer than 100 mm from either side of the saw
blade, to remove wood scraps, or for any other
reason while the blade is spinning. 7KH SUR[LPLW\
of the spinning saw blade to your hand may not be
obvious and you may be seriously injured.
ŶInspect your workpiece before cutting. If the
workpiece is bowed or warped, clamp it with the
outside bowed face toward the fence. Always make
certain that there is no gap between the workpiece,
fence and table along the line of the cut. Bent or
warped workpieces can twist or shift and may cause
2

binding on the spinning saw blade while cutting. There
should be no nails or foreign objects in the workpiece.
ŶDo not use the saw until the table is clear of all
tools, wood scraps, etc., except for the workpiece.
Small debris or loose pieces of wood or other objects
that contact the revolving blade can be thrown with high
speed.
ŶCut only one workpiece at a time. Stacked multiple
workpieces cannot be adequately clamped or braced
and may bind on the blade or shift during cutting.
ŶEnsure the mitre saw is mounted or placed on a
level, firm work surface before use. A level and
firm work surface reduces the risk of the mitre saw
becoming unstable.
ŶPlan your work. Every time you change the bevel or
mitre angle setting, make sure the adjustable fence
is set correctly to support the workpiece and will
not interfere with the blade or the guarding system.
Without turning the tool “ON” and with no workpiece
on the table, move the saw blade through a complete
simulated cut to assure there will be no interference or
danger of cutting the fence.
ŶProvide adequate support such as table extensions,
saw horses, etc. for a workpiece that is wider or
longer than the table top. Workpieces longer or
wider than the mitre saw table can tip if not securely
supported. If the cut-off piece or workpiece tips, it can
lift the lower guard or be thrown by the spinning blade.
ŶDo not use another person as a substitute for a
table extension or as additional support. Unstable
support for the workpiece can cause the blade to bind
or the workpiece to shift during the cutting operation
pulling you and the helper into the spinning blade.
ŶThe cut-off piece must not be jammed or pressed
by any means against the spinning saw blade. If
confined, i.e. using length stops, the cut-off piece could
get wedged against the blade and thrown violently.
ŶAlways use a clamp or a fixture designed to
properly support round material such as rods or
tubing. Rods have a tendency to roll while being cut,
causing the blade to “bite” and pull the work with your
hand into the blade.
ŶLet the blade reach full speed before contacting the
workpiece. This will reduce the risk of the workpiece
being thrown.
ŶIf the workpiece or blade becomes jammed, turn the
mitre saw off. Wait for all moving parts to stop and
disconnect the plug from the power source and/
or remove the battery pack. Then work to free the
jammed material. Continued sawing with a jammed
workpiece could cause loss of control or damage to the
mitre saw.
ŶAfter finishing the cut, release the switch, hold the
saw head down and wait for the blade to stop before
removing the cut-off piece. Reaching with your hand
near the coasting blade is dangerous.
ŶHold the handle firmly when making an incomplete
cut or when releasing the switch before the saw
head is completely in the down position. The
braking action of the saw may cause the saw head to
be suddenly pulled downward, causing a risk of injury.
SAFETY INSTRUCTIONS FOR WOOD CUTTING
BLADE
ŶPlease read the manual and instructions carefully
before using the saw blade and the machine.
ŶThe product must be in good condition, the spindle
without deformation and vibration.
ŶDo not use the product without the guards in position.
Keep guards in good working order and properly
maintained.
ŶEnsure the operator is adequately trained in safety
precautions, adjustment and operation of the product.
ŶAlways wear goggles and ear protection when using the
product. It is recommended to wear gloves, sturdy non
slipping shoes and apron.
ŶBefore using any accessory, consult the instruction
manual. The improper use of an accessory can cause
damage and increase the potential for injury.
ŶUse only blades specified in this manual, complying
with EN 847-1.
Ŷ2EVHUYH WKH PD[LPXP VSHHG PDUNHG RQ WKH VDZ
blade. Ensure the speed marked on the saw blade is at
least equal to the speed marked on the saw.
ŶAlways use blades with correct size and shape of
arbour holes. Blades that do not match the mounting
hardware of the saw will run eccentrically, causing loss
of control.
ŶDo not use blades of larger or smaller diameter than
recommended. Do not use any spacers to make the
blade fit onto the spindle.
ŶCheck the tips of the saw blade for damage or abnormal
appearance before each use. Tips that are damaged or
loose can become flying objects in use and increase the
chance of personal injury.
ŶDo not use cracked or distorted saw blades. Do not use
saw blades that are damaged or deformed.
ŶScrap the saw blade if damaged, deformed, distorted or
cracked, repairing is not permitted.
ŶDo not use HSS blades.
ŶEnsure the saw blade is mounted correctly, tighten the
DUERUQXWVHFXUHO\EHIRUHXVHWLJKWHQLQJWRUTXHDSSUR[
8-10 Nm).
ŶFastening screw and nuts shall be tightened using the
appropriate spanner, etc.
Ŷ([WHQVLRQ RI WKH VSDQQHU RU WLJKWHQLQJ XVLQJ KDPPHU
blows is not permitted.
ŶMake sure the blade and flanges are clean and the
recessed sides of the collar are against the blade.
ŶMake sure the blade rotates in the correct direction.
ŶBefore work, make a dummy cut without the motor
turned on so the position of the blade, operation of
the guards with respect to other machine parts and
workpiece may be checked.
ŶNever leave the product unattended.
ŶDo not apply lubricants on the blade when it is running.
ŶNever perform any cleaning or maintenance work when
the machine is still running and the head is not in the
3

rest position.
ŶNever attempt to stop a machine in motion rapidly
by jamming a tool or other means against the blade,
serious accidents can be caused unintentionally in this
way.
ŶDisconnect the product from the mains supply or
remove battery pack before changing blades or
carrying out maintenance.
ŶPay attention to blade packing and unpacking, it is easy
to be injured by the sharp blade tips.
ŶUse a blade holder or wear gloves when handling a saw
blade.
ŶKeep and store the blade in original packaging or other
suitable packaging, keep in dry conditions and away
from chemicals which may damage the blade.
ADDITIONAL SAFETY WARNINGS
ŶAlways clamp the workpiece safely and securely.
ŶEnsure that the product is always stable and secure
HJIL[HGWRDEHQFK
Ŷ$OZD\V ZHDU HDU SURWHFWRUV ([SRVXUH WR QRLVH FDQ
cause hearing loss.
ŶAlways wear safety goggles when using the product.
It is recommended to wear gloves for handling blades
and rough material, plus sturdy non slip shoes to
protect the feet from workpieces which may fall from
the cutting area.
ŶDisconnect the product from the mains supply or remove
battery pack before carrying out any maintenance or
cleaning the product.
ŶOnly install the battery pack when the product is
switched off.
ŶNever reach into the area near the blade unless the
blade has completely stopped.
ŶBefore use, thoroughly check the product and battery
pack for any damage or material fatigue. Repairs to
the whole product should only be carried out by an
authorised service centre.
ŶAlways use the guards on the product. Do not use
the product if the guards are not in place and working
correctly.
ŶThe lower blade guard should only open when the
blade is lowered to the workpiece and must always be
able to move freely and close automatically.
Ŷ$OZD\V IL[ DQG XVH H[WHQVLRQ EDUV IRU ZRUNSLHFH
support during operation.
ŶNever alter of modify the product or its function. Your
safety may be compromised.
ŶDo not use saw blades which are cracked, damaged
or deformed.
ŶDo not use saw blades made of high-speed steel.
ŶOnly use blades that are sharp. Replace dull blades.
ŶAlways use blades with correct size and shape of
arbour holes. Blades that do not match the mounting
hardware of the saw will run eccentrically, causing loss
of control.
ŶUse only woodworking blades specified in this manual,
which comply with EN 847-1.
ŶDo not use any flanges, washers and nuts to secure the
saw blade other than those supplied or indicated in the
instruction manual.
ŶIt is necessary to select a saw blade which is suitable
for the material being cut. Never use the product to cut
materials other than those specified in the intended use
section in this manual.
ŶIt is important to avoid overheating the blade and
melting the plastic when cutting.
Ŷ,WLVHVVHQWLDOWRDGKHUHWRWKHPD[LPXPVSHHGVSHFLILHG
on the saw blade, only use saw blade that are marked
with a speed equal or higher than the speed marked
on the tool.
ŶReplace the table insert when worn or damaged.
ŶBefore work, make a dummy cut without the motor
turned on so the position of the blade, operation of
the guards with respect to other machine parts, and
workpiece may be checked.
ŶWhen performing mitre, bevel or compound mitre cuts,
adjust the sliding fence or sub-fence to ensure the
correct clearance from the blade.
ŶThe handle lock must always be engaged when
transporting the product.
ŶKeep the floor area free of loose materials, such as
chips and cut-offs.
ŶRefrain from removing any cut-offs or other parts of the
workpiece from the cutting area whilst the product is
running and the saw head is not in the rest position.
ŶLong workpieces must be adequately supported. The
ZRUNLQJ DUHD RI WKH VDZ LQFOXGHV WKH ZKROH H[WHQW RI
the workpiece. The operator should secure this area
from accidental contact from other persons or objects
which may move the workpiece during operation.
ŶThe dust produced when using the product may be
harmful to health. Use a dust suction system and wear
a suitable dust protection mask. Remove deposited
dust thoroughly with a vacuum cleaner.

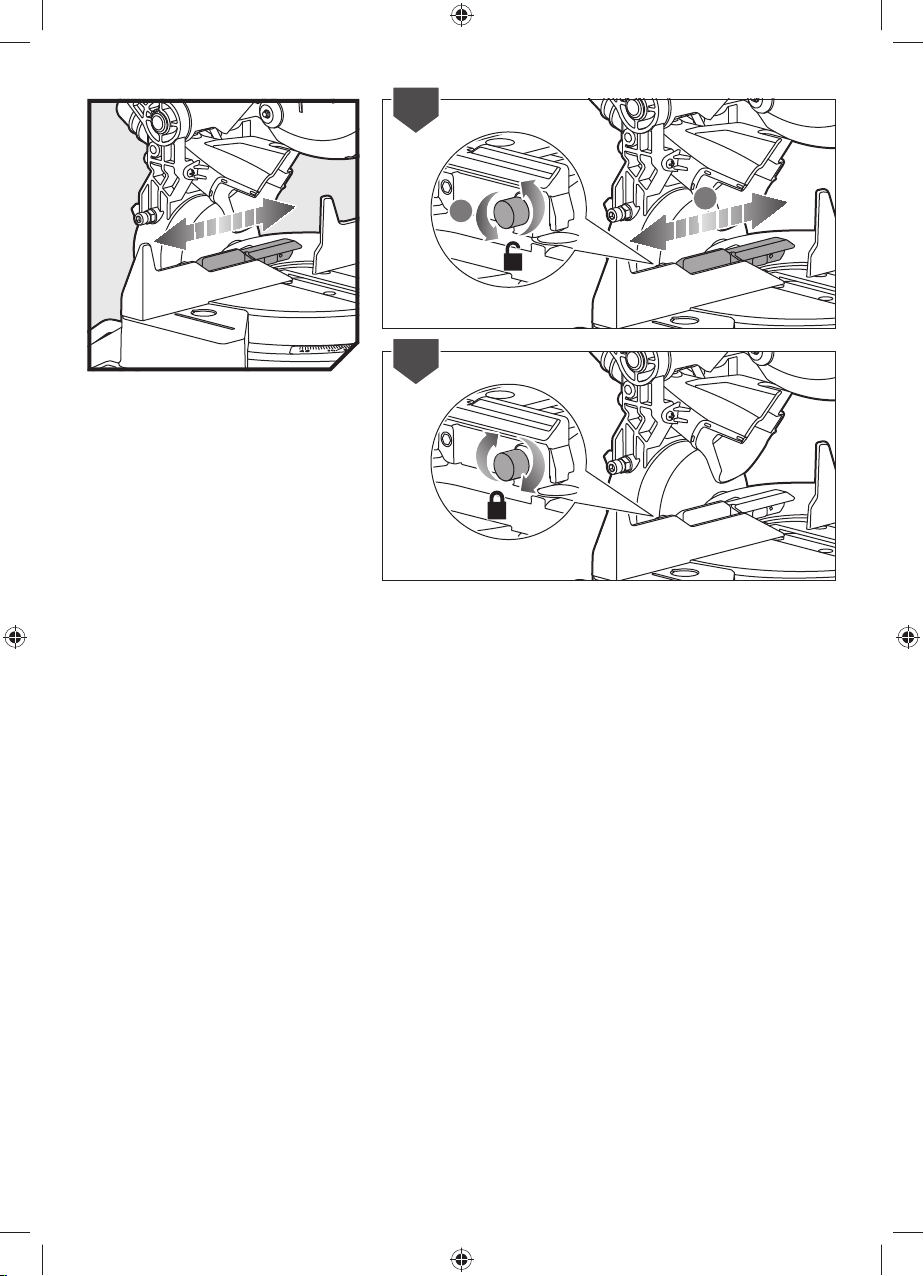

ŶIt may be necessary to adjust the sliding fence to
ensure proper clearance prior to making a bevel or
compound cut. Make sure the sliding fence lock screw
is tightened securely after the adjustment.
ŶThe clamp can be installed and used on either side of
the blade. In some operation, the clamp may interfere
with the blade guard assembly. Always make sure
there is no interference with the blade guard prior to
beginning any cutting operation to reduce the risk of
serious personal injury.
ŶAmbient temperature range for tool during operation is
EHWZHHQÛ&DQGÛ&
ŶAmbient temperature range for tool storage is between
Û&DQGÛ&
ŶThe recommended ambient temperature range for the
FKDUJLQJV\VWHPGXULQJFKDUJLQJLVEHWZHHQÛ&DQG
Û&
4

ADDITIONAL BATTERY SAFETY WARNINGS
WARNING
7RUHGXFH WKHULVN RI ¿UH SHUVRQDO LQMXU\ DQG SURGXFW
damage due to a short circuit, never immerse your
WRRO EDWWHU\ SDFN RU FKDUJHU LQ ÀXLG RU DOORZ D ÀXLG WR
ÀRZ LQVLGH WKHP &RUURVLYH RU FRQGXFWLYH ÀXLGV VXFK
as seawater, certain industrial chemicals, and bleach
or bleach-containing products, etc., can cause a short
circuit.
ŶAmbient temperature range for battery during use is
EHWZHHQÛ&DQGÛ&
ŶAmbient temperature range for battery storage is
EHWZHHQÛ&DQGÛ&
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
H[SRVHG FRQQHFWRUV ZLWK LQVXODWLQJ QRQFRQGXFWLYH FDSV
or tape. Do not transport batteries that are cracked or
leaking. Check with the forwarding company for further
advice.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise and the operator
should pay special attention to avoid the following:
ŶRisk of contact with uncovered parts of the rotating saw
blade
ŶKick-back of workpieces or parts of workpieces due to
improper adjustment or handling
ŶCatapulting of faulty carbide tips from the saw blade
ŶDamage to the respiratory system
NOTE: Wear respiratory protection masks containing
filters appropriate to the materials being worked.
Ensure adequate workplace ventilation. Do not eat,
drink or smoke in the work area.
ŶDamage to hearing if effective hearing protection is not
worn.
WARNING
Dust from certain paints, coatings and materials may
cause irritation or allergic reactions to the respiratory
system. Dust from wood such as oak, beech, MDF and
others are carcinogenic. Material containing asbestos
VKRXOG RQO\ HYHU EH ZRUNHG RU SURFHVVHG E\ TXDOL¿HG
specialist operators.
WARNING
Injuries may be caused, or aggravated, by prolonged
use of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.

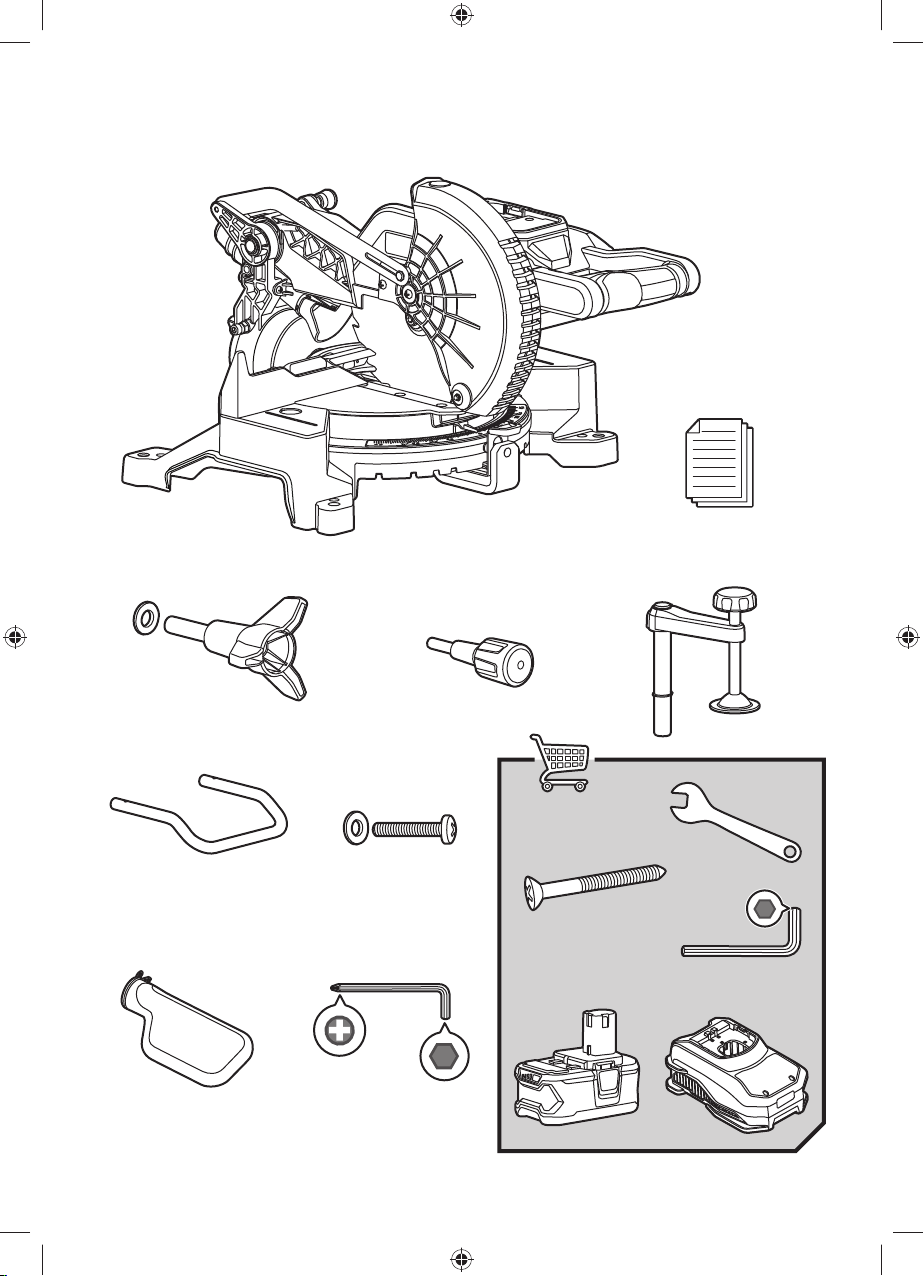

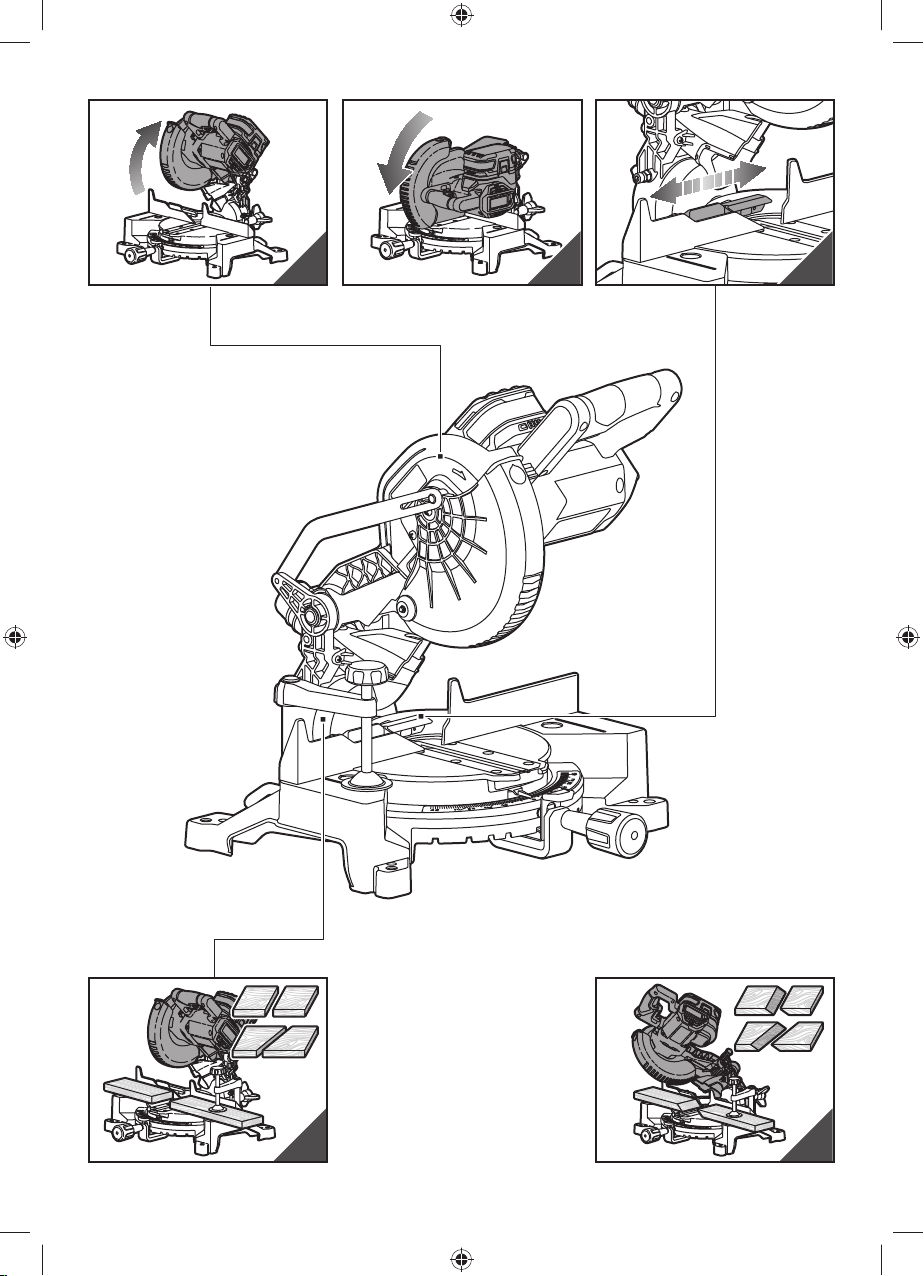

KNOW YOUR PRODUCT
See page 9.
1. Handle, insulated gripping surface
 Power switch
3. Spindle lock button
4. Lower guard
5. Main fence
6. Turntable
7. Table insert
8. Mitre detent release lever
9. Mitre lock knob
10. Battery pack
11. Upper guard
Switch lock-off lever
13. Clamp
14. Sliding fence
15. Mounting hole
16. Screws for locking main fence
17. +H[NH\
18. Screws for adjusting 45º bevel angle limit stop
19. Bevel angle lock knob
Anti-tip bar
Dust bag
Screws for adjusting 0º bevel angle limit stop
Screw for locking the sliding fence
Outer flange
Saw blade

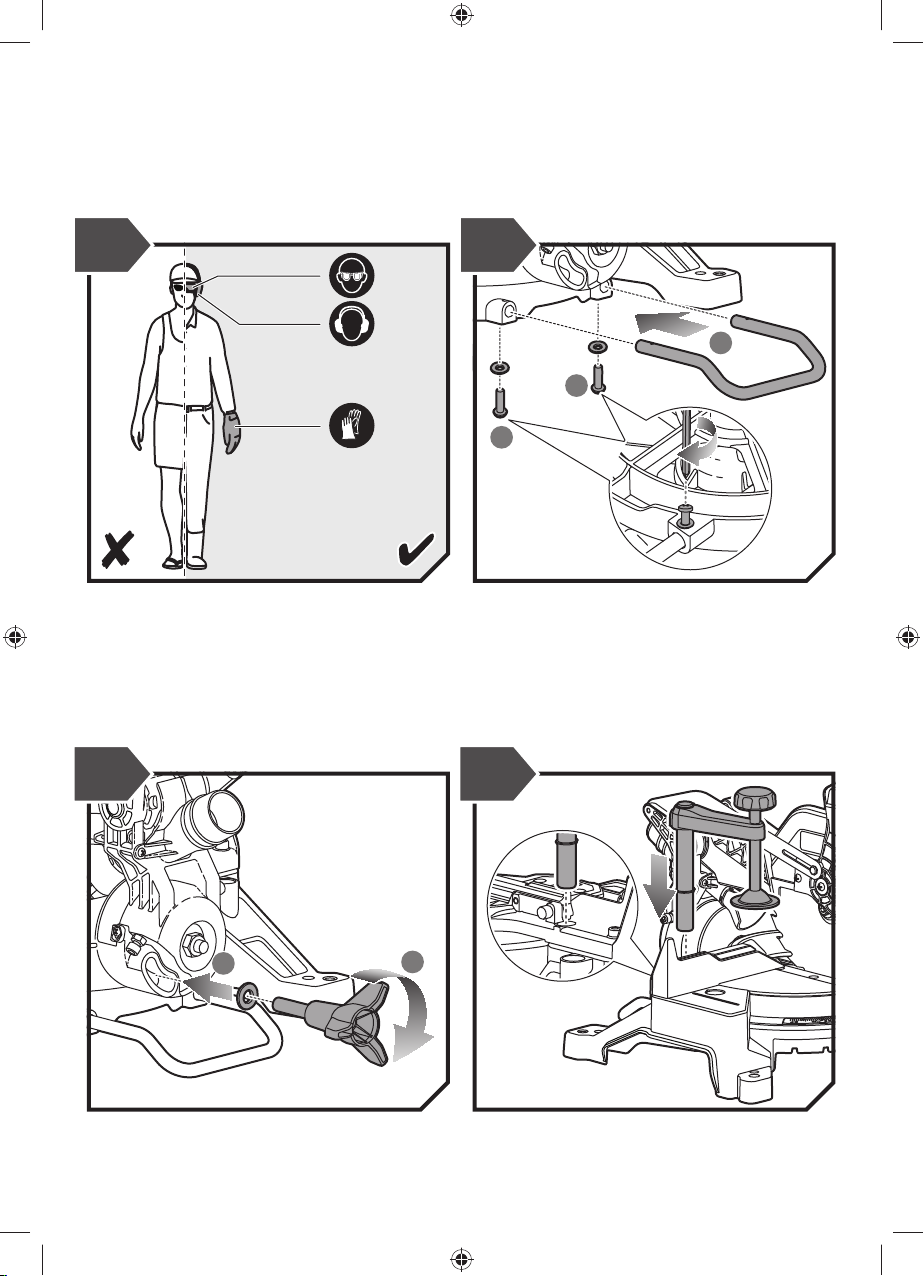

OPERATION
The product features a moving saw blade that can be set
at various angles by the operator when cutting a workpiece
ZKLFKLVVHFXUHO\¿[HGWRWKHEDVHRIWKHSURGXFW,WPXVW
be operated by only one person to prevent unintentional
contact with the moving saw blade.
The principles for safe operation of the product are as
follows:
ŶMaintain saw, blades and work area in good condition.
ŶSecure the mitre saw base to a sturdy work bench.
The product may move and tip if it is not adequately
secured.
ŶSet up and lock the cutting angles and depth before
making the cut.
ŶSecure the workpiece to the mitre saw base. Use the
clamp provided and, where necessary, use additional
clamps or holding mechanisms to prevent unintentional
movement of the workpiece while cutting.
ƔCheck that the operation of the blade guards are not
restricted by the position of the workpiece.
ƔEnsure that the fence and other parts of the product
will not be cut as the blade lowers to the cutting
position.
ŶStart the motor and allow the blade to reach full speed
before slowly lowering it to cut the workpiece.
5

ŶAllow the blade assembly to rise to its upper position
where the blade guards are fully closed. Switch off the
motor and allow the blade to come to a complete stop
before removing the workpiece or off-cuts, or before
reaching into the area of the blade.
%HIRUH¿UVWXVHHQVXUHWKDWWKHDQJOHRIWKHEHYHORUPLWUH
set on the product matches the angle to be produced on
the workpiece. Check this on a discarded piece of wood by
using a carpenter’s set or mitre square.
Remove saw blade:
1. Wear gloves when handling saw blade.
 Turn off the power and remove the battery pack.
3. Swing back the self-closing guard and hold it.
4. Press spindle lock button and unscrew the blade bolt
ZLWKSURYLGHG KH[NH\ DW WKHVDPH WLPH5HPRYH WKH
outer flange.
5. Remove the saw blade.
Mount saw blade:
If necessary, clean all parts to be mounted prior to
assembly.
After following the procedure to “Remove Saw Blade”.
1. Wear gloves when handling the saw blade.
 Ensure the power is off and the battery pack is removed
3. Swing back the self-closing guard, and hold it.
4. Place the new saw blade. Ensure the rotation direction
on the blade is consistent with the arrow direction on
the blade guard.
5. Place on the flange and blade bolt.
6. Press spindle lock button until it engages, tighten the
blade bolt.
7. Put the self-closing guard down.
Adjust mitre angle:
The mitre angle can be set in the range from 45 degree (left
side) to 45 degree (right side).
1. Loosen the mitre lock knob.
 Press mitre detent release lever. Turn the saw table to
desired mitre angle by the mitre lock knob.
3. Tighten the mitre lock knob again.
Adjust bevel angle:
The bevel angle can be set in the range from 0 degree to
45 degrees.
1. Loosen the bevel lock knob.
 Tilt the tool arm to desired bevel angle by the handle
3. Hold the tool arm in this position and retighten the bevel
lock knob.

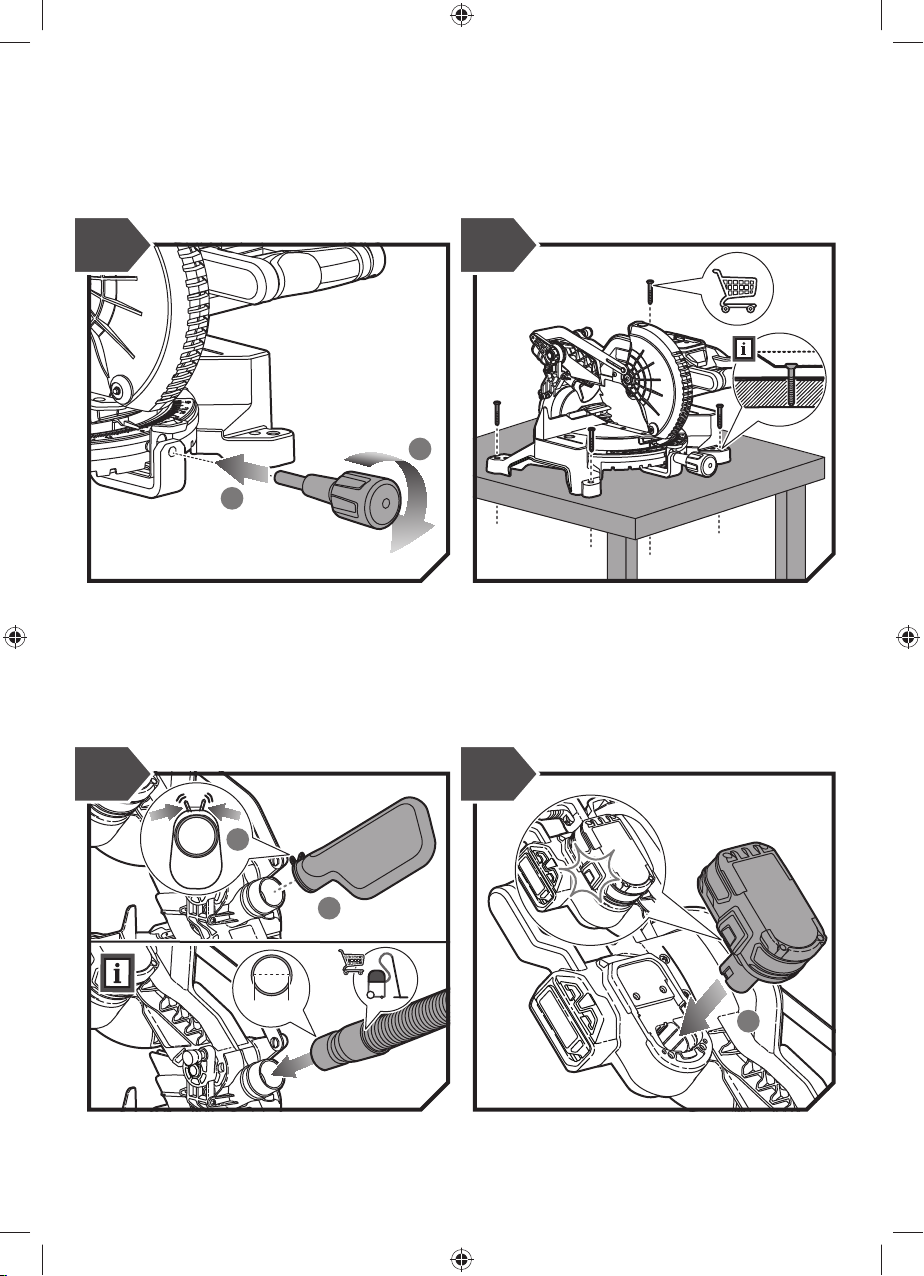

WARNING
The manufacturer strongly recommends that the product
is always securely mounted to a bench top.
:KHQWKHEDVHRIWKHSURGXFWLV¿UPO\VHFXUHGWRDEHQFK
top by four nuts, bolts and washers as instructed, the
SURGXFWFDQEHXVHGDWPD[LPXPEHYHODQGPLWUHVHWWLQJ
without the possibility of it tipping over. If the product is
not secured properly, the product may over balance when
large bevel angles are selected.
MAINTENANCE
ŶDo not modify the product in any way or use accessories
not approved by the manufacturer. Your safety and that
of others may be compromised.
ŶDo not use the product if any switches, guards or
other functions does not work as intended. Return to
an authorised service centre for professional repair or
adjustment.
ŶDo not make any adjustments whilst the saw blade is
in motion.
ŶAlways make sure the battery pack has been removed
from the product before making adjustments, lubricating
or when doing any maintenance on the product.
ŶBefore and after each use, check the product for
damage or broken parts. Keep the product in top
working condition by immediately replacing parts with
spares approved by the manufacturer.
ŶThe blade has sharp edges and may also remain hot
DIWHU FXWWLQJ RSHUDWLRQV ([HUFLVH H[WUHPH FDXWLRQ
ZKHQ FOHDQLQJ DQ H[SRVHG EODGH :HDU JORYHV WR
protect yourself from personal injury.
ŶClean the saw and its accessories from dust regularly,
especially moving parts including the blade guard.
Use a hand brush or vacuum cleaner to remove dust
effectively. Do not use compressed air.
ŶTo assure safety and reliability, all repairs, including
changing brushes, should be performed by an
authorised service centre.
WARNING
Do not attempt to disassemble the blade guard assembly
for cleaning or repair. Damaged guards should not be
used. Return to an authorised service centre for repair
or replacement.
WARNING
For greater safety and reliability, all repairs should be
performed by an authorised service centre.
Mitre and bevel angle calibration
If mitre and bevel angle calibration are needed, see pages
±DQGIROORZWKHFDOLEUDWLRQLQVWUXFWLRQV
TRANSPORTATION AND STORAGE
